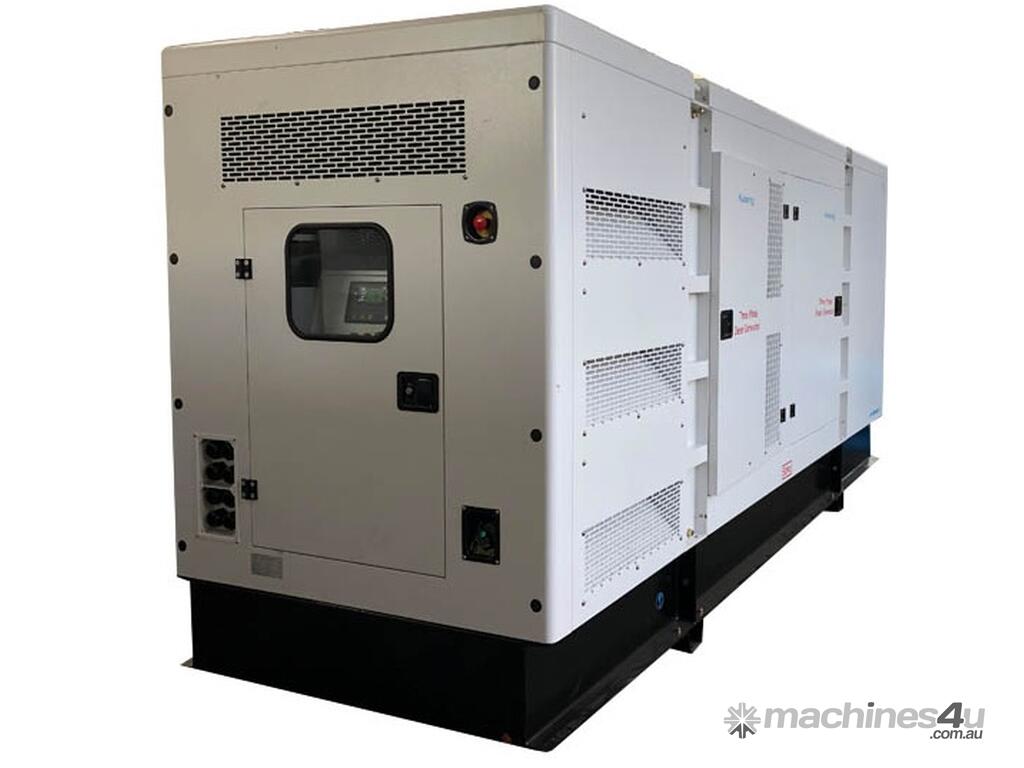

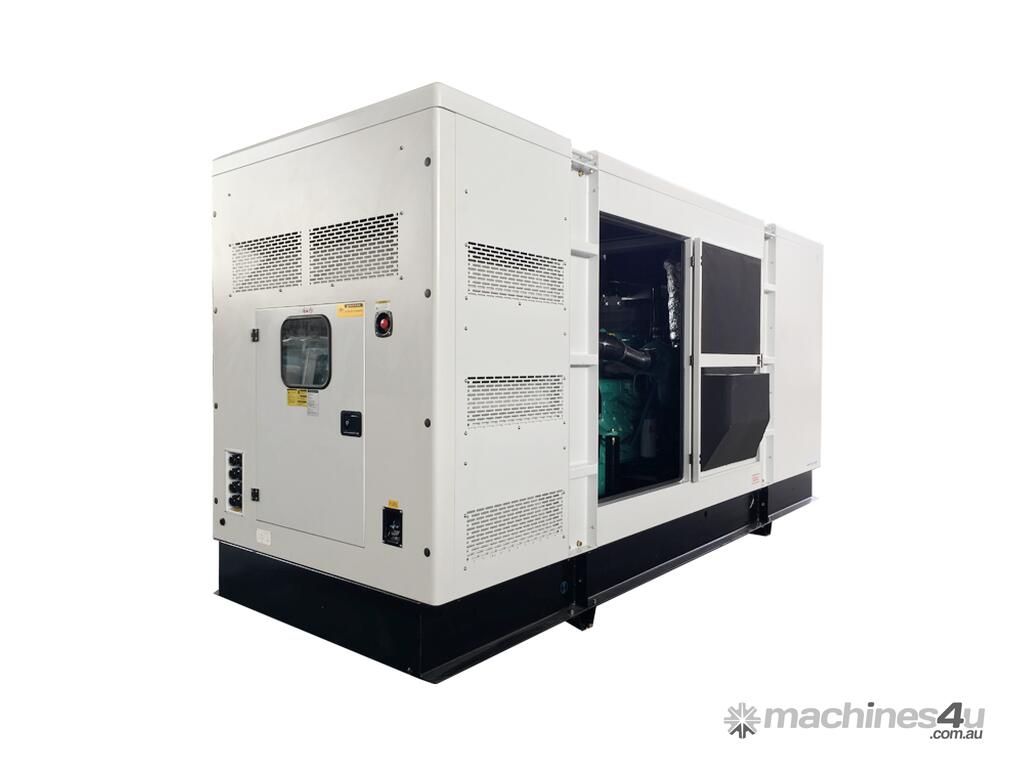

Kusing 500KVA Cummins Silenced Diesel Generator 3 Phase 415V

***Pre order now, 10-12 weeks turn around time.***

We can build custom models to your request, for example:
Add a Stamford alternator
Add your choice of controller
Extend the fuel tank to larger capacity
Mine spec the machine
You name it, we can do it!!!

Recommendations.
• These alternators are 4 pole brushless with zero THD giving a pure clean energy supply.
• Safe to use on digital equipment or any appliances that have an electronic motherboard.
• If using the generator in a remote location, a distribution board can offer different sized power outlets for convenience by purchasing from Powersafe, Hayman Electrical or talk to your local electrician.
• To maintain a healthy engine, it is recommended to run a minimum load of at least 40% at all times to prevent cylinder glazing or wet stacking. More information can be given on request, please contact us.
• Even loading across all 3 phases will ensure a long life of your alternator.
• This generator is weatherproof, however it is recommended to station the generator at least under the cover of a carport or lean to for prevention of torrential rain penetrating the internal components.
• Change all fluids after 50 hours and continue with the scheduled service plan as per instruction book.

Why you should buy from Wellku Power.

Wellku Power Pty Ltd have been manufacturing diesel generators worldwide for over 15 years. Our factory currently produces industrial diesel watercooled machines from as small as 8KVA for domestic use and up to 2750KVA or more for the large industrial projects.
Wellku Power focus mostly on manufacturing their generators using premium brand components like Cummins engines, Stamford alternators and a variety of popular brand Controllers. We also sell less expensive machines using our Kusing brand components which give customers great value for money whilst maintaining a reliable source of prime & standby power.

We offer 12 Months / 1000 hour warranty (whichever expires first) on all industrial diesel generators.

All generator sets have gone through rigorous testing before being released to the marketplace, including 50% load, 75% load, 100% load, 110% load.
All protective functions factory tested include - Earth leakage, overspeed stop, high water temperature, low oil pressure, battery charging fail & emergency stop.
With expert presales advice and after sales service, customers have been satisfied worldwide by purchasing our top quality products at very competitive prices. If you require a custom build to meet specific requirements, we are your supplier who can provide exactly what you want.
Wellku Power offer huge wholesale pricing discounts for bulk orders & and great prices for repeat customers.

Specifications:

Generator Model CK34000
Engine Brand Cummins
Engine Model KTA19-G4
Alternator Model: Kusing S354G400D2
Controller: Comap
Switch CHNT 800A
Internal protection IP22
Rate current(A) 720 per phase
Specific Fuel Consumption 93L/hr at 100% load
Engine Model KTA19-G4
NO. of Cylinder 6
Engine Type (Inline)
RPM 1500
Bore (mm) 130
Stroke(mm) 163
Speed Governor Electronic
Start system(VDC) 24
Oil Specification 15W/40
Displacement(Ltrs) 13
Oil Sump Capacity(Ltrs) 62
Coolant Capacity(Ltrs) 23.1(only engine)
Air aspiration Turbocharged
Alternator Phase 3
Brand Kusing
Model S354G400D2
3 Phase Voltage 415V
RPM/Frequency 1500rpm/50hz
Power Factor(%) 0.8(lagging)
Voltage Tolerance(+/- %) 1
Insulation Class H
Silent(KG) 4480
Silent: 4800L x 1700W x 2300H mm (20FT container)
Noise Level: Silenced Canopy 80dB
Fuel Tank Capacity 800 Litres (We can make larger fuel tanks o n request).

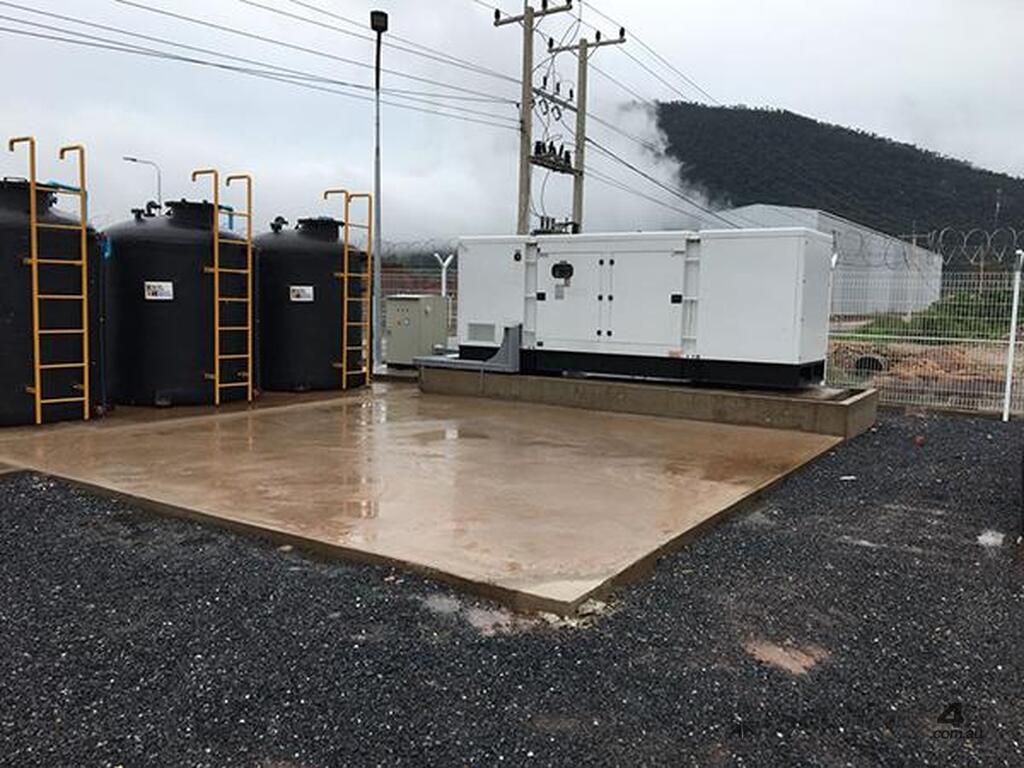

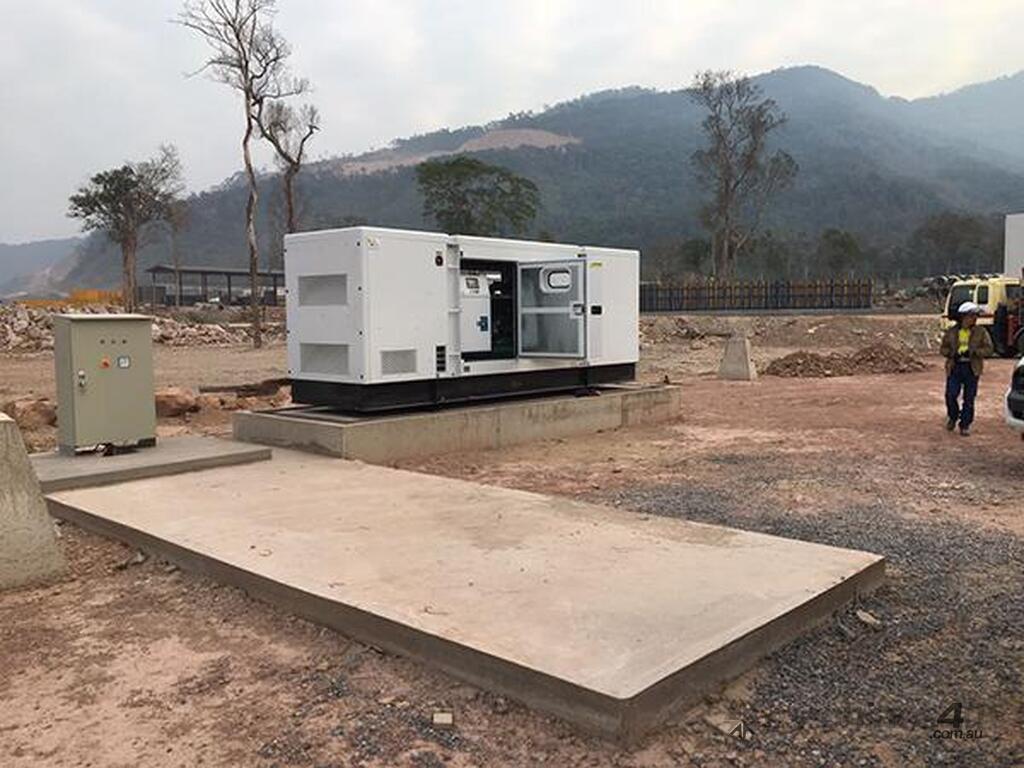

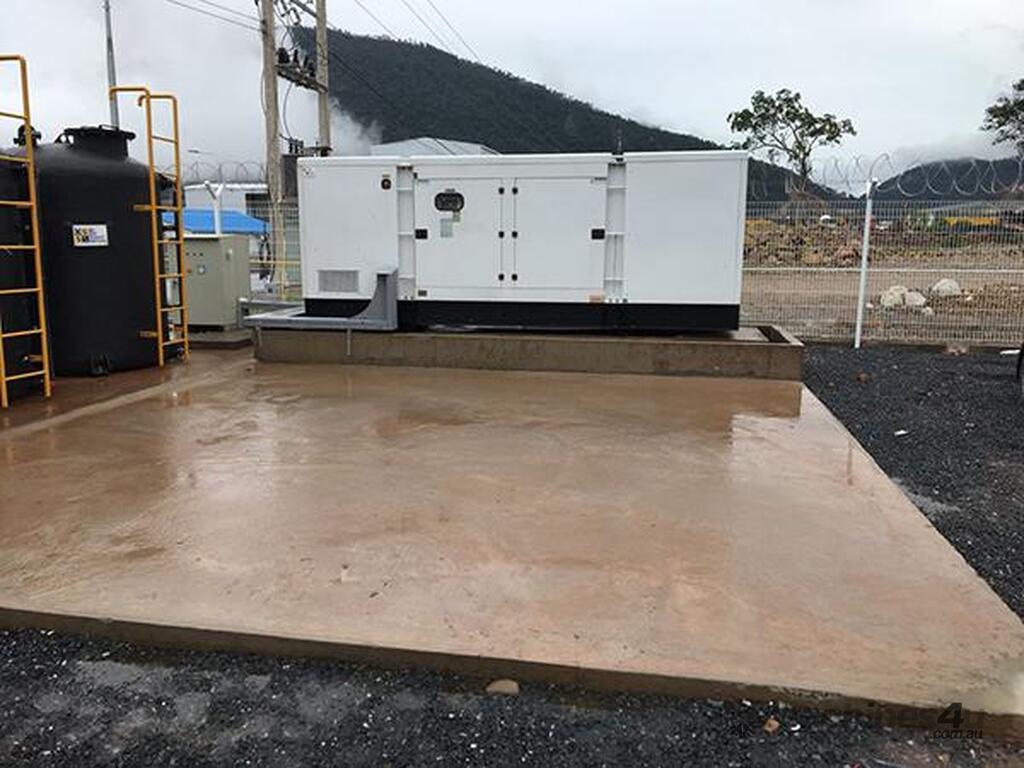

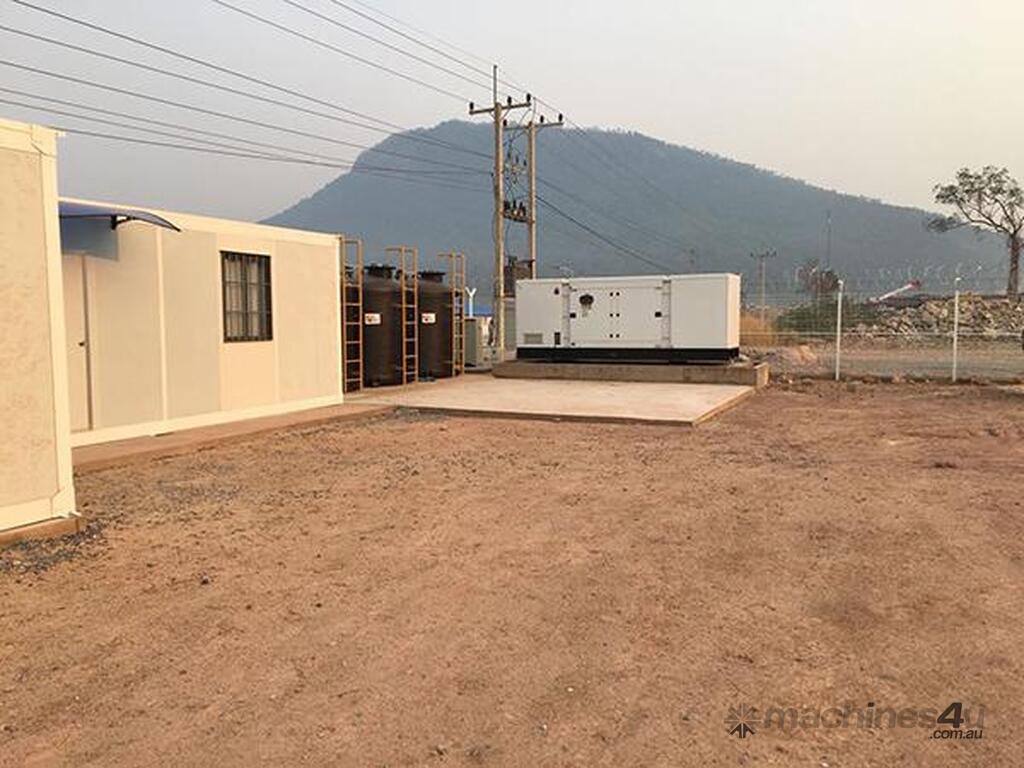

***Photos in the gallery are of a similar machine installed in Africa***
