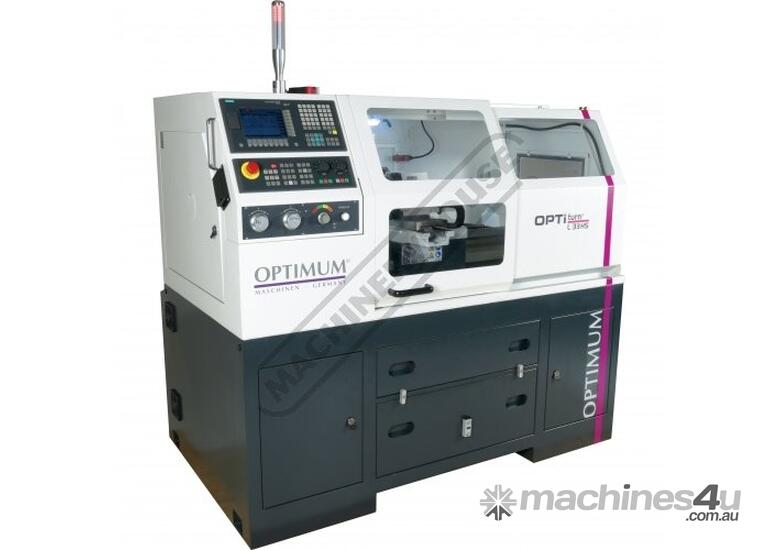

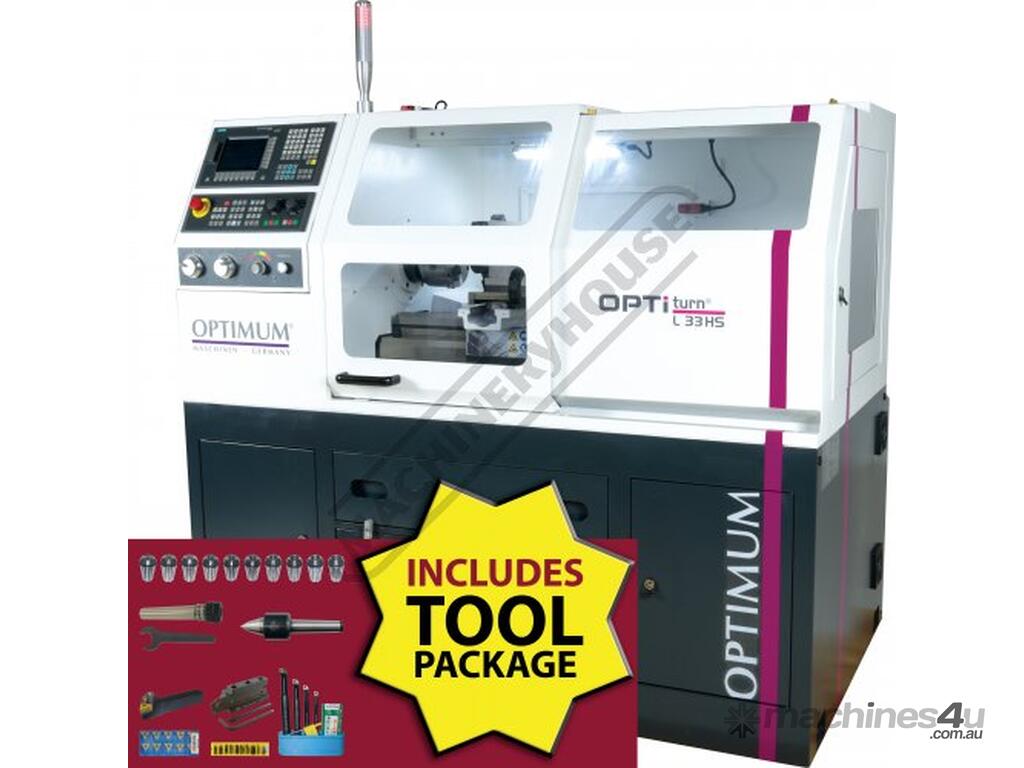

L33HS OPTi-Turn Optimum CNC Lathe Package Deal 330 x 630mm Turning Capacity

OPTIMUM L33HS OPTi-Turn Optimum CNC Lathe Package Deal 330 x 630mm Turning Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L770A

Designed and Engineered in Germany the OPTIMUM CNC range is a market leader in Europe and is now available in Australia through Hare and Forbes Machinery House. Offering exceptional value for money the OPTIMUM range can have you set up for in house CNC machining at a fraction of the financial outlay previously required.

Features:
Siemens 808D CNC control
6 station auto turret with 16mm Tooling
4000rpm main spindle speed
150mm 3 jaw chuck A2 mount.
42mm Spindle bore
330mm Swing over bed
Tailstock with MT3
2-Axis servo motor control
Constant surface speed control
Flood coolant system
Full CE Safety enclosure with Safety PLC
Central lubrication unit

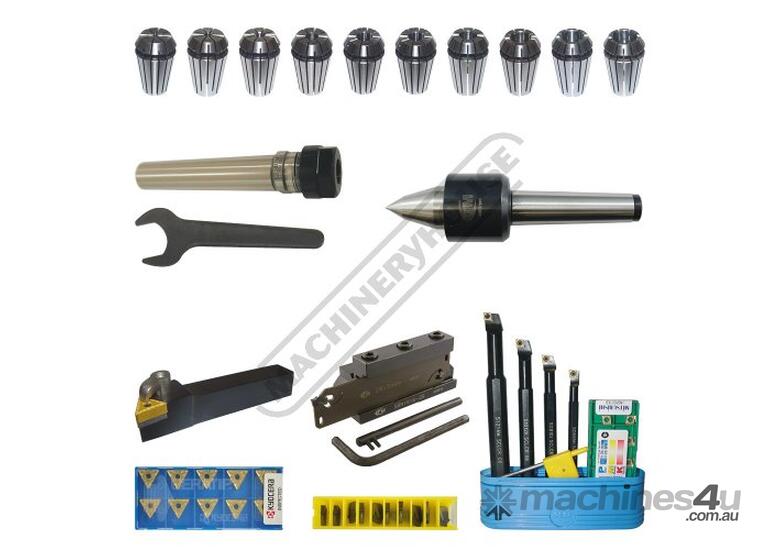

Includes:
- 1 x L770 - L33HS OPTi-Turn Optimum CNC Lathe
- 1 x (AO1003) 16mm OD x 8mm ID BORING BAR SLEEVE
- 1 x (AO1004) 16mm OD x 10mm ID BORING BAR SLEEVE
- 1 x (AO1005) 16mm OD x 12mm ID BORING BAR SLEEVE
- 1 x (C057) LIVE CENTRE 3MT EXT POINT TM
- 1 x (C822) COLLET ER16 2 - 1MM
- 1 x (C823) COLLET ER16 3 - 2MM
- 1 x (C824) COLLET ER16 4 - 3MM
- 1 x (C825) COLLET ER16 5 - 4MM
- 1 x (C826) COLLET ER16 6 - 5MM
- 1 x (C827) COLLET ER16 7 - 6MM
- 1 x (C828) COLLET ER16 8 - 7MM
- 1 x (C829) COLLET ER16 9 - 8MM
- 1 x (C830) COLLET ER16 10 - 9MM
- 2 x (C835) COLLET CHUCK STRAIGHT SHANK ER16 x 16 x 100
- 1 x (C840) WRENCH SUIT ER16 COLLET CHUCK
- 1 x (L044) TOOLHOLDER 16 X 16 R/H
- 1 x (L0512) INSERT PARTING 2.2mm KC5025
- 1 x (L064) INSERT TURNING TNMG 160408-PS
- 1 x (L430) BORING BAR SET 4 PIECE SET
- 1 x (L465) KIT LATHE PARTING 16MM



Specifications:
ORDER CODE: L770A
MODEL: L33HS OPTi-Turn PACKAGE
Tool Height (mm): 16
Accuracy (mm): ~
Repeatability (mm): ~
Maximum Turning Length (mm): 600
Maximum Turning Diameter (mm): 275
Distance Between Centres (mm): 630
Swing Over Bed (mm): 330
Centre Height (mm): 165
Bed Width (mm): 206
Spindle Bore (mm): 42
Spindle Taper (Type): A2-4
Turning Over Cross Slide (mm): 140
TailStock Taper (MT): 3
Tailstock Travel (mm): 100
Spindle Speed Range (rpm): 40 - 4000
Tool Position Number (No.): 6
Motor Power (kW / hp): 3.7 / 5
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 1250
