New shantui Wheel Loader for sale - L76 WHEEL LOADER

Overview of the L76 Wheel Loader
The L76 Wheel Loader is a heavy-duty machine built to excel in demanding environments. Powered by a Cummins QSL8.9-C280-30 engine with a robust 209 kW output and 1250 N·m of torque, it’s ready to handle tough tasks with efficiency. This loader features a 4m³ bucket capacity and an impressive dump clearance of 3540 mm, ensuring it meets the rigorous demands of industries like mining, construction, and heavy-duty material handling.

The L76 is designed for productivity with its electronically controlled fixed shaft transmission, offering 4 forward and 3 reverse speeds for optimal maneuverability. Whether it’s loading, digging, or transporting materials, the L76 combines reliability, power, and operator comfort to deliver outstanding performance.



Key Features
Engine: Tier 3 Cummins QSL8.9-C280-30 (209 kW, 1250 N·m torque)
Bucket Capacity: 4m³ for handling large material loads
Operating Weight: 24,800 kg for stability in challenging conditions
Transmission: Electronically controlled with 4 forward and 3 reverse speeds
Dump Clearance: 3540 mm for efficient material discharge
Tipping Load: 160 KN full turn, providing excellent load capacity
Cycle Time: Total of 10.1 seconds, ensuring fast and efficient operation


Enhanced Operator Experience
The L76’s spacious cab is designed with comfort and productivity in mind. Equipped with advanced features like ergonomic seating, air conditioning, and intuitive controls, operators can work efficiently during long shifts. Visibility is maximized through the cab’s design, ensuring safety and precision on the job site.



Why Choose the L76 Wheel Loader?
The L76 Wheel Loader delivers exceptional value, offering high performance and durability for the most challenging conditions. With features like a constant variable dual hydraulic pump system (25 Mpa relief pressure) and a fuel capacity of 365 L, this machine minimizes downtime while maximizing efficiency.

Built to withstand the rugged Australian landscape, the L76 is backed by comprehensive service support and Australia-wide shipping, making it a reliable partner for your operations.

Perfect for industries requiring heavy-duty material handling, the L76 strikes the ideal balance between power, reliability, and versatility.


Overall Weight
24,800 Kg

Engine Model
Cummins QSL8.9-C280-30

Engine Power
209kW2200 rpm

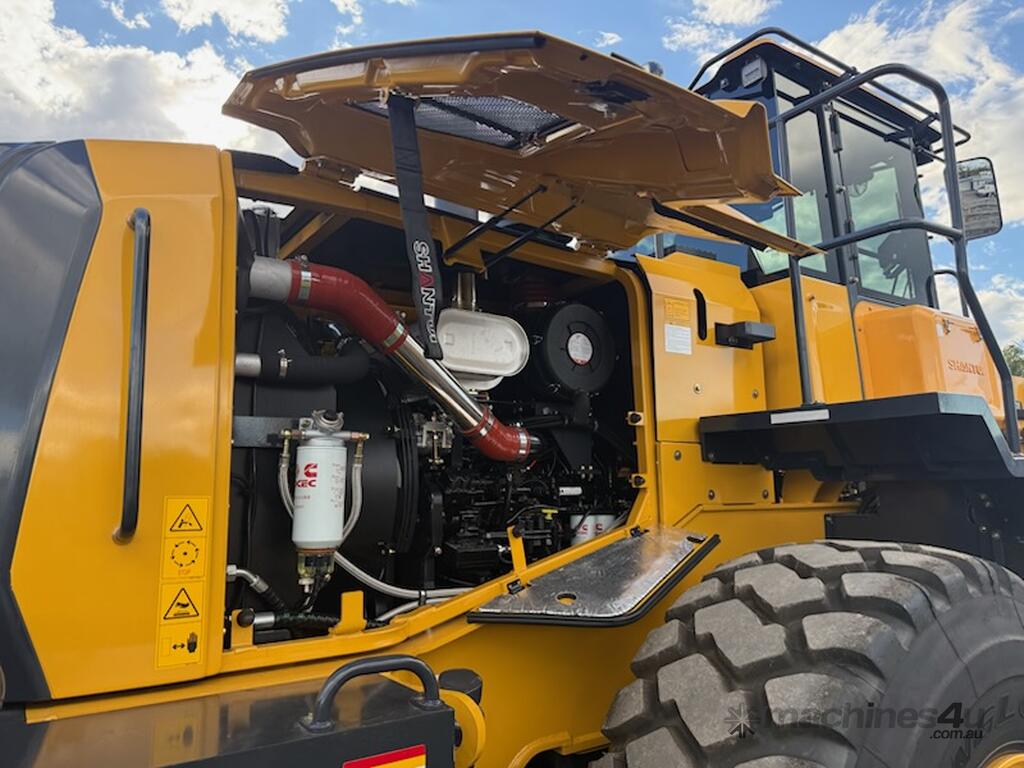

ENGINE
Emission Regulation Tier 3 / Stage III
Make Cummins
Mode QSL8.9-C280-30
Rated Power 209 kW 2200 rpm
Max Torque 1250 N · m
Displacement 8.9L
Number of Cylinders 6
Aspiration Turbocharged

LOADER ARM PERFORMANCE
Tipping Load – Full Turn 160KN
Bucket Breakout Force 215KN
Maximum Dump Angle at Full Height 450
Dump Clearance at Full Height Discharge 3540 mm
Dump Reach at Full Height Discharge 1220 mm
Maximum Hinge Pin Height 4800 mm
Maximum Digging Depth, Bucket Leve 100 mm
Bucket Capacity 4m³
Operating Weight 24800kg

TRANSMISSION
Transmission Type Electronically controlled fixed shaft
Torque Converter Single stage, three elements
Maximum Travel Speed, fwd 39.4 km/h
Maximum Travel Speed, rev 25.8 km/h
Number of Speeds, fwd 4
Number of Speeds, rev 3

AXLES
Differential Front Type –
Differential Rear Type –
Axle Oscillation +120

STEERING
Steering Configuration Articulated
Steering System Pressure 20 Mpa

BRAKES
Service Brake Type Caliper disc brake
Service Brake Actuation Air over Hydraulic
Parking Brake Type Caliper brake
Parking Brake Actuation Air brake

TIRES
Tire Size 26.5-25

HYDRAULIC SYSTEM
Main Pump Type Constant variable dual pump
confluence
Main Relief Pressure 25 Mpa
Raise time 5.5 S
Total Cycle Time 10.1 S

SERVICE CAPACITY
Fuel Tank 365 L
Hydraulic Oil Tank 185 L
Engine Oil 21 L
Axles, each 43 L
Transmission 46 L
Antifreeze 80 L

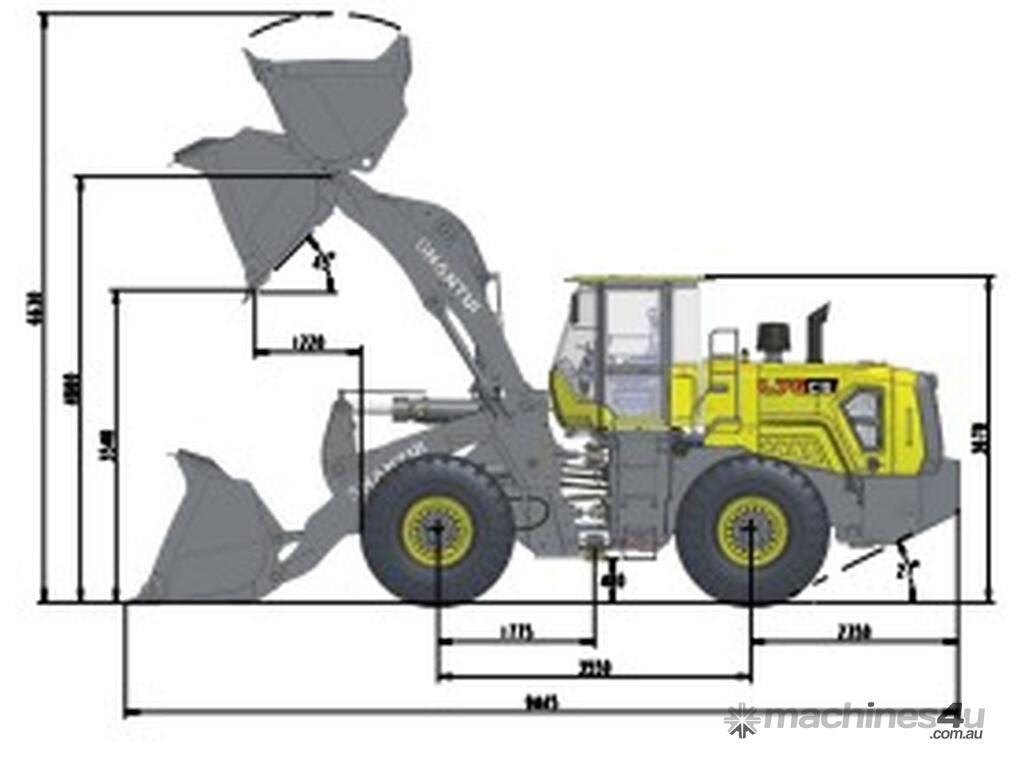

DIMENSIONS
Length 9445 mm
Width 3236 mm
Height 3670 mm
Wheelbase 3550 mm
Wheel Tread 2380 mm
Ground Clearance 480 mm

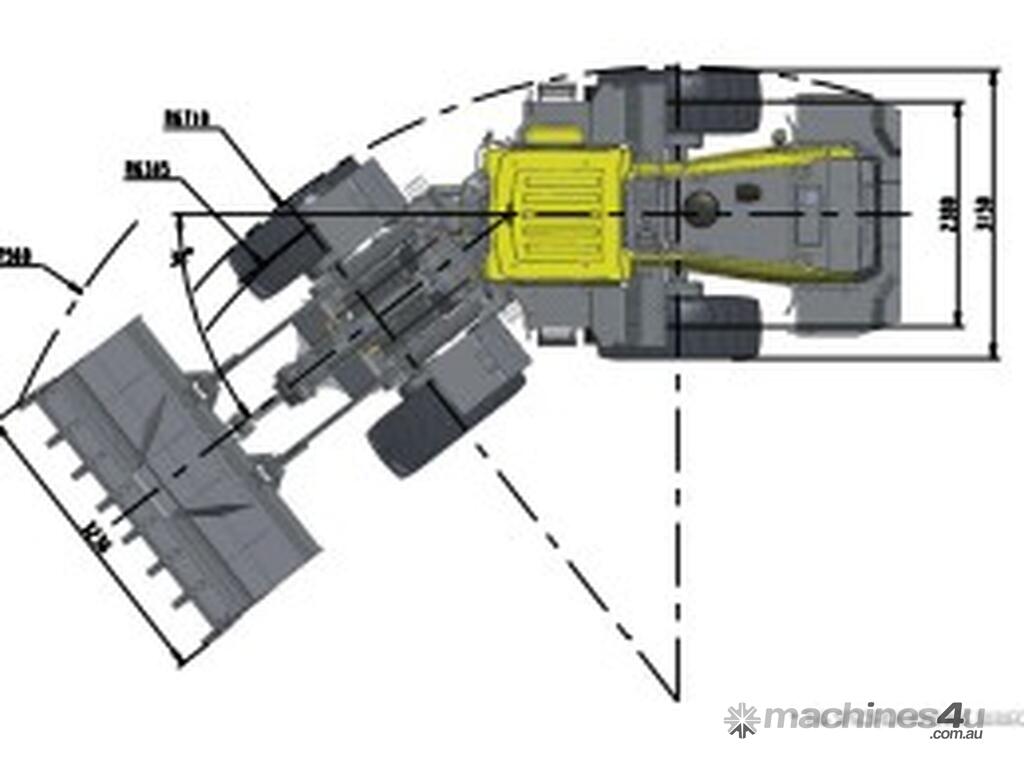

Turn Angle, Either Side 380
Turning Radius, Outside of Tire 6345 mm
Turning Radius, Center of Tire 6170 mm
Turning Radius, Bucket Carry 7560 mm
