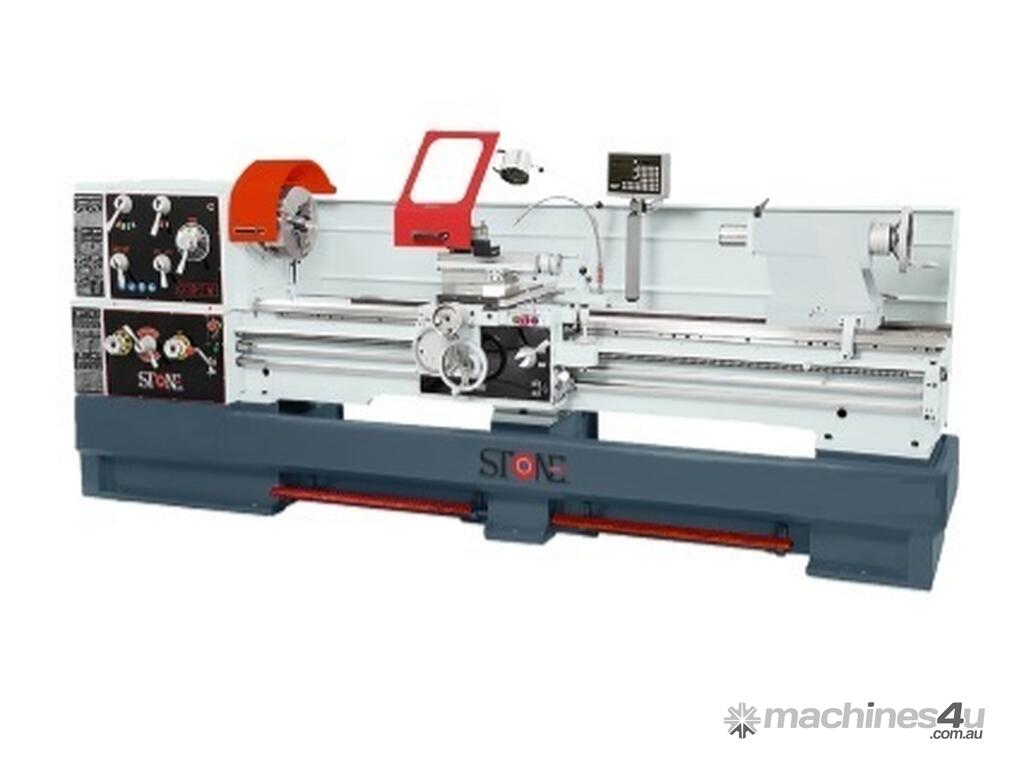

LATHE GL-6266 660X3000MM

ACCESSORIES:
3 Jaw, 4 Jaw, Face plate, Steadies, Splash guard, Foot brake, rapids on Z & X.

OPTIONAL ACCESSORIES:
Quick change tool post,2 Axia DRO.

FEATURES:* The GL-6266 lathe is a strong rigid lathe with 105mm spindle bore * Rapids on both Z & X travel * Fitted with mechanical clutch * No need for change gears * thislathe can turn about 89 kinds of threads including Inch, Metric, Module and DP * Fitted with auto stop which can be preset to the desired length.

Parameters of Category: Machine Tools
Swing Over Bed 660mm
Swing Over XSlide 420mm
Swing Over Gap 900mm
Distance Btw Centres 3000mm
Bed Width 405mm
Tool Size 25.0mm Shank
Spindle Nose D1-8
Spindle Speeds 12 Steps
Speed Range 36-1600rpm
Spindle Bore 105mm
Threading Metric 22 Kinds 1-14mm
Threading Imperial 25 Kinds 28-2tpi
Tailstock Taper MT5
Motor 10hp
Weight Nett/Gross 4310/4510
Volume 8.1939
