ACCESSORIES:

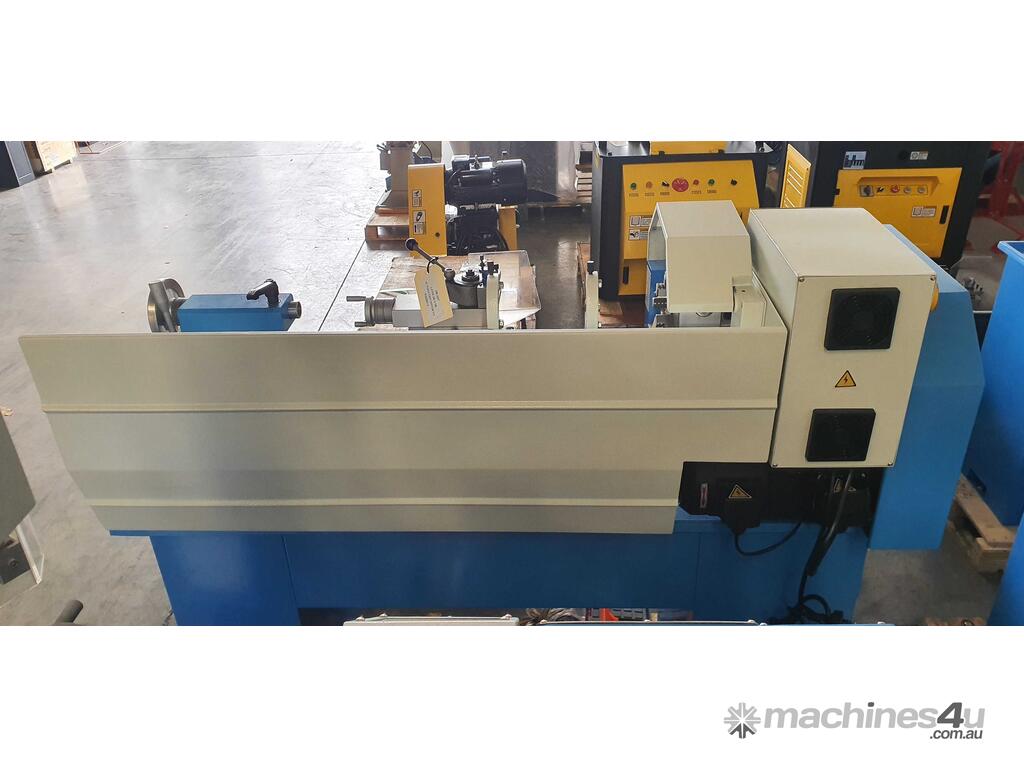

3 & 4 jaw chucks,Steadies,Stand,Chuck guard,Back plate,Chip tray,Splash guard.
OPTIONAL ACCESSORIES:
Quick change toolpost,Lathe tooling.

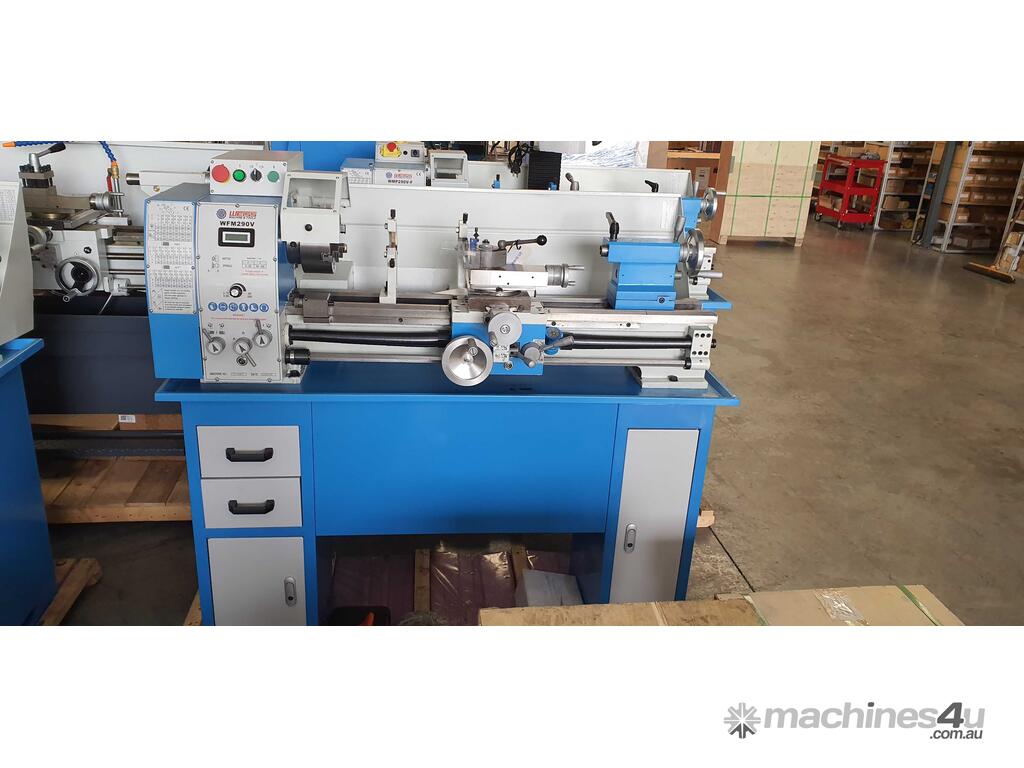

FEATURES:* This WF290VF lathe has induction hardened & ground V-Way bed for durability and long service life * Spindle is suported by precision taper roller bearings * Powered logitudinal feed allows for threading * Spindle bore of 38mm makes this lathe very versitile * Comes complete on stand * Fitted with Delta inverter and 1.5kw motor variable speed 3 phase * Spindle D1-4 camlock mount.
Cross Axis power Feed.
Parameters of Category: Machine Tools
Swing Over Bed 185mm
Swing Over XSlide 165mm
Swing Over Gap No Gap
Distance Btw Centres 700mm
Bed Width 180mm
Tool Size 12.0mm Shank
Spindle Nose D1-4 camlock
Spindle Speeds V/Speed
Speed Range 50-1800rpm
Spindle Bore 38mm
Spindle Taper MT5
Threading Metric 0.4-3.5mm
Threading Imperial 8-56tpi
Tailstock Taper MT2
Motor 0.75kw
Weight Nett/Gross 190.000/210
Volume .6664
