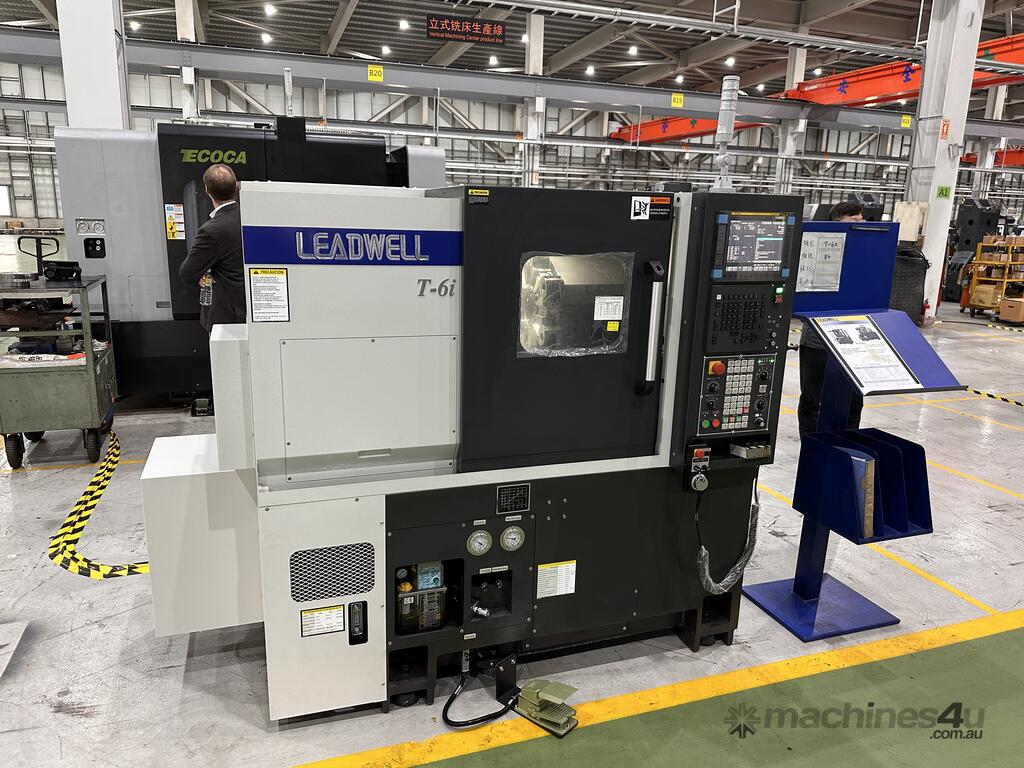

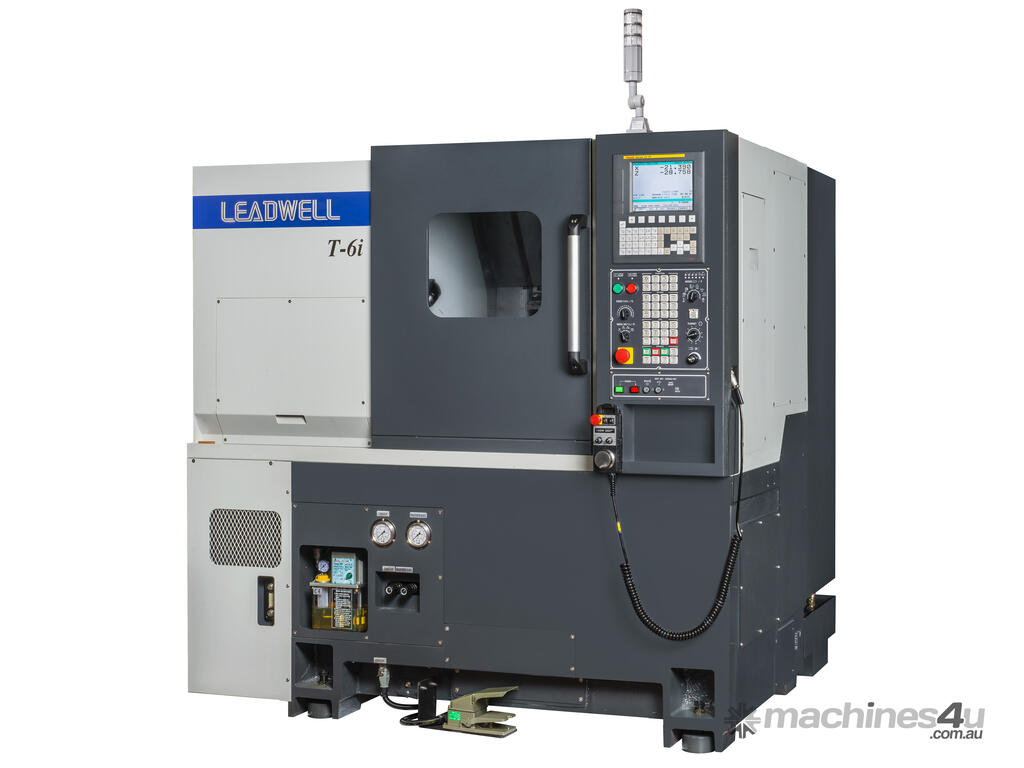

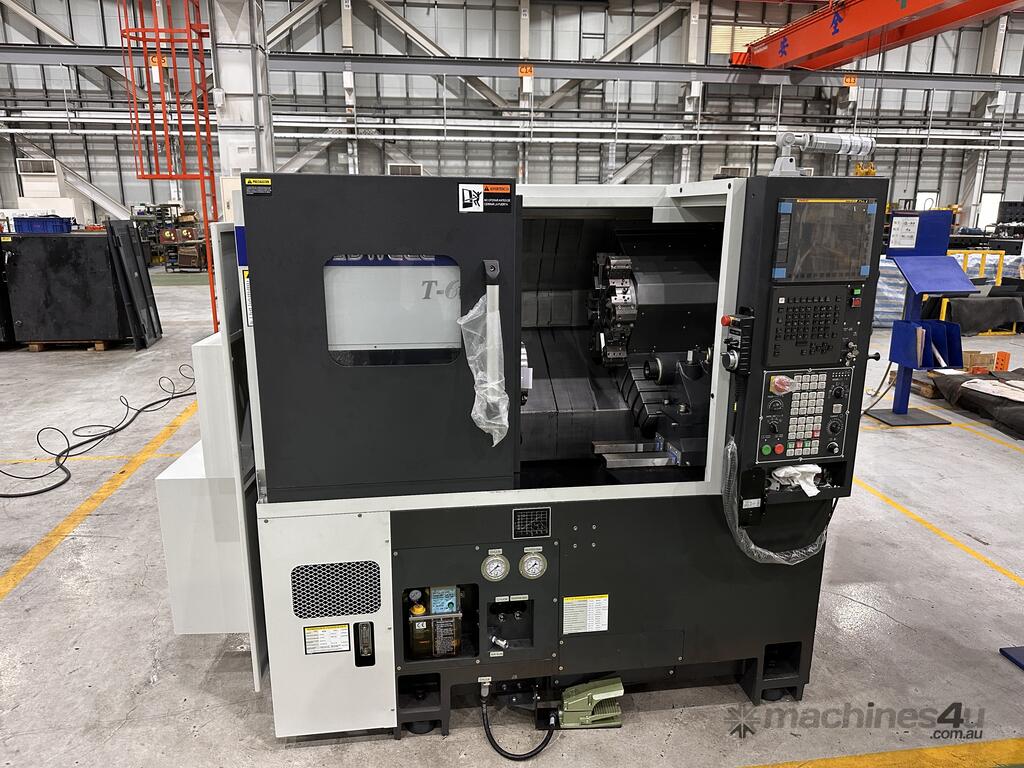

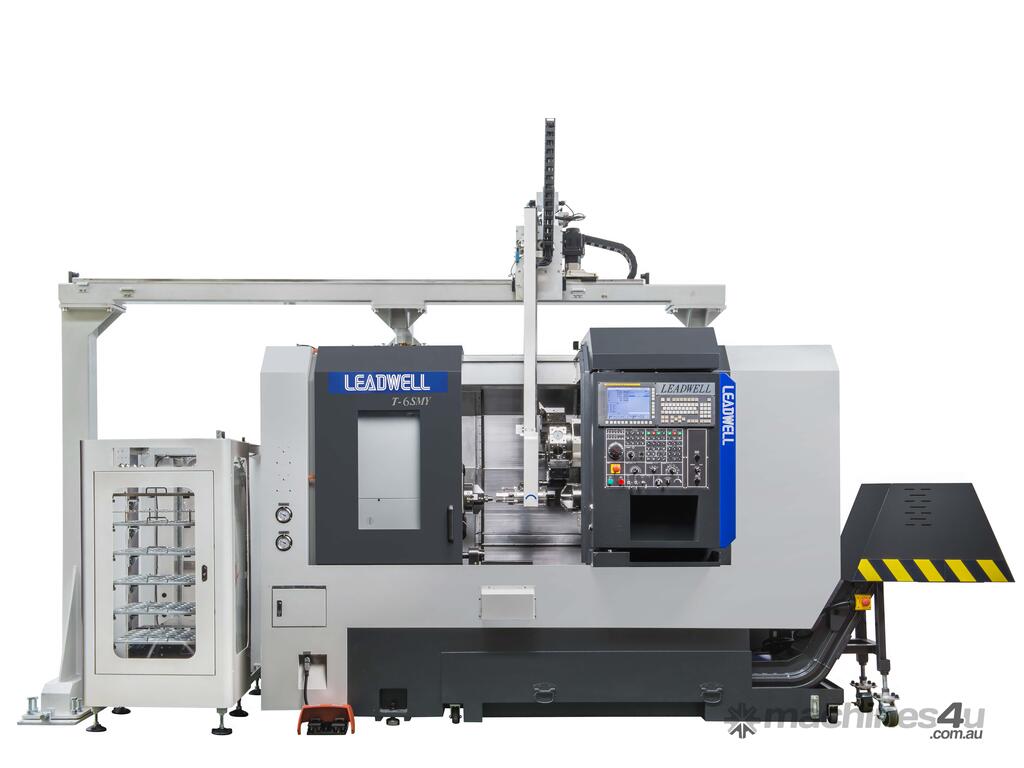

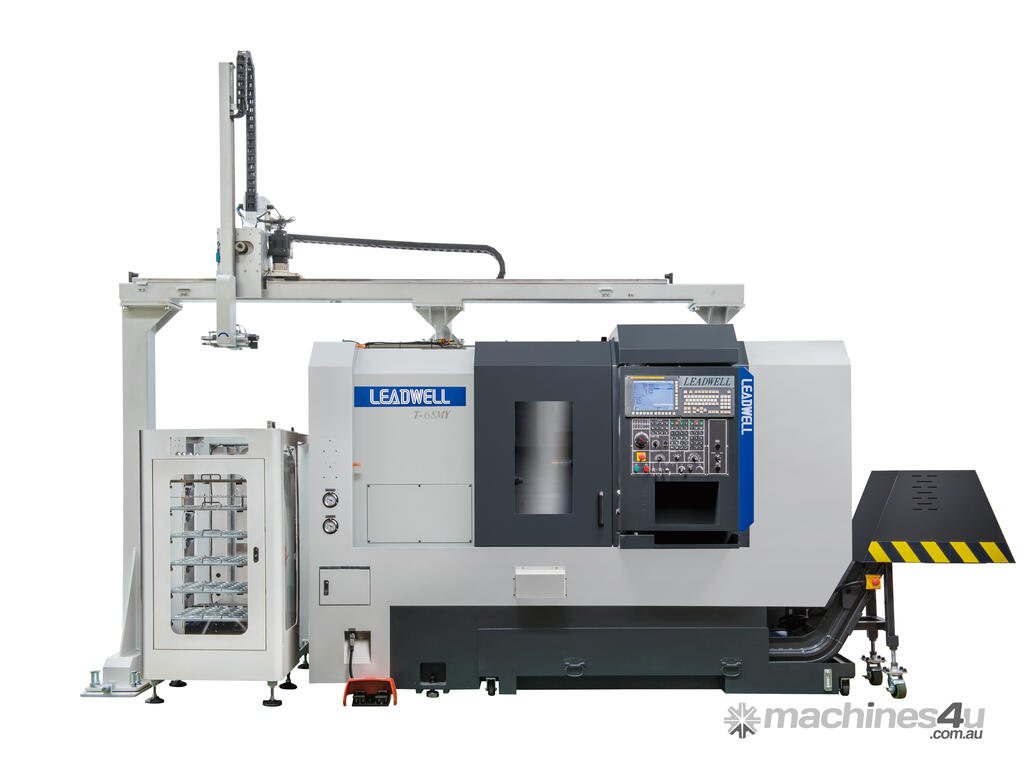

LEADWELL T-6 SLANT BED CNC LATHE

LEADWELL T-6L & LSM SLANT BED LINEAR GUIDE CNC LATHES

Innovative new design to outperform the competition.

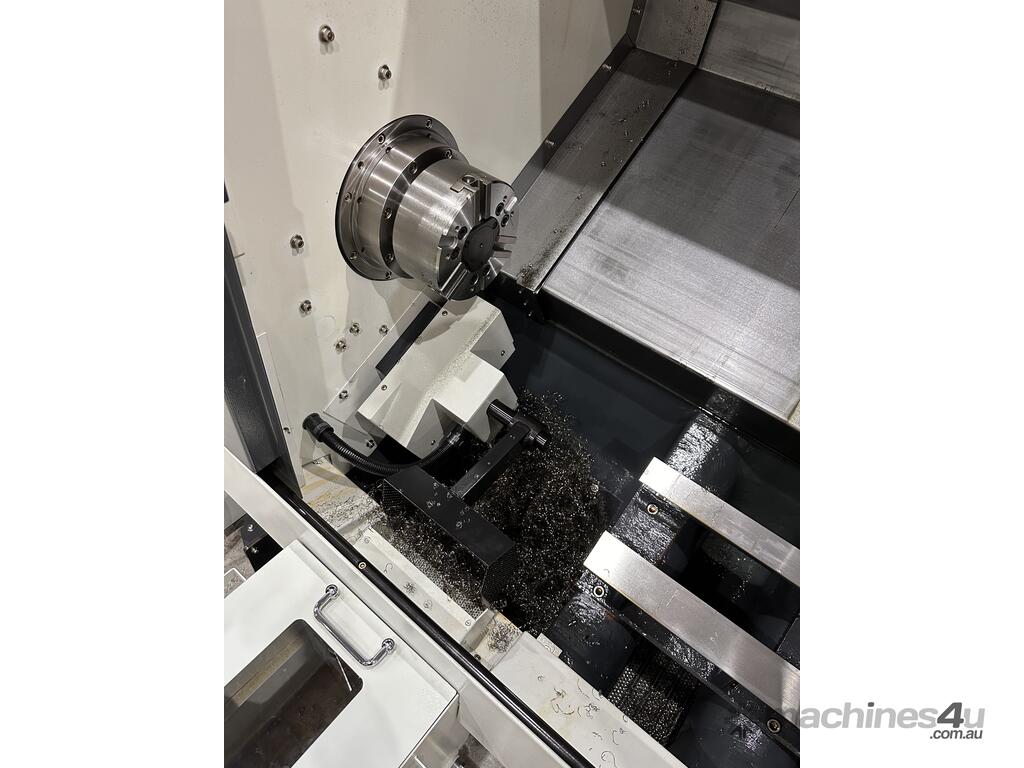

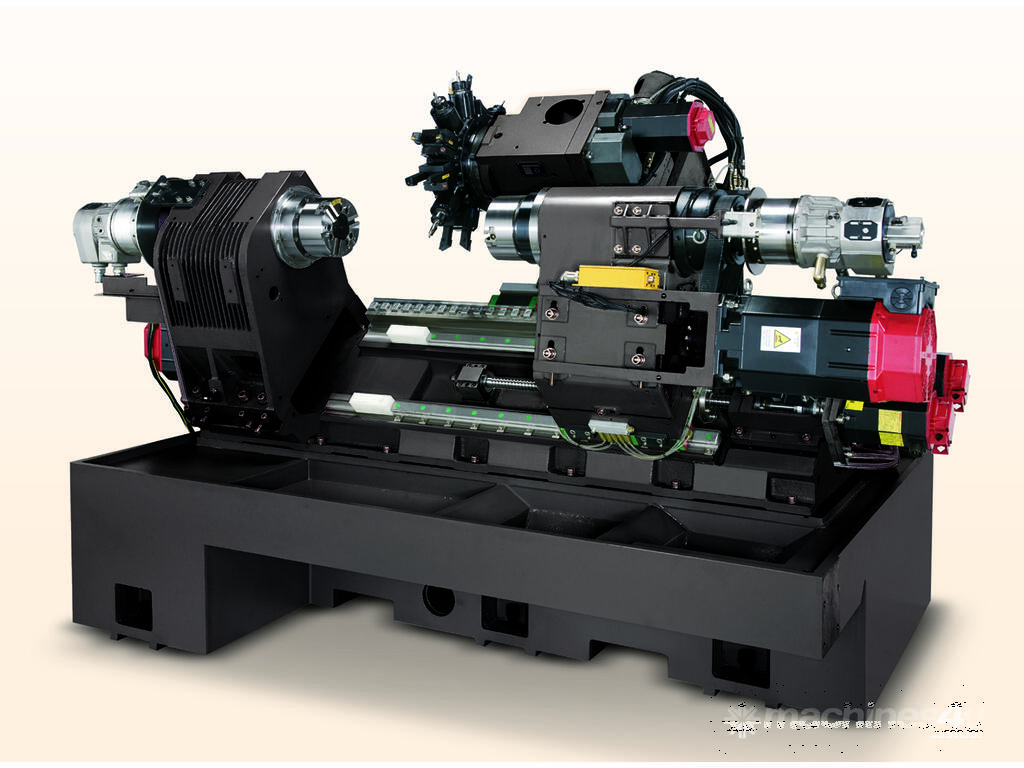

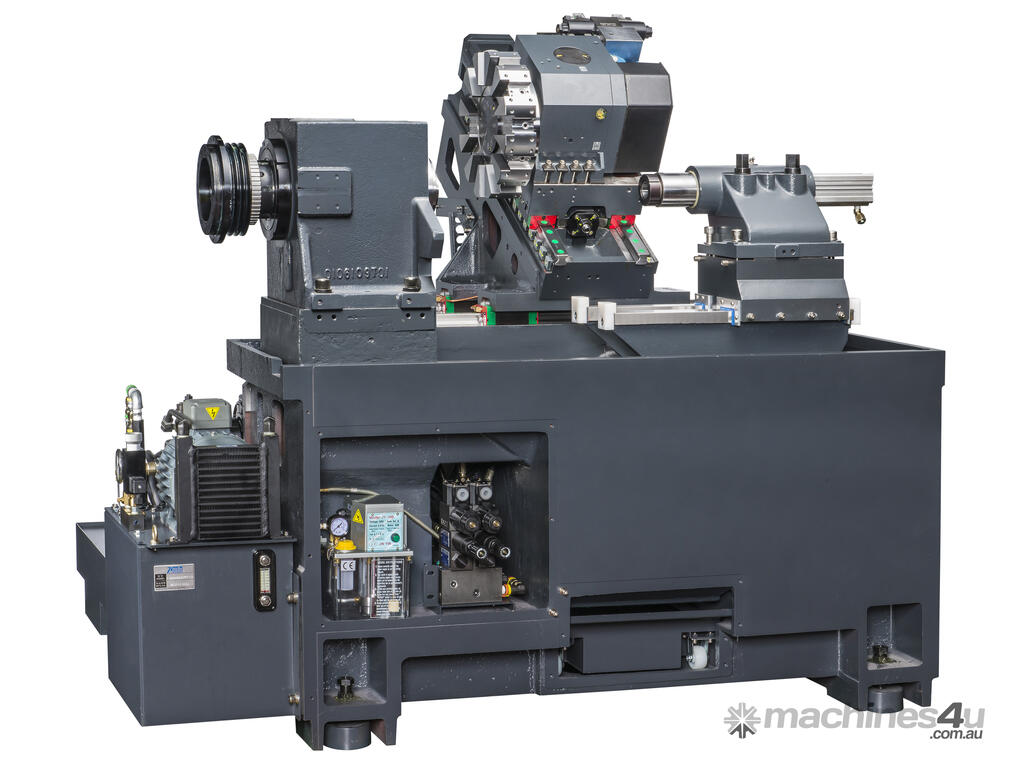

45 degree slant bed design for better chip disposal and operator access.

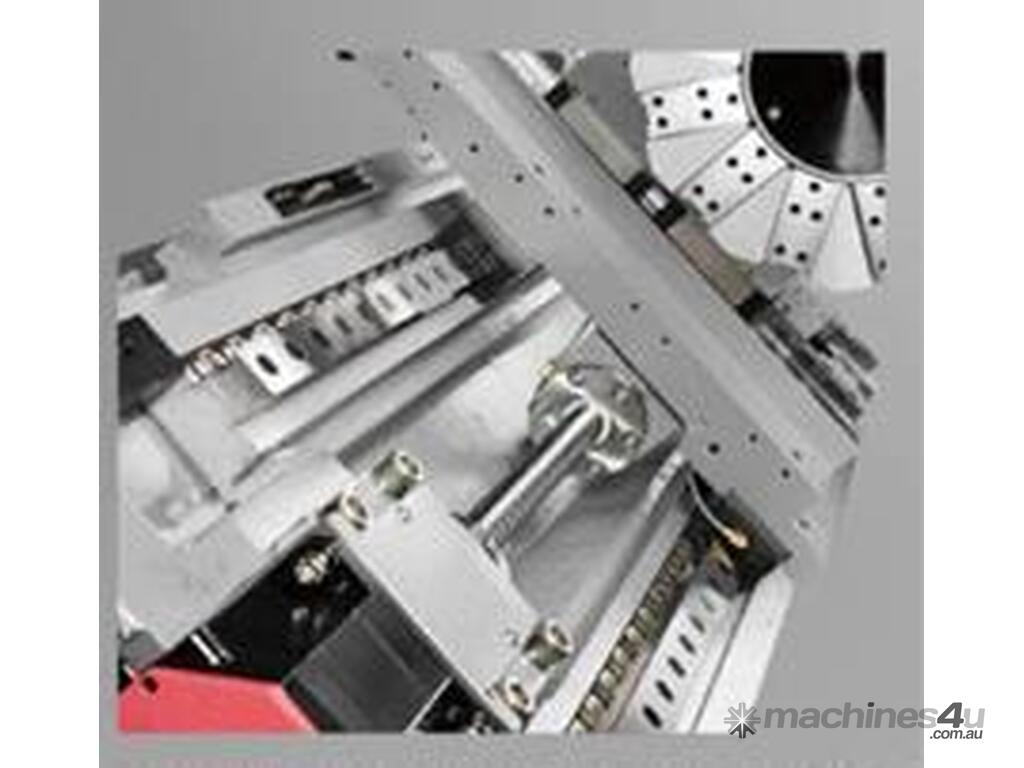

Roller type linear guideways for enhanced rigidity under heavy load while maintaining exceptional smoothness and high accuracy.

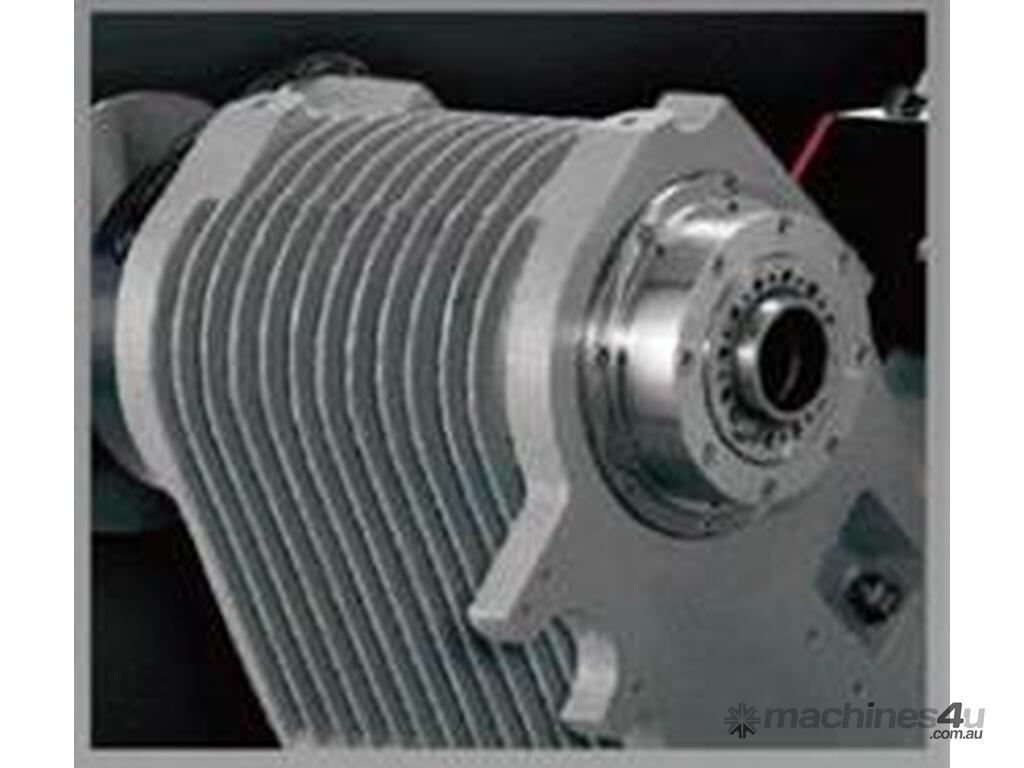

Powerful main spindle with high torque 6000 RPM spindle
A2-5 spindle nose
Optimum bearing spacing for extra rigidity
Highly accurate draw tube mechanism
Precision labyrinth seal
Large diameter quill

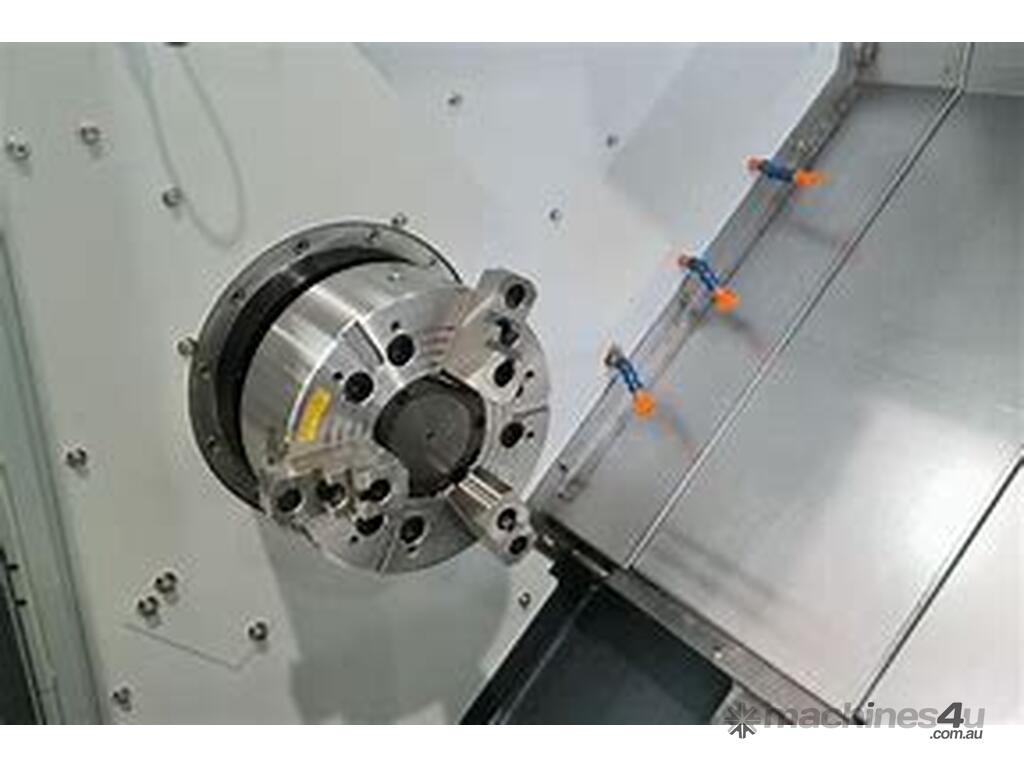

6" Chuck standard
52mm bar capacity
Fast rapid rates: X axis & Z axis: 36 m/min
Tool to tool turret indexing time. 0.4 sec
180 degree index time: 1.2 sec

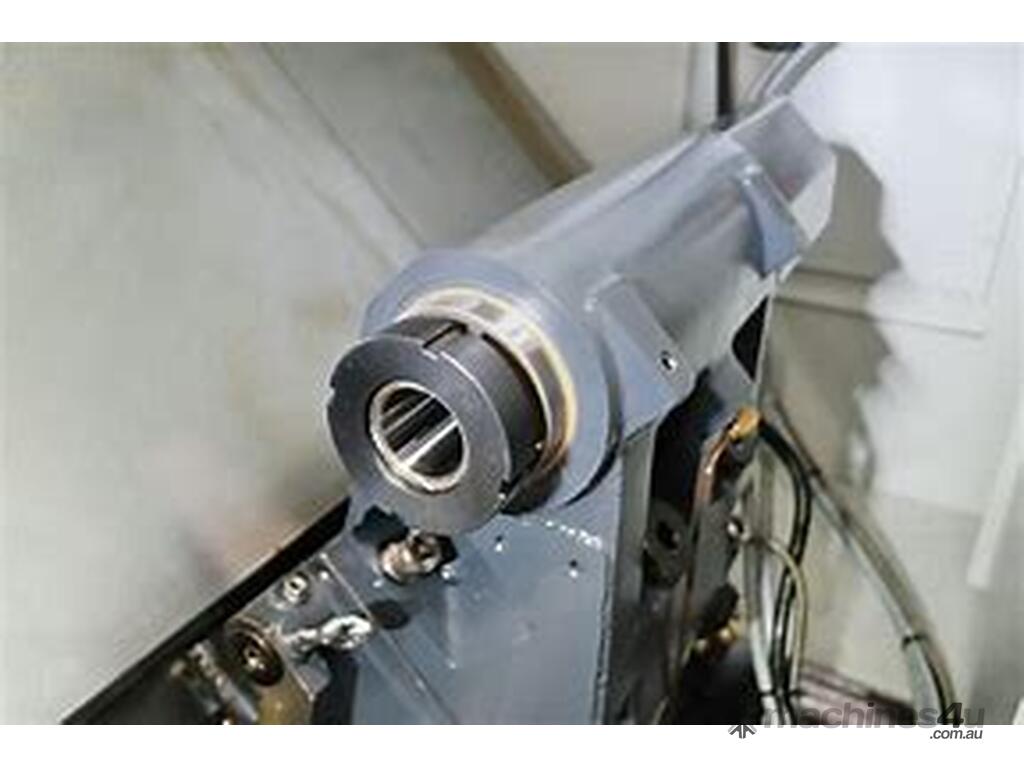

L models: Heavy duty tailstock with large diameter quill
#5 morse taper
Servo motor driven for enhanced smoothness

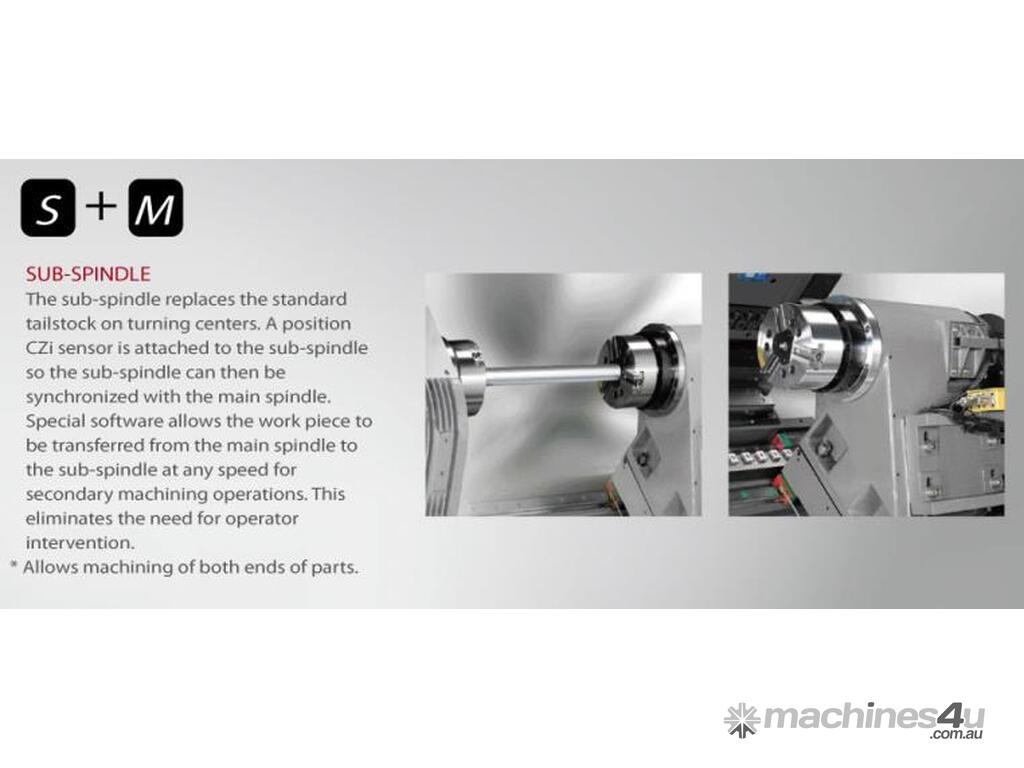

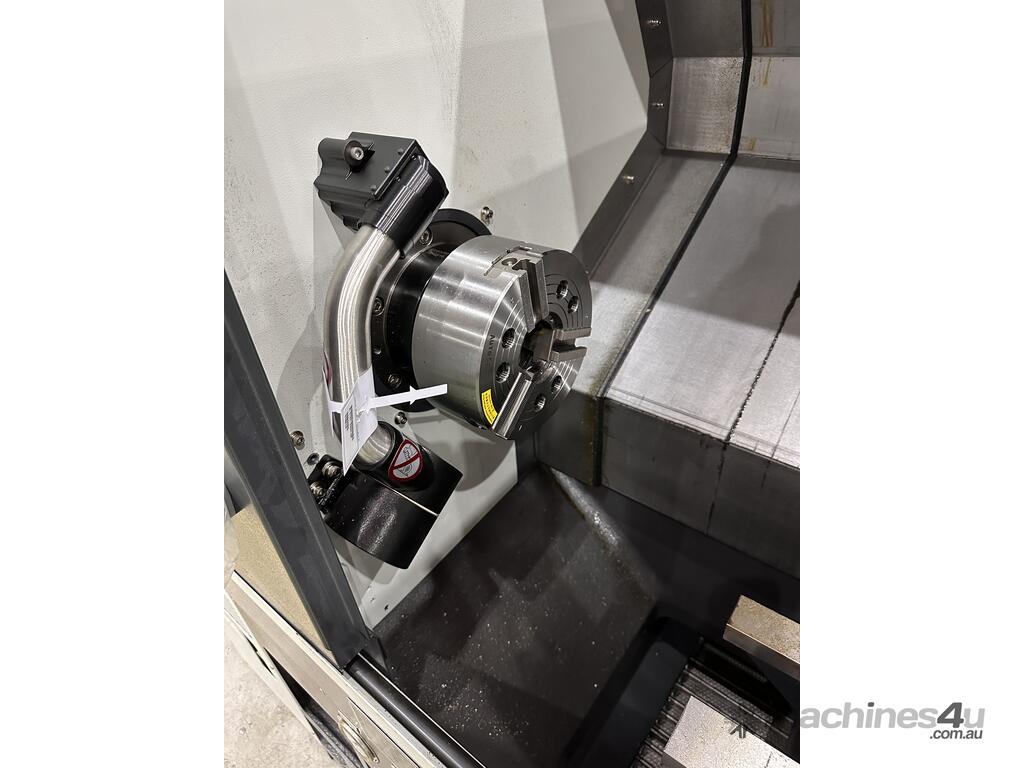

S+ M Models:
Sub spindle in place of tailstock: standard
A position CZi sensor is attached to the sub spindle so it can be synchronized with the main spindle.
Special software allows the work piece to be transferred from the main spindle to the sub spindle at any speed for secondary machining operations as well as machining both ends of parts.
This eliminates the need for operator intervention.

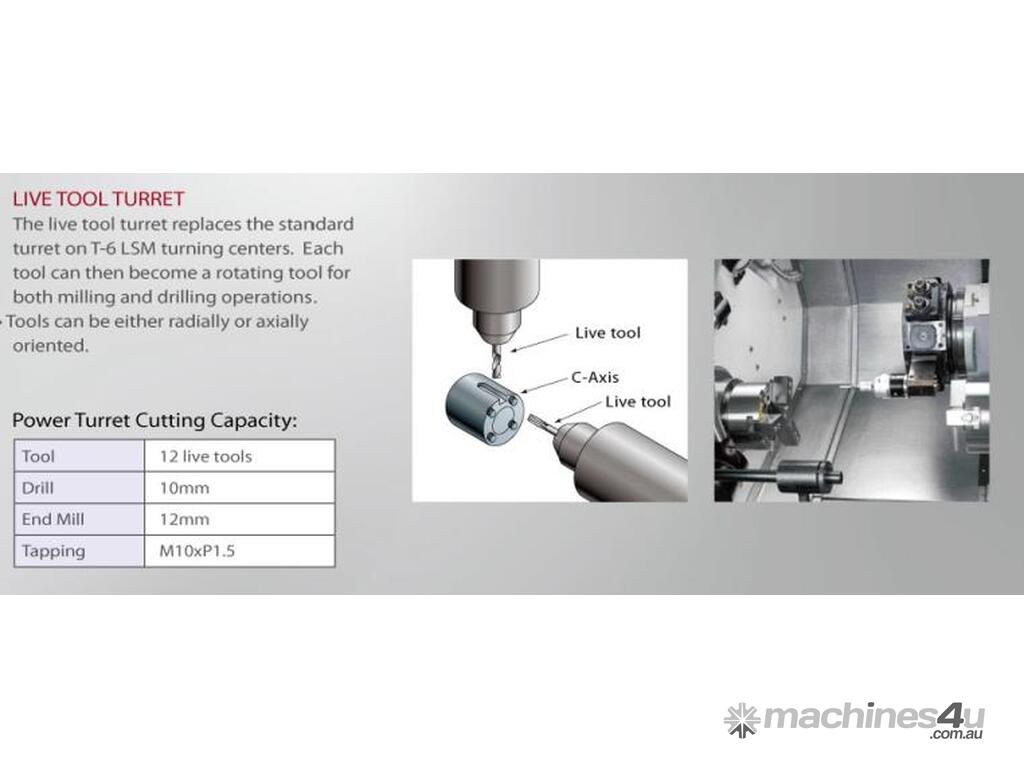

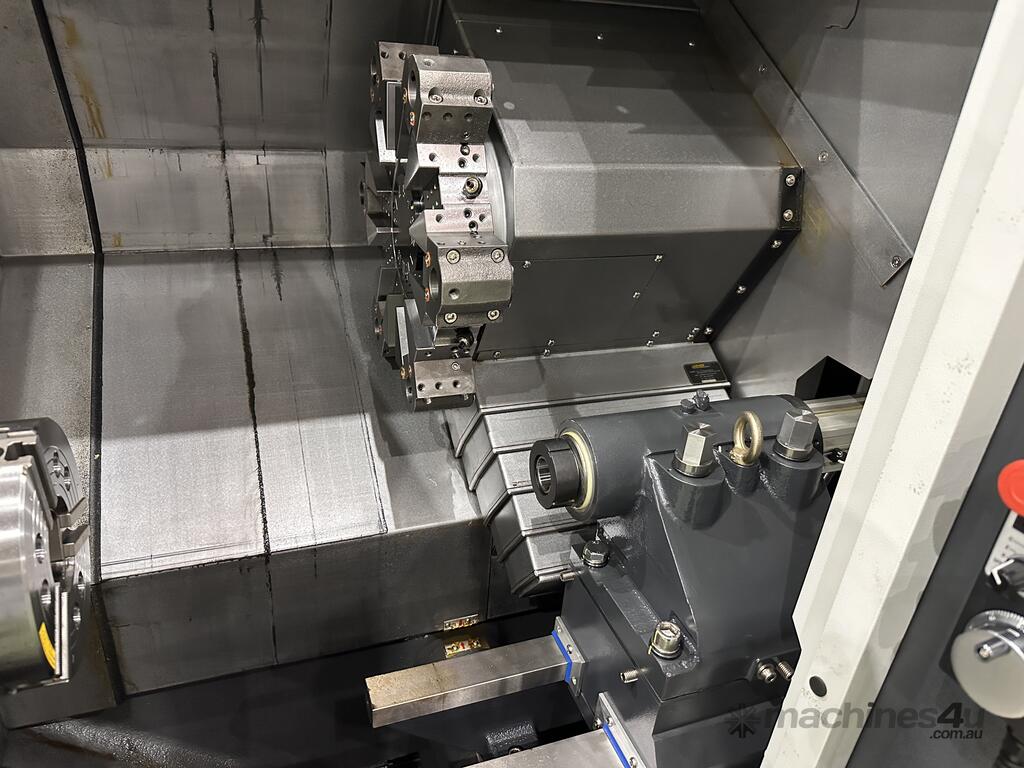

Live Tool Turret
The live tool turret replaces the standard turret on T-6 LSM.
Each tool can then become a rotating tool for both milling and drilling operations.
Tools can be either radially or axially oriented.
Power Turret Capacity:
12 live tools
Drill to 10mm
End mill: 12mm
Tapping: M10 x 1.5 Pitch
