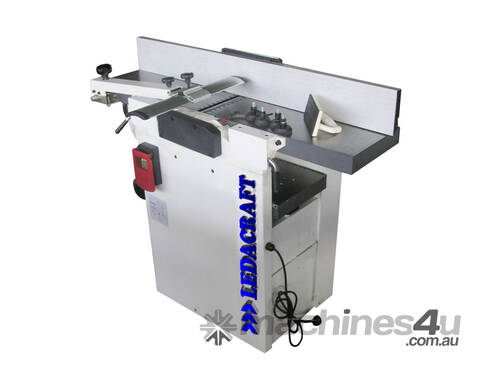

LEDACRAFT MODEL PT-107S COMBINATION 254mm (10”) SURFACE PLANER & THICKNESSER
with spiral head.
Specifications
Ground cast iron work tables for accurate work.
Spiral head
Large aluminium surface planer guide fence.
Fence quickly removed when thicknessing is required.
Work tables tilt up to allow access to thicknesser.
Dust chute for surface planer swings easily over top of cutterhead into position for thicknessing and becomes the safety guard as well.
Safety limit switch allows machine to start only if guard is in correct position.
Sheet steel machine body provides stable base for work tables.
Optional:
Slot mortising attachment mounts on front of machine with single ‘joystick’ control of table.
Technical Data
Maximum planing width (both operations) 250 mm
Maximum depth of thicknesser 190 mm
Maximum cutting depth in one pass - surface planer 3 mm
Maximum cutting depth in one pass - thicknesser 2 mm
Feed speed of thicknesser 5 metres / min
Overall length of surface planer tables 1110 mm
Diameter of circular cutterblock 75 mm
Diameter of dust exhaust hood 100 mm
Single phase drive motor 3 hp
Nett weight of machine 162 kgs
Optional Slot Mortising Attachment complete - $396.00 inc gst(mounts on front of machine with single 'joystick' control of table)
