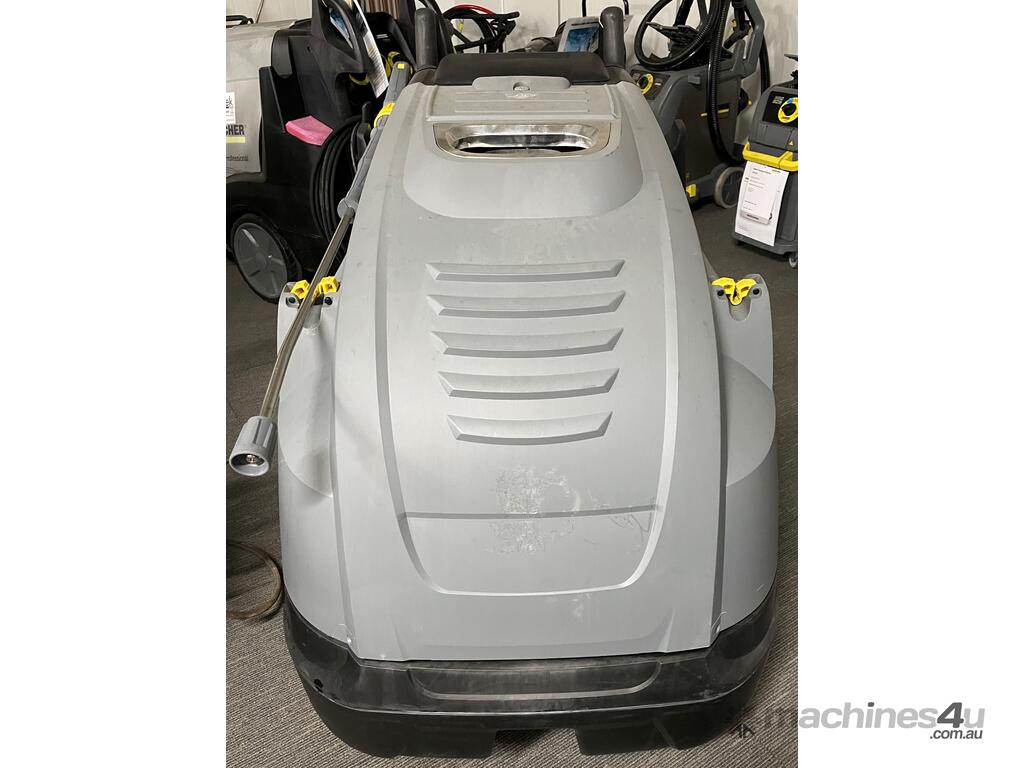

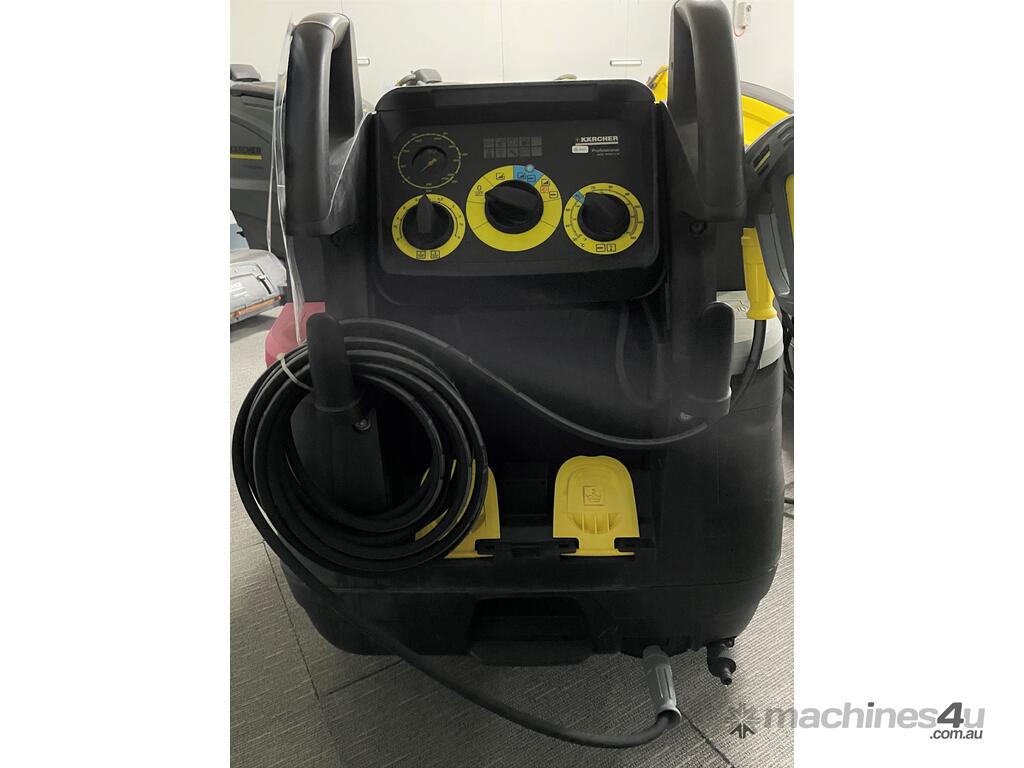

LIFTEK - KARCHER HDS 10/20-4M High Pressure Washer

HDS 10/20-4 M Force – the powerful, highly efficient three-phase hot water high-pressure cleaner in the Kärcher Middle class. With 4-pole, water-cooled electric motor, two cleaning agent tanks and service electronics.

Economical
In the Eco mode, the unit operates in the most economical temperature range (60°C) with full water flow. Burner cycles are optimised to reduce fuel consumption by up to 20% compared to full-load operation. The stainless steel heating coil offers lasting protection against corrosion and prevents the formation of black water.

Operational reliability
The large, integrated fine-mesh water filter reliably protects the high-pressure pump against the ingress of dirt particles. An integrated exhaust gas thermostat switches off the drive motor if the exhaust gas temperature exceeds 300°C. The soft damping system (SDS) compensates for vibrations and pressure surges in the high-pressure system.

``Jogger`` design with large rubber-tyred wheels and swivel castors.
Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs

Technical data
Type of current (Ph/V/Hz) 3 / 420 / 50
Flow rate (l/h) 500 - 1000
Operating pressure (bar/MPa) 30 - 200 / 3 - 20
Temperature (feed 12 °C) (°C) min. 80 - max. 155
Power rating (kW) 7.8
Fuel oil consumption, full load (kg/h) 6.4
Power cord (m) 5
Fuel tank (l) 25
Weight (with accessories) (kg) 159.1
Weight incl. packaging (kg) 171.1
Dimensions (L x W x H) (mm) 1330 x 750 x 1060


Model: HDS 10/20-4 M
Serial: 10221
Article Number: 1.071-903.0
2017 model

Serviced and ready for work

LIFTEK AUSTRALIA CAN DELIVERY AUSTRALIA WIDE

WE ARE FAMILY OWNED AND OPERATED

Located in Griffith and Wagga Wagga, NSW, Liftek Australia serves as the authorized dealer for Toyota Industrial Equipment JLG Access Equipment, Wacker Neuson and a reliable supplier of Karcher Cleaning Products.

Our extensive hire fleet boasts over 200 forklifts, ranging from 1 to 50 tonnes, featuring Petrol, LPG, Diesel, and Electric units. Additionally, we offer a diverse selection of Karcher Cleaning Equipment for both short and long-term rentals. Liftek provide an unparalleled blend of premier products, competitive pricing, and unparalleled backup service.

Go to the Liftek showroom on Machines4u to view the range of machinery, send Liftek a message about the item that you are interested in, or give Liftek a call, we are happy to answer any of your questions.

* CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
