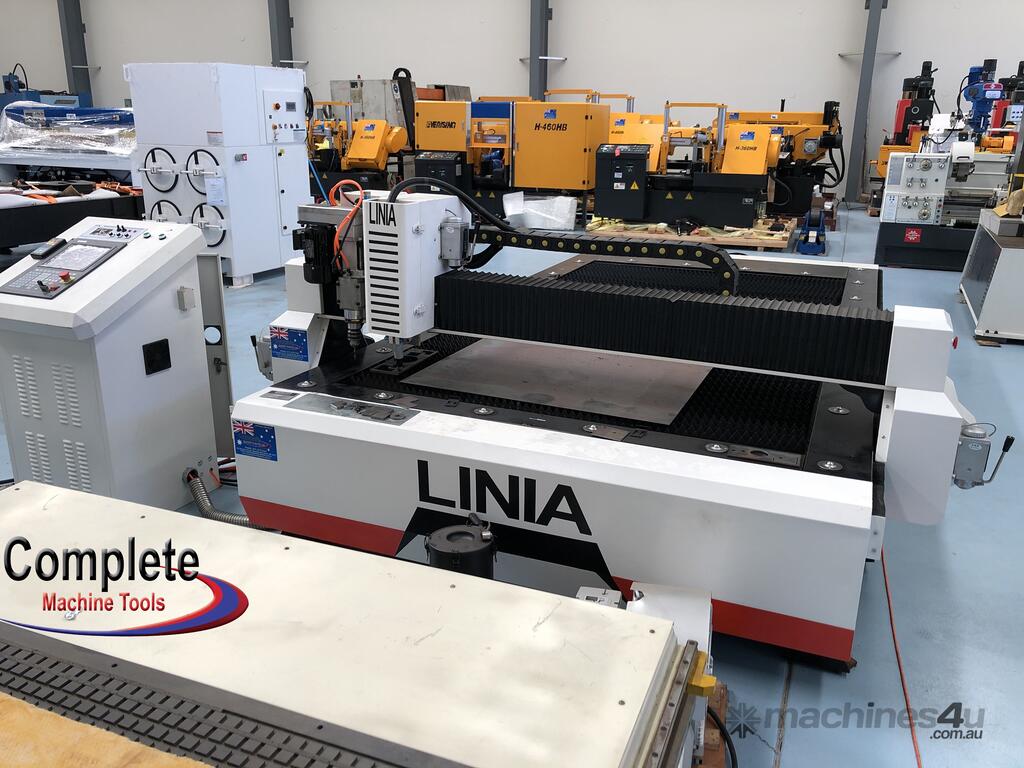

LINIA CNC PLASMA W/DRILL HEAD | THERMACUT 125A PLASMA

The new LINIA CNC Plasma Cutting machines with a drilling head from Complete Machine Tools give you the speed, accuracy at a super competitive price.
Supplied complete with programming and nesting software from FASTCAM as well as an extractor fan in the base of the table your LINIA plasma cutter can be set up and running in just a couple of hours!
Your operator even has a remote control for the safety of everyone in the area & the machine as well!
Auto homing & zero position setting makes a tedious job simple and quick on a Linia.
All drive components are well covered and shielded by steel guards for additional safety of everyone and protection of your machine.

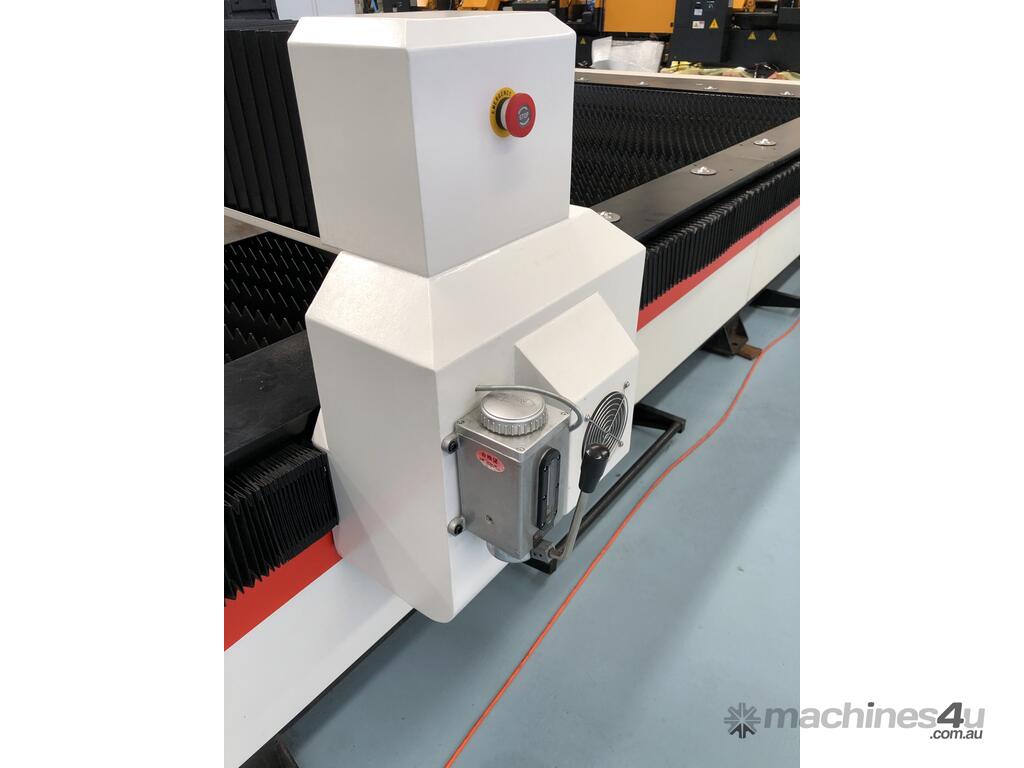

On board pressure lubrication to the x & y axis linear bearings is standard on every machine.
Comes with as standard a laser alignment light on the cutting head for simply position on the start position.

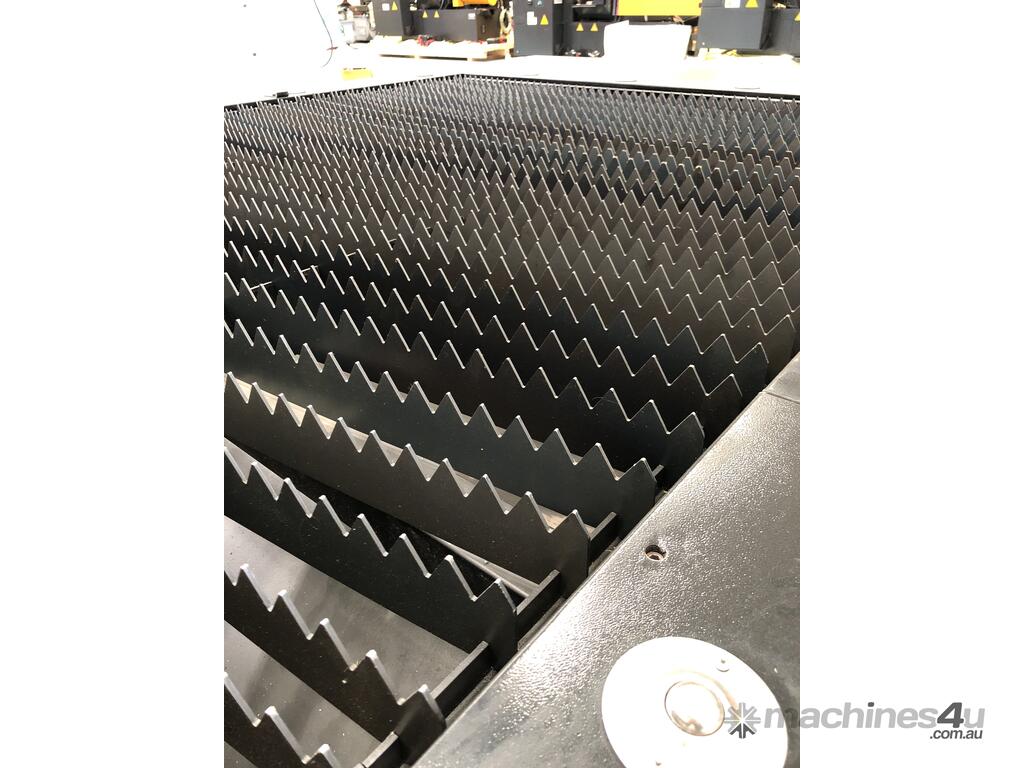

Std machine is a down draft table but a water table is available.

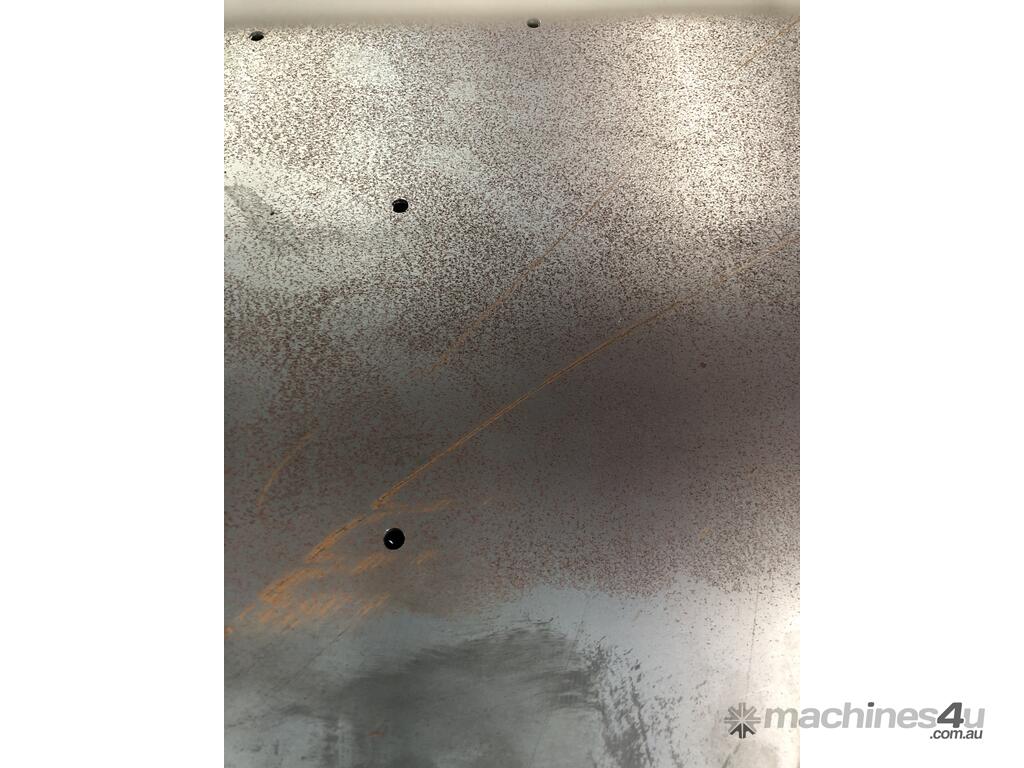

The drill head gives you the flexibility to drill the small holes a std def plasma cannot cut.
Its a simple drilling head attachment and heights are set very quickly and easily by limit switches for your upper and lower positions.

Specifications:
• Dual head machine with independent drill head - MAX CAPACITY 13mm
Linia Precision 1500 x 3000 plasma cutting machine
• Laser alignment light on cutting head
• Thermacut 125A-HD plasma unit (Hypertherm Powermax 125A plasma available)

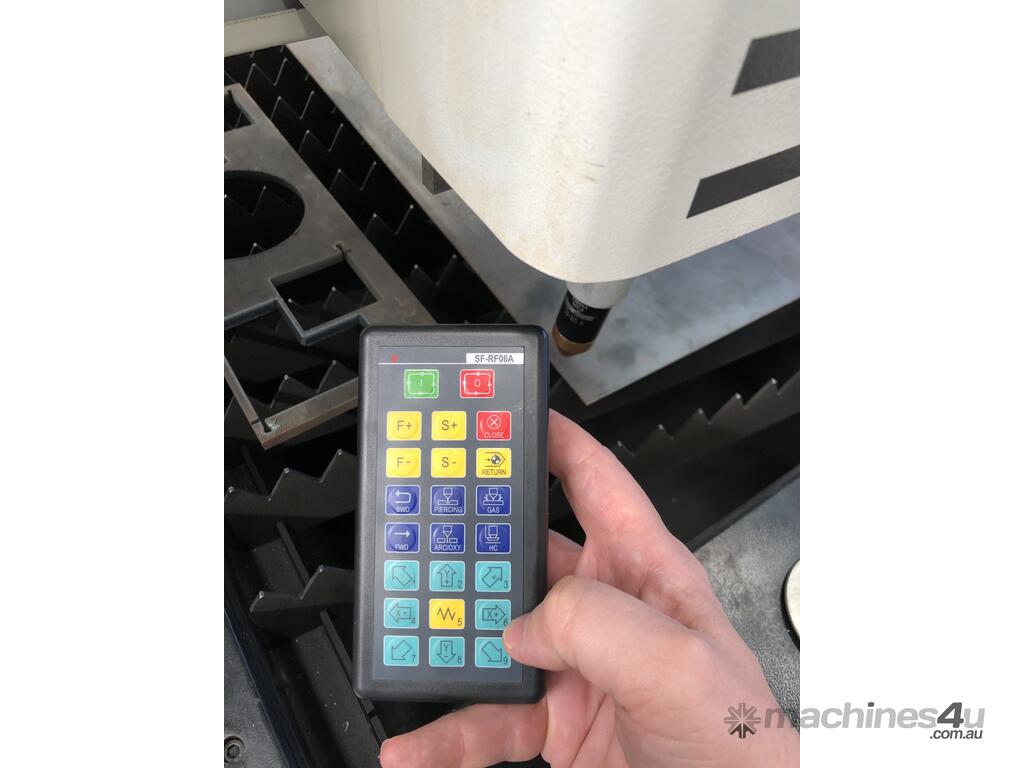

• Wireless remote control
• Panasonic servo motors and drives (X & Y & Z axis)
• 1500 x 3000mm cutting area
• 200mm torch travel height
• FASTCAM CAD part creation & nesting offline software
• NSK bearings – Japan; Optional Linear or Circular guiding

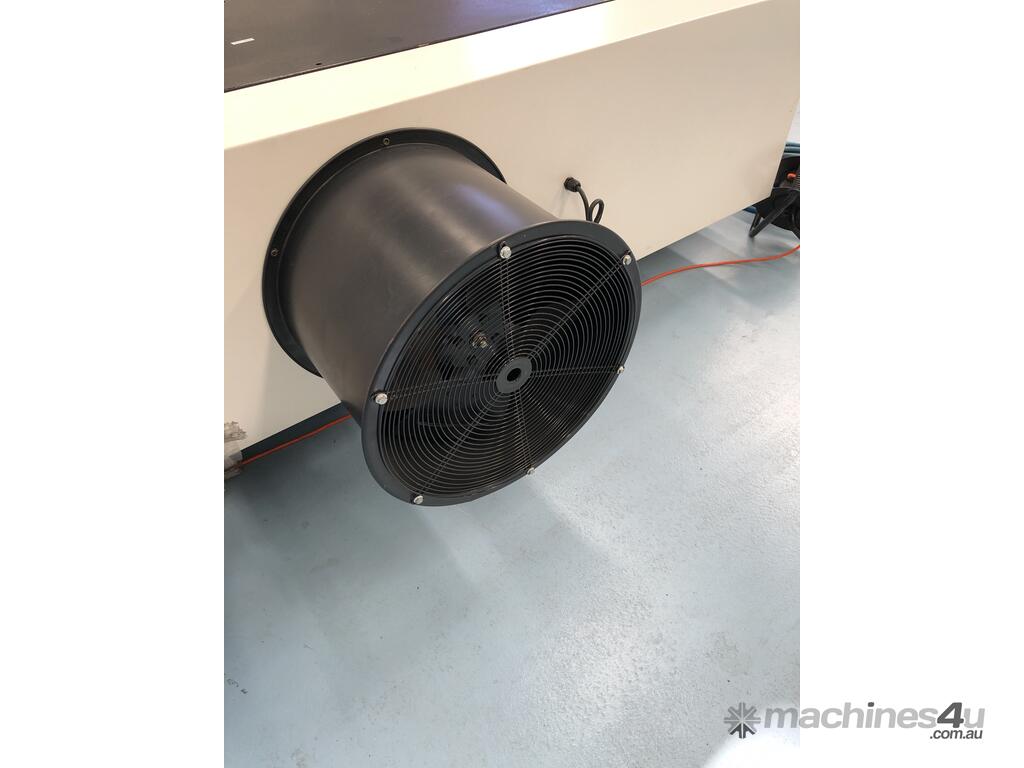

• Built in dust extraction fan
• Bridge parking area at end of machine clears the table for loading & unloading
• X axis dual side drives with Panasonic servo motors
• Table strong enough to handle 900kgs = eg: (25mm plate 1500 x 3000)

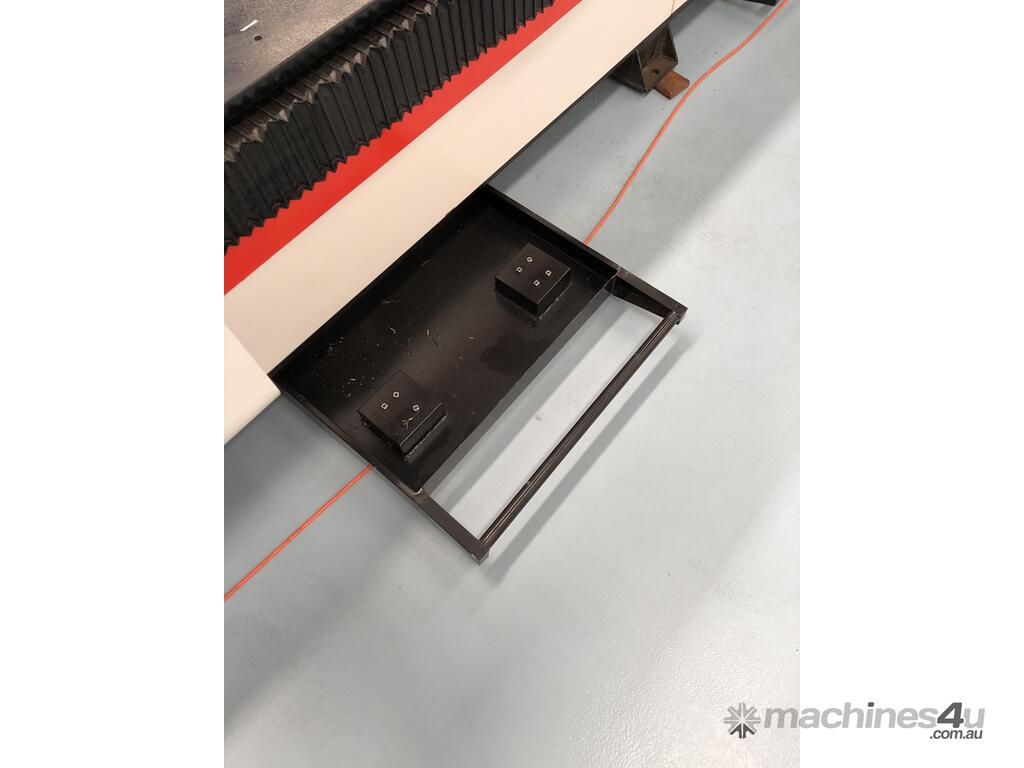

• Pull out scrap trays on side of the machine for easy cleaning or small part retrieval
• Automatic torch height control

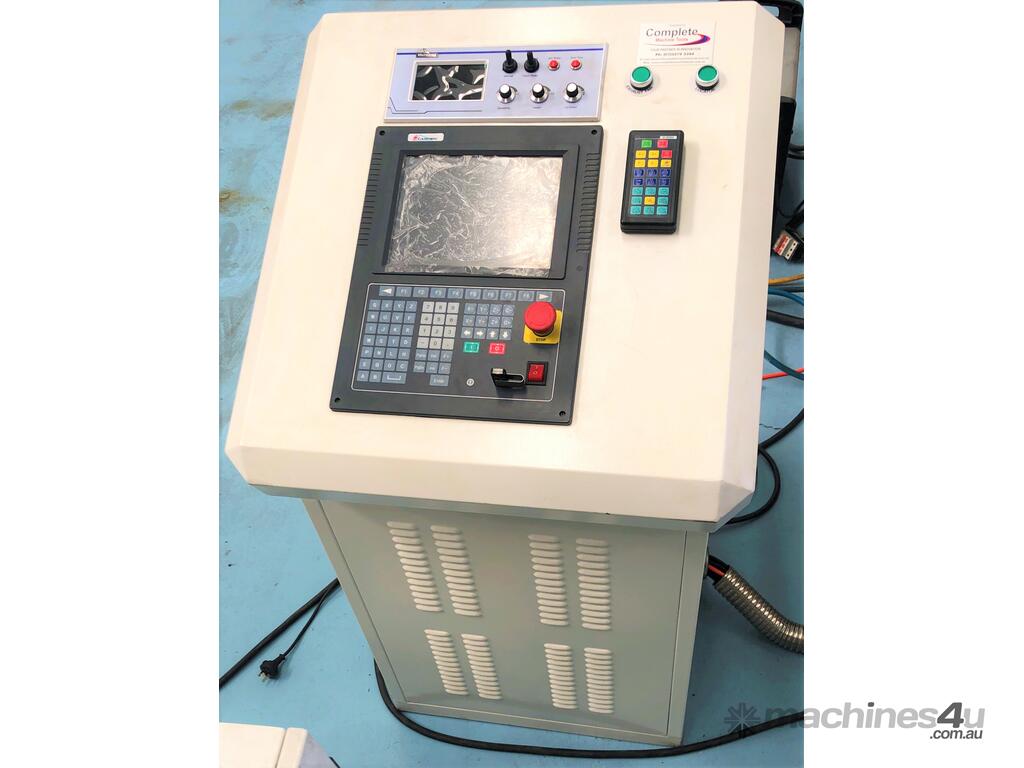

• Large screen Starfire CNC controller with inbuilt parts library
• Taiwanese HIWIN quality linear bearings & guideways
* Ball Transfers on table surrounds for easy sheet loading
* Drives by dual helical rack & pinion for smooth running and long life

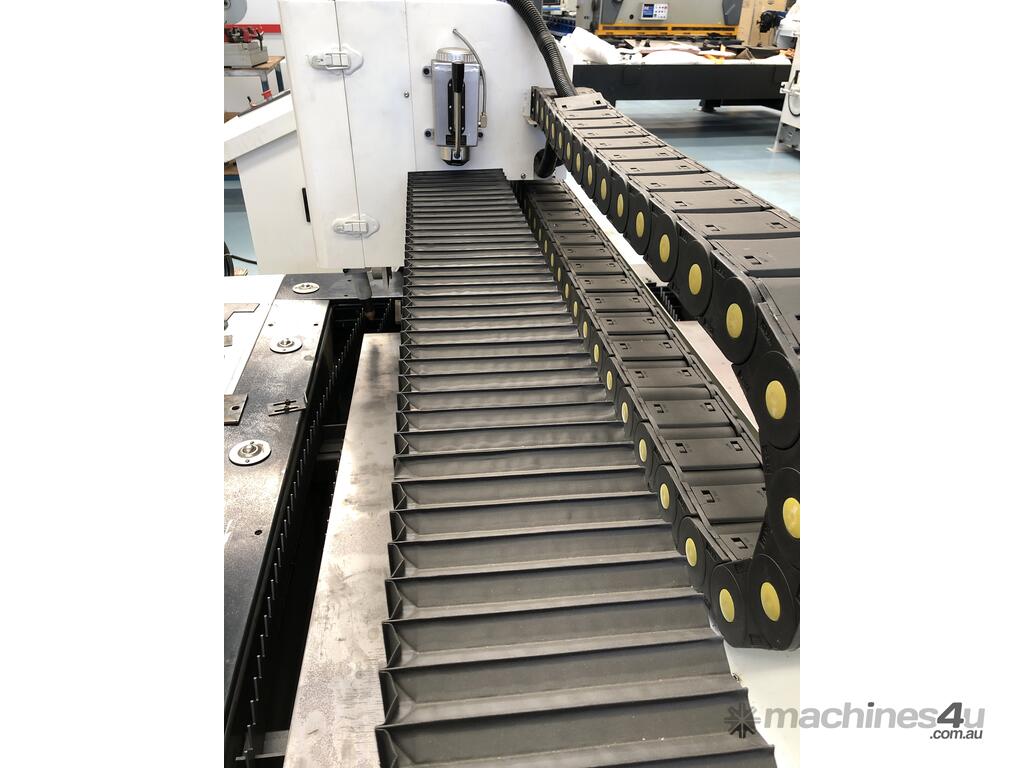

* Safety guards on all drive components

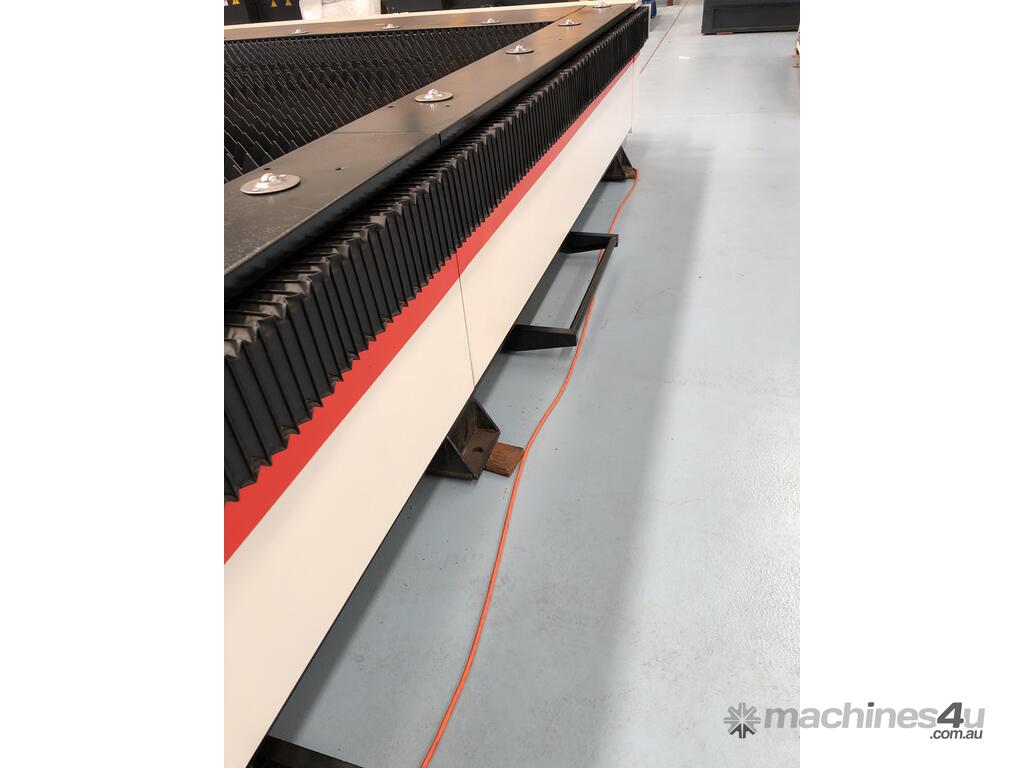

* Dust covers on slideways

OPTIONAL EQUIPMENT:
PLASMA POWER SUPPLIES:

Thermacut 40 - 125A power units

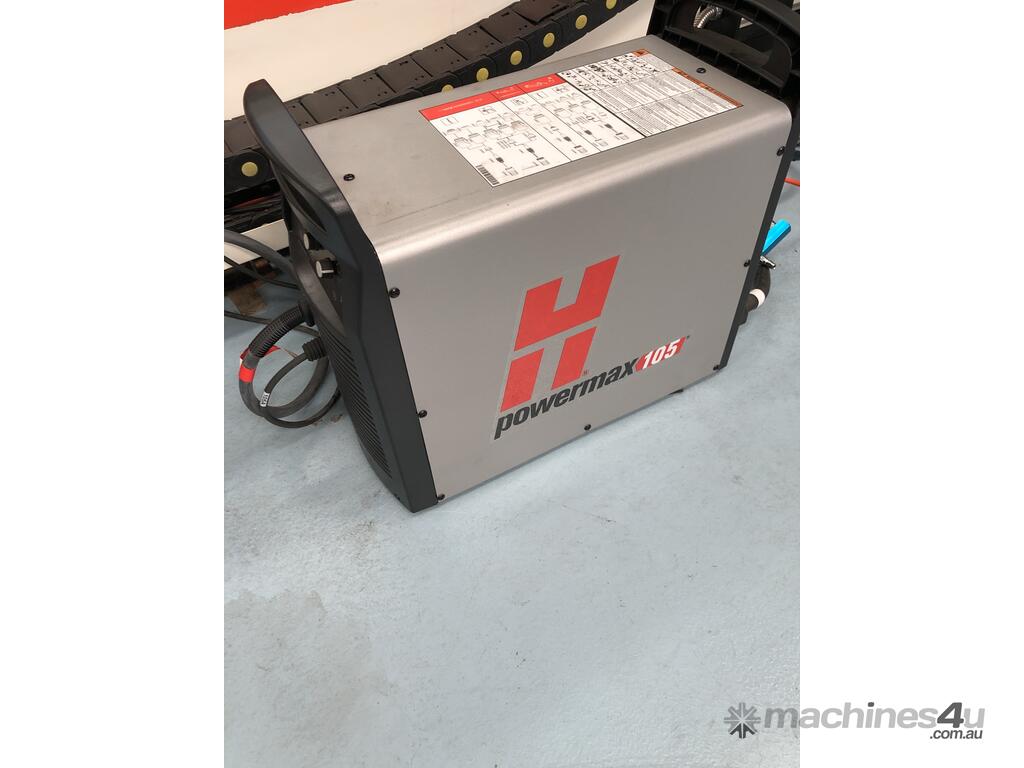

HYPERTHERM Powermax 45, 65, 85, 105 & 125A (must be ordered with machine)

Call us today to discuss a great deal on this well made, efficient, plasma cutting machine.
If you are a steel fabricator or sheet metal shop cutting up to 40mm plate this is the machine you should have!

Machine configuration effects final price.
Please call to discuss the options that will suit your application & budget.

Fastcam software:

FastCAM® supply no-nonsense software programs that help solve common everyday problems for metal profiling and fabrication businesses.

Quality metal fabricating can mean the difference between a good product and a waste of time and money.

Fastcam software has enabled many hundreds of fab shops & sheet metal shops to easily undertake projects in-house on their own machine that they might otherwise outsource.

All FastCAM® programs are designed to be used by tradespeople who just want to get the job done. Right first time. On time. No-fuss, affordable and with the minimum of training.
All this and local, Australian based, support is available as well every business day.
Customers can send you a drawing file or you can draw a part in Fastcam and in minutes you can be cutting that part on your machine.
Copy the file or multiple files for cutting to a USB and take it to the machine....simple!

Linia machine models are available to suit any budget.

All Linia plasma machines use Hypertherm plasma power supplies for superior reliability, flexibility as well as easy availability of consumables and spare parts.
