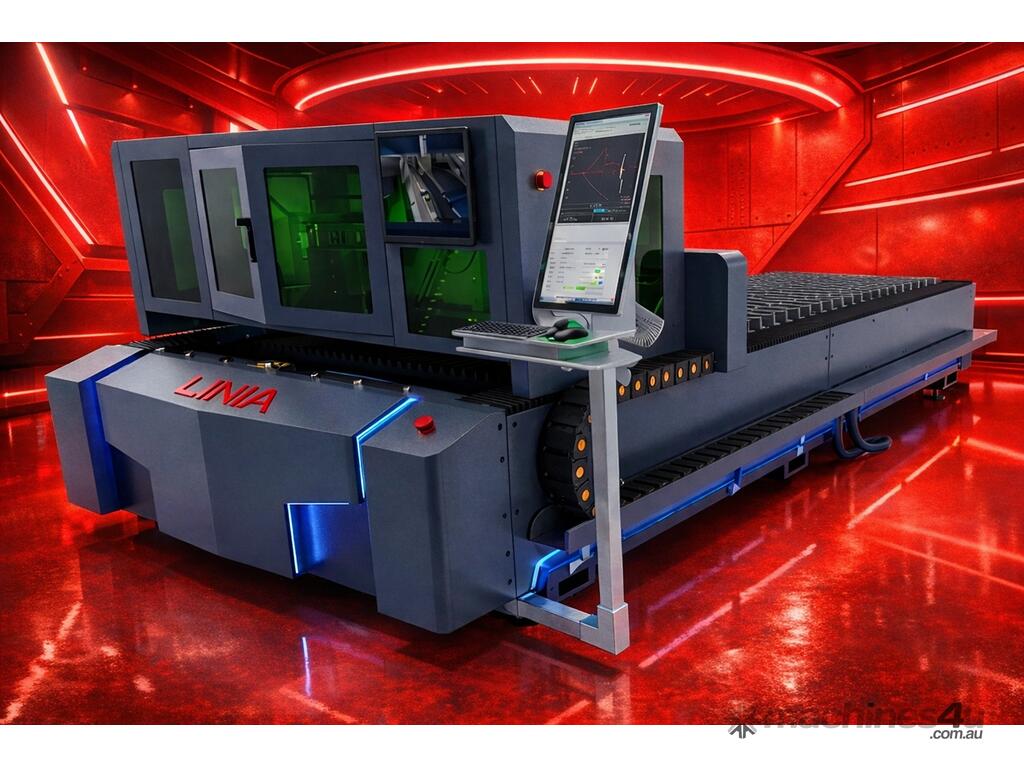

LINIA FIBER LASER | 6KW MAX | 3 x 1.5M |BOCI HEAD | CYPCUT CONTROLLER | SEMI ENCLOSED TABLE

LINIA semi enclosed fiber lasers offer mid level technology laser cutting machines ideal for those who want to enter into the laser cutting space on a budget but want a machine that's a better quality machine than what's on offer.

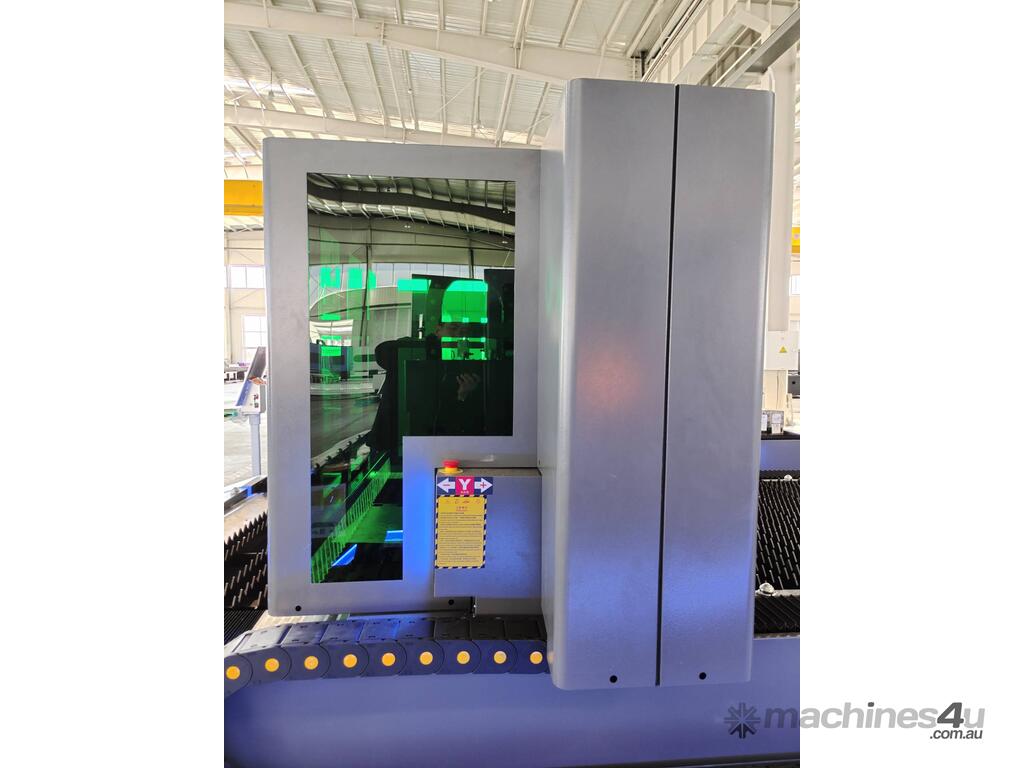

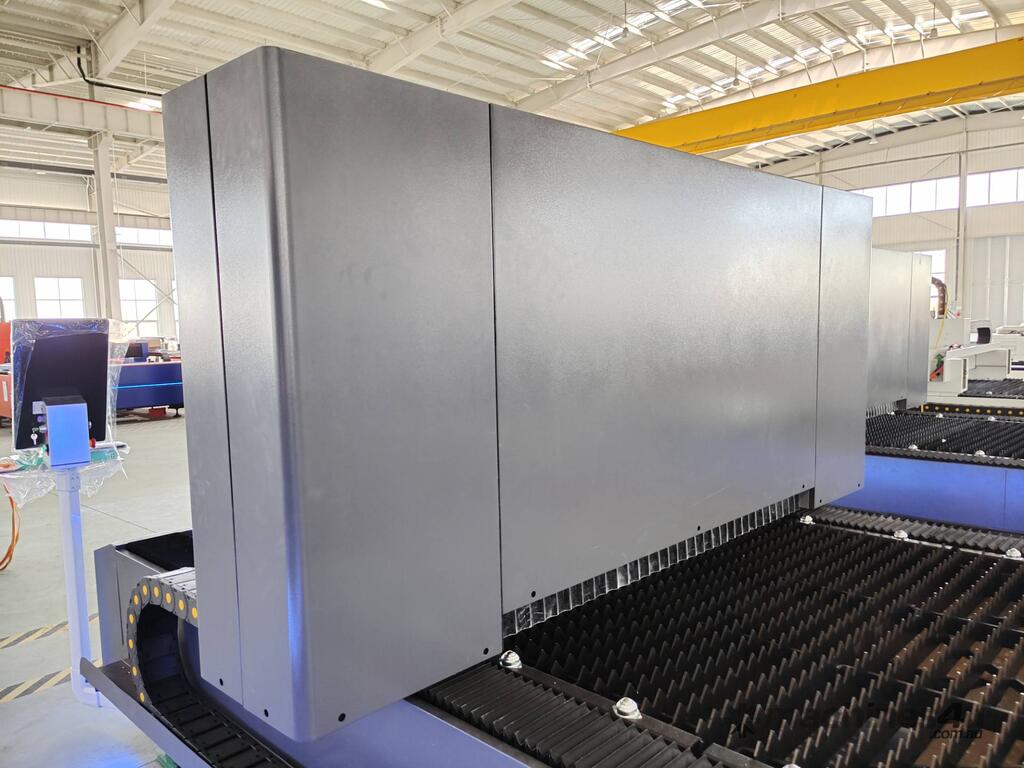

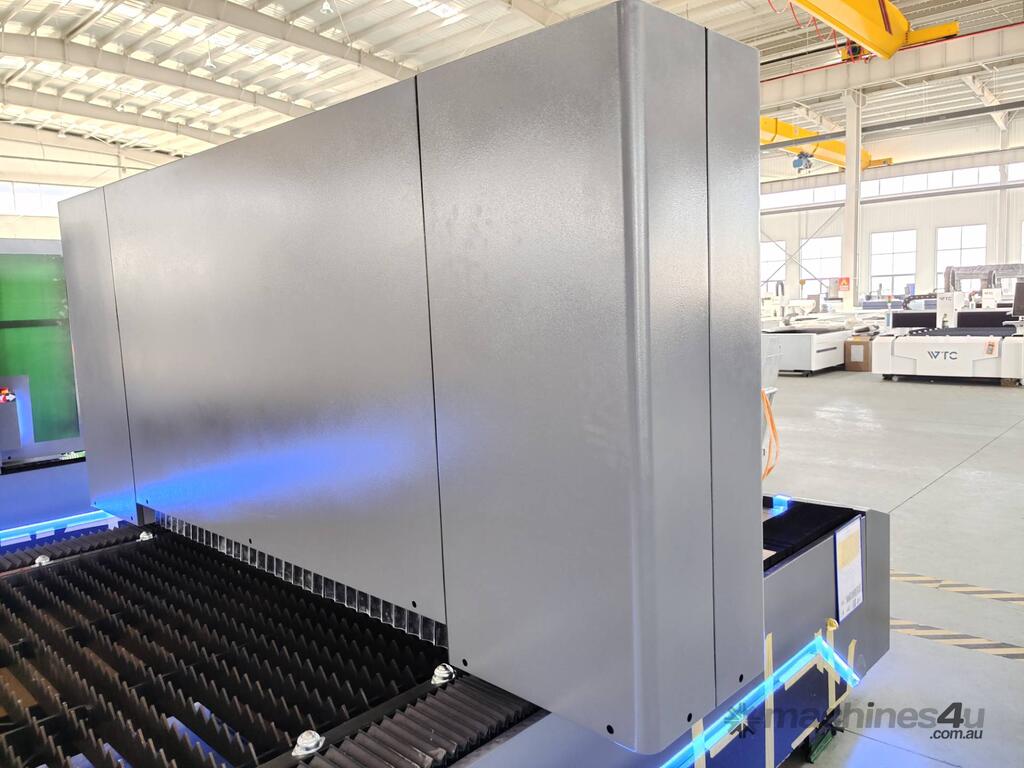

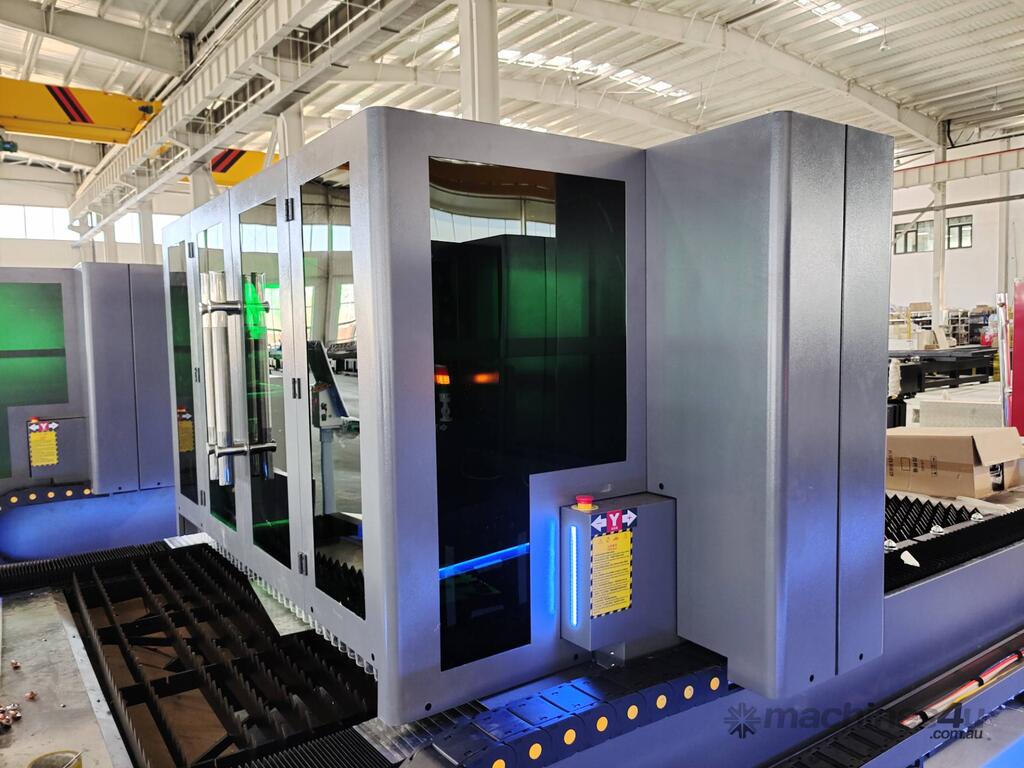

The semi enclosed structure offers the safety of no access to the gantry or more importantly the operator and workers have peace of mind the laser beam light is contained in the structure protected with laser grade glass.

Why limit yourself to a company that only can supply a laser cutting machine, go with a company who can grow with your business and offer a complete solution for all your sheet metal and fabrication machinery needs under the 1 roof. Complete Machine Tools sells a full range of sheet metal and fabrication machinery so when that time comes to upgrade, we got you!

The LINIA GH series is a very well optioned up single table laser. This machine is ideal for a company wanting to bring cutting inhouse and not have a large outlay to do so. The LINIA GH Series is fitted as standard with a Boci auto focus cutting head, Cypcut controller and offline software, Max Photonics laser source and Motovario (Italy) planetary gear box.

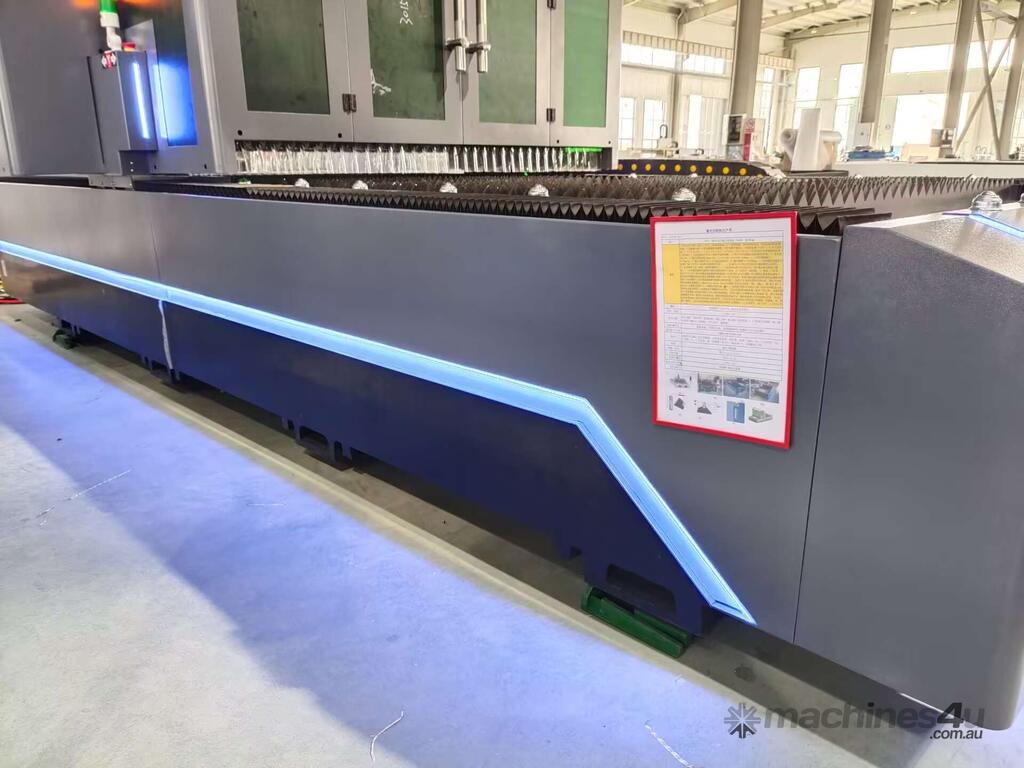

The table is very easily accessible so the sheets can be loaded with a forklift, gantry crane or pivoting suction arm.

The GH Series comes as standard with an aluminium gantry for the cutting head which drastically reduces the weight compared to a steel gantry. Utilising the aluminium gantry allows the rapid movement to be faster and the control while cutting more stable.

Experience precision and efficiency with the LINIA GH series laser cutting machine, an ideal solution for compact laser cutting. This innovative system seamlessly integrates precise 2D laser cutting into a sleek, space-saving design. Available in 1kw up to 12kw, the LINIA GH Compact delivers exceptional cutting quality while minimizing space requirements.

Key Features:

- Compact Design:
Maximizes floor space without compromising cutting quality.

- Range of Laser Sources:
Choose from 1 to 12 kW laser sources for versatility in production.

- Gantry parking area:
Simplifies loading and unloading for increased efficiency.

- High Precision:
Achieve highly precise cuts at high speeds, perfect for intricate parts production.

- Low Maintenance and Operating Costs:
Enjoy cost-effectiveness without compromising performance.

- Semi enclosed design
Have piece of mind that your operator and staff has a safe work environment with laser safe glass

Experience the outstanding dynamics of the LINIA GH Compact series, designed with a low-set gantry, digital AC servo motors, and precise planetary gearboxes. Elevate your production capabilities with the LINIA GH series for top-notch performance and efficiency.



STANDARD FEATURES & COMPONENTS-

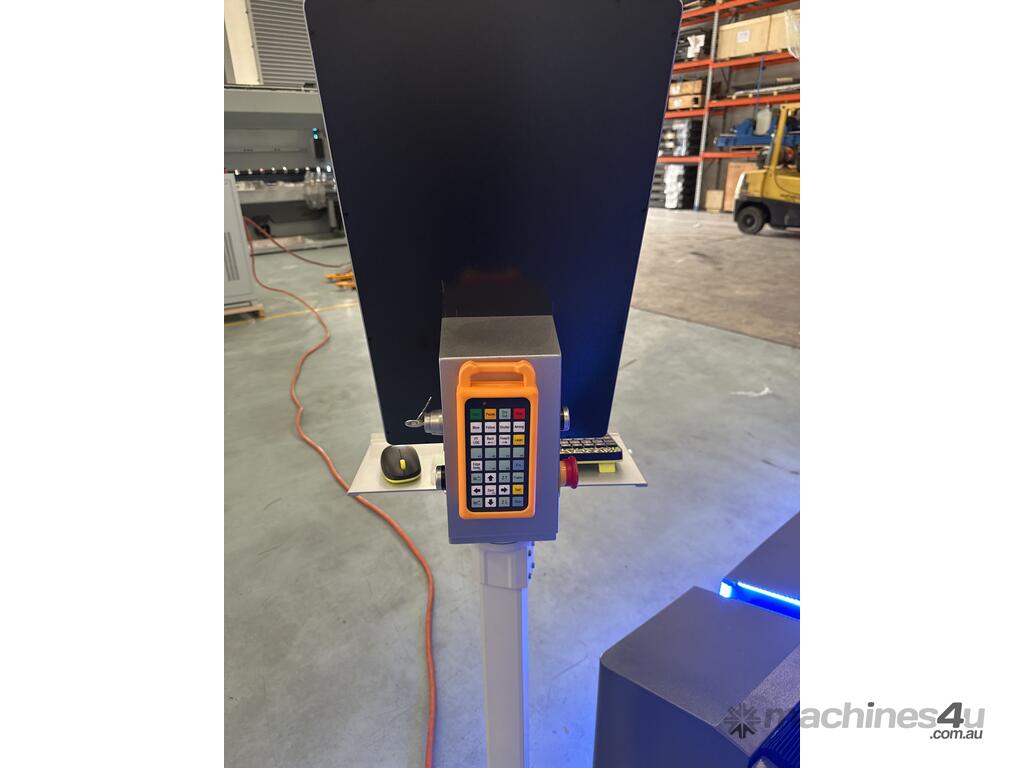

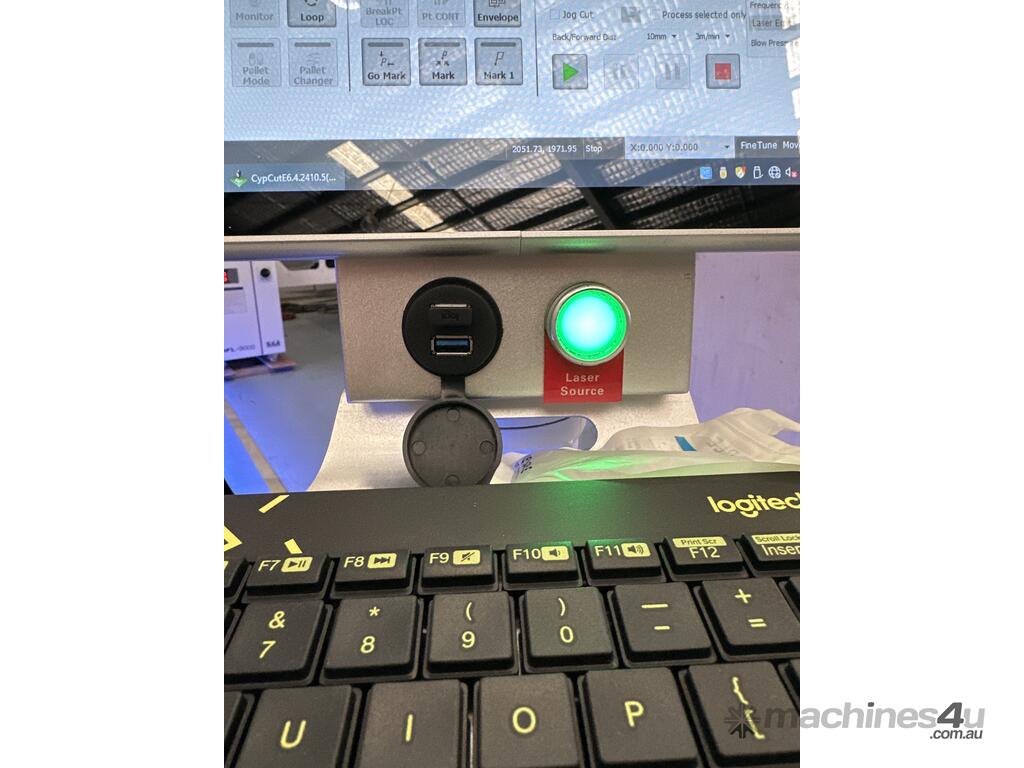

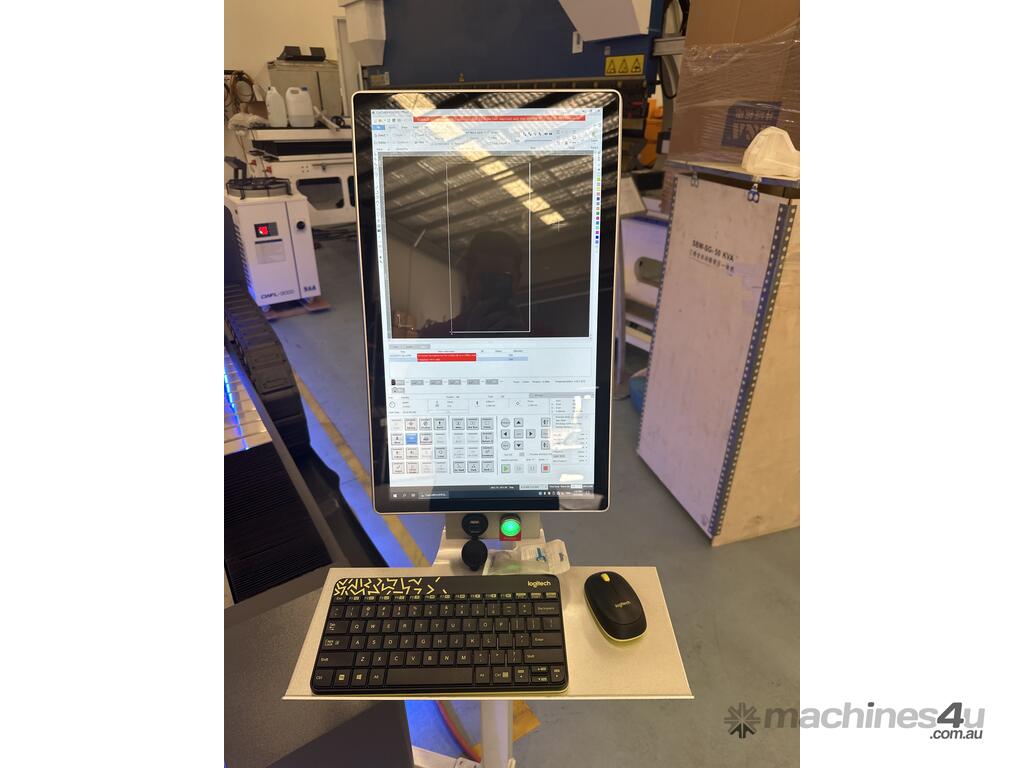

-Cypcut Control System
- Frame border contour
- One path fly cutting
- Quick cut off function to shear sheets in half
- Circle centre auto detection

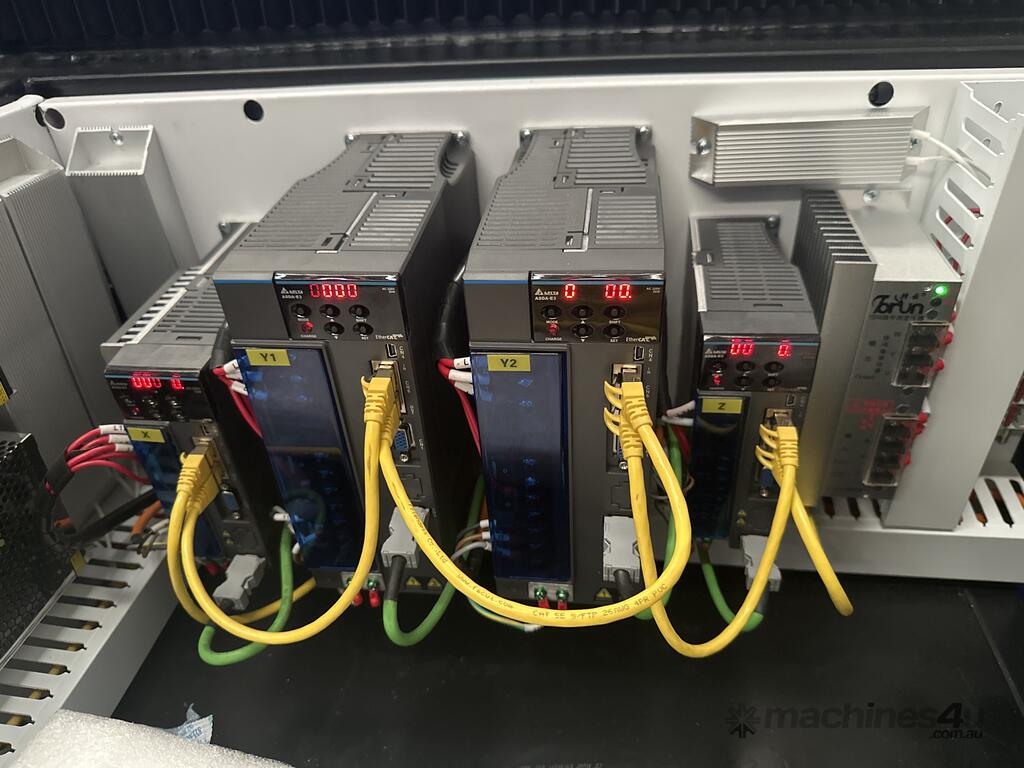

-Delta Highly dynamic servo drives & motors

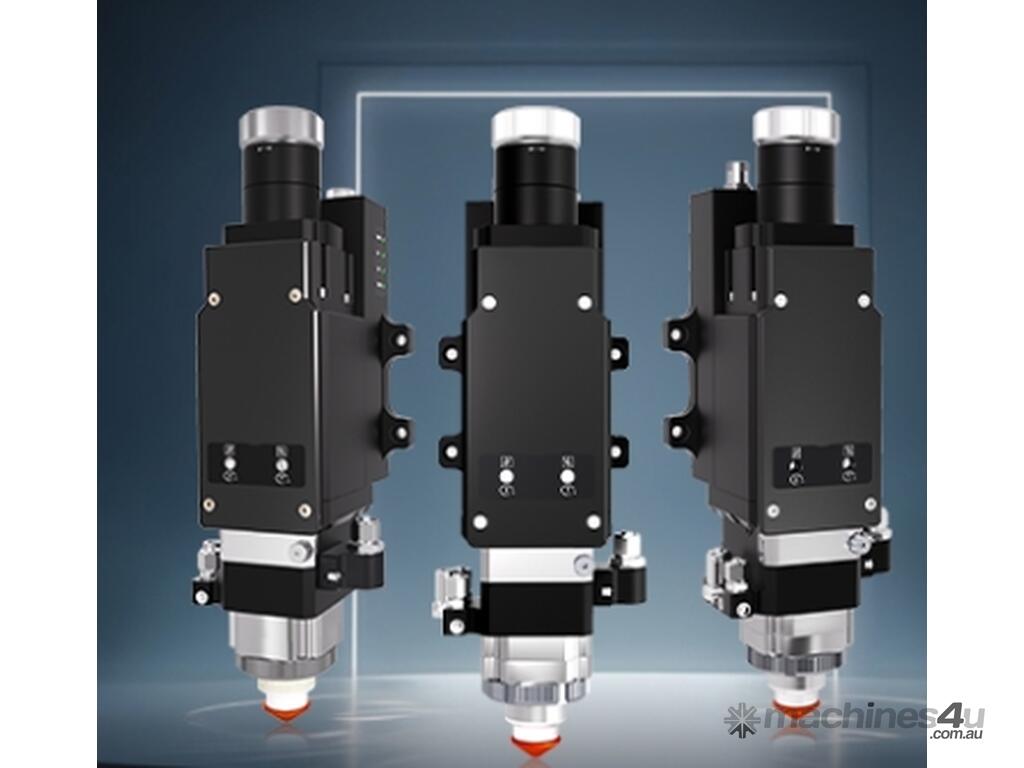

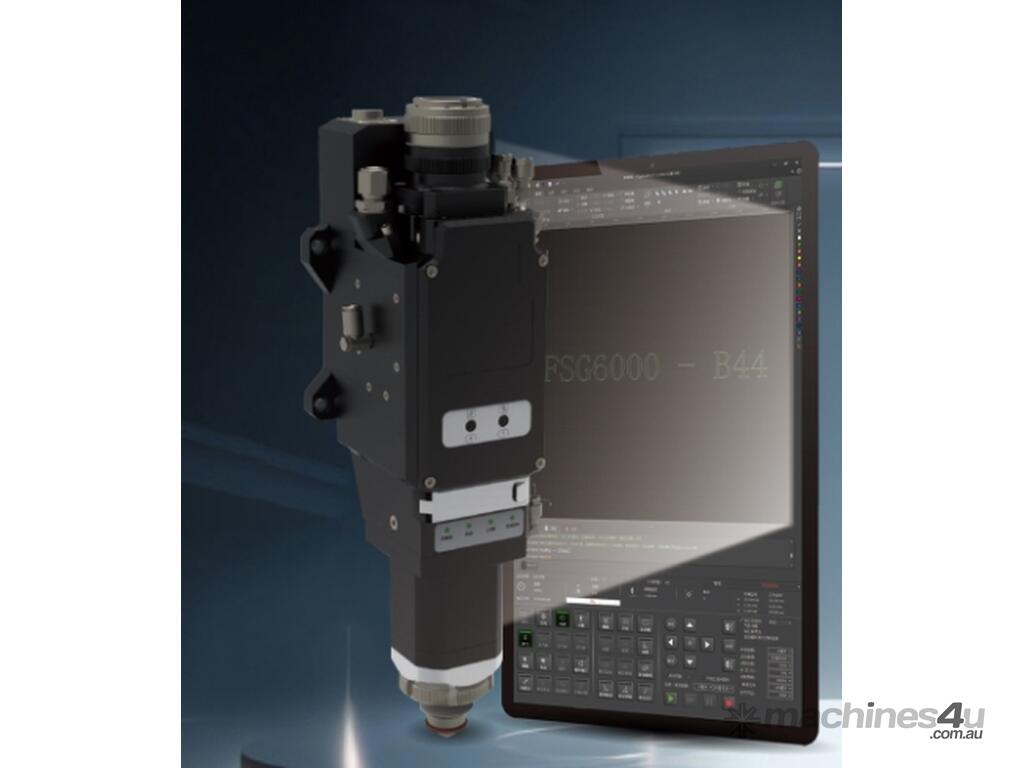

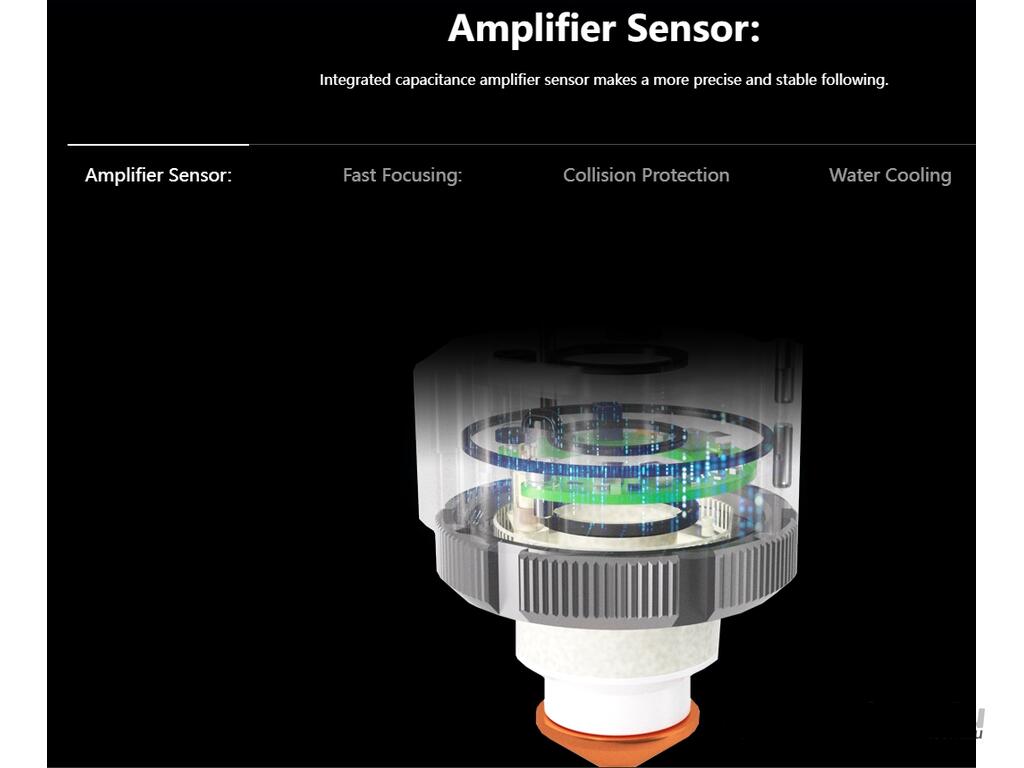

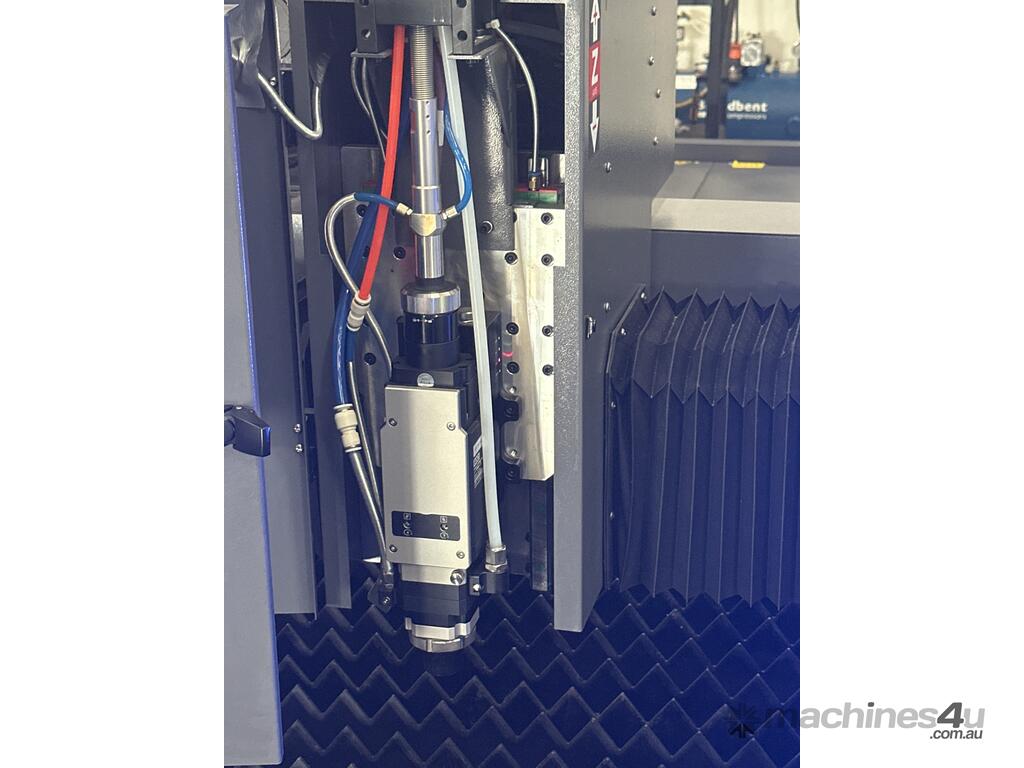

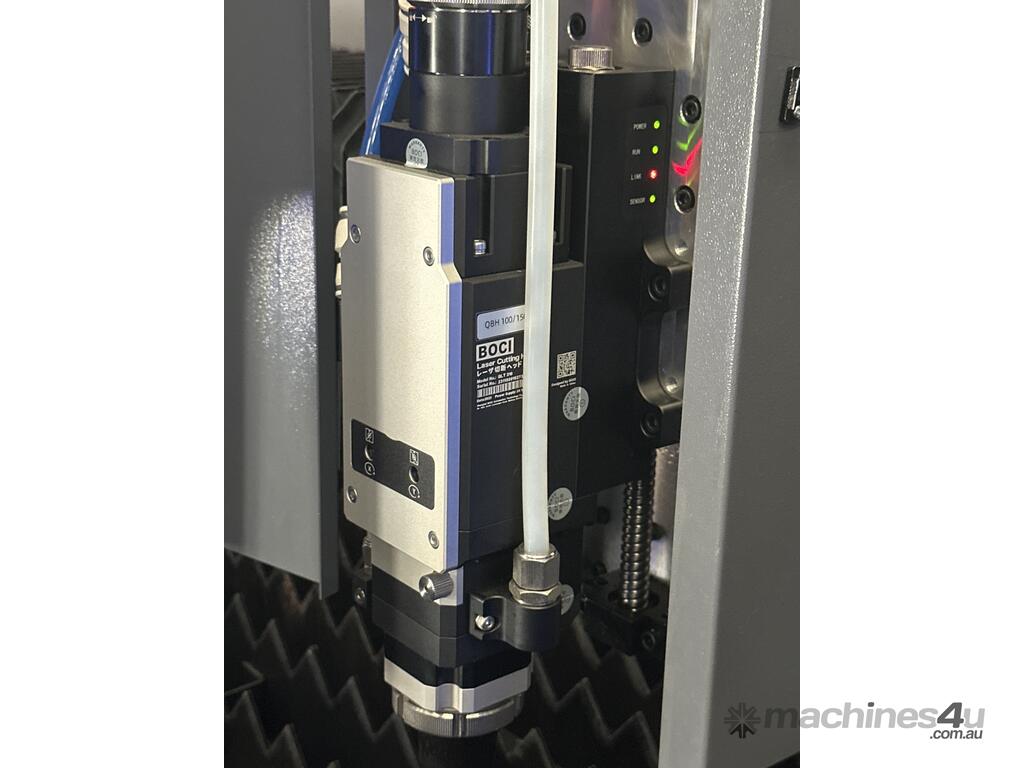

-BOCI® Laser Cutting head (Auto Focus)

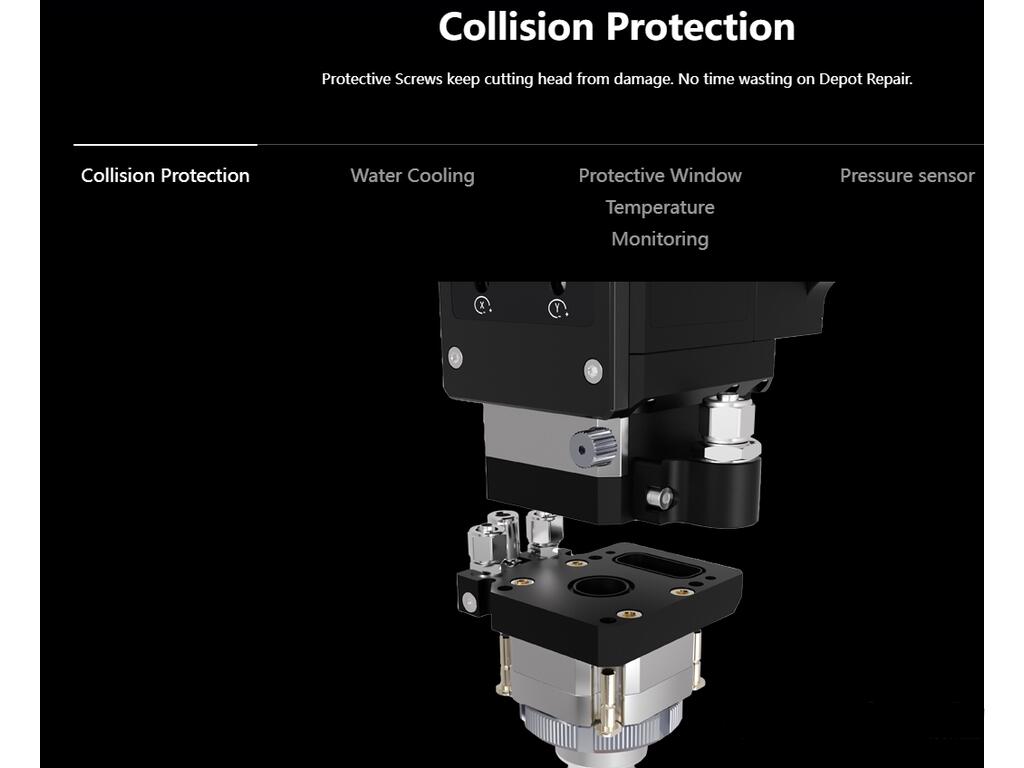

- Collision protection on head

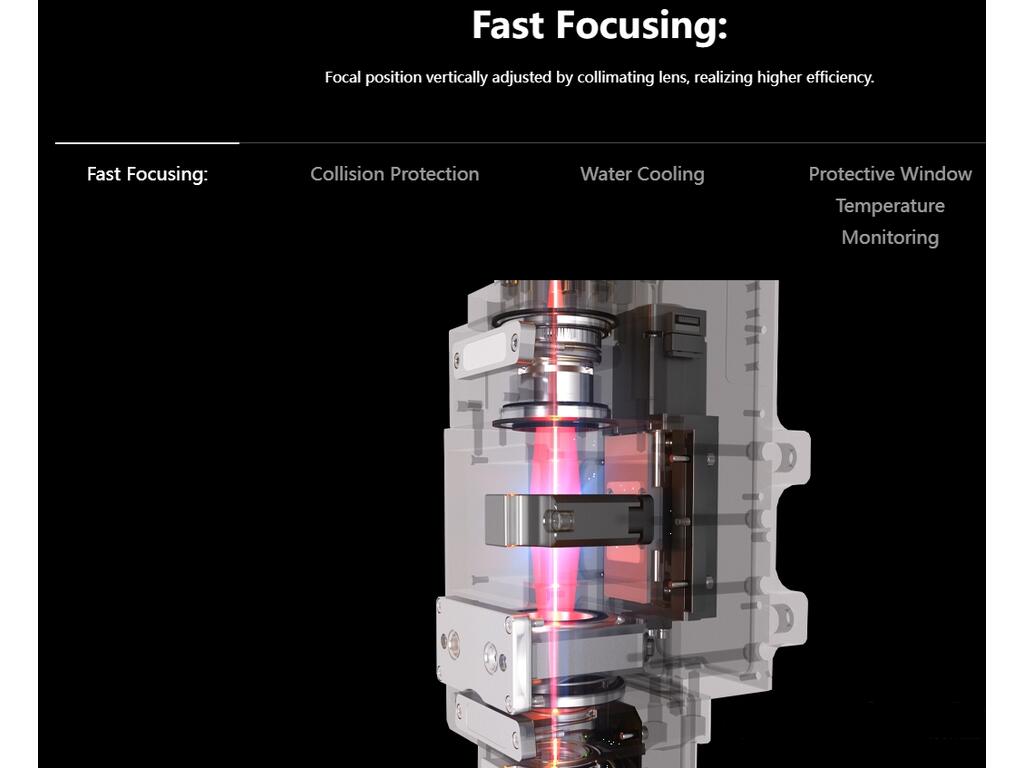

- Fast focusing feature

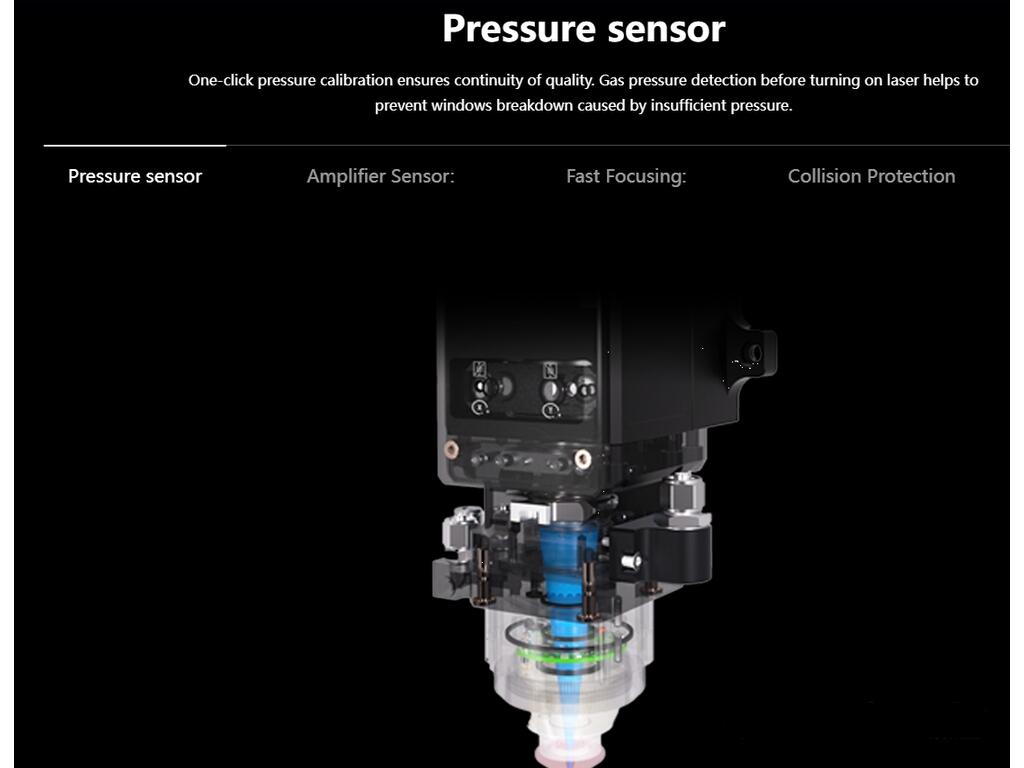

- Head pressure sensor for better quality cuts

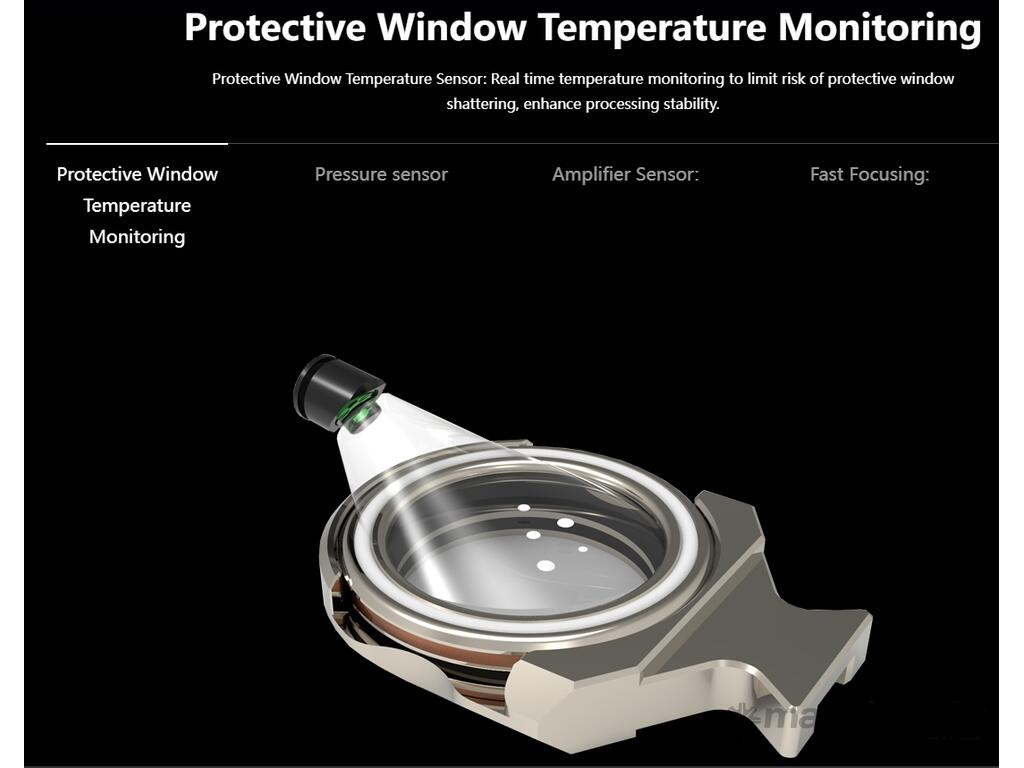

- Focusing lens temperature sensor ensuring lens doesnt crack or shatter

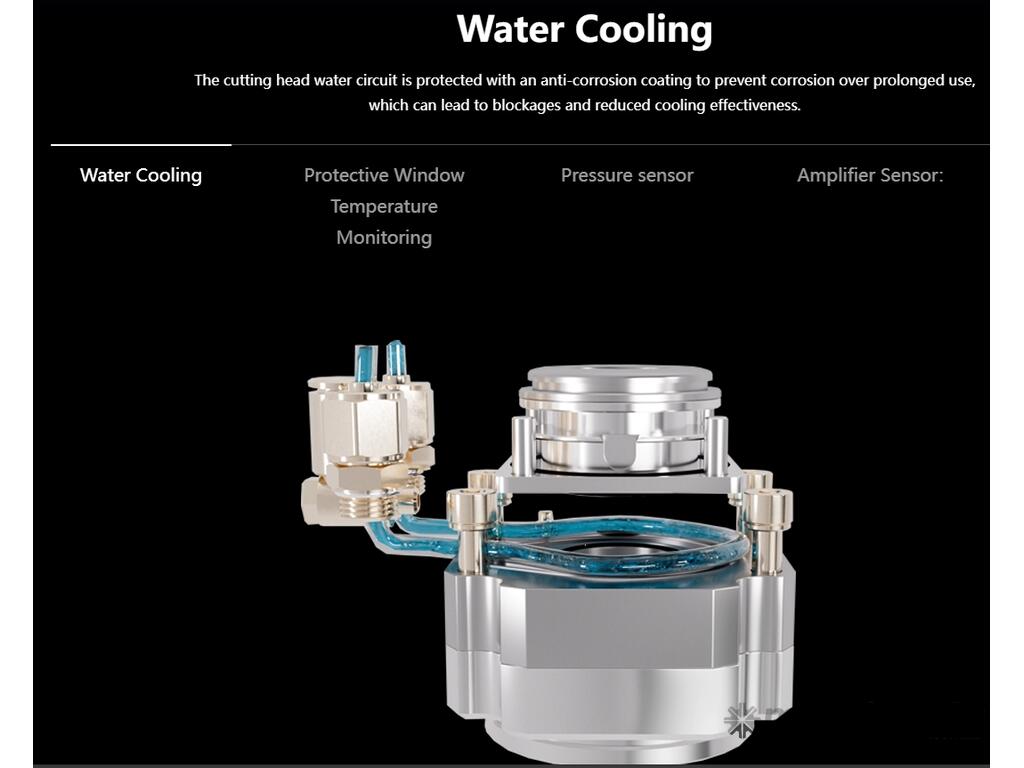

- Water cooling in the head to keep temp low

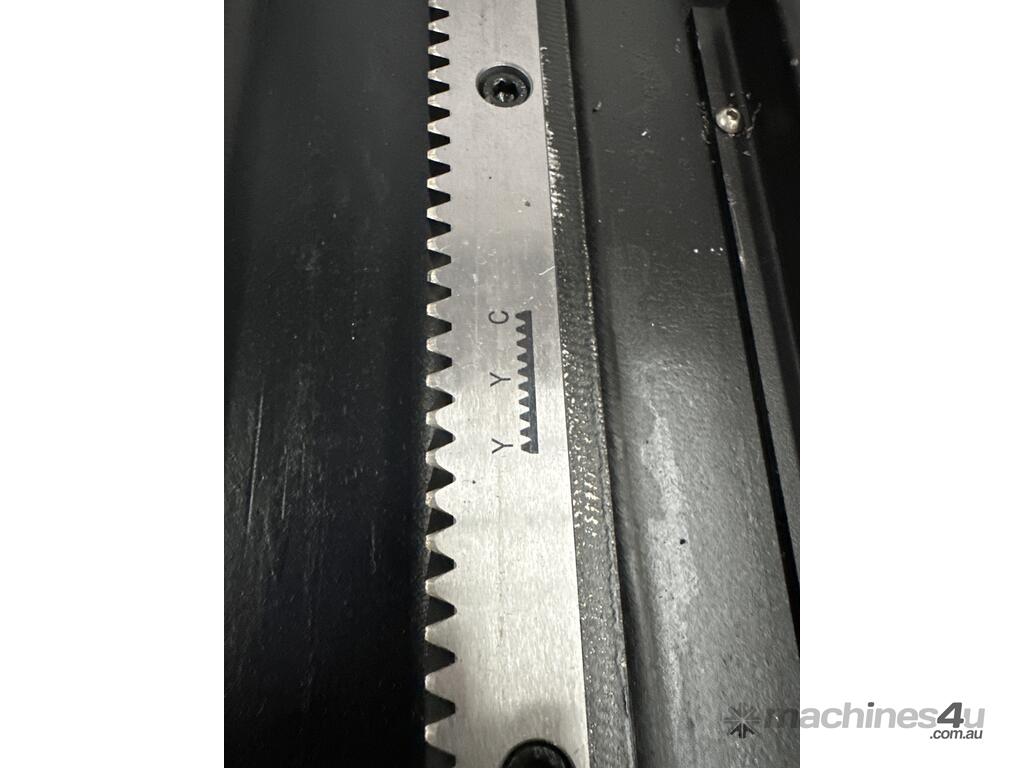

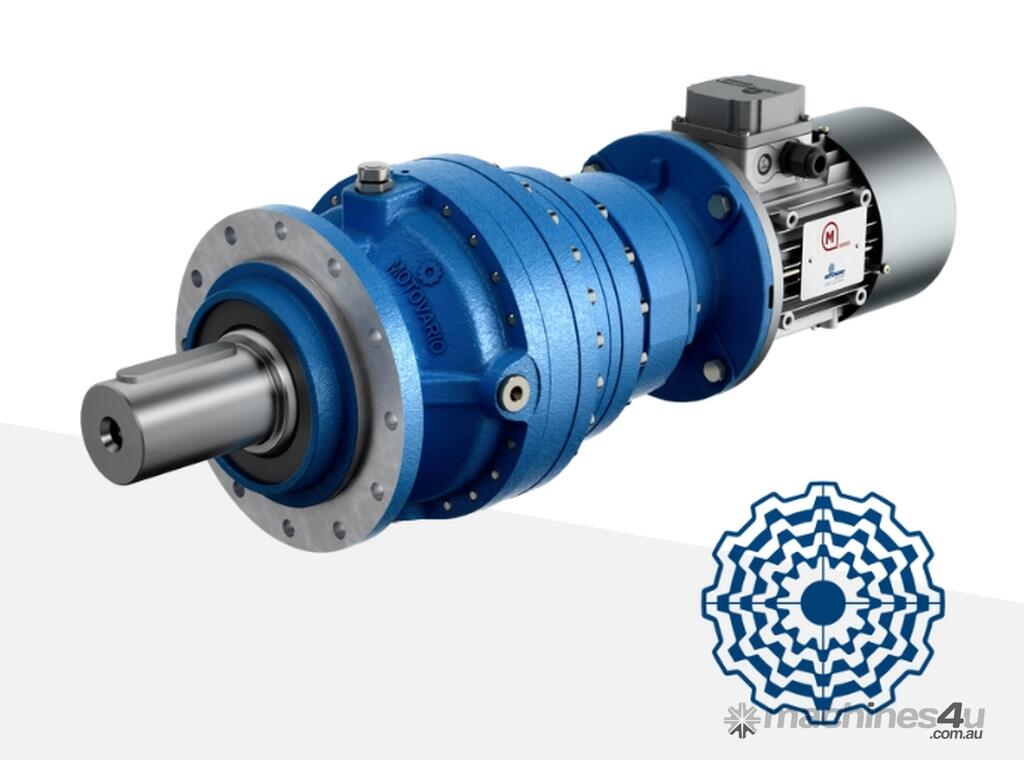

- Precision Reducer & gear System from Motovario (Italy)

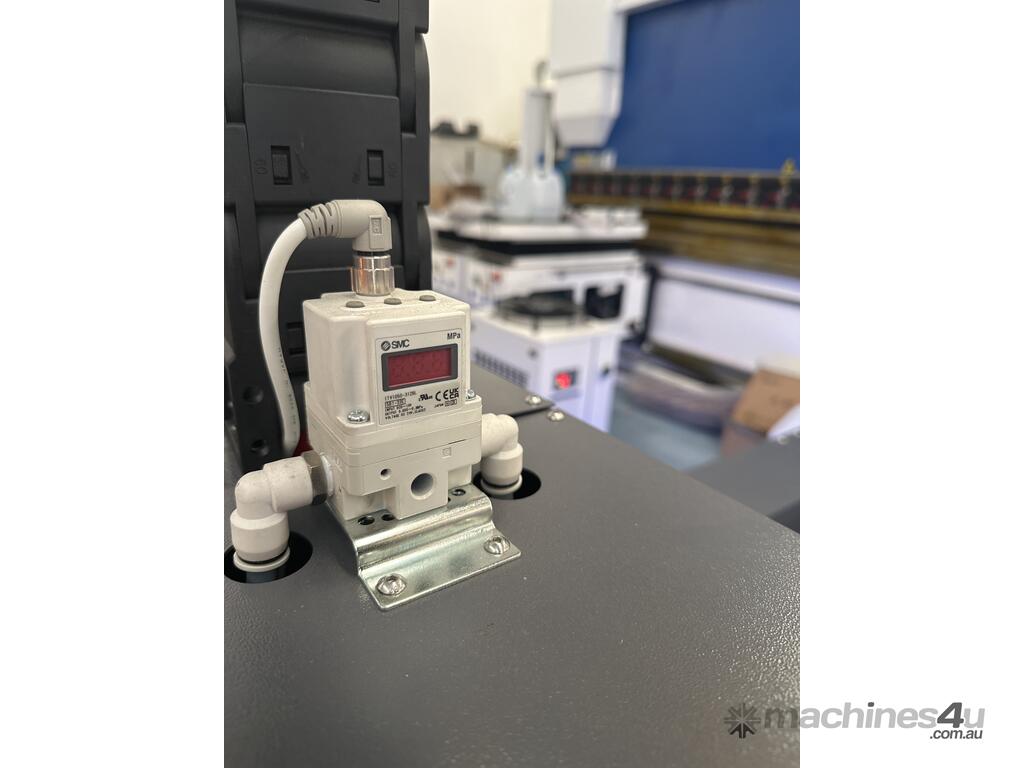

- SMC pneumatic valve (Japan)
- Cypcut offline software

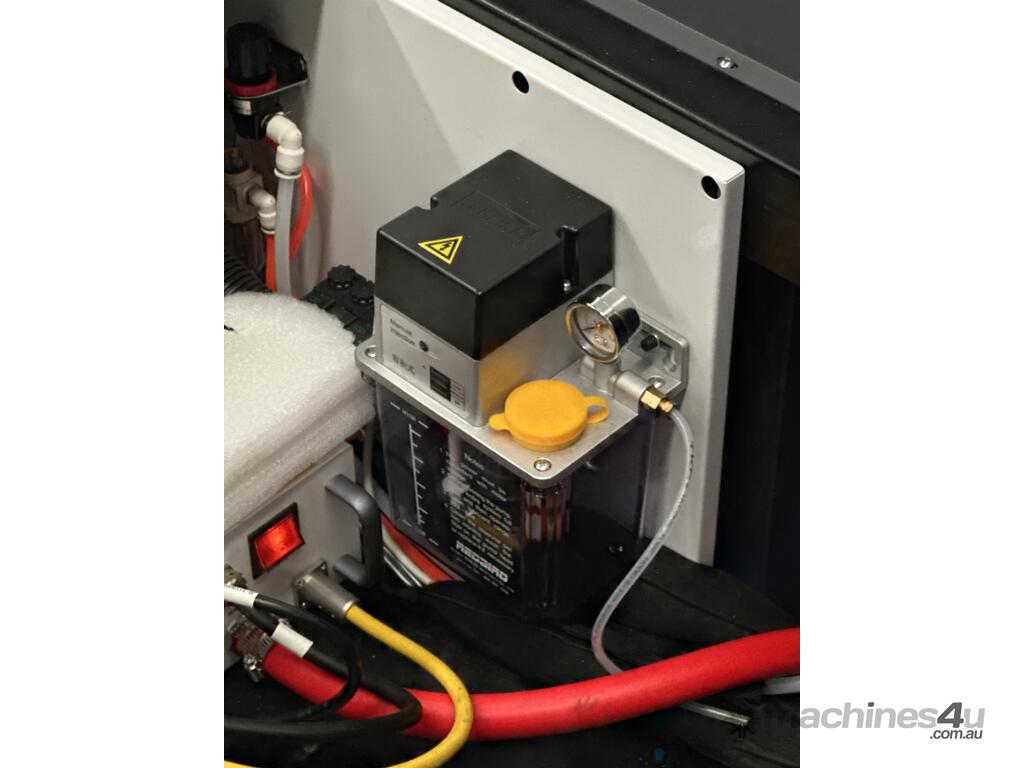

- Auto lubrication system

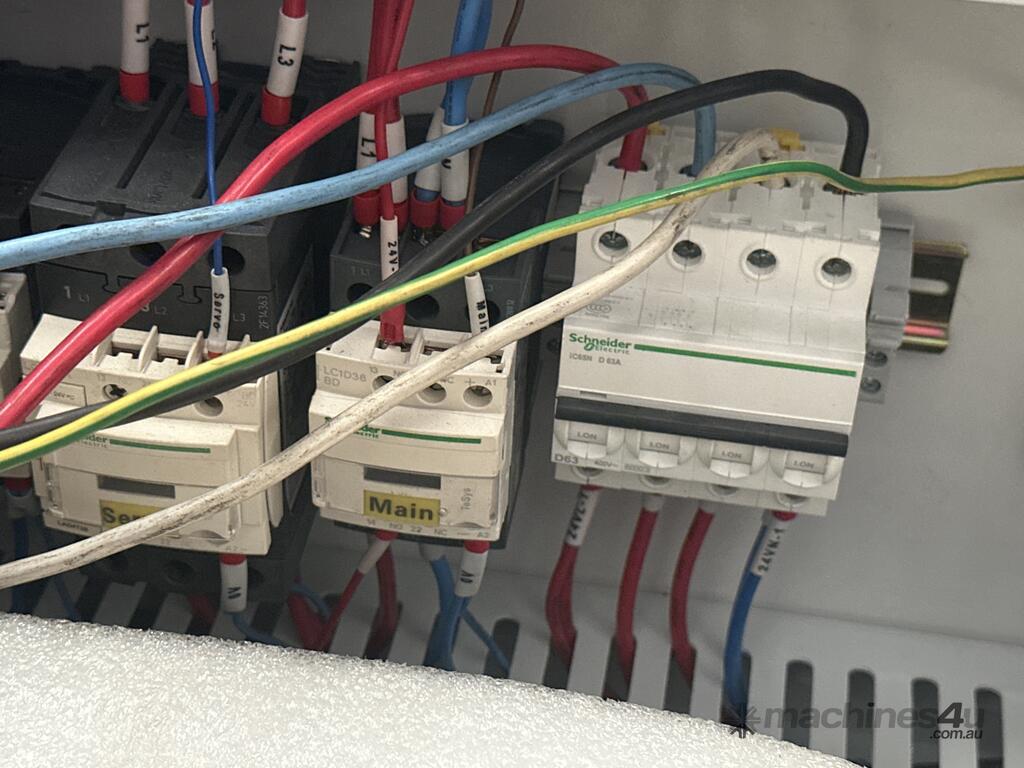

- Schneider electrical components (France)

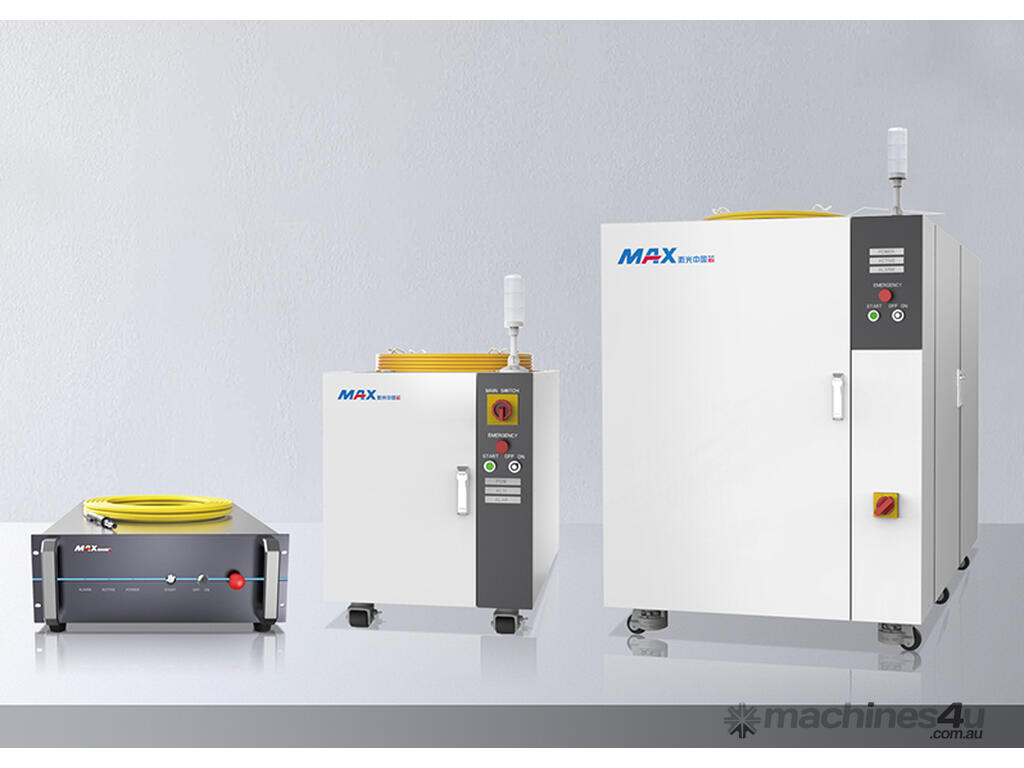

-MAX SINGLE-MODULE CW FIBER LASER
-Full automatic voltage regulator System

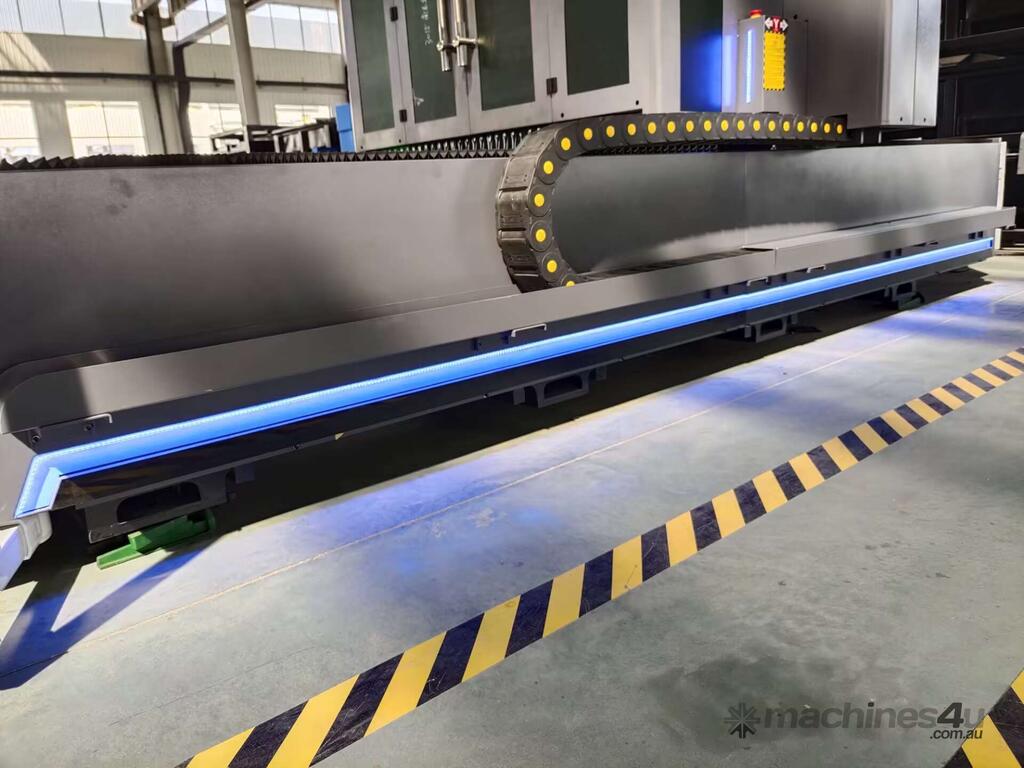

-Aluminium cutting head gantry
-Red laser dot sheet alignment system

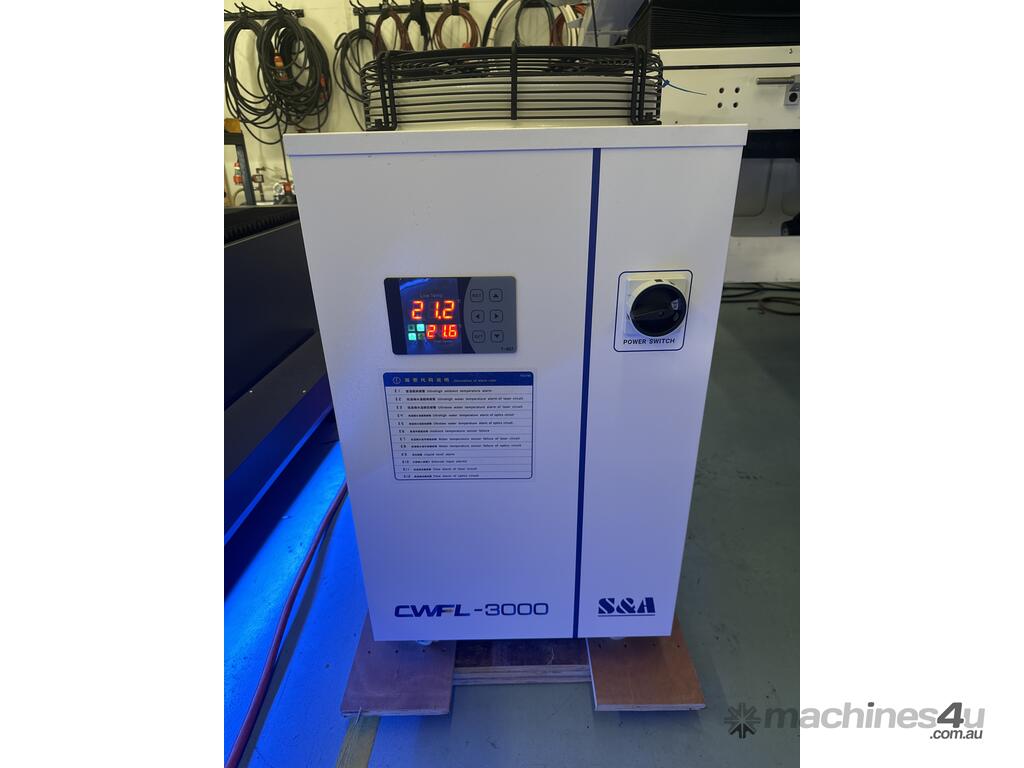

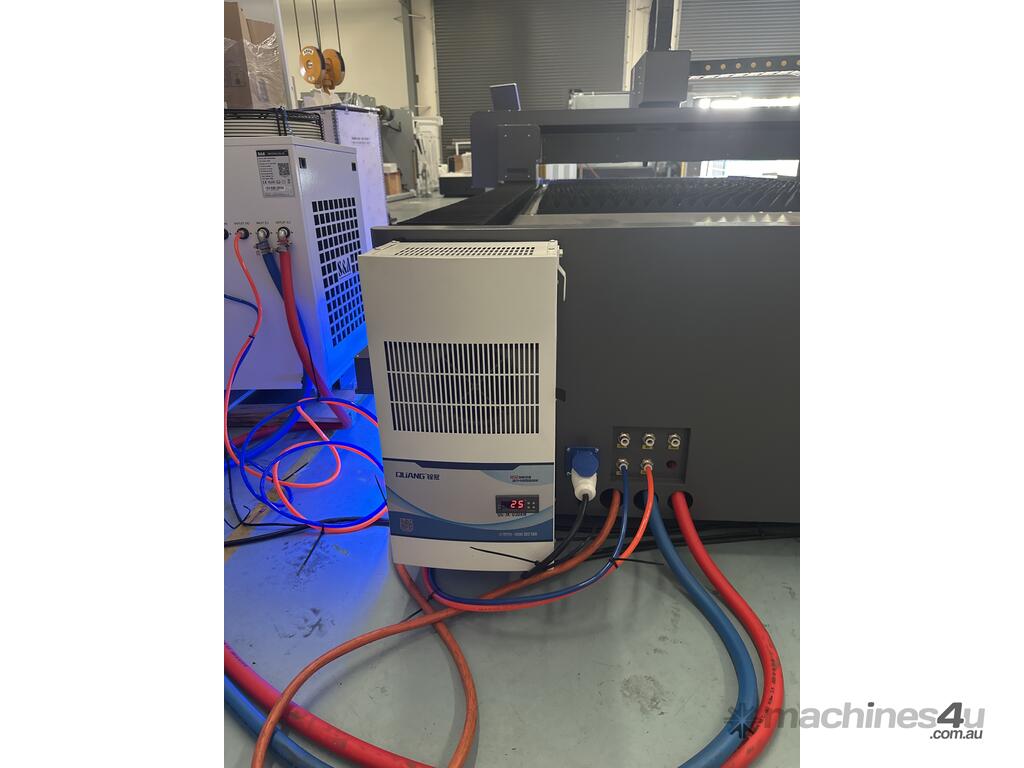

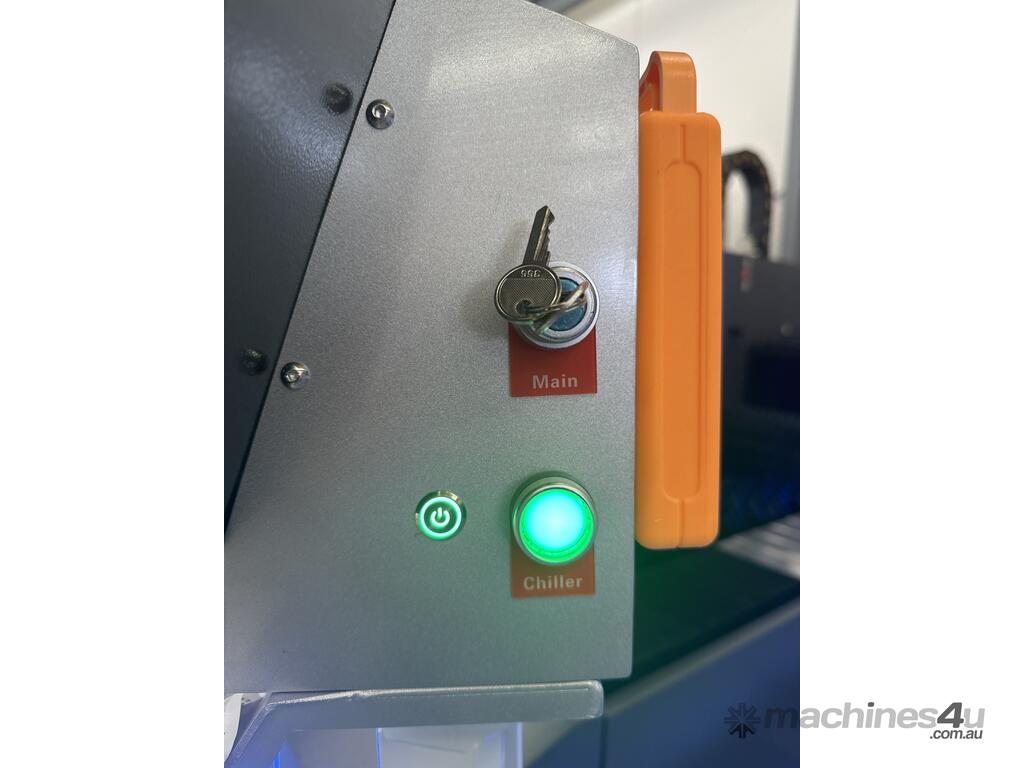

- Water chiller
- Gantry parking area

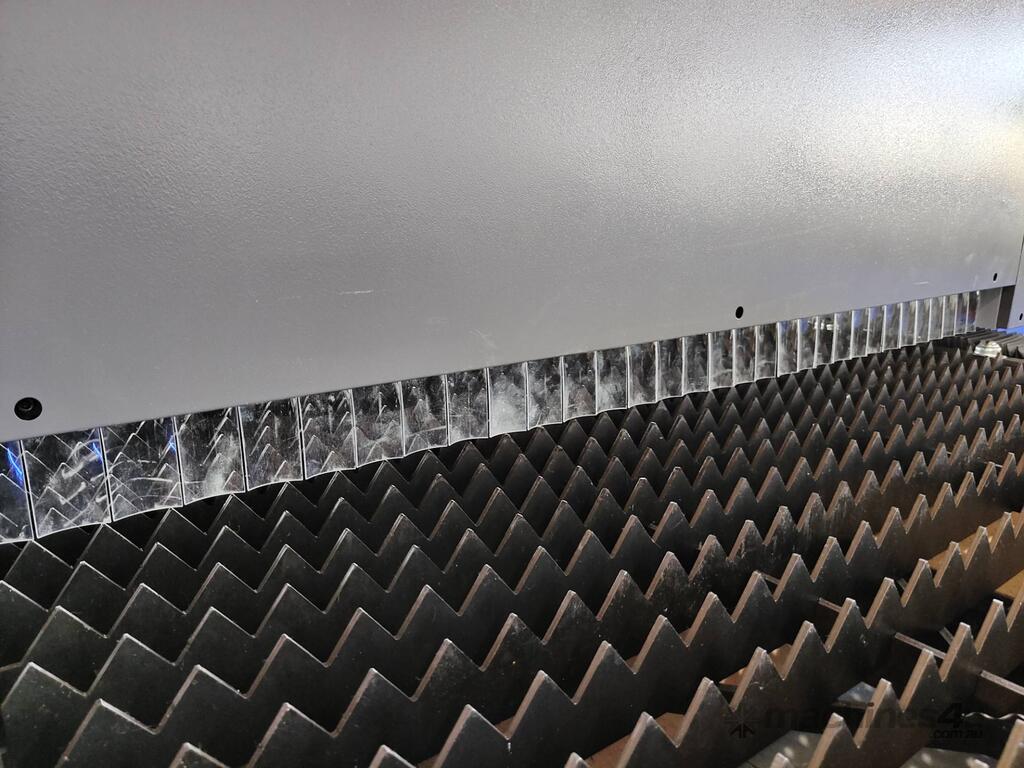

- Hollow bed design for better heat distribution

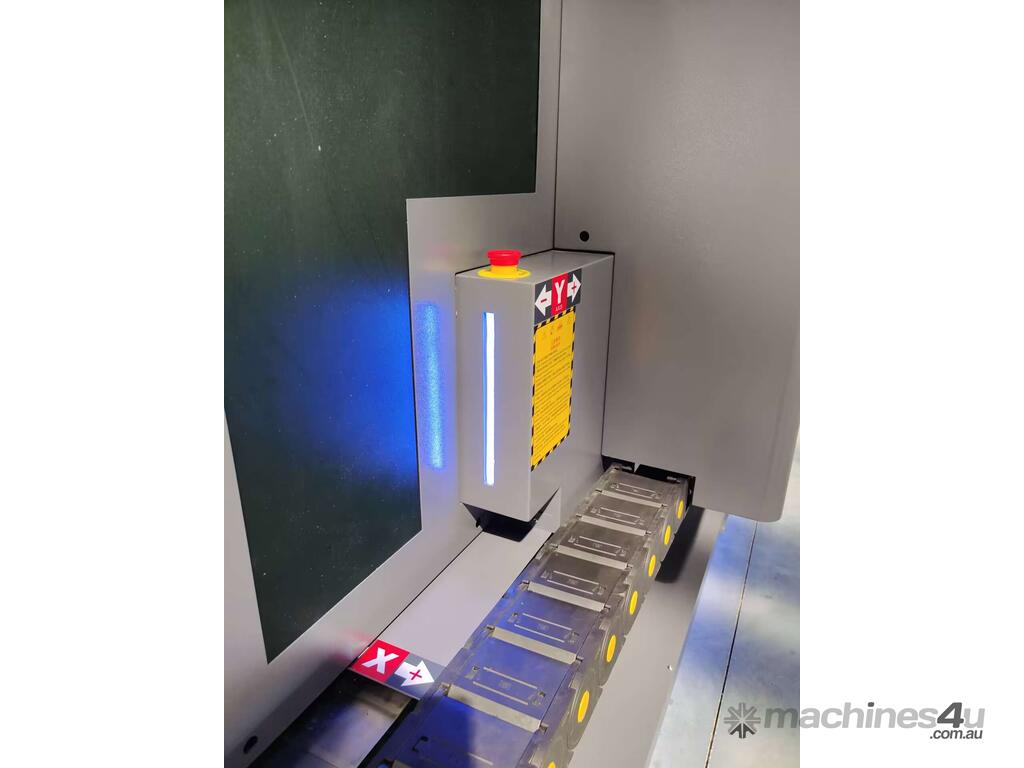

- Safety stops on both sides of the gantry
- Offline software compatible - DXF/PLT & AI file formats

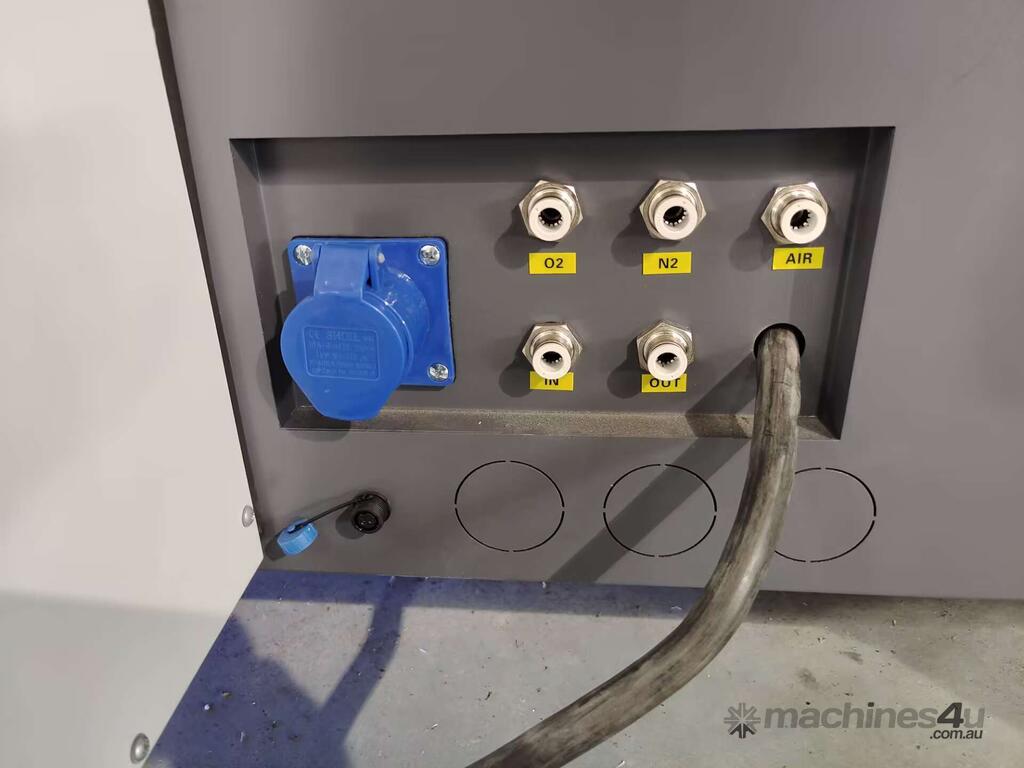

- Ability to use air / nitrogen & oxygen for cutting
-Fly cut | frog jump | pre-pierce functions for enhanced usability
-Auto focus cutting head

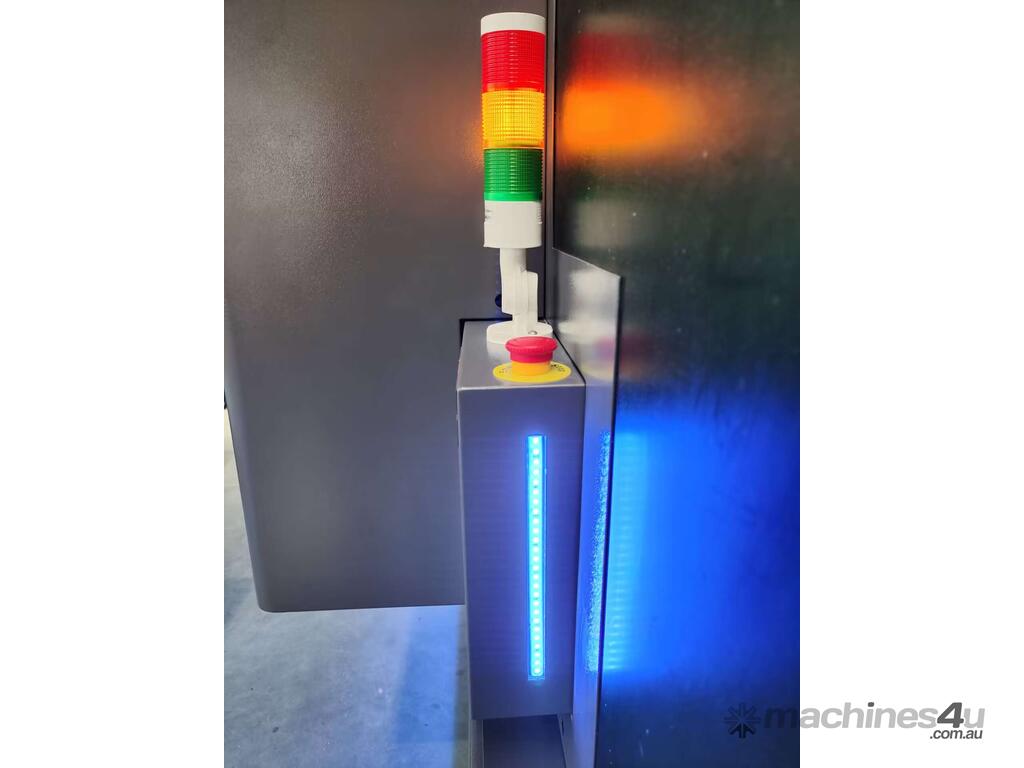

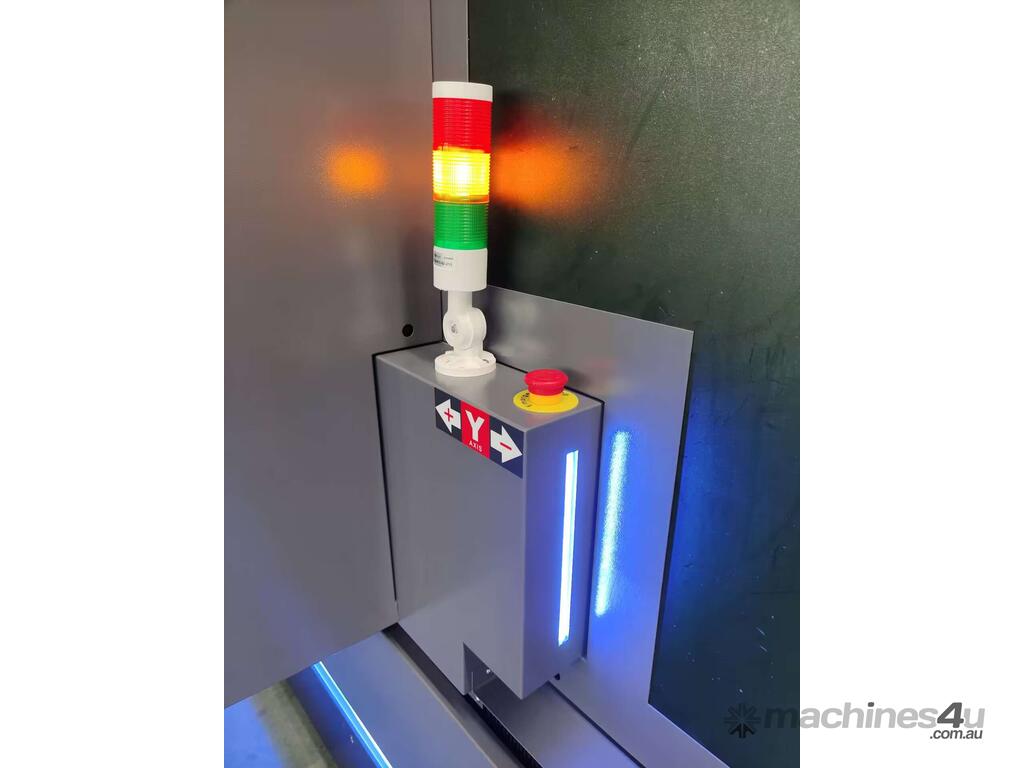

-External 3 colour status lamp
-Solid heavy duty frame for greater vibration absorption


CAPACITIES -

- Power source - 6KW
- Max idle running speed - 140 m/min
- X/Y/Z axis stroke - 1500/3000/140mm
- Geometric position accuracy-within +/-0.05mm/m
- Reorientation accuracy -within +/-0.03mm/m
- Min line width -+/-0.02mm

Options available -

- IPG power source (USA)
- Raycus power source
- TwinCat touch screen control system
- Dust extraction system
- Precitec Thunder cutting head (Germany)
