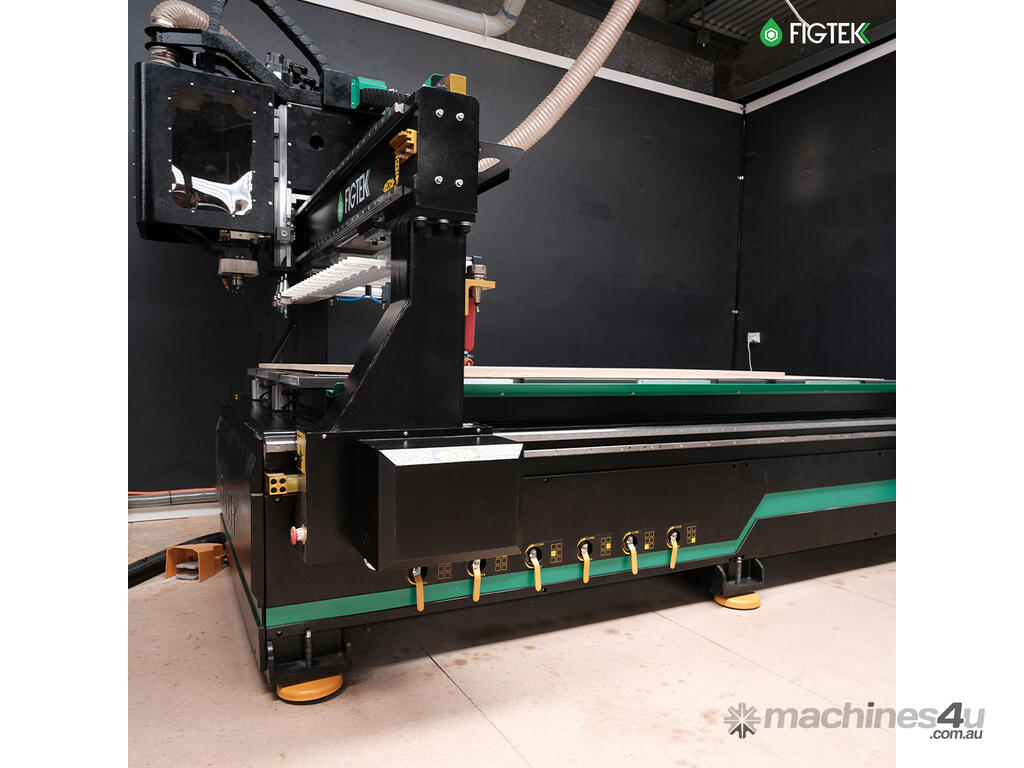

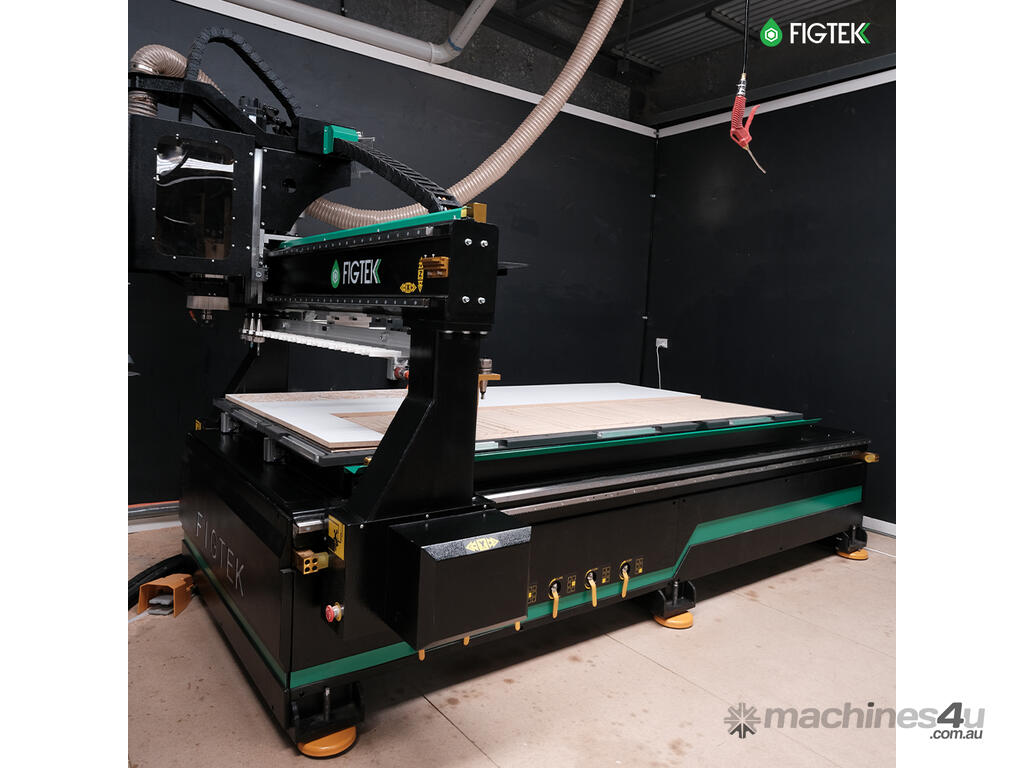

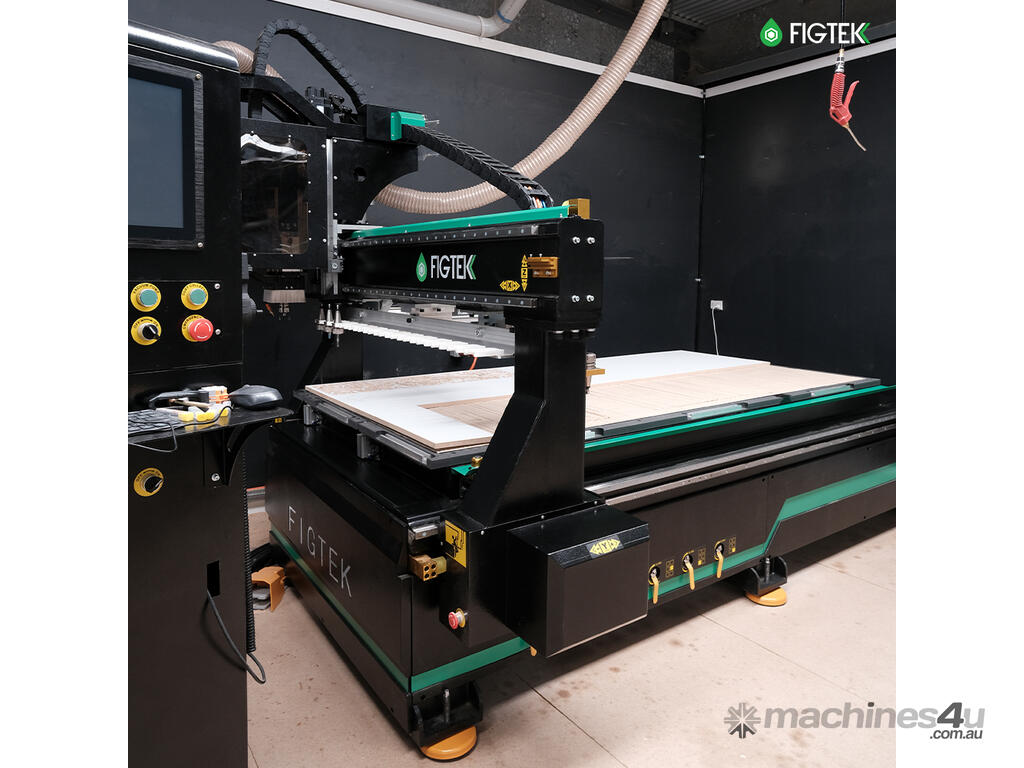

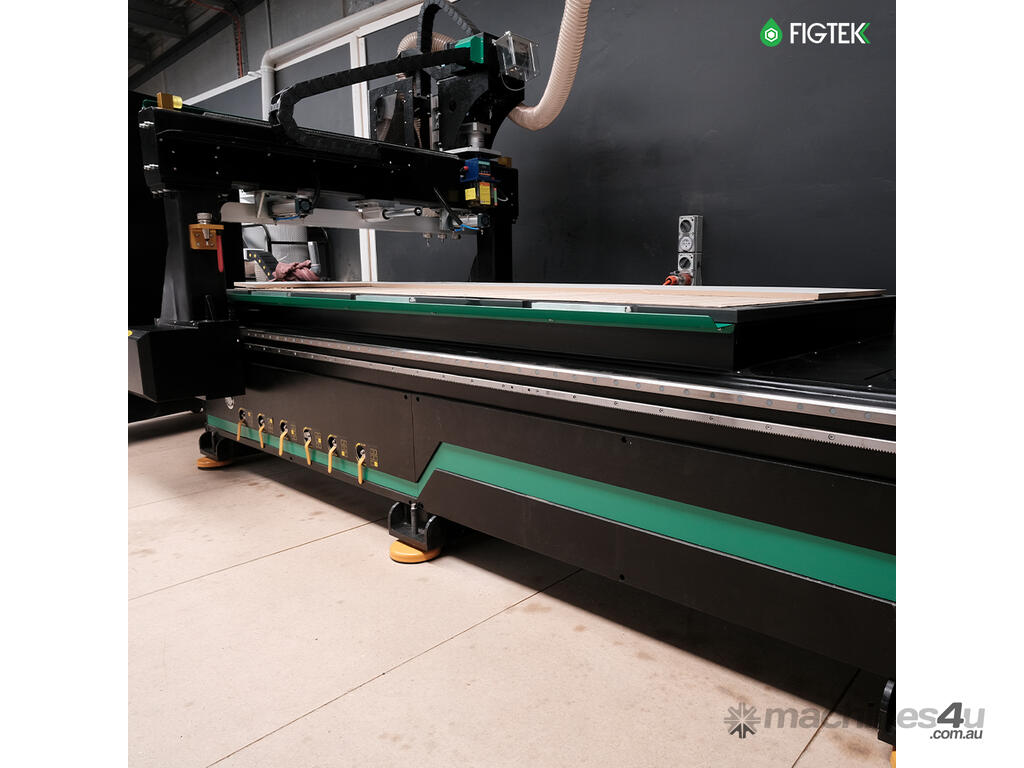

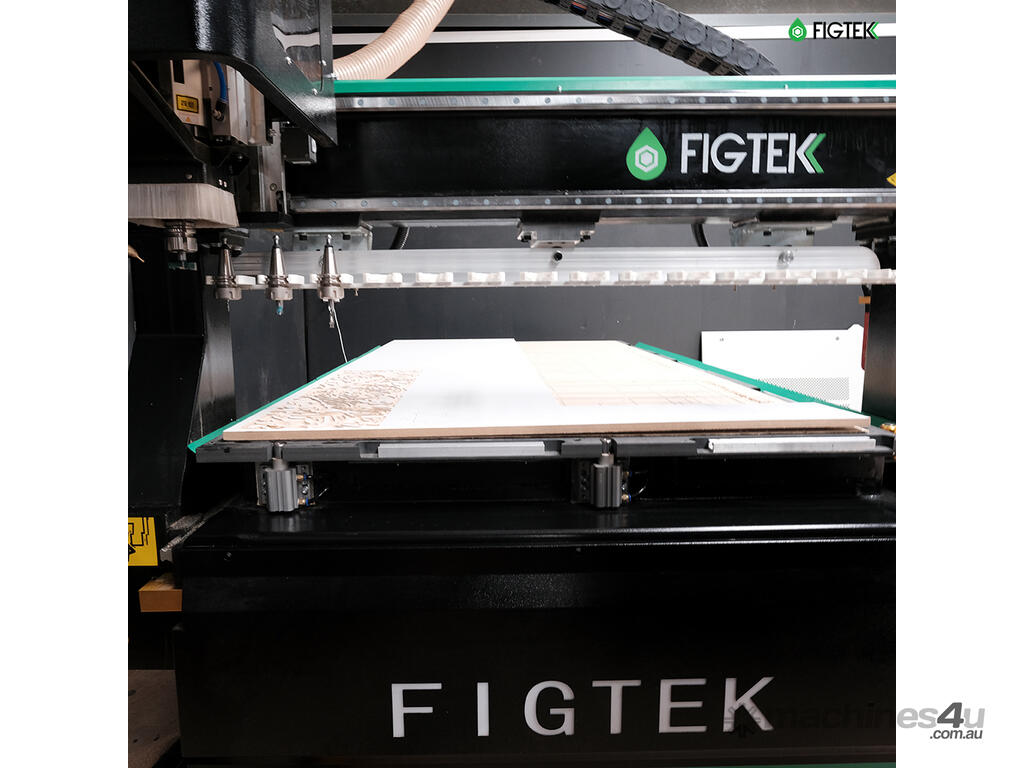

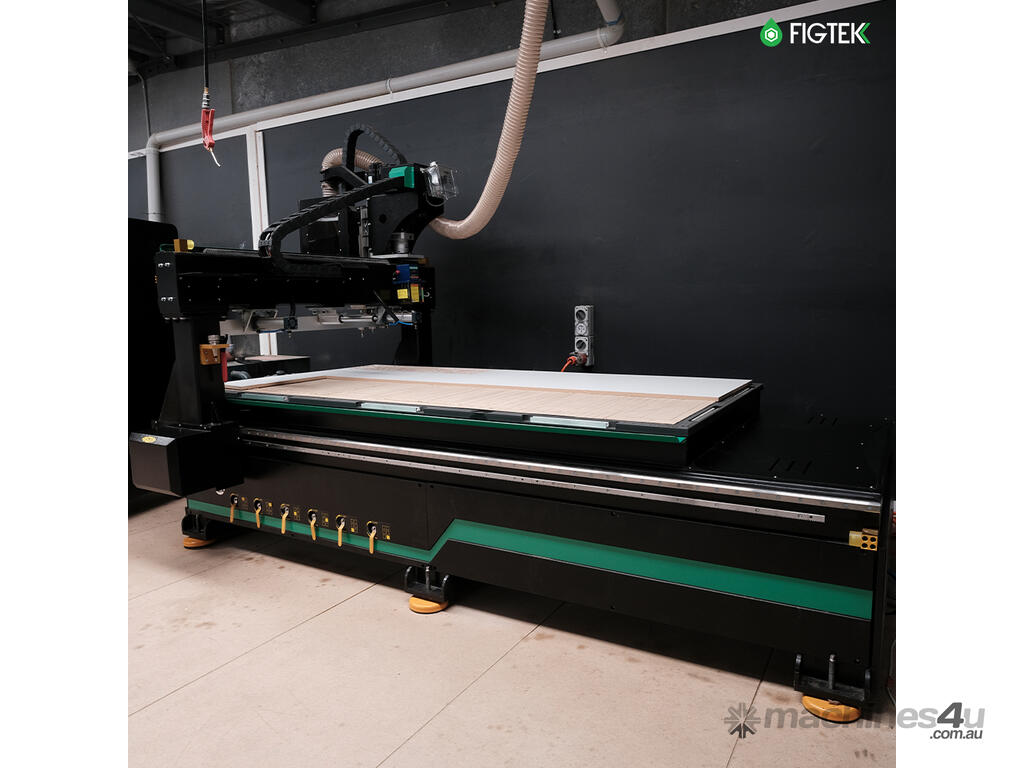

LNC 1325 ATC Router

Figtek is a group of small niche Australian businesses that complement and support each other to create a vast array of solutions for all of its client’s needs.

In Taiwan we employee a group of exceptionally passionate and experienced engineers that source the most reliable and cost-effective parts from around the world. They now build to our specifications, for our local market. This way we know we can satisfy all of our customer’s needs. This means we now control the design and quality of what we import. We now import, service and support all of these machines Australia wide!

Machine is available in stock at our factory. Ready to be shipped. Negotiable on the price.

Inclusions:

• Working Area: 1300*2500*300mm
• Acceptable Material Thickness: 150mm
• Working Table: Vacuum Table
• Vacuum Pump: 7.5 KW Water Vacuum Pump
• Processing Resolution: ±0.1mm
• Re-positioning resolution: ±0.02mm

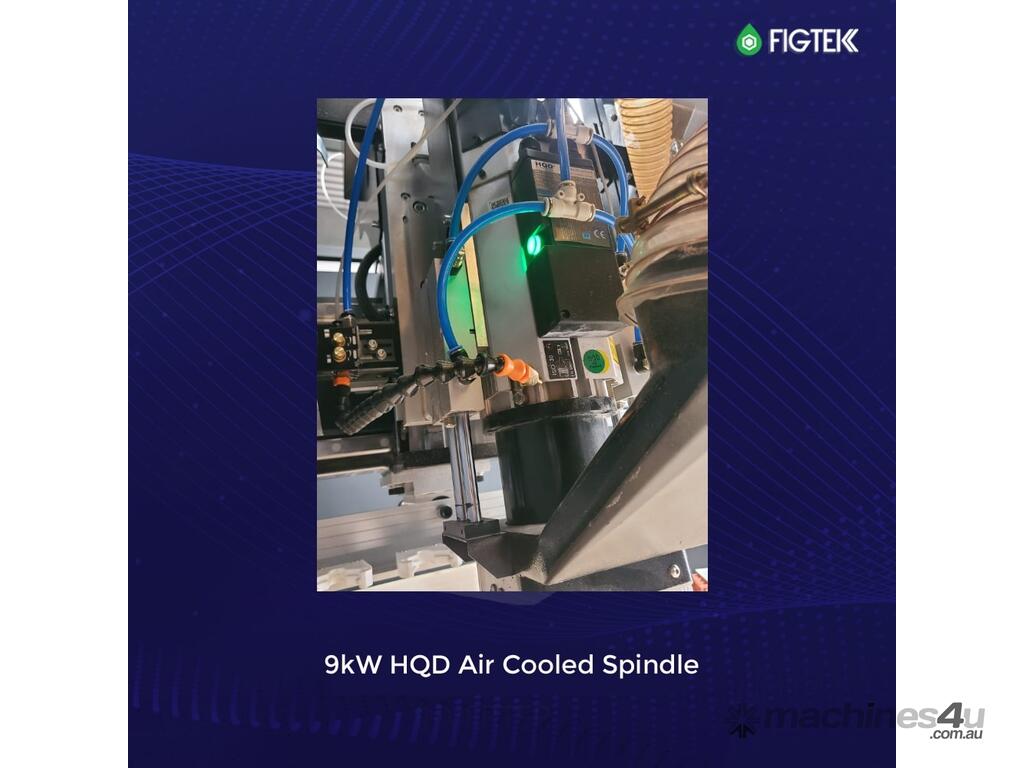

• Spindle Motor: 7 Spindle motor 9KW HQD Air Cooling Spindle
• Tool Changer: Dual-process Pneumatic Tool Changer
• Spindle Rotating Speed: 24000rpm
• Transmitting System: X\Y axis Rack and Opinion+ Square guide; Z axis ball screw+ Square guide

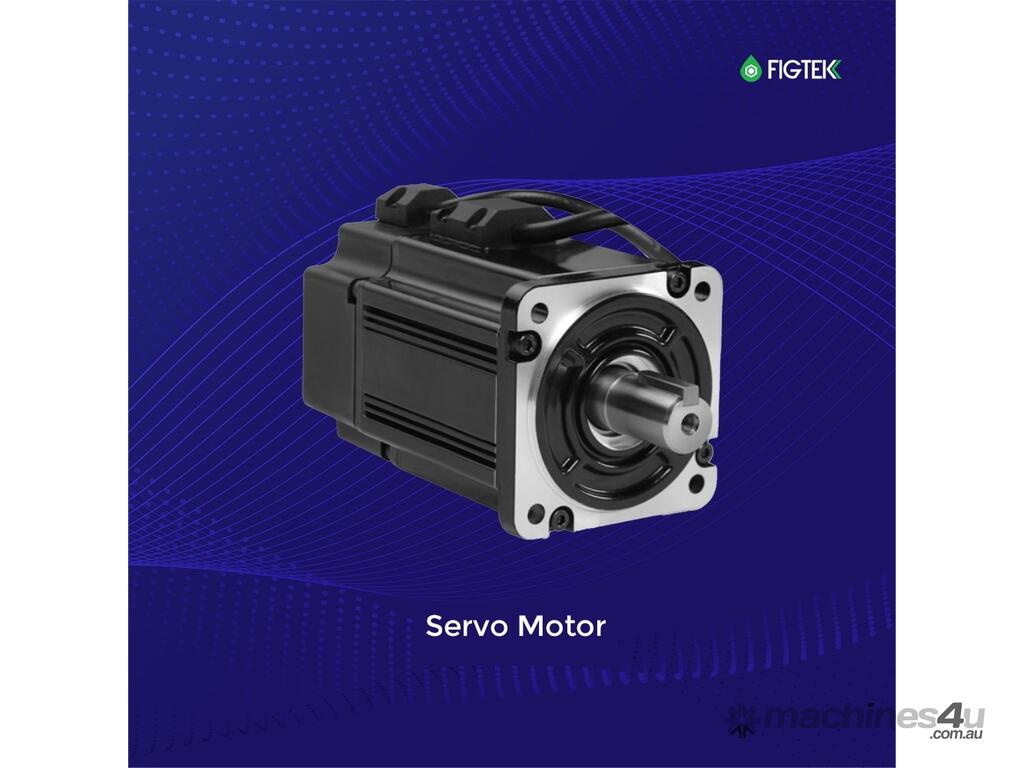

• Driving Motor: 11 Driving motor X/Y/Z 1.5KW Leadshine Servo Motor & Driver
• Inverter: Fuling 11KW
• Processing Speed: ?20000mm/min
• Control System: LNC-MW2200
• Tool Holder: 12Pieces
• Voltage: 3 Phase 380V, 50HZ


Technical Specifications:

• Spindle: 9KW HQD Air Cooling Spindle
• Motor and Driver: X/Y/Z 1.5KW Leadshine Servo Motor and Driver
• Control System: LNC MW2200
• Guide Rail: Taiwan Original PMI/CSK/Taiwan - X/Y/Z:25MM
• Blocks: Taiwan Original PMI/CSK/Taiwan
• Ball Screw: Taiwan TBI
• Rack and Opinion: High Precision Taiwan Designed Helical Tooth T-WIN 2.0
• Machine Structure: Heavy Duty Structure and Strong Structure (Double Strengthened Structure)
• Working Table: Vacuum Table
• Vacuum Pump: 7.5KW Water Cooling Pump
• Electronics: Original France Schneider Brands
• Tool Sensor/Z Probe: Included
• Z Axis Cover: Included
• Auto Feeding Table: Included
• Up & Down Table: Included


Features:

• Integrally cast lathe bed, robust and without distortion
• 3axes transmission with imported ball screws ensures stable and smooth movement of the machine
• Application of driver with high-definition subdivision ensures fast speed and high accuracy
• High power spindle, brushless, Air cooling, working vigorously with low noise, guarantees long time mass processing
• Optimized mechanical and electrical design with well-selected brand parts minimizes breakdown rate
• Humanized design ensures easy disassembly of the machine for convenient transportation.

Applications:

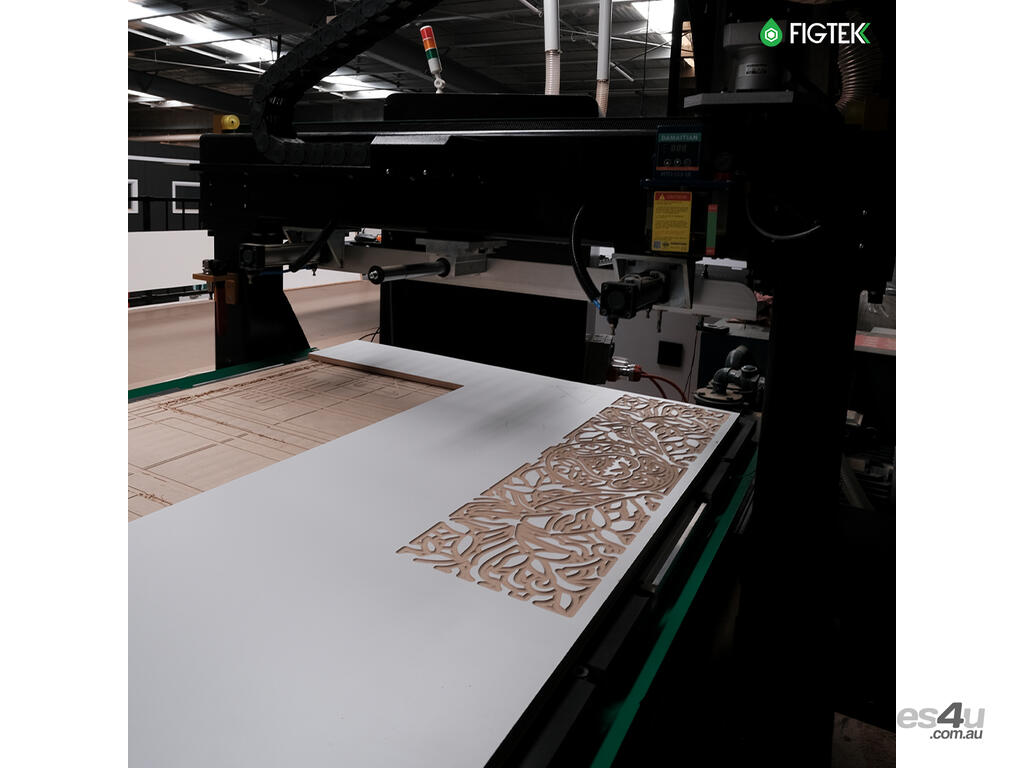

• Used in processing single lines, milling, 3D Cutting and engraving.
• Router can be used in furniture processing industry, woodworking, decoration, wood art work, home decor and door's manufacturing.

The Facts:

• We build the machines from scratch
• Wired to Australian Standard
• All machines undergo heaps of testing and calibration
• Engineers with over 30 years' experience
• Plug and Play option available - Ask us what's this about
• We import to the customer - Out of the container and to you.

Why Buy Our ATC Router?
• Australian Local Support
• Only the best quality parts used
• Engineers with over 15 years of experience
• Custom built to your specifications
• 3 - year Australian warranty - If installation package is chosen.
