New figtek Woodworking CNC Machines for sale - LNC 1836 ATC Router

Working Area: 1800 x 3600 x 300mm
Acceptable Material Thickness: 150mm
Working Table: Vacuum Table
Vacuum Pump: 7.5 KW Water Vacuum Pump
Processing Resolution: ±0.1mm
Re-positioning resolution: ±0.02mm

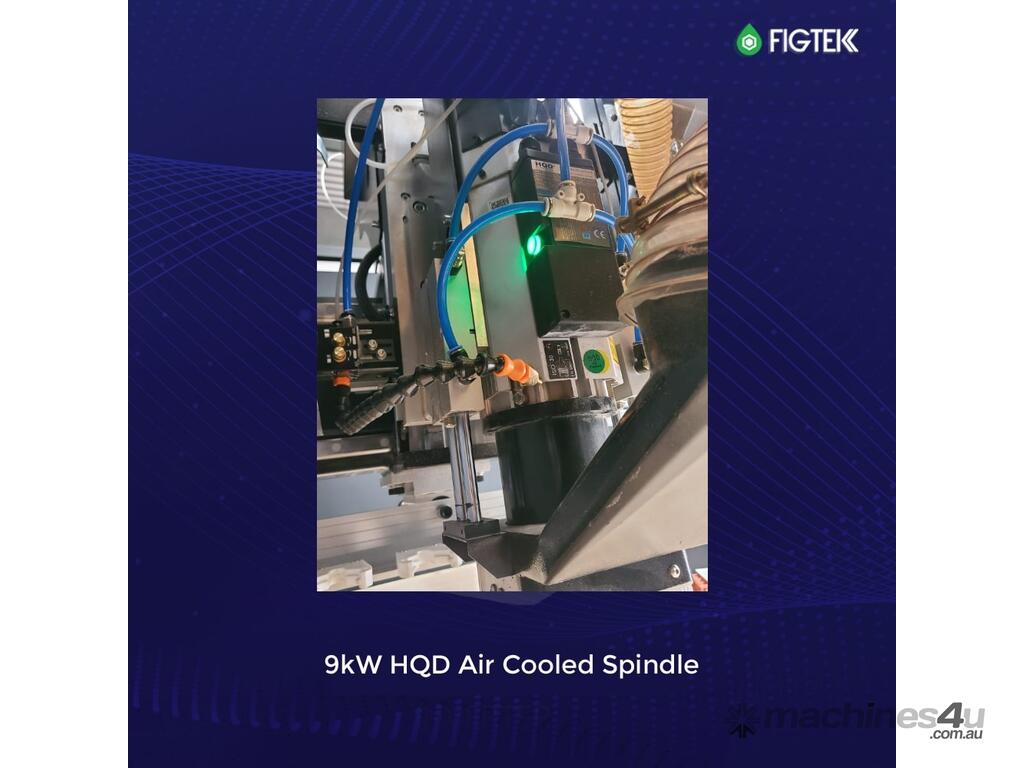

Spindle Motor: 7 Spindle motor 9 kW Air Cooled Spindle
Tool Changer: Duel-process Pneumatic Tool Changer
Spindle Rotating Speed: 24000rpm

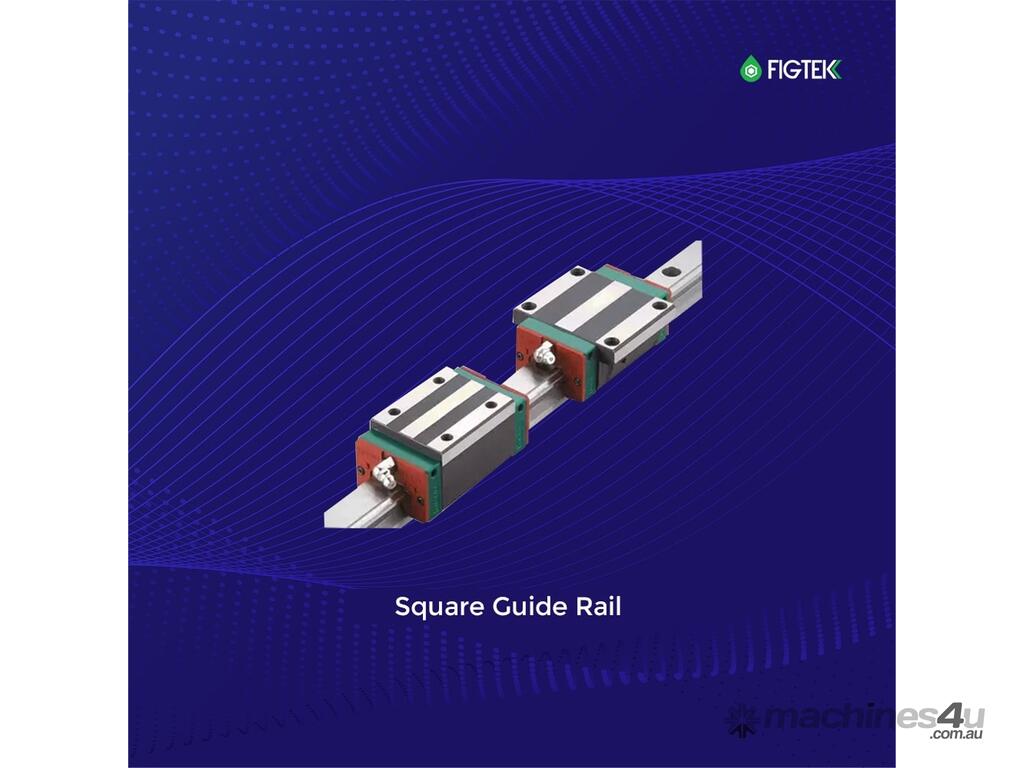

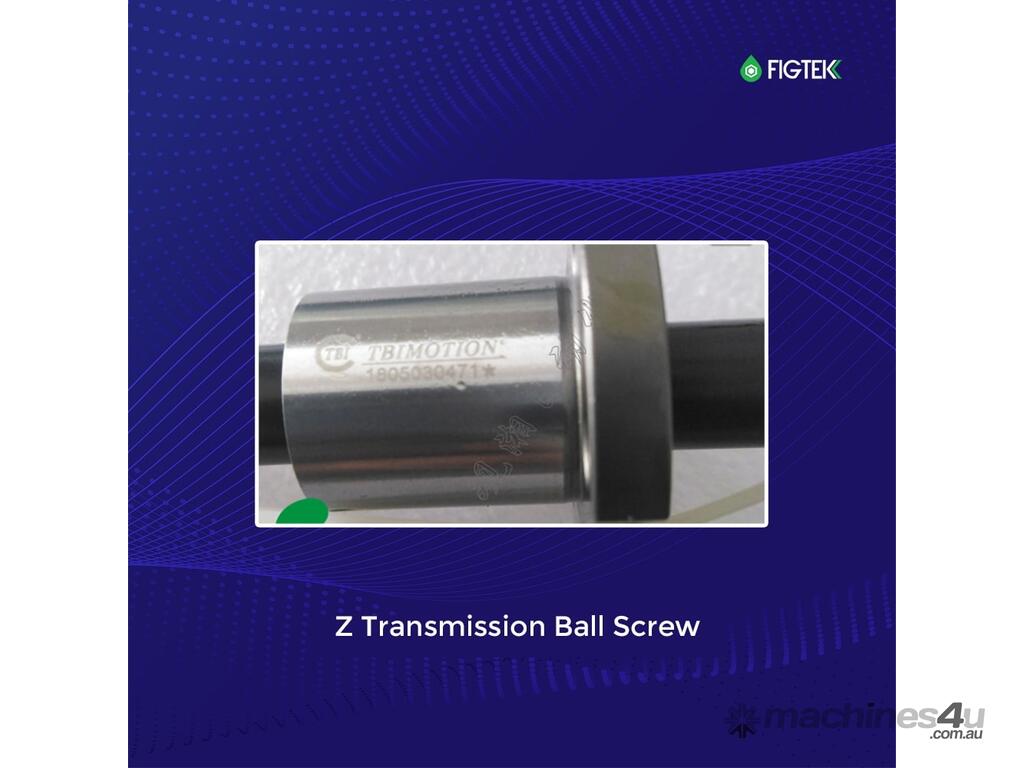

Transmitting System: X\Y axis Rack and Opinion+ Square guide; Z axis ball screw+ Square guide

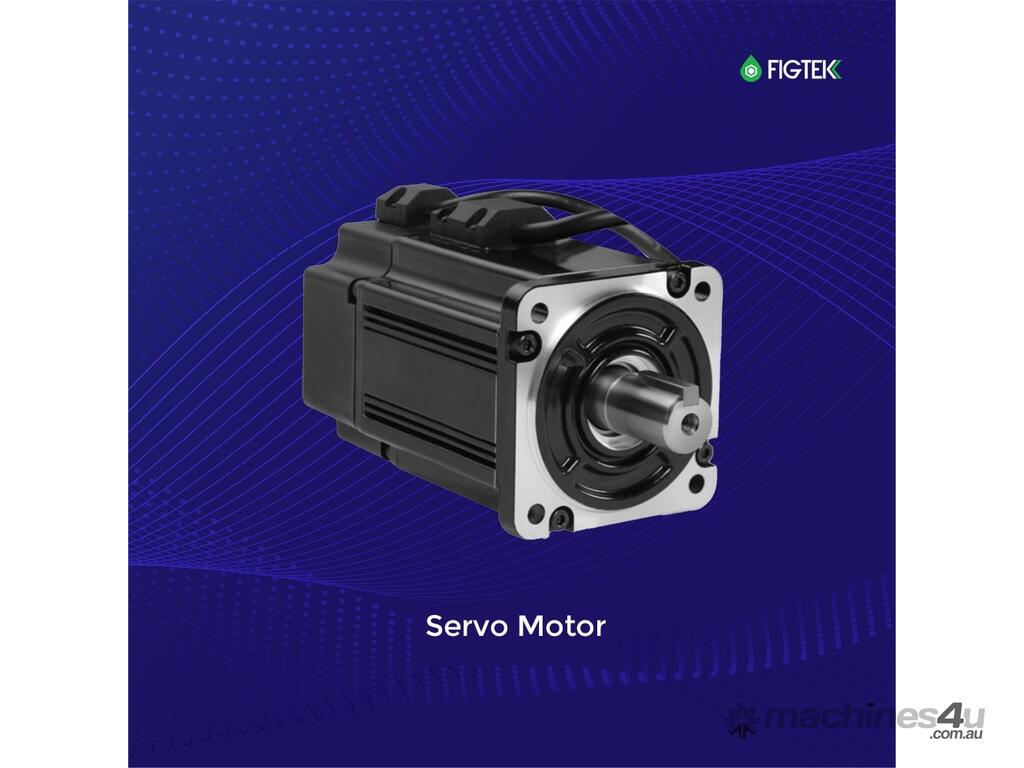

Driving Motor: 11 Driving motor X/Y/Z 1.5KW Yaskawa Servo Motor & Driver
Inverter: Fuling 11KW

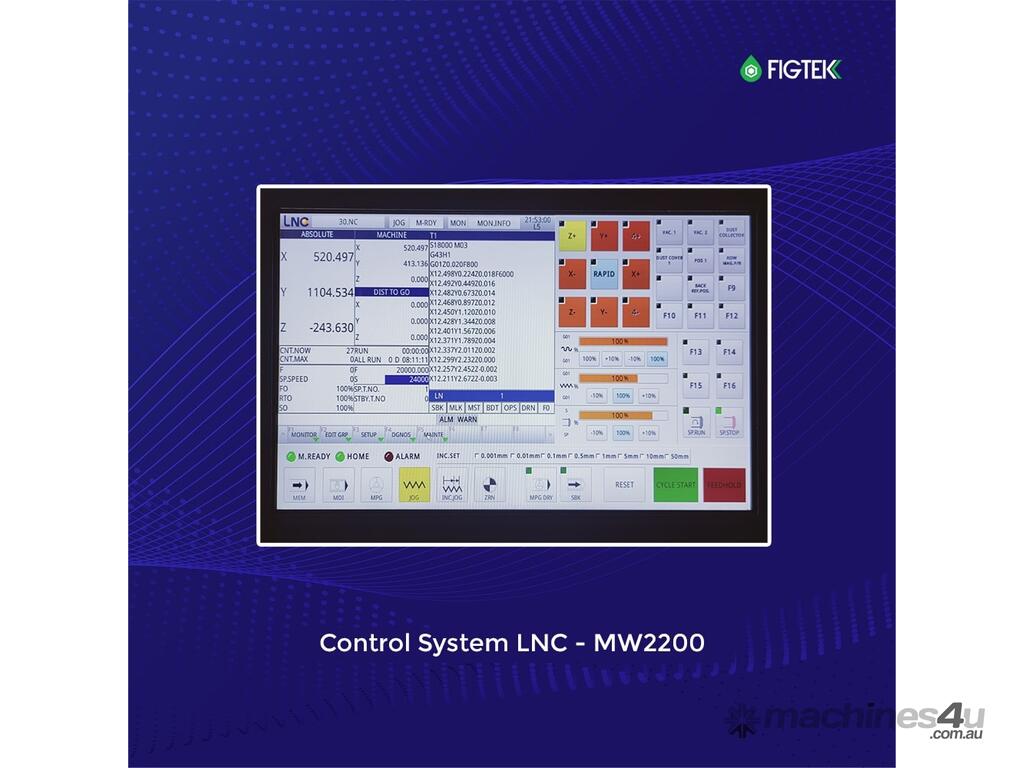

Control System: LNC-MW2200
Processing Speed: ?20000mm/min
Tool Holder: 12 Pieces / Voltage: 3 Phase 380V, 50HZ

Features:
• Integrally cast lathe bed, robust and without distortion
• 3axes transmission with imported ball screws ensures stable and
smooth movement of the machine
• Application of driver with high-definition subdivision ensures fast
speed and high accuracy
• High power spindle, brushless, Air cooling, working vigorously with
low noise, guarantees long time mass processing
• Optimized mechanical and electrical design with well-selected brand
parts minimizes breakdown rate
• Humanized design ensures easy disassembly of the machine for convenient
transportation.

Applications:
Woodworking: Furniture manufacturing, Cabinetry, and Woodworking crafts.
Signmaking: Intricate designs and lettering on signage materials such as acrylic, PVC, and wood.
Prototyping: Prototyping tasks in industries like product design, automotive, and aerospace.
Plastic Fabrication: Displays, Enclosures, and machine parts.
Aluminium Machining: Light-duty machining of aluminium materials, making it useful for creating custom parts and prototypes.
Foam Cutting: Packaging, Insulation, and Theatrical props.
Composite Material Processing: Fiberglass, Carbon fiber, and laminates for applications in the aerospace, marine, and automotive industries.
Educational Purposes: Can be used in educational settings to teach CNC machining, design principles, and manufacturing processes.

Why Buy Our CNC Machine?
Australian Local Support
Only the best quality parts used
Engineers with over 15 years of experience
Custom built to your specifications
3 - year Australian Warranty - If Installation Package is chosen.
