Used Lockformer Water Jet Cutters for sale - LOCKFORMER WATERJET

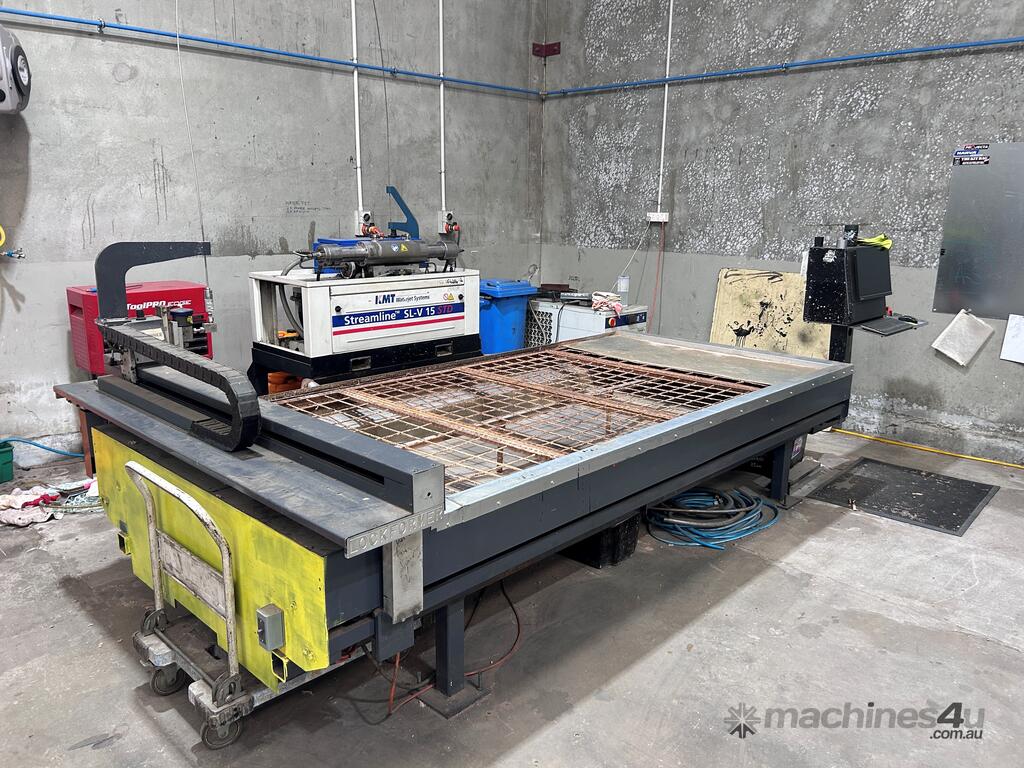

Used Lockformer Vuclan Waterjet Cutting Machine for Insulation

Cutting insulation manually is a slow, costly and inexact procedure. The Lockformer Vulcan 1600 Fiberglass and Insulation Foam Waterjet Cutting System automates the insulation cutting and fabrication process for mechanical contractors, delivering an unrivalled level of quality and efficiency. The machine will cut up to 4" fiberglass or 2" foam insulation at a maximum positioning speed of 3,000 IPM.

Whether you require precise insulation shapes for square to rounds, radius elbows or transitions, the Lockformer Vulcan 1600 Waterjet Cutting System can deliver savings of over 95%.

With its precision speed and efficiency, the Lockformer Vulcan 1600 Waterjet Cutting System can fabricate insulation fittings for about one-tenth of what it costs to buy them or one-tenth the time it takes to cut them by hand while also reducing your scrap waste by up to 75%.

Available December 2025 $35,000 + GST

If interested, this machine is available to be viewed while operating any day in Malaga, Perth.

System features:

• 1550 x 3050mm effective cutting area
• 100mm maximum cutting thickness
• +/- 0.75mm positional accuracy
• All Premium “plug-in” components
• Unitized, fixture-welded, 3" x 3" steel tubing framework for strength and stability

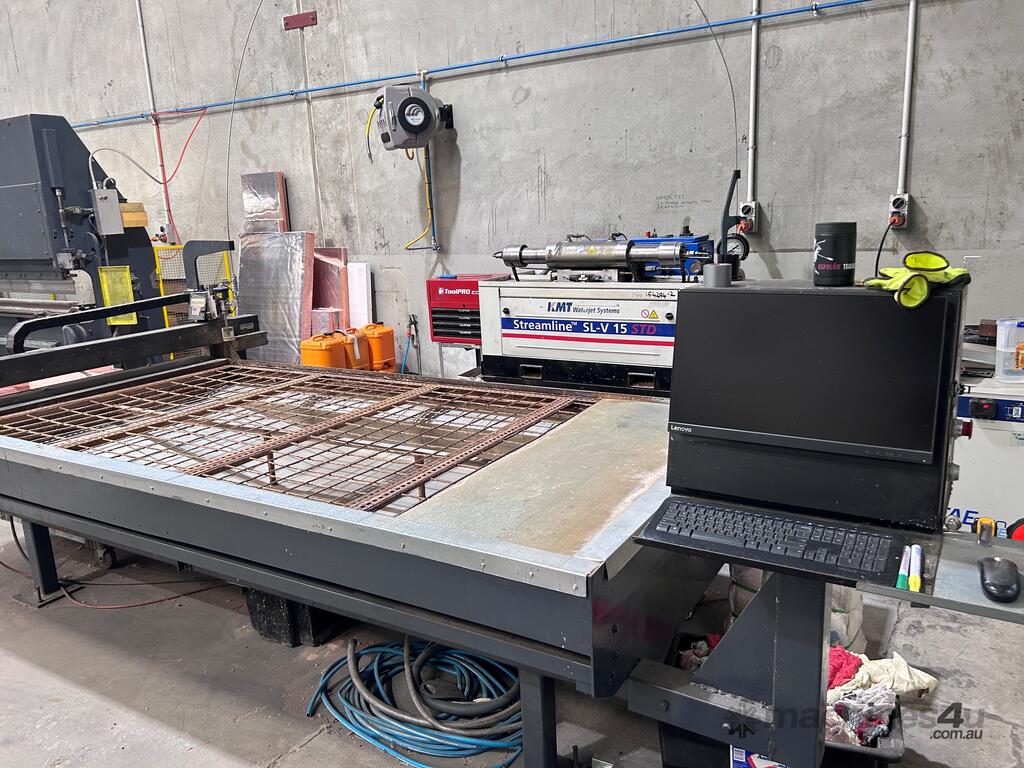

• Stand-alone control console
• All axis home positioning using motor torque measurement

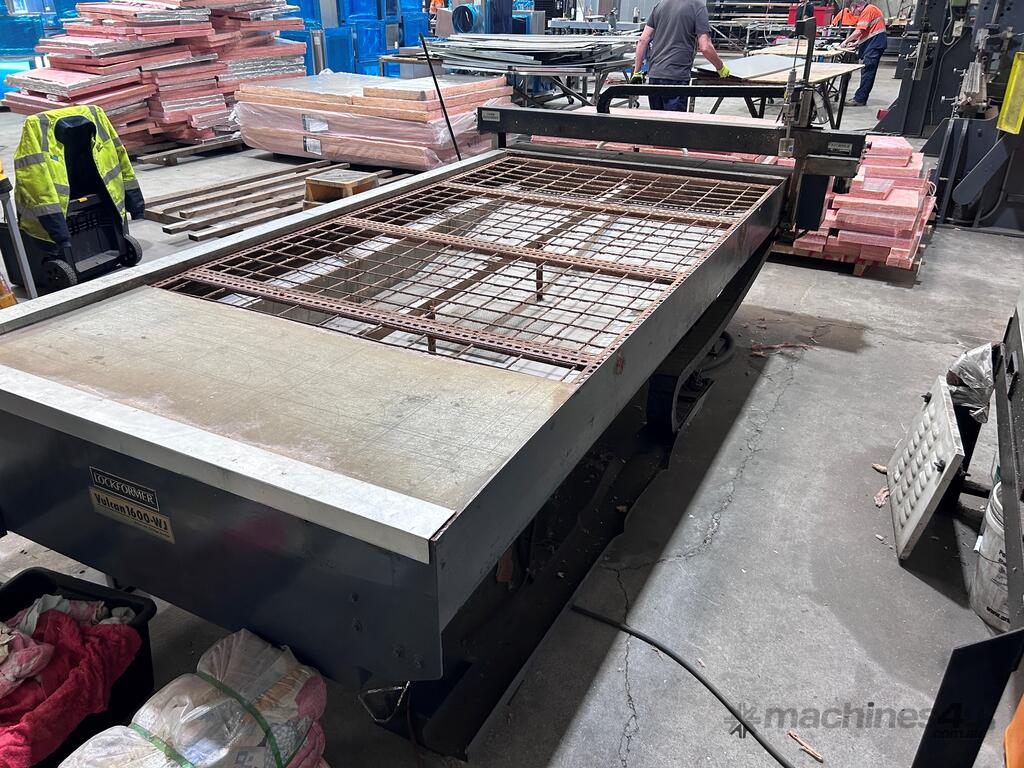

Table features:

• 1/4" steel plate table perimeter
• “Gull Wing” table design to protect the machine’s drive system and reduce the footprint size
• Complete stainless-steel table lining for rust-free performance longevity
• Rectangular exhaust plenum at the back end of the table for easy access connection
• Strategiy located emergency stops [1 = controller; 1 = x-axis carriage]
