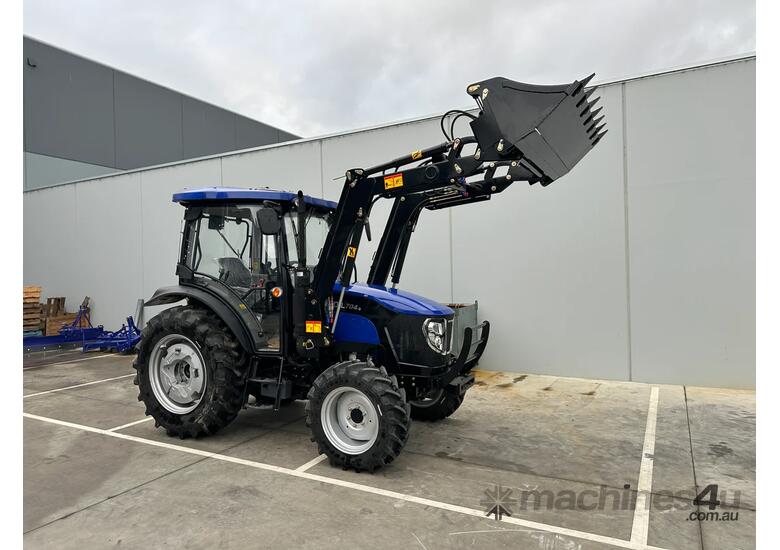

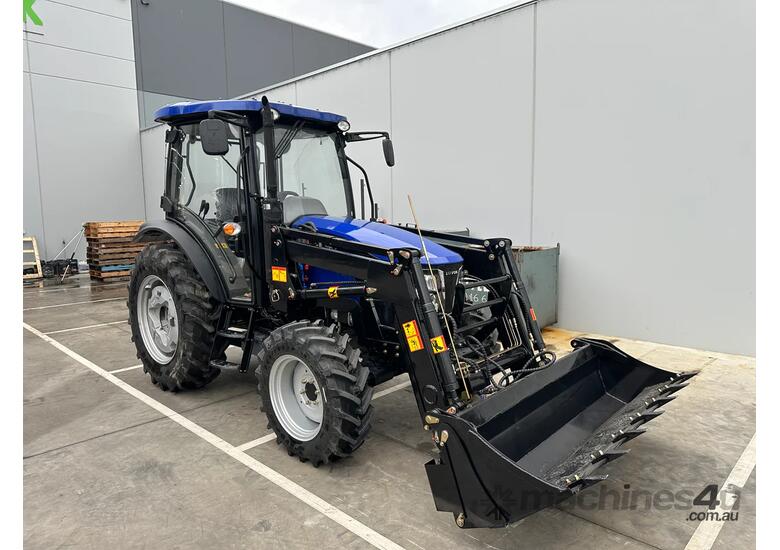

LOVOL M704 Cabin Tractor with 4in1 Front end Loader
Fitted with a 4in1 Front End Loader, 12 Speed Syncro mesh Gearbox, Fwd, Diff Lock, 3 Year Warranty
The 704 60hp Lovol runs in the TB-2 Chassis Boasting bigger radiator, Larger wheel size with 360kg of weights and a extra Brade disc and larger planetry gearsets.
No need to re brand our tractors as the are made by LOVOL Heavy Industries in China who are one of the best manufactures of tractors and heavy machinery today so be sure when you looking for a tractor its a Genuine Tractor and has factory backup and support.
You should come down and inspect these top quality Tier 1 tractors. With their attention to detail from molded floor mats to very friendly joystick controlled front end loader and a top quality Gammer seat you can be sure you will be very happy in the new Gen-3 designed cabin with its heater/Aircon and very well insulated cabin.
But it doesn’t stop there they have paired this long lasting and proven engine with a 12 speed synchromesh gearbox, rear remotes, dual Hydraulic filters, dual element air cleaner and many more great features.
These quality in these tractors is outstanding and an inspection is a must!!
Call us now to find out more!!
Attachments available and in stock – Backhoes – Post Hole Diggers – Augers – Rippers – Slashers – Tow Bars – Bale Spears – Pallet Forks – Wood Chippers & More!!
Key Features
11inch Ceramic plate clutch with cushion springs
Syncromesh Gearbox
Dual rear remotes
Dual wheel weights
Quiet Exhaust
Gammer Seat
Sealed Wiring Looms
Radial Tyres
3 Year Warranty
600kg SWL Front end Loader
4in1 Euro Mount Quick Hitch Bucket
Gen III Design with Quality Finishes
Genuine LOVOL Tractor
***Compare the Lovol M704 Specs with other tractors and see for yourself how well they stand up against the competition.
_________________________________
Model- M704 Cabin
Engine Gross Power (HP)) : 60
Rated Revolution (rpm) : 2400
PTO HorsePower (HP(kw)) :
Type : Natural
No.of Cylinders : 4
Total Displace (cc) : 4087
Bore (mm) :
Combustion System ( : DI
Battery (Ah/h) : 100
Cooling System : Coolant/Water
:
Capacity- :
Fuel Tank (L) : 60
Engine Crankcase(Included Filter) (L) : 12
Engine Coolant (L) : 10.75
Transmission Case (L) : 27
Support of Front Axle (L) : 7
:
PTO- :
Rear PTO : 6 Spline
Type : dual speed
Revolution (rpm) : 540/540E (760)
Hydraulic- :
Steering : hydraulic
3 Point Lift Control Type : draft/position
Implement Pump (L/min) : 40
Power Steering Pump (L/min) : 13
Total Hydraulic Flow (L/min) : 53
3-point Hitch Type : cat II
Lower Link Type : hinge
Check Link Type : lever
Top Link Type : hinge
Lift rod type : thread
Lift capacity at lift point (KN) : 2,294 kgf
Lift capacity at 24 in.behind lift point (KN) : 1,428 kgf
Drawbar type : swing
Max. Trailer Loading Weight (kg) : 6000
No.of Standard Remote Valve's Ports (Rear) : 2 Sets
Towing Capacity (based on 7.5km/h) :
Maximum Towing Power (KN) : >13.2
:
Drive Train :
:
Transmission- :
Main Gear Shift x Range Gear Shift : 4x3 range
No. of Speeds : F12+R12
Shuttle Type : mechanical shuttle
Brake Type : wet/double disc per side
Main Clutch Type : Dry with Springs
Main Clutch Diameter (mm) : 254 / 11 Inch
Mechanical Differential Lock : yes
Front Wheel Drive System : 4WD
Traveling Speeds :
Forward (km/h) : 2.37-38.46
Reverse (km/h) : 2.07-33.71
:
Other features- :
Tilt Steering : yes
Flat Deck Type : flat floor
Panel Type : suspension
Dimensions- :
Overall Length (With 3 Point & front Weight) (mm) : 4136
Overall Width(Minimum Tread) (mm) : 1870
Tread Width Front 4wd (mm) : 1250
Tread Width Rear (mm) : 1300
Overall Height(With ROPS) (mm) : -
Overall Height (Top of Cabin) (mm) : 2822
Wheel Base (mm) : 1990
Ground(Crop) Clearance (mm) : 310
Turning Radius(w/brake) (mm) : 4300/3800
Weight with ROPS Without Loader (kg) : -
Weight with CABIN Without Loader (kg) : 2525
TireIRE Size -
AG. Tire
Front: 8.3-20 AG Or 280\70R20 Radial
Rear: 14.9-24 AG or 380\85R28 Radial
Turf Tire:
Front: 31X9.5-16
Rear: 43.5X13-20
_________________________________
