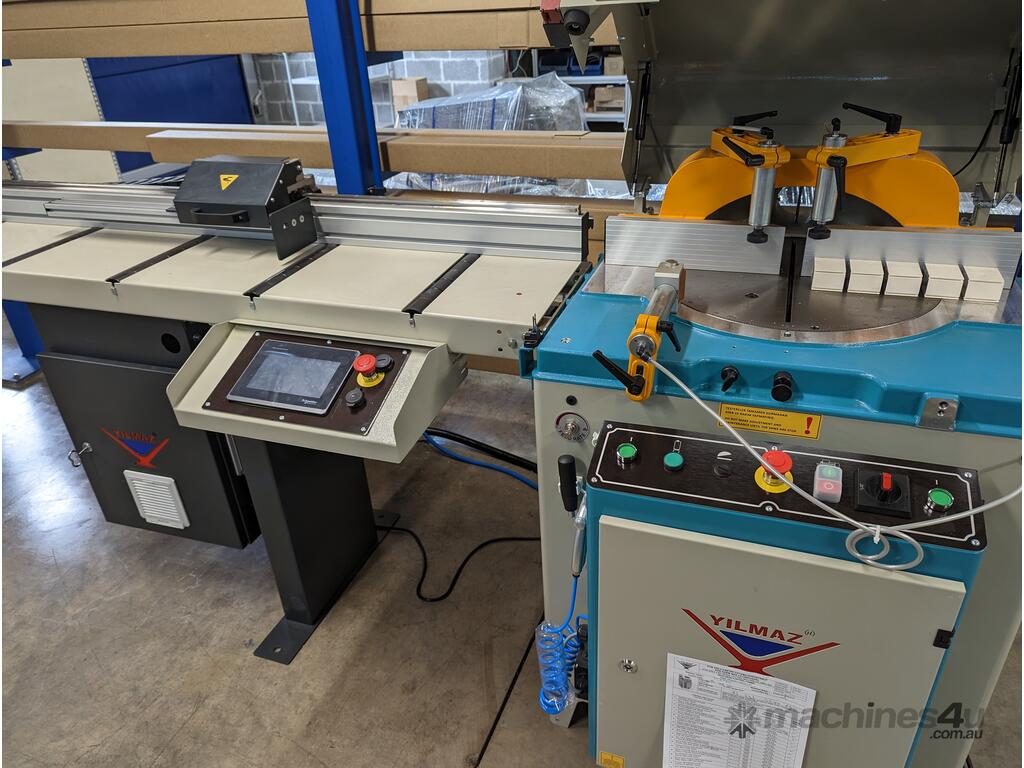

LUNA AUTO FEED AND CUT ALUMINIUM SAW

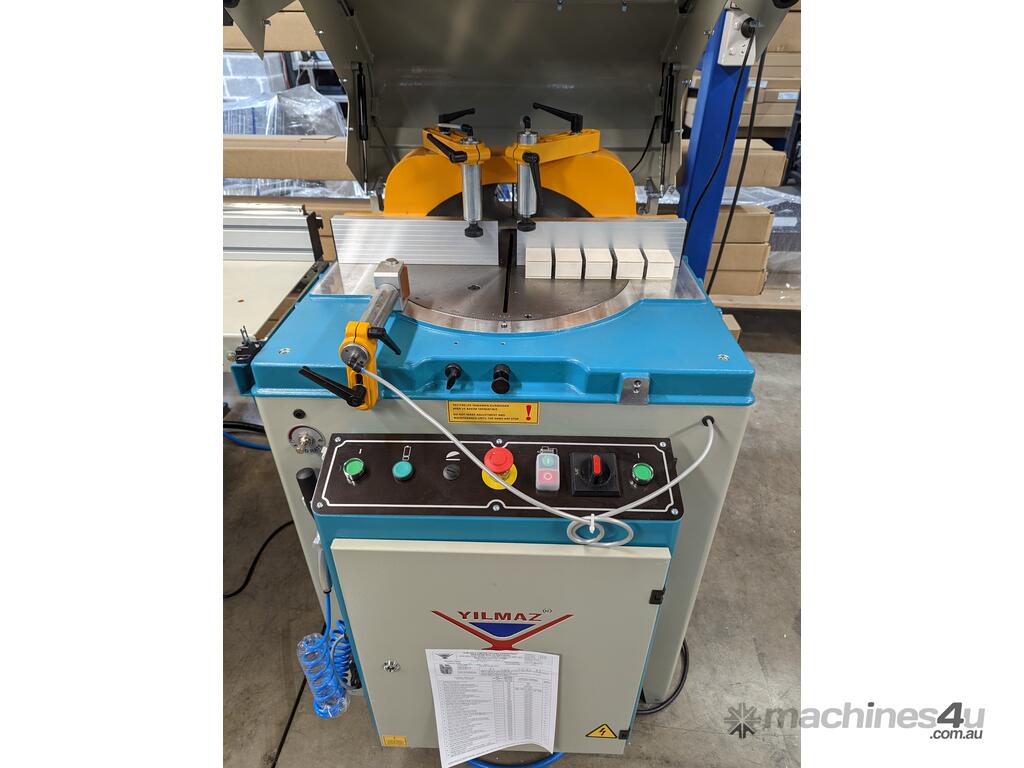

LUNA SCM 420
High-Volume 90° Cutting Centre for PVC & Aluminium
Precision • Safety • Productivity
The Luna SCM 420, manufactured in Europe by Yilmaz Machinery, is designed for high-volume cutting of PVC and aluminium profiles for window and door manufacturing. Newly developed and already proven popular in the Australian market, it delivers exceptional accuracy, reliability, and operator safety.
________________________________________
Key Advantages
• Ideal for high-volume 90° cutting
• Repeatable accuracy ±0.2 mm (±0.008”)

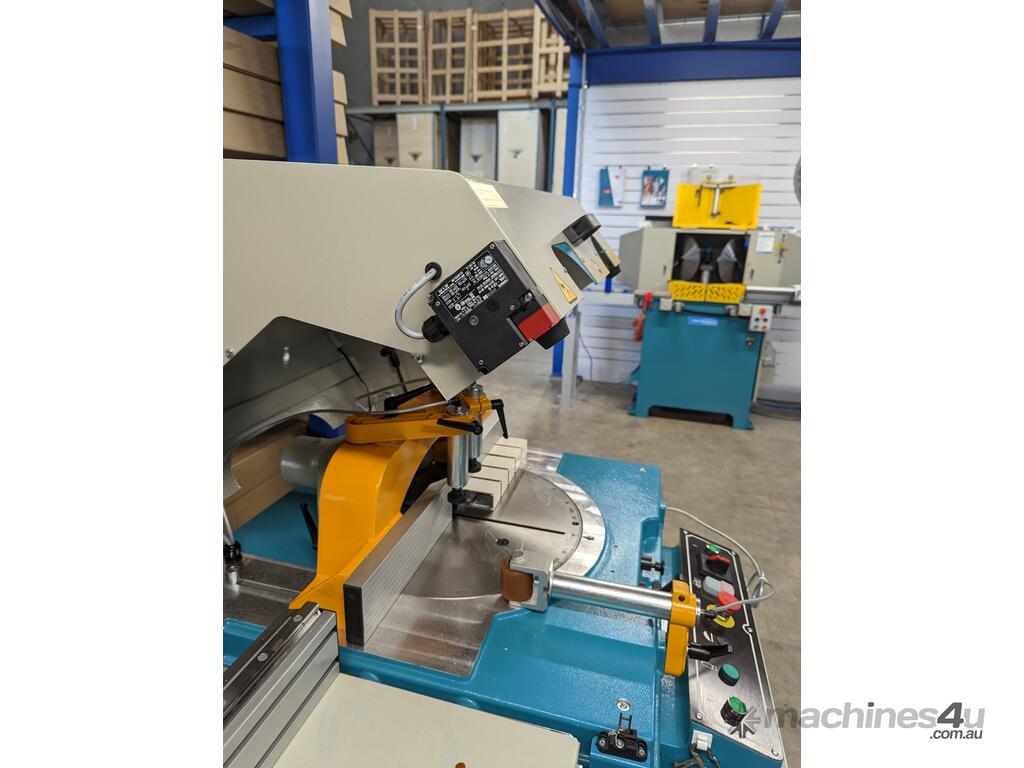

• CE-compliant with pneumatically opening safety guard
• Automatic & manual operation
• CSV cutting list transfer via SD card
• 7” colour touch-screen HMI
• Remote diagnostics support
• Left- or right-hand operation conversion
________________________________________
Cutting Capacity
• Saw Blade: 420 mm diameter
• Max Cutting Height: 140 mm
• Cutting Width:
o 200 mm 90°
o 140 mm 45°
o 50 mm 75°
• Manual Angles: 15°, 22.5°, 30°, 45°, 60°, 75°, 90° (L & R)
________________________________________
Performance & Control
• Motor: 2.2 kW (3 HP), 415V, 3-Phase
• Hydro-pneumatic blade feed with variable speed

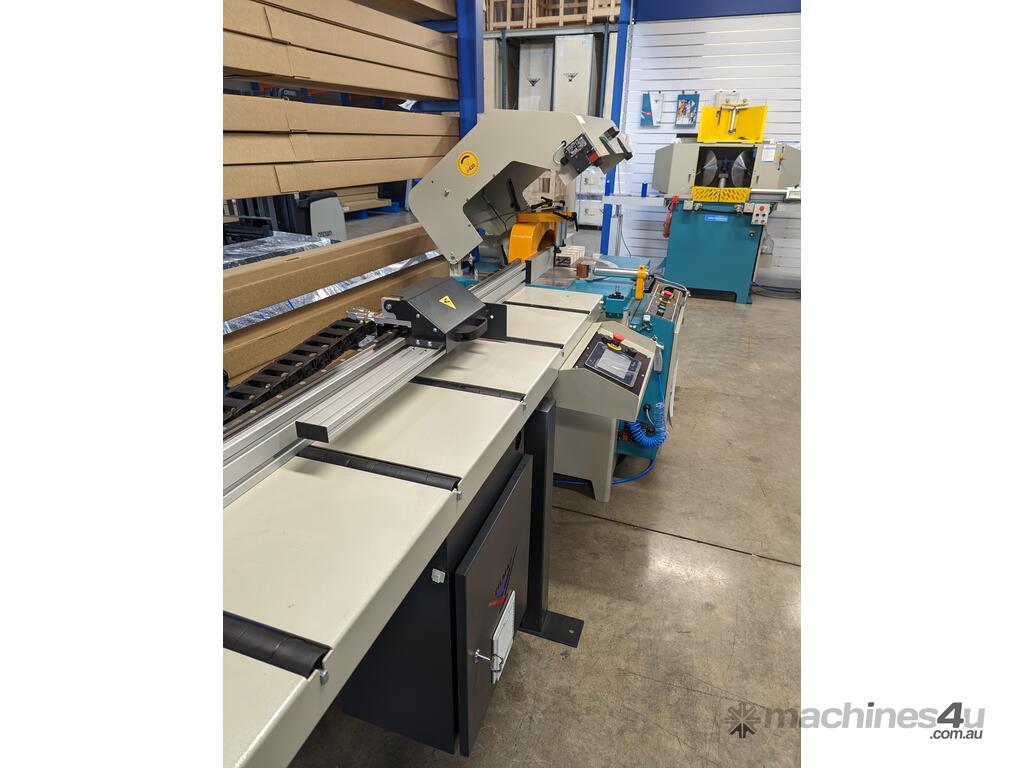

• Automatic serial cutting at 90°

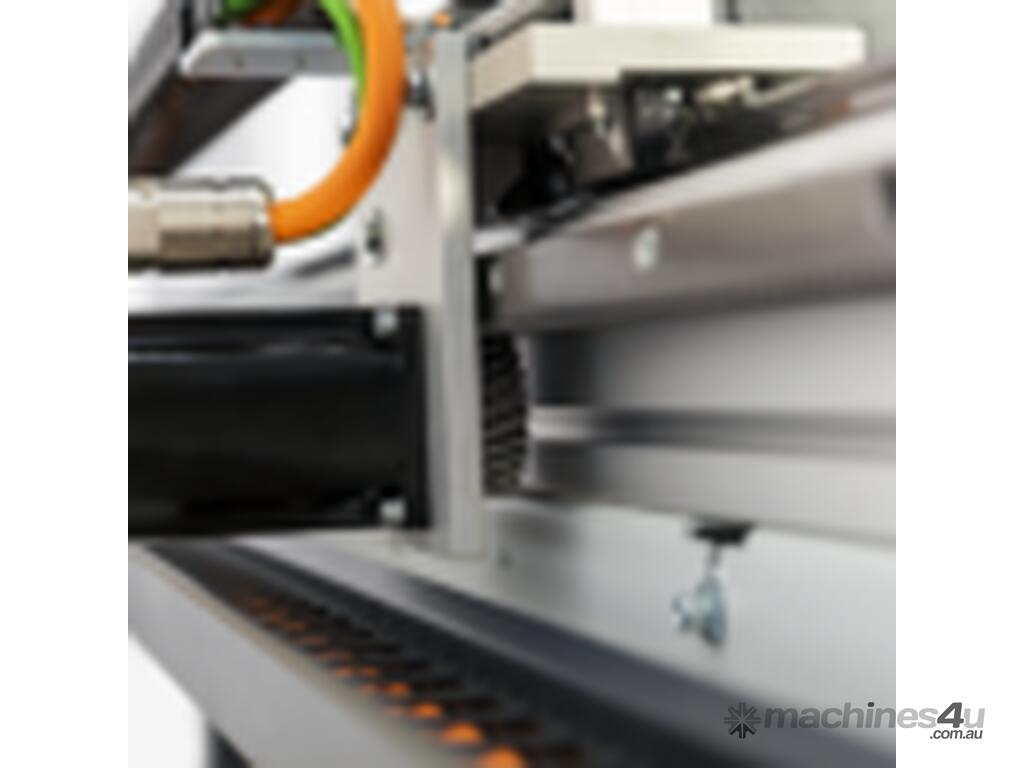

• Rack & pinion drive with rigid steel construction
• Store up to 50 cutting lengths
• Metric & imperial measurement
• Multi-language interface
________________________________________
Standard Equipment

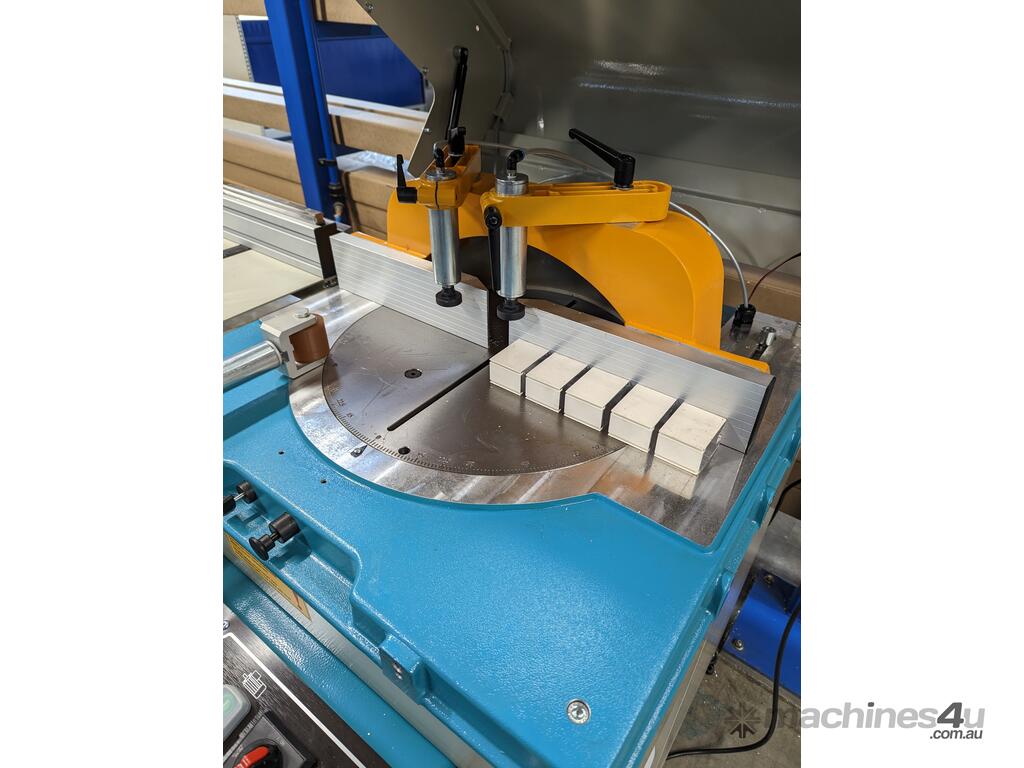

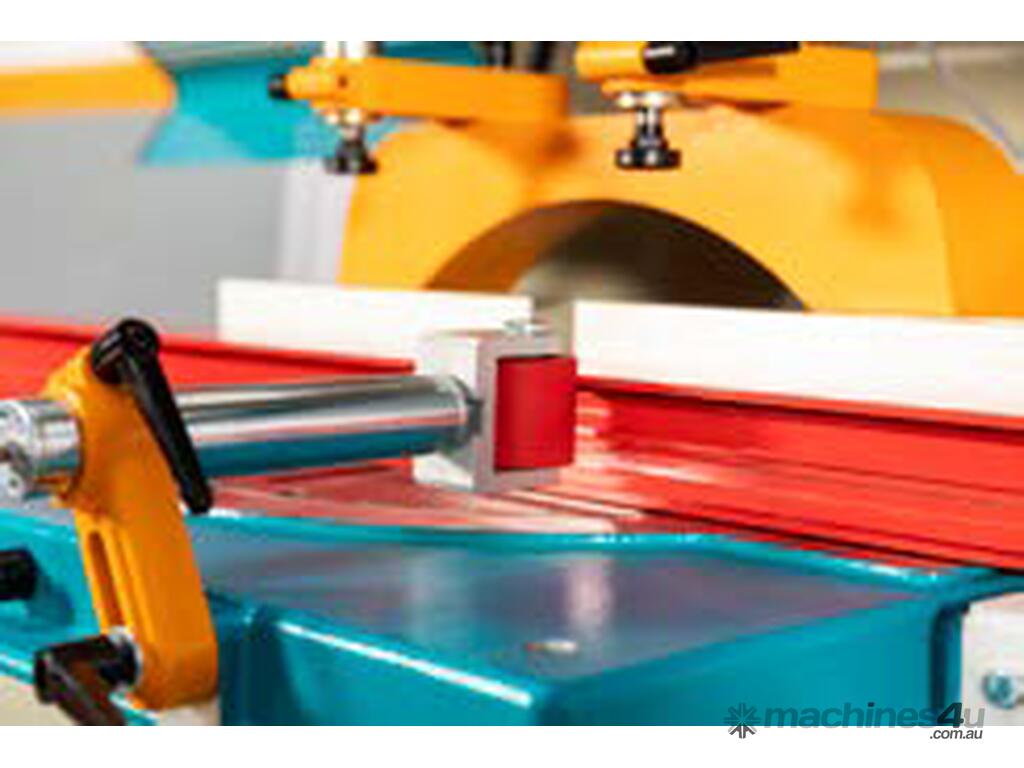

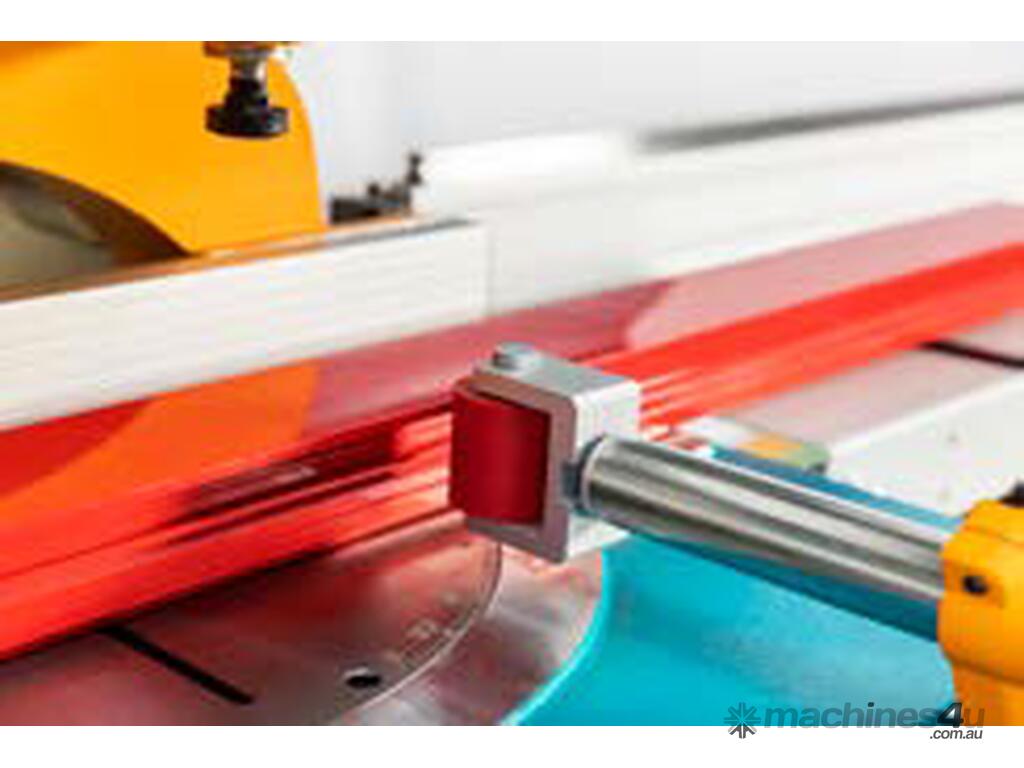

• 1 × Vertical pneumatic roller clamp

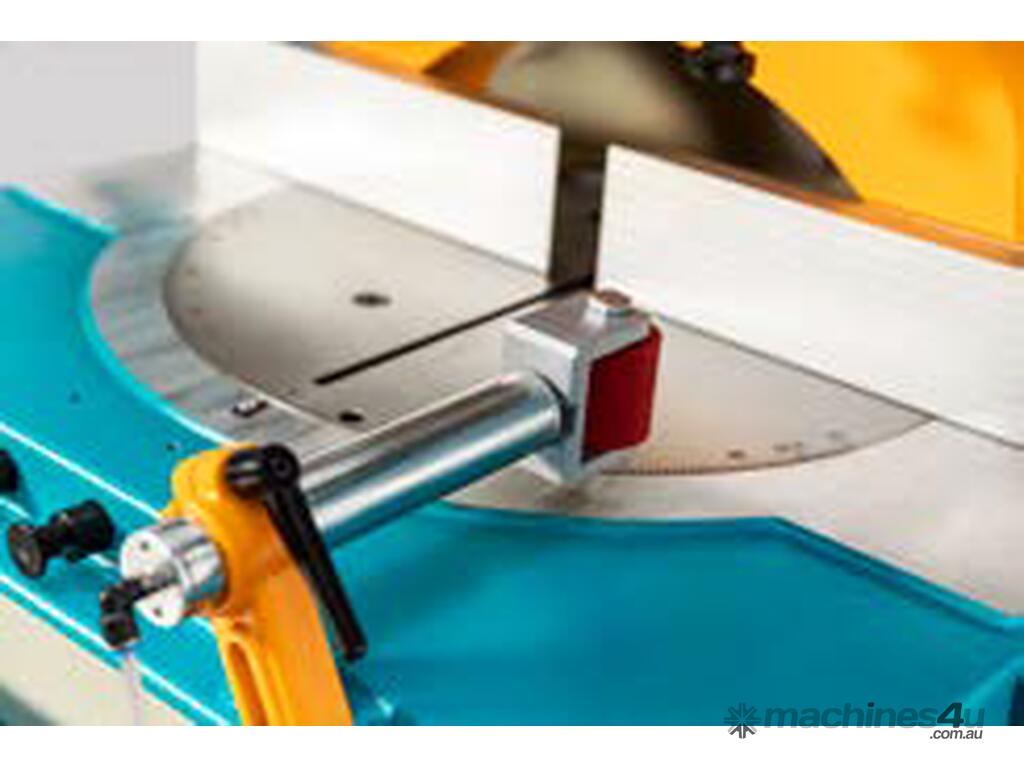

• 2 × Horizontal pneumatic clamps
• Spray mist blade lubrication
• Air duster gun
• Adjustable cut height and cut length
________________________________________

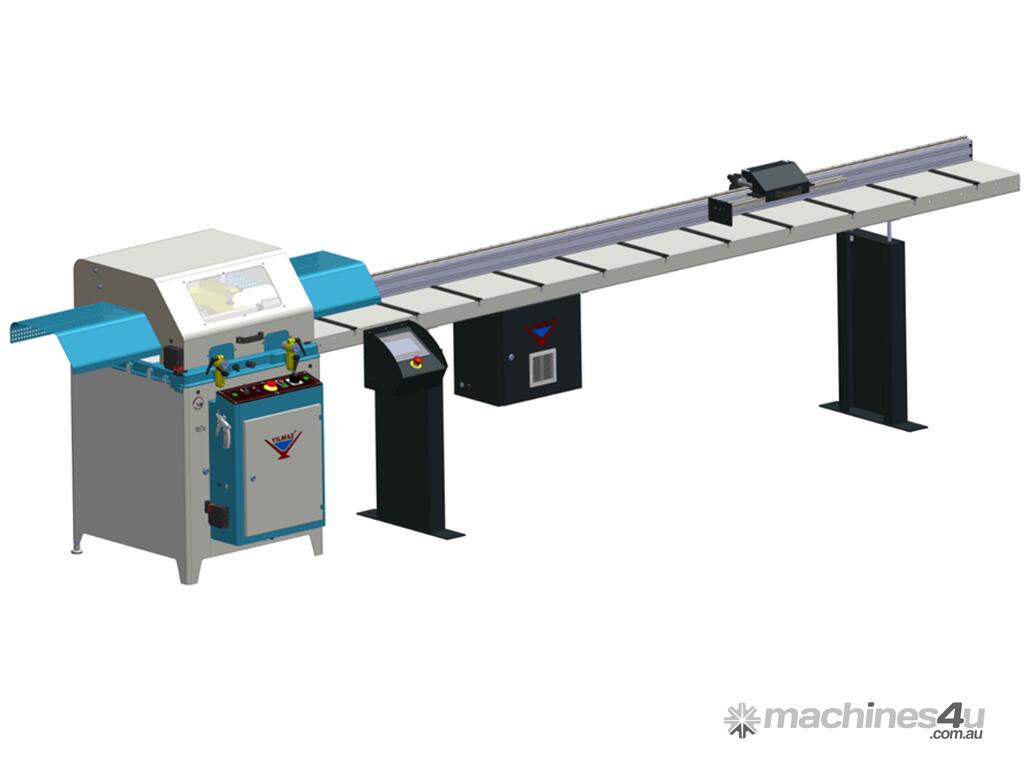

Machine Options

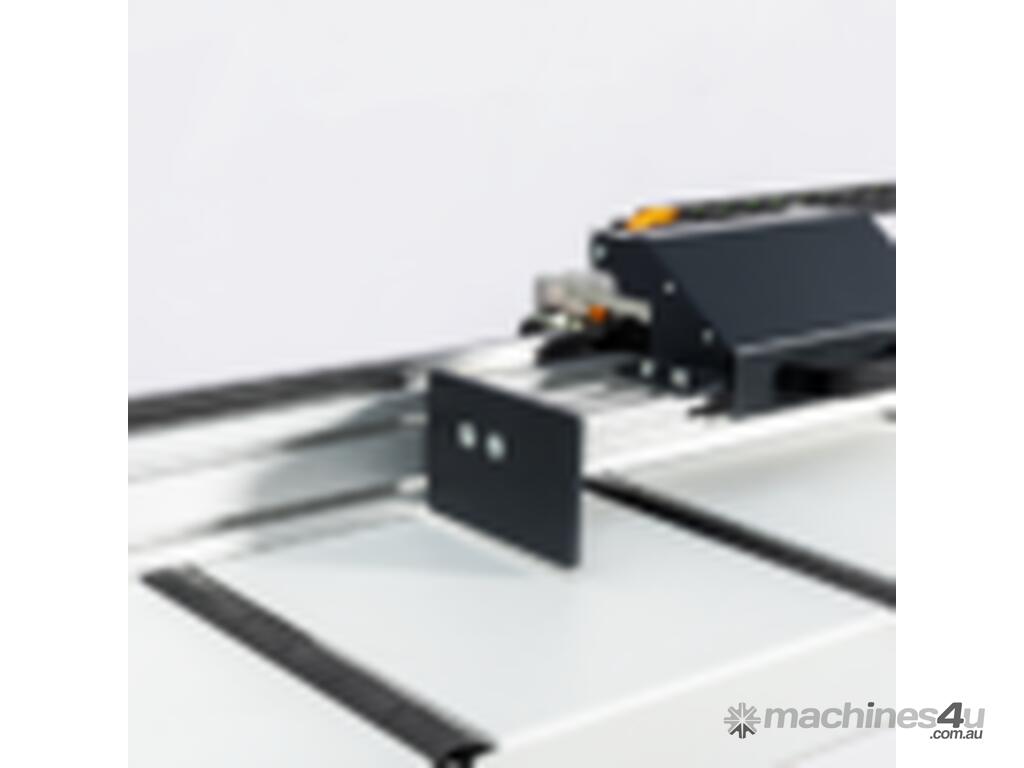

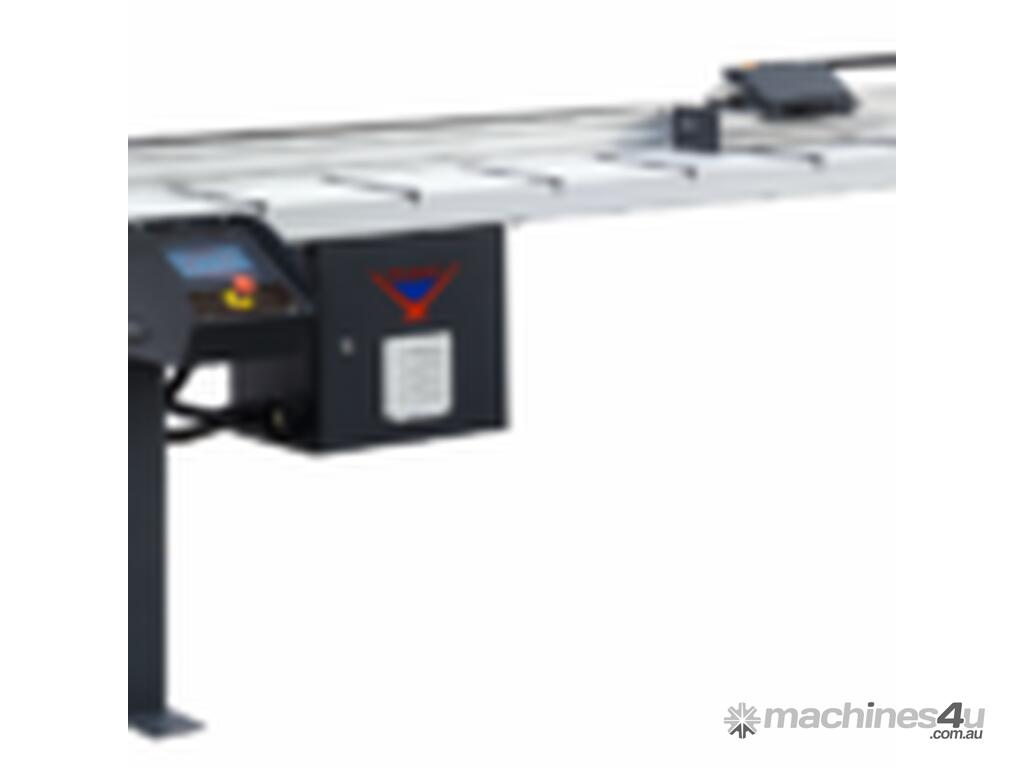

• SCM 420 L4: 3.6 m pushing stroke
• SCM 420 L7: 6.6 m pushing stroke

________________________________________
Why Luna Machinery?
With 40+ years of aluminium industry experience, Luna Machinery provides sales, installation, parts, and service support through a national dealer network.
