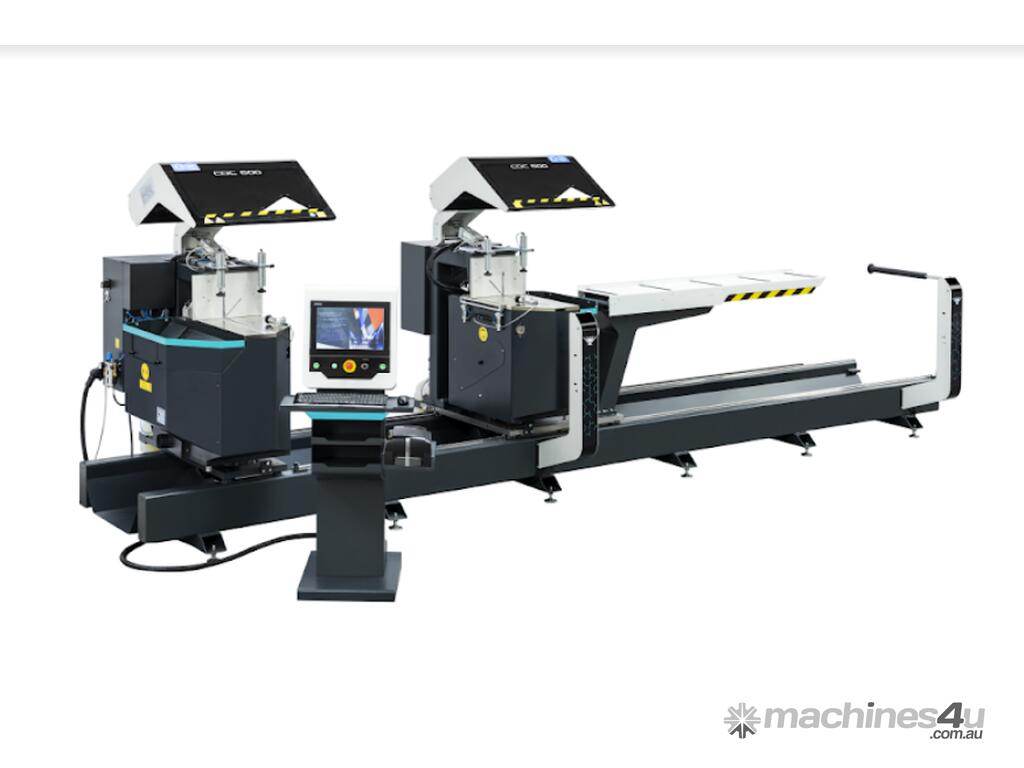

LUNA Full CNC Automatic Compound Double Mitre Saw

The Yilmaz CDC 600 available from Luna Machinery Australia
is a fully automatic, CNC double-head saw designed for high-capacity cutting of large PVC and aluminum profiles. It is specifically engineered to perform complex compound cuts by combining pivoting and tilting movements.
Key Specifications

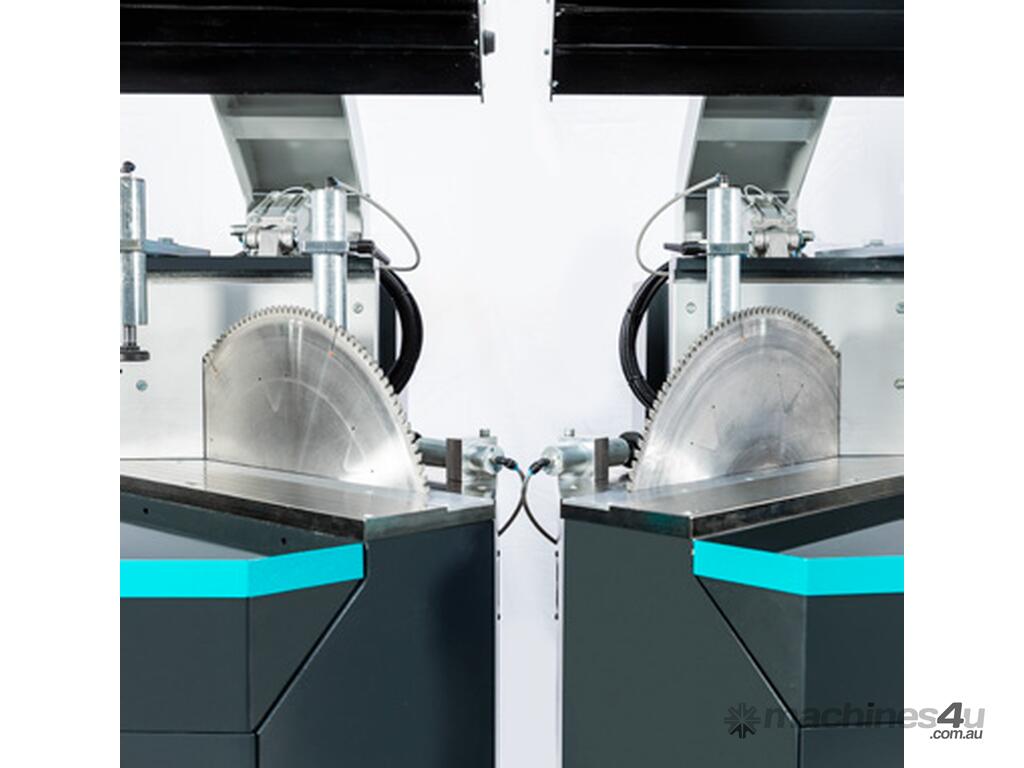

• Saw Blades: Two Ø 600 mm blades with adjustable hydro-pneumatic feed rates.
• Cutting Capacity: Up to 210 mm high and 470 mm wide at 90°.
• Motors: Equipped with two 4.0 kW (5.36 HP) induction motors.
• Standard Length: Maximum cut length of 4,000 mm, extendable to 10,000 mm with software.

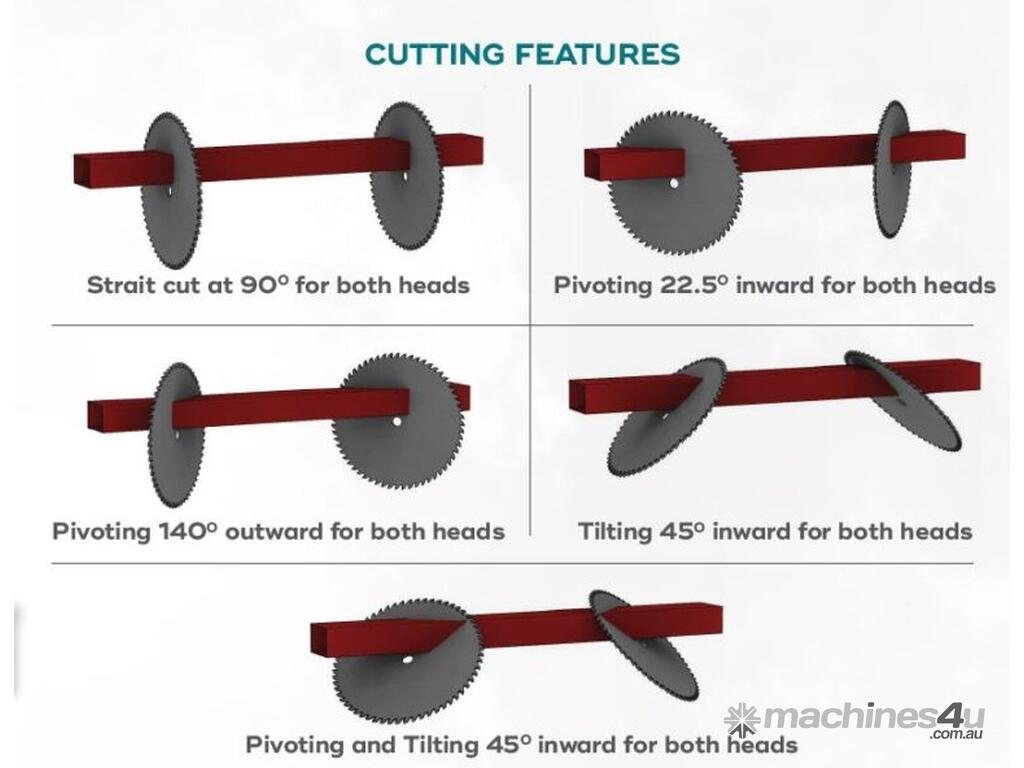

Angle Capabilities
• Pivoting: Heads can pivot from 22.5° inwards to 140° outwards.
• Tilting: Both saws can tilt up to 45° inwards.
• Compound Cuts: Capable of simultaneous 45° x 45° pivoting and tilting on both heads.
Features & Control
• CNC Operation: Uses automatic servo control for all linear and angle movements, ensuring precise adjustments.
• Interface: Features a Windows-based industrial PC with a 15-inch color touchscreen.
• Data Transfer: Supports cutting list transfers via USB or network in .mdb and .csv formats.
• Safety: Includes two-hand safety operation and vertical/horizontal pneumatic clamps.
