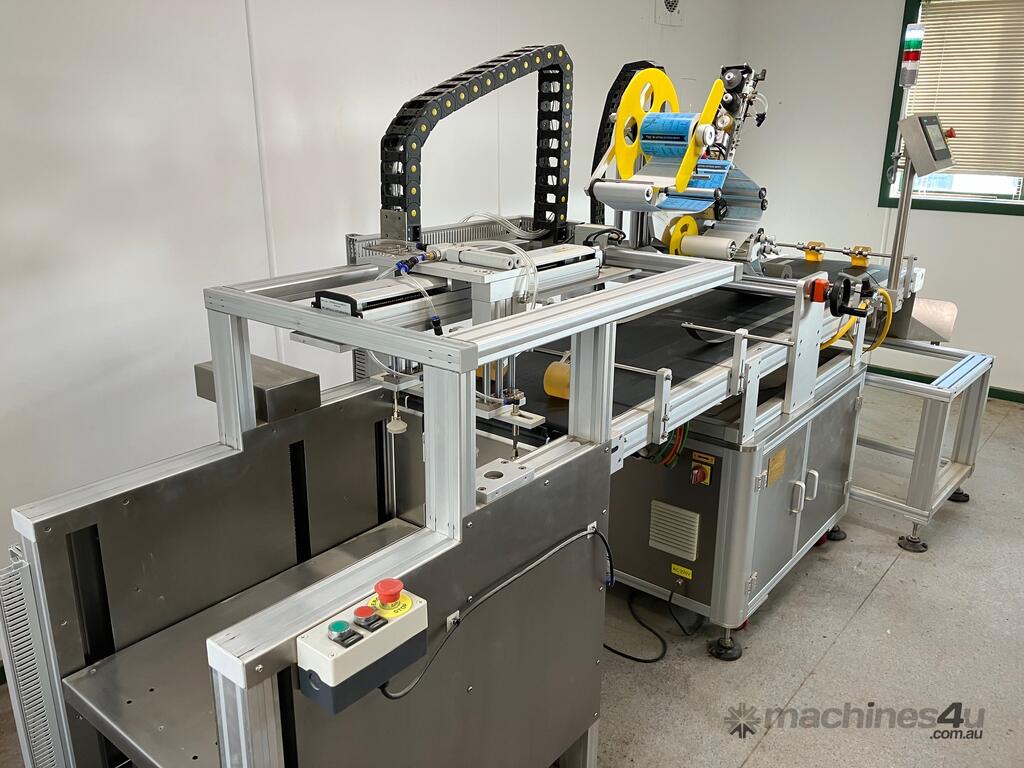

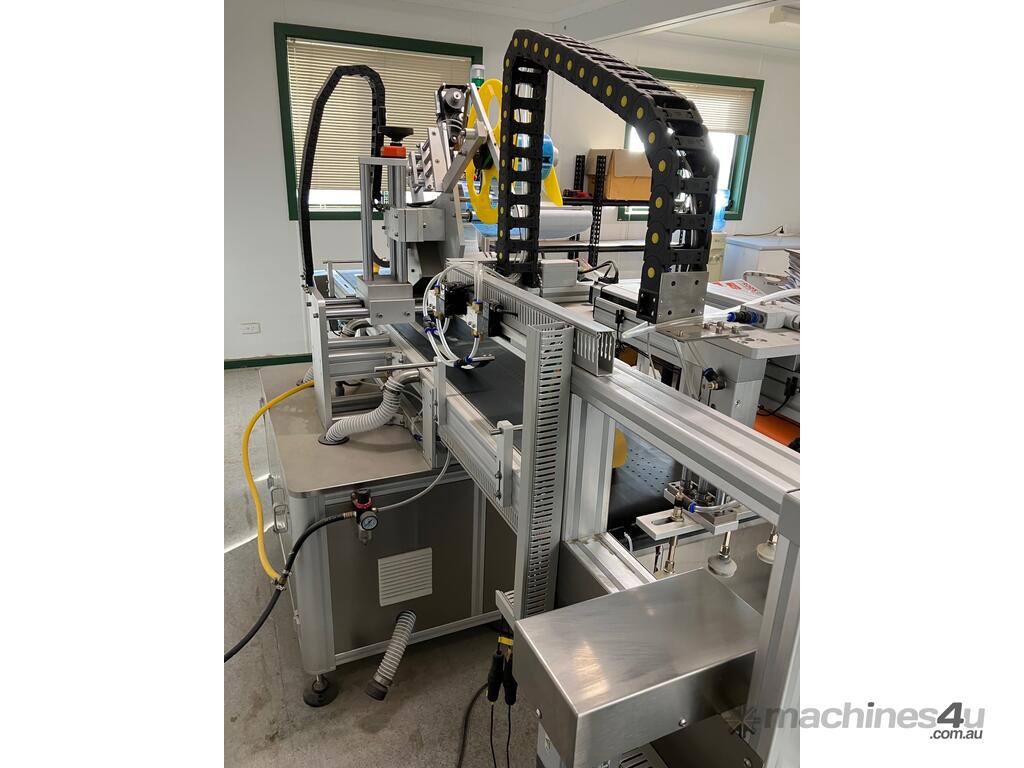

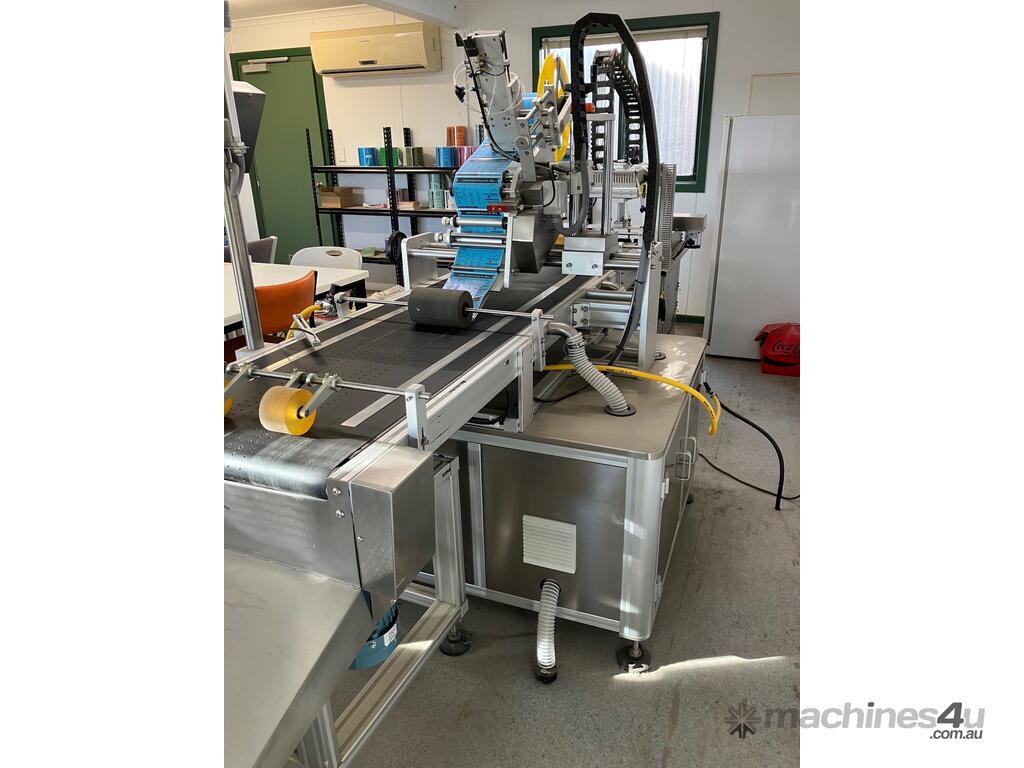

Automatic servo labelling machine

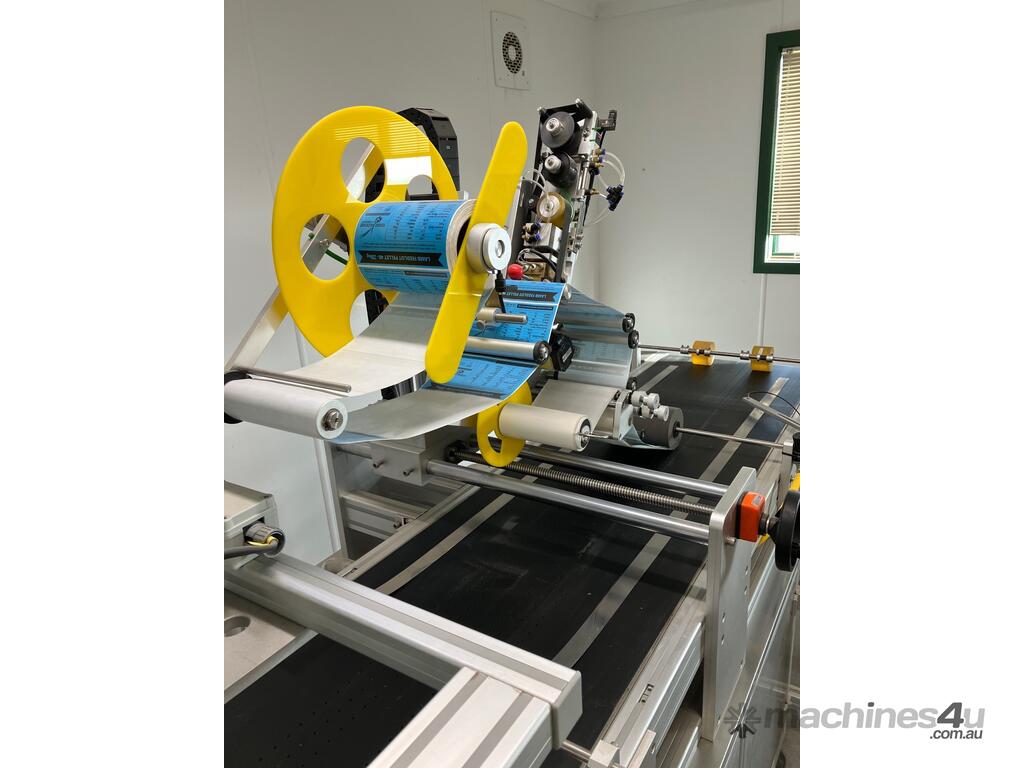

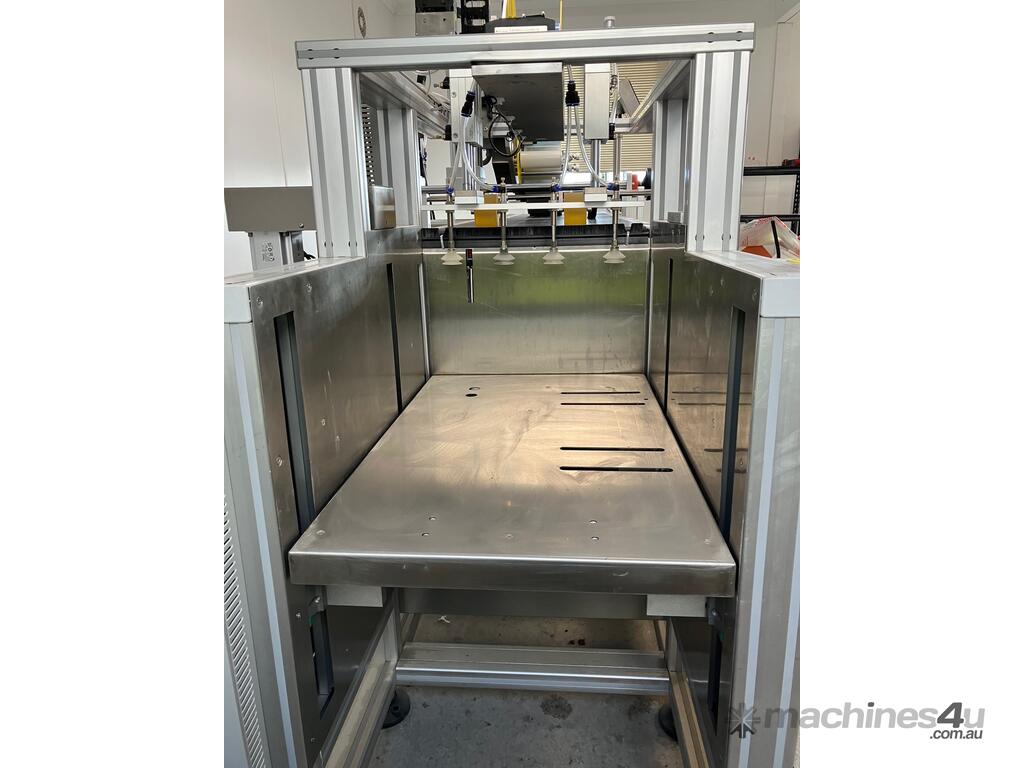

Label Applicator applies labels onto flat surfaces featuring with loading platform and high friction belting.
2 years old

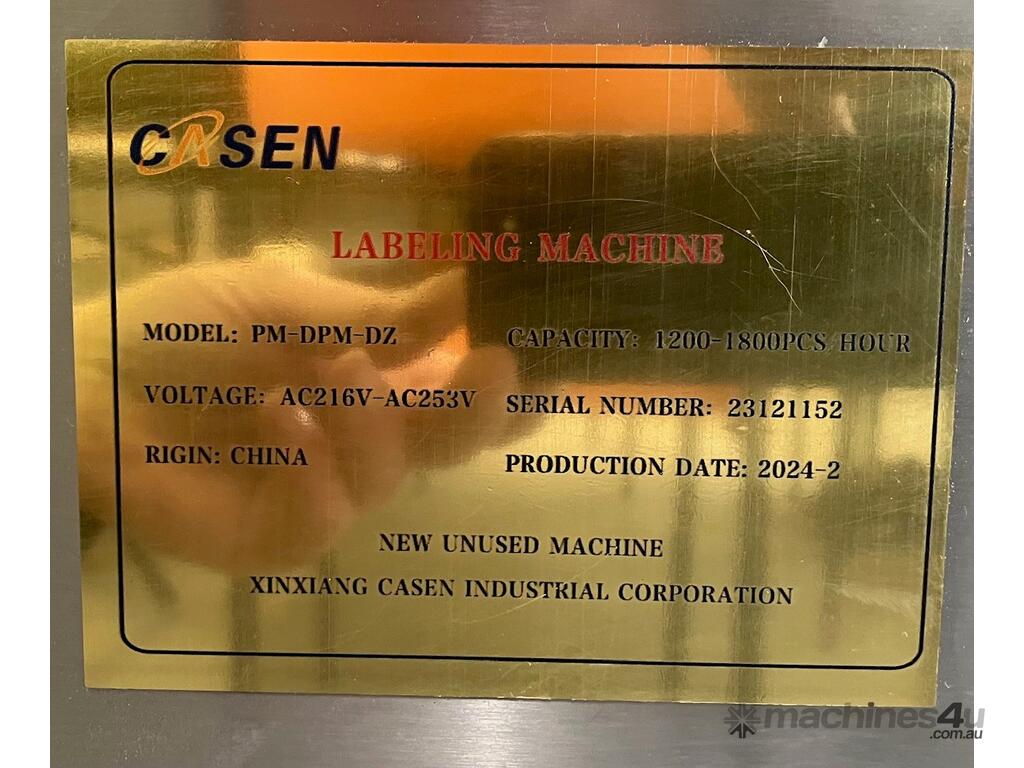

Model: PM-DPM-D

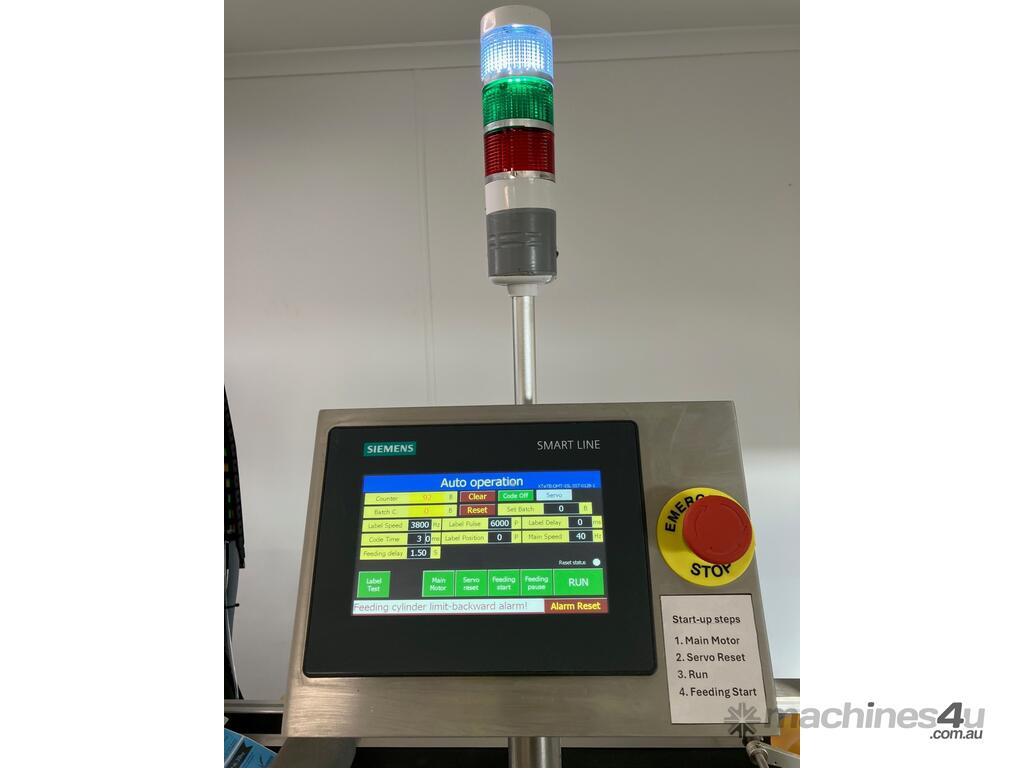

- SIEMENS PLC Control system
- Touch screen Driving Mode: Servo Motor
- Yield (pcs / min): 20-30 (depends on bags and label size)
- Operation direction: left or right
- Conveyor Speed (m / min): =< 40
- Outer diameter of label roll:
- Suitable Label Size: 15-150mm / length = 15-200mm
- Printer use air: 5kg/cm2
- Voltage: 110V / 220V/ 380V
- Power (w): 2.5KW
- Weight (kg): 230
- Machine size (mm) : 3893 [L] 1010 [W] 1700 [H]
