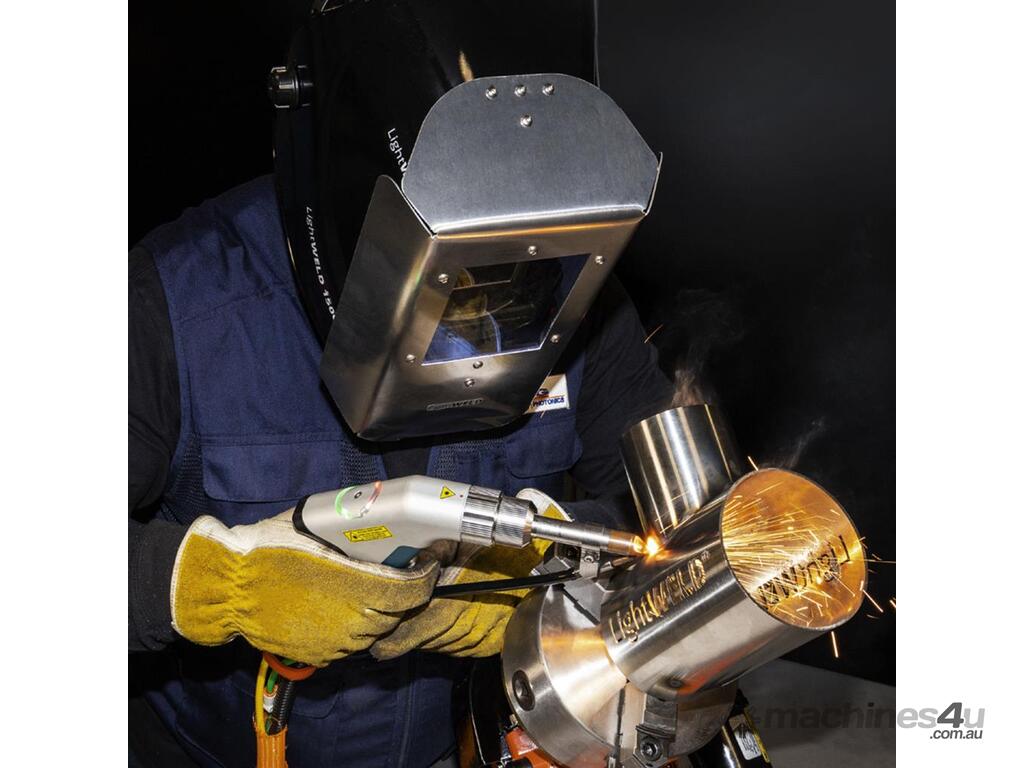

LightWELD XR2K - Handheld Fiber Laser Welding and Cleaning Fuction

Industrial Laser is pleased to Introducing the IPG Lightweld XR:

LightWELD Unbeatable Benefits
FAST: Up to 4X faster than TIG
VERSATILE: Wide range of materials – up to 8mm
EASY: Optimized presets reduce learning curve
CONSISTENT: High-quality, repeatable results
FLEXIBLE: Simple and challenging applications
PRODUCTIVE: Pre- and post-weld cleaning capability

LightWELD - Turnkey Handheld Laser Welding & Cleaning Systems
Adjustable laser welding power up to 2000 W
Preset & user-defined modes optimize material-thickness combinations
Wobble welding controls for 5 mm of additional weld width
Rear panel provides intuitive connections for power, process gas and external accessory controls
Cleaning power up to 3000 W peak for greater welding quality and finishing capability

TIG welding is a time-consuming, two-handed welding method that requires an experienced, highly-skilled operator. TIG welding may generate extreme heat that deforms thin materials, produces poor visual finishes, is difficult when welding copper, and limited when welding metals of dissimilar thicknesses.

MIG welding requires consumable wire, material pre-cleaning and beveled joints for thick metals for full penetration. Travel and work angles are limited and vertical positions are extremely challenging.
MIG Welding

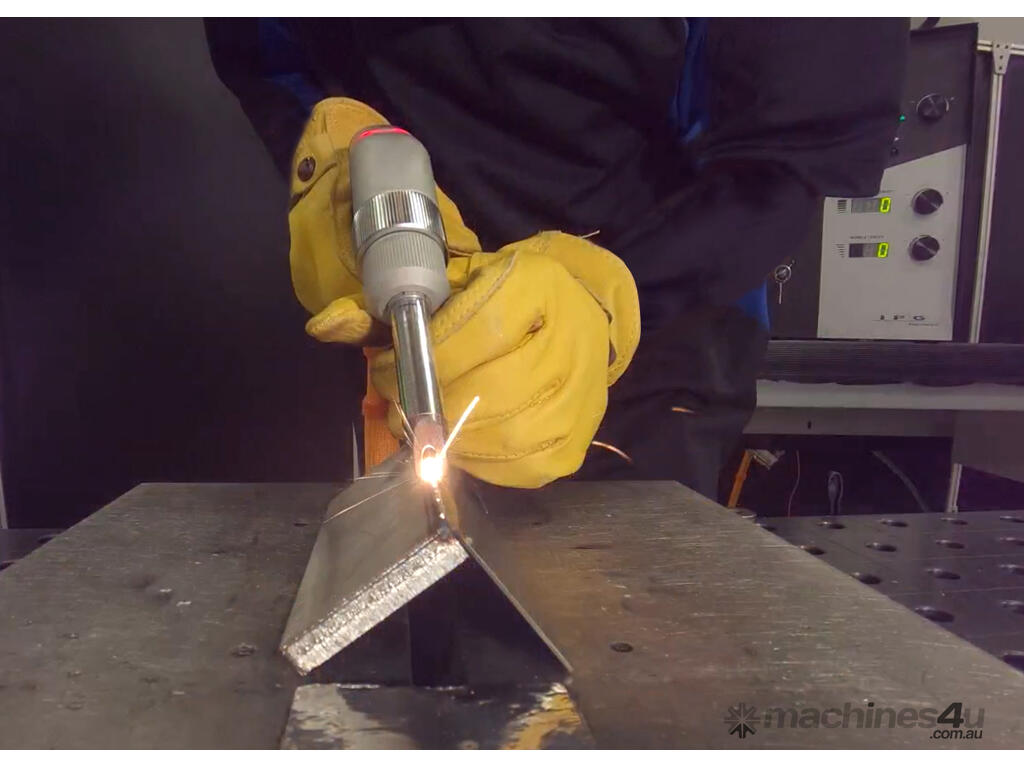

Handheld Laser Welder

LightWELD enables dramatically faster welding, is easier to learn and operate, and provides higher-quality, consistent results across a wider range of materials and thicknesses than MIG or TIG with minimal distortion, deformation, undercut or burn-through.
The low heat input and extensive material and thickness capabilities increase productivity, repeatability, and improve weld quality for operators of all skill levels. LightWELD welds dissimilar metals of different thicknesses with ease and creates aesthetic high-strength joints with minimal or no consumable wire. Plus, LightWELD XC and LightWELD XR offer built-in pre- and post-weld cleaning not found on any traditional system.

LightWELD Material & Thickness Welding Range

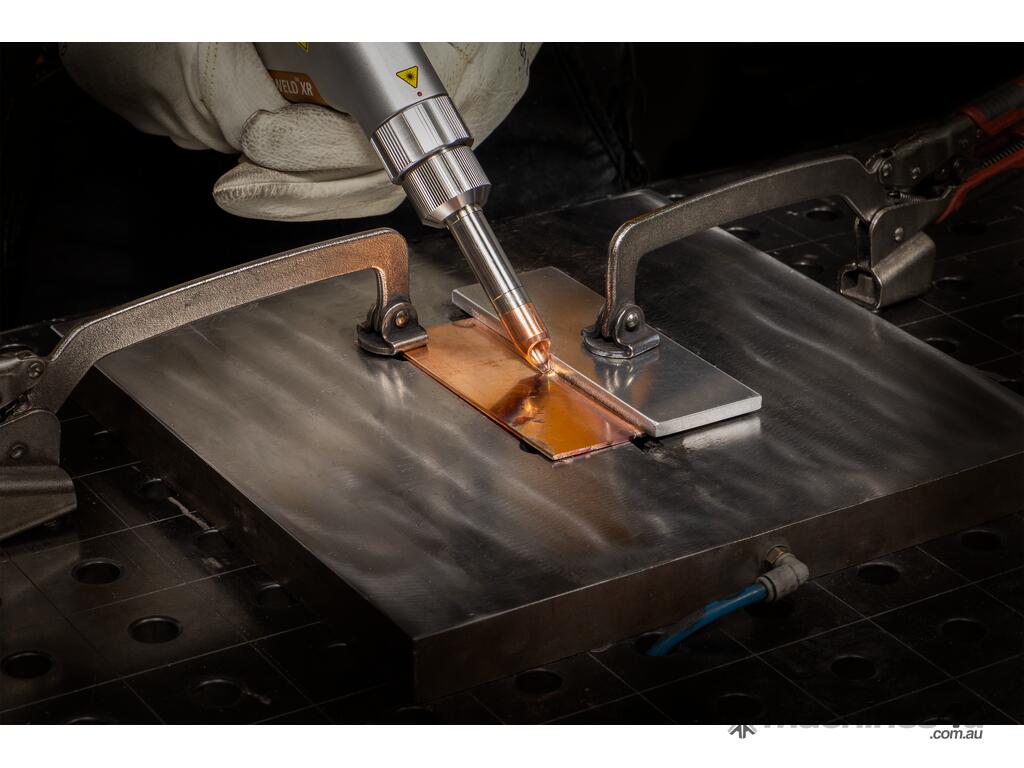

Thick, thin, reflective and dissimilar metal welding without wire that
is difficult or impossible with traditional methods, plus weld materials with different electrical conductivity

laser weld steel, aluminum, and copper

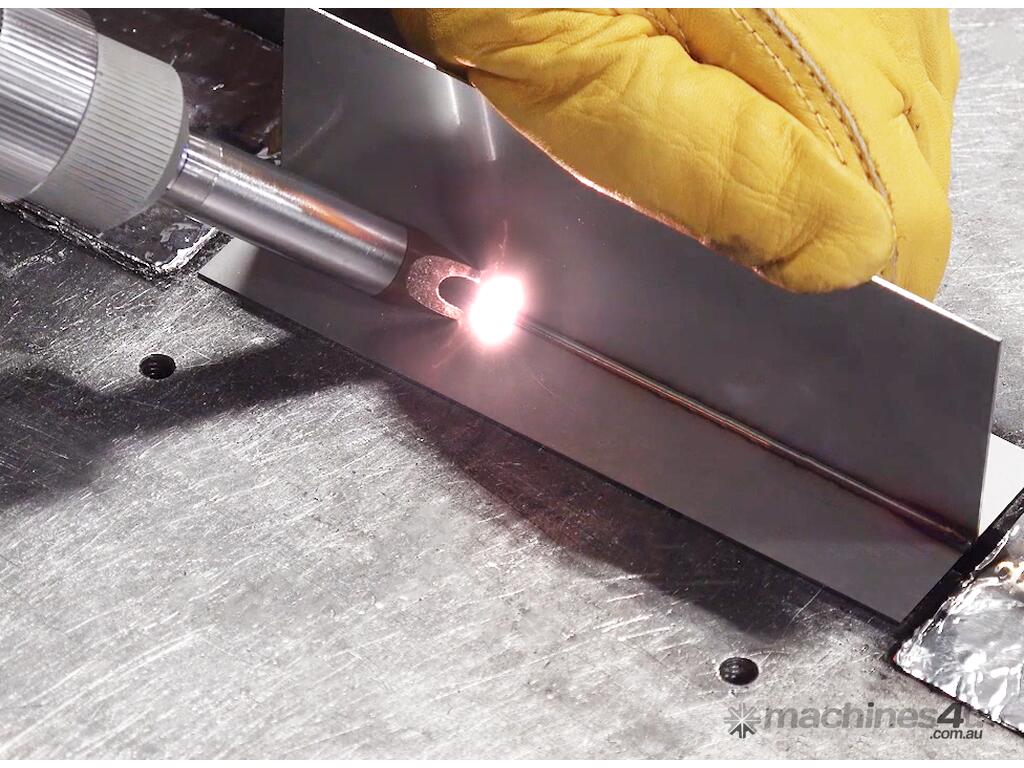

High-speed welding across a wide range of materials and thicknesses
Low heat input for minimal part distortion or deformation
Built-in factory presets for all materials and thicknesses

Stainless Steel up to 8mm
Galvanized Steel up to 8mm
Mild Steel up to 8 mm
Aluminum 3 & 5 Series up to 8 mm
Aluminum 6 Series up to 6 mm
Nickel Alloys up to 7 mm
Titanium up to 6 mm
Copper up to 3 mm

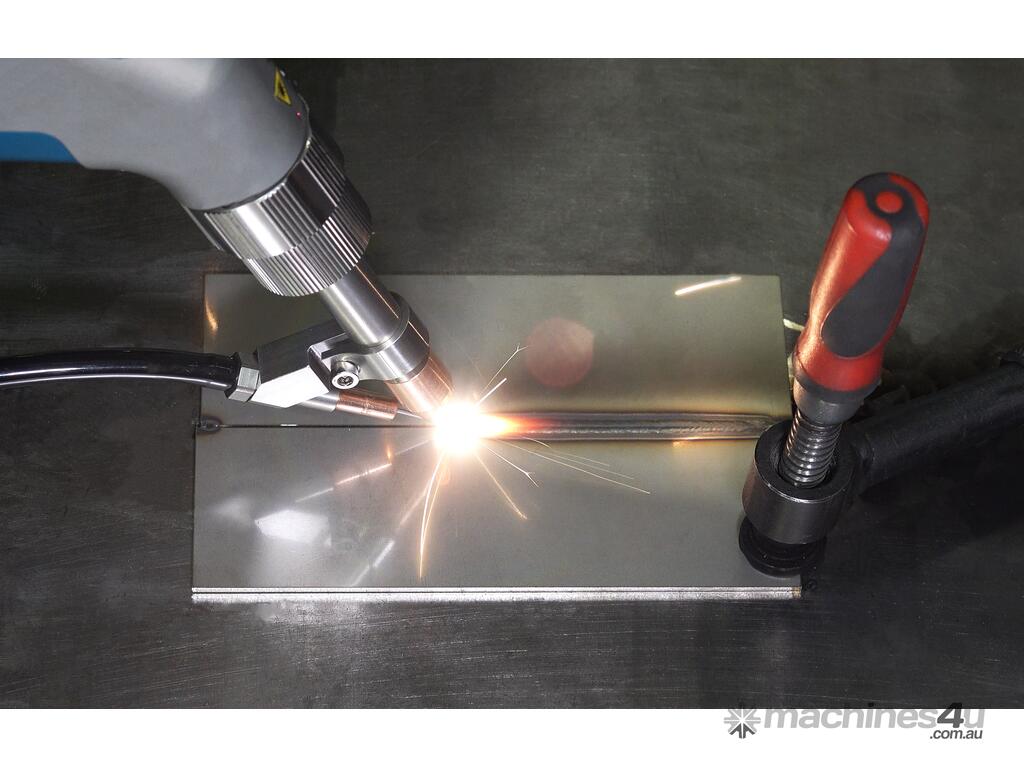

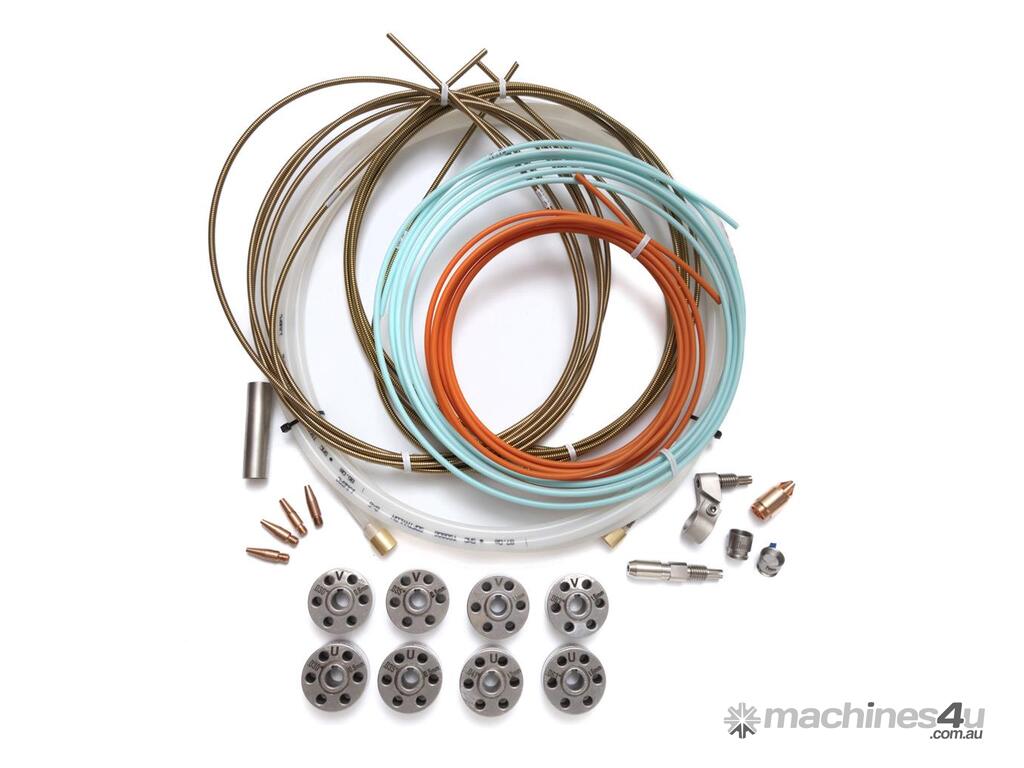

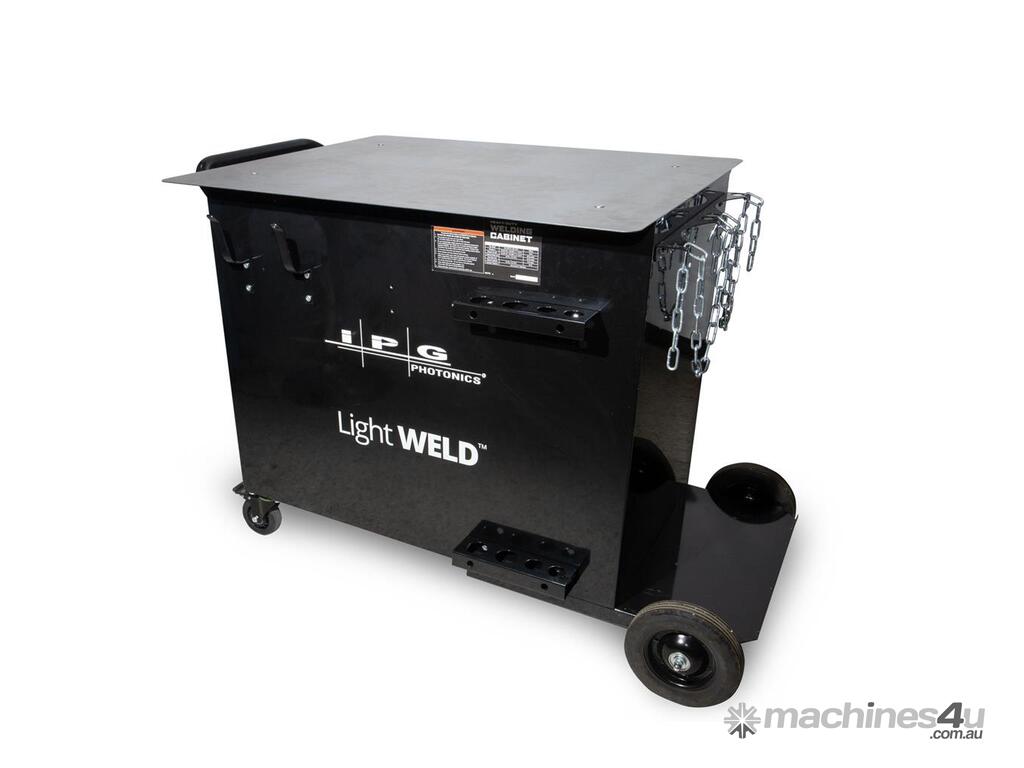

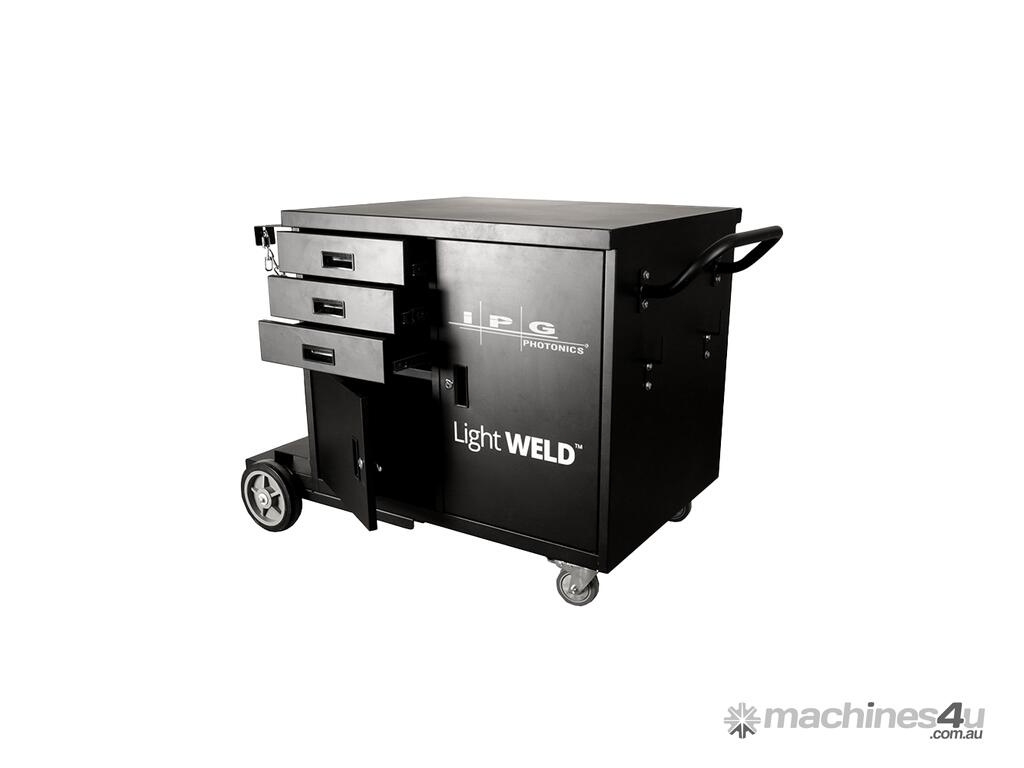

Options available are wire feeder, weld cart


Included In the box:

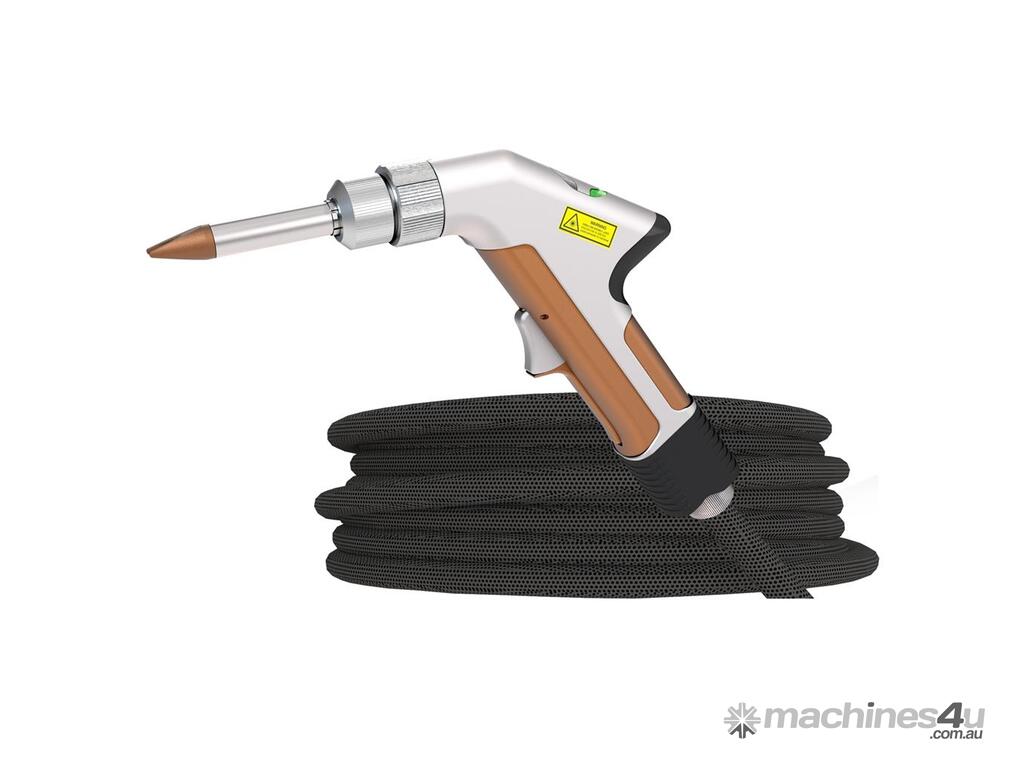

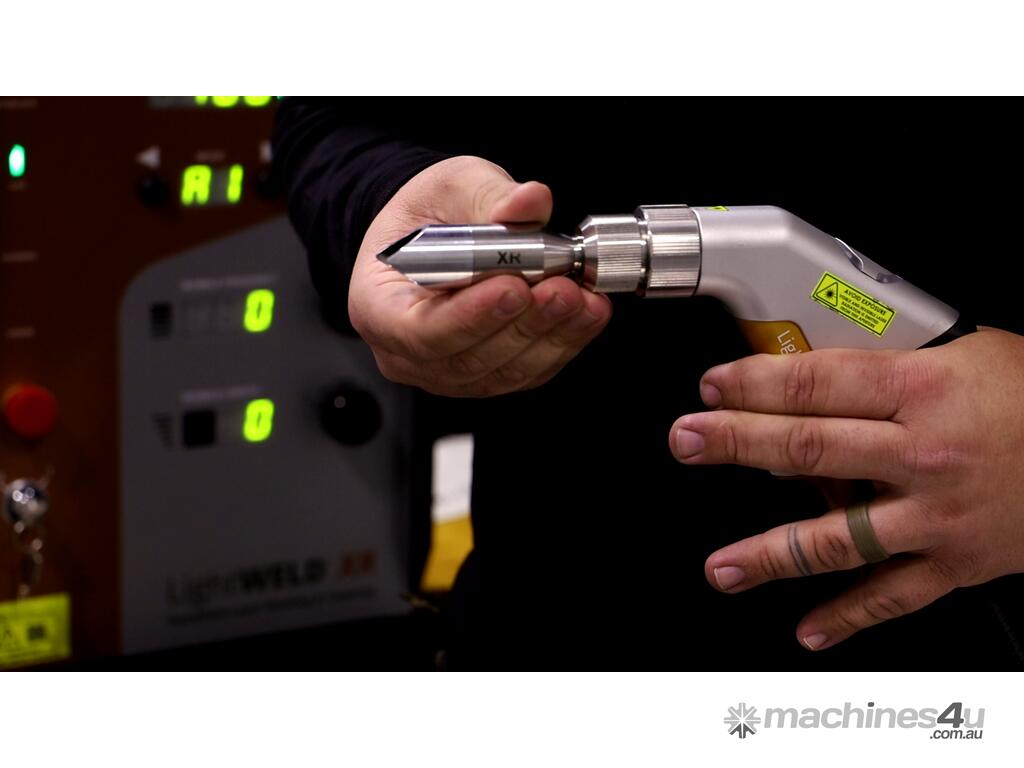

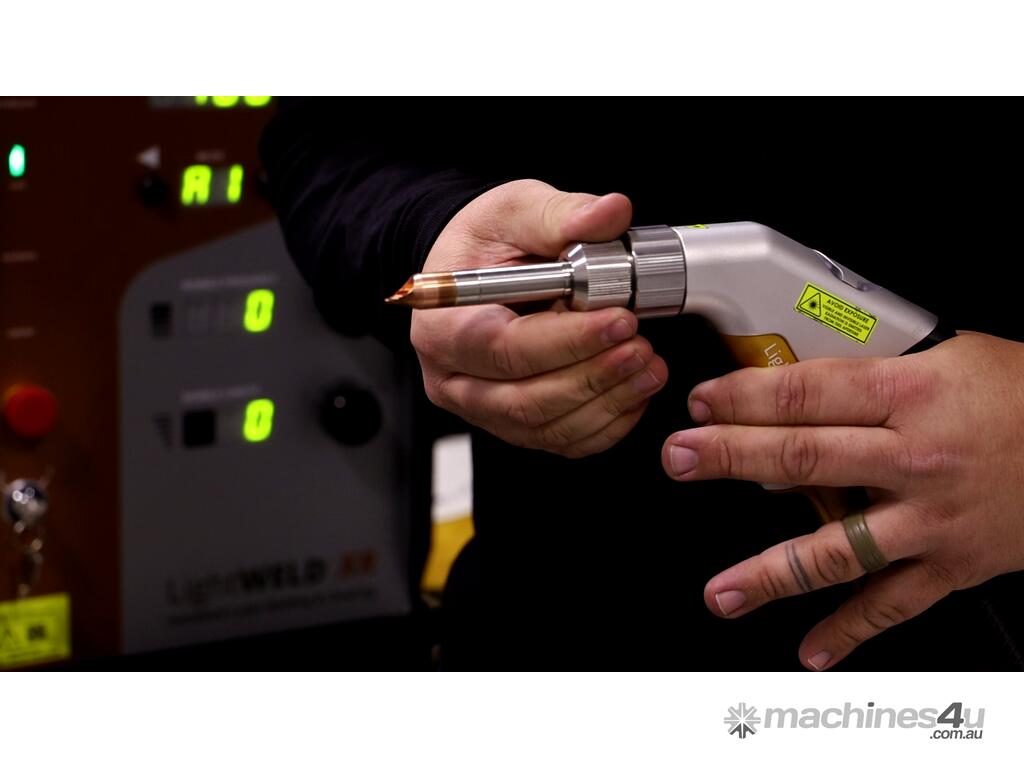

5 m/10m IPG Laser Welding Gun
5 m/10m Workpiece Clamp

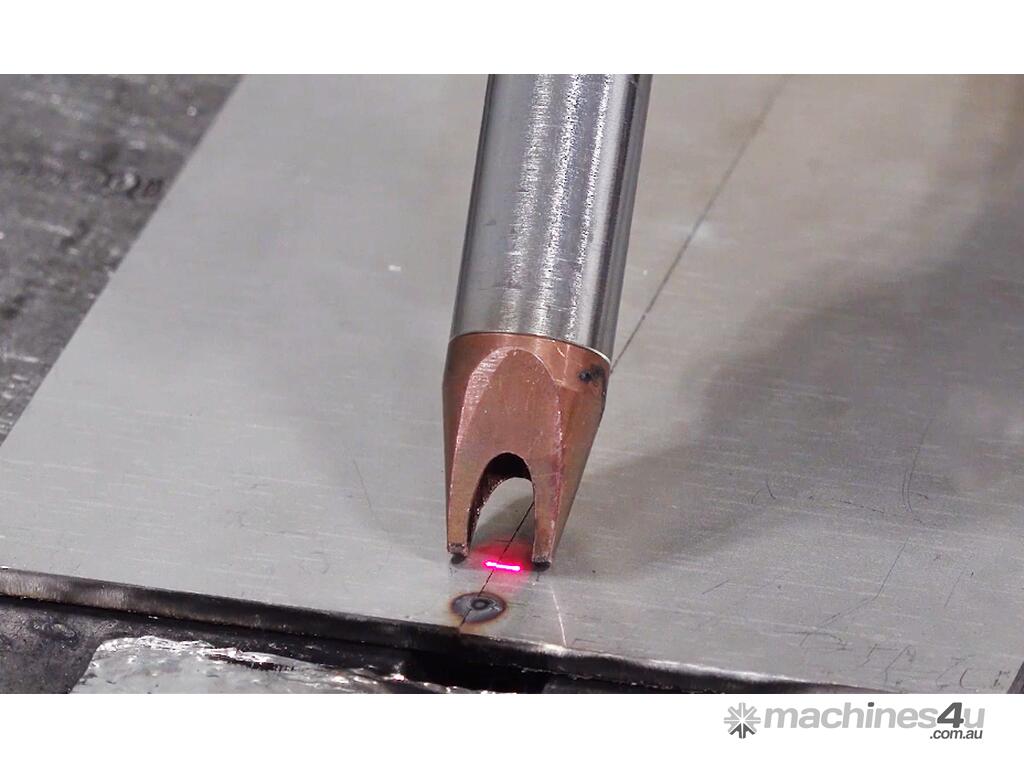

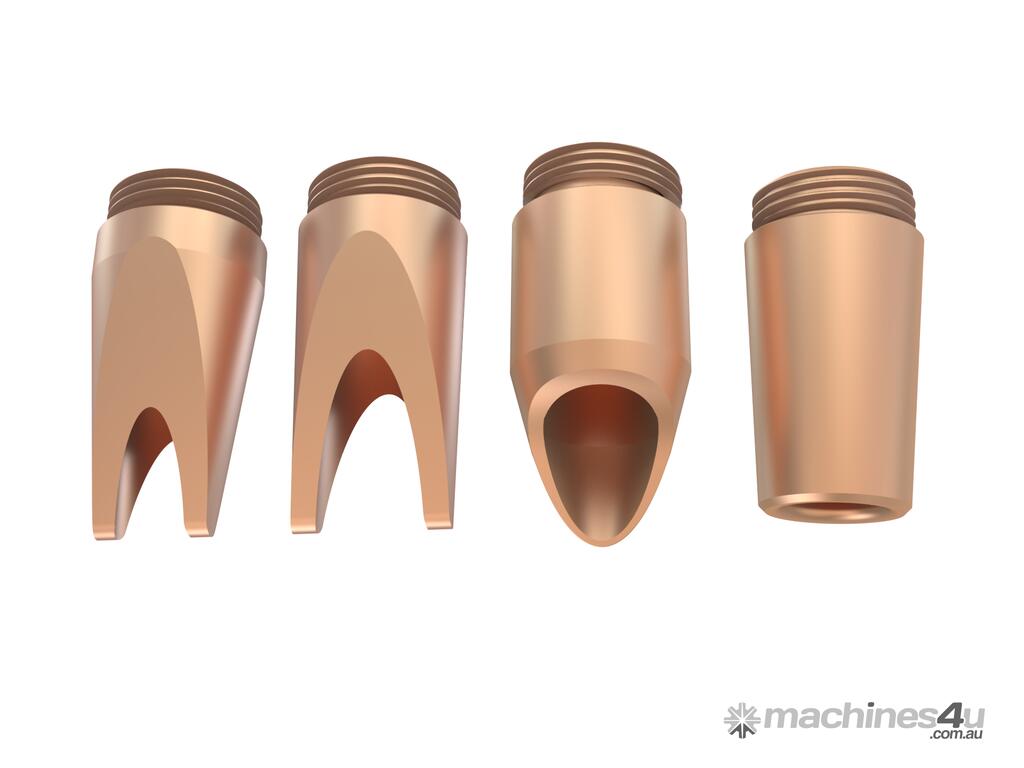

(4) Welding Nozzle Tips
(5) Cover Slides

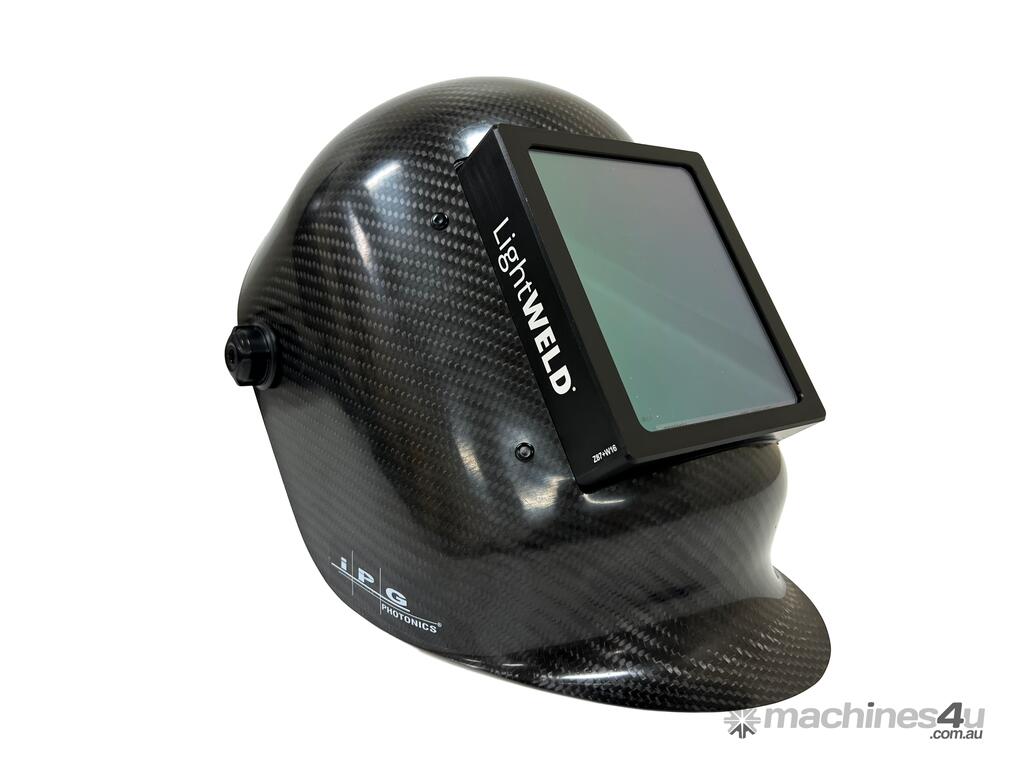

Welding helmet with IR shield
Laser safety glasses OD 6+
Getting Started Guide
High frequency pulsed laser mode, 3000 W pk power
Wide (15 mm) scan field for high-speed coverage

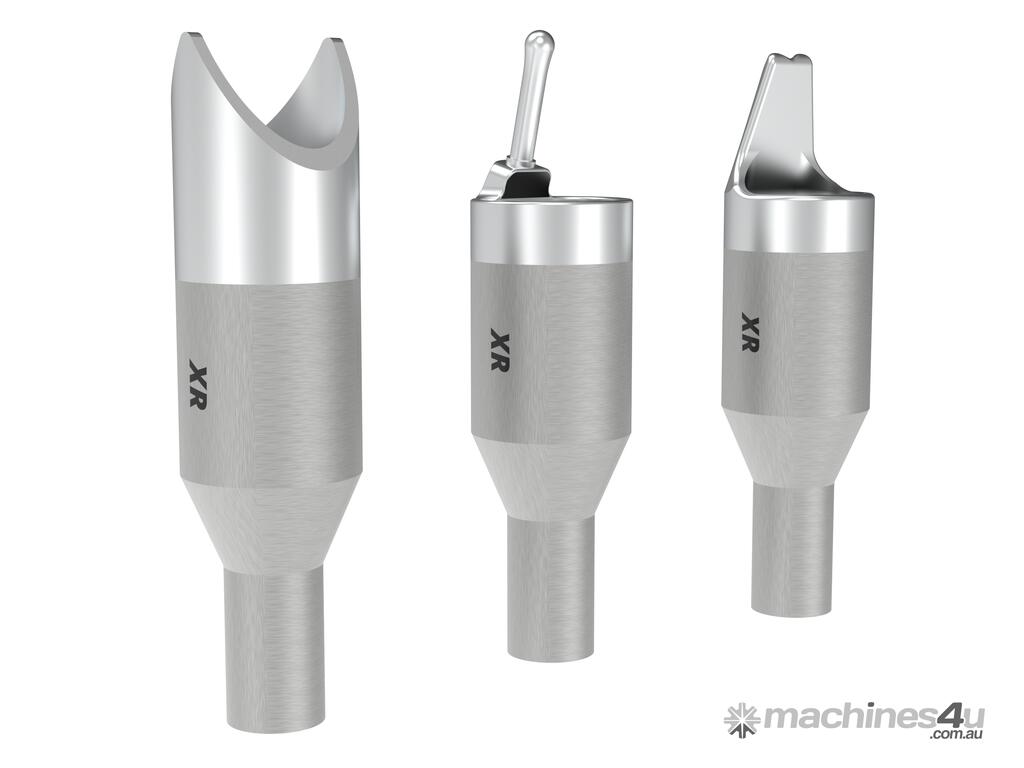

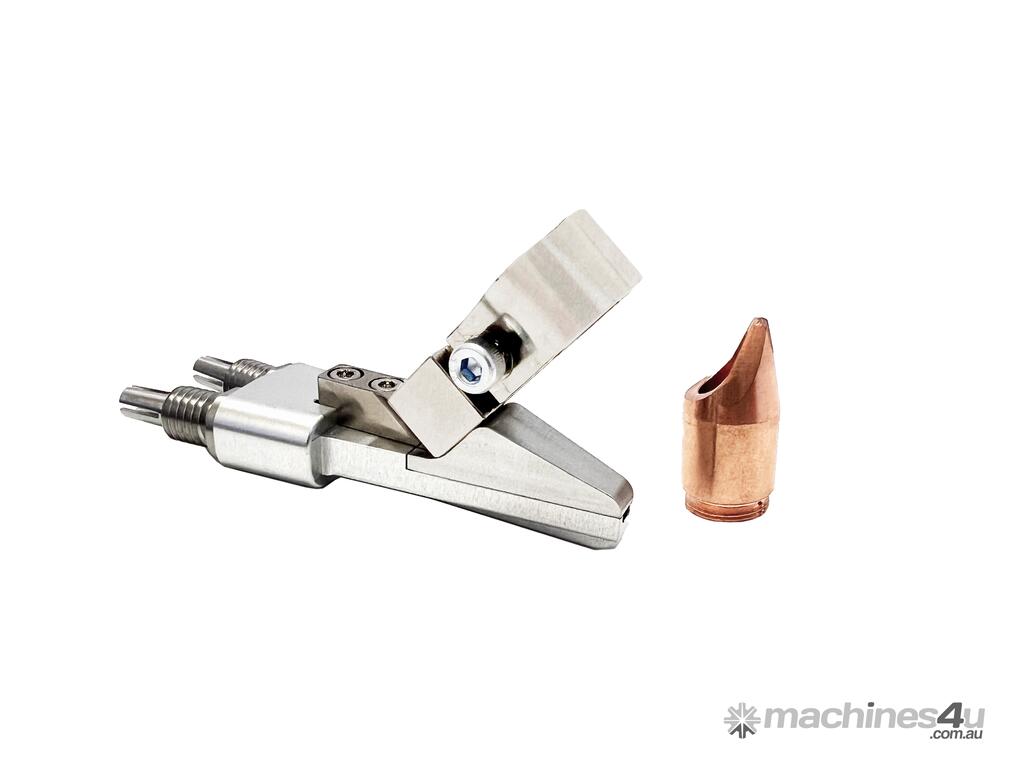

Weld head nozzle cleaning attachment with 3 tips
Pre-set cleaning mode software

Made in the USA/Europe by IPG Photonics, the Worlds leading laser manufacturer
Supported locally IPG trained staff at our dedicated Demonstration and IPG service support Centre in Melbourne

Feel free to book into our demonstration centre where we give you the opportunity to try this technology first hand.
