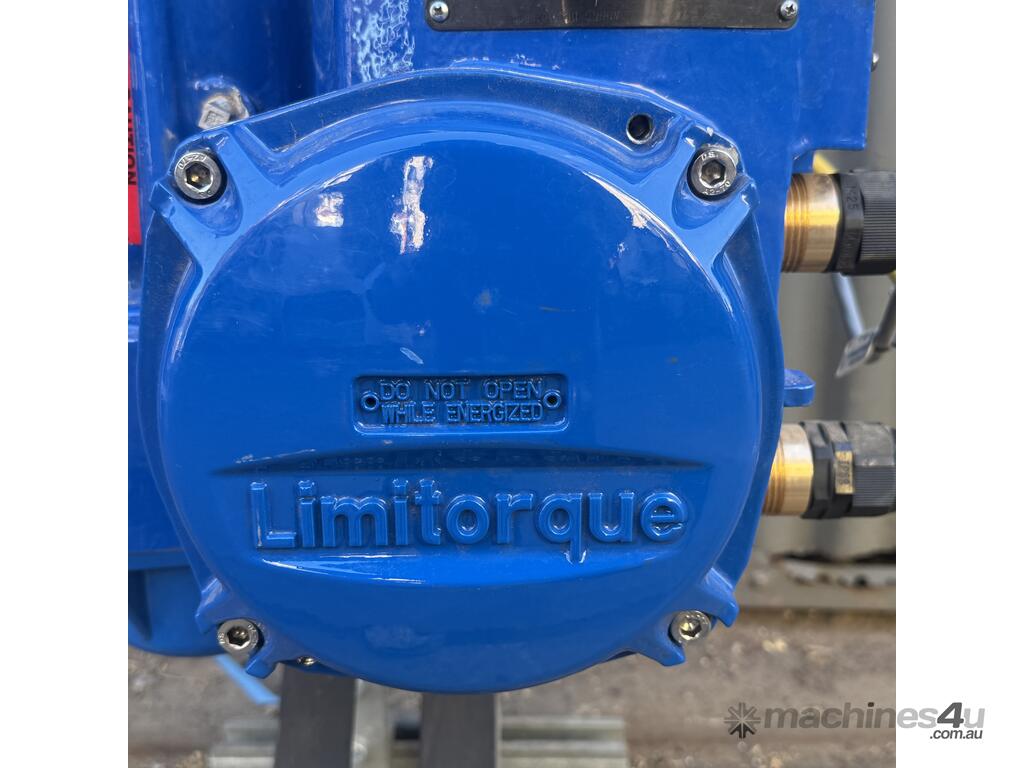

Limitorque Flowserve QX-1 Electric Valve Actuator 220V IP66 IP68 Ex db IIC 135Nm

Brand: Limitorque (Flowserve)
Type: Electric Valve Actuator
Model: QX-1
Function: Quarter-turn electric actuator (OPEN / CLOSE)
Torque Rating:

100 ft-lb

135 Nm

Electrical:

220V AC

50 Hz

1 Phase

0.16 HP / 0.12 kW

Speed:

5–20 seconds per 90° rotation

Protection / Rating:

IP66 / IP68 (20m / 168 hrs)

Hazardous Area Rated

ATEX / IECEx (Ex db IIC T6 Gb)

Country of Manufacture: China



Industrial Limitorque QX-1 electric quarter-turn valve actuator, suitable for automated valve operation in demanding and hazardous environments.

This unit features local OPEN / CLOSE controls, a position display, and heavy-duty sealed construction for outdoor or industrial plant use. Designed for reliability in oil & gas, water treatment, chemical processing, and power generation applications.

The actuator is rated for hazardous areas (Ex db IIC) and provides strong torque output for butterfly, ball, and similar quarter-turn valves.

Unit has been removed from service and is being sold as industrial surplus. Cosmetic wear consistent with use. No stand included.

Key Features:

Quarter-turn electric actuator

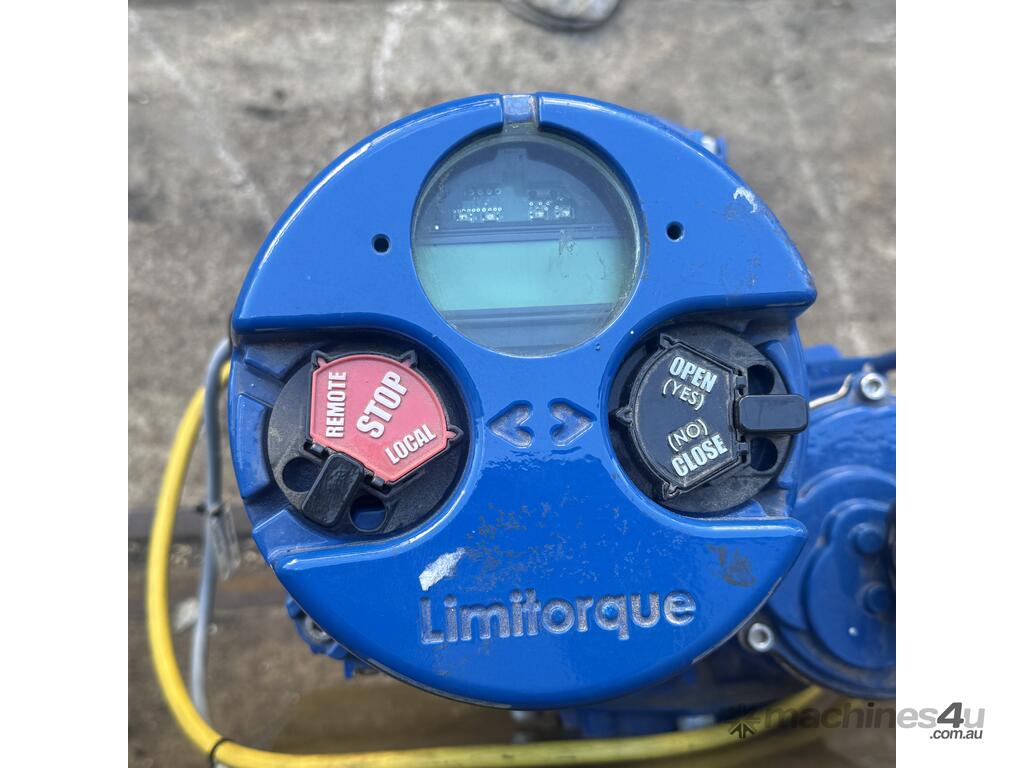

Local OPEN / CLOSE / STOP controls

Position indicator window

Explosion-proof / hazardous area rated

Heavy-duty industrial enclosure

???? Technical Specifications

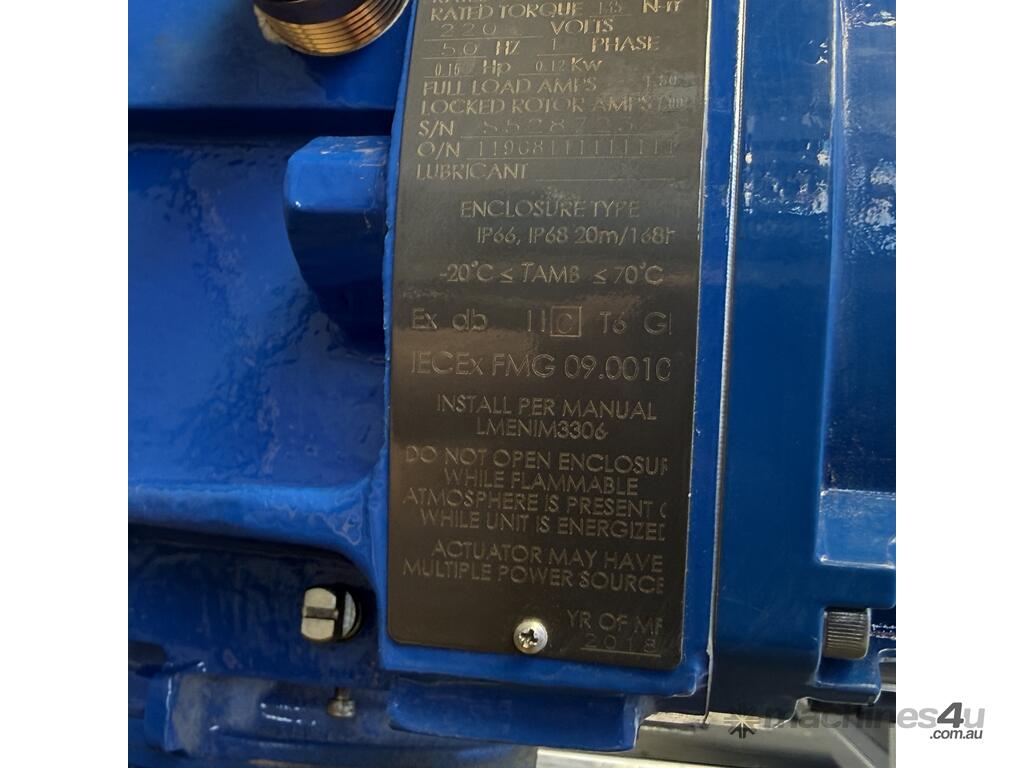

Brand: Limitorque (Flowserve)

Model: QX-1

Torque: 100 ft-lb / 135 Nm

Rotation Time: 5–20 sec per 90°

Voltage: 220V AC

Frequency: 50 Hz

Phase: Single phase

Power: 0.16 HP / 0.12 kW

Enclosure: IP66 / IP68 (20m / 168 hrs)

Hazard Rating: Ex db IIC T6 Gb

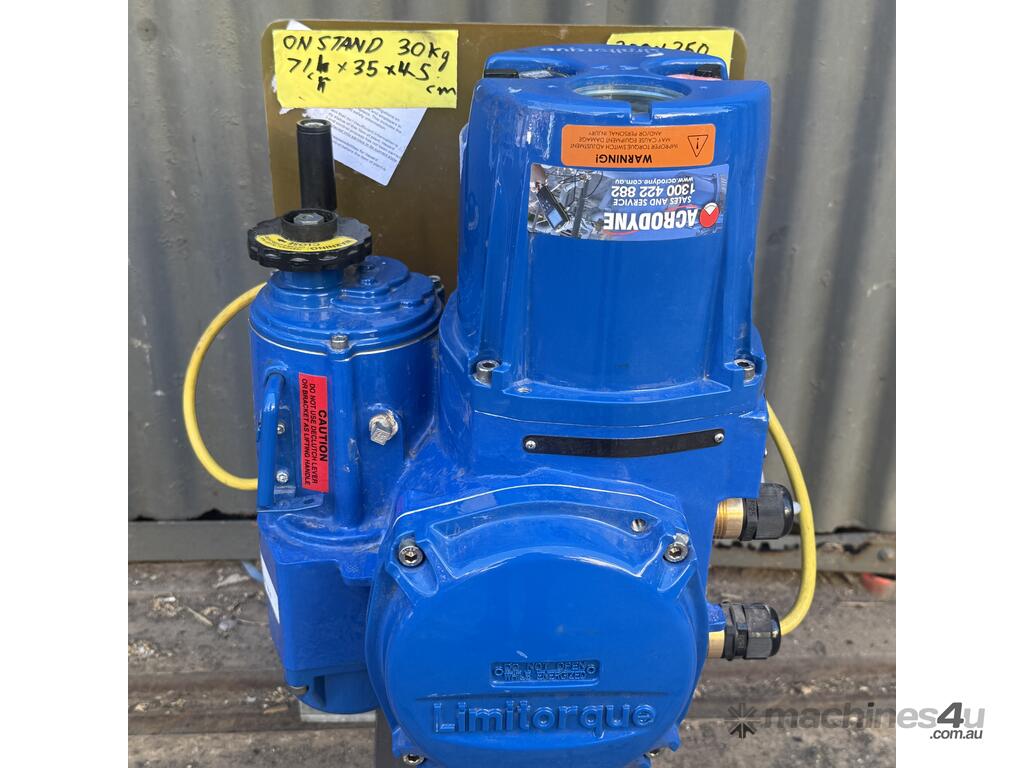

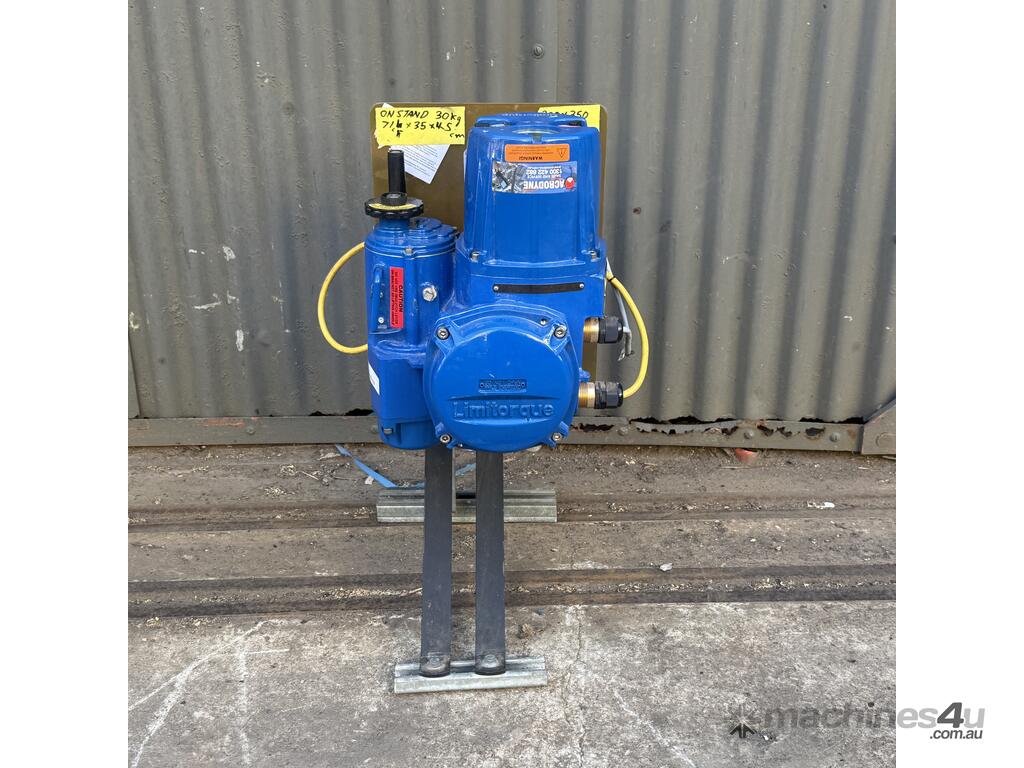

On a stand.
This is ex TAFE and was used as a teaching tool... has probably done very little real work.

ON STAND 30KG
71 X 35 X 45mm

without Stand
30 x 35 x 45mm

a tax invoice will be issued, payment by bank deposit please.


Check out my store for these units and other gate, ball and rotary valves, valve actuators, steam traps, meters, chemical pumps, gas regulators etc. Please enquire if you are looking for a specific item.



Contact and inspection of goods
Please contact Tim Marshman with any questions. This item may be inspected by appointment at 9 Vernon Smith Court, Ottoway, South Australia
