Lincoln Air Vantage 500 Welder

Lincoln Air Vantage 500 Welder

Last Service completed Oct 2025

Minimal usage and is no longer required for our use.

looking for fast sale located in Garbutt QLD

Lincoln Air Vantage 500 (60HZ)
Specifications
Welding output: 500A 100% (Maximum output 575A)
Auxiliary power: 12KW 2x Single Phase 240V 60Hz.
Dimensions: (MM)1260H x 831W x 1603L 766KGS

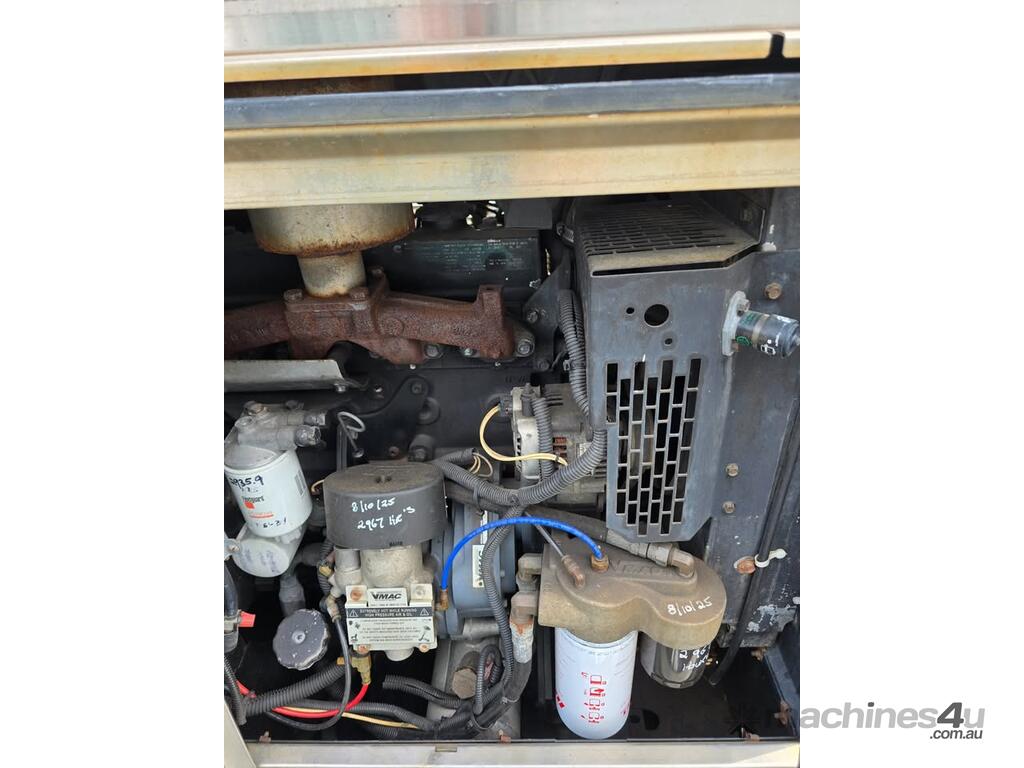

Field-proven four cylinder Cummins B3.3
industrial diesel engine.
• Standard stainless steel roof and side
panels deliver added protection, durability
and corrosion resistance.
• Indicator lights for low oil pressure, high
engine temperature or broken cooling fan
belt/low engine alternator voltage
• Engine protection system: automatic
shutdown for broken fan belt/low engine
alternator voltage, low oil pressure, high
engine temperature.
• Gauges include fuel, oil pressure, water

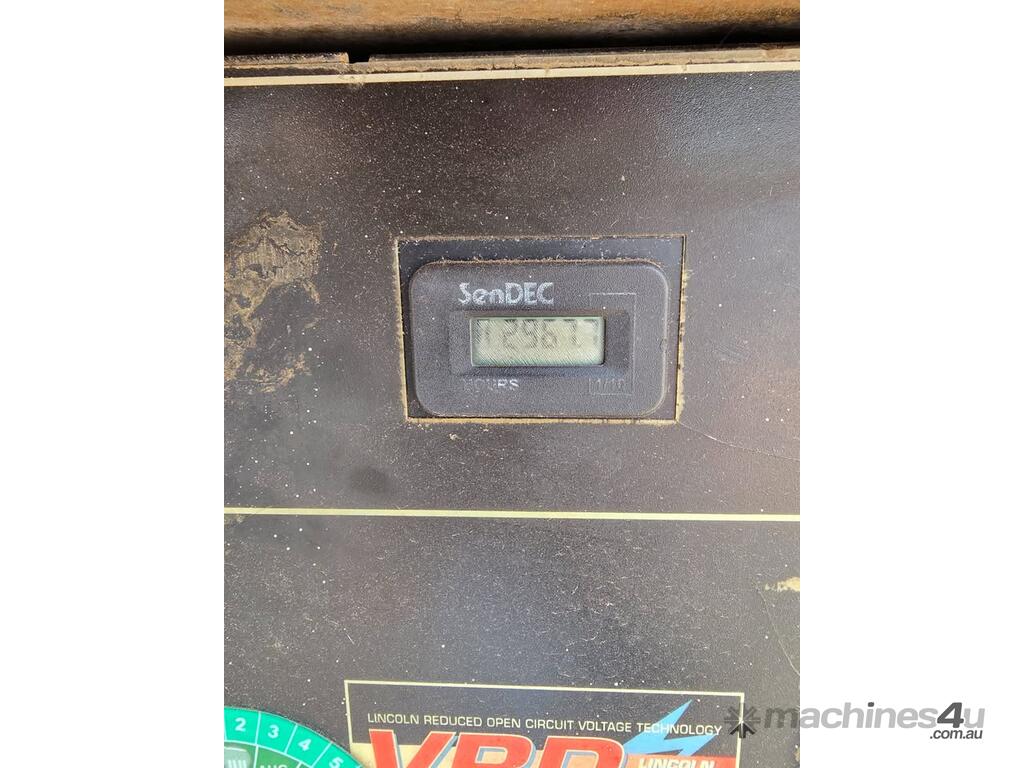

temperature, and hour meter.
• Automatic engine idler for greater fuel
economy, longer engine life and reduced
noise.
• Single-side engine access for routine
maintenance. Siding stainless steel door
located on the right side. Opens easily,
even in tight surrounds.
• Compressor on/off switch, turns
compressor off when not required. The
compressor will deliver 60 CFM, 100PSI
while engine is idlering for greater fuel
economy.
• Battery lock out/tag out switch
• External battery charging/jump start
terminals

• 500 amps DC 100% duty cycle
575 amps DC 50% duty cycle
• Excellent DC arc characteristics welding
with Chopper Technology for stick, TIG,
MIG, cored wire and arc gouging with
carbons up to 8mm (9.5mm max).

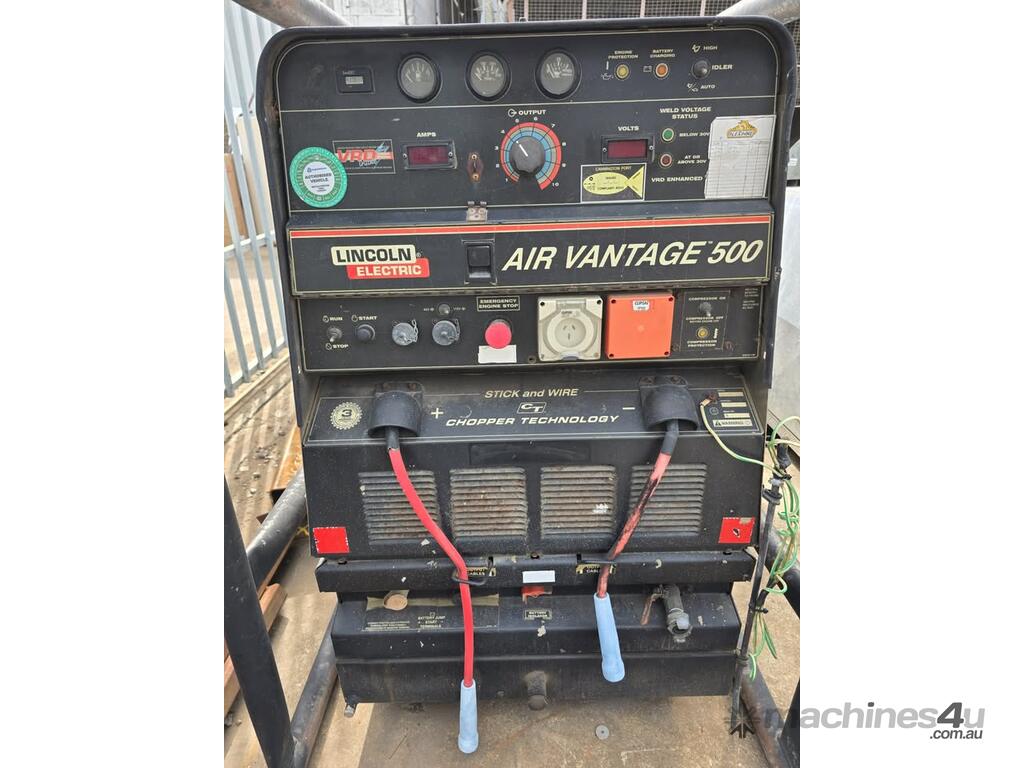

• Simplified control panel featuring
continuous full-range output control dial.
• Arc control in CC and CV modes for crisp
and soft arc.
• "Touch Start" DC TIG welding for smooth
arc starts without contamination or the
need for a high-frequency generator.
• VRD device (for additional operator
safety) Factory fitted, built-in voltage
reduction device (VRD) offers additional
safety for the operator. The VRD operates
in the CC mode reducing the OCV to a
safer <12 volts, increasing the operator
safety when welding is performed in
environments with increased hazard of
electric shock.
• 60 CFM rotary screw air compressor.
Delivers enough compressed air to run
two carbon arc torches*, compressed air
plasma cutter or a number of air tools.
• 95 litre fuel tank, more than enough fuel
for a days work, minimising refuelling.
• Digital meters for volt and amp out.
