Load Cell: Compression: Wheel Shaped - AGY-3

The AGY-3 through-hole design can be used for applications such as
bolt force measurements, clamping forces & rolling mill overload monitoring.

AGY-3 Compression Load Cell has a unique bridge structure with cup and steel ball mounting. Self-resetting and centering. Widely used in truck scales, railroad scales, hopper scales and various other special scales.

AGY-3 Key Features

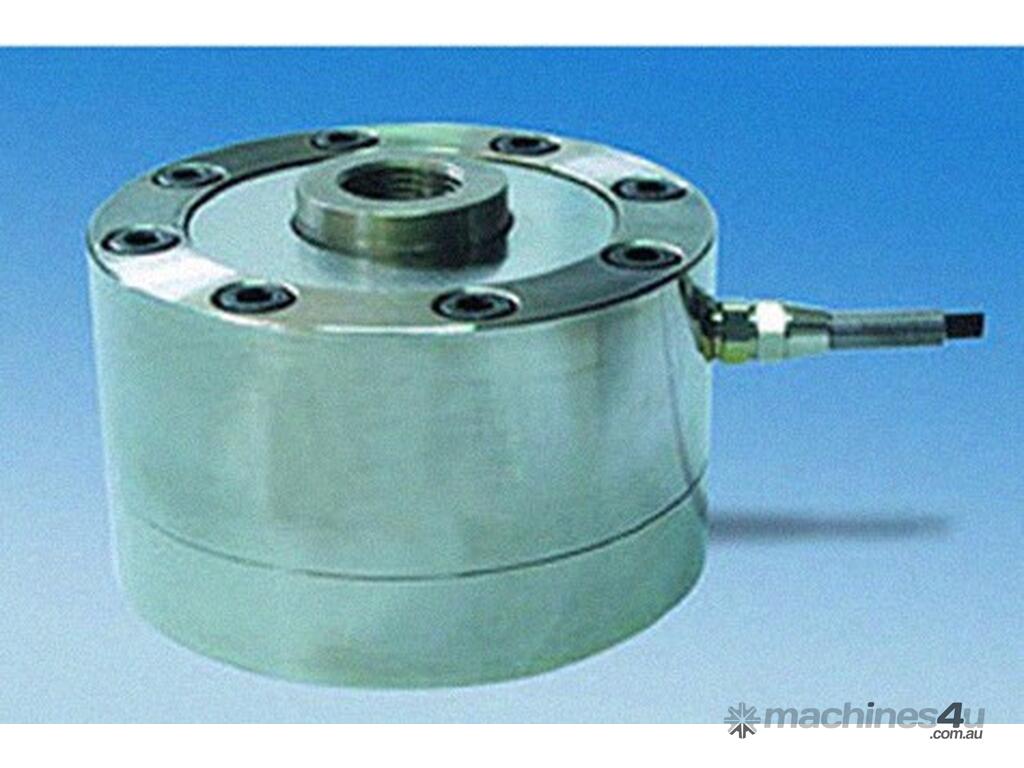

Wheel-shaped load cell
Good rigidity, strong side force resistance
Overloading self-locking
High output to 4mV/V
Hermetically sealed IP 68 moisture-proof sealed
Ideal for hostile environments
Simple to install
Easy to use
Good interchangeability
Good side force resistance and shock resistance

Rated Output (mV/V) 4.00 ± 0.015
Non Linearity ± 0.03 % of Full Scale
Hysteresis ± 0.03 % of Full Scale
Repeatability ± 0.015% of Full Scale
Creep (30 minutes) ± 0.02% of Full Scale
Zero Balance ± 1.00% of Full Scale
Temperature Effect on Zero
± 0.02% of Full Scale/10ºC
Temperature Effect on Output ± 0.02% Full Scale/10ºC
Input Resistance (?) 765 ± 15
Output Resistance (?) 700 ± 5
Insulation Resistance (?) ? 5000 M
Excitation Voltage 10V (DC/AC)
Compensated Temperature Range -10ºC to +50ºC
Operating Temperature Range -20ºC to +60ºC
Safe Overload 120% of Full Scale
Cable ø 6 x 9 m
Cable Colour Code Input:
Red (+) Black (-)
Output:
Green (+) White (-)
