Load Levelling Yoke

Ganterud L12-Pro – Heavy-Duty Radio-Controlled Load Leveller (Now Available in Australia)

• New to the Australian lifting and construction market — the Ganterud L12-Pro delivers safer, faster and more precise load levelling for heavy, uneven and awkward loads.

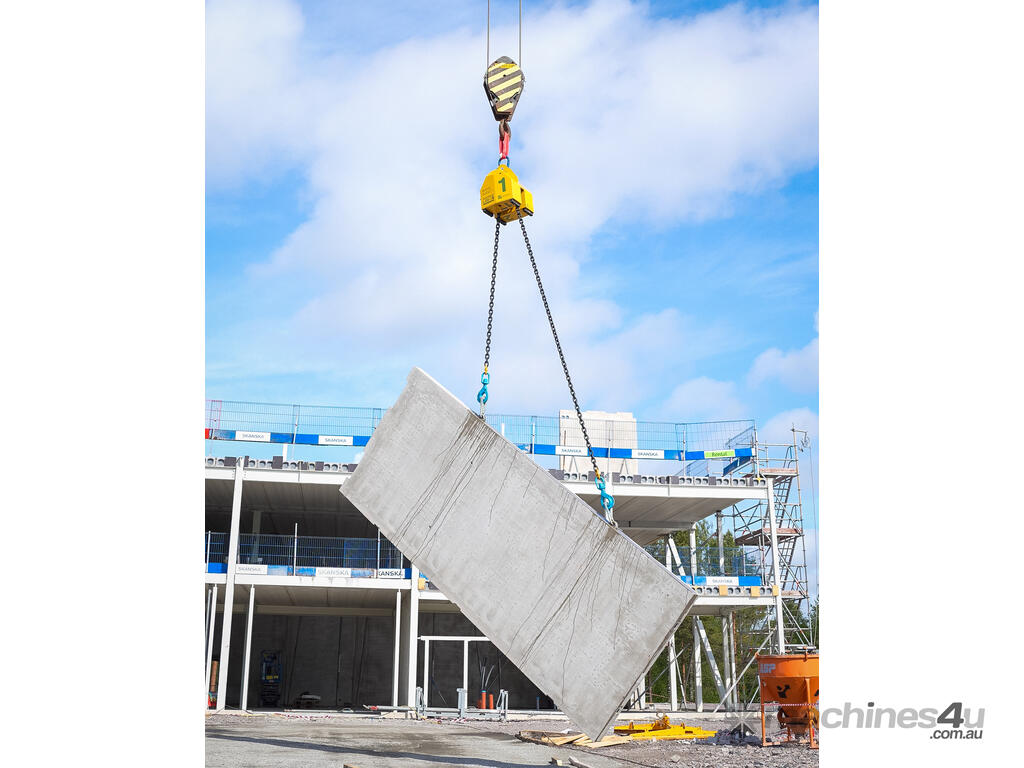

• 12-tonne lifting capacity with up to 2.5-tonne imbalance handling — ideal for prefabricated concrete, steel elements and complex construction lifts.
• Automatic levelling system finds the centre of gravity at the push of a button, boosting safety and speed on every lift.
• Snatch-block function allows safe, controlled rotation of heavy items during positioning.
• Remote-controlled chain release keeps operators clear of danger zones and improves workflow efficiency.
• Reversible chain system (2 m per hook, 4 m total) provides flexible handling for a wide range of load geometries.
• Built for tough conditions: operates flawlessly from –20°C to +40°C with IP65-rated electrics and a rugged welded casing.
• User-friendly IP67 remote with 7 function keys and a 100 m range for complete operator control.
• Designed to significantly reduce crane time, waiting periods and manual adjustment — a major productivity advantage for builders and rigging teams.
• CE-certified for compliance and reliability in complex industrial and construction environments.

Technical Specifications

Lifting Capacity: 12 tonnes
Load Imbalance Capacity: 2.5 tonnes
Levelling Length: 2 m (4 m total chain)
Chain Angle: Up to 60°
Chain Size: 16 × 48 mm
Weight: 295 kg
Dimensions: 750 × 740 × 595 mm
Radio Range: 100 m
Motor: 24 VDC
Power (rest/max/peak): 50 mA / 24 A / 30 A
Remote: 7-key IP67 unit (3 × AAA batteries)
Operating Temperature: –20°C to +40°C
Storage Temperature: –20°C to +45°C
Humidity: 0–90% (storage)
IP Rating – Unit: IP65
IP Rating – Remote: IP67
