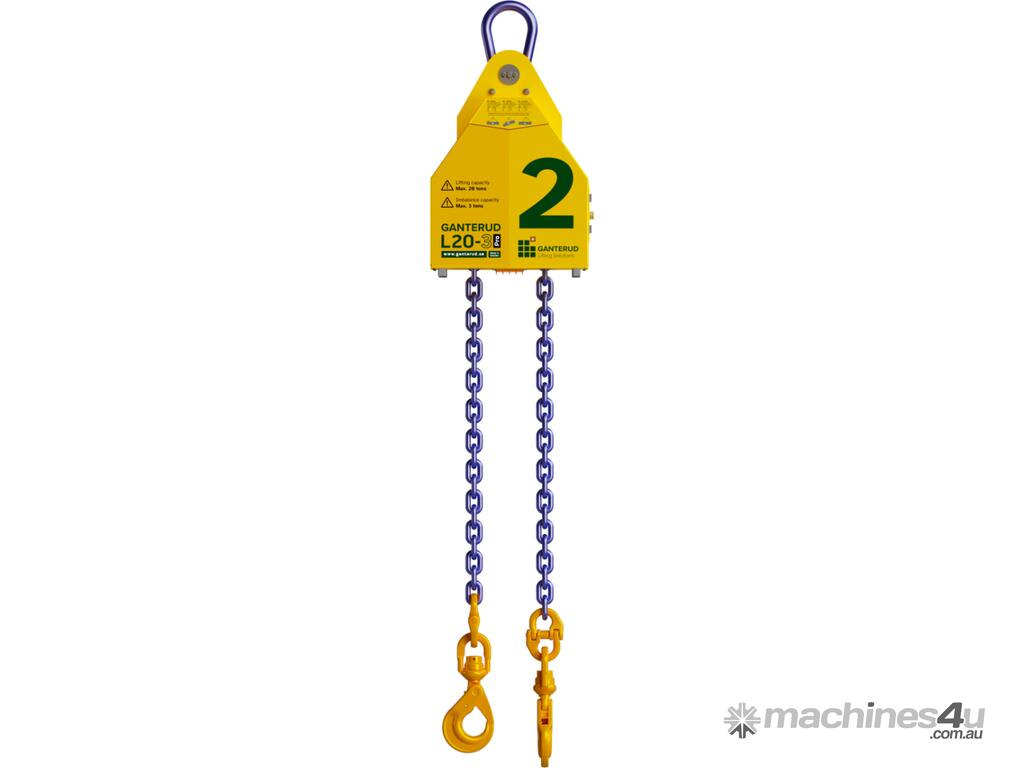

Ganterud L20-3 Pro – 20-Tonne Radio-Controlled Load Leveller

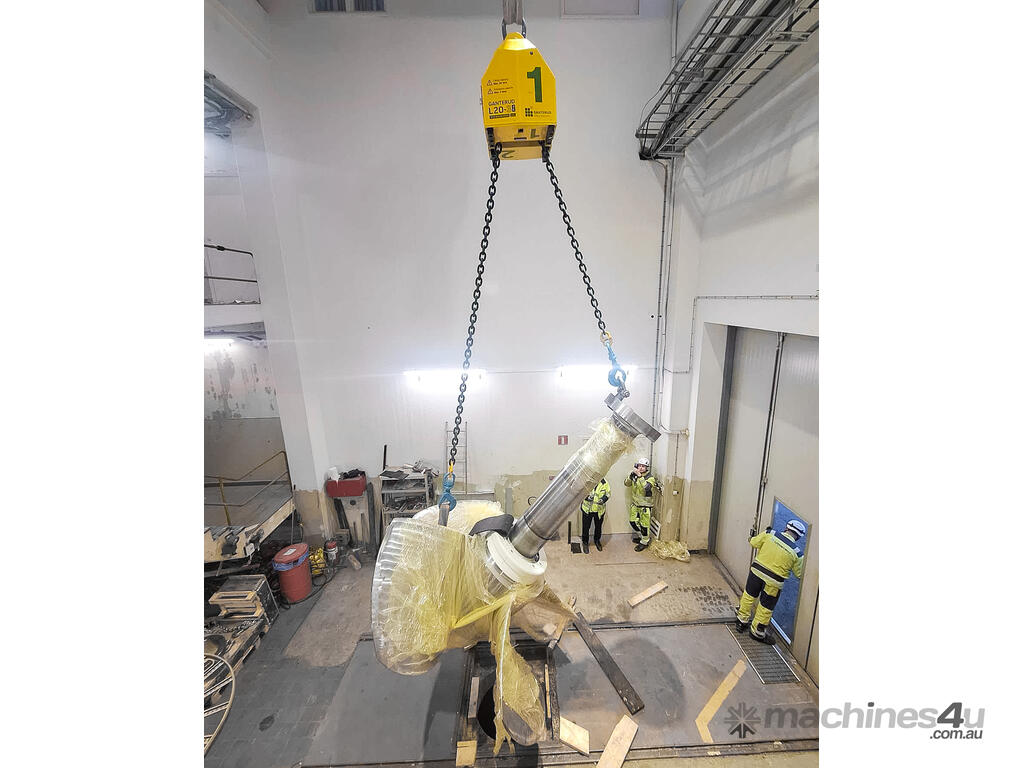

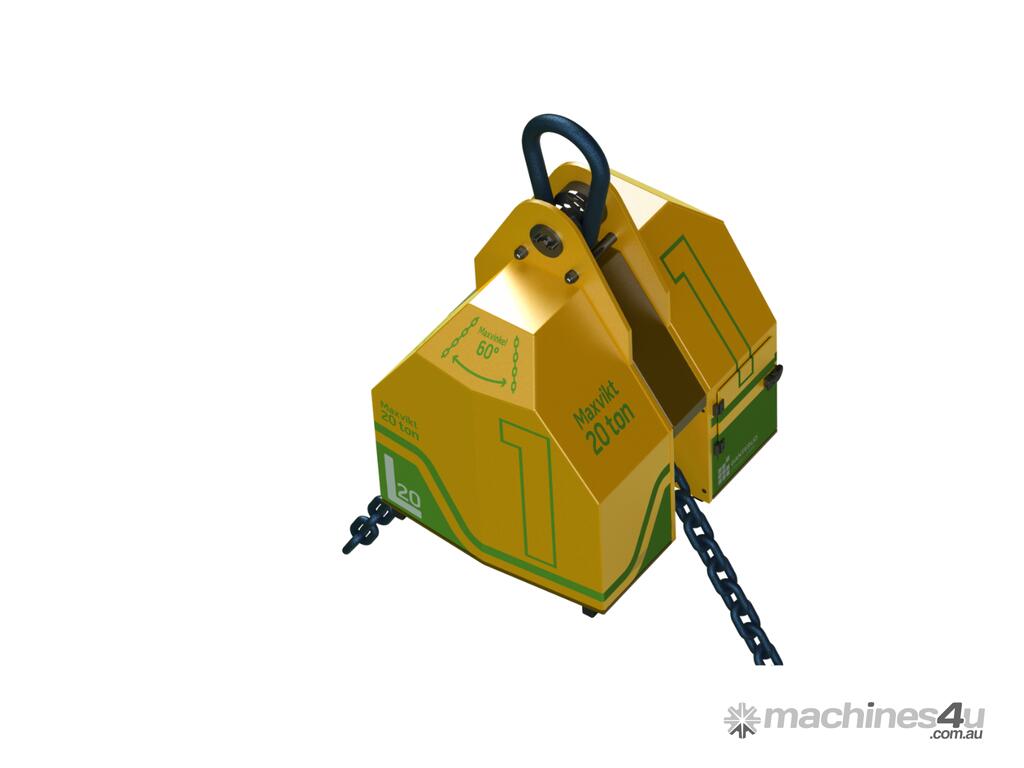

The Ganterud L20-3 Pro is a next-generation, radio-controlled load-levelling yoke built for heavy-duty lifting, precision installation, and safe handling of awkward or uneven loads. With a 20-tonne lifting capacity and the ability to manage up to 3 tonnes of load imbalance, it delivers exceptional control and safety on construction and industrial worksites.

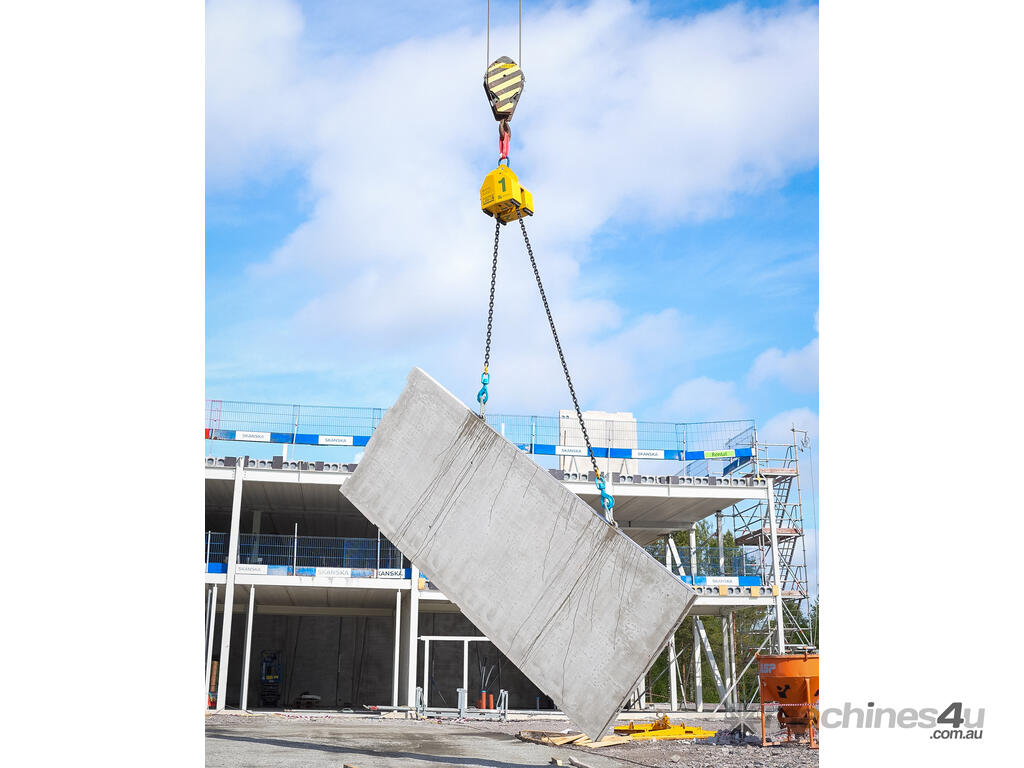

Designed for demanding lifting tasks such as precast stairs, concrete panels, structural steel and oversized components, the L20-3 Pro combines automatic levelling, a snatch block function, and remote chain release to give operators precise, efficient, and fully controlled movement from the ground.

Its rugged construction, intuitive IP67 handheld remote, and reliable electrical system make it the ideal levelling solution for high-risk, high-efficiency lifting environments where downtime must be kept to a minimum.

Key Features

20-tonne capacity – built for large, heavy, awkward and uneven loads.
Handles up to 3-tonne imbalance for precise levelling in challenging lift setups.
Automatic levelling – finds the centre of gravity for fast and safe alignment.
Snatch block function for controlled rotation of heavy items.
Remote-controlled chain release to keep operators safely out of the danger zone.
Reversible chain system – 3 m per hook, with up to 6 m total chain length.
Rugged, low-maintenance build – welded casing, IP65 electrics, weekly charging only.
IP67-rated handheld remote with 7 function keys and 100 m range.
Reliable in extreme conditions from –20°C to +40°C.
CE-certified for safety and compliance across demanding work environments.

Technical Specifications

Lifting Capacity: 20 tonnes
Load Imbalance: 3 tonnes
Levelling Length: 3 m
Total Chain Length: 6 m
Max Chain Angle: 60°
Chain Size: 20 mm × 60.5 mm
Weight: 395 kg

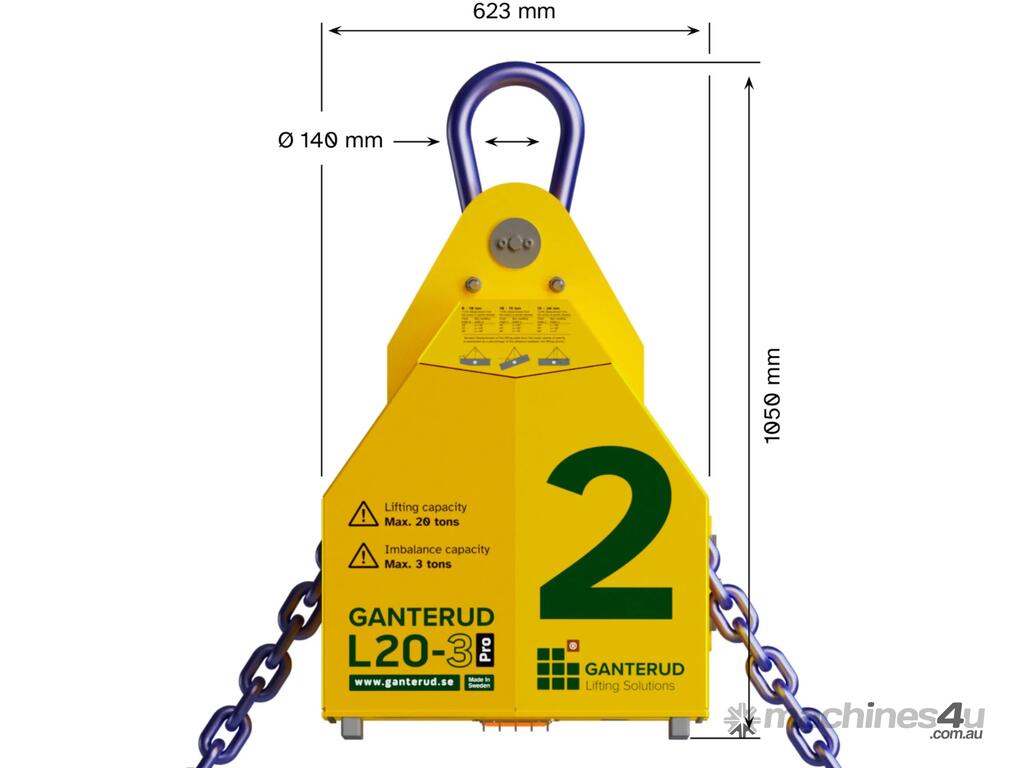

Dimensions (H × W × D): 1050 × 719 × 623 mm
Radio Range: 100 m
Motor: 24 VDC
Power (rest/continuous/peak): 50 mA / 60 A / 100 A
Remote: 7-key IP67 remote, 3 × AAA batteries
Operating Temperature: –20°C to +40°C
Storage Temperature: –20°C to +45°C
Humidity (storage): 0–90%
Unit IP Rating: IP65
Remote IP Rating: IP67
