Brand: Lockformer
Model: Collar Maker
Type: Sheet Metal Forming Machine (Roll Former)
Company: The Lockformer Company
Location: Lisle, Illinois, USA ????????

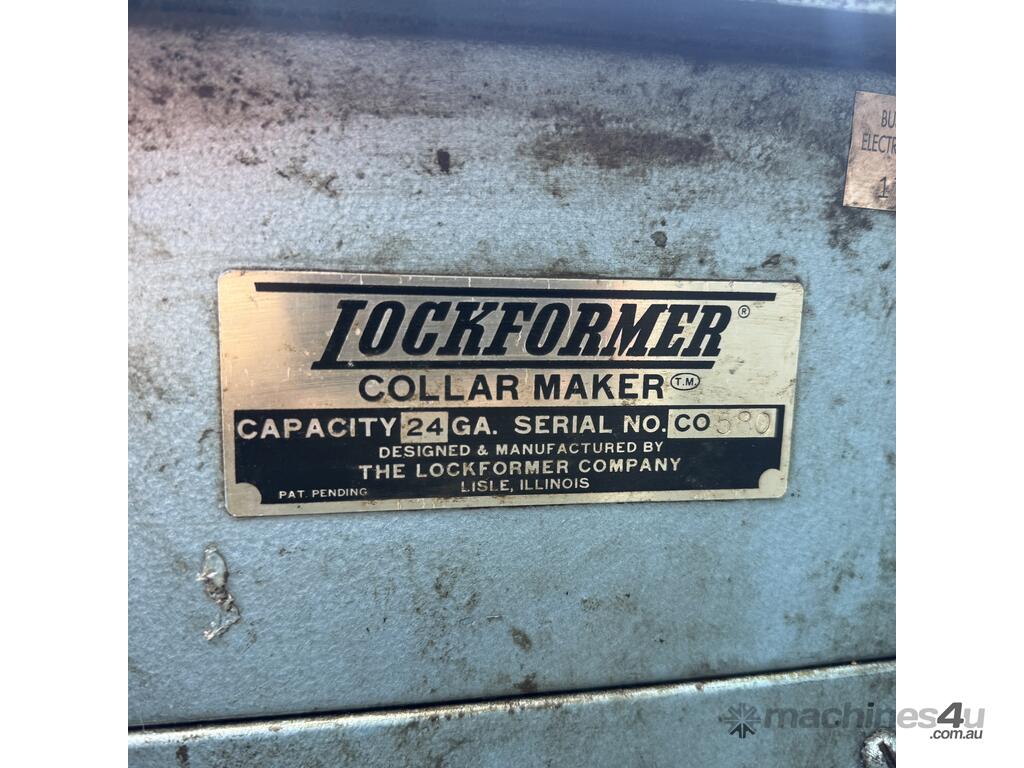

Origin: Made in USA (confirmed from nameplate)
This is a sheet metal collar forming machine, used in:
HVAC duct fabrication
Round duct collar production
Sheet metal workshops
???? It forms raised collars / flanges around holes in sheet metal (for duct connections).
Capacity: 24 gauge steel

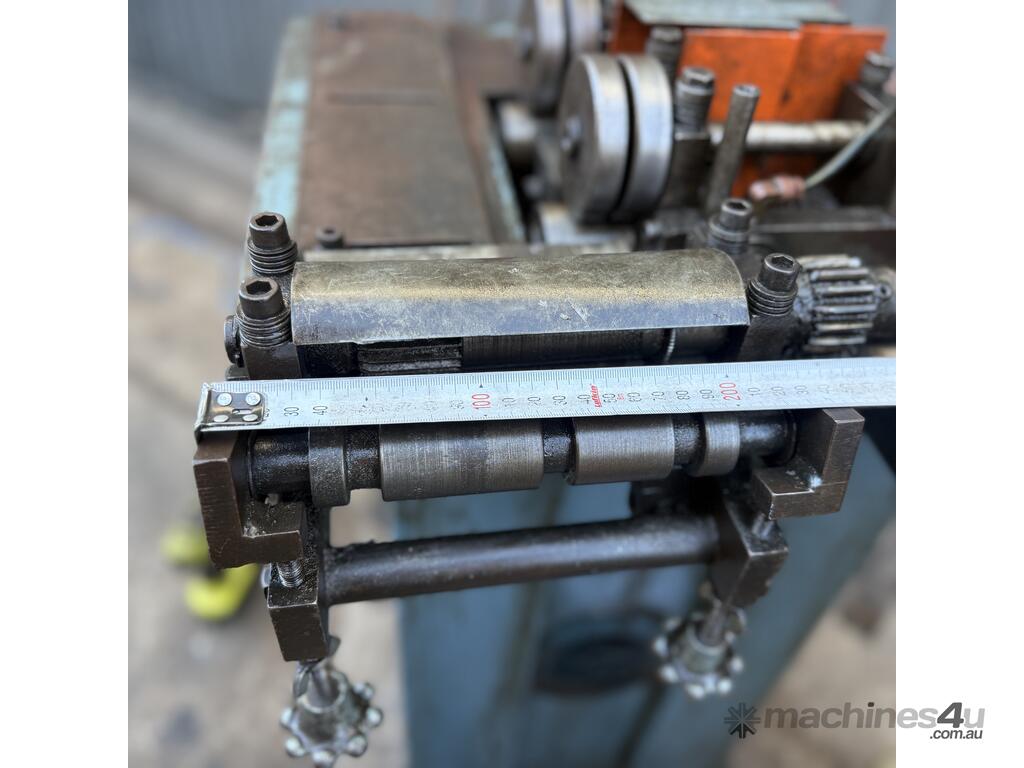

Working width (approx): ~200 mm (based on tape)

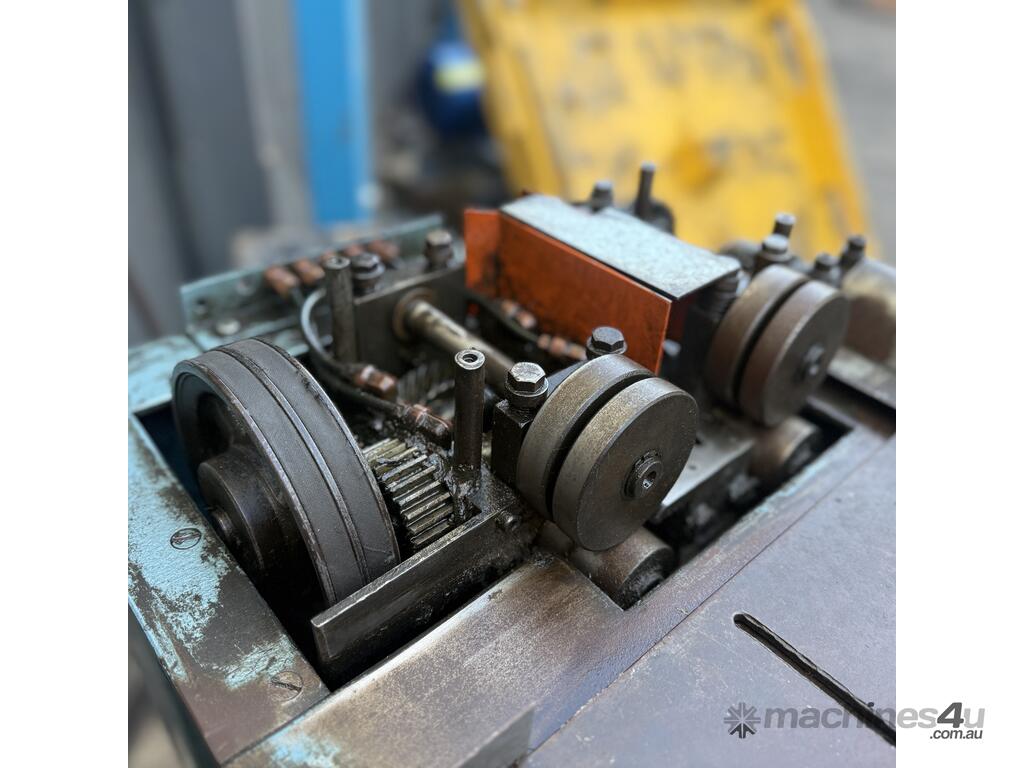

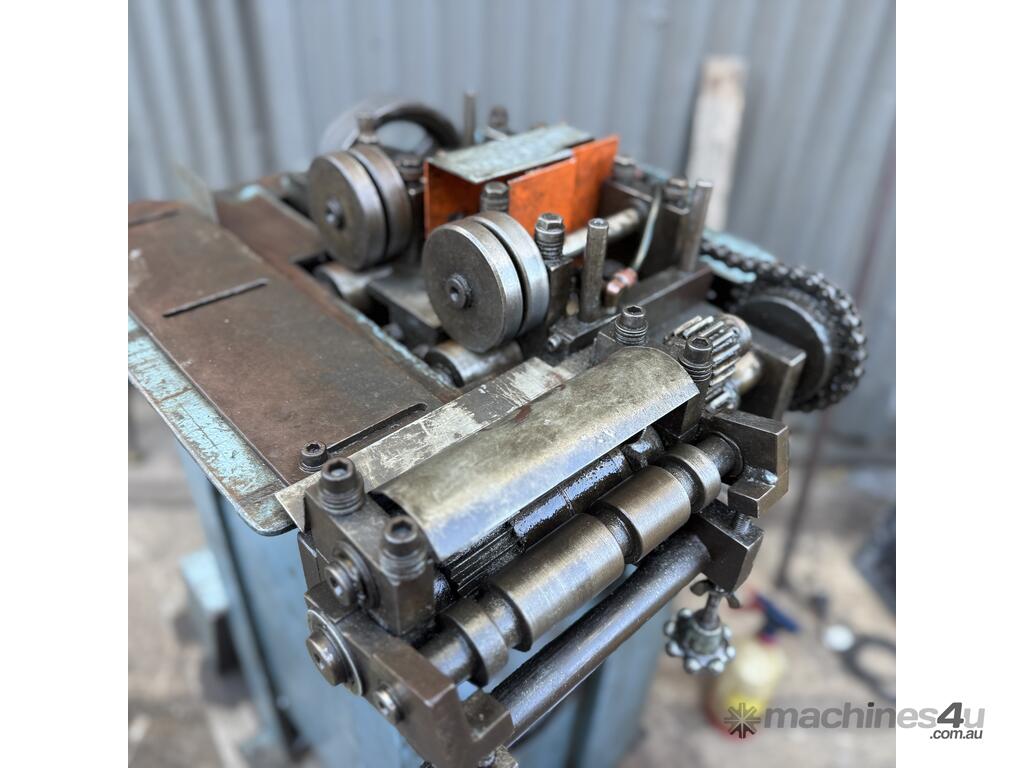

Roll forming head: Multi-roller driven system
Drive: Electric motor (internal)

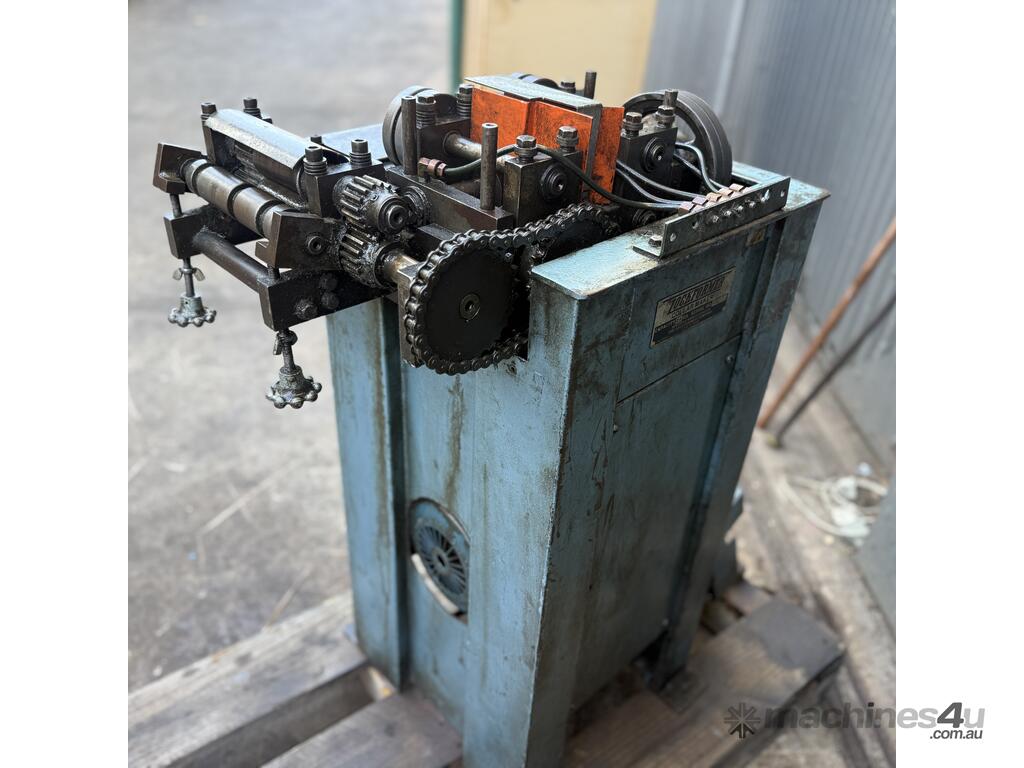

Feed system: Gear + chain driven rollers

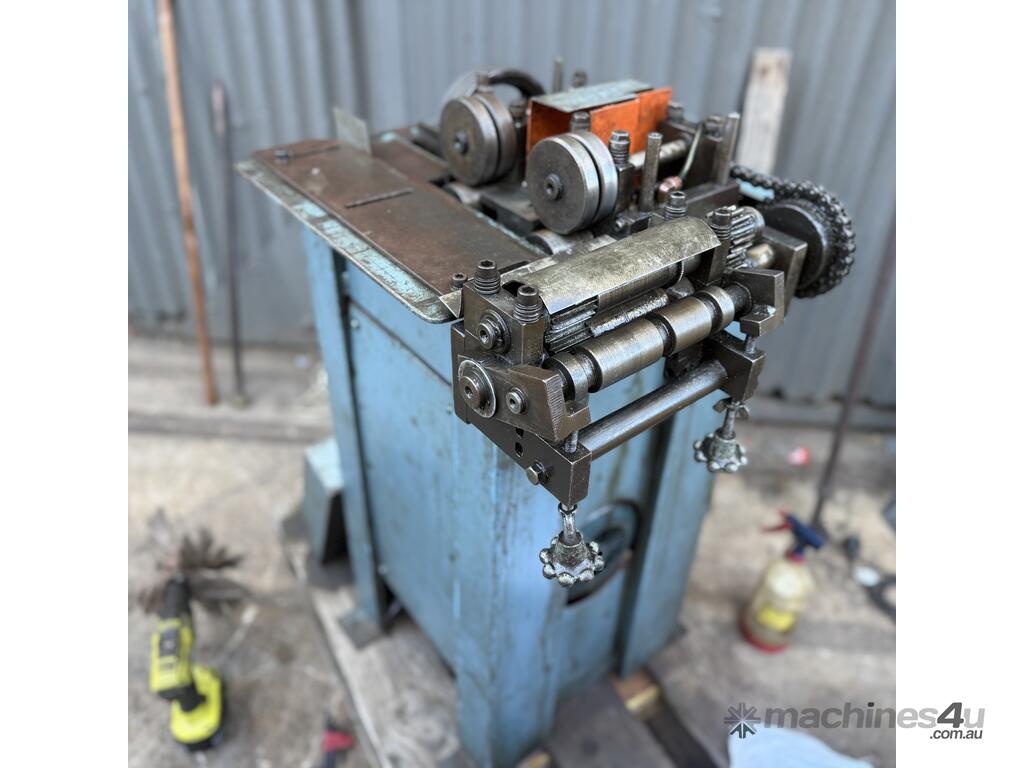

Mount: Floor-standing unit
500 x 600 x 950mm
105kg
A tax invoice will be issued, payment by bank deposit please.
I have other similar items in my store, please check it out.
Too heavy to post but we can assist with making freight arrangements. Please send your full DETAILS (needs to be a business address) if requesting a freight quote.
Contact and inspection of goods
Please contact Tim Marshman with any questions. This item may be inspected by appointment at 9 Vernon Smith Court, Ottoway, South Australia
