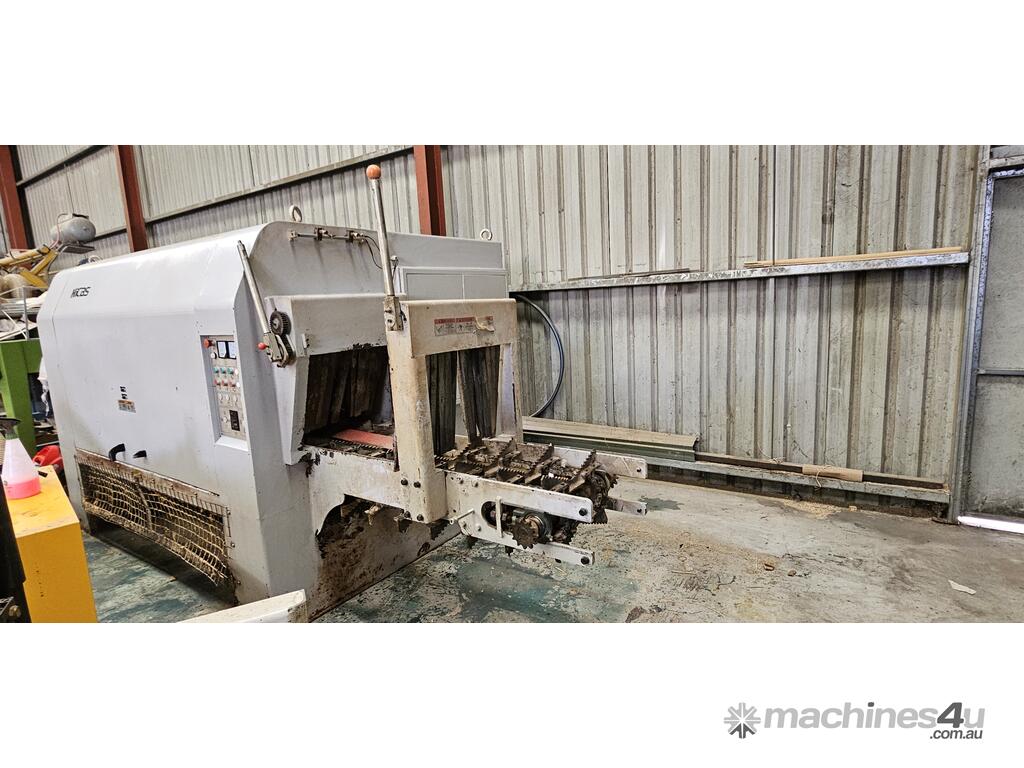

Log Saw Multi Rip with a Multi Rip Trim Saw

LOG SAW

Model MJY745
Working diameter 220-450mm
Sawing length Min. 1500mm
Sawing motor power 75kw*2=150kw
Feeding motor power 3kw
Total power 153kw
Voltage 415V 50HZ 3phase
Feed speed 6-11m/min frequency control
Output (Per 8 hours) About 65-75m³
Workers 2
Saw Blade quantity in machine Max. 16pcsEach spindle 8pcs
Saw blade size 650*120mm
Machine size 4400*2600*1920mm
Machine Weight 5155kg
Infeed and outfeed conveyor 3000mm length each

Combined with a Hicas MJQ260 Multi Rip trim Saw (price for both machines)

Model MJQ260
Working width 100-600mm
Working thickness 15-70mm
Sawing length Min. 600mm
Main motor power 18.5kw
Feeding power 1.1kw
Total power 19.6kw
Voltage 415V 50HZ 3phase
Feed speed Max. 20m/min frequency control
Workers 2
Saw Blade quantity Max. 6pcs
Saw blade size 255*60mm
