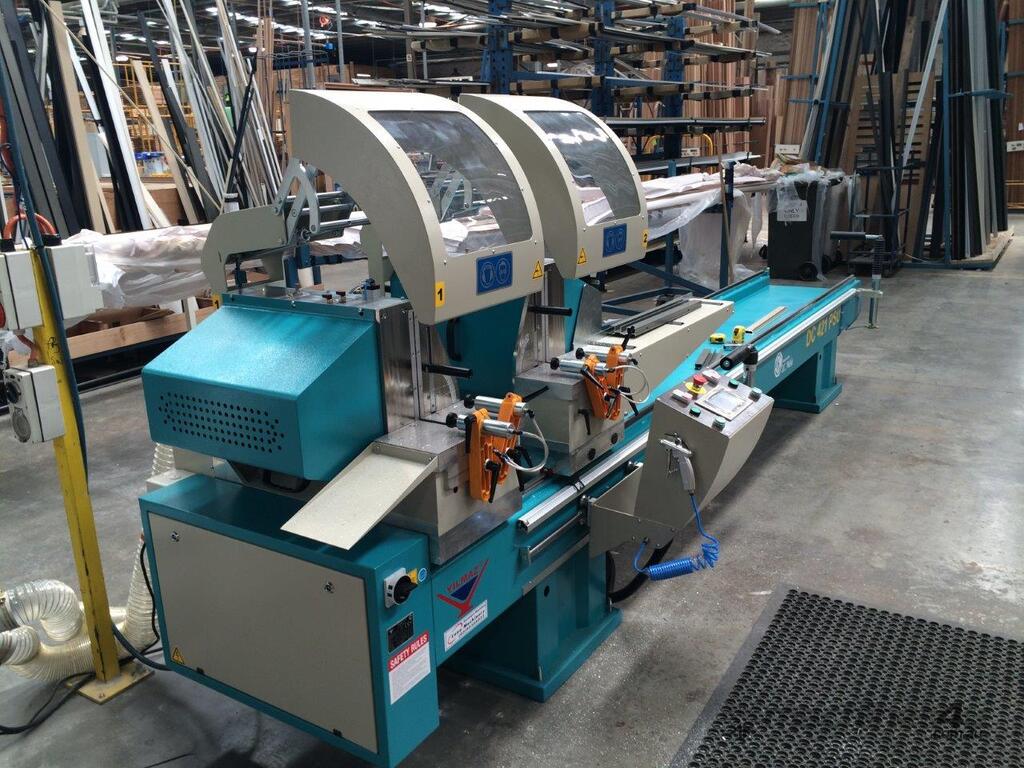

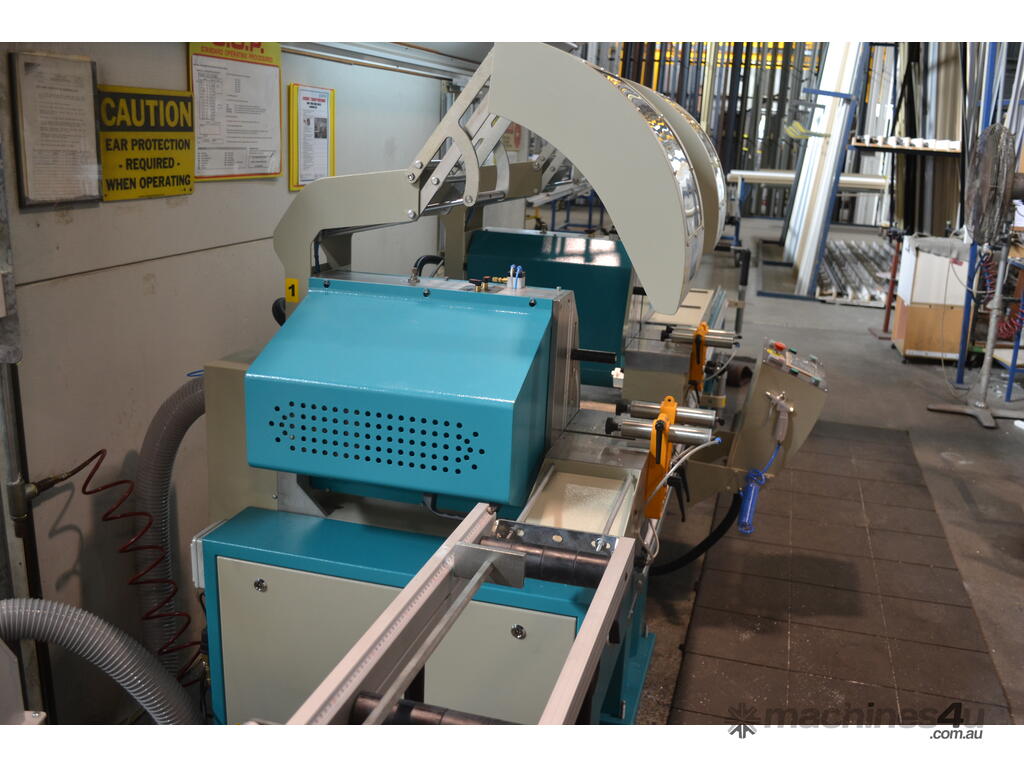

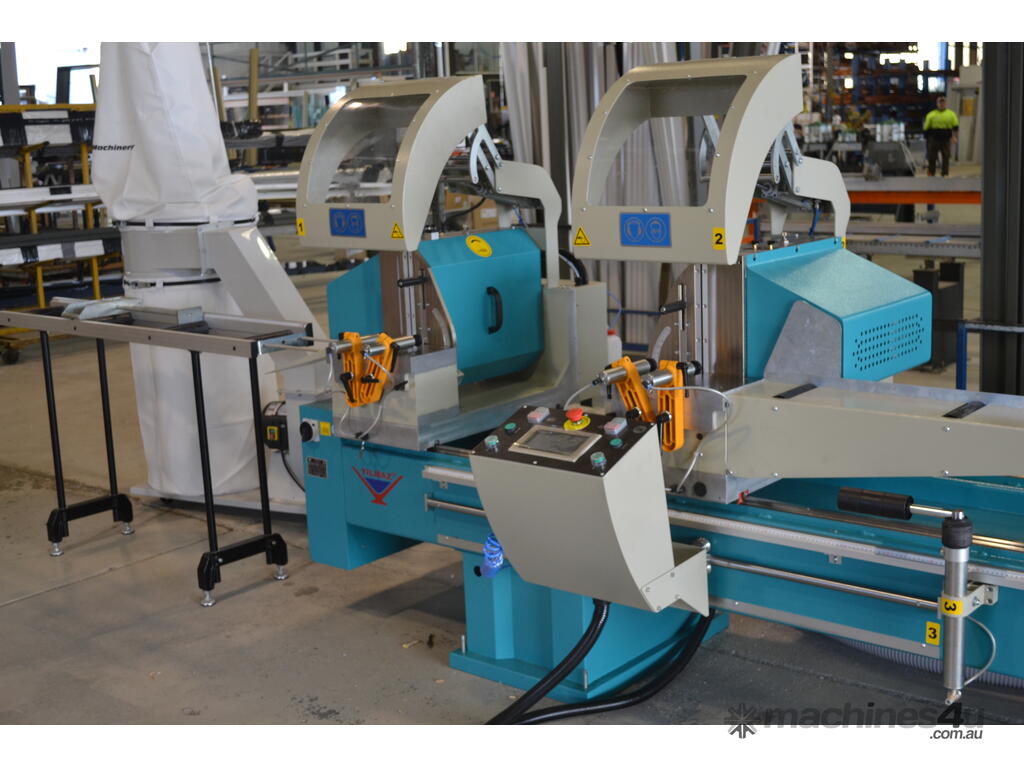

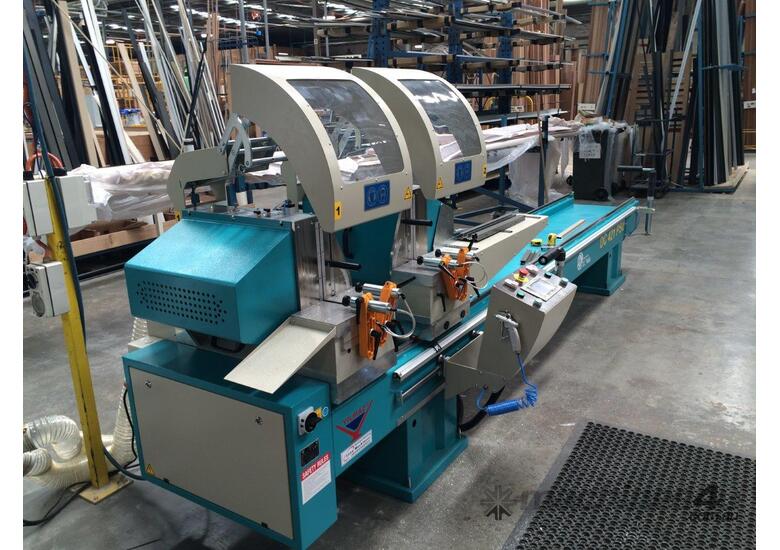

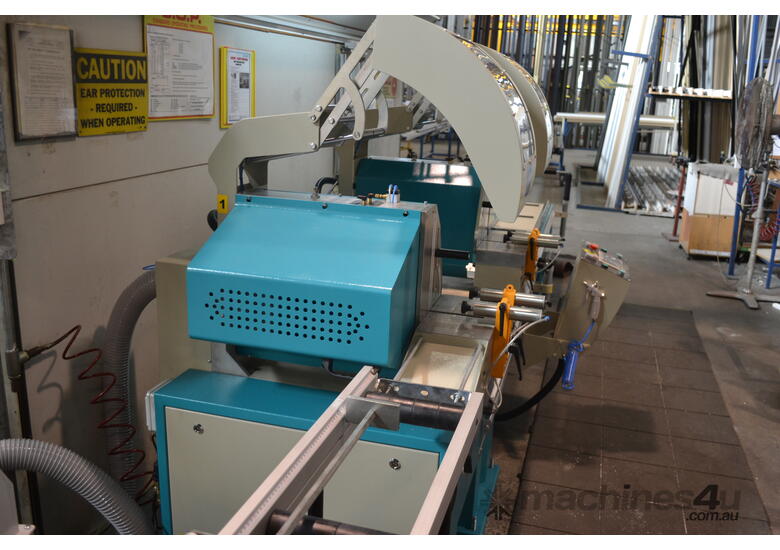

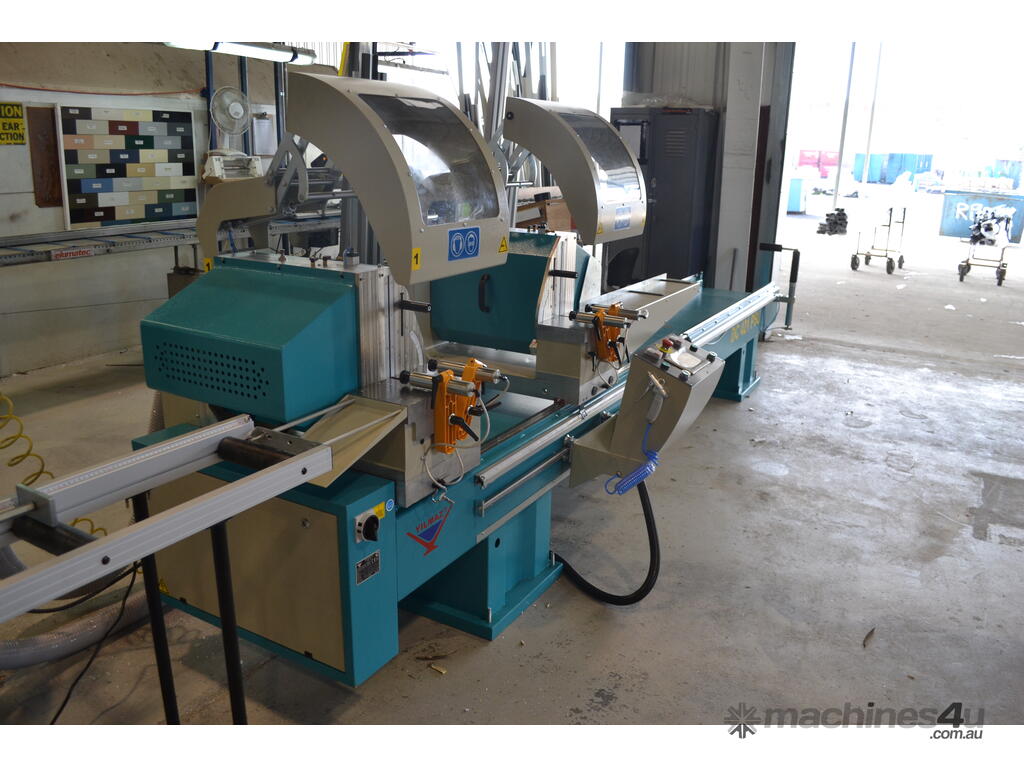

Luna 2 x 420 mm Double Mitre Saw for Aluminum

*****PRICE SHOWN IS FOR DC421M manual version

Blade 2 x (420mm,120 T.C.T) Bore: 30 or 32mm Accepts both bore sizes
Cutting Capacity 268mm H x 158mm W (90°)
192mm H x 158mm W (45°)

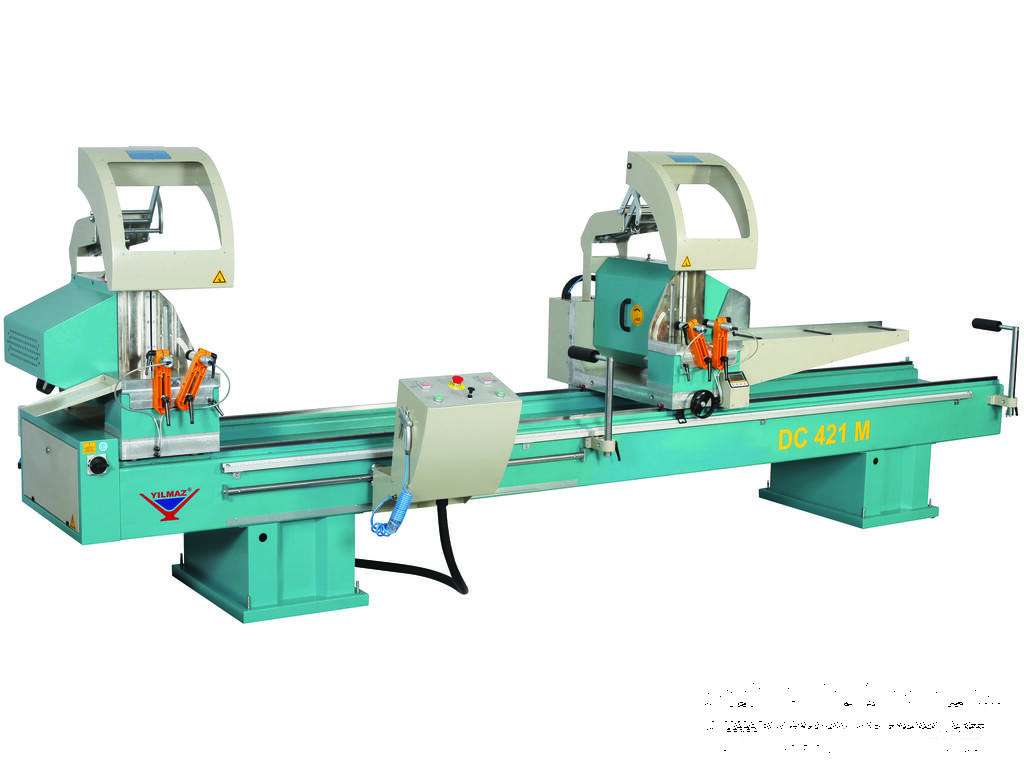

Cutting Lengths DC421M 90 Degrees Minimum 360mm, Maximum 4000mm
DC421M 45 Degrees Minimum 430mm, Maximum 4000mm

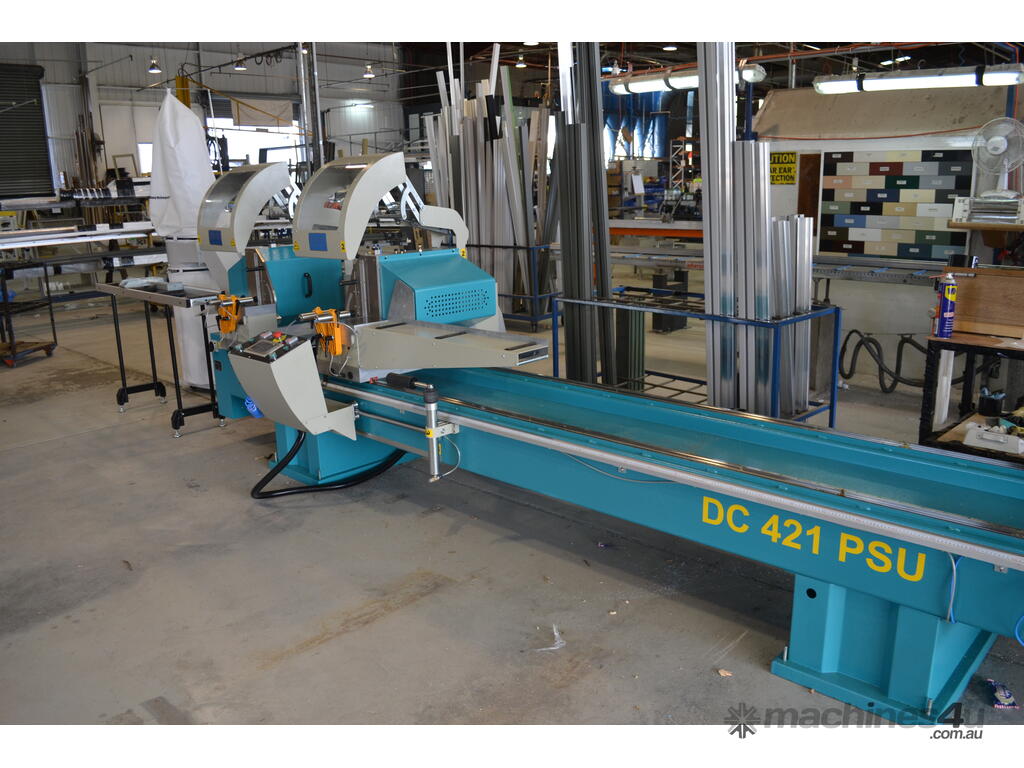

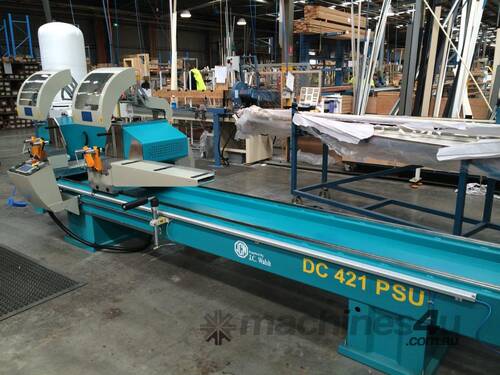

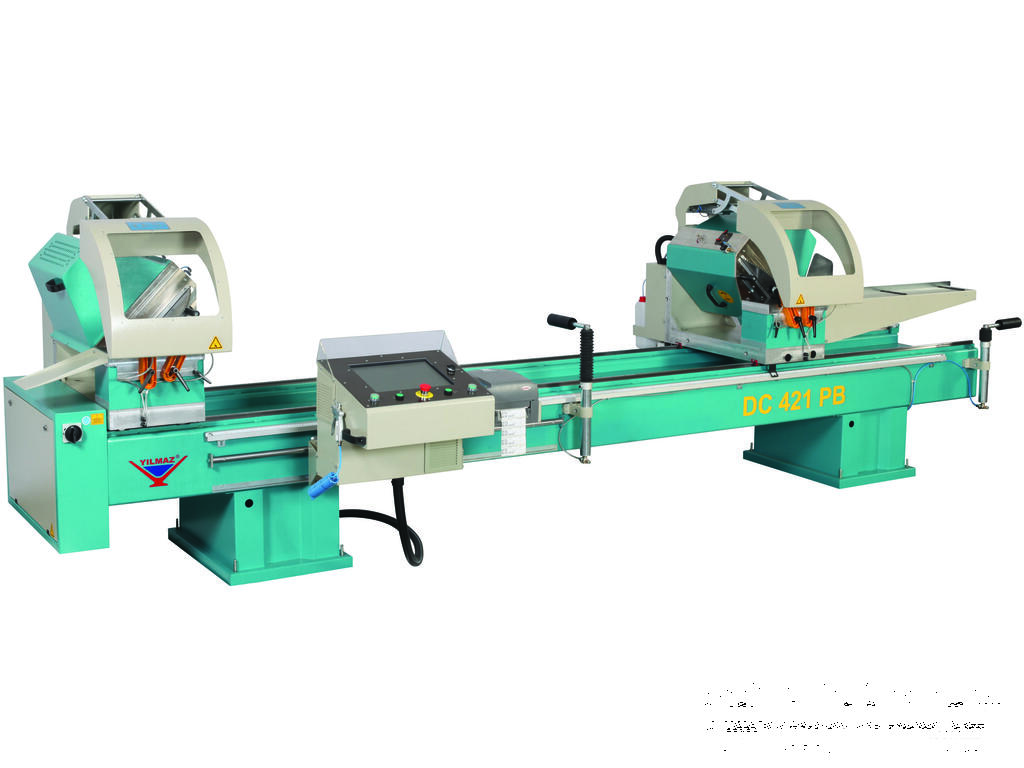

DC421P 90 Degrees Minimum 360mm, Maximum 8300mm
DC421P 45 Degrees Minimum 430mm, Maximum 8300mm
Saw Blade Speed 3000 r.p.m.
Spindle Power Two (2) 2200W, 3HP, 415V, 3 Phase Motors (With neutral link)
Weight M4100 900kgs, P 920kgs
Standard Features
M4100 & M6000 version Hydro pneumatic variable blade feed on linear slide-ways
Multi V Belt Drive for the blade
Mitre facility 90° and 45° Automatically tilted (intermediate angle manually adjusted)

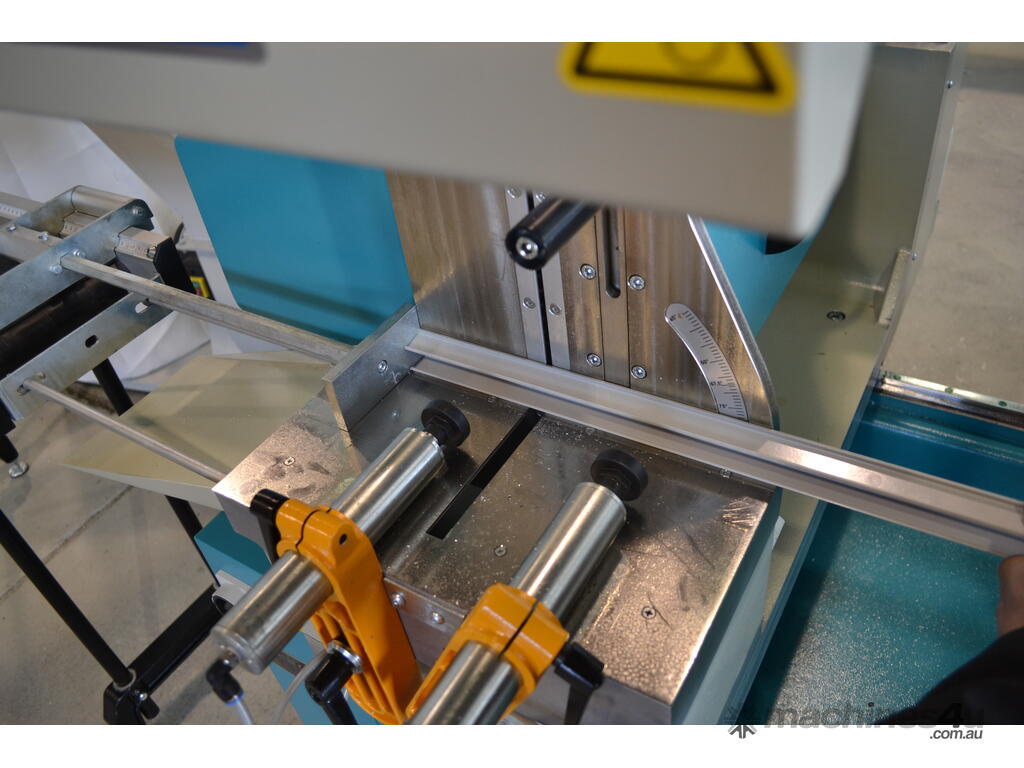

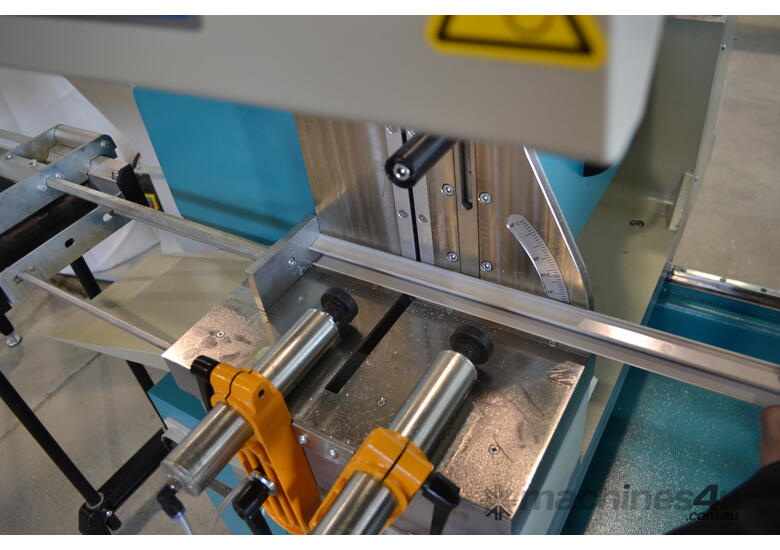

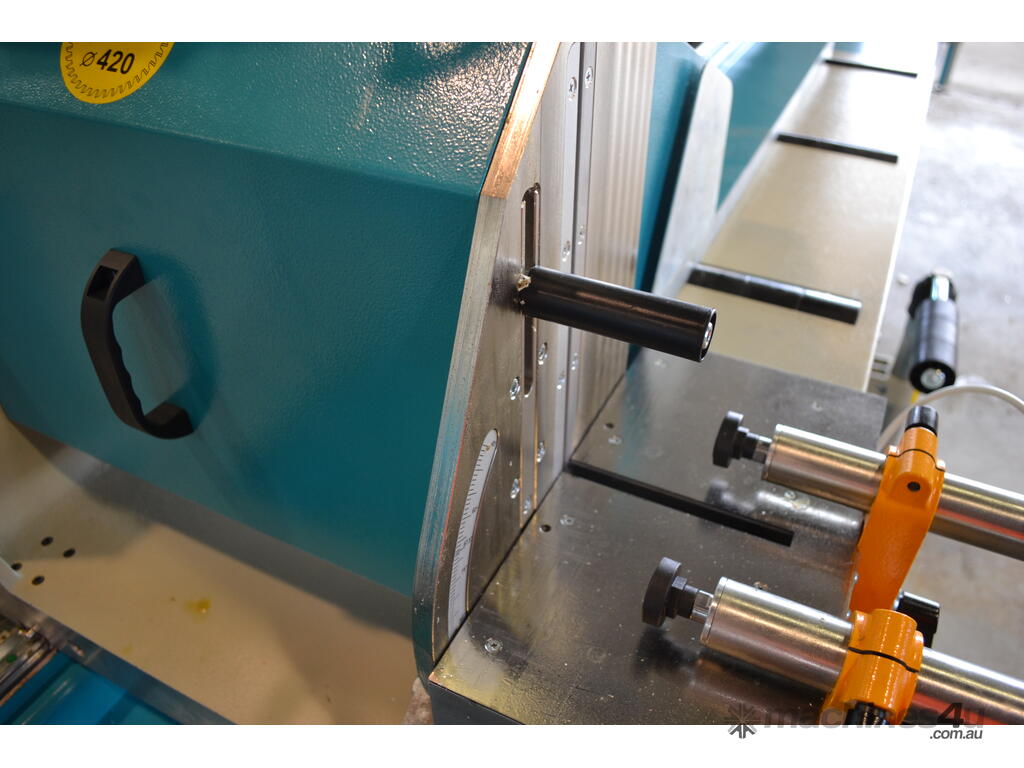

Pneumatic material clamps (4 x horizontal, p/regulator)
Two handed safety control for saw blade movement
Overhead safety guards pneumatically operated
Luna pneumatic spray mist saw blade lubrication
Air Duster Gun Kit
Heavy duty construction/ Swarf extraction facilities
Supplied with 1400mm conveyor attached to mobile head
Supplied fully assembled on sheet metal base , Star rail tracks for Mobile Head

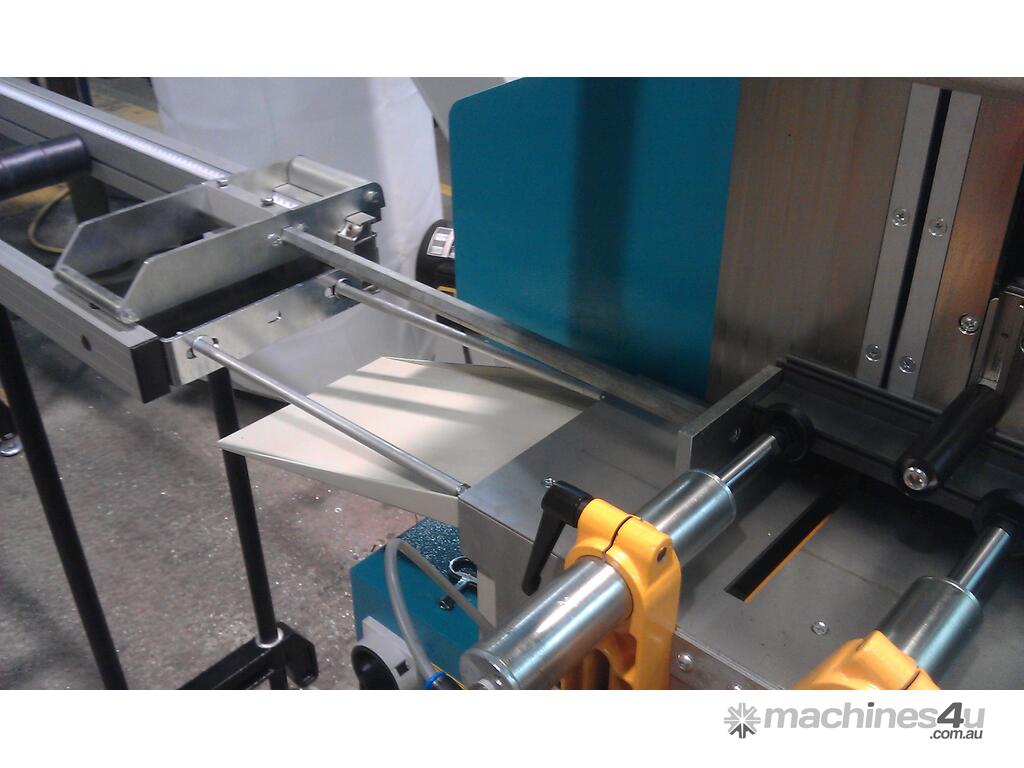

Two (1) swing away profile supports included
420mm TCT Aluminium Saw blades included
P4100 version Same as above but also including:
LCD Touch Screen Monochrome W/NC Controller
Automatic positioning of mobile head via LCD Controller
Angle selection at 45° and 90° controlled via LCD Controller
Automatic Repeat Cutting 90°
Cutting Length Expandable via software up to 8300mm
Automatic calibration cycle
Two (2) Automatic Pneumatic Material Profile Supports
*****PRICE SHOWN IS FOR DC421M
