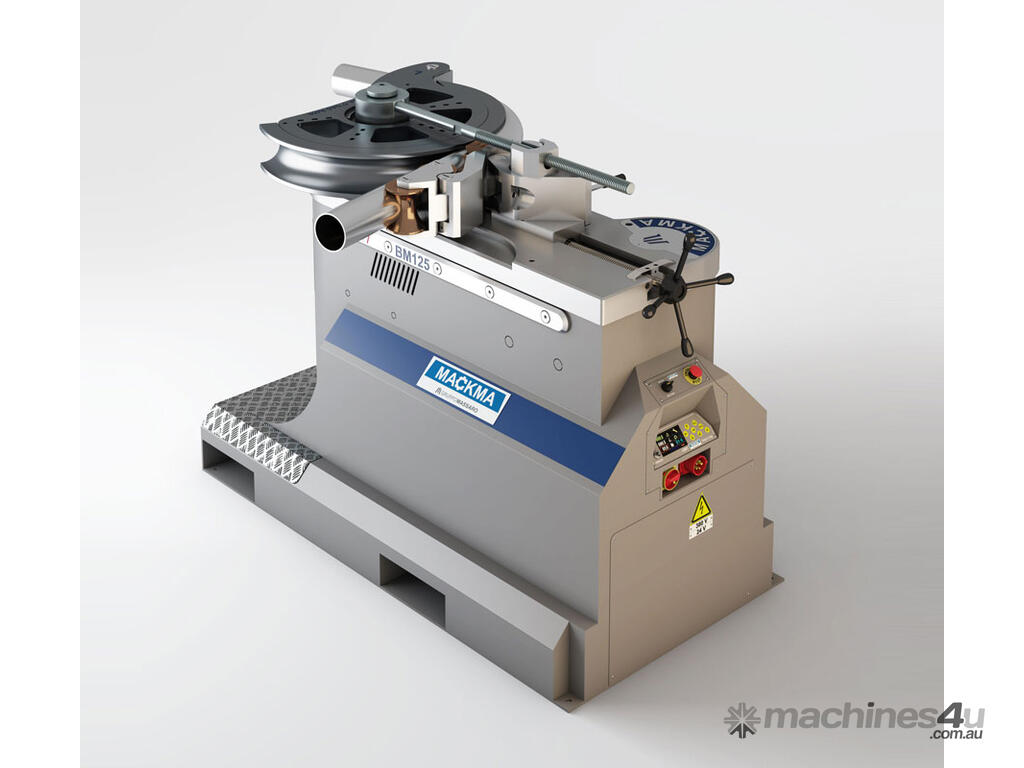

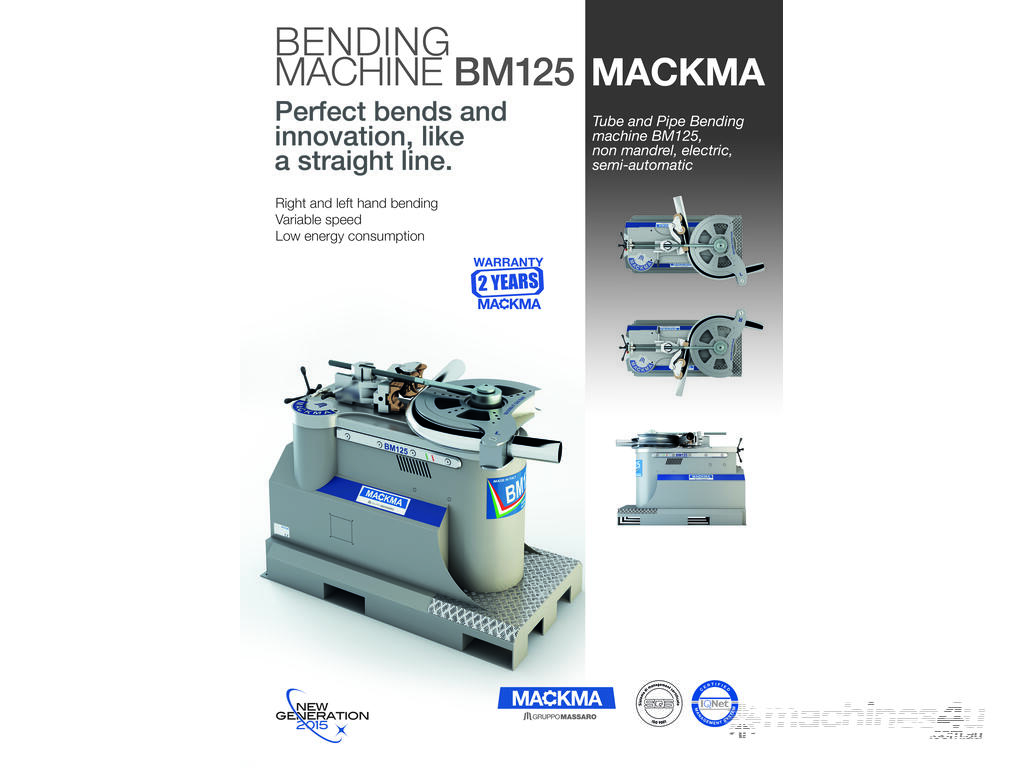

MACKMA - BM125 Non Mandrel Tube & Pipe Bender [made in Italy]

Suitable for the following sectors:
- Industrial technical articles
- Furniture
- Automotive
- Motorcycle and boating
- Sport and wellness items
- Piping

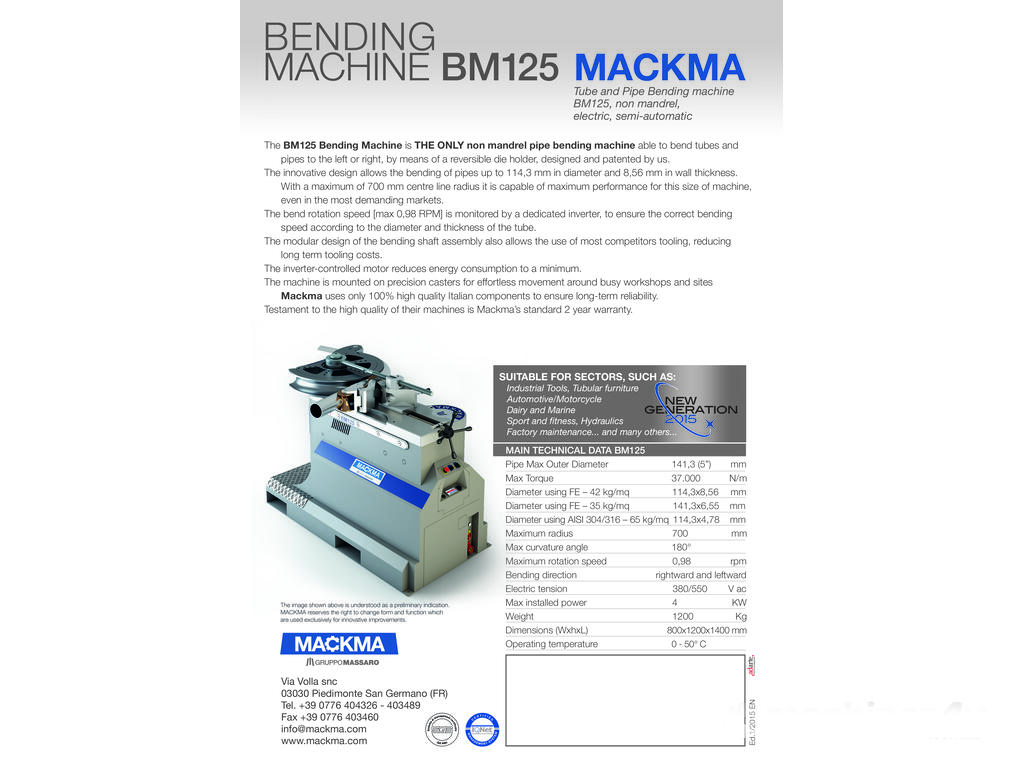

Main technical data:

Pipe Max Outer Diameter 141 mm
Max Torque 37.000 N/m
Capability with FE – 42 kg/mm2 114,3×8,5 mm
Capability with FE – 35 kg/mm2 141,3×6,5 mm
Capability with AISI 304/316 – 65 kg/mm2 114,3×5 mm
Maximum radius 700 mm
Max curvature angle 180°
Bending direction rightward and leftward
Electric tension 380 V ac
Max installed power 5.5 KW
Weight 1410 Kg
Dimensions (WxhxL) 1700x1150x920 mm
Operating temperature 0 – 50° C
