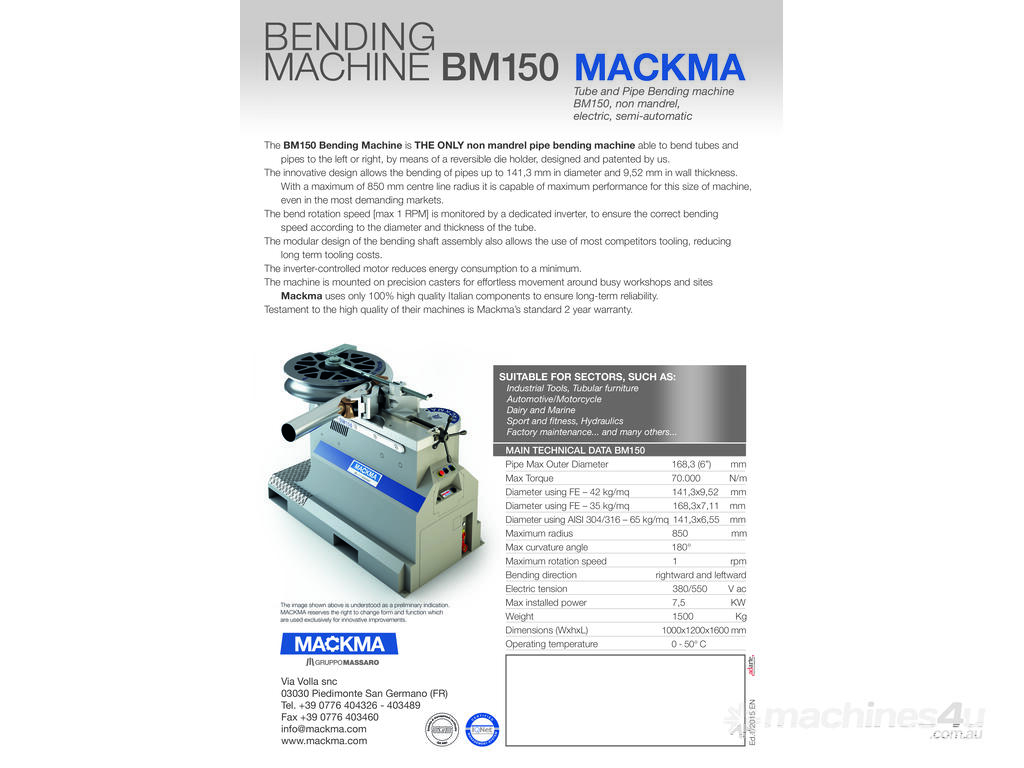

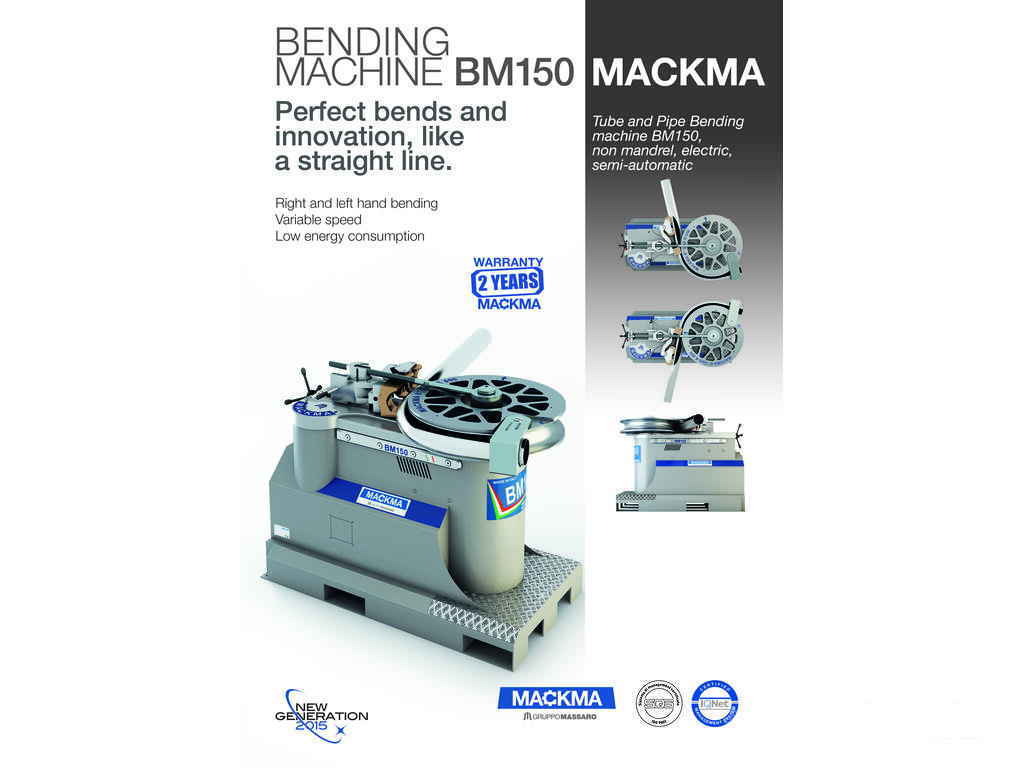

MACKMA - BM150 Non Mandrel Tube & Pipe Bender [made in Italy]

Suitable for the following sectors:
- Industrial technical articles
- Furniture
- Automotive
- Motorcycle and boating
- Sport and wellness items
- Piping

Main technical data

Pipe Max Outer Diameter 168 mm
Max Torque 81.000 N/m
Capability with FE – 42 daN/mq 141,3×9,5 mm
Capability with FE – 35 daN/mq 168,3×7 mm
Capability with AISI 304/316 – 65 dan/mq 141,3×6,5 mm
Maximum radius 850 mm
Height of the head 300 mm
Projection of the head 360 mm
Max curvature angle 180°
Bending direction rightward and leftward
Electric tension 380 V ac
Max installed power 11 KW
Weight 2600 Kg
Dimensions (WxhxL) 1900x1200x1000 mm
Operating temperature 0 – 50°
