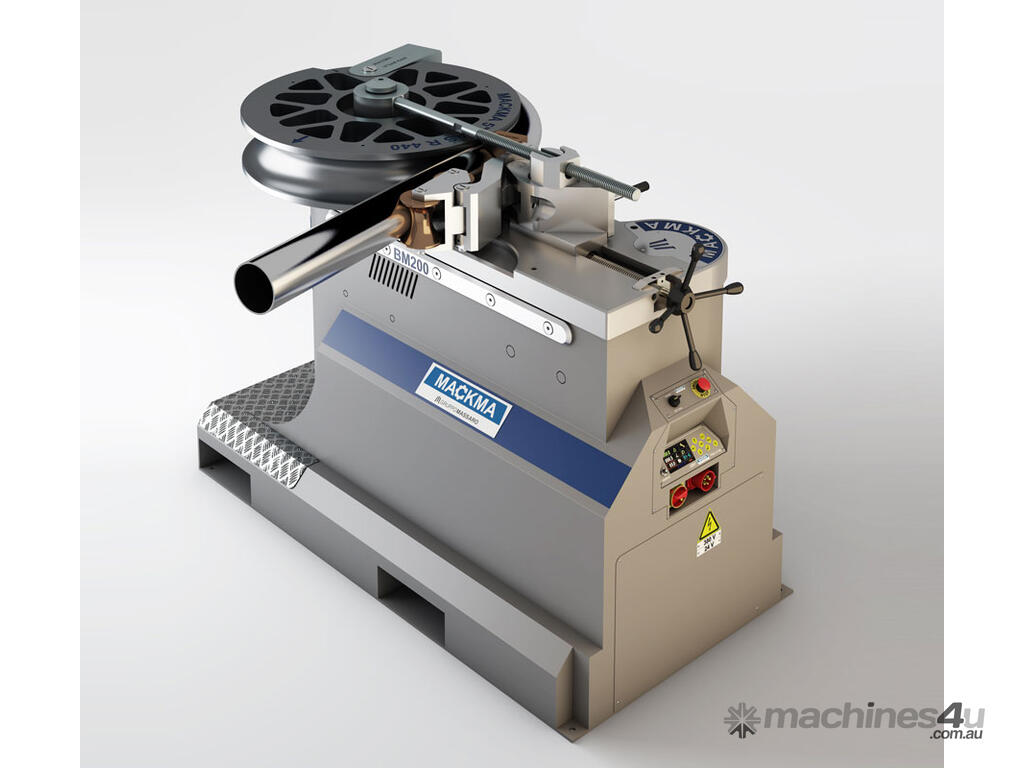

MACKMA - BM200 Non Mandrel Tube & Pipe Bender [made in Italy]

Suitable for the following sectors:
- Industrial technical articles
- Furniture
- Automotive
- Motorcycle and boating
- Sport and wellness items
- Piping

Main technical data:

Pipe Max Outer Diameter 219 mm
Max Torque 118.000 N/m
Capability with FE – 42 kg/mq 168,3×10 mm
Capability with FE – 35 kg/mq 219×6,3 mm
Capability with AISI 304/316 – 65 kg/mq 168,3×7 mm
Maximum radius 950 mm
Max curvature angle 180°
Bending direction rightward and leftward
Electric tension 380 V ac
Max installed power 18,5 KW
Weight 5100 Kg
Dimensions (WxhxL)
2550x1550x1380 mm
Operating temperature 0 – 50°
