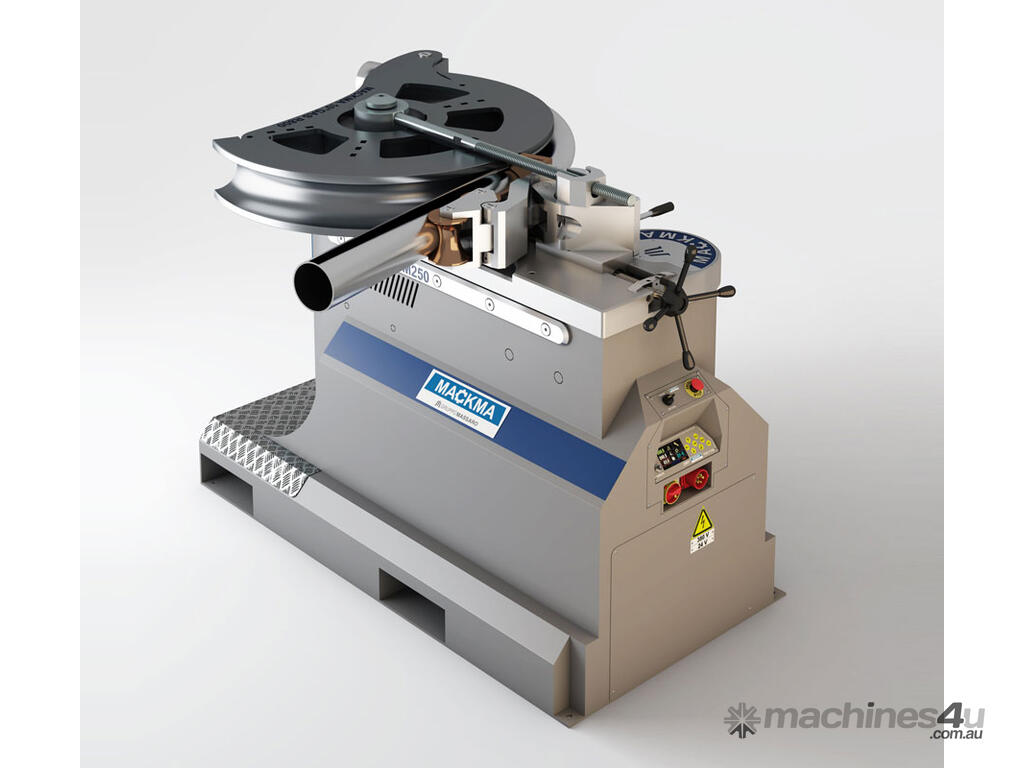

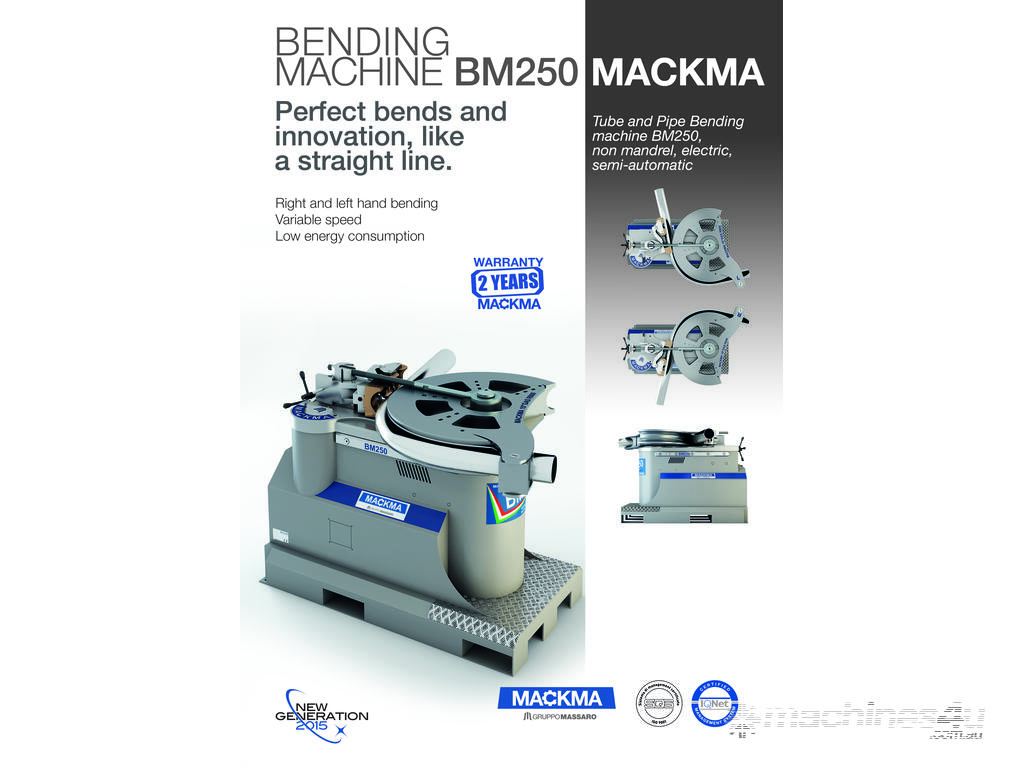

MACKMA - BM250 Non Mandrel Tube & Pipe Bender [made in Italy]

Suitable for the following sectors:
- Industrial technical articles
- Furniture
- Automotive
- Motorcycle and boating
- Sport and wellness items
- Piping

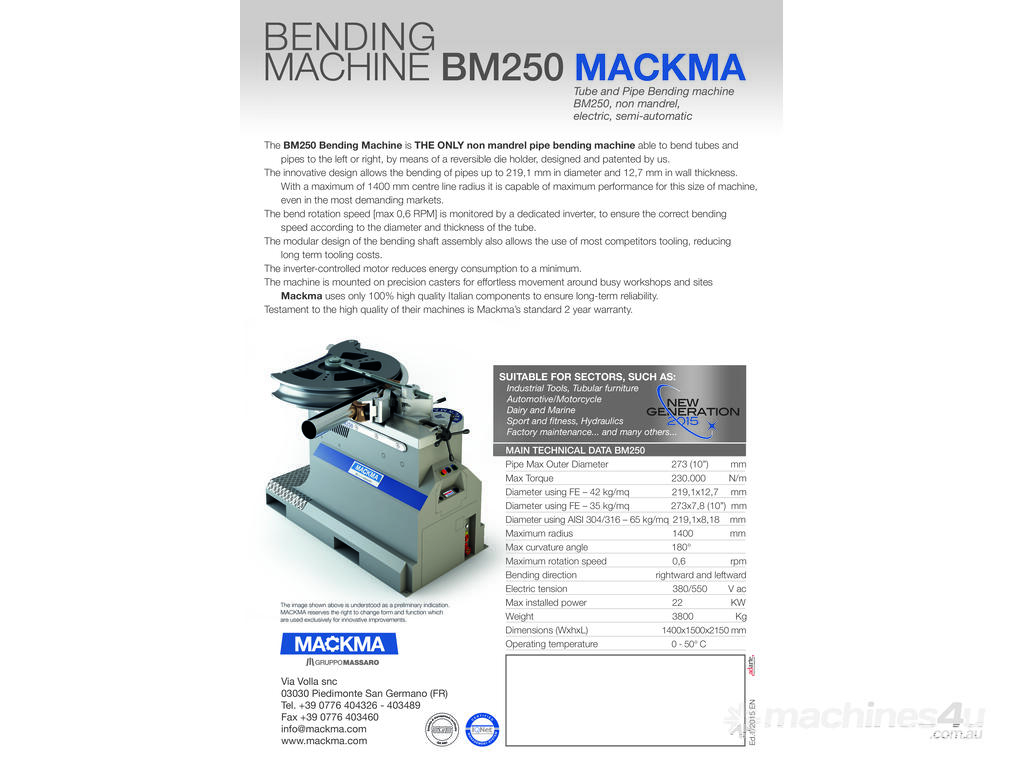

Main technical data

Pipe Max Outer Diameter 273 mm
Max Torque 270.000 N/m
Capability with FE – 42 kg/mm2 219×12,7 mm
Capability with FE – 35 kg/mm2 273×7,8 mm
Capability with AISI 304/316 – 65 kg/mm2 219×8 mm
Maximum radius 1200 mm
Max curvature angle 180°
Bending direction rightward and leftward
Electric tension 380 V ac
Max installed power 30 KW
Weight 7000 Kg
Dimensions (WxhxL) 3000x1600x1400 mm
Operating temperature 0 – 50° C
