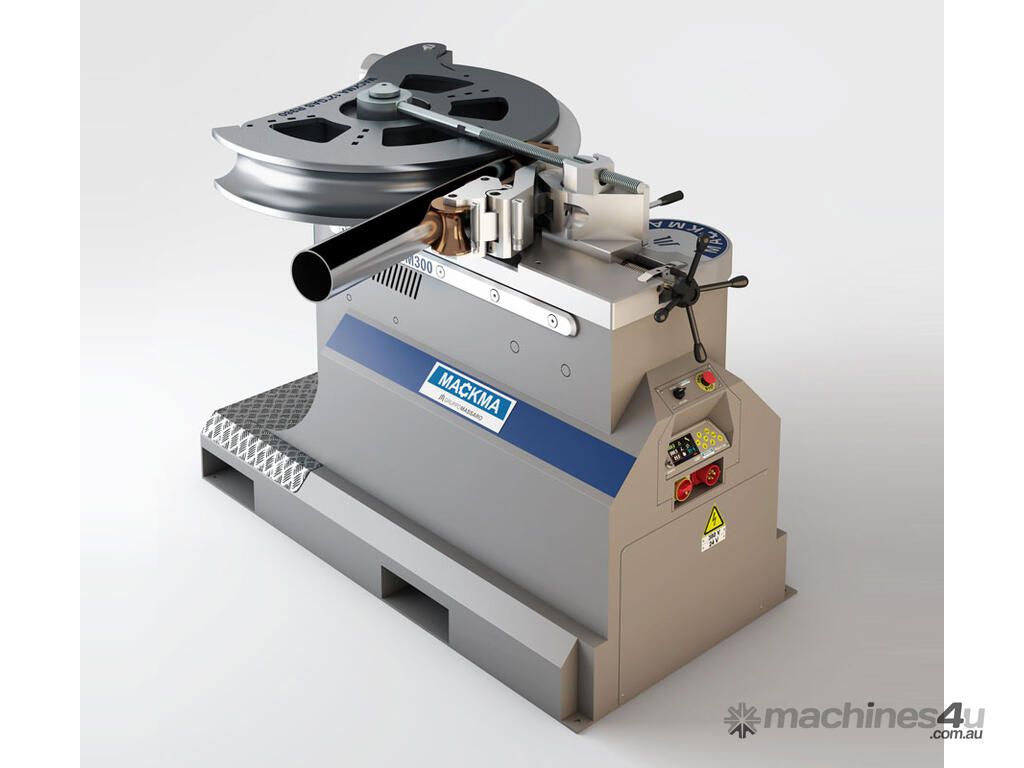

MACKMA - BM300 Non Mandrel Tube & Pipe Bender [made in Italy]

Suitable for the following sectors:
- Industrial technical articles
- Furniture
- Automotive
- Motorcycle and boating
- Sport and wellness items
- Piping

Main technical data

Pipe Max Outer Diameter 324 mm
Max Torque 627.000 N/m
Capability with FE – 42 kg/mm2
273×18 mm
Capability with FE – 35 kg/mm2 323,9×15 mm
Capability with AISI 304/316 – 65 kg/mm2 273×12 mm
Maximum radius 1700 mm
Max curvature angle 180°
Bending direction rightward and leftward
Electric tension 380 V ac
Max installed power 55 KW
Weight 11.000 Kg
Dimensions (WxhxL) 3800x1700x1800 mm
Operating temperature 0 – 50° C
