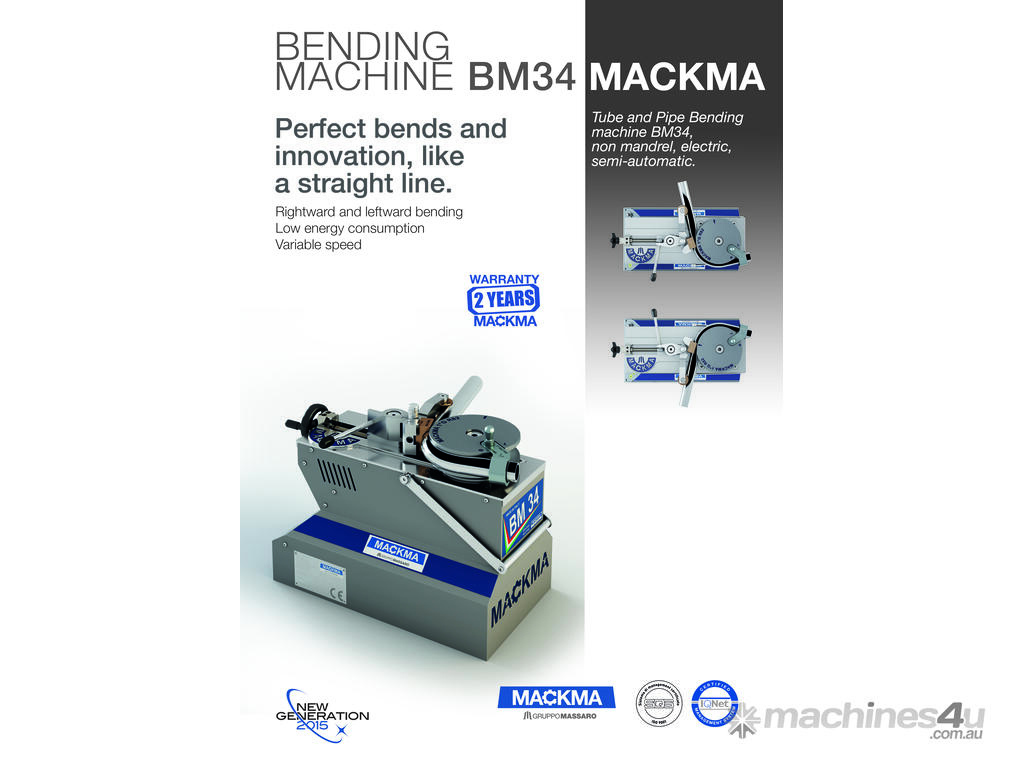

MACKMA - BM34 Non Mandrel Tube & Pipe Bender [made in Italy]

Suitable for the following sectors:
- Industrial technical articles
- Furniture
- Automotive
- Motorcycle and boating
- Sport and wellness items
- Piping

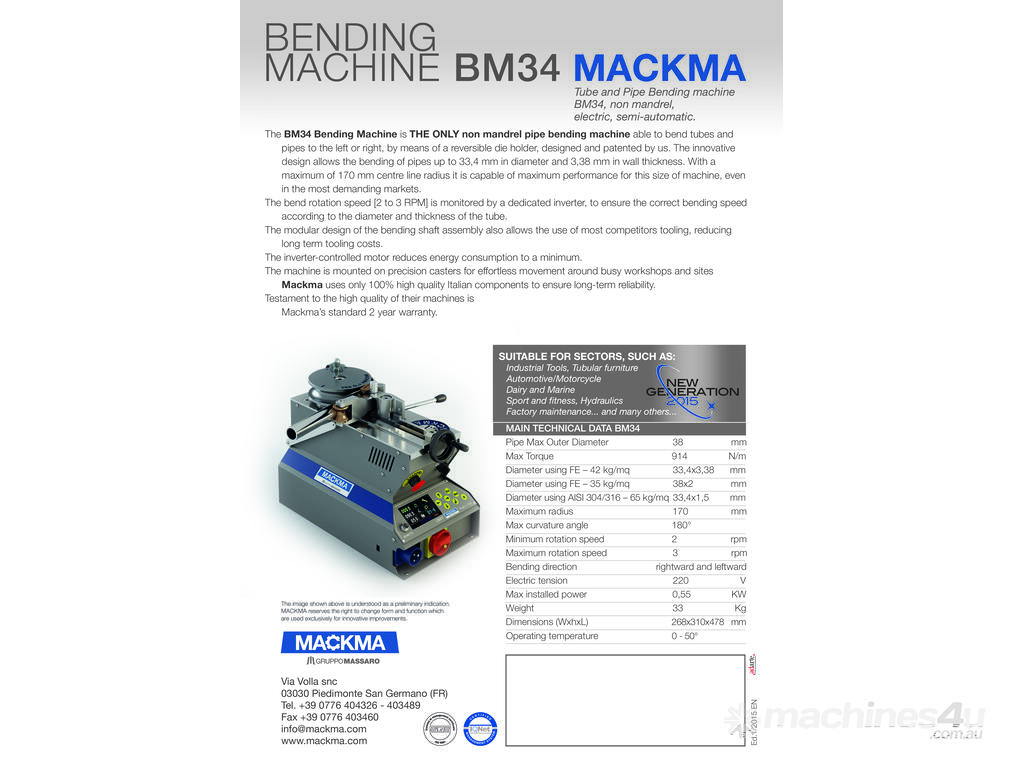

Main technical data:

Pipe Max Outer Diameter 38 mm
Max Torque 914 N/m
Capability with FE – 42 daN/mq 33,4×3,38 mm
Capability with FE – 35 daN/mq 38×2 mm
Capability with AISI 304/316 – 65 daN/mq 33,4×1,5 mm
Maximum radius 160 mm
Max curvature angle 180°
Bending direction rightward and leftward
Electric tension 220 V
Max installed power 0,52 KW
Weight 33 Kg
Dimensions (WxhxL)
478x310x268 mm
Operating temperature 0 – 50°
