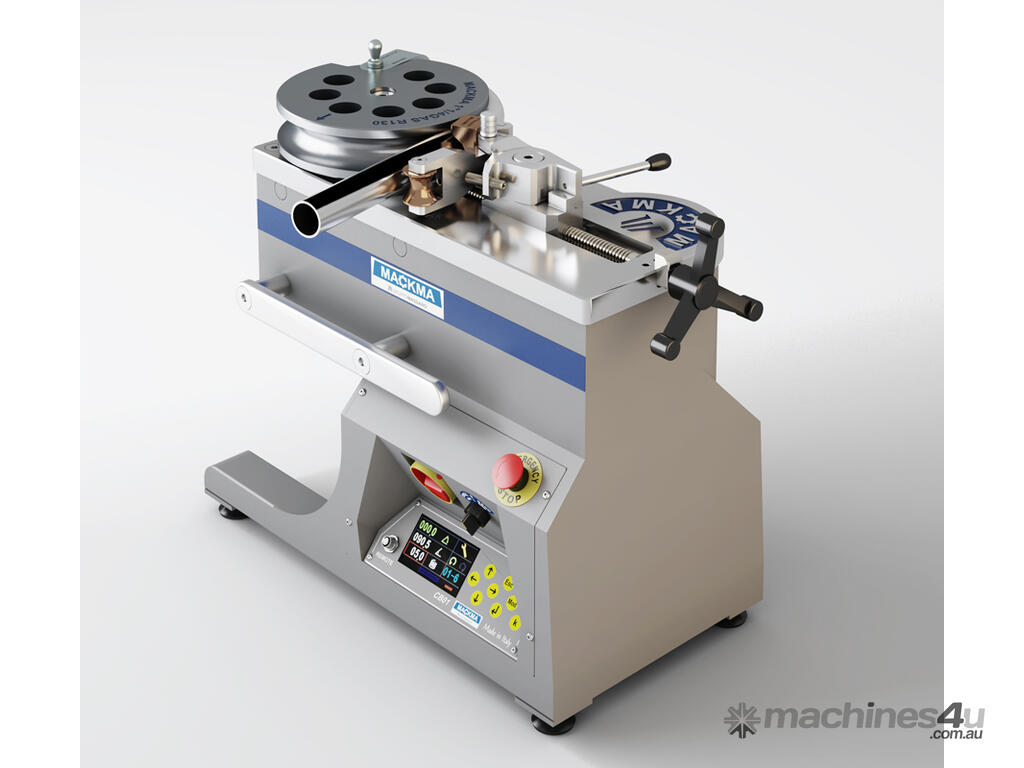

MACKMA - BM42 Non Mandrel Tube & Pipe Bender [made in Italy]

Suitable for the following sectors:
- Industrial technical articles
- Furniture
- Automotive
- Motorcycle and boating
- Sport and wellness items
- Piping


Main technical data:

Pipe Max Outer Diameter 48 mm
Max Torque 1800 N/m
Capability with FE – 42 daN/mq 42×3 mm
Capability with FE – 35 daN/mq 48×1,5 mm
Capability with AISI 304/316 – 65 daN/mq 42×1,5 mm
Maximum radius 260 mm
Max curvature angle 180°
Bending direction rightward and leftward
Electric tension 220/400 V
Max installed power 0,75 KW
Weight 110 Kg
Dimensions (WxhxL)
440x970x700 mm
