MACKMA – BTF-C Line – Briquetting Machines for Grinding Sludge [made in Italy]

Mackma BTF-C Briquetting Machines for Grinding Sludge with 2500 Kg/cm² Pressure

Optimise Grinding Sludge Management with Mackma BTF-C Briquetting Machines

Mackma BTF-C briquetting machines are the ideal solution for efficient management of grinding sludge. Designed to operate with a pressure of 2500 Kg/cm², these machines ensure optimal compaction, reducing sludge volume and enhancing the sustainability of production processes.

Why Choose the Mackma BTF-C Briquetting Machine?

- High Compaction Efficiency – The Mackma BTF-C briquetting machine is engineered to compact the most stubborn grinding sludges with exceptional pressure varying from 2500 kg/cm². This significant reduction allows for optimized storage space and reduced disposal costs.

- Superior Build Quality – Constructed from high-quality materials, the BTF-C briquetting machine is synonymous with durability and reliability. Its robust construction guarantees high performance even under the most challenging working conditions, supporting continuous industrial operations without interruptions.

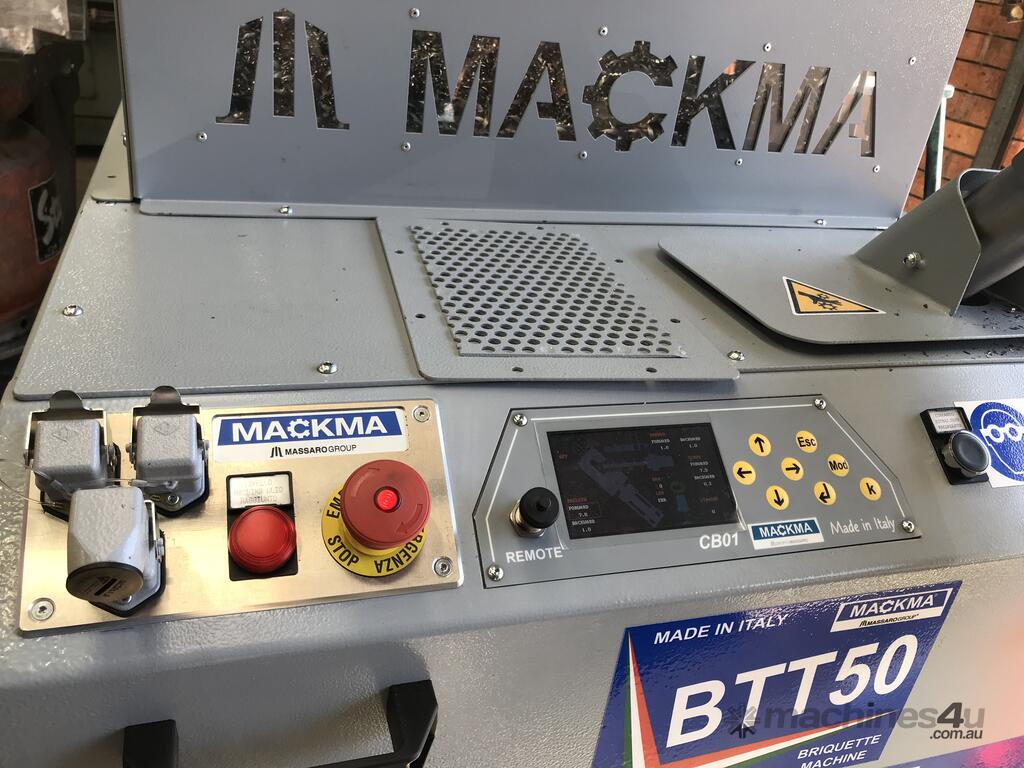

- Ease of Use and Maintenance – The BTF-P machine is intuitive and easy to operate, featuring a user-friendly interface and clear controls. Maintenance is simplified by the accessibility of key components, reducing downtime and enhancing overall productivity.

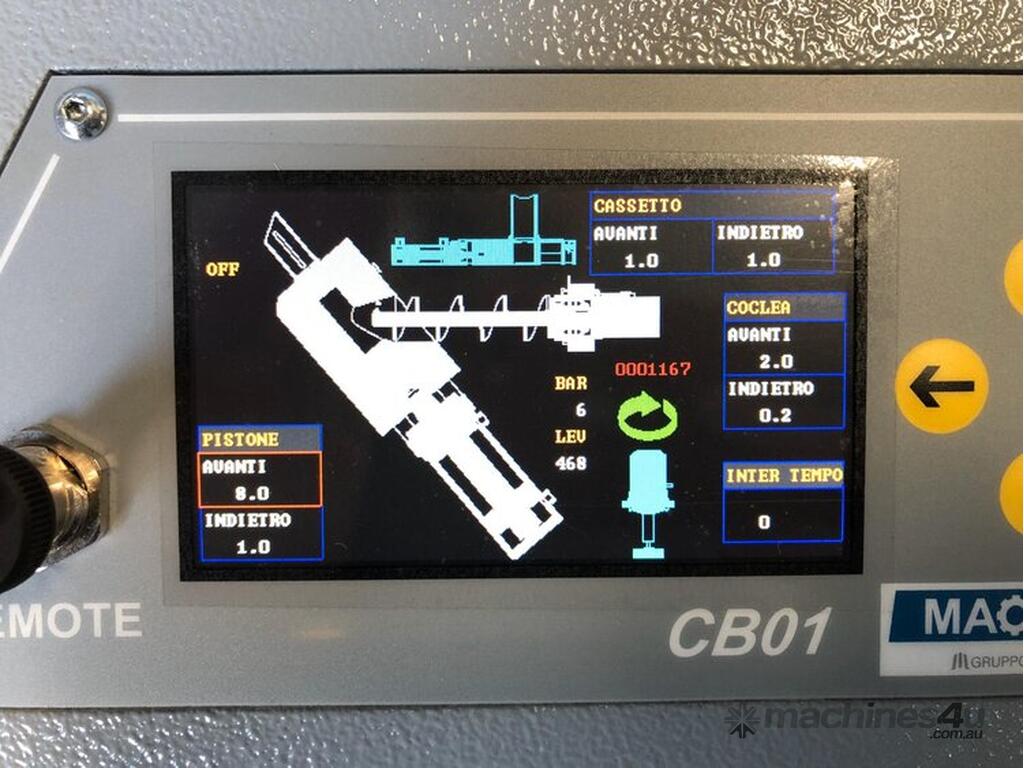

- Advanced Technology – Equipped with cutting-edge control and automation systems, the Mackma BTF-C briquetting machine ensures precise and reliable operation. Advanced technology allows for continuous monitoring and optimisation of the briquetting process, delivering consistent, high-quality results.

- High Performance and Volume Reduction – The Mackma BTF-C50 compresses chips, reducing their volume by up to 90% with a power of 1000 Kg/cm². This machine not only significantly reduces the space occupied by the chips but is also capable of extracting up to 98% of the liquid present in the chips, thus improving the efficiency of the processing.

- Maximum Efficiency in a Compact Space – The Mackma BTF-C50 Briquetting Machine is the ideal solution for those seeking efficiency and technology in a compact machine. With dimensions of only 80×120 cm, it is the most compact in its category. The height is adjustable: from the standard 110 cm, it can be reduced to 60 cm or increased according to the customer’s needs.

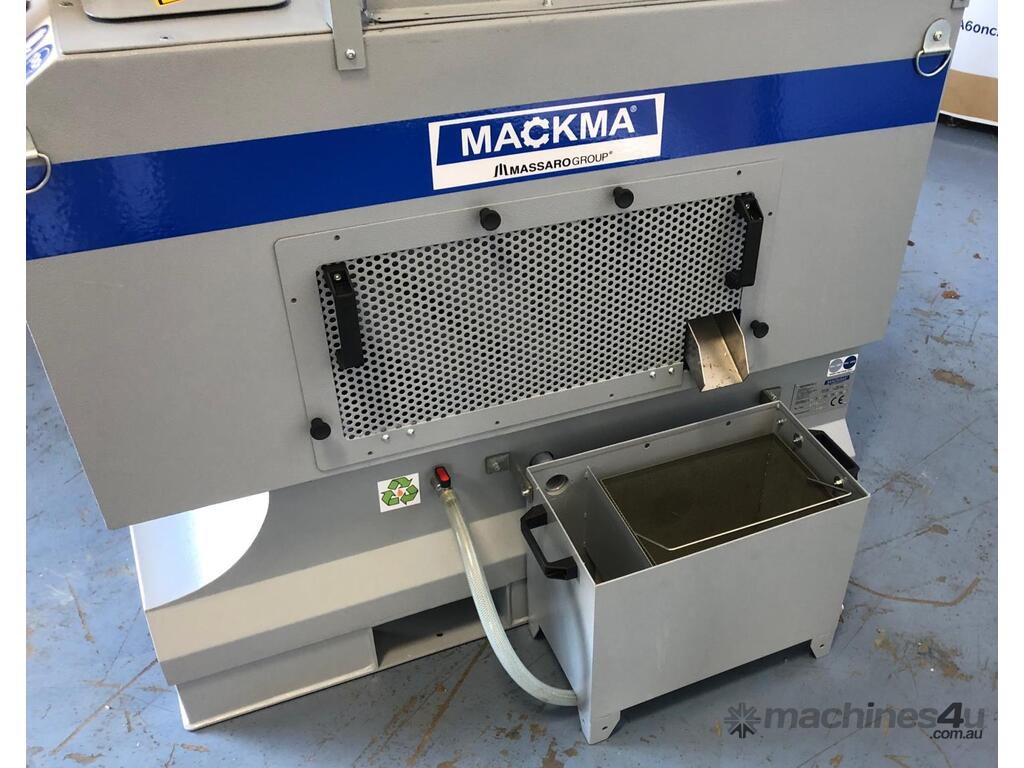

- Advanced Technology and Unique Features – The BTF-C50 is equipped with a 50-liter liquid collection tank, a float, and an integrated pump. These components work synergistically to automatically send the collected liquid to the workstation, ensuring a continuous and uninterrupted process.

- Environmental and Economic Benefits – Using the Mackma BTF-C briquetting machine not only enhances operational efficiency but also contributes to environmental sustainability. Reducing the volume of grinding sludges facilitates disposal and recycling, lowering environmental impact and associated costs.

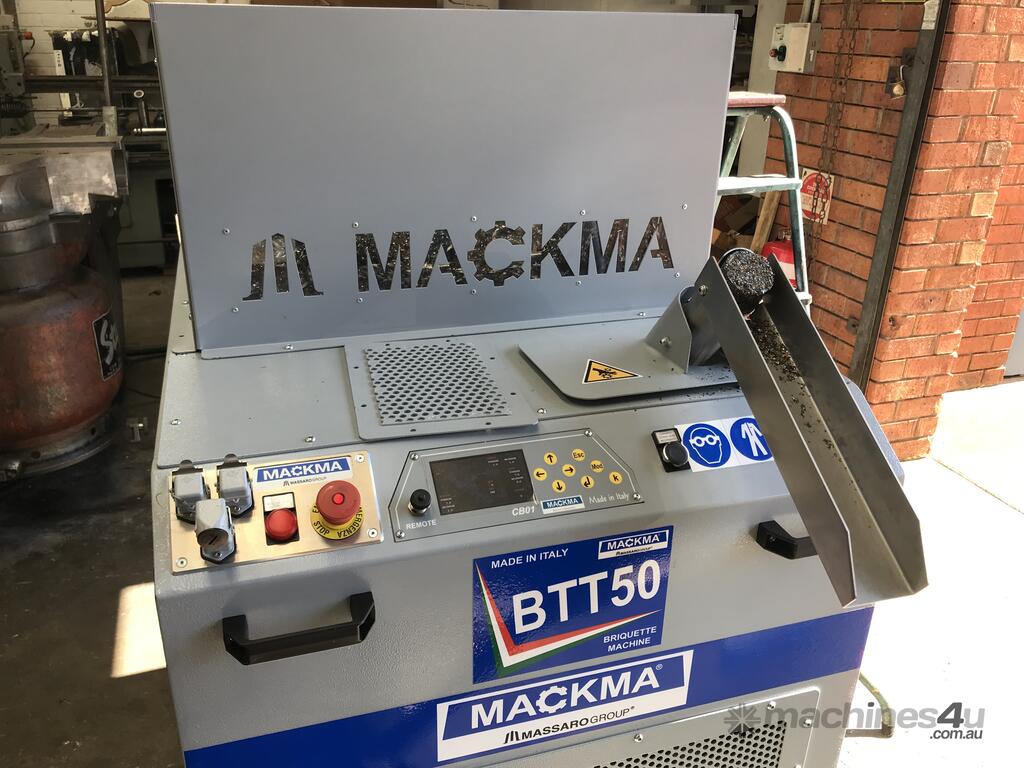

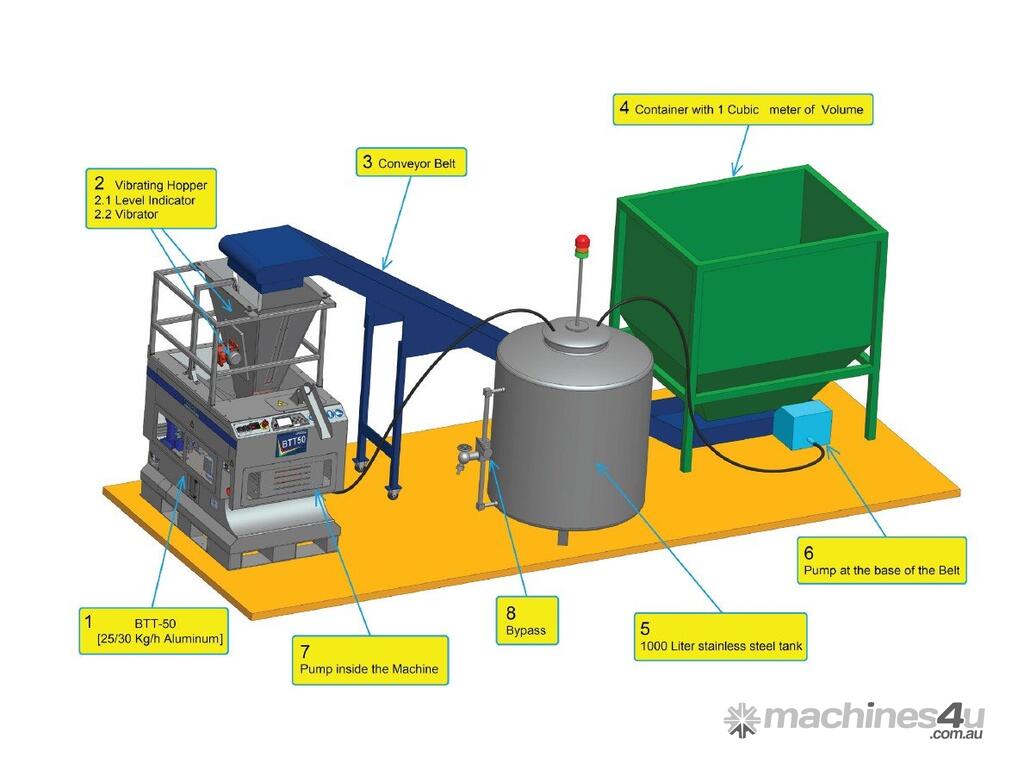

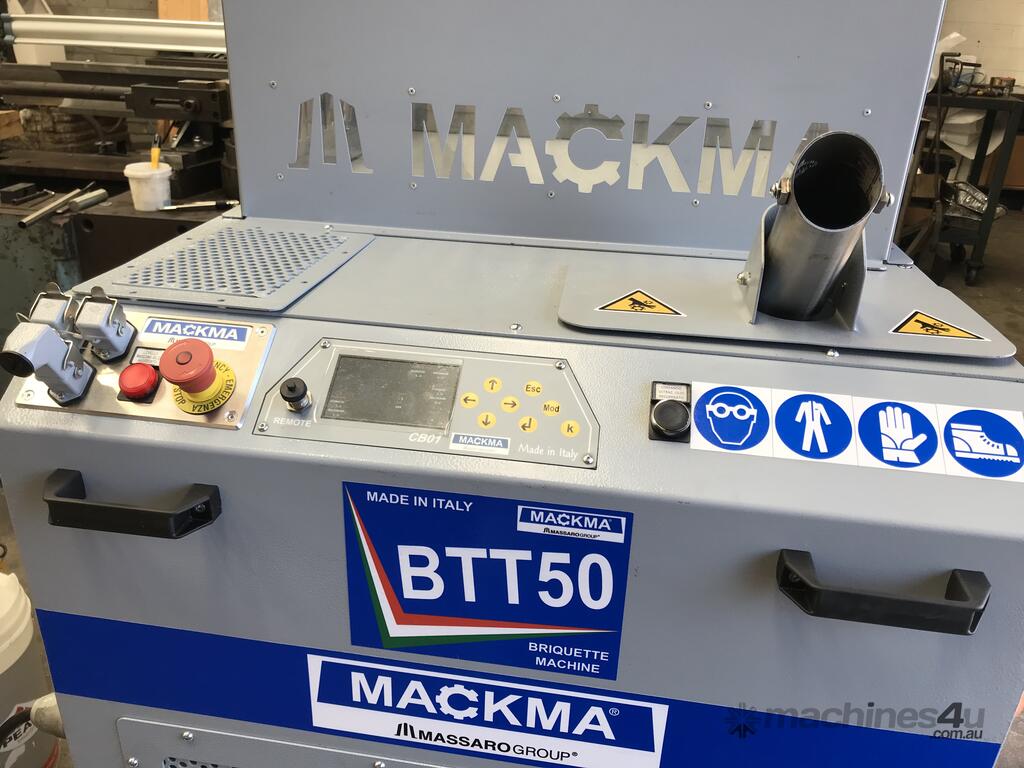

- The BTF-C machines have the same machine body and key features as the BTT line, but the diameter of the briquette and the pressing chamber have been reduced in size to increase the machine’s pressure per cm², without increasing costs.

BTF-C50 – Ø Briquette 35 mm – Pressure: 2500 Kg/cm², 3 to 5 Briquettes per Minute
15-20 Kg/h Grinding Sludge
15-30 Kg/h Iron
20-50 Kg/h Cast Iron
15-30 Kg/h Steel

BTF-C65 – Ø Briquette 45 mm – Pressure: 2500 Kg/cm², 3 to 5 Briquettes per Minute
20-30 Kg/h Grinding Sludge
30-70 Kg/h Iron
50-90 Kg/h Cast Iron
30-70 Kg/h Steel

BTF-C75 – Ø Briquette 55 mm – Pressure: 2500 Kg/cm², 3 to 5 Briquettes per Minute
30-70 Kg/h Grinding Sludge
60-90 Kg/h Iron
90-130 Kg/h Cast Iron
60-90 Kg/h Steel

BTF-C85 – Ø Briquette 65 mm – Pressure: 2500 Kg/cm², 3 to 5 Briquettes per Minute
70-120 Kg/h Grinding Sludge
90-140 Kg/h Iron
130-190 Kg/h Cast Iron
90-140 Kg/h Steel

BTF-C95 – Ø Briquette 75 mm – Pressure: 2500 Kg/cm², 3 to 5 Briquettes per Minute
120-180 Kg/h Grinding Sludge
140-200 Kg/h Iron
200-300 Kg/h Cast Iron
140-200 Kg/h Steel

BTF-C105 – Ø Briquette 85 mm – Pressure: 2500 Kg/cm², 3 to 5 Briquettes per Minute
180-230 Kg/h Grinding Sludge
200-400Kg/h Iron
300-430 Kg/h Cast Iron
200-400 Kg/h Steel
