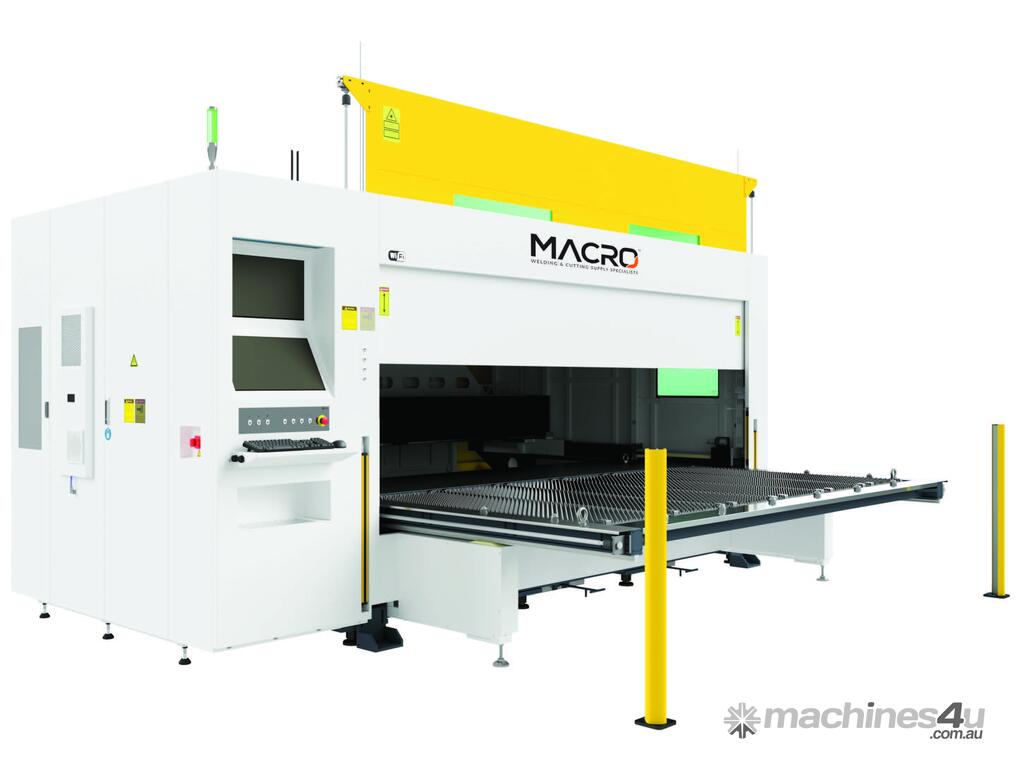

The MACRO Cobalt-Compact delivers the strength and build quality of the Cobalt in a significantly reduced footprint. Designed for workshops where space is at a premium, it features a side-exchange table that eliminates the need for a long rear outfeed, reducing overall machine length without compromising performance. With a single heavy-duty bed, high-quality components, and a robust structure, Cobalt-Compact is built for reliable, high-output cutting in tighter environments. Simple to operate and fully installed by MACRO’s expert technicians, it offers industrial-grade capability in a smarter, more space-efficient format.
Features & Benefits:
Lifetime Aussie service + technical support
Production machine
Smaller, compact footprint
High quality, Heavy Duty structure
Simple, easy-to-use software
Fume extraction and filtration
Large viewing screens
User-friendly USB port for input & output of programs
Complete technician installation
Complete technician installation
High acceleration speeds
24” monitor with keyboard + mouse
Easy to clean waste draw
Max positioning speed of 140,000mm per minute!
CypCut sheet cutting software is an in-depth program for fiber laser cutting machines. It simplifies complex CNC machine operation and integrates CAD, Nest and CAM modules in one. From drawing and nesting to workpiece cutting, everything can be done in CypCut in just a few quick clicks.
Microsoft Windows based controller interface.
Automatic optimization of imported drawings.
Concise parameters setting: Micro Joint, lead, cooling point, compensate, Bridge, Measure, Fillet, Release.
Powerful editing tools for large-scale or bulk modifications.
Feasible control bar for processing- it supports floating coordinate system and workpiece coordinate system. It not only meets the demand of flexible production but also facilitates mass production.
Abundant local statistics.
Accurate tracking-edge assistance supports Photoelectric edge searching and Capacitor tracking edge.
Real-time frequency and power curve - laser radiation is automatically adjusted according to the speed of movement of the cutting head.
Rectification of deviation or offset from the dual-drive gantry.
Provides common drawing functions (similar to AutoCAD).
Supports multiple files formats such as AI, DXF, PLT, Gerber, and LXD, accepts international standard G codes generated by Master Cam, Type3, and other software, and automatically optimizes when external files such as DXF are opened/imported, saving time and efficiency.
Standard material library.
Rich process layer interface - Up to 16 layers, and each layer can be individually set including cutting speed, laser power, air pressure, cutting height and other process parameters.
Simple software - quick, easy and intuitive to learn.
Specification
Motors & Drive System: Premium Servo Motors
Electrical Data -3 PHASE
Dual Table – Exchange System
Controller Hardware: 24" SCREEN - KEYBOARD & MOUSE
CNC Controller Interface: WINDOWS
Nesting Software: CYPCUT/RayTools
Fume Control: SUCTION FILTER SYSTEM
Effective Cutting Width (mm): 1524mm
Effective Cutting Length (mm): 3100mm
Floor Space (m): L 4.0M x W 5.0M
Acceleration Speed: 0.8-1.0G
Laser Capacity: 1.5kW, 2kW, 3kW, 4kW, 6kW
Cutting Head: MAX/RayTools
Cutting Torch: Ospri/RayTools
WIFI: COMPATIBLE
Remote Diagnosis: COMPATIBLE
Warranty: 2 YEARS
