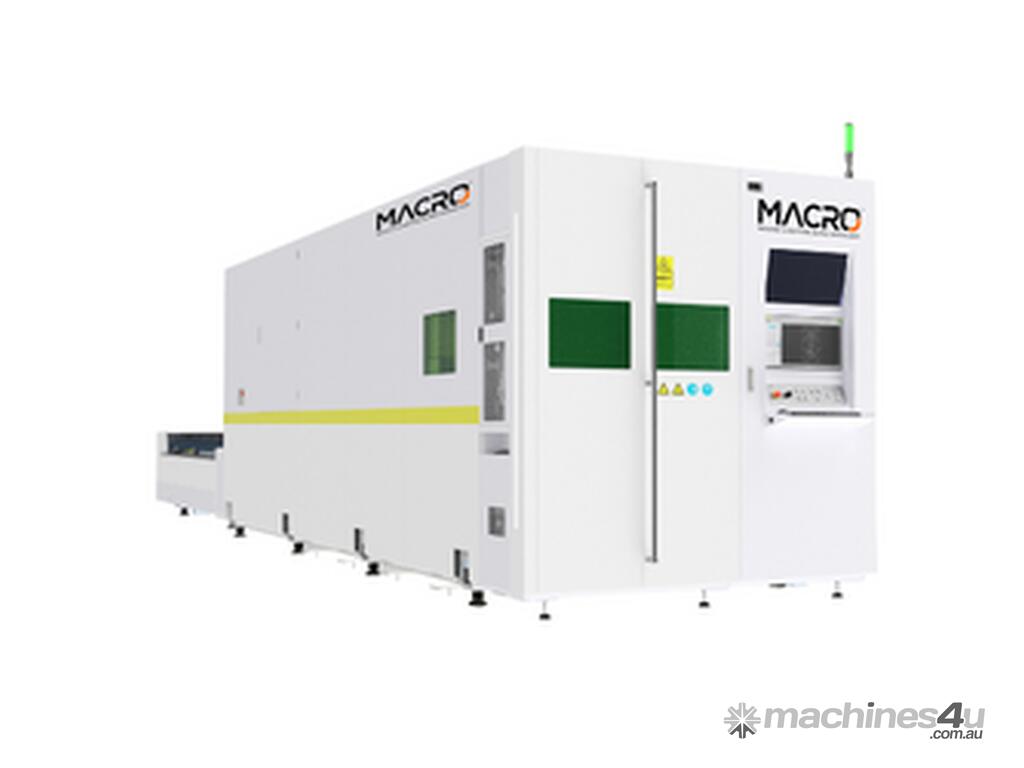

The MACRO Nova is our highest-performance fibre laser, engineered for extreme production environments and uncompromising workloads. Built on an exceptionally heavy-duty structure and equipped with premium-grade components throughout, Nova is designed to cut hard, run fast, and operate continuously—all day, every day. Its high-production dual-table system maximises uptime, while simple, intuitive operation keeps output efficient without adding complexity. Installed and commissioned by MACRO’s expert technicians and supported by lifetime aftersales support, Nova is the ultimate solution for businesses that demand maximum throughput, durability, and long-term reliability.
Features & Benefits:
Lifetime Aussie service + technical support
High Production machine – continuous running
High quality, Heavy Duty structure
Simple, easy-to-use software
Fume extraction and filtration

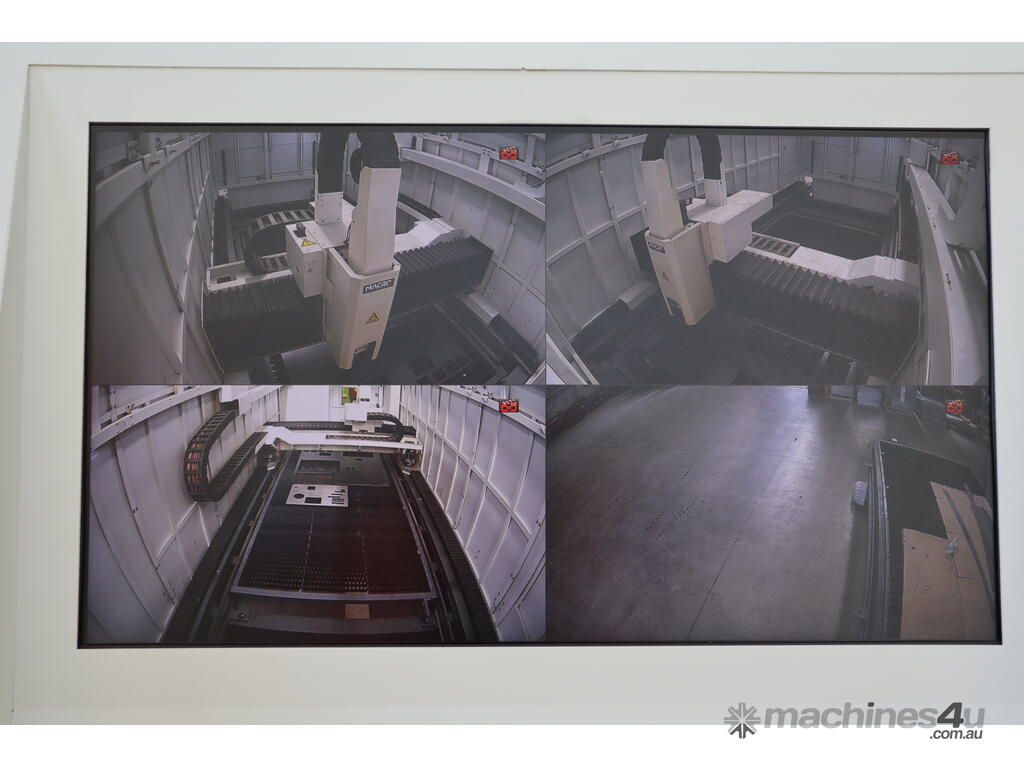

Large viewing screens
Large viewing screens
Complete technician installation
Super high accuracy
High acceleration speeds

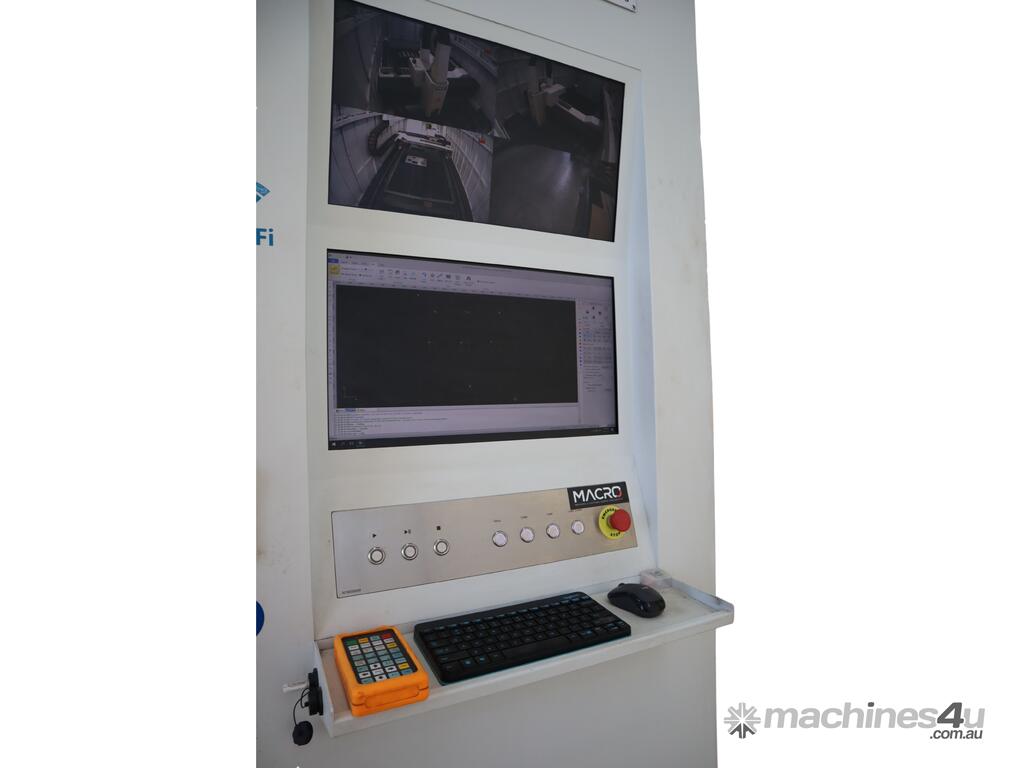

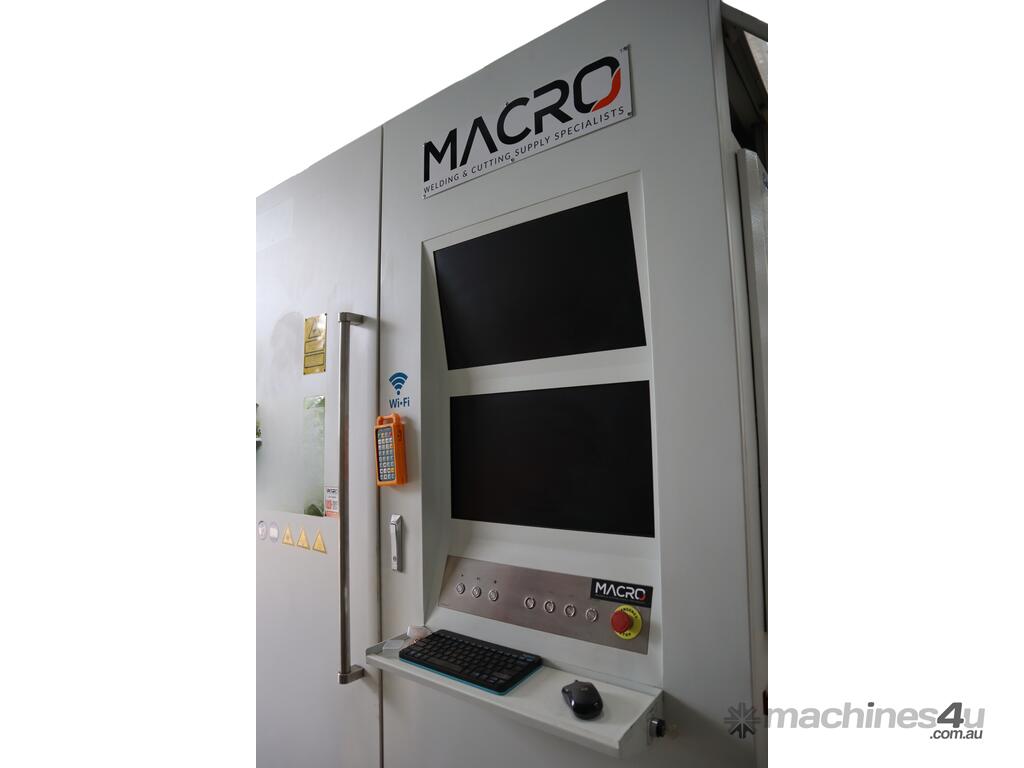

24” monitor with keyboard + mouse
Easy to clean waste draw
Max positioning speed of 140,000mm per minute!
Software:

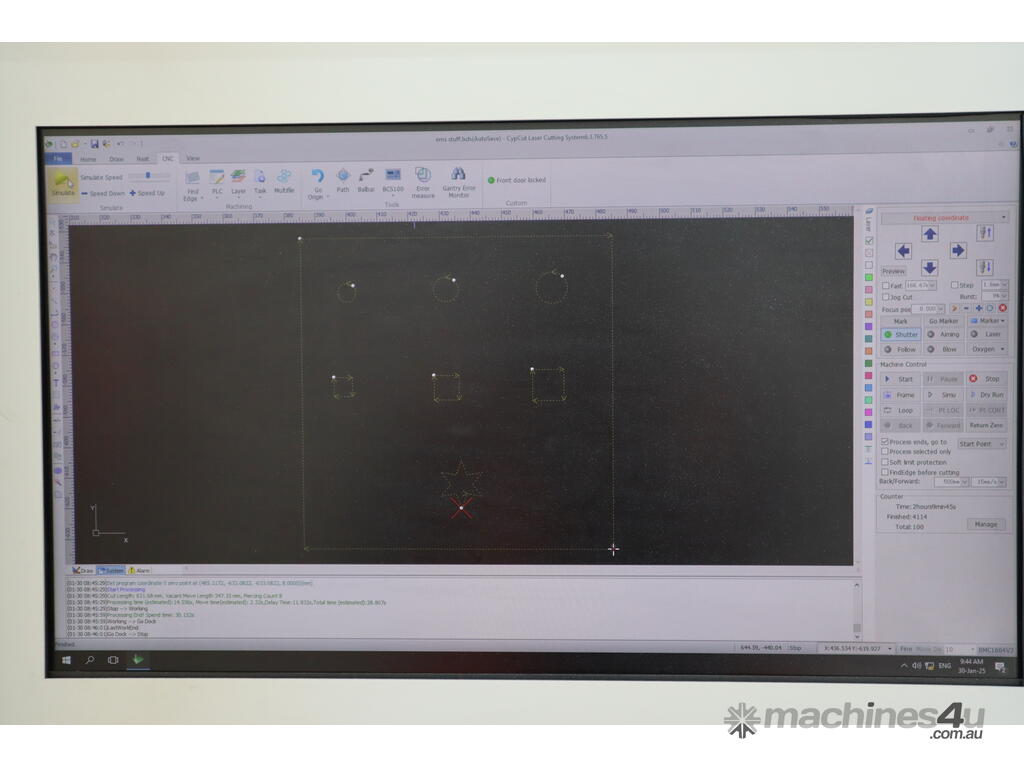

CypCut sheet cutting software is an in-depth program for fiber laser cutting machines. It simplifies complex CNC machine operation and integrates CAD, Nest and CAM modules in one. From drawing and nesting to workpiece cutting, everything can be done in CypCut in just a few quick clicks.
Microsoft Windows based controller interface.
Automatic optimization of imported drawings.
Concise parameters setting: Micro Joint, lead, cooling point, compensate, Bridge, Measure, Fillet, Release.
Powerful editing tools for large-scale or bulk modifications.
Feasible control bar for processing- it supports floating coordinate system and workpiece coordinate system. It not only meets the demand of flexible production but also facilitates mass production.
Abundant local statistics.
Accurate tracking-edge assistance supports Photoelectric edge searching and Capacitor tracking edge.
Real-time frequency and power curve - laser radiation is automatically adjusted according to the speed of movement of the cutting head.
Rectification of deviation or offset from the dual-drive gantry.
Provides common drawing functions (similar to AutoCAD).
Supports multiple files formats such as AI, DXF, PLT, Gerber, and LXD, accepts international standard G codes generated by Master Cam, Type3, and other software, and automatically optimizes when external files such as DXF are opened/imported, saving time and efficiency.
Standard material library.
Rich process layer interface - Up to 16 layers, and each layer can be individually set including cutting speed, laser power, air pressure, cutting height and other process parameters.
Simple software - quick, easy and intuitive to learn.
Specifications:
Motors & Drive System: Yaskawa Servo Motors
Electrical Data -3 PHASE

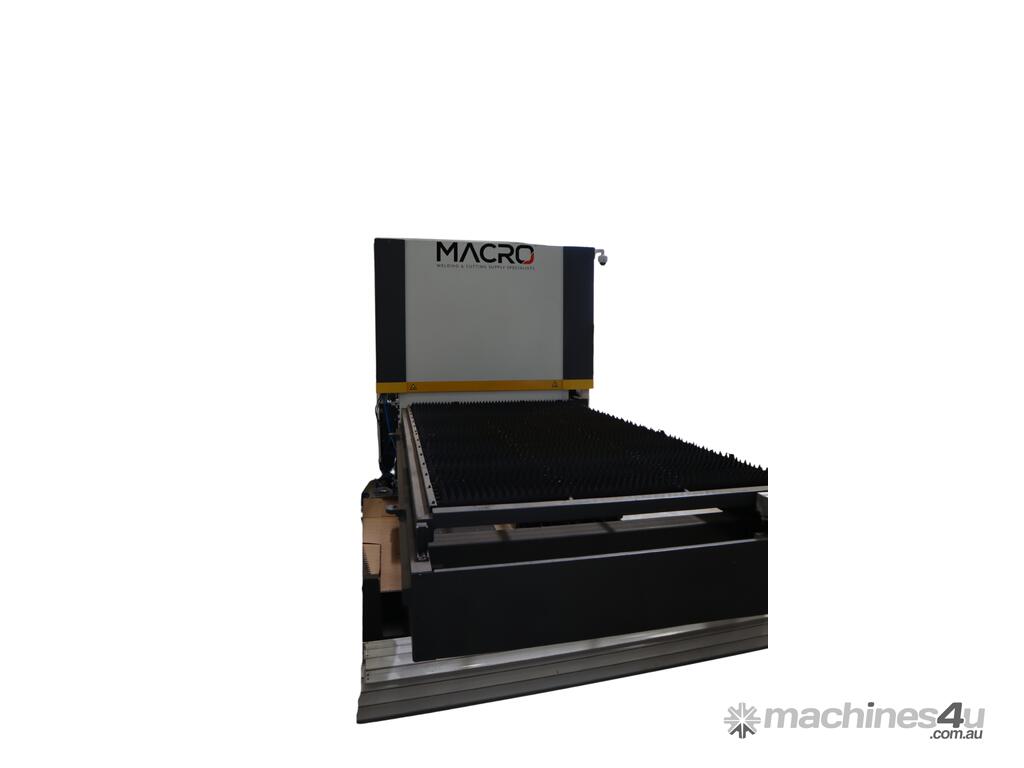

Dual Table – Exchange System

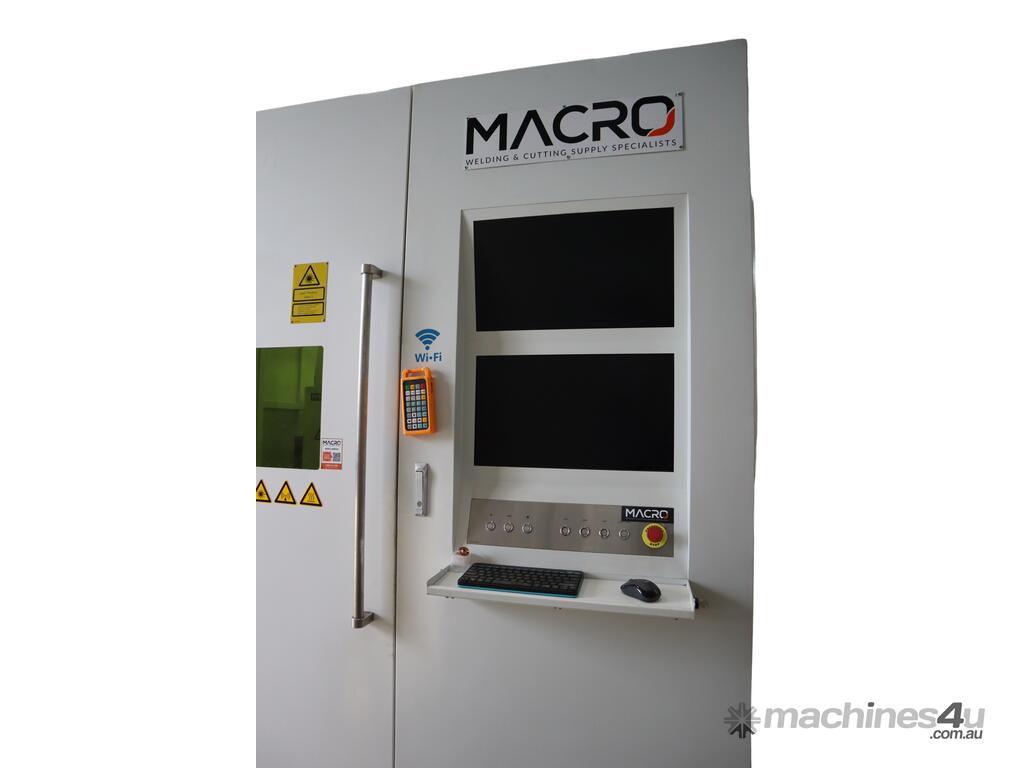

Controller Hardware: 24" SCREEN - KEYBOARD & MOUSE
CNC Controller Interface: WINDOWS
Nesting Software: CYPCUT
Fume Control: SUCTION FILTER SYSTEM
Effective Cutting Width (mm): 1524mm
Effective Cutting Length (mm): 3100mm
Floor Space (m): L 9.2M x W 3.4M
Acceleration Speed: 0.8-1.0G
Laser Capacity: 6kW, 12kW, 20kW, 30kW

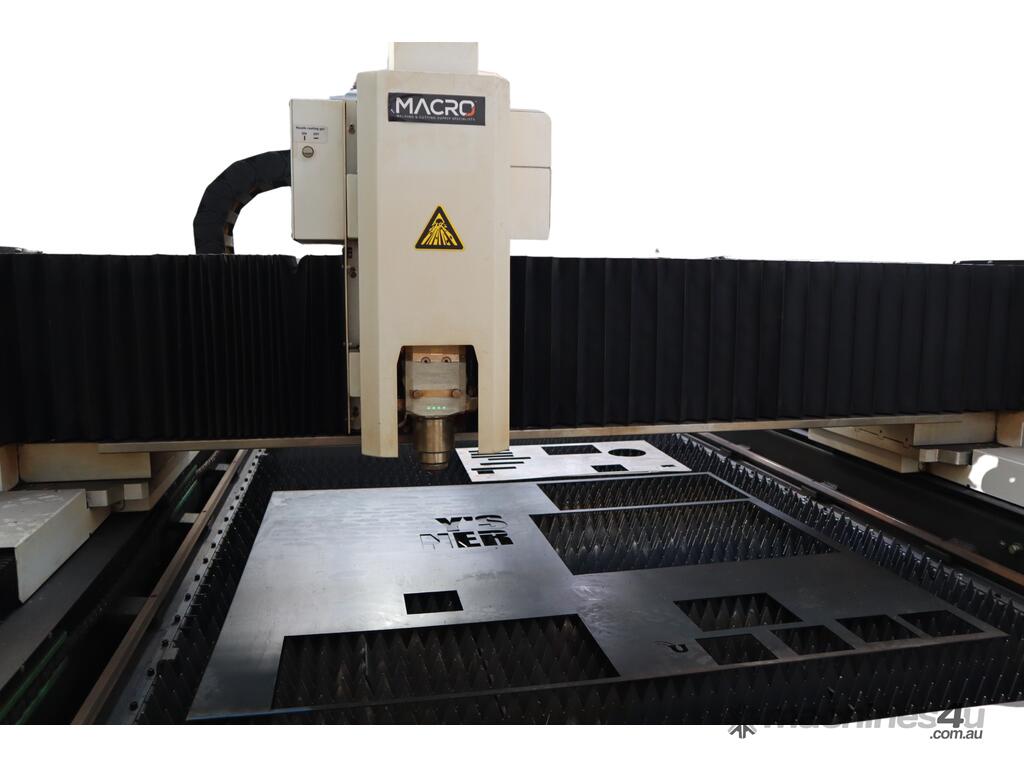

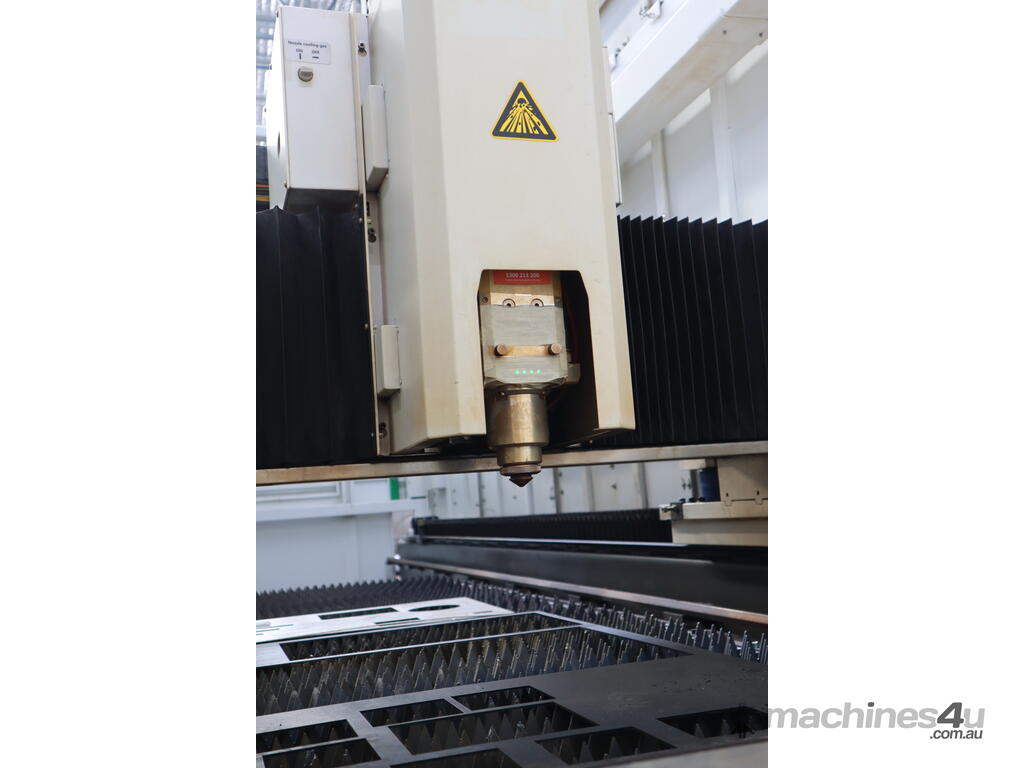

Cutting Head: BOCI
Cutting Torch: BOCI
WIFI: COMPATIBLE
Remote Diagnosis: COMPATIBLE
Warranty: 2 YEARS
