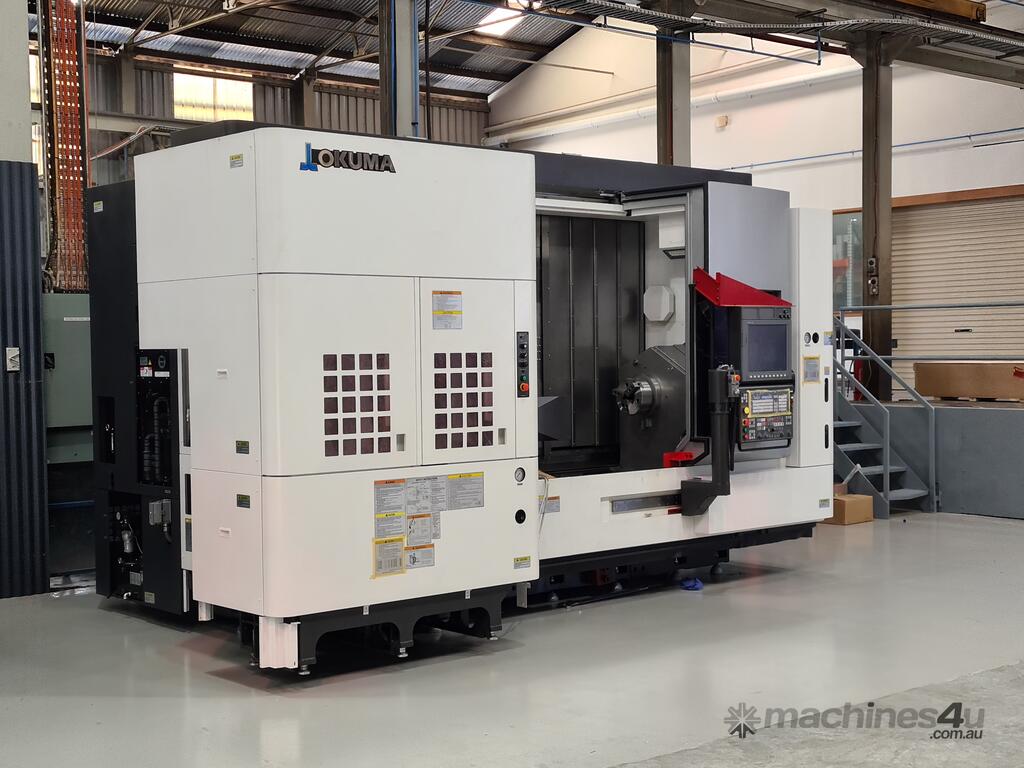

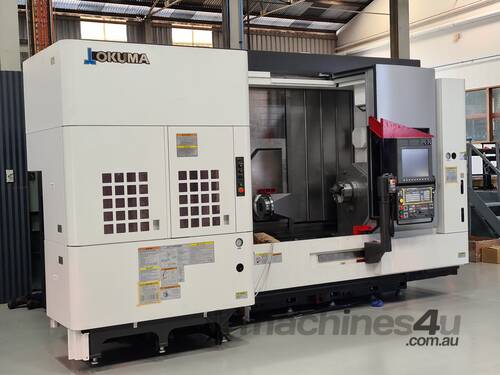

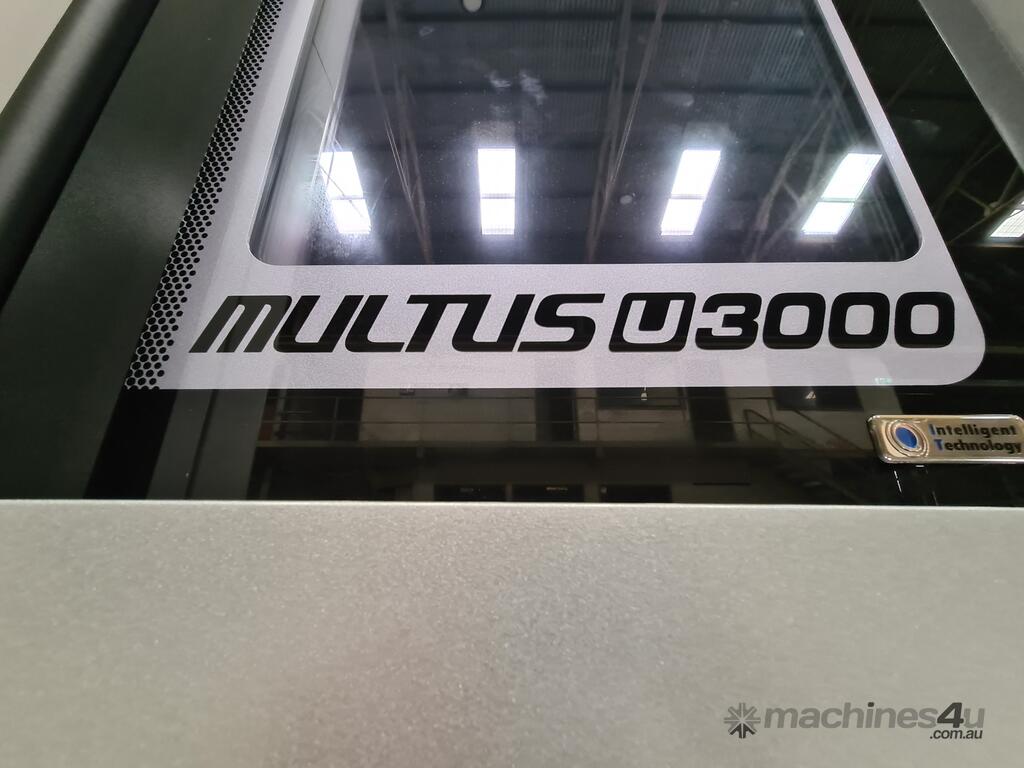

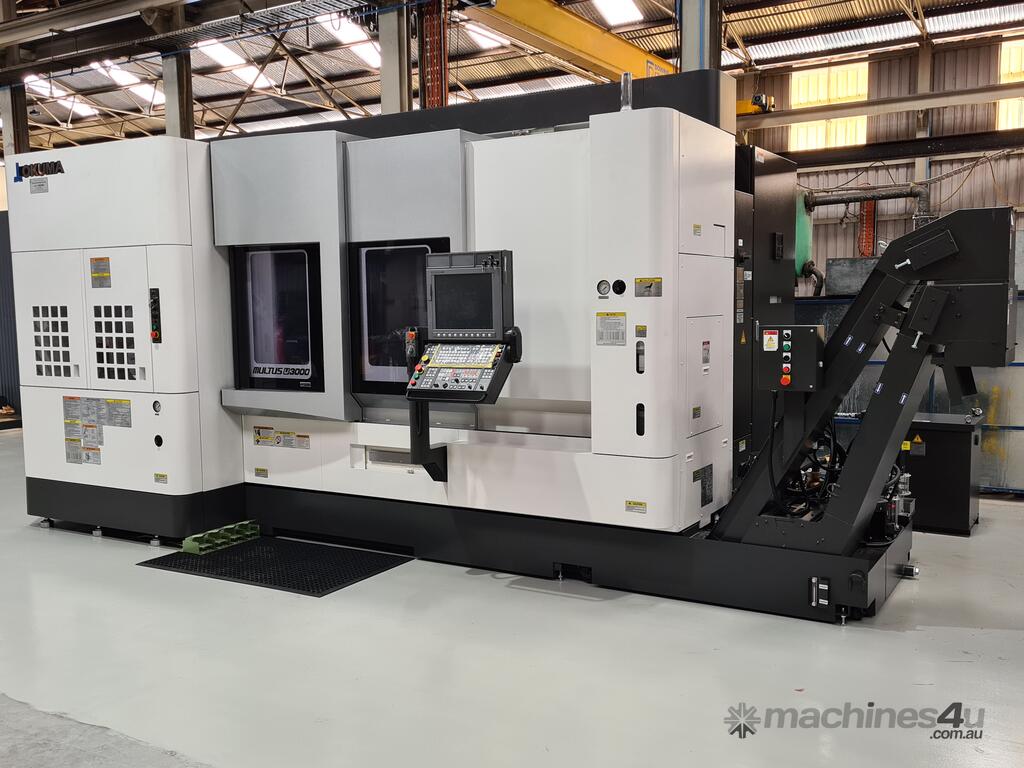

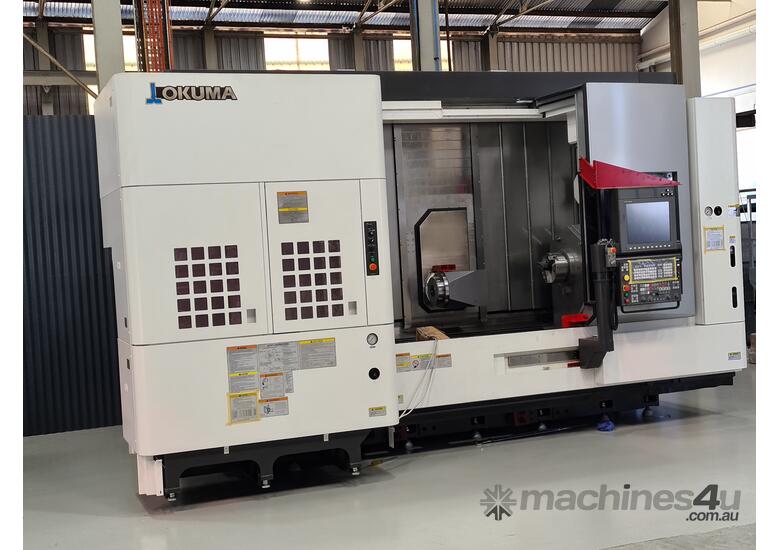

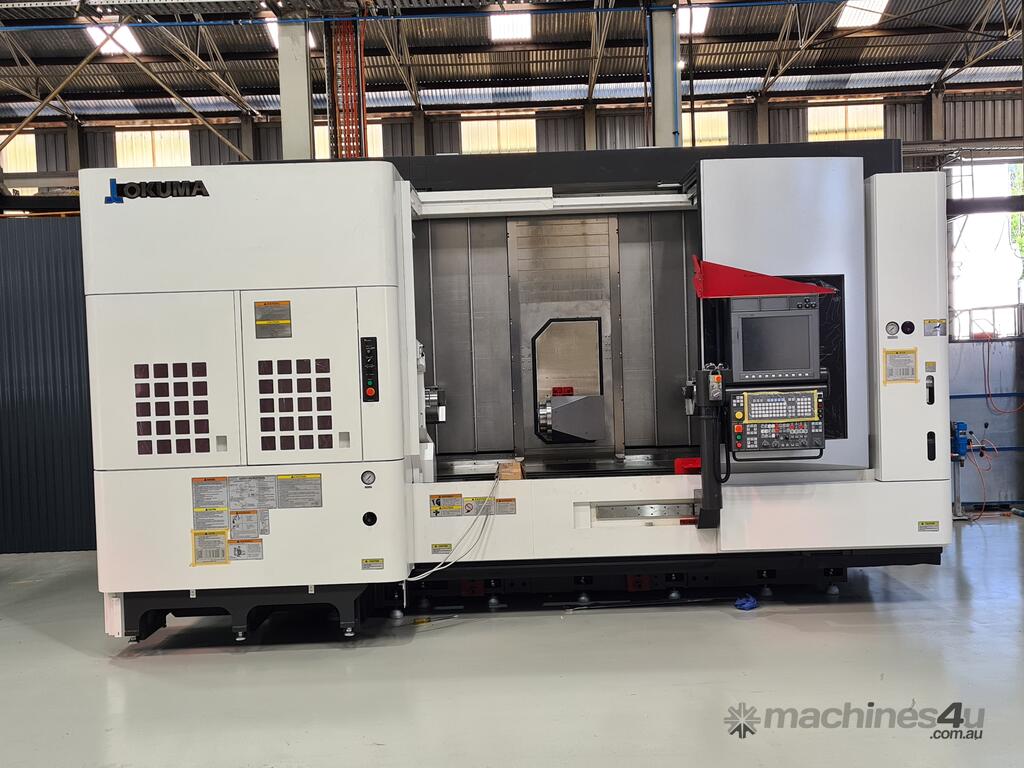

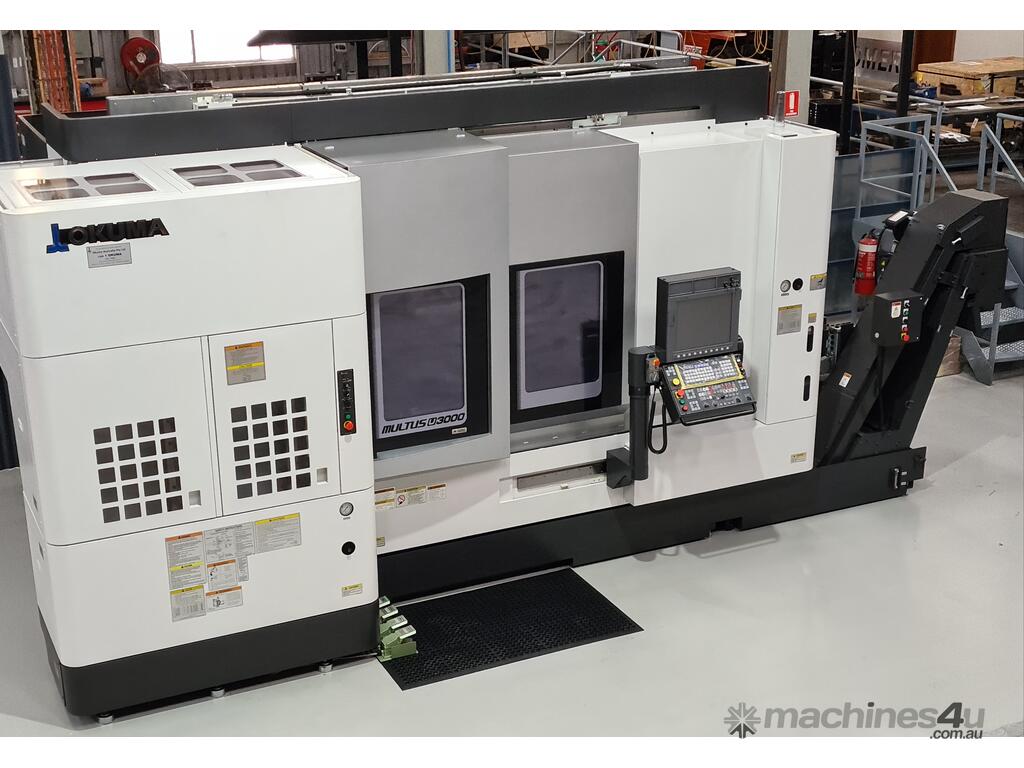

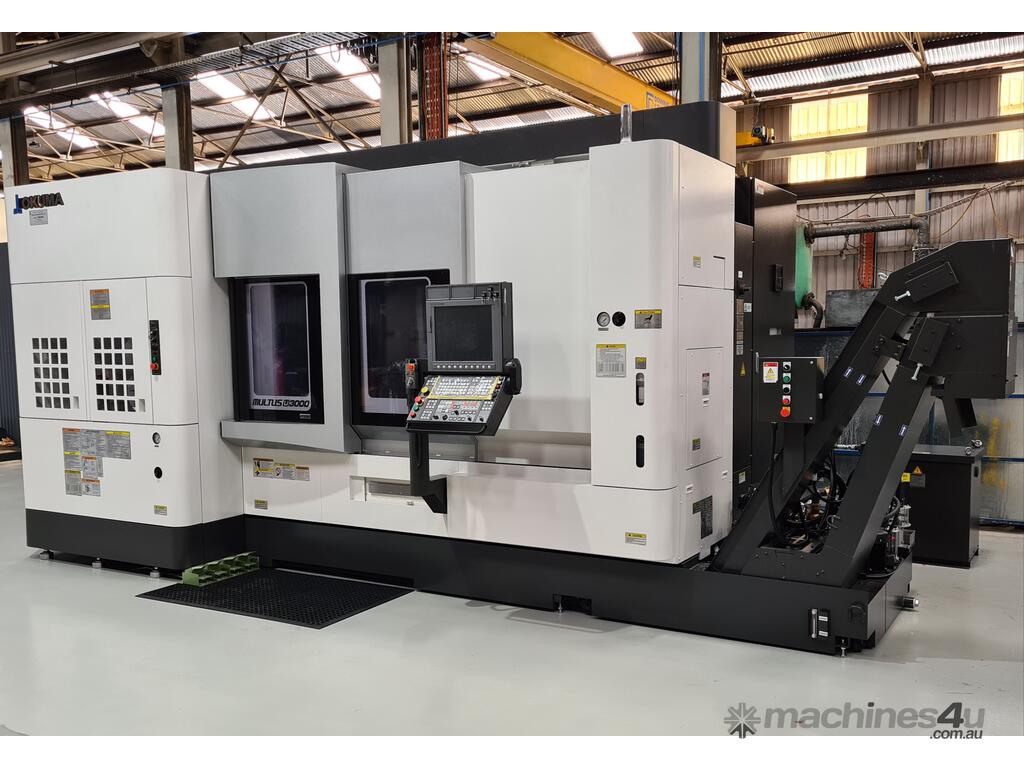

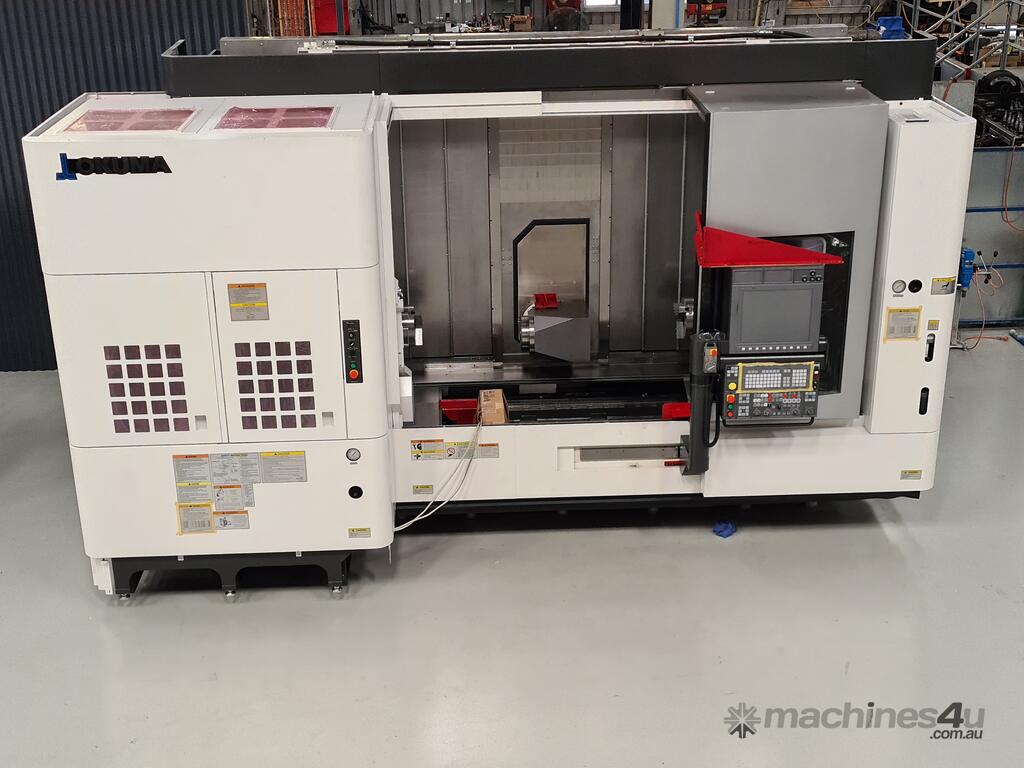

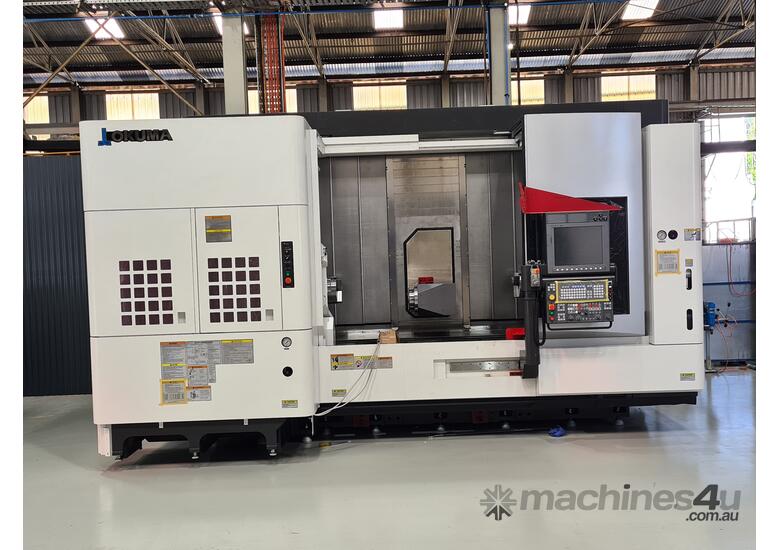

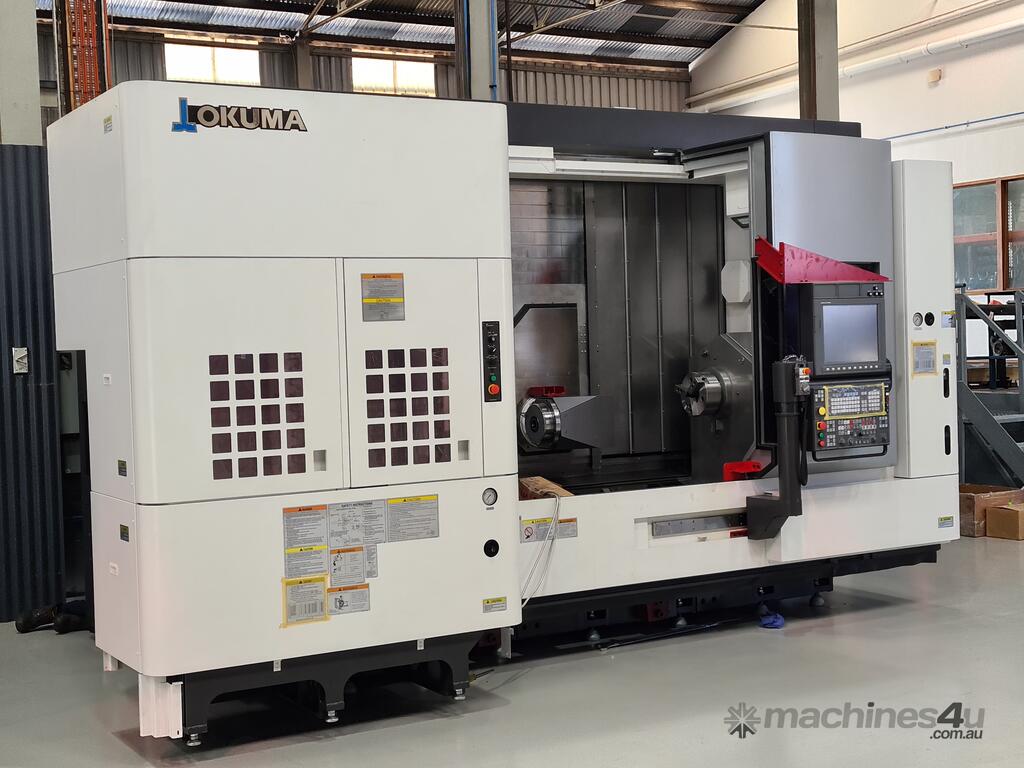

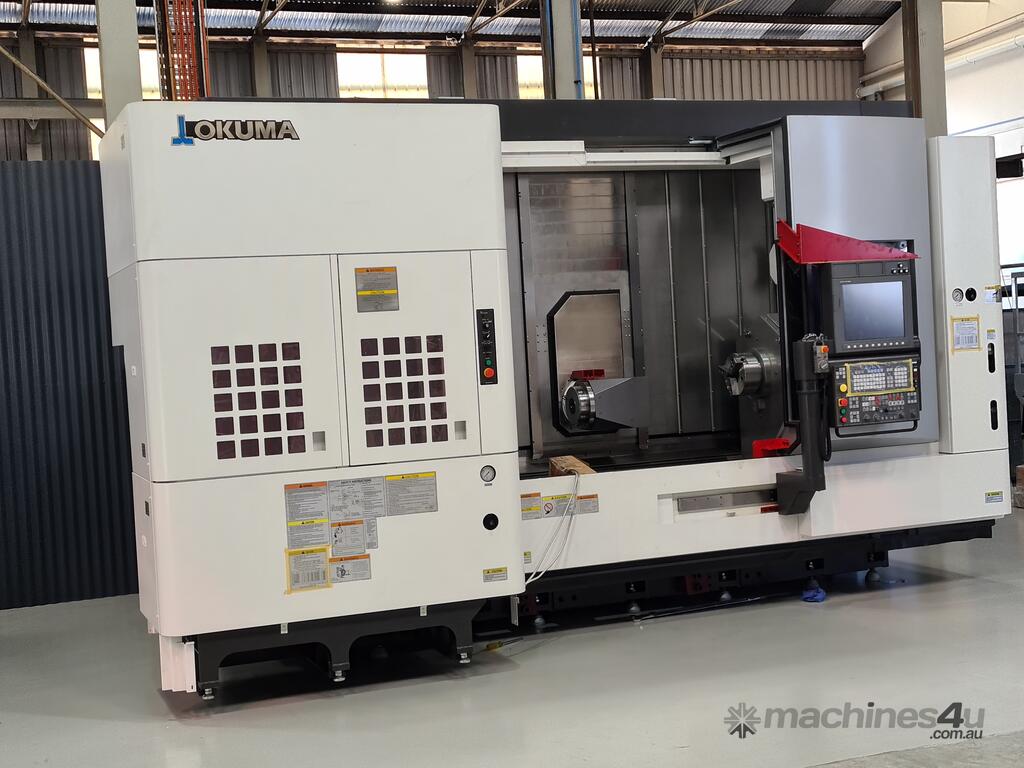

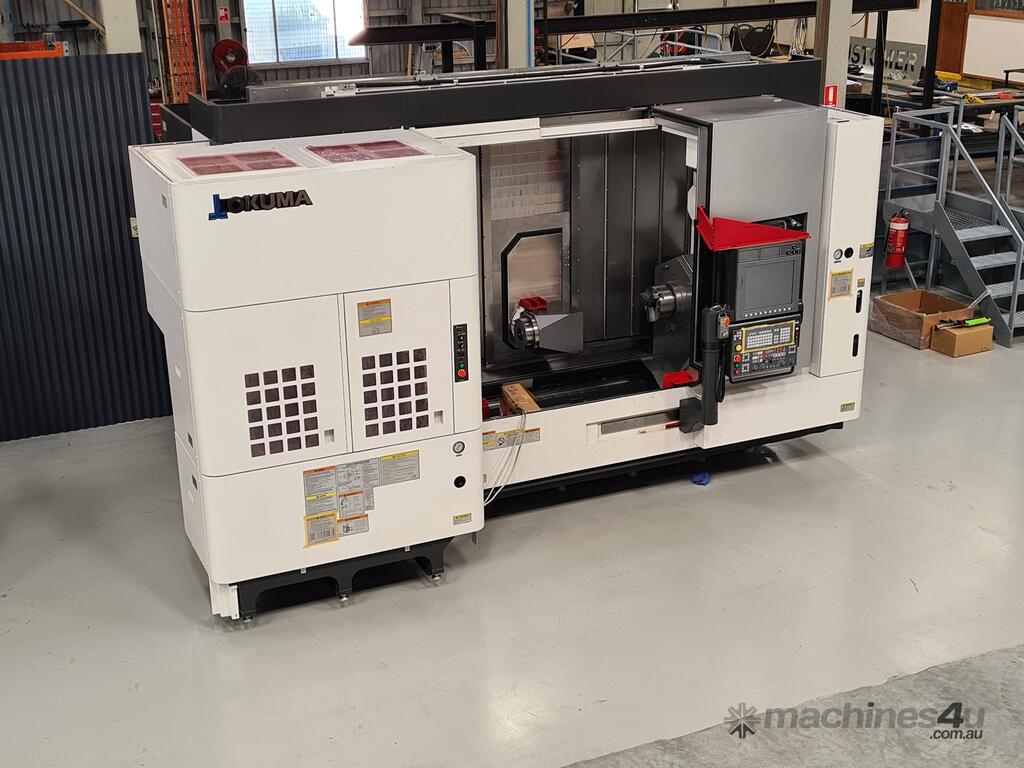

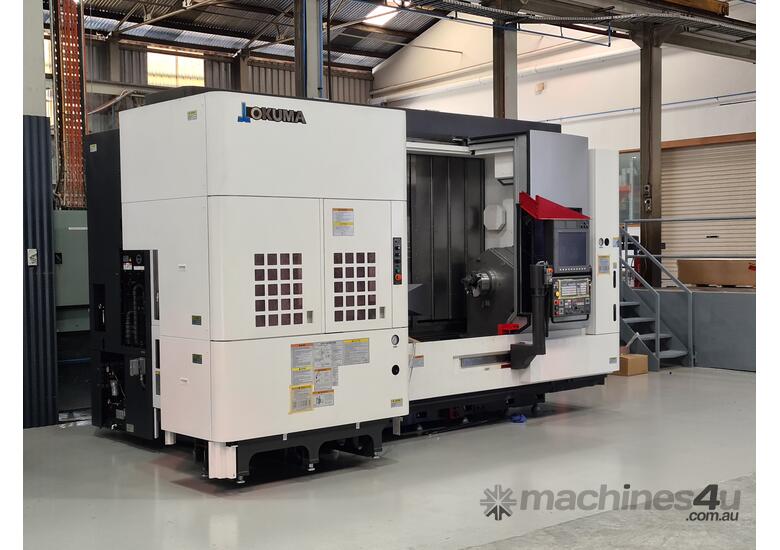

MAKE AN OFFER: Okuma Multus U3000 (Dual Spindle) CNC Multitasking Machine

Immaculate machine, come visit for a demo/inspection

Only 400 cutting hours and 200 spindle hours
Over 60K worth of extra inclusions included:
• Touch Setter M
• Auto front doors with S/W
• Hi Turret Air Blow ( L-Holder / External Milling ) with Through Air blowing M Ol<UMA Spindle rotation (air/ Coolant switchable) 1 set
• Pre Arrangement for Mist Collector controlled by M code 1 set
• Barfeed Interface 1 set
• Parts Catcher 1 set
• 5-Axis Auto Tuning System, Standard kit - In-Process Gauging, Wireless FM Type Renishaw RMP60 ( Straight Type
• 12" 3 Jaw Kitagawa Hydraulic chuck (Hollow)
• Reven Mist Extractor RJ3



Discover the MULTUS U3000, a machining marvel in pristine condition with regular servicing, ensuring optimal performance. Boasting minimal cutting time, this machine stands out with its remarkable features. From a max turning diameter of Ø650 mm to a versatile spindle nose type (JIS A2-6 [JIS A2-8]) and a speed range of 50~5,000 min?¹, the MULTUS 2020 is ready to elevate your machining capabilities.

Specifications include the MULTUS U3000 1SW1500 model with OSP-P300SA, a high-precision C-axis, and powerful spindles for both main and sub operations. The Chucking system is equipped with 10" hollow chucks for exceptional gripping, and the Chip and Coolant features ensure efficient operations.

Maintained with care and precision, this machine is ready to demonstrate its capabilities to serious buyers. Don't miss the opportunity to explore the MULTUS 2020 - a perfect blend of performance and condition. Contact us today for a demonstration and take your machining endeavors to new heights!


Key Features:

Max Turning Diameter (mm): Ø650
Spindle Nose Type: JIS A2-6 [JIS A2-8]
Speed Range (min?¹): 50~5,000
Standard Power (20 min/cont) (kW): 22/15
Rapid Traverse Xa/Za (m/min): 50
Rapid Traverse Zb/Y (m/min): 40
Rapid Traverse Xb (m/min): 25
Specifications:

MULTUS U3000 1SW1500 with OSP-P300SA
High Precision C-axis
Main Big Bore Spindle (A2-8) 50 - 4,200 min?¹ VAC22/15kW (30min/cont.)
Sub Big Bore Spindle A2-8, 50 - 4,200 min?¹ VAC22/15kW (30min./cont.) [only in case 1SW]
B-axis (H1) 0.001 degree indexing [Std]
Compact Milling Spindle H1 12,000 min?¹ PREX25/19kW [Std]
Tool Shank H1 CAPTO C6
80-tools ATC chain type (with modified cover for bar feeder)
Chucking:

10" hollow chuck BB210A801 with SR1781 cylinder (for Main Big Bore spindle)
Hard jaws (for BB210) x 1pc
10" hollow chuck BB210A801 with SR1781 cylinder (for Sub Big Bore spindle)
Hard jaws (for BB210) x 1pc
Chuck foot pedal (for W) (CE) double (Main and Sub) [Mandatory for chuck spec]
Chuck auto open/close with confirmation for main and sub [Std in case W]
Chip and Coolant:

Drum filter chip conveyor H-type, Side disposal (hinge + scraper) incl. machine raise up 30mm [1S x1500]
*with Conveyor torque limiter, alarm C in case detection, with machine linked control and Intermittent feed
Coolant level detection, lower side
Oil skimmer, screw type
Ceiling shower coolant B x1500 (individual controlled) [Coolant channel No.9]
H1 through spindle coolant 2MPa 20L/min
External M-spindle coolant 0.75/0.55kW(60/50Hz) [Std]
Lower turret coolant pump 0.75/0.55kW(60/50Hz) [Std only in case 2S]
Coolant flow 0.75/0.55kW(60/50Hz) pump [Std]
0.75/0.55kW(60/50Hz) pump for drum-filter washing
Coolant tank with line-filter
OSP:

One-touch IGF Advance M-D kit for OSP-P300SA *Hi-Cut Pro
19-inch screen and tilting NC operation panel
Thermo Active dimension Stabilizer-Construction (TAS-C) [Std]
Thermo Active dimension Stabilizer-Spindle (TAS-S) for H1 Milling spindle [Std]
1/10 micron control [Std]
Chuck open/close during rotation
Pitch error compensation X+Y+Z (1S) [Mandatory]
