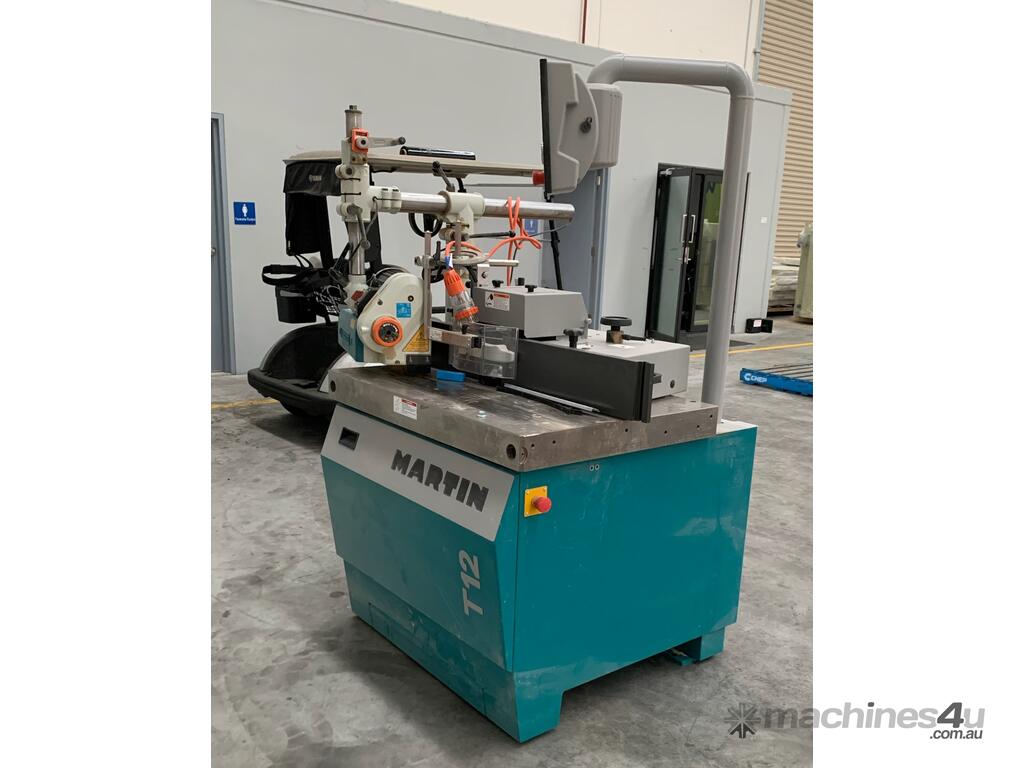

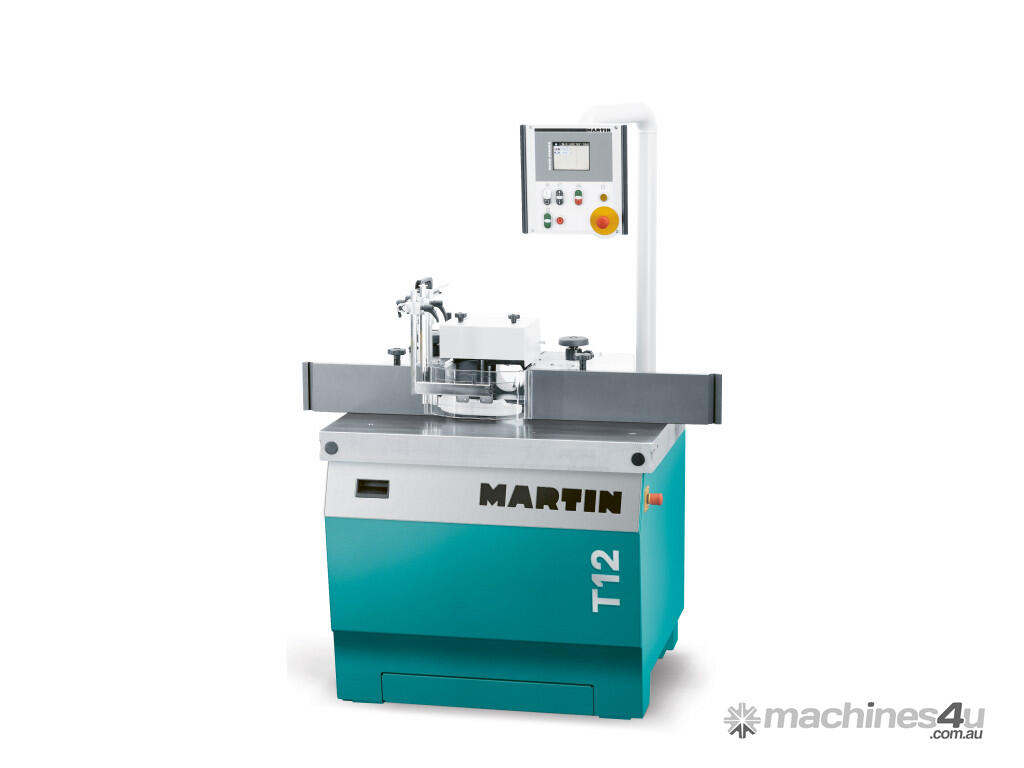

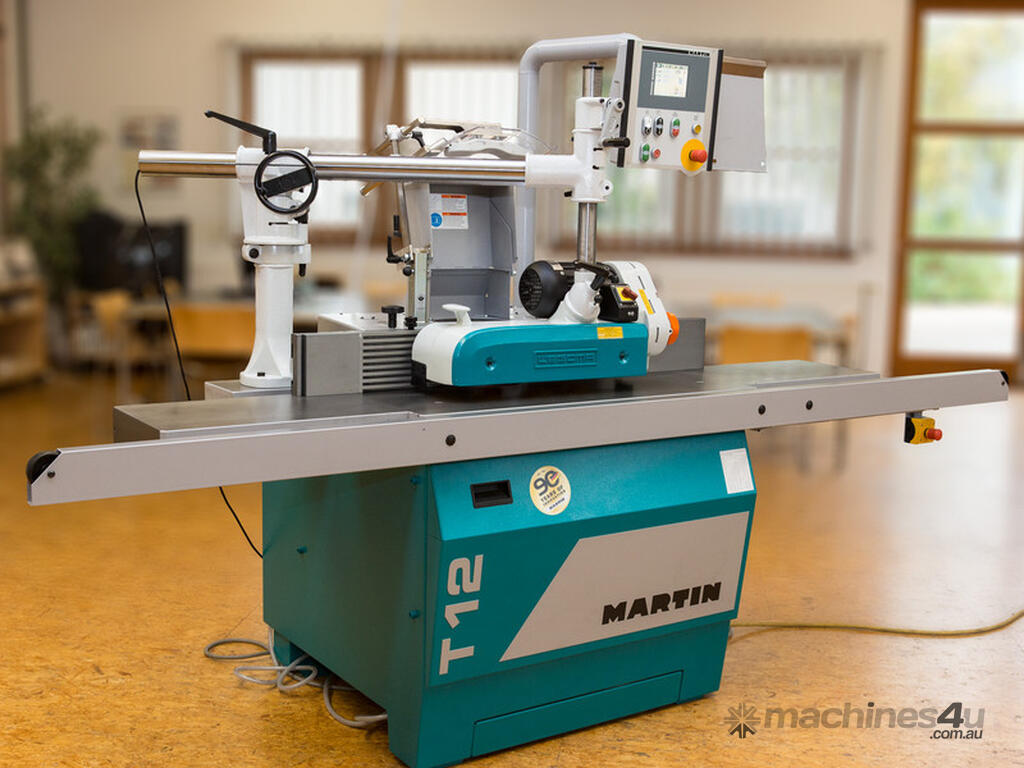

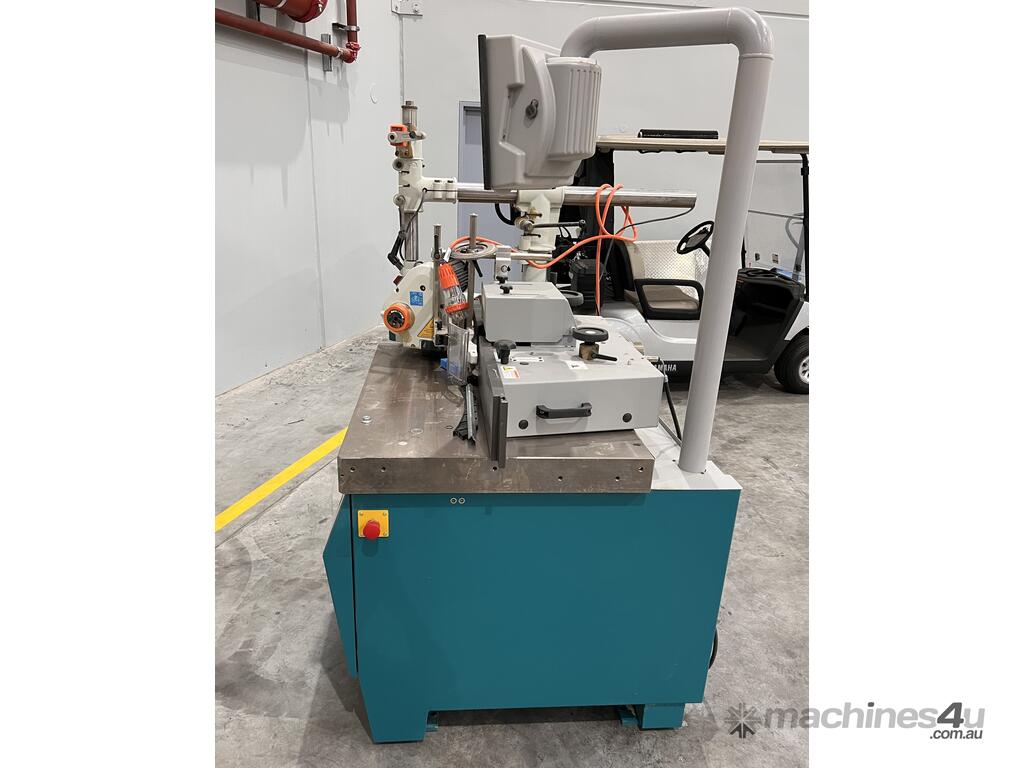

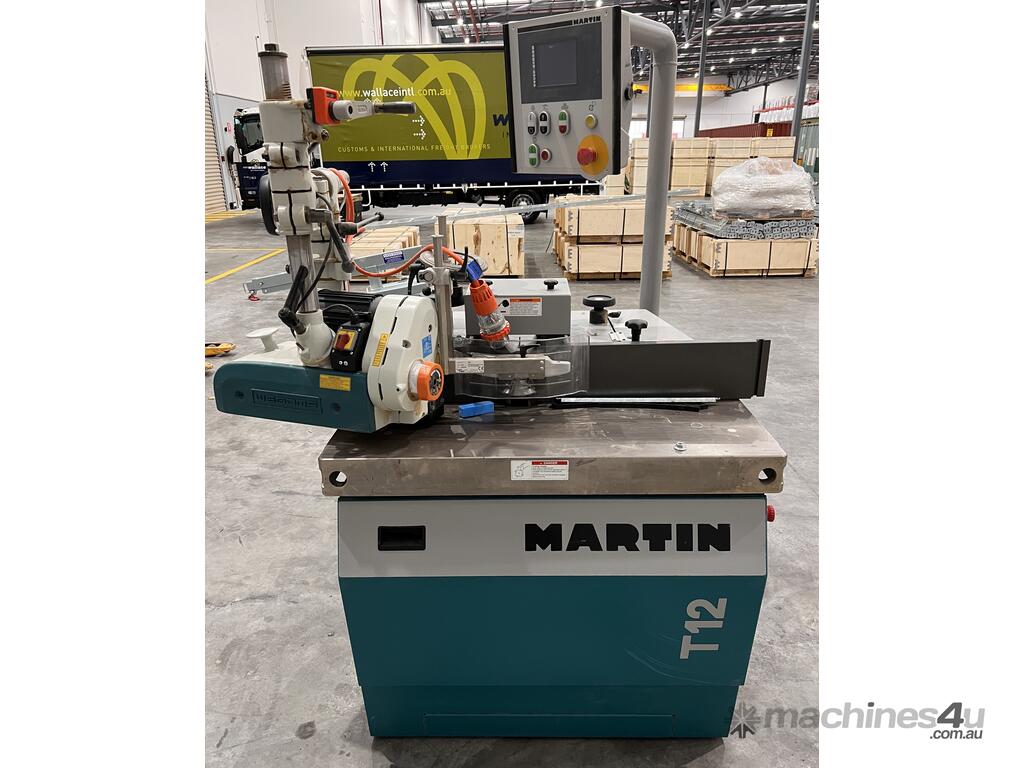

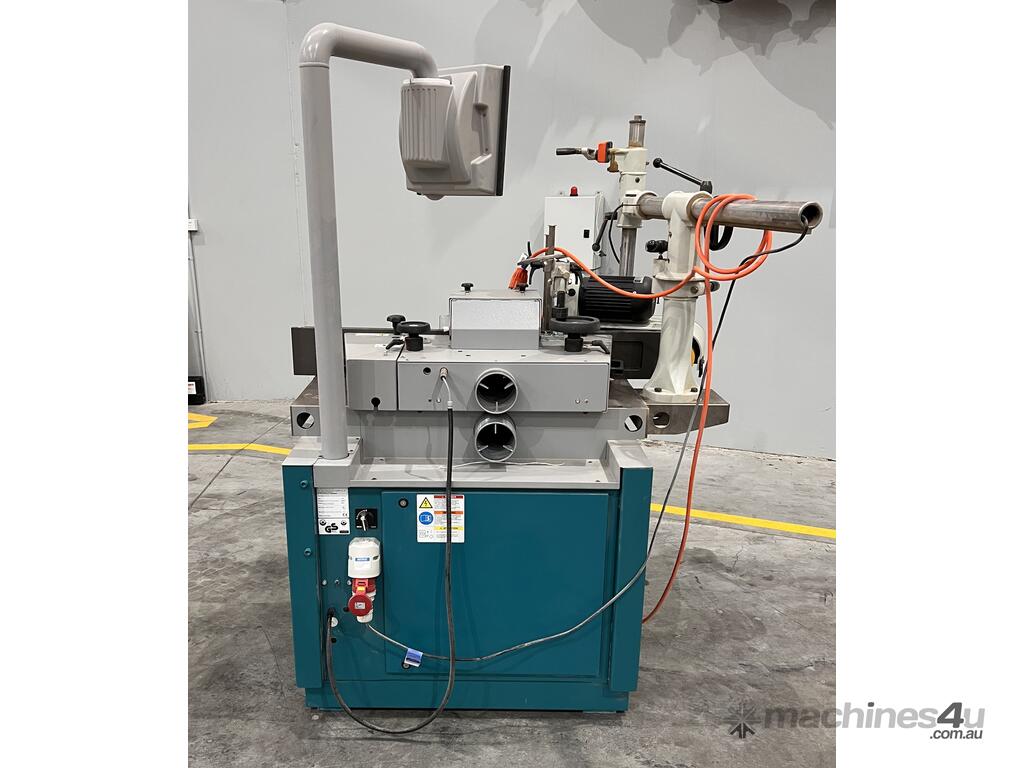

Used but as new MARTIN T12 Spindle moulder. This machine has never been used for work.
Purchased by previous owner new, whos business has developed in another direction.

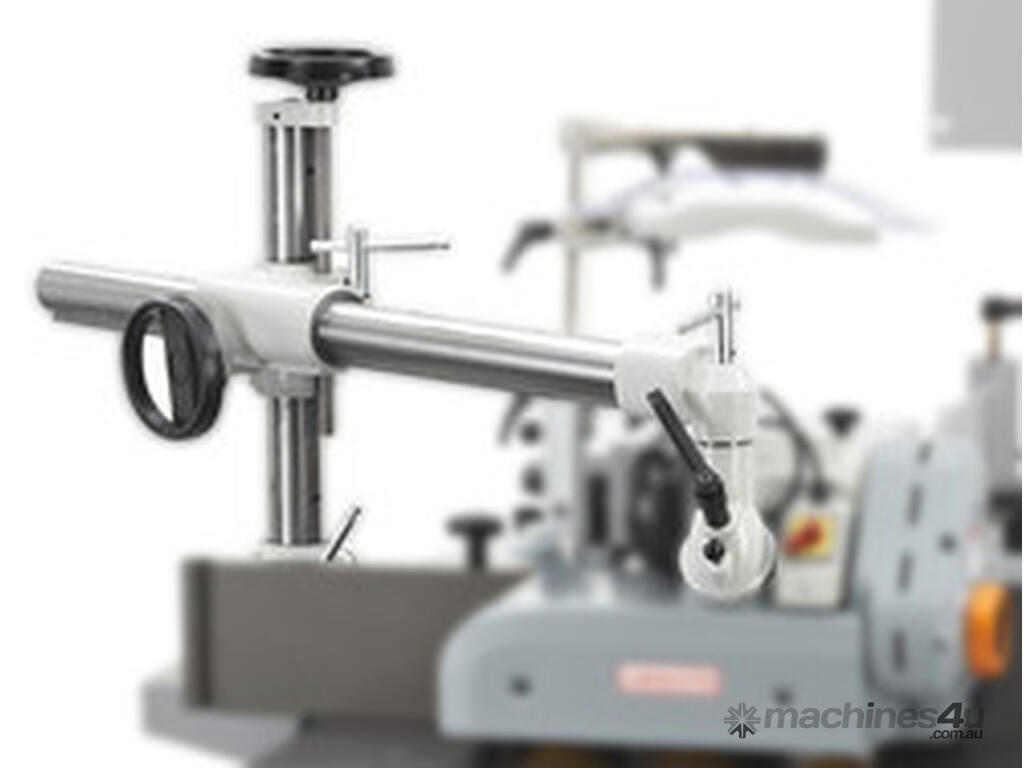

Brand new MARTIN 3 Wheel variable speed power feeder and feeder mounting console included.
- Machine base: Modern composite frame
- Weight 1100KGS
- Rotational speeds3,000 / 4,500 / 6,000 / 8,000 / 10,000 rpm
Nominal frequency 60 Hz: 3,600 / 5,400 / 7,200 / 9,600 / 12,000 rpm

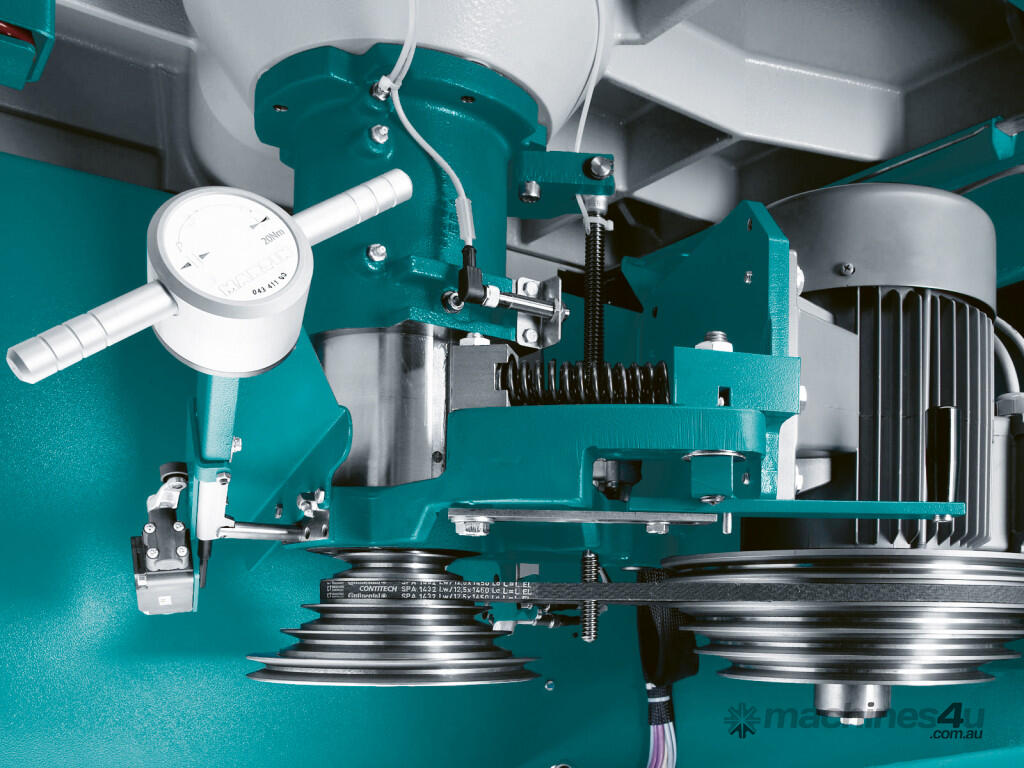

rotational speed change by shifting the belt/with belt quick-tensioning device.
- PowerPC control with separate industry standard operating system (Linux)
bus-controlled servo drive (CANopen), USB interface for backup and updates;
Touch-Screen interface 5.7" (145 mm), colour TFT (8-bit colour depth)

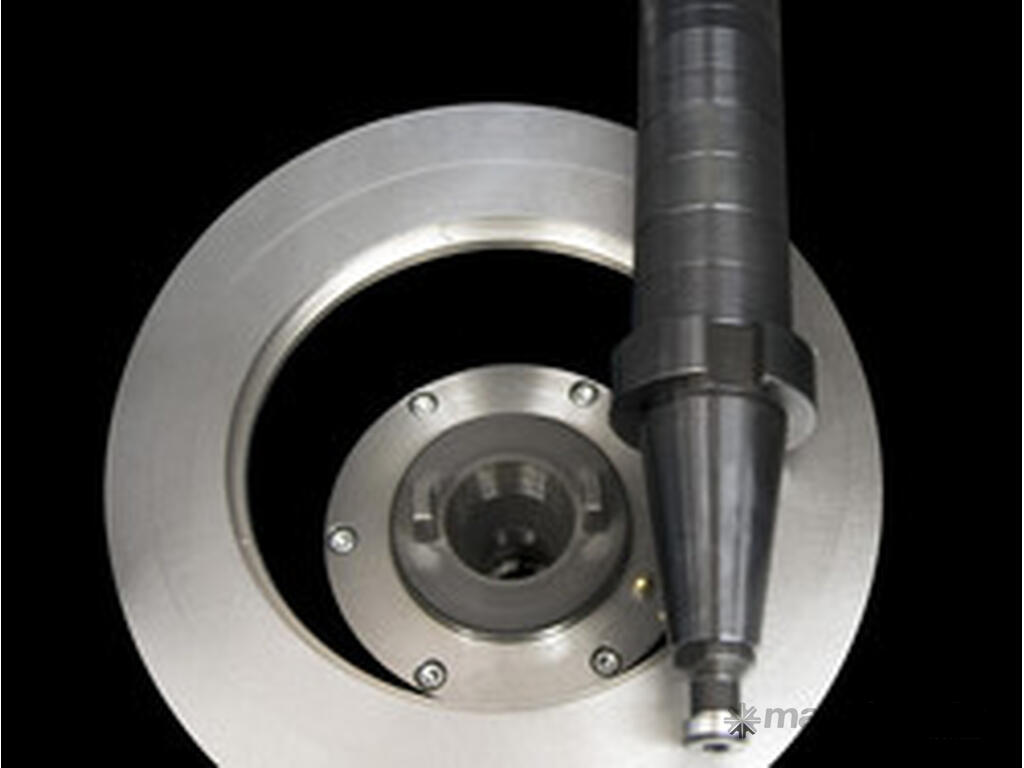

- "DornFix quick-change system", torque wrench included; steep taper SK 40; controlled with motorised height adjustment;
integrated mechanical lock for arbor and tool change
- 150mm spindle stroke with repetition accuracy of .025mm
- Precise, bilaterally guided fence, adjustable with one hand using the hand wheel according to
digital display integrated in the control; easy, extremely precise reinsertion of fence after working
without fence; adjustment of fence jaw (right) with hand wheel according to scale with nonius; MARTIN
fence jaws made of aluminium, hard-coated, with holders for moulding board and guide bars;
movement range overall fence -6/+125 mm; movement range of fence jaw (right) -10/+10 mm;
display resolution 0.05 mm
- Tool diameter maximum 250mm or 350mm with tenoning guard only
- Electronic soft-start braking device for cutter spindle; switchable EC three-phase current connection for
feed with motor protection switch and 5-pin socket; potential-free contact for control of extraction; 1
EMERGENCY STOP button (control panel), lockable main switch, low-voltage protection, motor
protection switch and overload protection; required power supply: 3 ~ / 400 V - 50 Hz

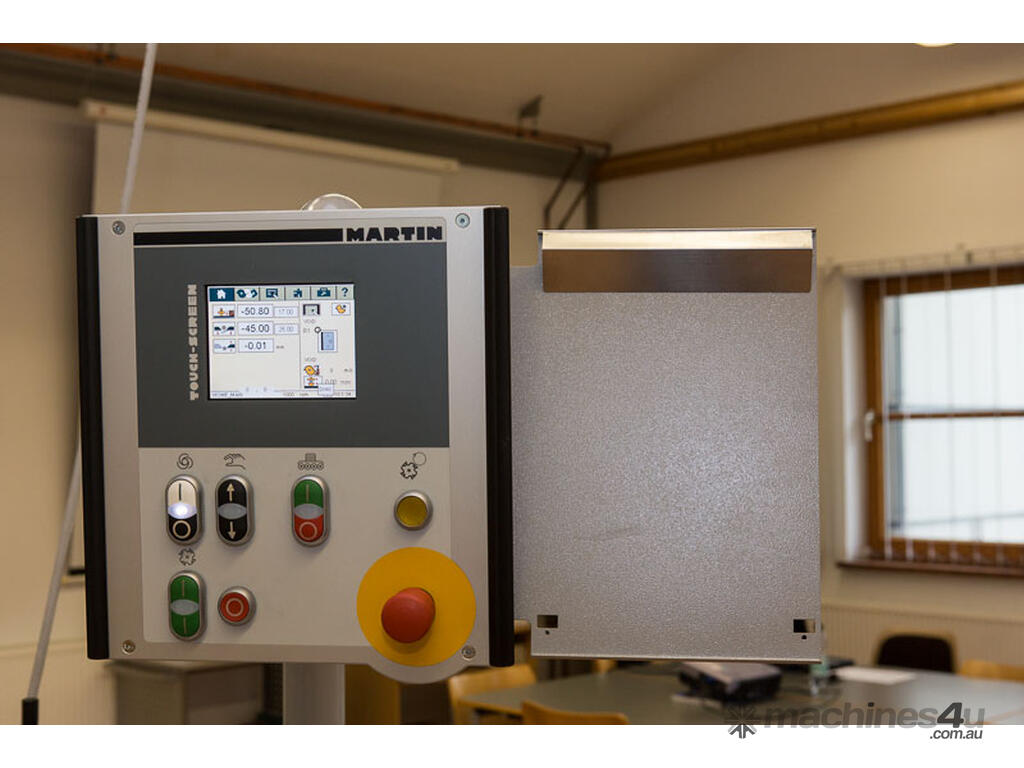

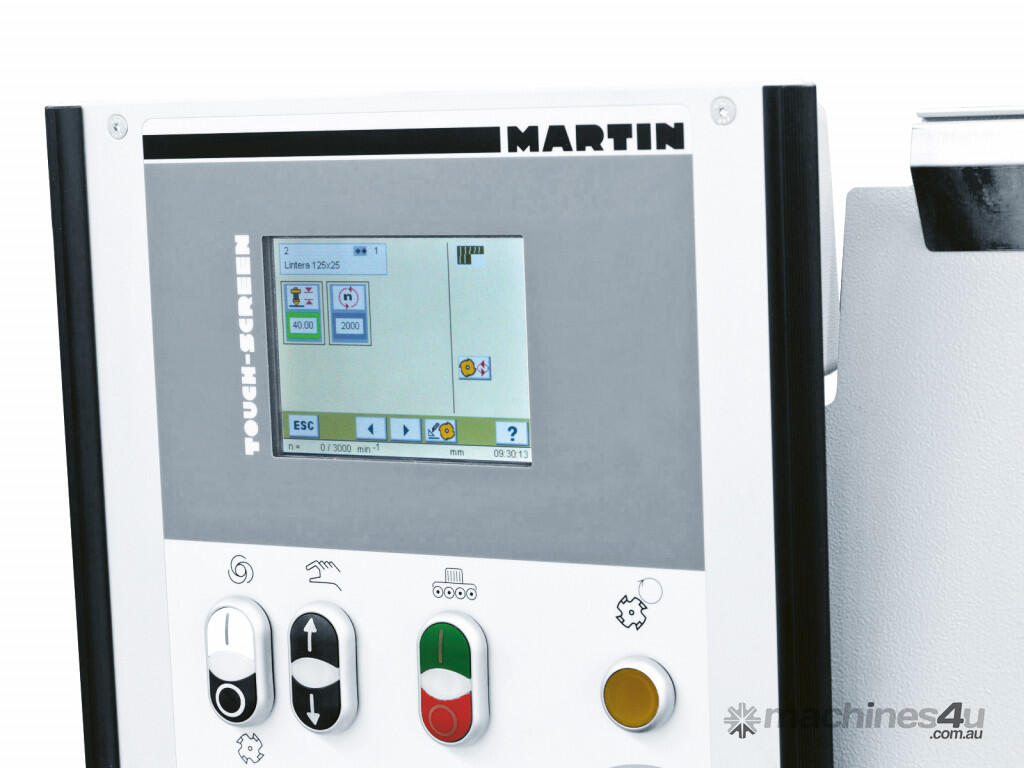

- Touch-Screen - user interface 5.7" (145 mm), colour TFT (8-bit colour depth)
Electronically controlled cutting height (spindle), full integration of cutting height in the control and program memory;
repetition accuracy ± 0.05 mm
Simple tool and program selection through alphanumeric search function
Customization possible for all languages using Latin/Cyrillic characters sets
Software key switch / password protection for up to 2 users
USB interface for backup and transfer of program and tool data
Conversion and digital display of tool position (cutting height/cutting depth) in relation to the table and fence based on
stored tool data
Electronically controlled cutting height (spindle), full integration of cutting height in the control and program memory;
repetition accuracy ± 0.05 mm
Expandable with following additional controlled axes (maximum 3 axes):
Simple tool and program selection through alphanumeric search function
Integrated display of fence position cutting depth
Program memory for 100 tool positions of all digitally displayed axes
Selection of rotational direction right/left; status display for rotational direction right
Display for rotational speed, tool name, spindle rings and current cutting speed
Integrated calculator with axis-related memory option, integrated operating time counter
Tool data memory for 500 tools, 3 reference points can be stored for each tool; thanks to the new and innovative tool assistant
has become very simple to enter and use adjustable tools
Fully automated referencing of cutting height axis
Diagnosis and help menu with operating information
Please note; Some features shown in attached video courtesy of JJ Smith are not offered or are on this machine.
