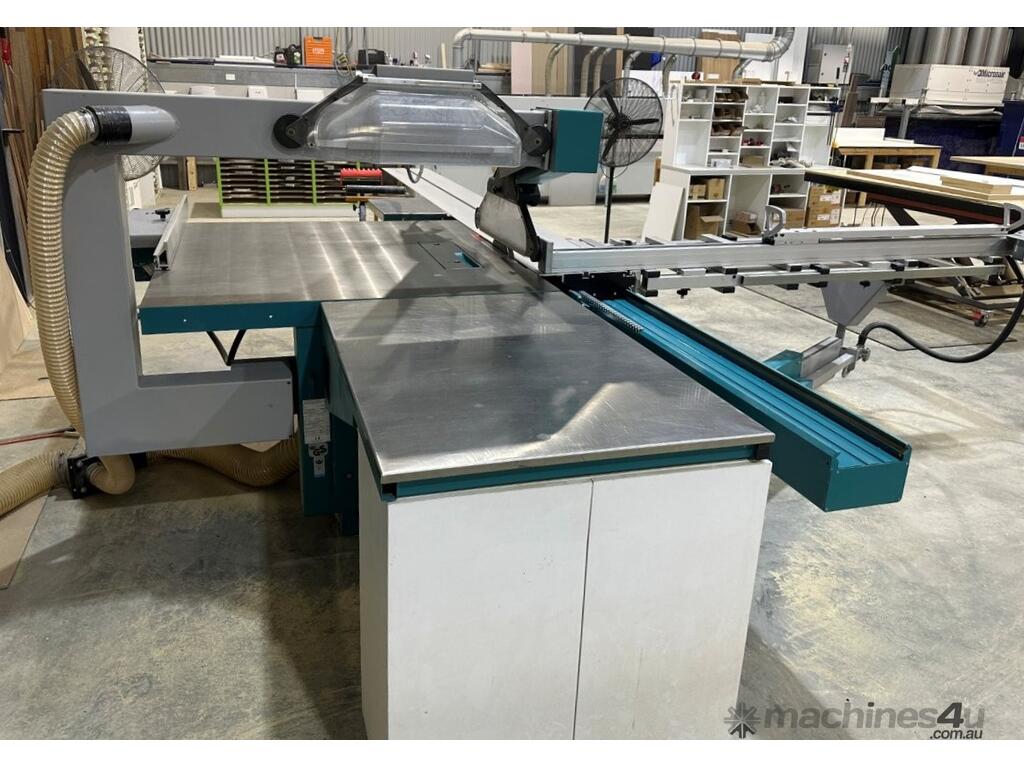

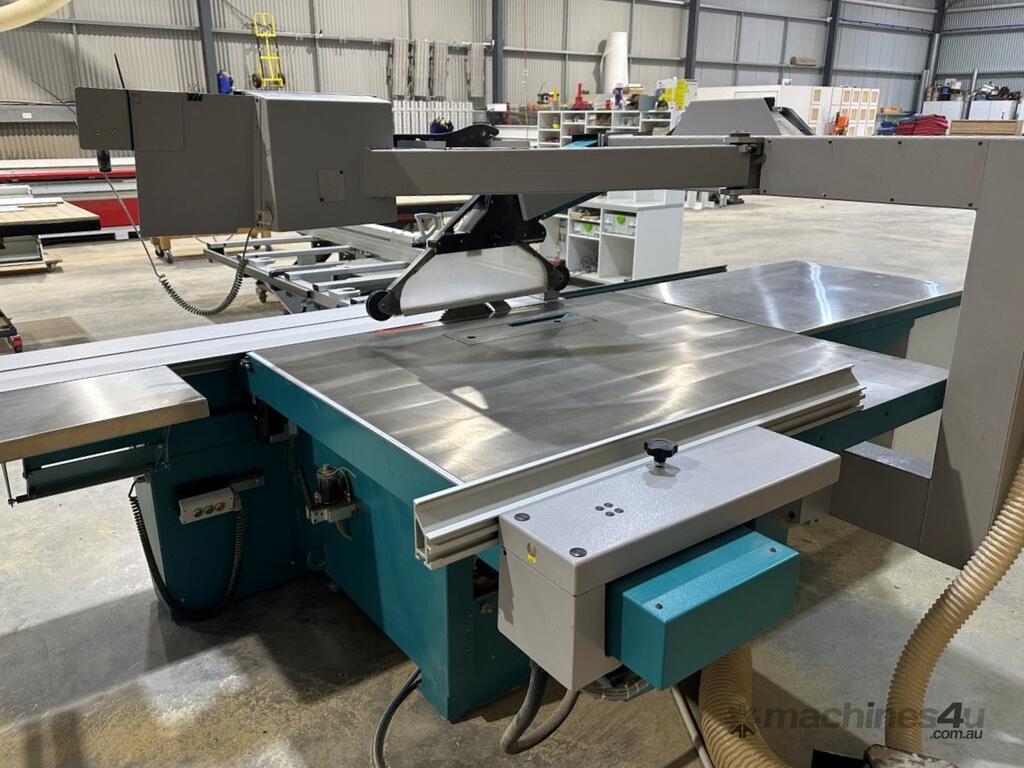

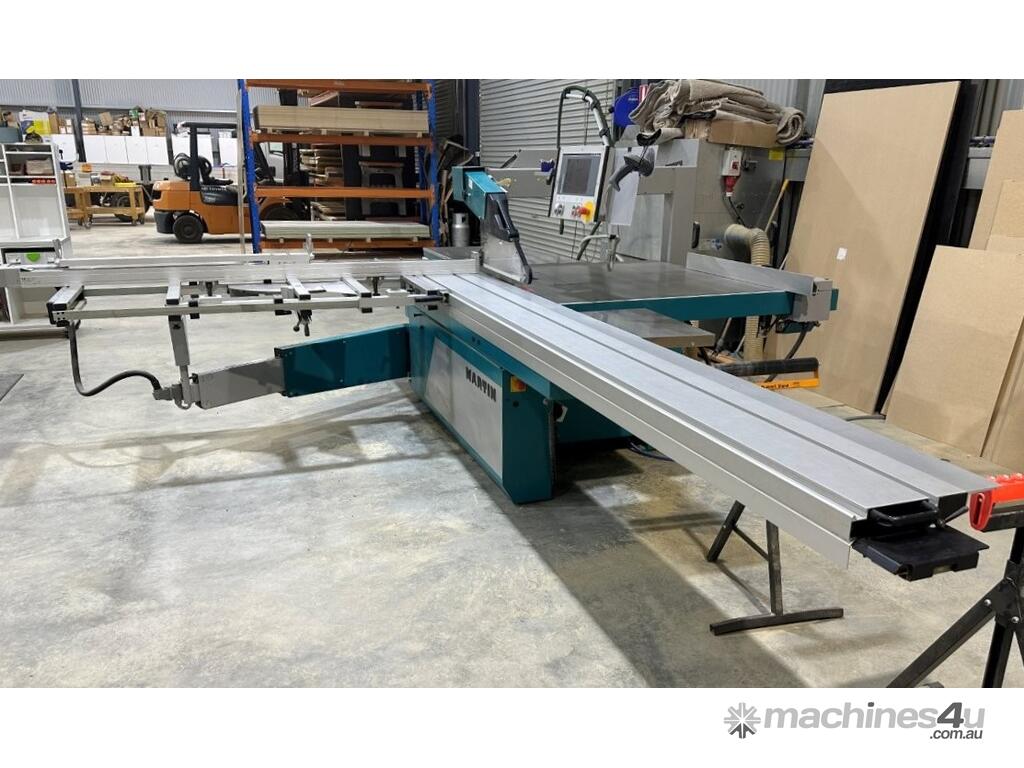

Used in excellent condition MARTIN T74 AUTOMATIC Panel saw. This machine is loaded with features
- MADE IN GERMANY

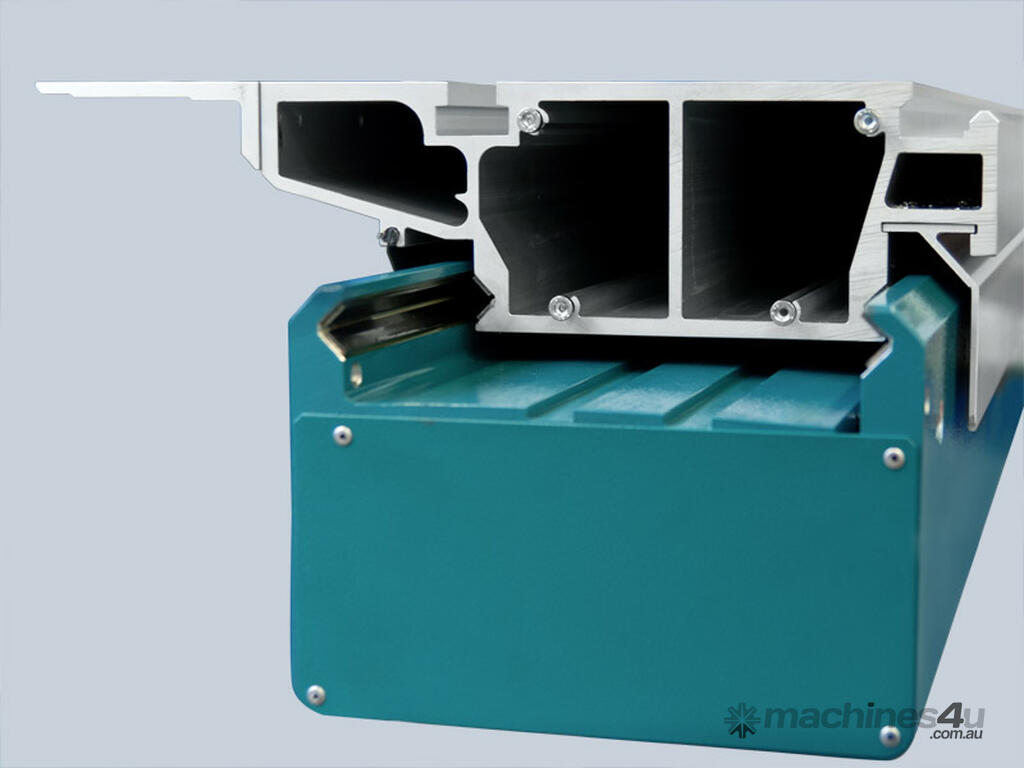

- 3700mm sliding table with “V Slide” lubricated guidance system.

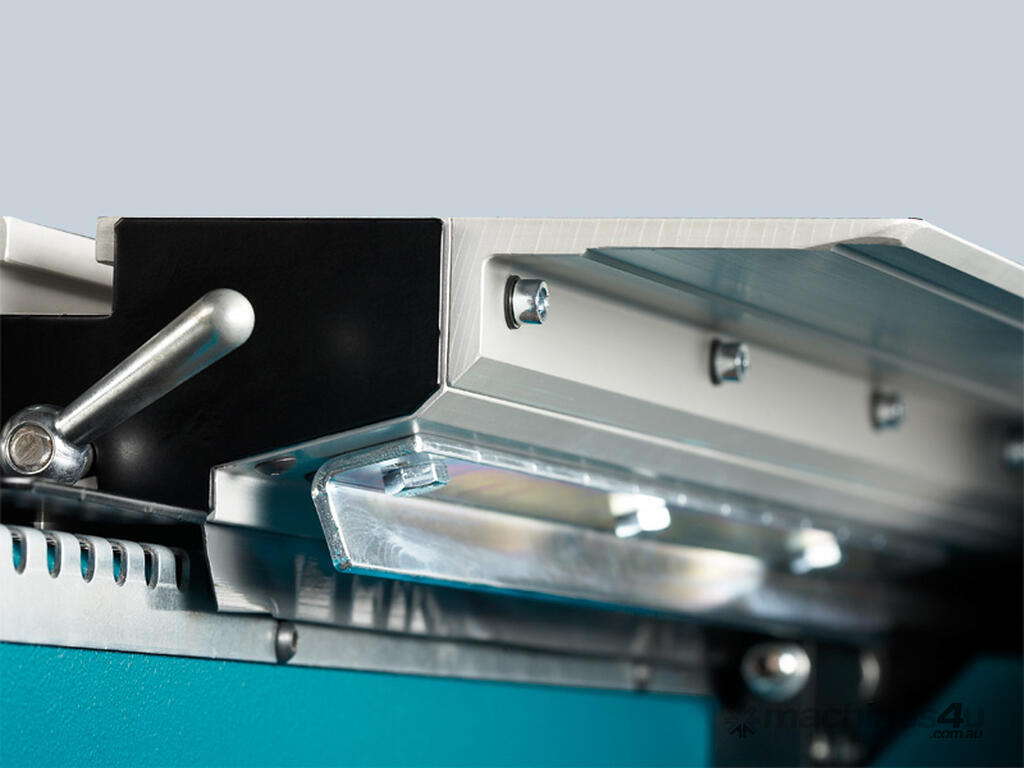

- Sliding table with replaceable table lip & infinite stop positions.
- Scoring unit with 3 axis electronic control.
- Massive 1500mm x 1350mm full cast main table.
- 1600mm powered driven rip-fence.
- Unique design of rip fence allows pneumatic lowering below the table from operator’s position.

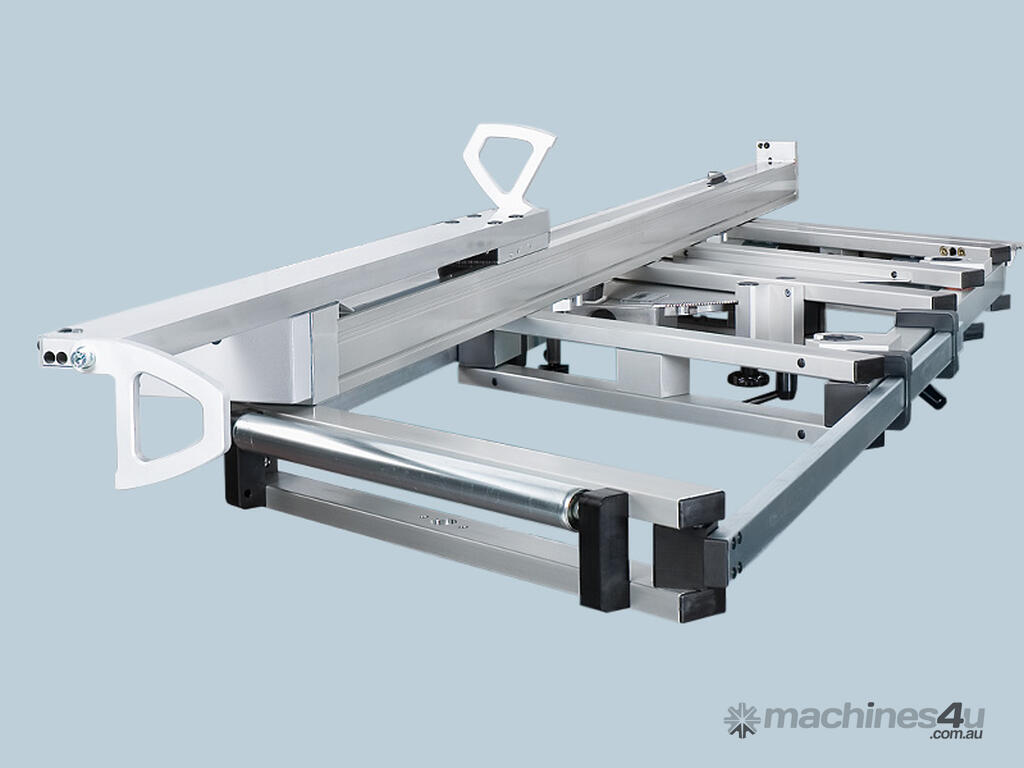

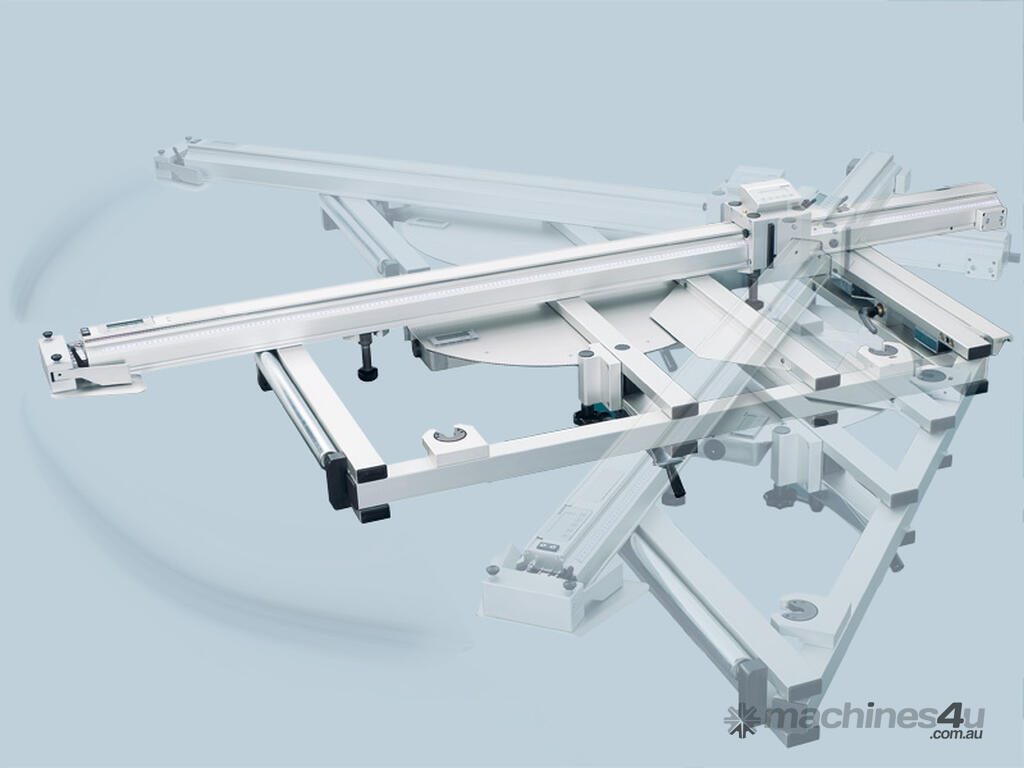

- T74 Mitre Crosscut “Control” with electronically controlled crosscut fence stops (continuous contact), BUS connection to
the control when setting of the table angle with length compensation & extendable table support.

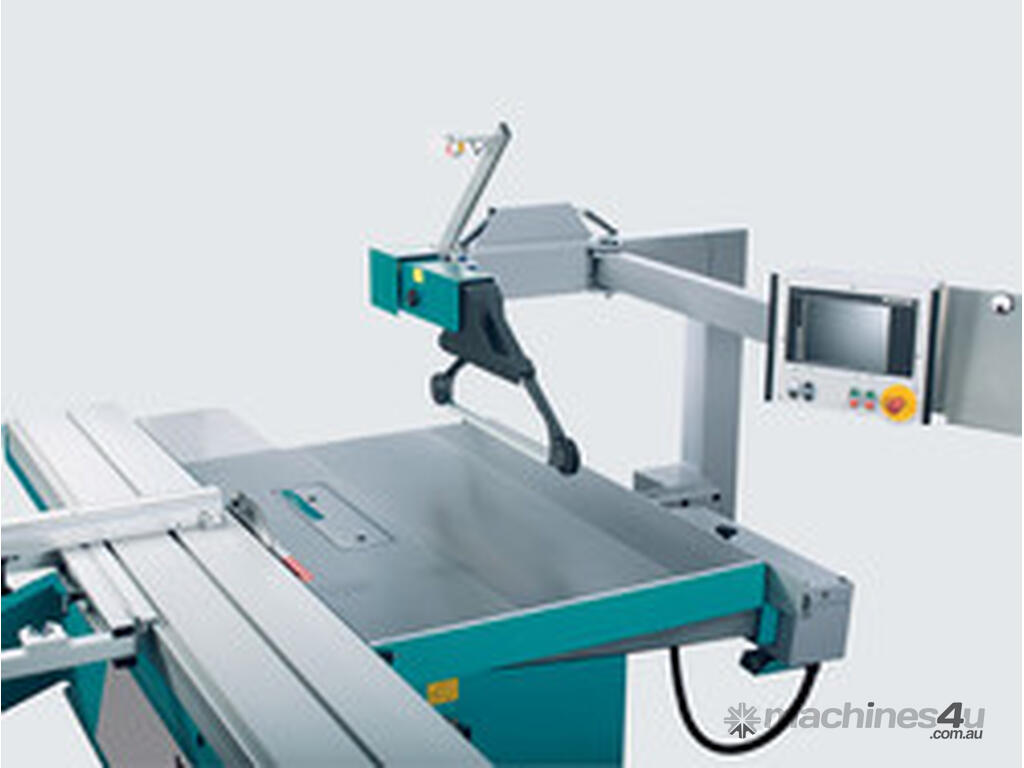

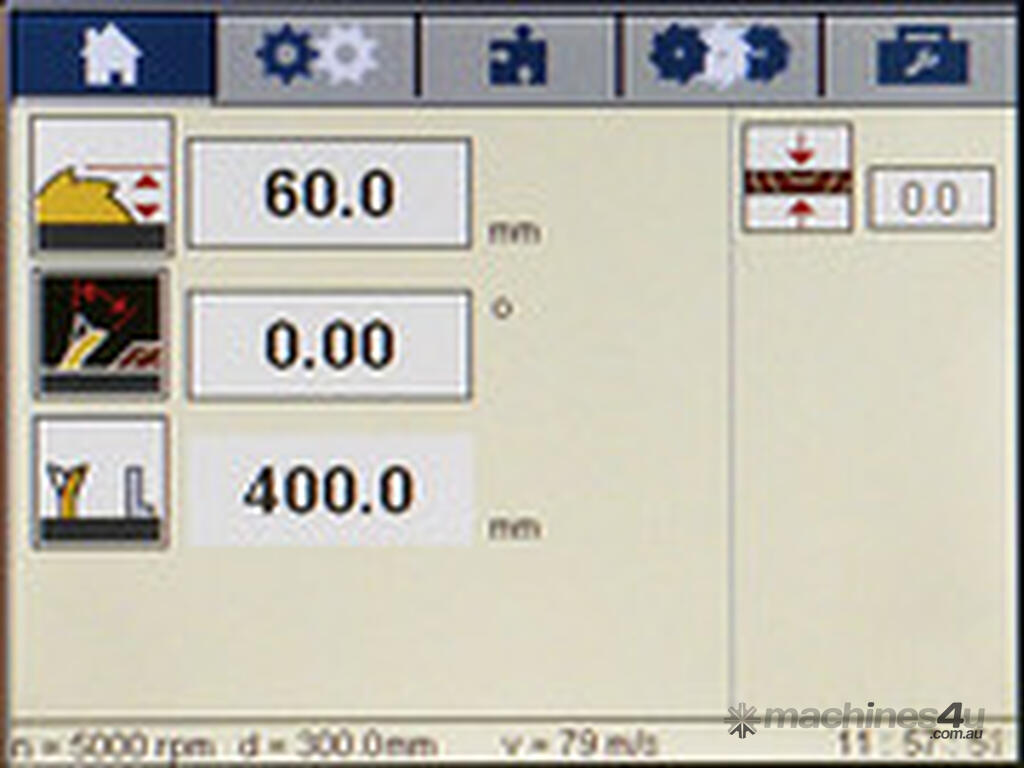

- Overhead 10.4 “(264mm) Colour Touchscreen” controller for rip-fence position, Crosscut stop positions,
3 axis scorer adjustment, Power rise fall & blade tilt – Programmable memory up to 1000 cut settings.
- Interface package to link the T74 Auto to panel cutting optimisation software, bar code scanner with mount
Bracket & mount bracket for label printer.
- USB interface with controller for backup, updates for control.
- Job sheet holder next to control panel.
- Soft start, 7.5HP main motor with electronic brake.

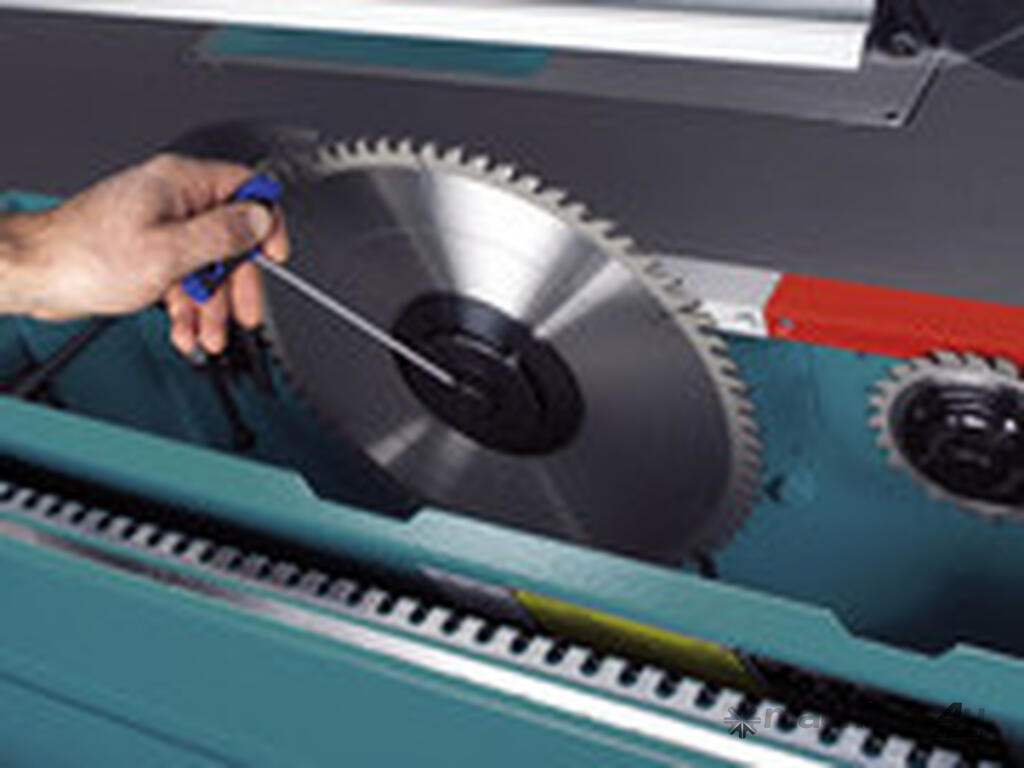

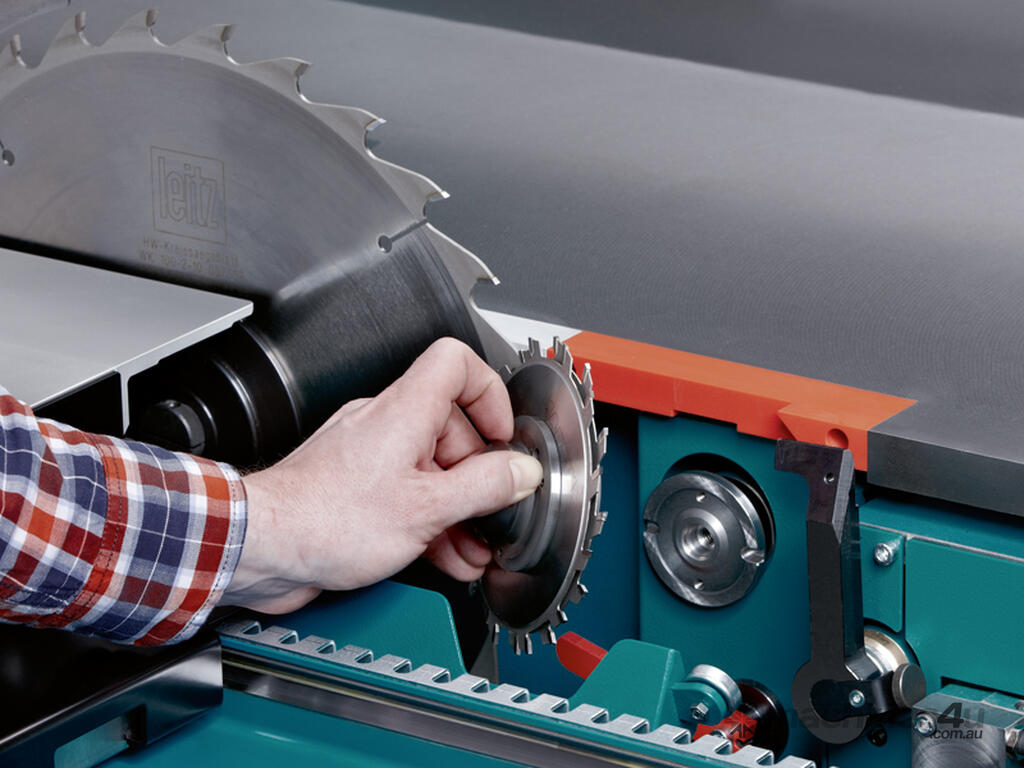

- “Pro-lock” spanner-less quick change for main blade & scorer.
- Large out feed extension table in stainless steel.
- 850mm x 350mm foldable support table.
- Large overhead easy to adjust blade guard from operator position.

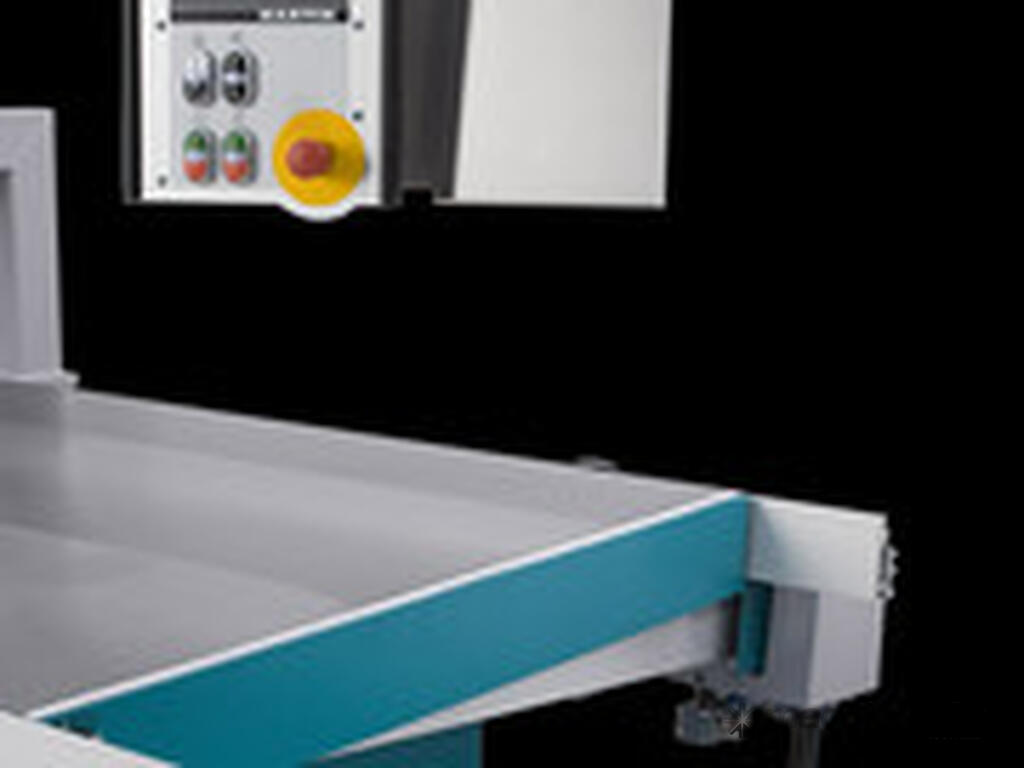

- On/off switch for main & scoring blade on end of sliding table.
Ready for delivery approximately end of January / February 2026
Machine price excludes packing for transport, delivery & commissioning.
