MBR-1070XT Bead Roller - Motorised Variable Speed 1.2mm Mild Steel Thickness Capacity & 1070mm Throa

METALMASTER MBR-1070XT Bead Roller - Motorised Variable Speed 1.2mm Mild Steel Thickness Capacity & 1070mm Throat Depth Includes 12 Sets of Hardened Rolls
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S634

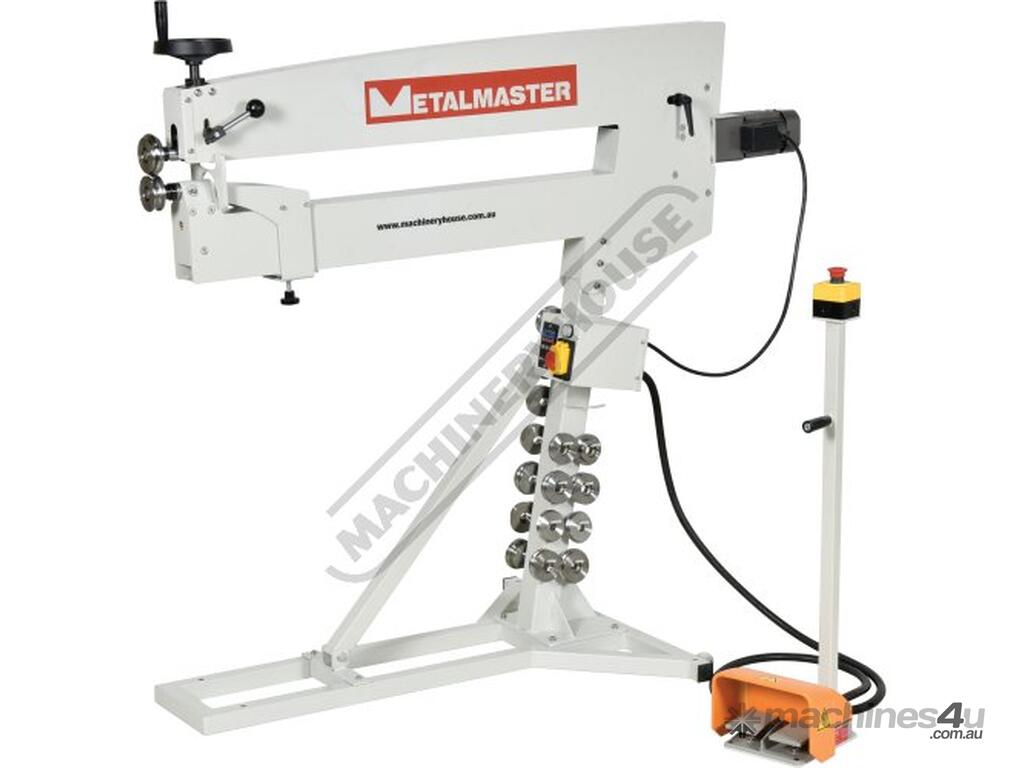

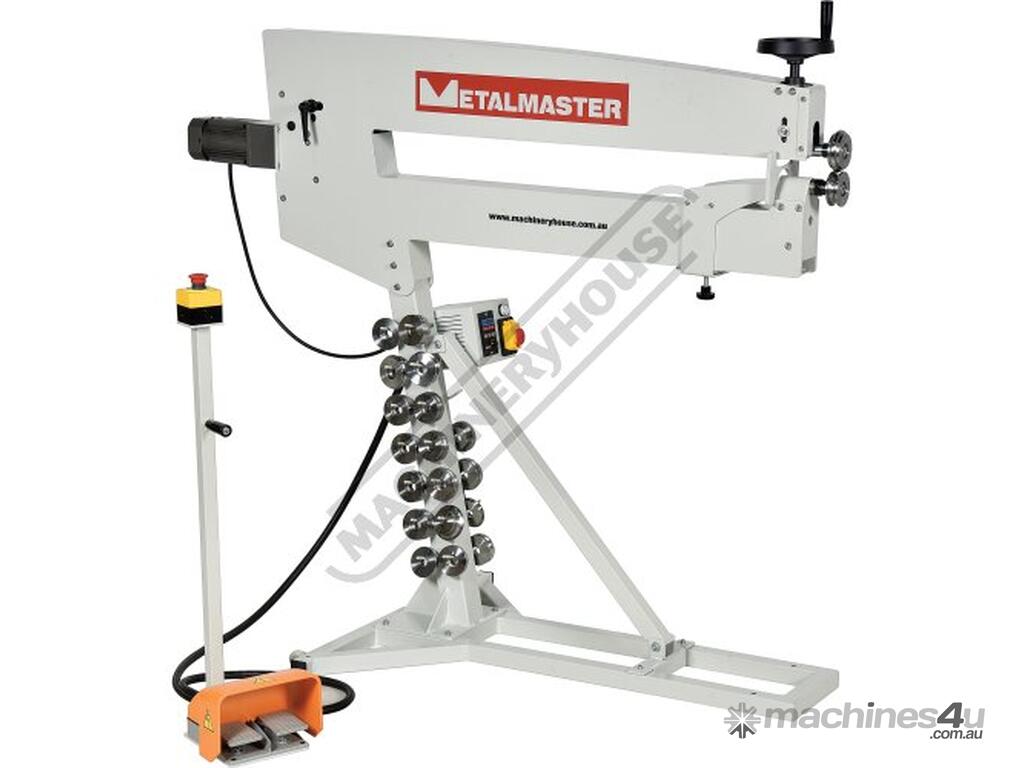

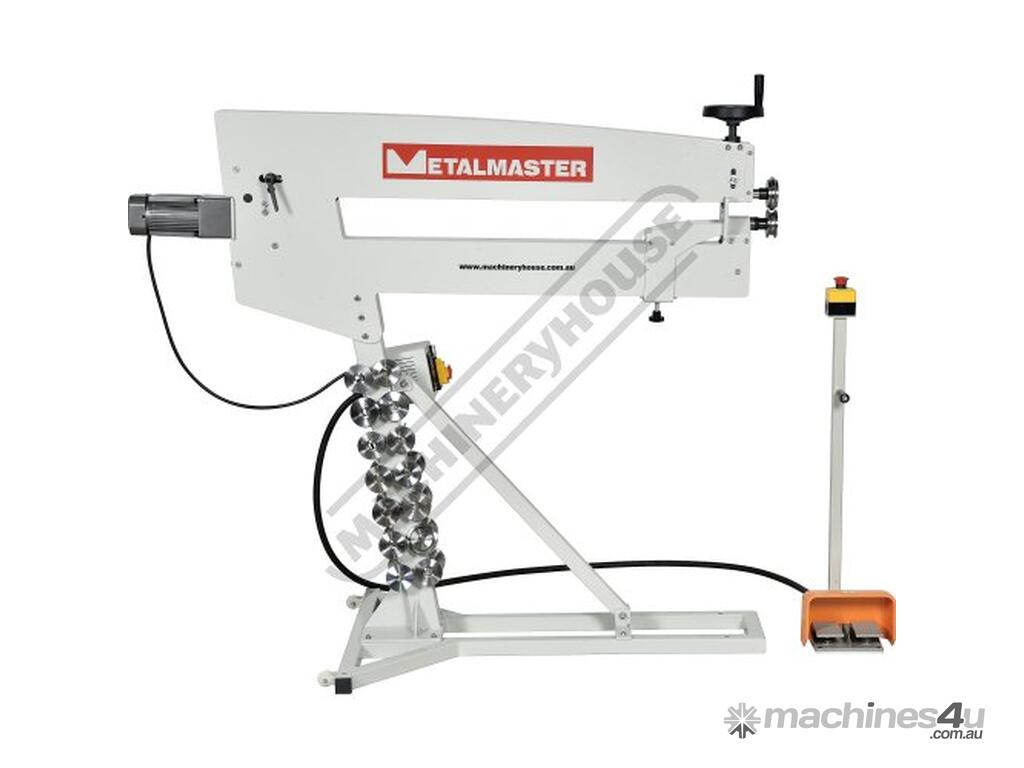

The MBR-1070XT motorised bead roller is much easier to use compared to manual machines to having your panels beaded in your home workshop or garage. Made from heavy plate steel and a now with a massive 1070mm throat depth making it perfect for strengthening any type of car roof, body panels, seals & guards etc.

This bead roller is electrically gear driven via a forward & reverse foot control switch that drives both the bottom and top bead rolls. The drive shafts are supported in quality bronze bearing bushes and incorporate with thrust ball bearings for additional support & accuracy.

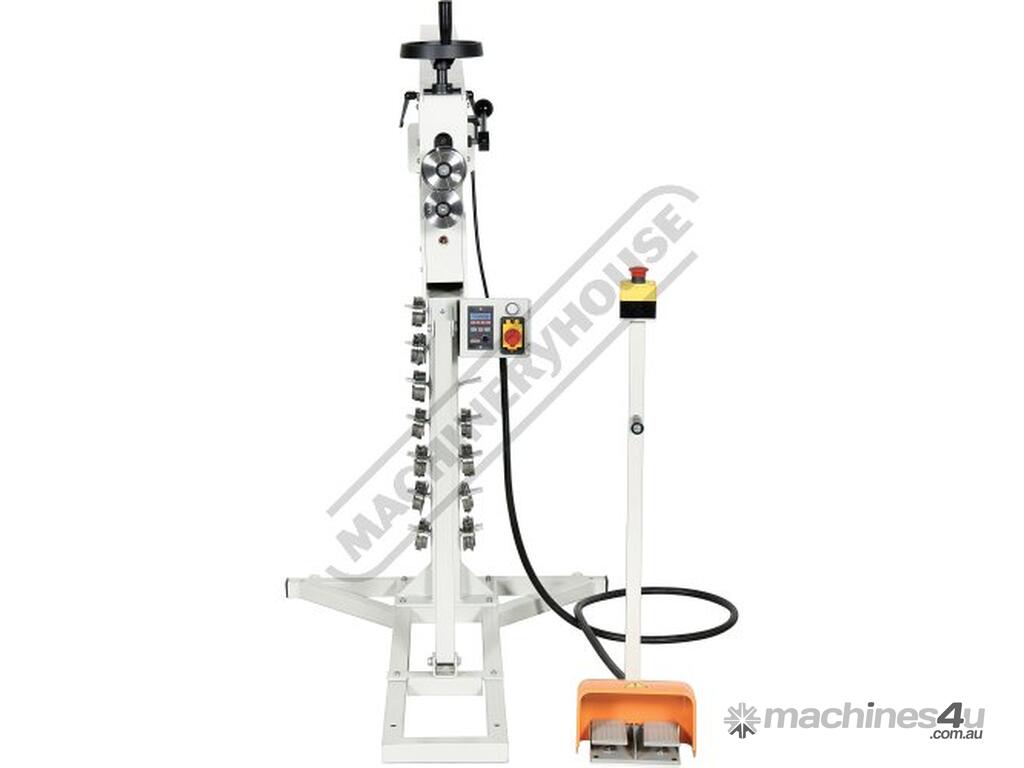

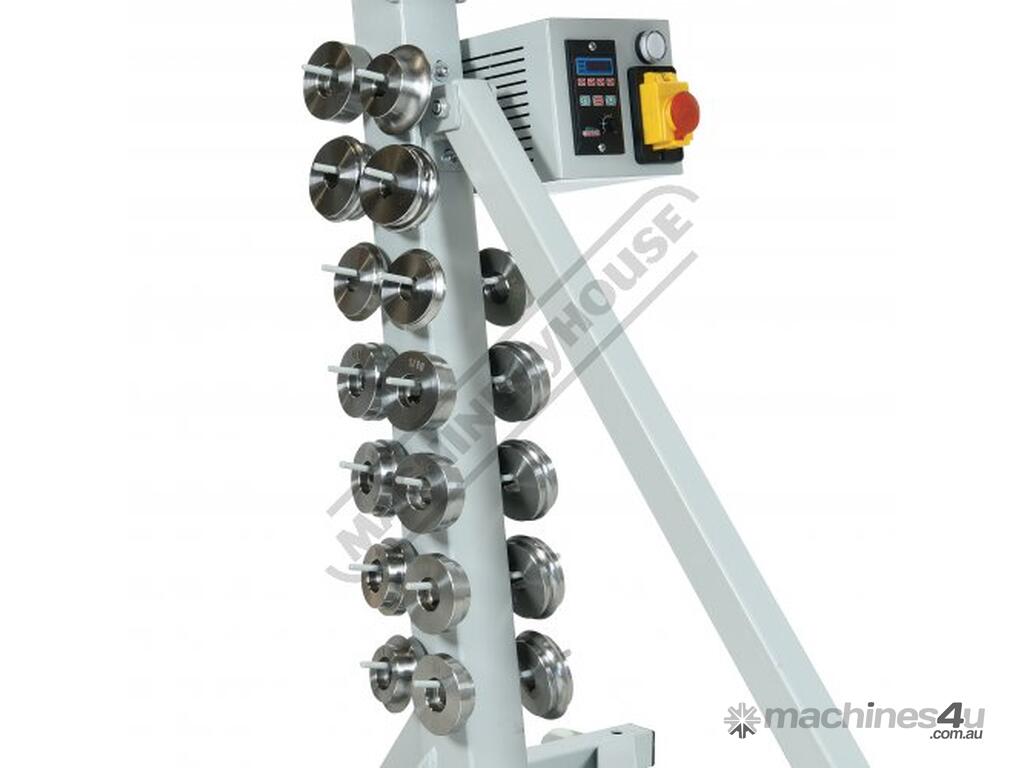

The MBR-1070XT also includes a stand that also stores the twelve sets of the most common rolls required by any metal forming automotive enthusiasts or professional.

Features:

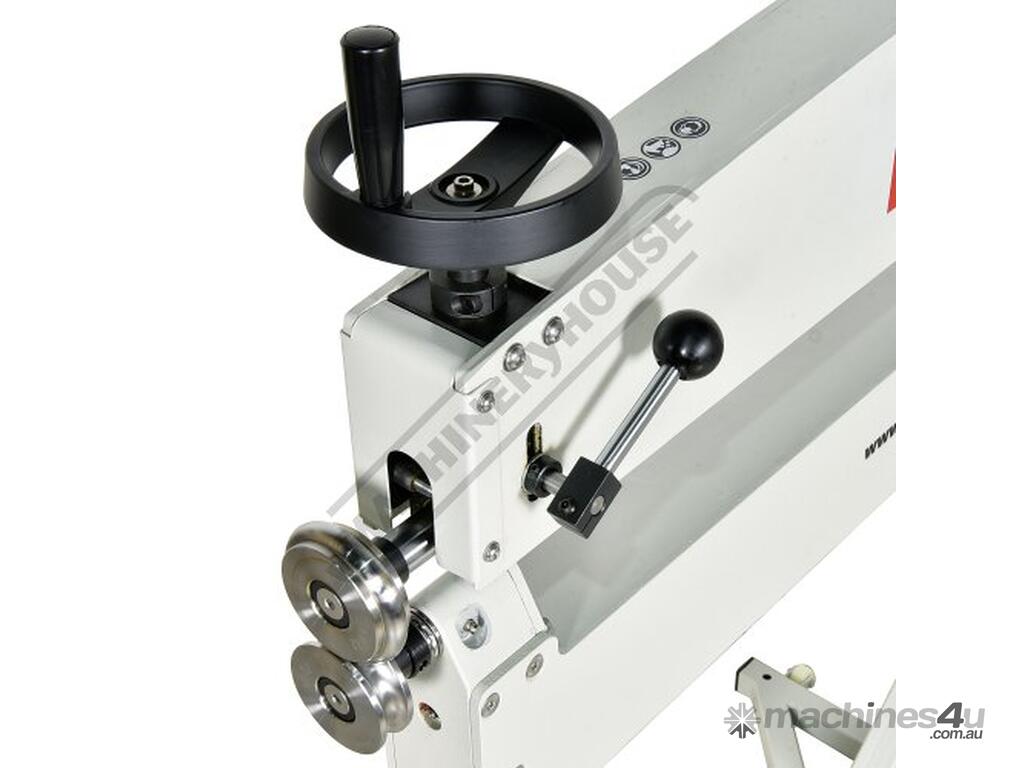

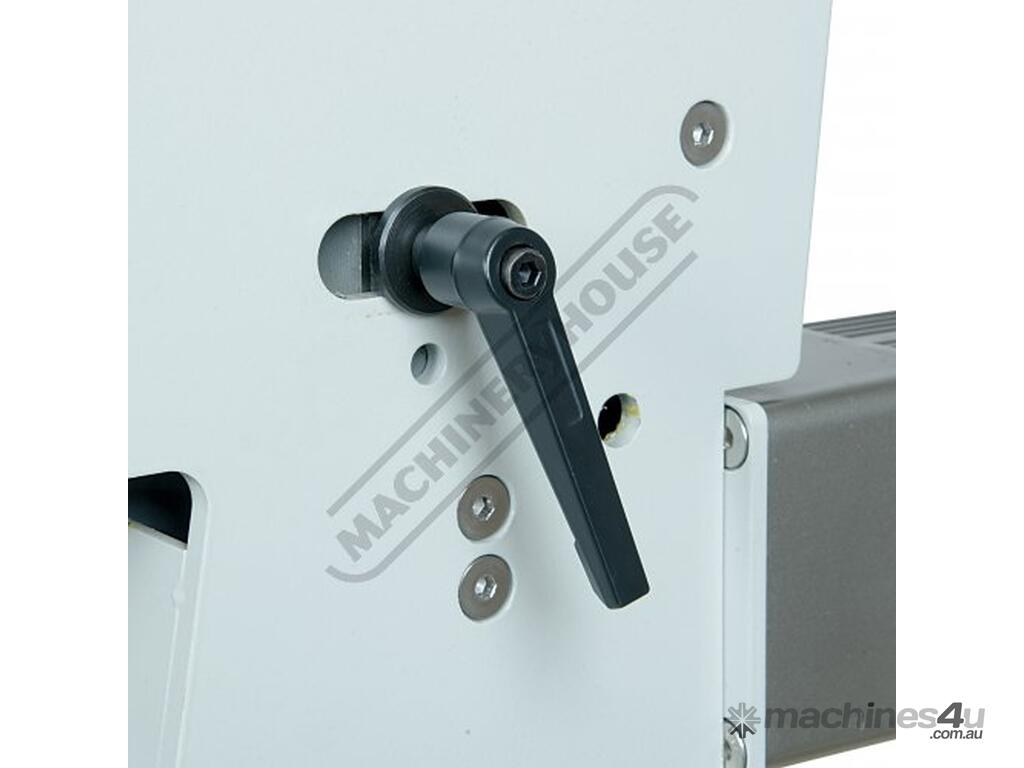

New quick release mechanism on the top shaft
1.2mm mild steel capacity with 1070mm throat

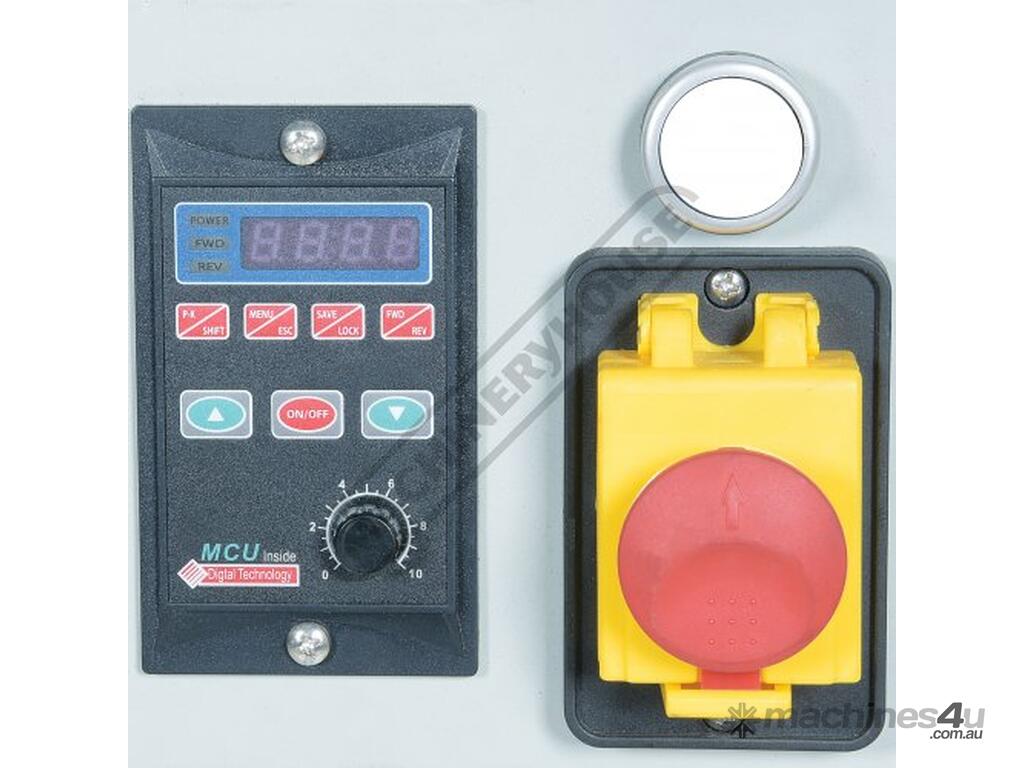

Variable speed dial for superior control on all applications

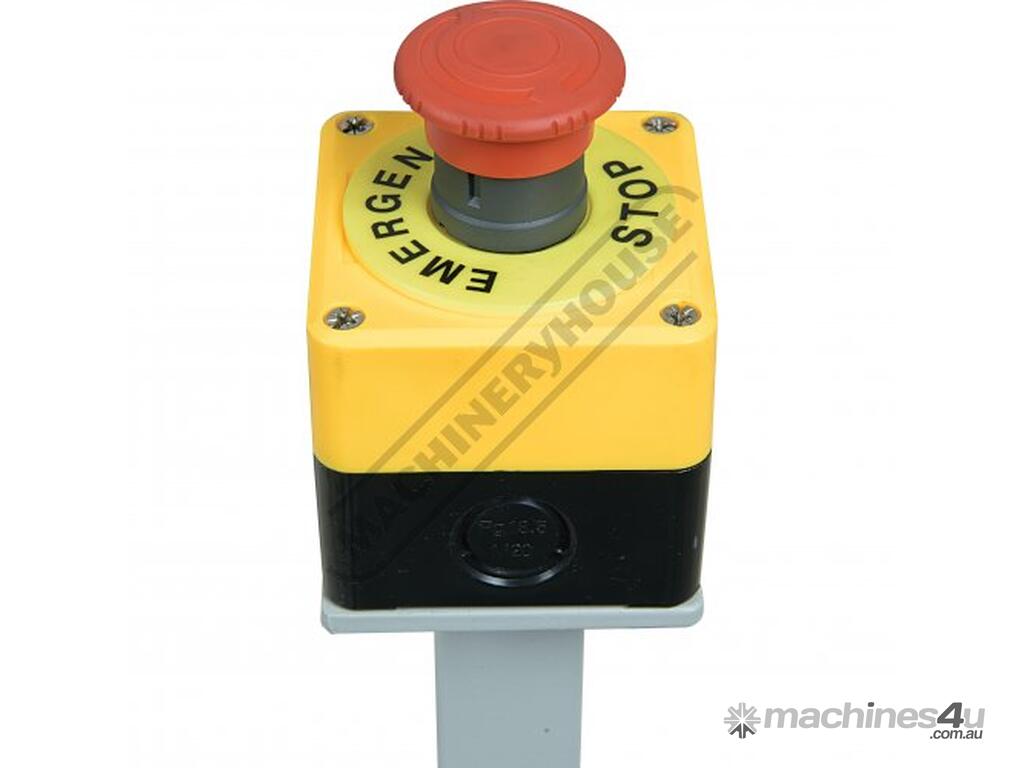

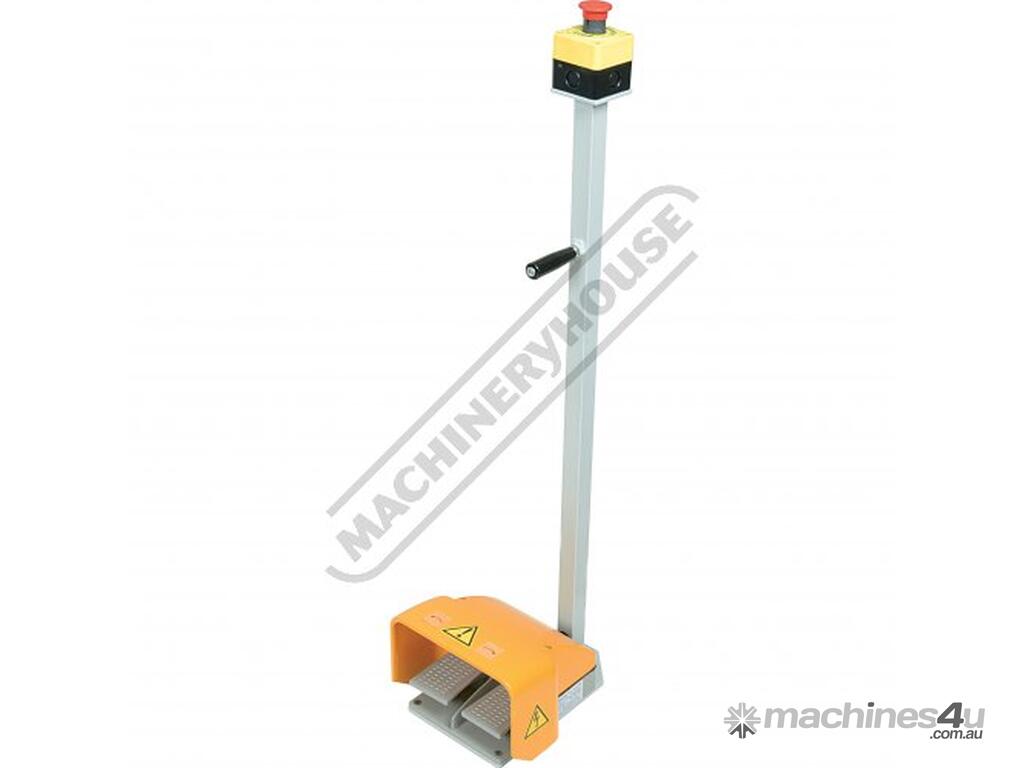

Forward / reverse foot pedal switches with emergency stop

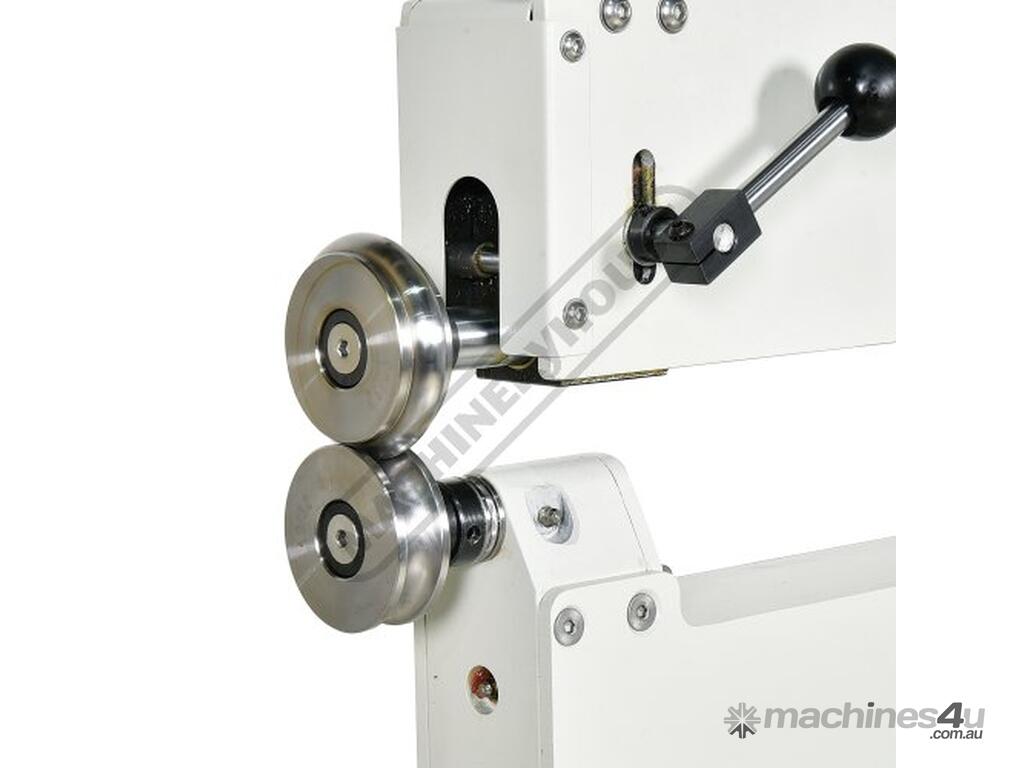

Ø70mm hardened & keyed rollers for positive drive
105mm gap height between roller support arms
Allows clearance of up to 80mm on 90º return bends
Heavy duty steel plate construction for increased rigidity
Top & bottom roller shafts are geared & electrically driven

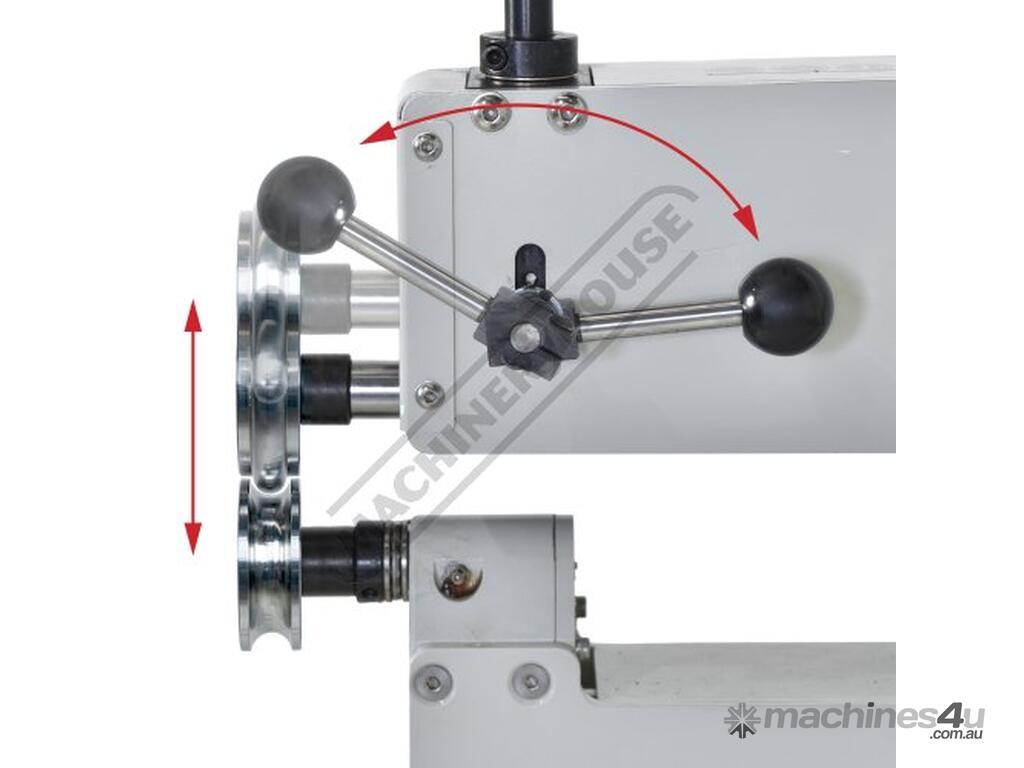

Adjustable top roller with 38mm of vertical travel

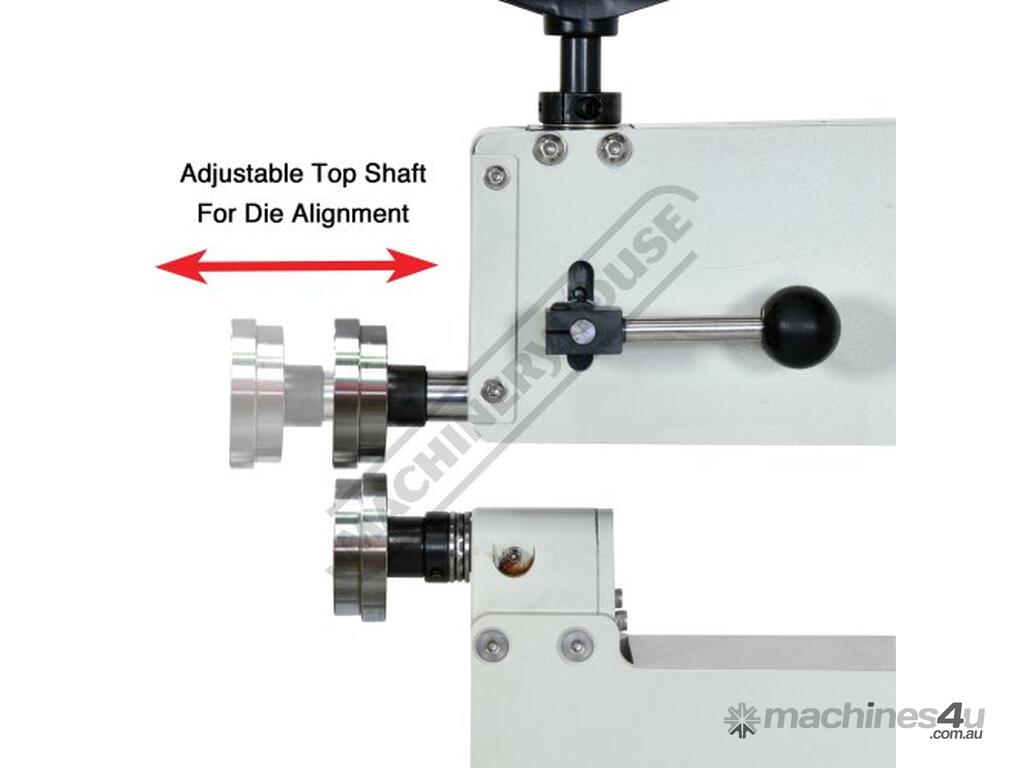

Top shaft adjusts horizontally to easily & accurately align dies
Ø25mm drive shafts with grease-able bronze bushes Ø20mm spigot for mounting rollers

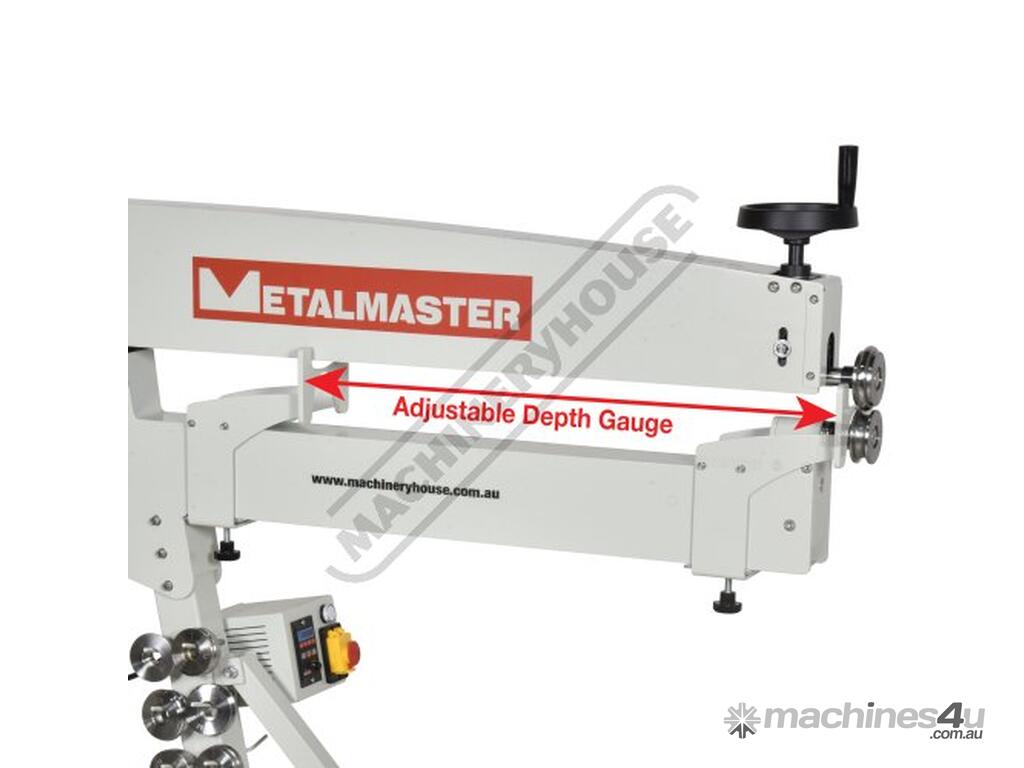

Adjustable material depth guide
0.25kW / 0.33hp 240V variable speed motor with reduction gearbox

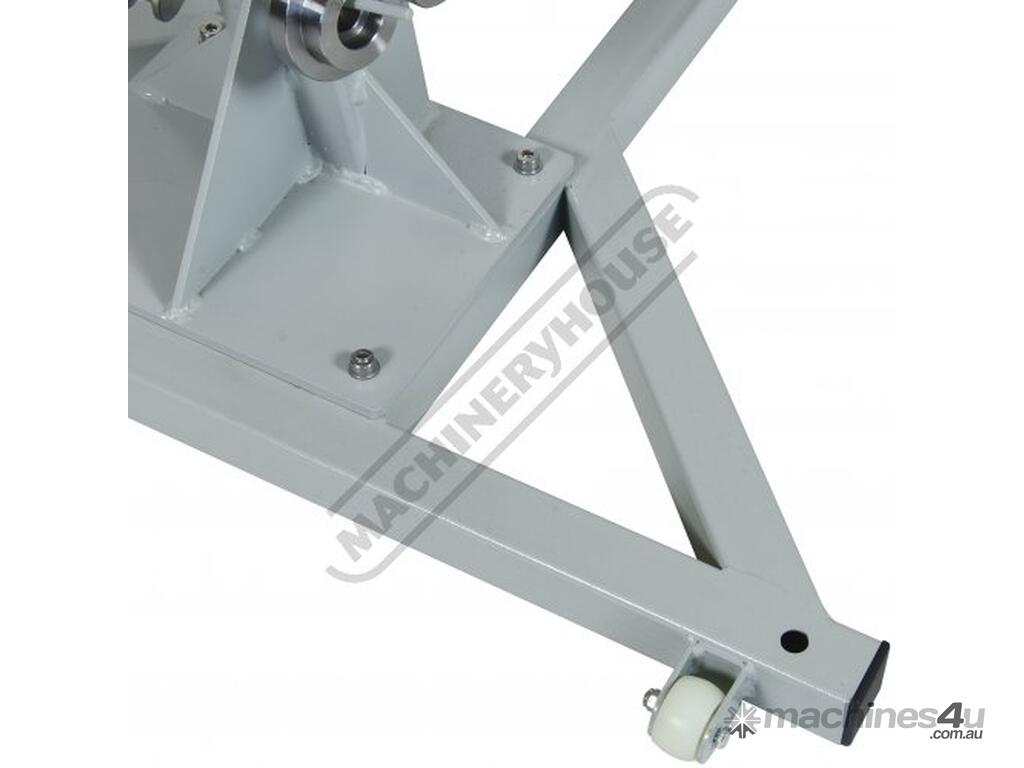

Fitted with two rear wheels to allow easy mobility
Includes a comprehensive range of rolls supplied as standard

Includes:

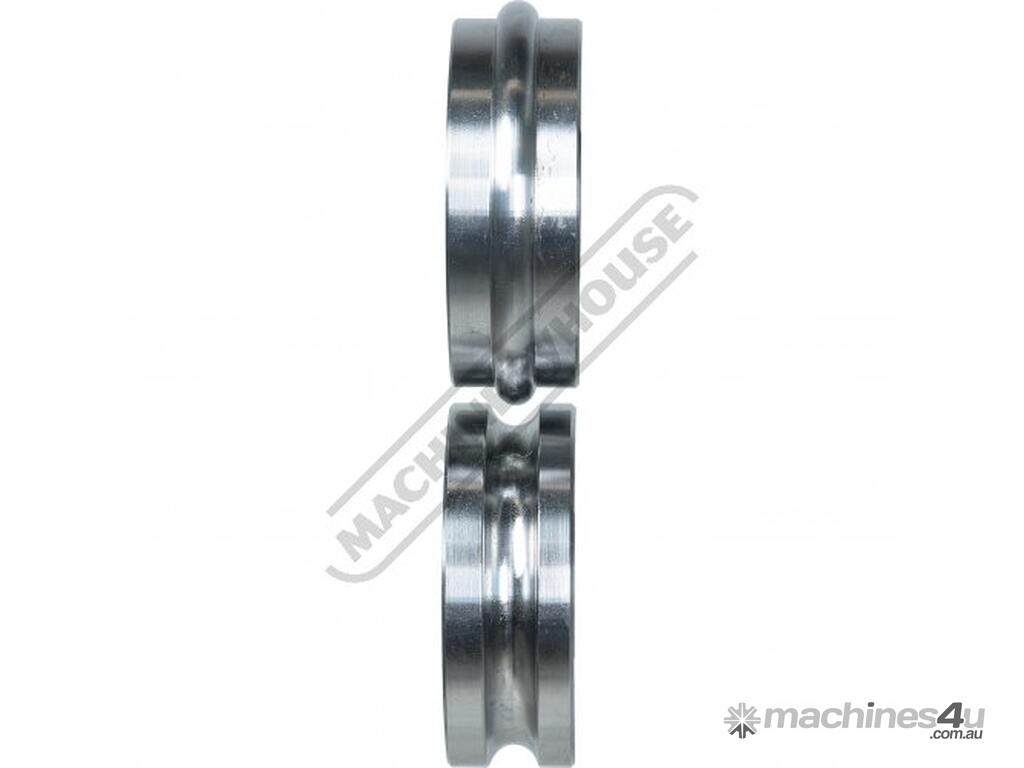

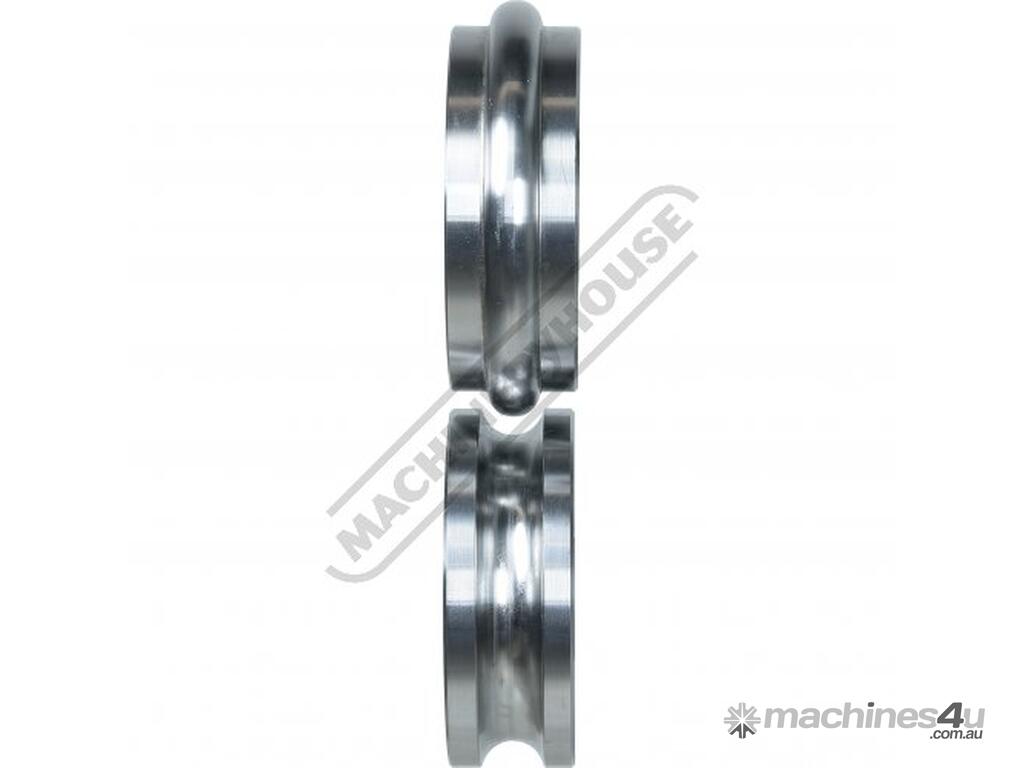

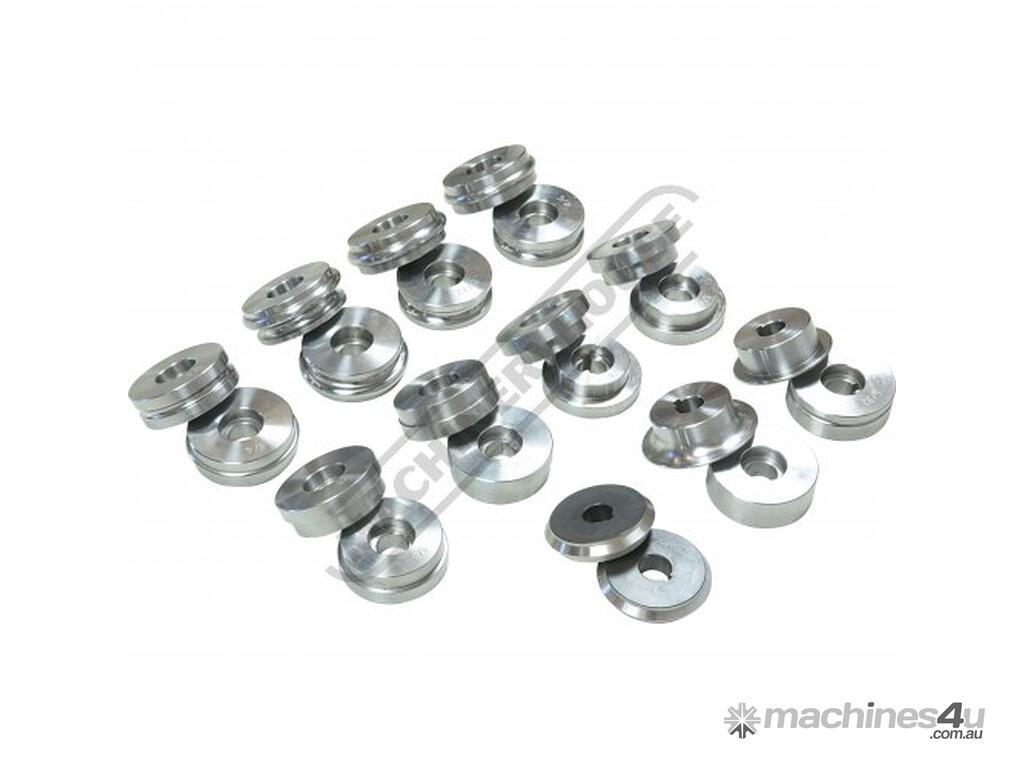

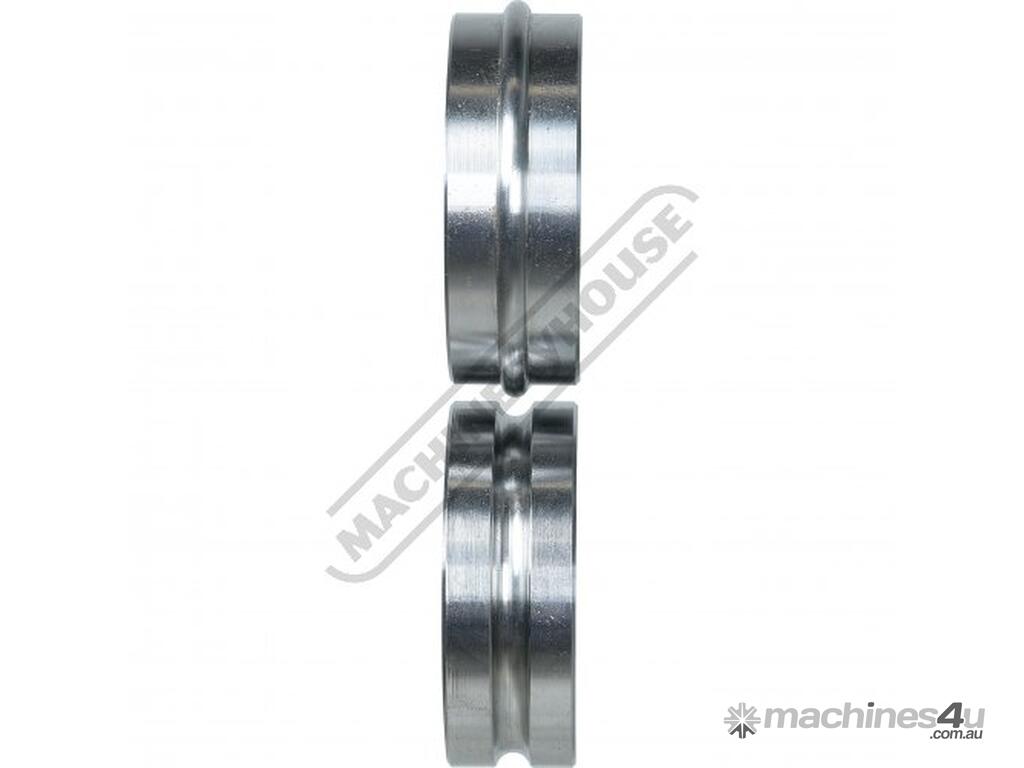

- 12 sets of hardened rolls (Ø20mm Bore):
- 5/32" (4mm) beading dies
- 1/4" (6.35mm) beading dies
- 3/8" (9.5mm) beading dies
- 15/32" (12mm) beading dies
- 19/32" (15mm) beading dies

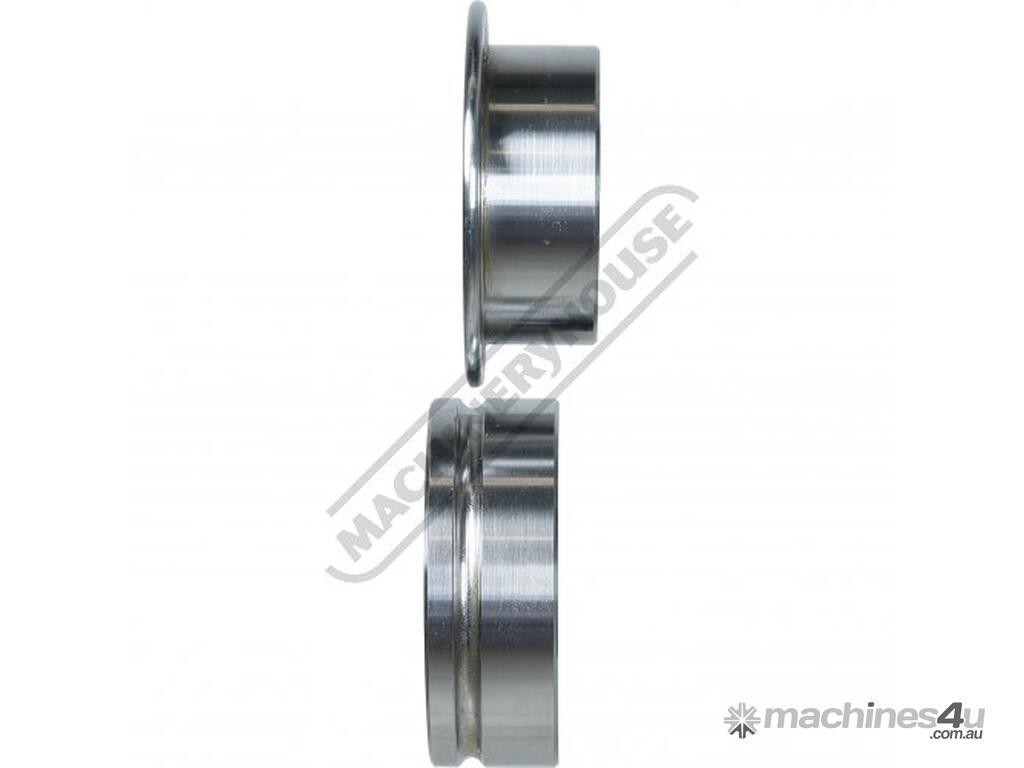

- 1/16" (1.6mm) flanging dies
- 1/8" (3mm) flanging dies
- 1/4" (6.35mm) flanging dies
- 3/8" (9.5mm) flanging dies
- Ogee beading dies
- Wiring dies
- Shearing dies



Specifications:
ORDER CODE: S634
MODEL: MBR-1070XT
Machine (Type): Bead Roller - Motrised
Mild Steel - Thickness Capacity (mm / Gauge): 1.2 / 18
Aluminium - Thickness Capacity (mm / Gauge): 1.6 / 16
Throat Depth Maximum (mm): 1070
Throat Height (mm): 105
Roll Diameter (mm): 70
Output Drive Speed (rpm): 0 - 18
Motor Power (kW / hp): 0.25 / 0.33
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 150
