General Features

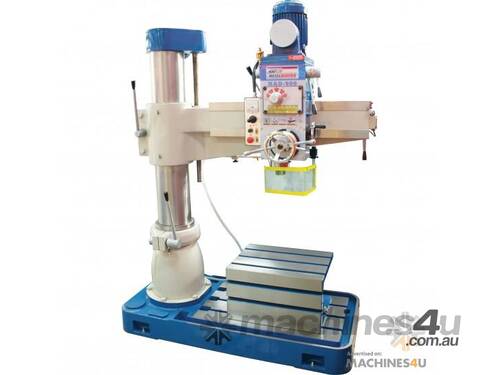

Precision Taiwanese manufactured radial drilling machines
4-way joystick control for motorised arm rise and fall and spindle direction forward and reverse
3 Speed auto down-feed: 0.05, 0.09, 0.15(mm rev)

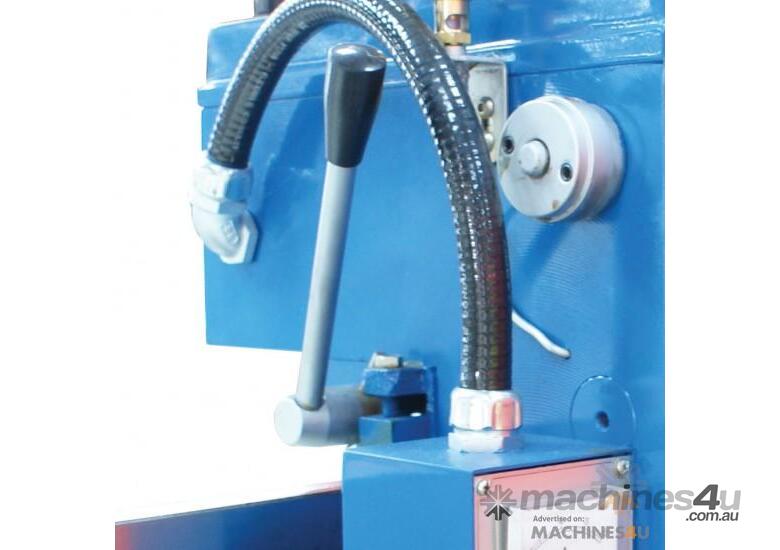

Coolant pump system with flexible hose
Amp meter providing direct reading of spindle during operation
Work light mounted underneath arm providing direct light on work piece
Oil-bath lubricated gear drive
Micro down feed hand wheel for quill
Safety micro switch located at end of arm
Wear strip on arm ensuring greater wear resistance whilst maintaining head rigidity
Quiet and smooth operation
For drilling, reaming and tapping
Reliability - sold for over 20 years
12 months warranty
Includes
12 months warranty

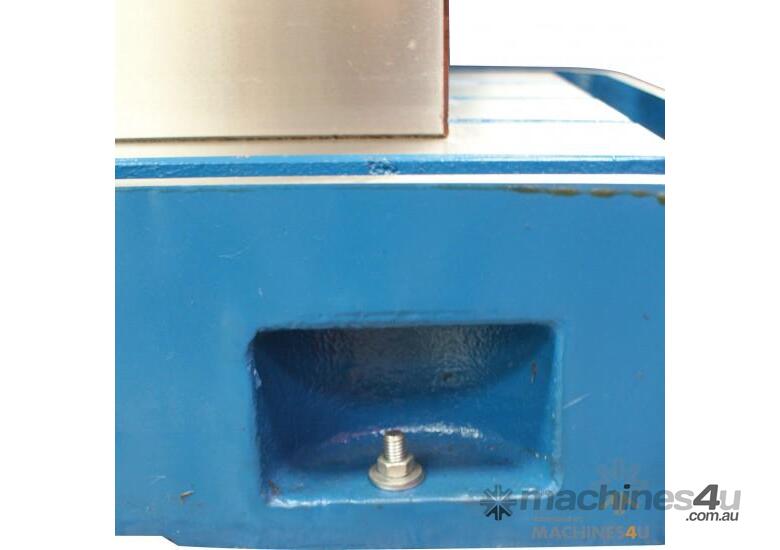

Heavy Duty Tee slotted Worktable
Coolant pump
Work light and toolbox
Specifications:
CODE:D165
MODEL:RAD-900
SPINDLE TAPER:4MT
THROAT CAPACITY:920mm
DRILL CAPACITY:38mm
SPINDLE STROKE:200mm

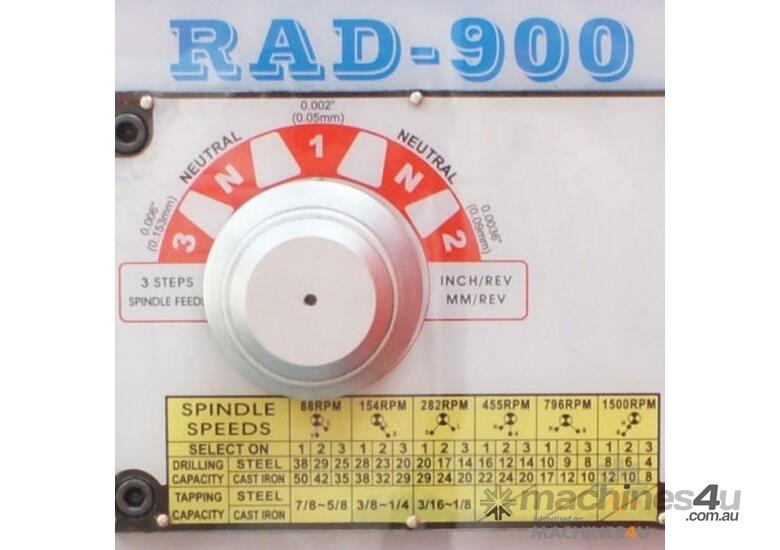

SPINDLE SPEEDS (RPM):6 (88-1500rpm)
SPINDLE FEEDS (mm/rev):0.05, 0.09, 0.15
MAX. DISTANCE (BASE TO SPINDLE NOSE): 1110mm
MIN. DISTANCE (BASE TO SPINDLE NOSE):282mm
SPINDLE MOTOR:2HP
MOTOR VOLTAGE: 415V
COOLANT PUMP:1/8HP
ELEVATION MOTOR:1HP
BOX TABLE SIZE (LxWxH):550 x 405 x 315mm
FULL HEIGHT:2175mm
WEIGHT (NETT):1270kg
all prices and specifications are subject to change
