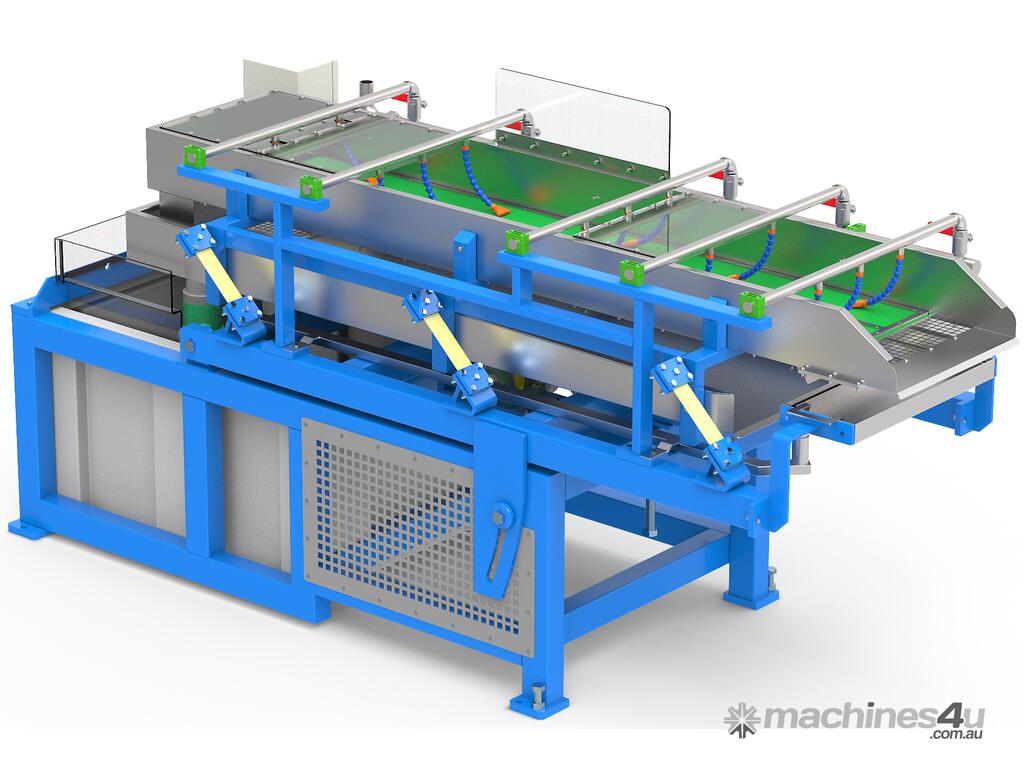

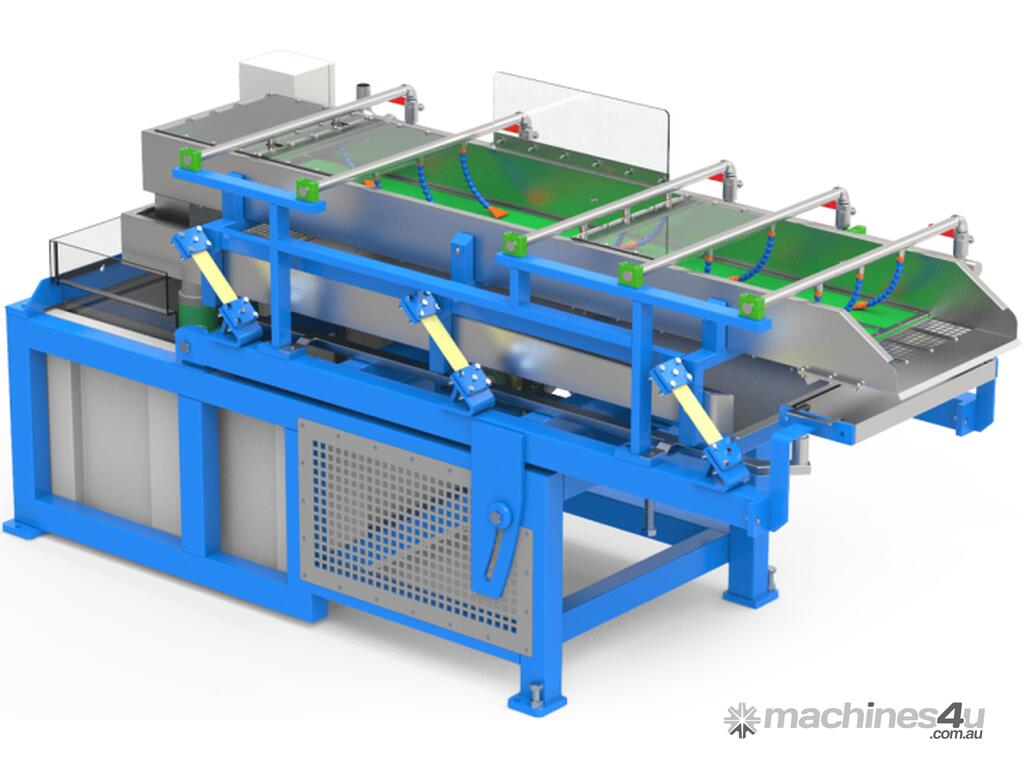

MM S2500-600 Wet Separator

Metal Marketing S2500/600 Wet Separator
When your output demands more, the S2500/600 delivers. With a 600 mm wide separation bed and 2500 mm table length, this mid-range model is purpose-built for operations that need higher throughput without sacrificing purity.
The double-bed design ensures maximum copper recovery — even from the most challenging hair wire and fine granule feeds — while the fully enclosed water circuit keeps operating costs low and your floor clean.
Key Features:

Throughput: up to 600–700 kg/hr (indicative)
Table size: 2500 x 600 mm
Double-bed design for high purity and minimal copper loss
Dual outputs: heavy fraction (upper) and light fraction (lower)
Closed-loop water recirculation with automatic float-valve top-up
Adjustable nozzle flow and table slope
No foundation fixing required
Applications: cable recycling, e-waste, radiators, batteries, automotive scrap, catalysts

Scale your separation capacity without compromise. Request a quote today.

Manufacturer Info:
It is primarily designed for use in recycling of waste cables (used to separate copper or aluminium particles from plastic ones), but because of its unique design it is also applicable for the separation of different particles (eg. the electronic waste, the recycling of automobiles and industrial radiators, the recycling of batteries, catalysts, or for the separation of any two particles of different specific gravity).

A new version with double beds enables high throughput of material with very high purity of the obtained fractions (copper) and copper loss is reduced to zero. The machine is equally efficient in the separation of the granules obtained by grinding of solid cable and granules of so called hair wire.
Unlike the dry separator, here in plastic there are no copper particles. Several companies bought it just to screen the plastic they got by recycling of cables with dry separator and thus additionally extracted copper from the plastic (up to 10%).
There are standard three sizes that can recycle 350-1000 kg of ground mass per hour, but on request there can be larger performances (the machine code is also the size of table).
The machine is extremely quiet and peaceful and is not it necessary to additionally be fixed on the ground (foundation). One can easily be built on your existing recycling line or we can offer you the cable granulator, and conveyor belt for material supplying from granulator to separator or from the separator.
