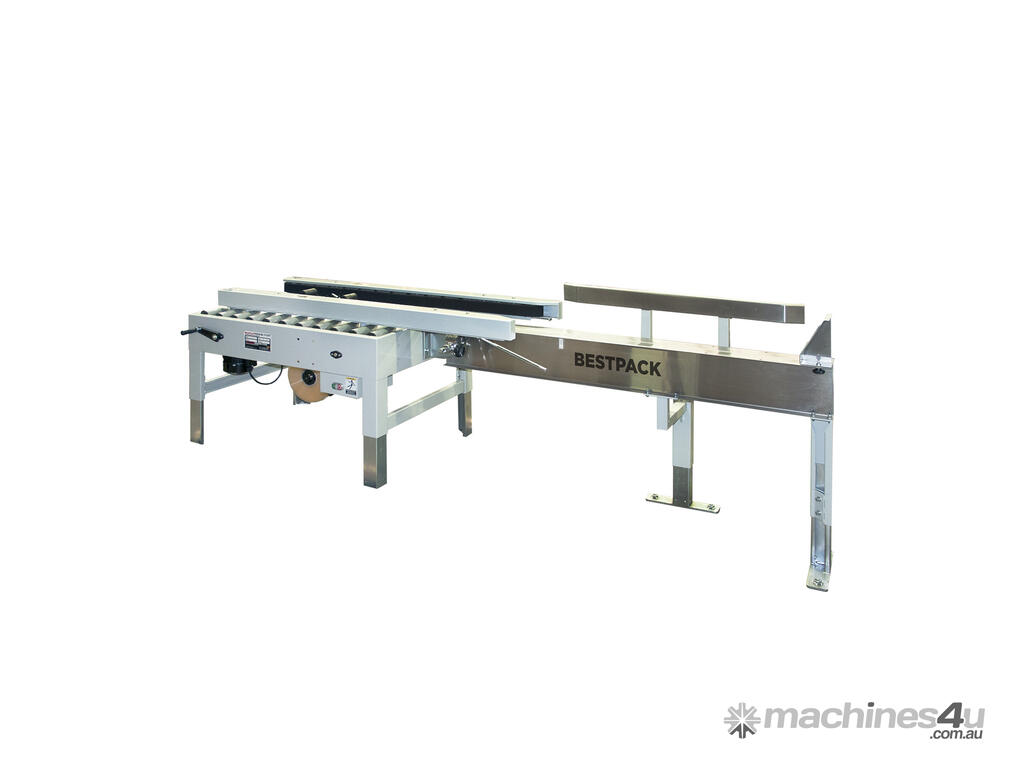

MSBFT Semi Automatic Uniform Bottom Sealer

The BestPack MSBFT Series is a uniform operator-fed, bottom carton sealer designed to reduce operator time and fatigue when folding & sealing the bottom flaps of a carton. Another advantage of using the MSBFT compared to hand taping, the quality of the seal and the appearance of the carton is greatly improved. This unit many times is used when carton-forming volume has become too large to manually form and tape the cartons completely by hand, but the volume is too small to justify a fully automatic carton erector/sealer.

Our MSBFT line incorporates our exclusive pop-out pressure-sensitive “High Speed” tape head with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

ERECTOR PROCESS
The carton erector has two stations. The first station folds the bottom flaps of the carton and the second station seals the bottom flaps and feeds the carton automatically on to a conveyor.


Category: Carton Sealers
Belt Drive: Side Belt Drive
MSBFT
Up to 15 cartons/min.

SpeedUp to 15 Cartons/min.
Power Requirements = 110 Volts 60 Hz
Air Requirements = N/A
Shipping Weight = 350 lbs.
Machine Dimensions = (99.6") x (28.4") x (29.4")
Carton Range = (7.8" - 23.6") x (7.8" - 19.6") x (4.0"+)
Conveyor Height adjustment = (23.5" - 30.0")
Specifications based on Line = Specifications based on MSBFT20-2

-------------------------------------------------------------------------------

General Information:-
All our machines come with strict quality control checks, and certificates issued to the machines come along with the machine despatch.
A one-year standard warranty is applicable to all our machines and models. We offer additional warranty and services upon request, so please contact us for further information.
All our sales, prices, and information strictly adhere to our terms and conditions. Please contact us and demand the terms and conditions information document. Customers can also visit our for more information.
Our skilled service engineers and technicians are available to come to your site for machine installation and training. We have the capability to keep your machine operational at all times with on-time spare parts delivery, whether they are general consumables or critical.
We continuously enhance our capabilities and provide support to our customers, fostering strong relationships with them.

*Please note* that prices may vary slightly due to international foreign exchange rates. For the final product quote, kindly contact our sales team.
