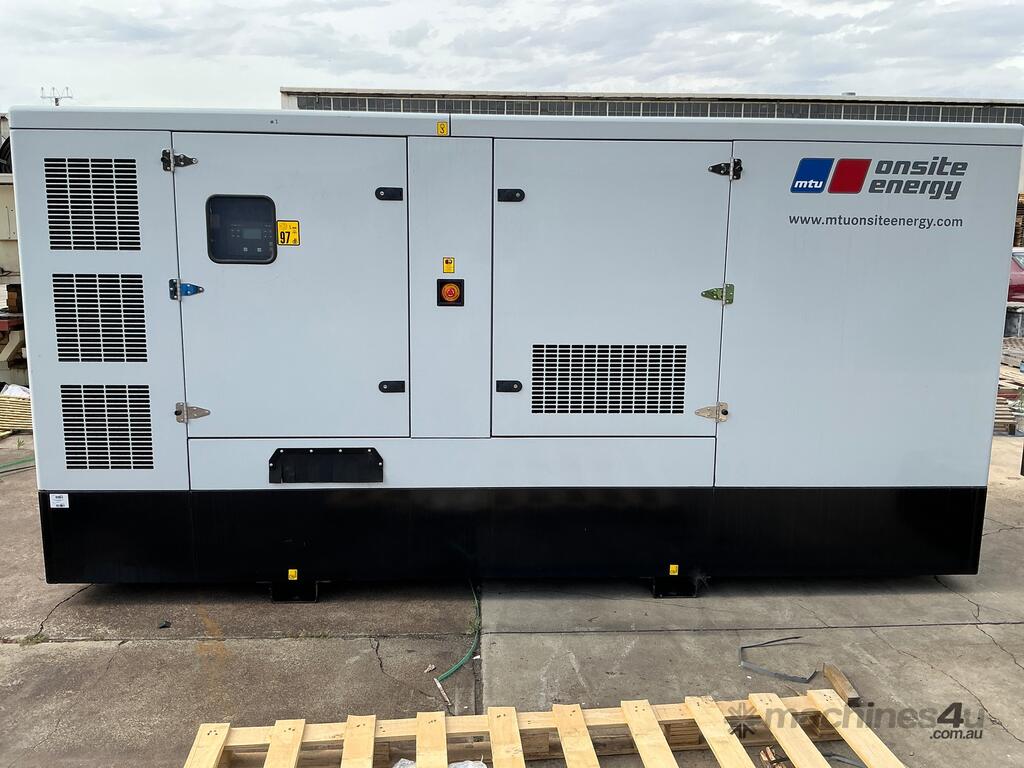

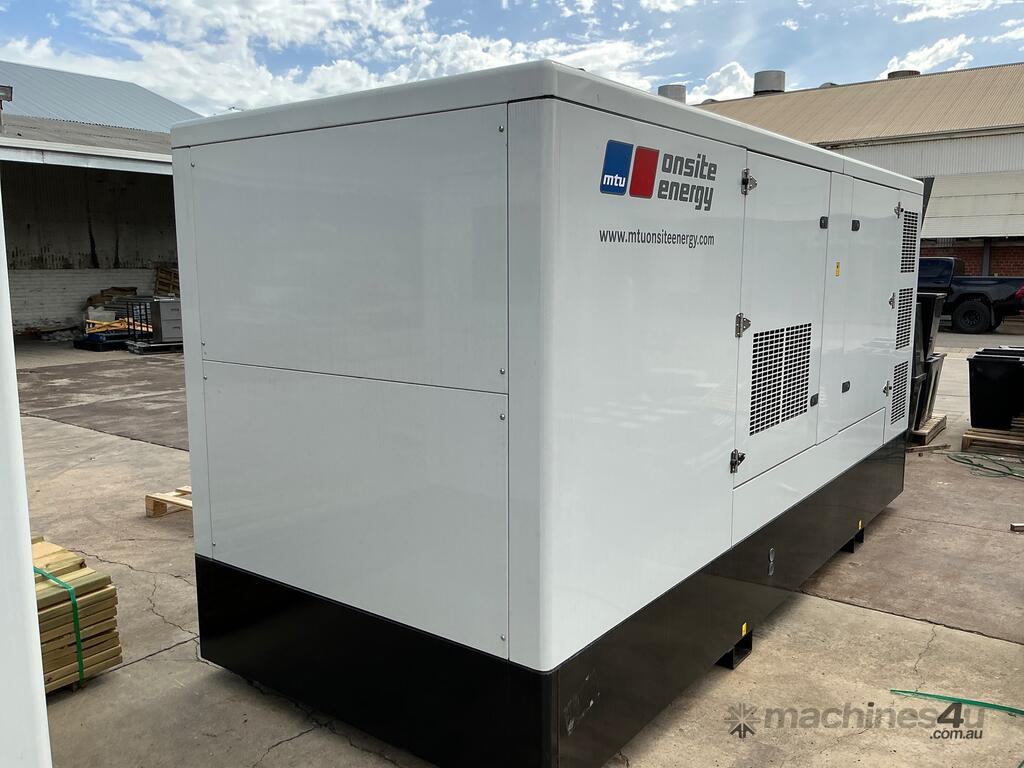

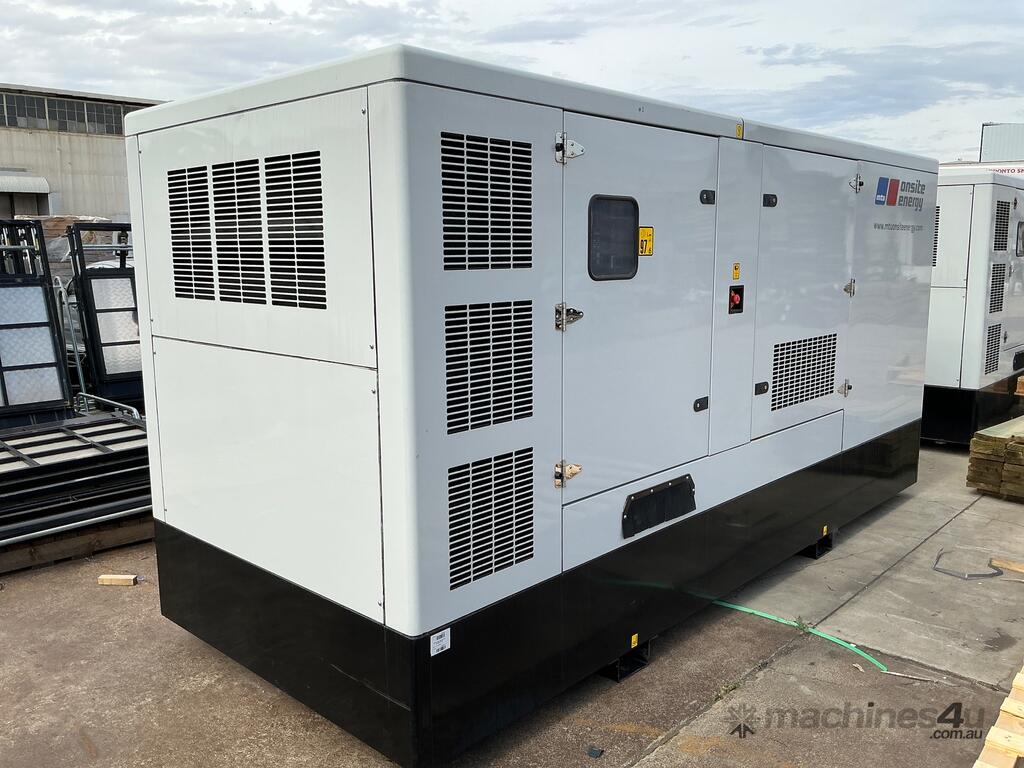

The MTU 6R1600 DS330 is a reliable diesel generator set engineered by Rolls-Royce Power Systems under the MTU brand, primarily for standby and prime power. IT incorporates the Series 1600 inline 6-cylinder paired with a high-efficiency brushless alternator, delivering a standby rating of 330 kVA (264 kW) at 50 Hz and 415/240 V (three-phase, four-wire system, power factor 0.8 lagging). This unit is characterized by low fuel consumption, exceptional load acceptance, extended service intervals, and adherence to ISO 8528 G3 performance standards.
Hours 67.2 Approximate Reading
Date of Manufacture - 15.01.18 - Made in Spain

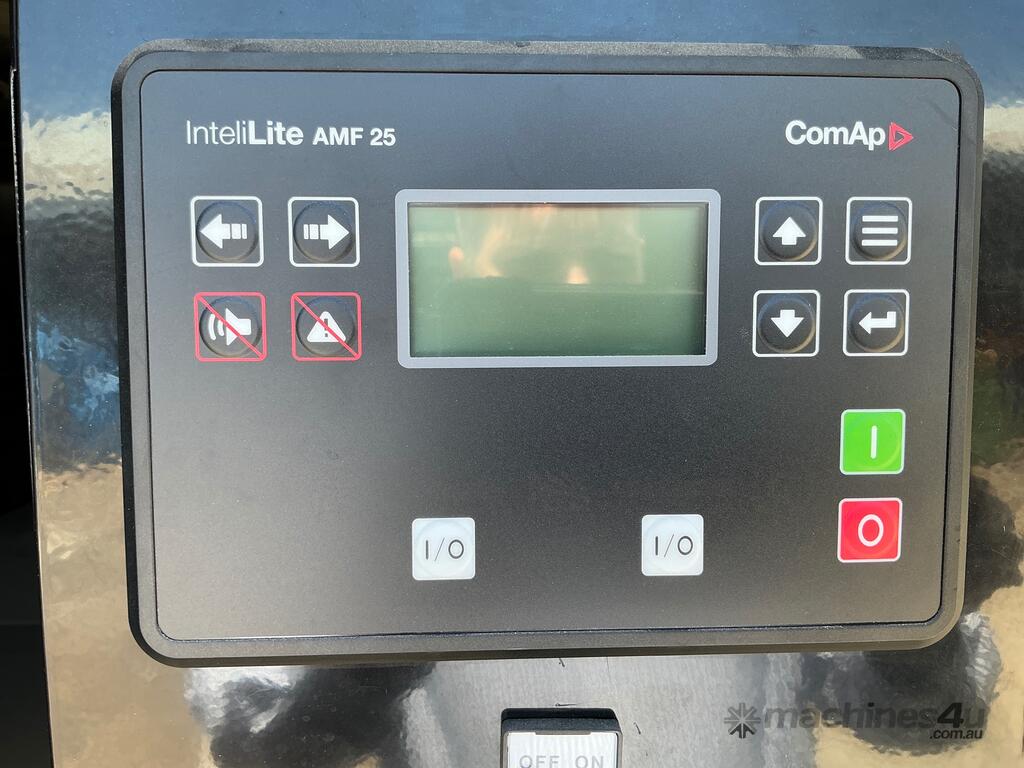

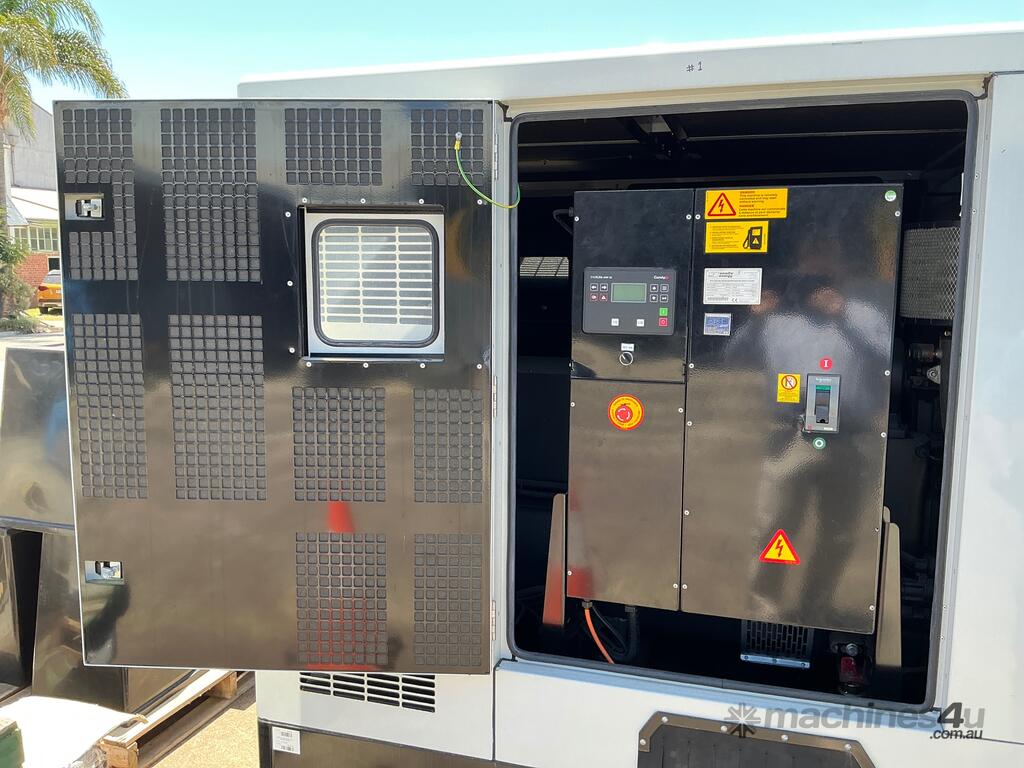

Installed with ComAp InteliLite AMF 25 cCcontrollers

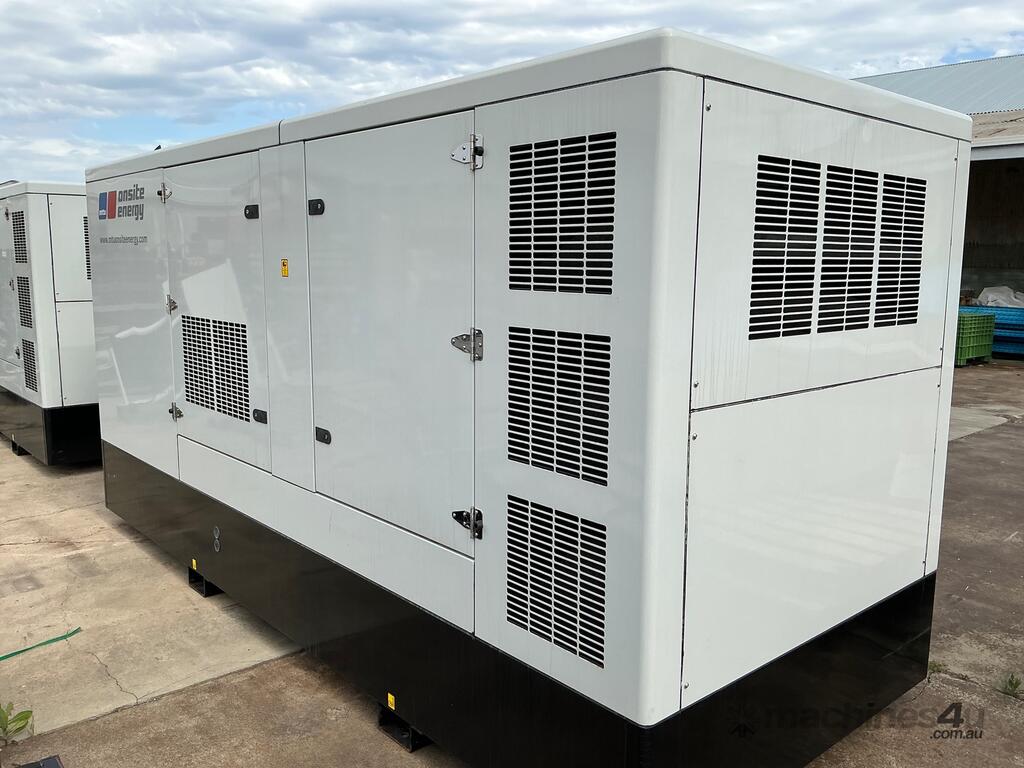

Weight 4500 kg. Dimensions: 4.2m Long x 1.7m Wide x 2.2m Tall
with Set of Keys

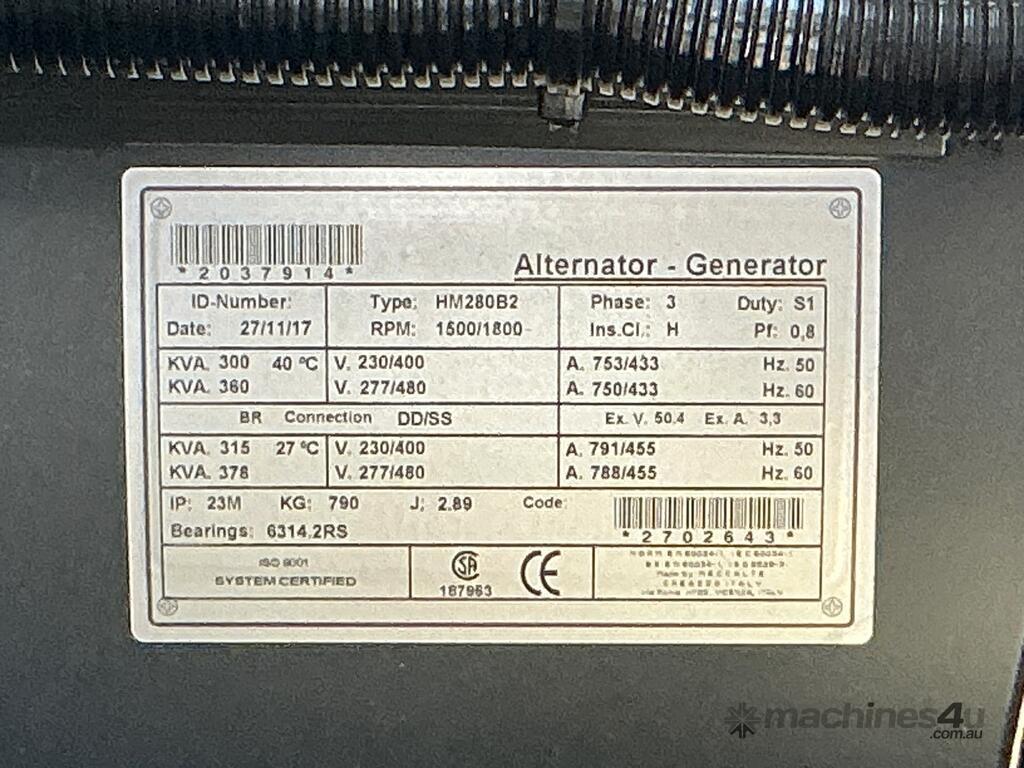

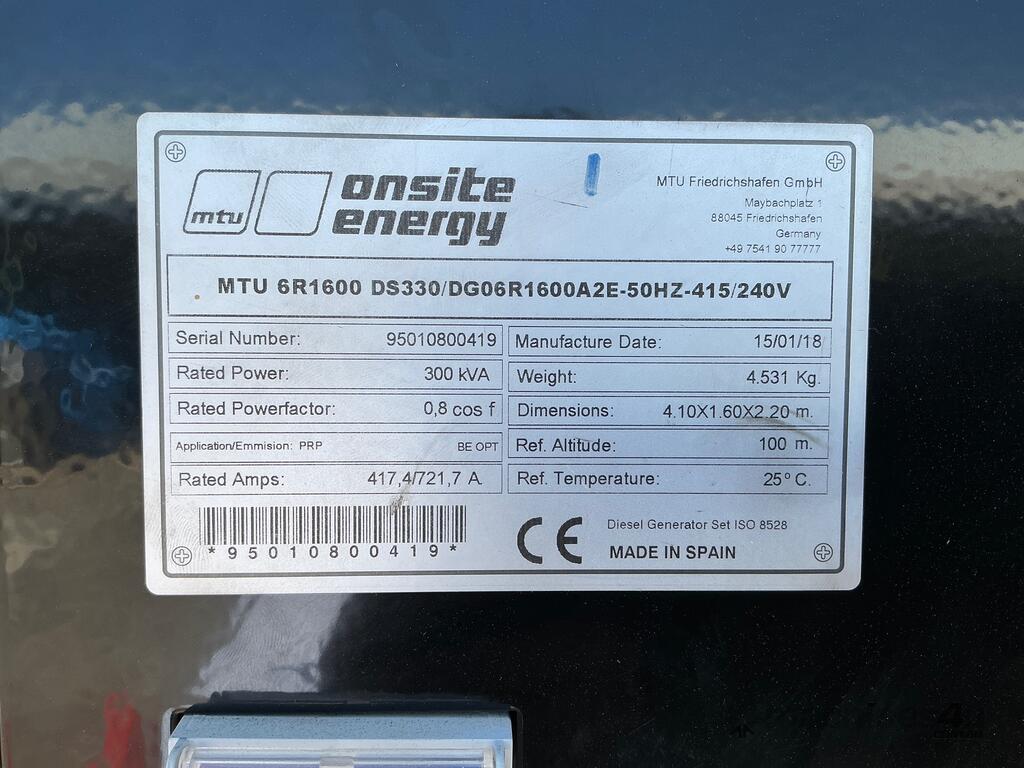

The following information is based on publicly available information for a MTU 6R1600 Ds330 generator, while effort has been made to display accurate information, the buyer is informed to do their own research based on MTU production plate information showed in the photography.
Parameter
Specification

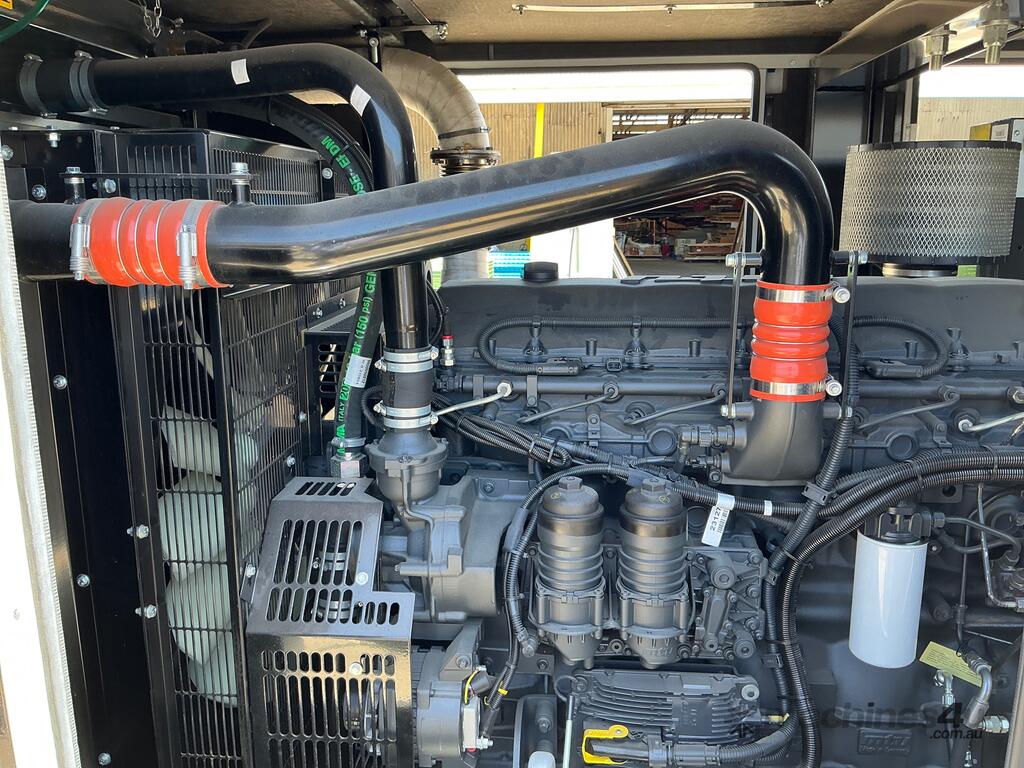

Engine Model
6R1600G80F
Cylinder Configuration
Inline 6-cylinder
Displacement
10.5 L
Bore × Stroke
122 mm × 150 mm
Compression Ratio
17.5:1
Rated Speed
1500 rpm
Aspiration
Turbocharged with charge-air cooling
Fuel System
Common-rail injection (EN 590 compliant; supports HVO)
Governor
Electronic (ADEC/ECU)
Emissions Optimization
EU Stage IIIA (or equivalent)
Parameter
Specification
Standby Rating
330 kVA / 264 kW (at 0.8 pf)
Voltage / Frequency
415/240 V / 50 Hz
Alternator Type
Brushless, self-excited, single-bearing (e.g., Mecc Alte or equivalent)
Enclosure Rating
IP23
Insulation Class
H
Voltage Regulation
Electronic AVR (±1%)
Application
kVA
kW
Notes
Standby Power
330
264
Unlimited hours, average load factor ?85%
Prime Power (typical)
~300
~240
Continuous operation with variable load
Load Level
Approximate Consumption (L/h)
Specific Fuel Consumption (g/kWh)
100%
69-72
~193
75%
~55-58
~190
