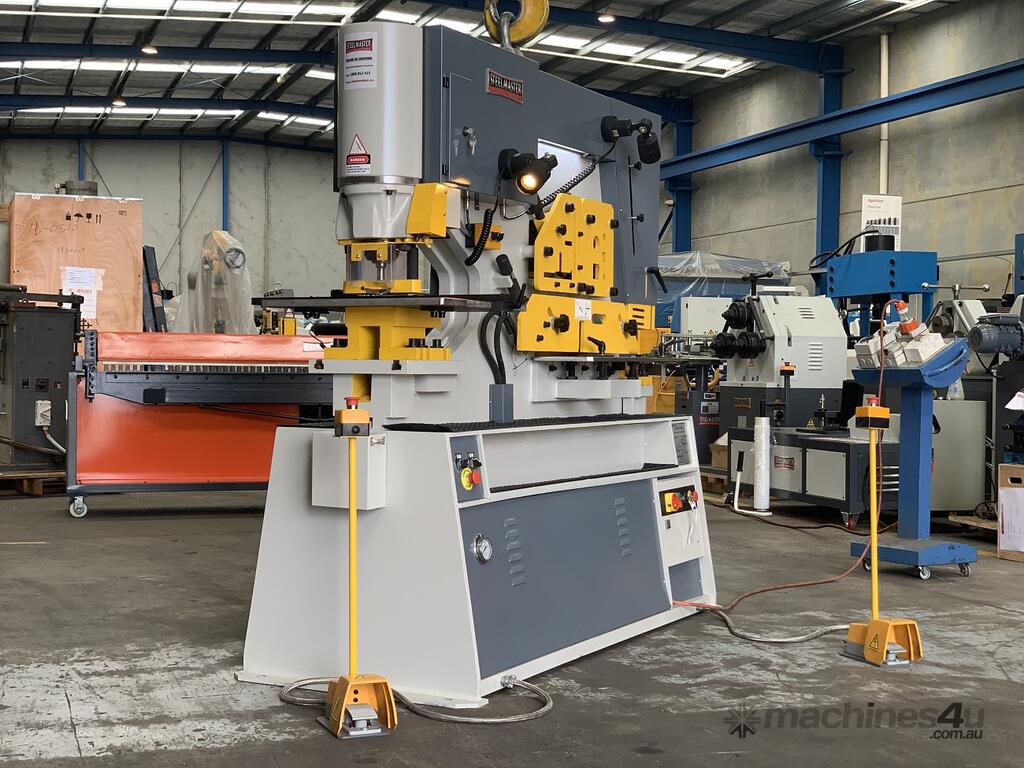

MULTI 95 Ton Twin Cylinder Punch & Shear - Hydraulic Clamping - 10 Sets Tooling

RRP $26,850.00 + GST
##SPECIAL PRICE $24,850.00 WHILE CURRENT STOCK LASTS##
BEST IN THE MARKET!

## INCLUSIONS AS NOTED BELOW ##
* 450mm Deep Punching Throat.
* 500mm Pressbrake Bending Attachment Inc
* 10 Sets Kingsland Tooling Included
* Laser Line Punch Marker

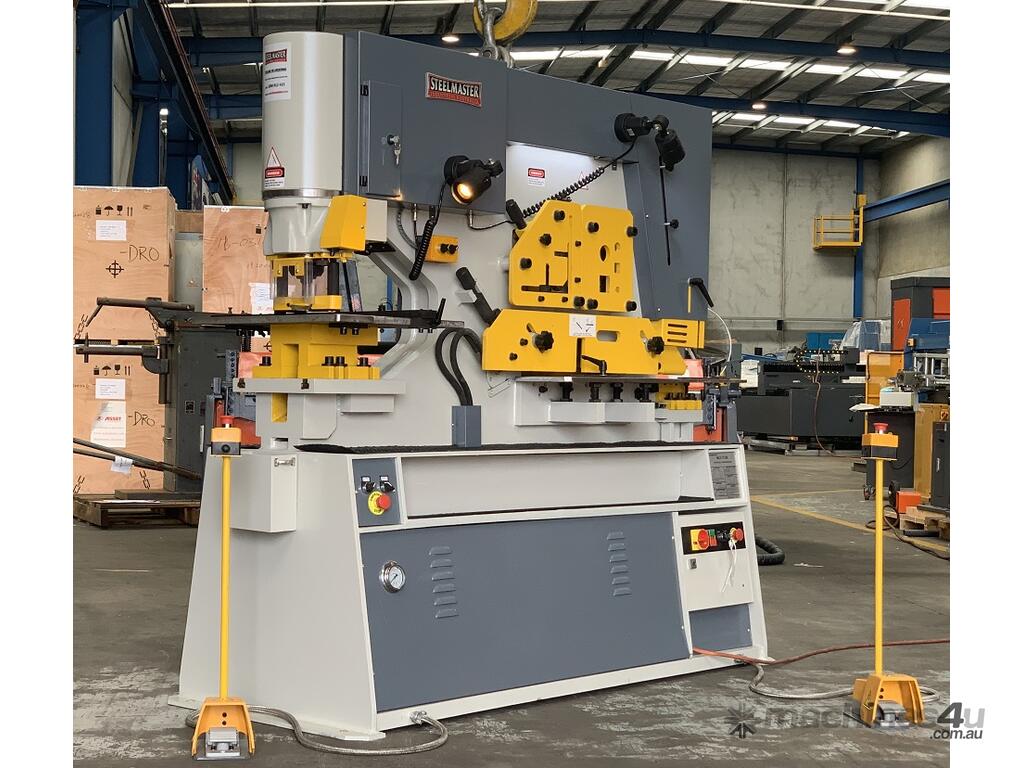

MULTI 95. Punch & Shear. Steelmaster 95Ton Hydraulic Double Cylinder, Punch, Shear. Crop & Notch.10 Sets Tooling, 450mm Deep Throat, Laser Guide, Hydraulic Shear Clamping, Pressbrake Attachment.
Description
This true Industrial strength Ironworker is your perfect partner in metalworking fabrication.
If you fabricate with steel, you’ll want one of these Punch & Shears working for you.

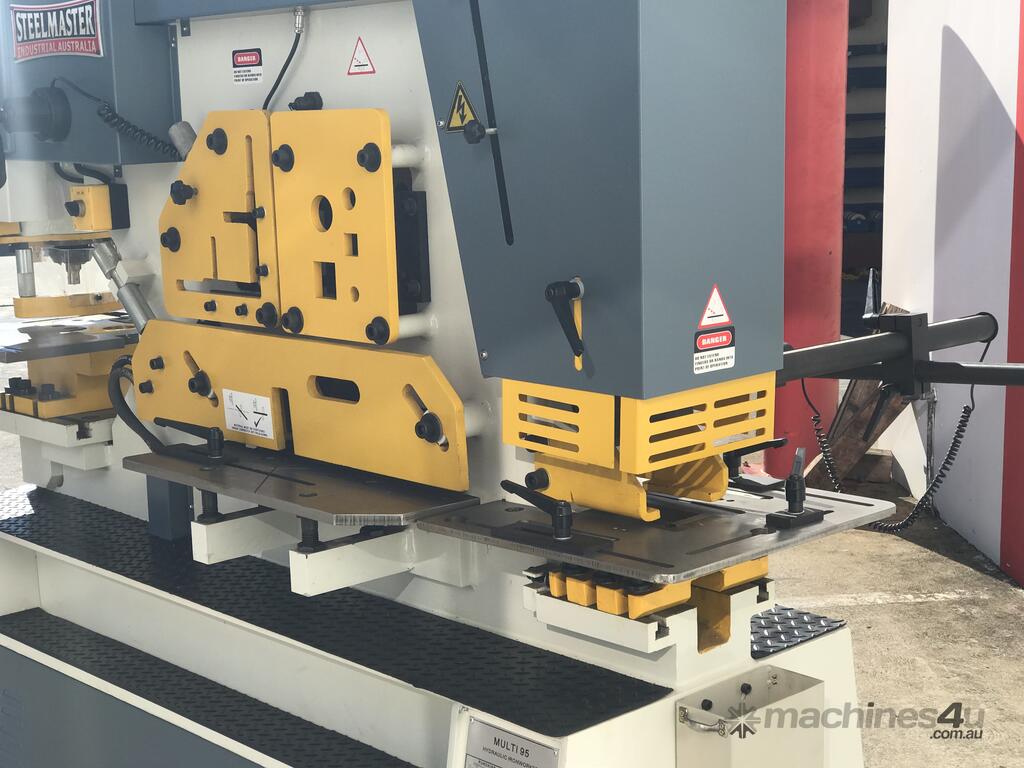

With five independent stations for punching, flat bar shearing, notching, angle cutting and section cutting, you’ll appreciate the convenience and labour savings over traditional methods. A work auto cut length stop is included for cutting uniform parts to length and a safety foot pedal makes operation extremely easy. Production tooling pack also supplied with 10 complete sets of round punch and dies along with a multi vee Pressbrake attachment for bending applications.

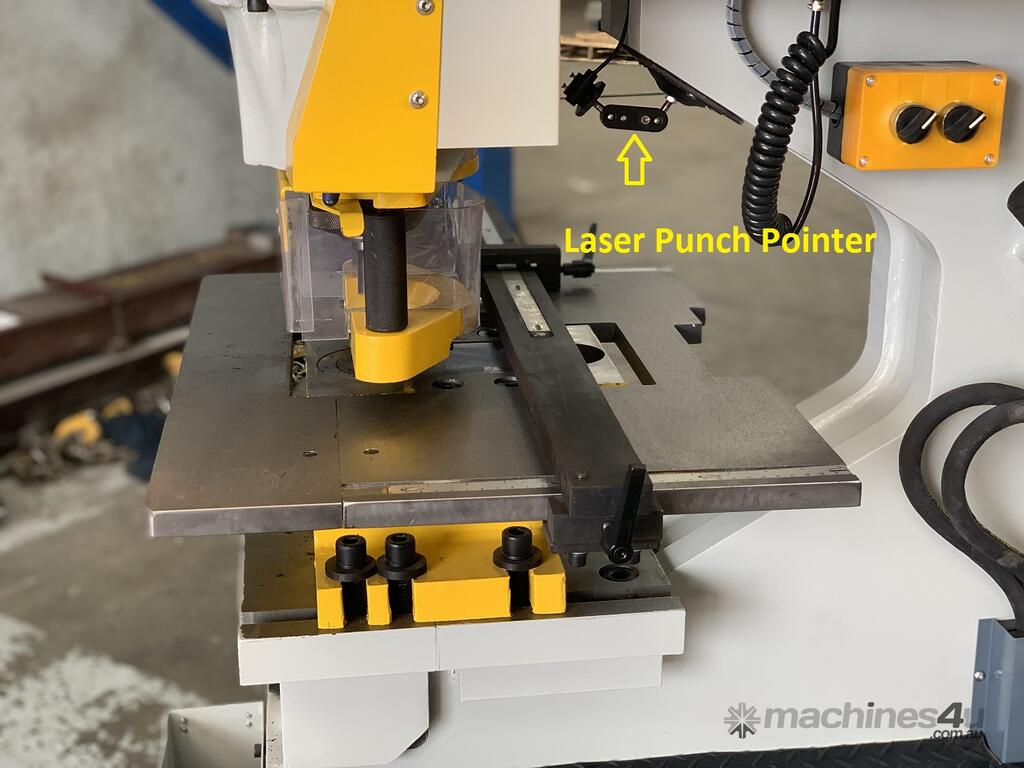

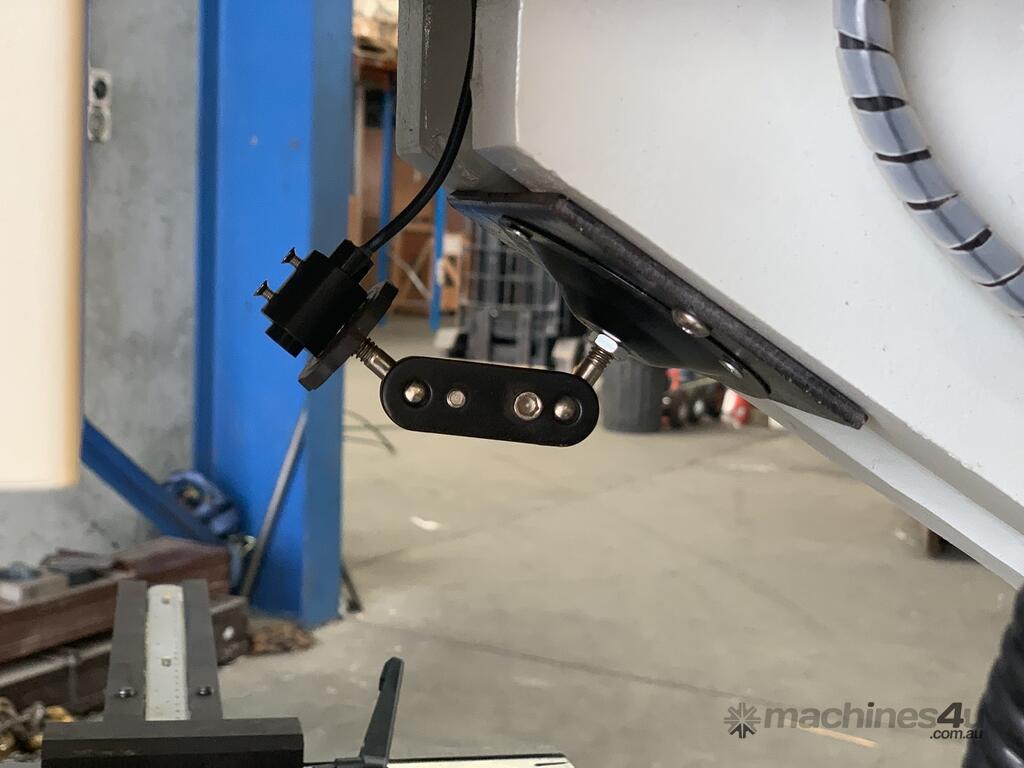

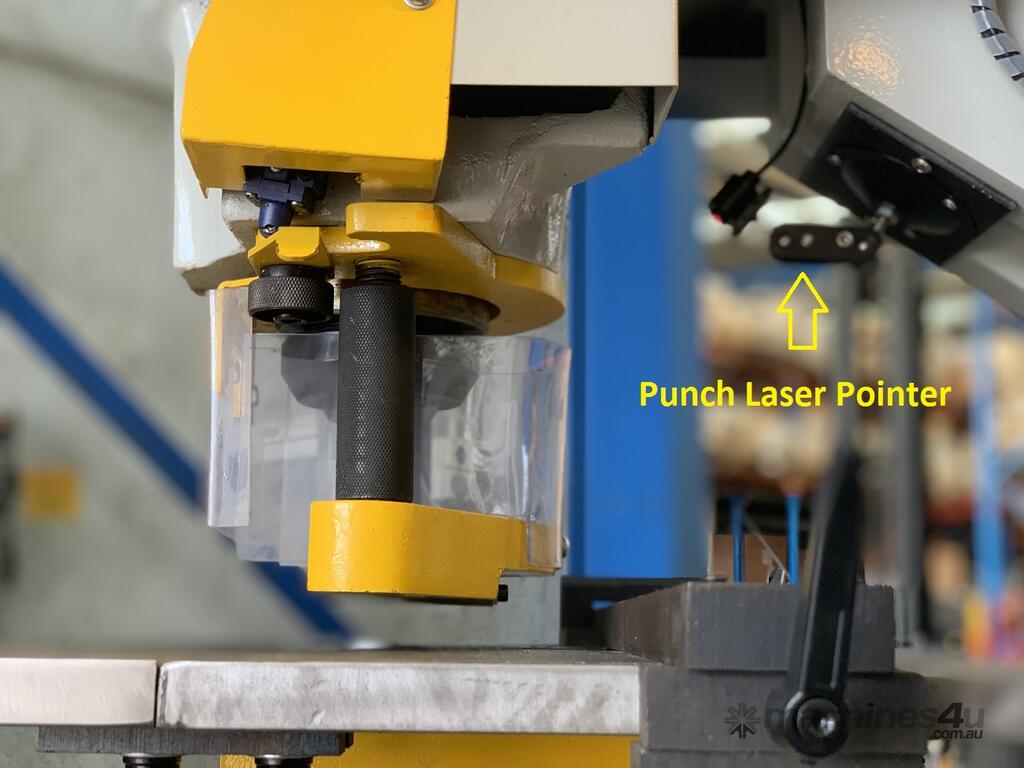

Now also included we have added laser punch guide for easy alignment!

Features
-double cylinder hydraulic punch & shear machine
-hydraulic flat plate shear clamping now standard

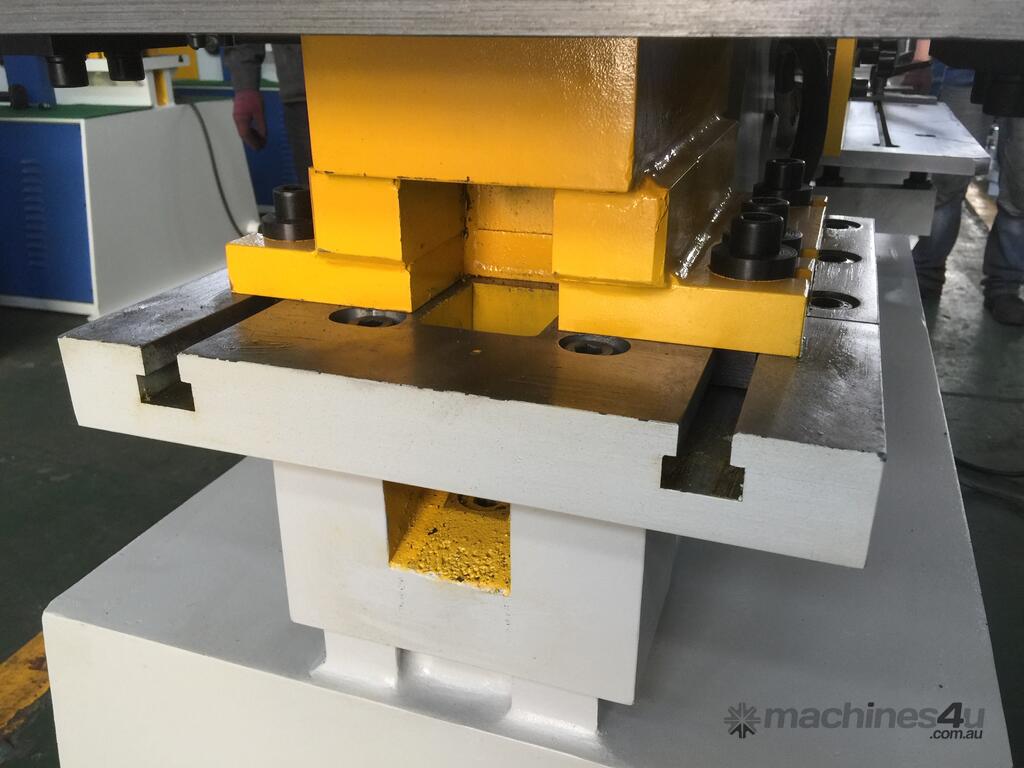

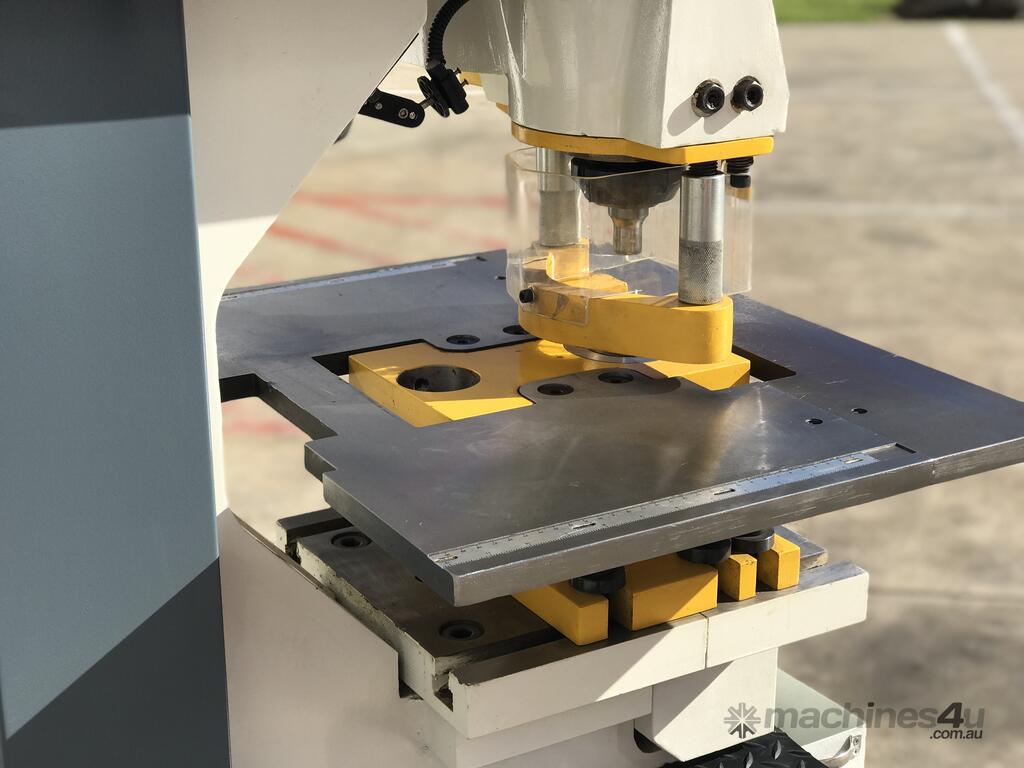

-large punch table with multi-purpose bolster, removable table block for overhang channel / joist flange punching applications
-swing-away punch-stripper unit
-two universal bottom die holders included

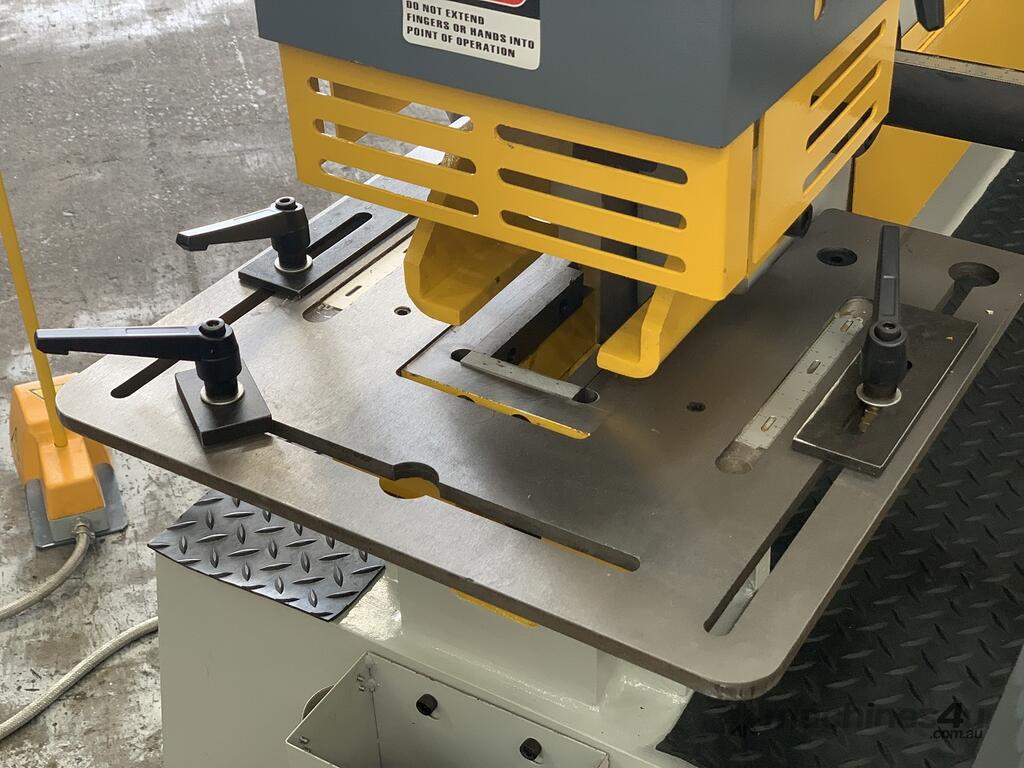

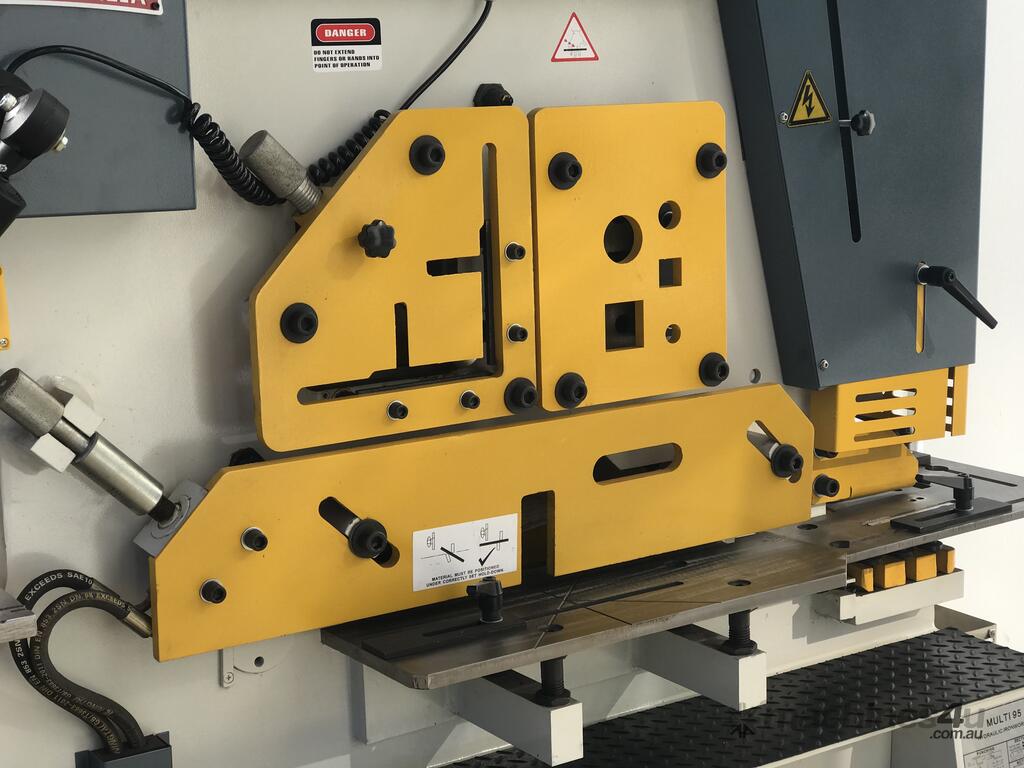

-hydraulic clamp assist flat plate shearing station with square & angle guides

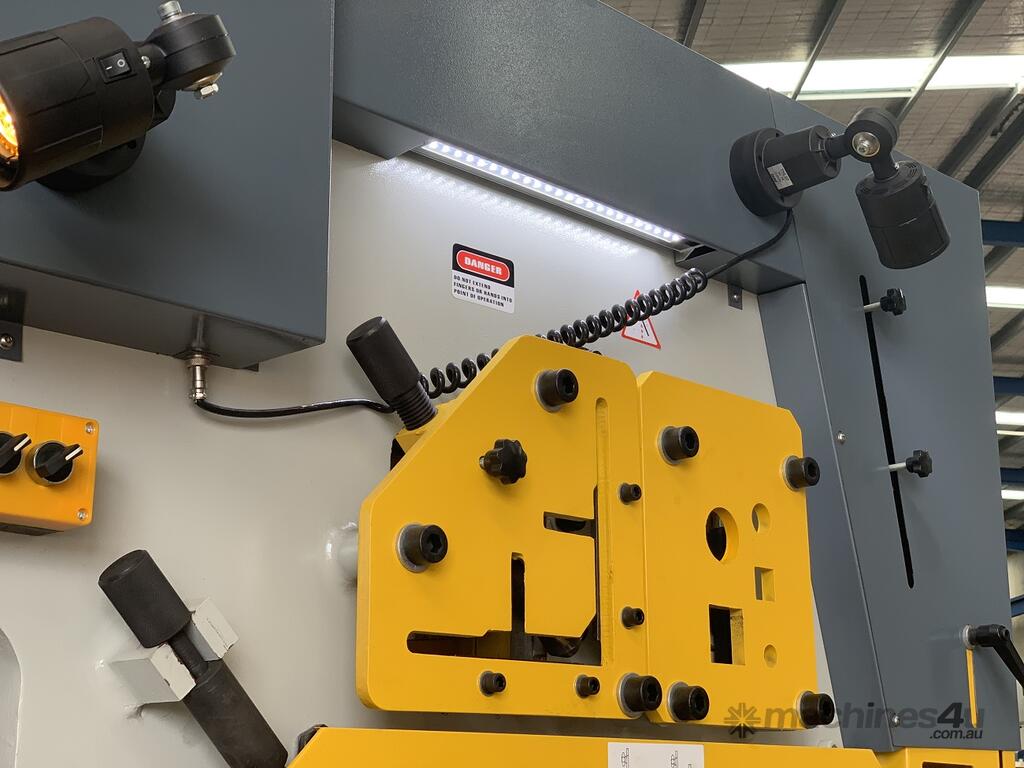

angle cropping station
-round and square solid cropping station

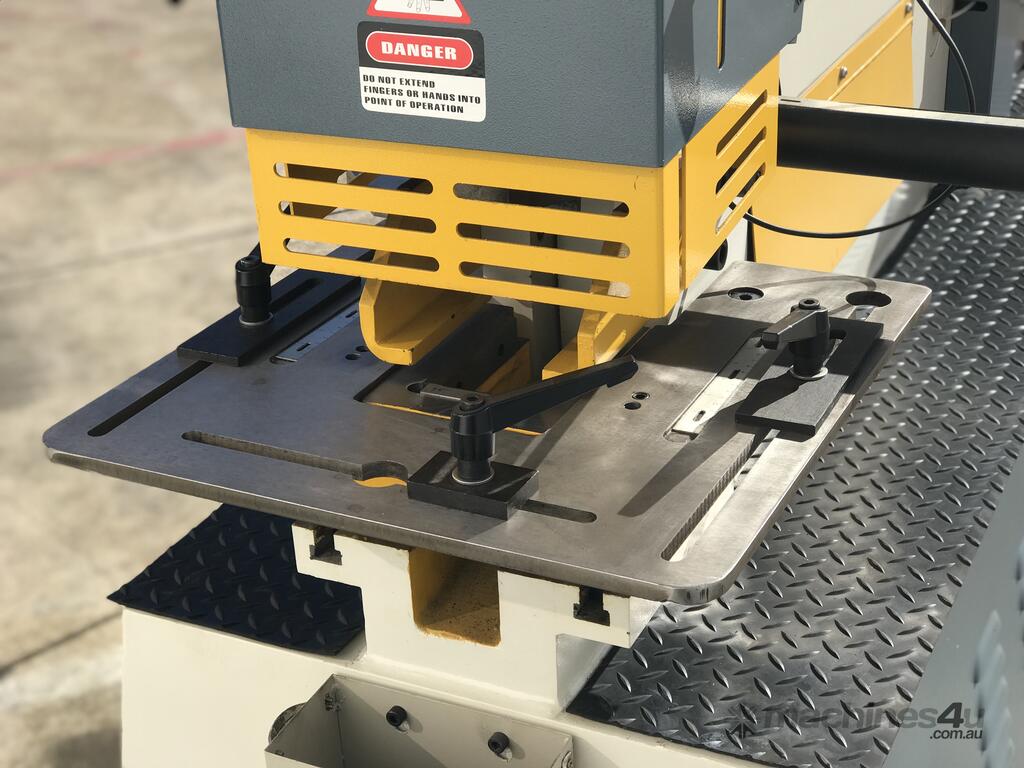

-rear notching station
-1000mm electric touch and cut feature

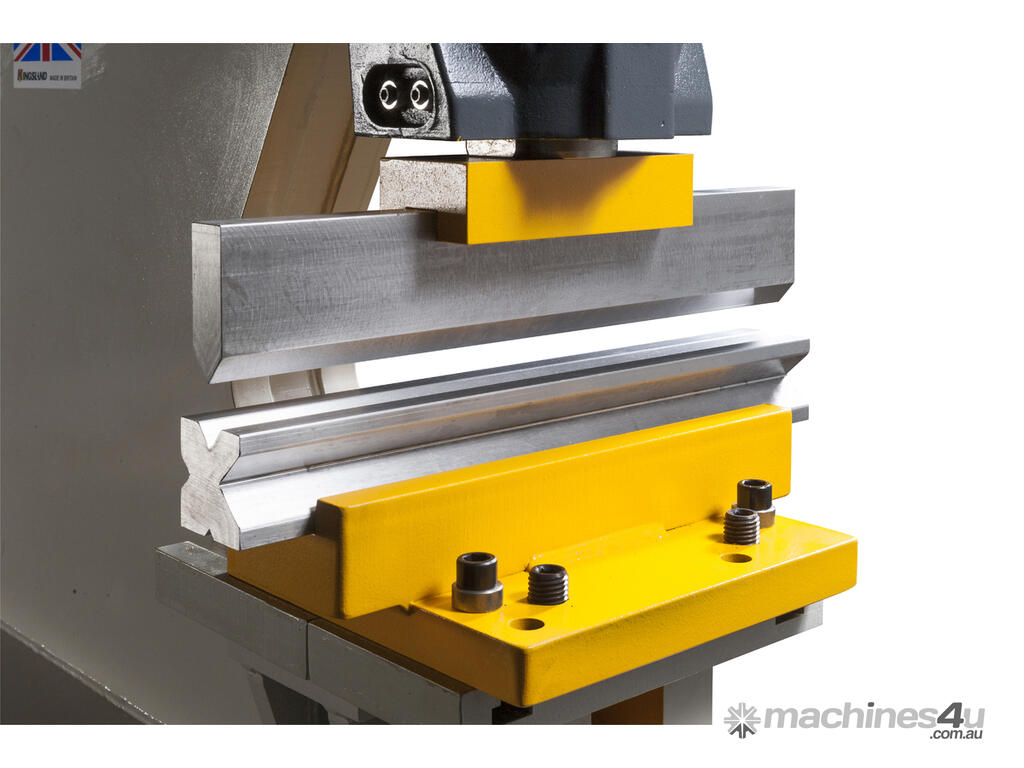

-pressbrake bending attachment supplied
-10 sets of standard Kingsland type punch and die tooling included
-low power inching and adjustable stroke at punch station
-overload relief on the hydraulic system
-centralised pressure lubrication system
-roving foot pedal operation
-emergency stops
-machine manual & service toolkit
-hydraulic oil supplied.
-CE compliant

Technical Data Snap-Shot
New hydraulic clamping on shearing station
28mm hole in 24mm plate (optional 57mm x 12mm)
80mm stroke length
1039mm working height.
450mm deep punch throat depth – this is a must for all base plate work!
480mm x 15mm flat plate shear / also 380mm x 20mm
150mm x 150mm x 15mm angle crop also 80mm x 10mm at 45 degrees.
50mm round & square cropping
100mm x 52mm x 13mm rear notch
500mm x pressbrake bending kit supplied.
160mm x 90mm section channel available – optional **
shipping dimensions - 1900mm x 790mm x 1910mm
weight - 2430Kg
power - V 7.5Kw

Accessories Included As Standard
10 sets round punch & dies / short series punches (9001)
electric touch & cut feature.
pressbrake attachment for bending
toolbox & manual

MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
