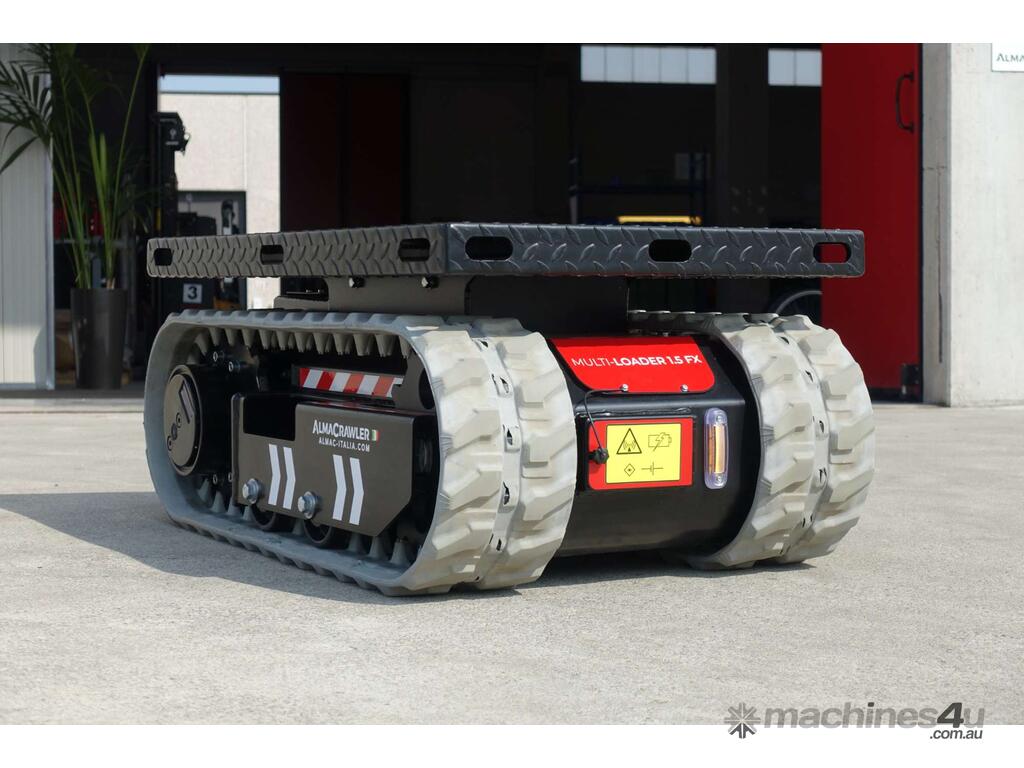

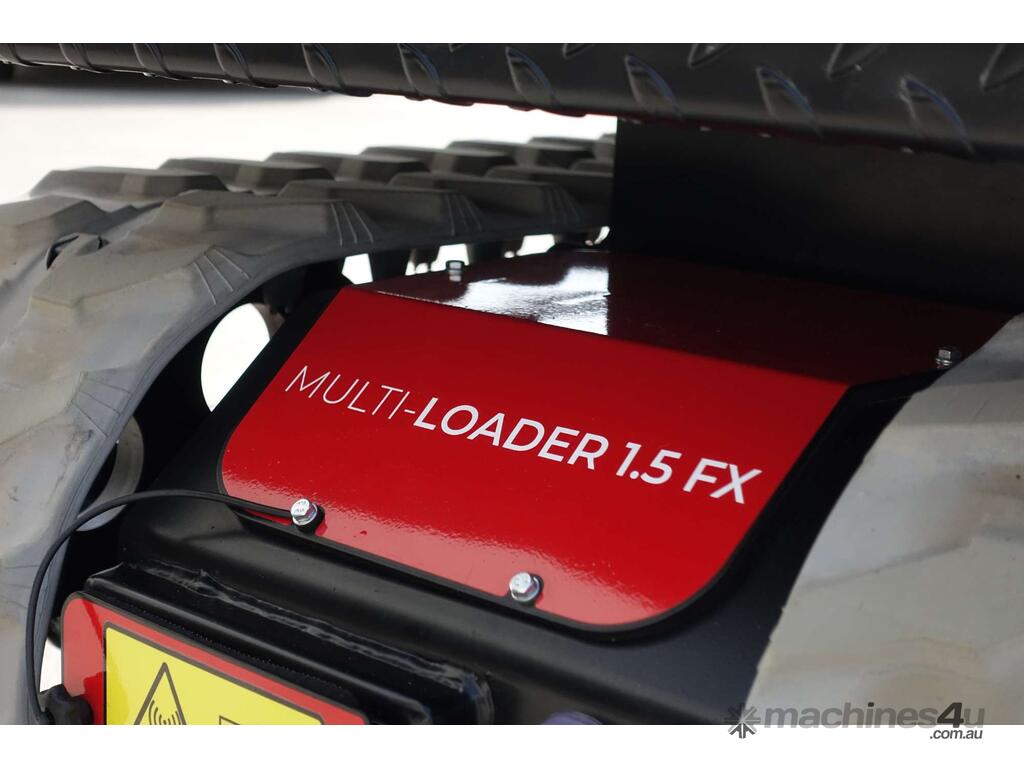

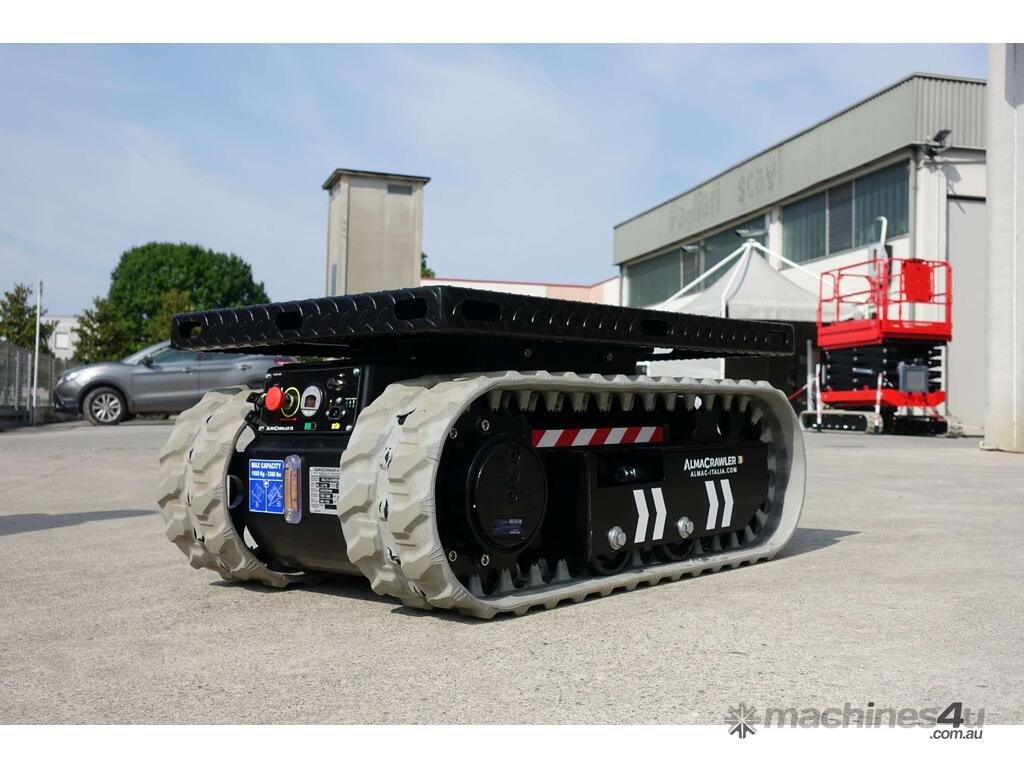

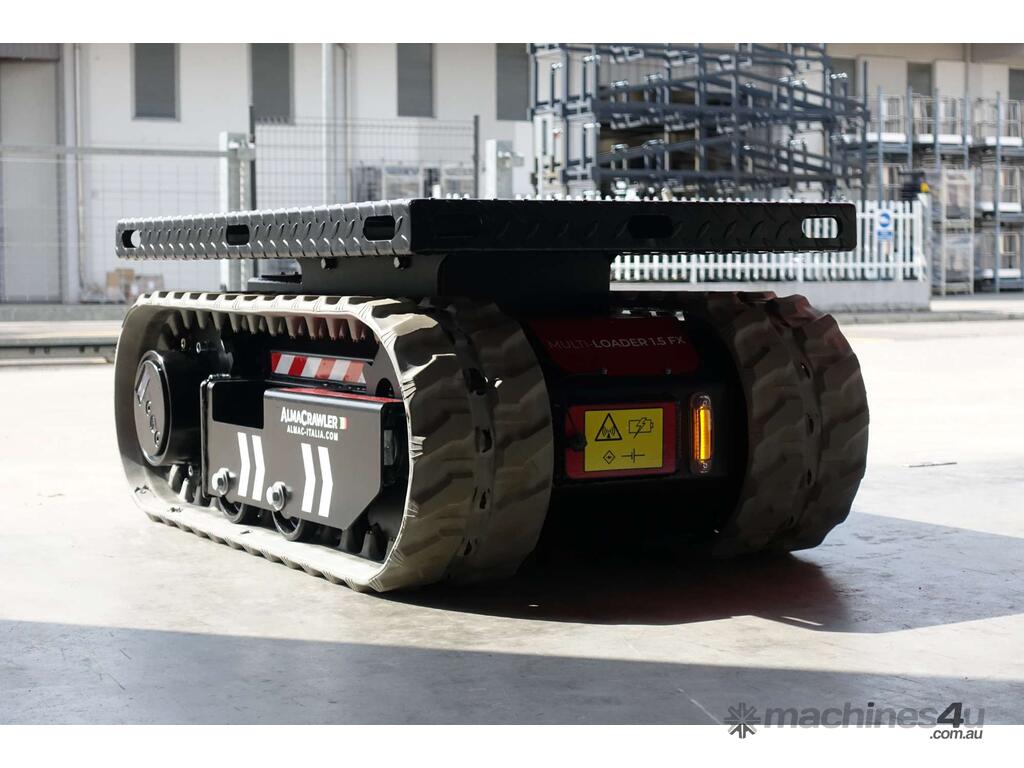

MULTI-LOADER 1.5 FX - TRACKED TRANSPORTER - Full Electric

Does your business face challenges of moving bulk materials, lifting heavy steel beams or other tasks involving several workers manual handling products into place?
Almacrawler specialise in providing a mechanical solution to eliminate these tasks and provide significant efficiency gains.

Utilising the Almacrawler Multi-Loader 3.0 RT on your worksite can be integral for eliminating manual handling tasks on a wide range of worksites, mitigating costly manual handling injuries.
With it's wide range of optional attachments, this machine offers unique versatility and can provide a solution for a comprehensive range of materials handling.

The ML 1.5 FX is specifically tailored for crane rental companies, industrial material handling, routine and extraordinary maintenance operations, and the glass and glazing sector.

With its compact size and impressive transport capacity of up to 1500kg, the ML 1.5 FX offers unprecedented versatility.

One of the ML 1.5 FX’s standout features is its fully electric drive system, setting new standards in sustainability and operational excellence.

Equipped with two powerful electric motors generating a robust 10.6kW of power, the ML 1.5 FX ensures immediate traction and accelerates to a maximum speed of 2.8km/h. The two-speed functionality allows operators to choose between optimal speed and power, depending on the task at hand.

The electric drive system delivers exceptional performance while eliminating the need for hydraulic oil. This design feature not only makes the ML 1.5 FX IP67 rated, but also enhances operational and environmental safety.

Powered by 55Ah AGM batteries, the ML 1.5 FX boasts remarkable efficiency. With a charging time of just 6 hours, the batteries provide uninterrupted operation, eliminating the need for maintenance. Additionally, the transporter’s ground clearance of 4cm and a gradeability of 45° ensure seamless navigation across various terrains.

Its versatility makes it ideal for a range of applications, including industrial operations, maintenance work, glazing industry, and even the food and pharmaceutical sectors, thanks to its IP67 rating.


Multi-Loader 1.5 FX Technical data:

Max Load capacity 1500 kg (3300 lbs)
Gross Weight: 465 kg (1025 lbs)

Max Gradients:
Max Longitudinal Gradient: 45°
Max Lateral Gradient: 30°

Dimensions:
Width: 700 mm (2'-3.6")
Length: 1170 mm (3'-6.2")
Platform Ground Height: 500 mm (1'-7.7")
Track Length: 794 mm (2'-7.3")
Track Width: 200 mm (7.9")
Ground Clearance: 40 mm (1.6")

Performance:
Max Speed: 2.8 km/h (1.7 mph)
Electric Motor Power: 10.6 kW
Voltage: 48 V
Battery Capacity: 55 Ah
Battery Type: AGM
Recharge Time: 6 hours
Charge Input: 7.5 A

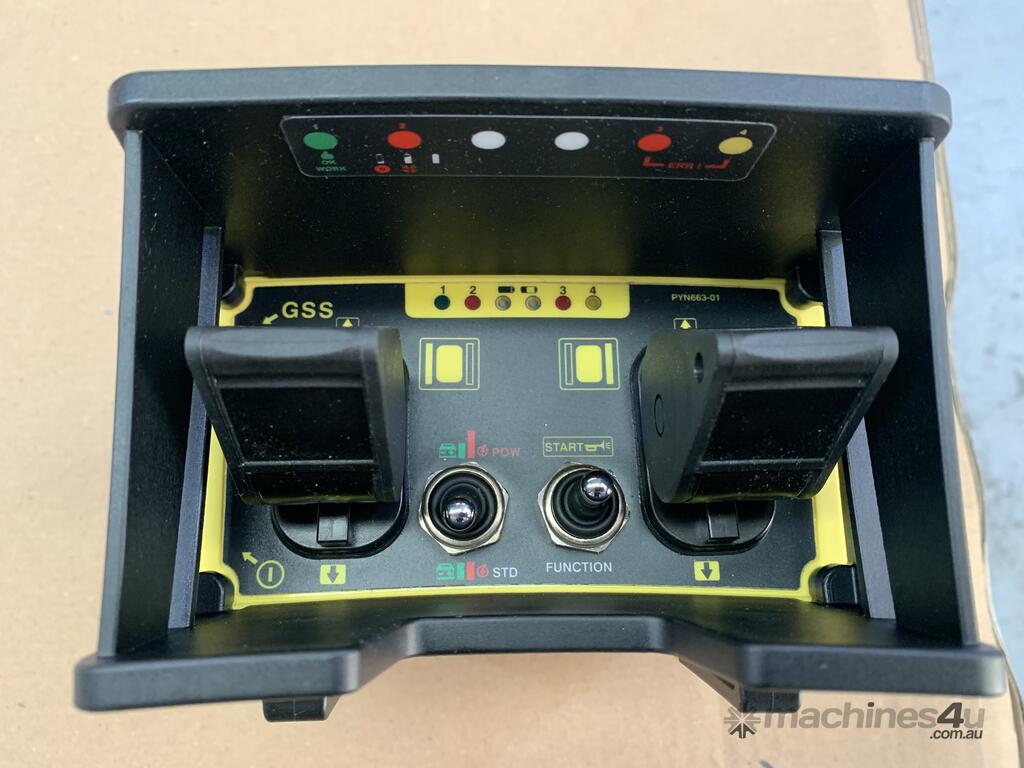

Controller: Remote Radio Control

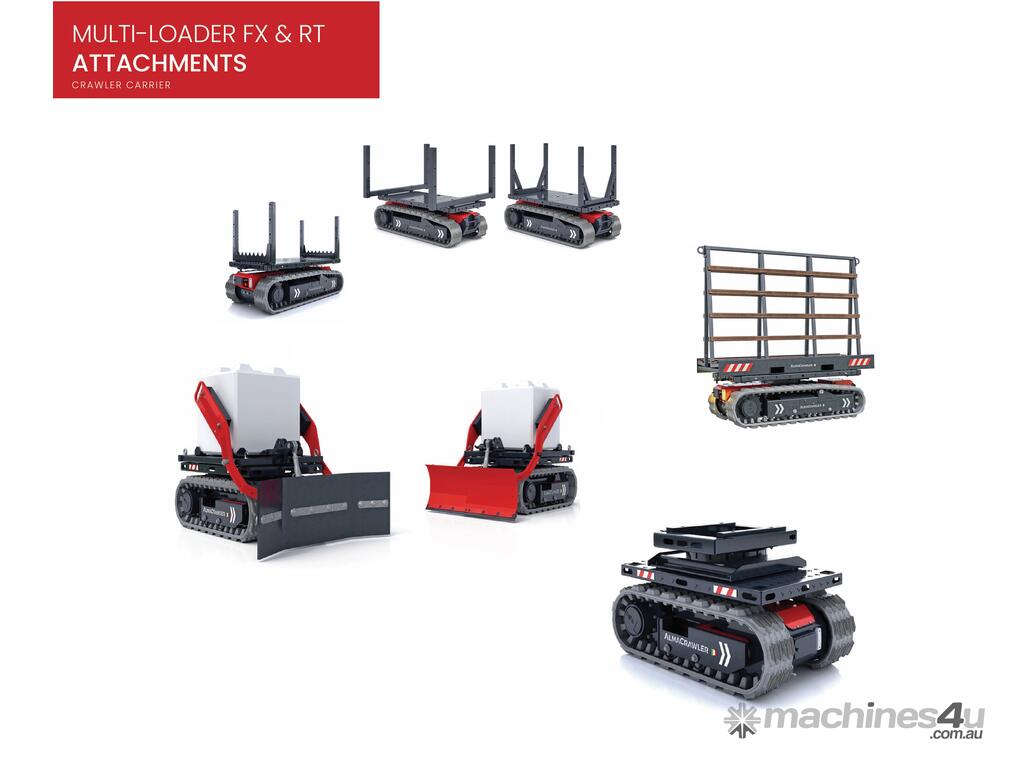

~~OPTIONAL ATTACHMENTS~~
The ML 1.5 FX comes with a wide range of fully installable, completely independent attachments to amplify its range of applications and allow operators to achieve more.

Dolly – Support extension, helps carry extra-long loads easily.
Multi-Frame – Double-sided a-frame rack for the safe transport and storage of windows, flat glass or insulating glass units.
Forest Kit – Forest kit for safe transport of logs.
Swivel plate – Swivel plate for ML 1.5 FX.


- Dolly
Max Capacity: 1500 kg
Weight (Empty): 125 kg

- Multiframe
Max Capacity: 1300 kg
Weight (Empty): 145 kg

- Forest Kit
Max Capacity: 1450 kg
Weight (Empty): 50 kg

- Swivel Plate
Max Capacity: 1400 kg
Weight (Empty): 100 kg
