MULTI-LOADER 3.0 FX - TRACKED TRANSPORTER - Materials lifter

Does your business face challenges of moving bulk materials, lifting heavy steel beams or other tasks involving several workers manual handling products into place?
Almacrawler specialise in providing a mechanical solution to eliminate these tasks and provide significant efficiency gains.

Utilising the Almacrawler Multi-Loader 3.0 FX on your worksite can be integral for eliminating manual handling tasks on a wide range of worksites, mitigating costly manual handling injuries.
With it's wide range of optional attachments, this machine offers unique versatility and can provide a solution for a comprehensive range of materials handling.

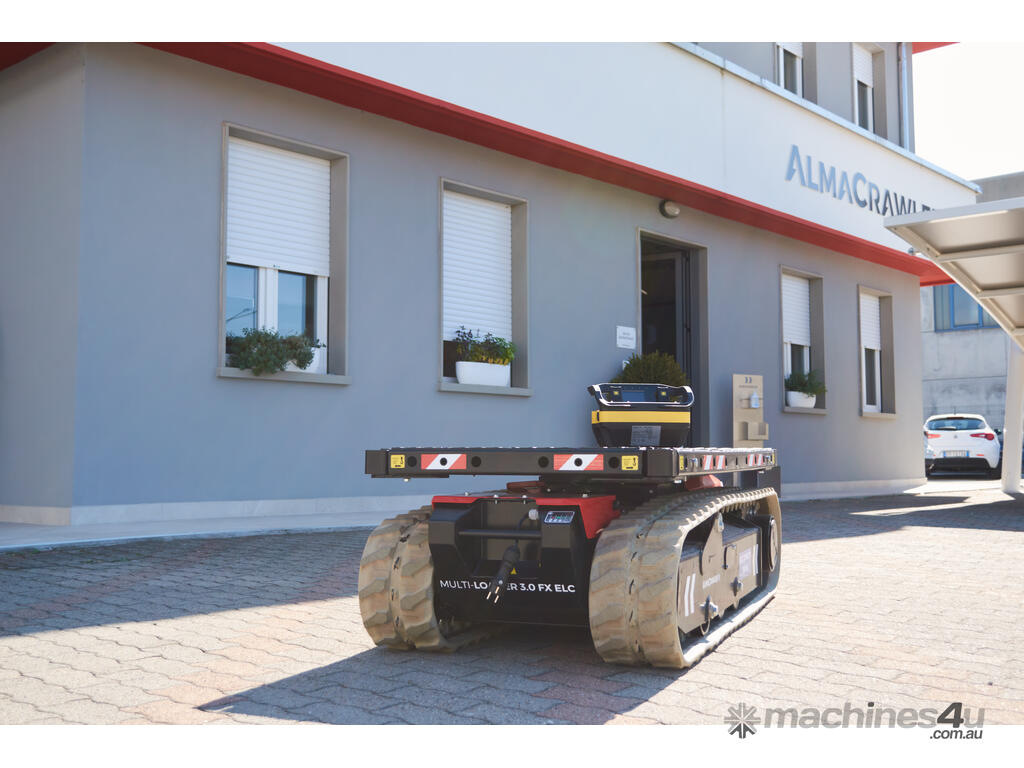

This model is a powerful and versatile flatbed tracked carrier which can be used in various heavy-duty applications both indoors and outdoors, with a maximum load capacity of three tonnes. It has class leading electric drive with two super quiet AC electric motors, 5.3 kW each [rated IP 67]. The ML 3.0FX can be fitted with both AGM or Lithium batteries, both options inside an easily extractable battery pack that will allow you to change it quickly on the job site and continue your work.

It has telescopic support beams on each corner to provide for added support for extra-large loads. These can be positioned into place manually and therefore extend the platform either longitudinally or laterally. The standard swivel platform sits on a freely rotating slewing ring with 16 different positions which you can also manually choose from and easily adapt the platform to your load.

Finally, the new ML 3.0 FX with its electric drive weighs less than 800kg, features longer tracks and adaptive rollers representing AlmaCrawler’s desire to cater to its materials handling customers and their wide range of needs.

Why should you choose it?

Full electric drive
Remote control operations
Fully removable battery pack
Extendable telescopic beams
Rotating swivel platform
Adaptive rollers

Standard Features

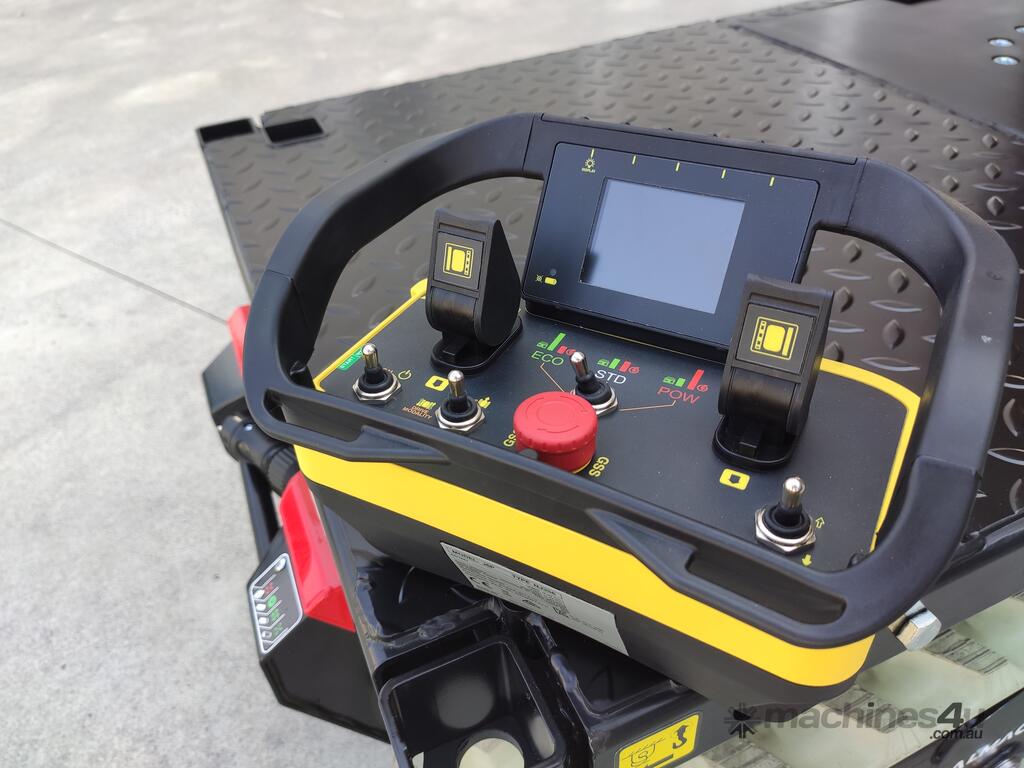

Radio remote control with display & double battery
On board diagnostics
12V auxiliary socket
Non-marking tracks
Front and rear hazard lights
Three different driving modes
MAIN / ED-S / DC-S
Three power management configurations
ECO / STD / POW
Automatic tilt alarm with speed reduction

Max Capacity:
3000 kg (up to 25°)
2500 kg (at max gradient)

Max Gradients:
Longitudinal Gradient: 45°
Lateral Gradient: 30°

Dimensions:
Width: 790 mm
Length: 1770 mm
Track Length: 1310 mm
Track Width: 200 mm
Ground Clearance: 64 mm
Platform Ground Height: 510 mm

Performance:
Max Speed: 4.2 km/h
Swivel Platform: Standard

Power:
Electric Motor Power: 10.6 kW
Voltage: 48 V
Battery Capacity & Type: (100Ah) Options of Lithium or AGM
Charger Input & Time:
110–230 V, 7h – 13A
110–230 V, 4h – 20A (for Lithium)
Ingress Protection: IP67

Weight:
Gross Weight:
870 kg (with AGM battery)
800 kg (with Lithium battery)

~~OPTIONAL ATTACHMENTS~~

The ML 3.0 FX comes with a wide range of fully installable, completely independent attachments to amplify its range of applications and allow operators to achieve more.

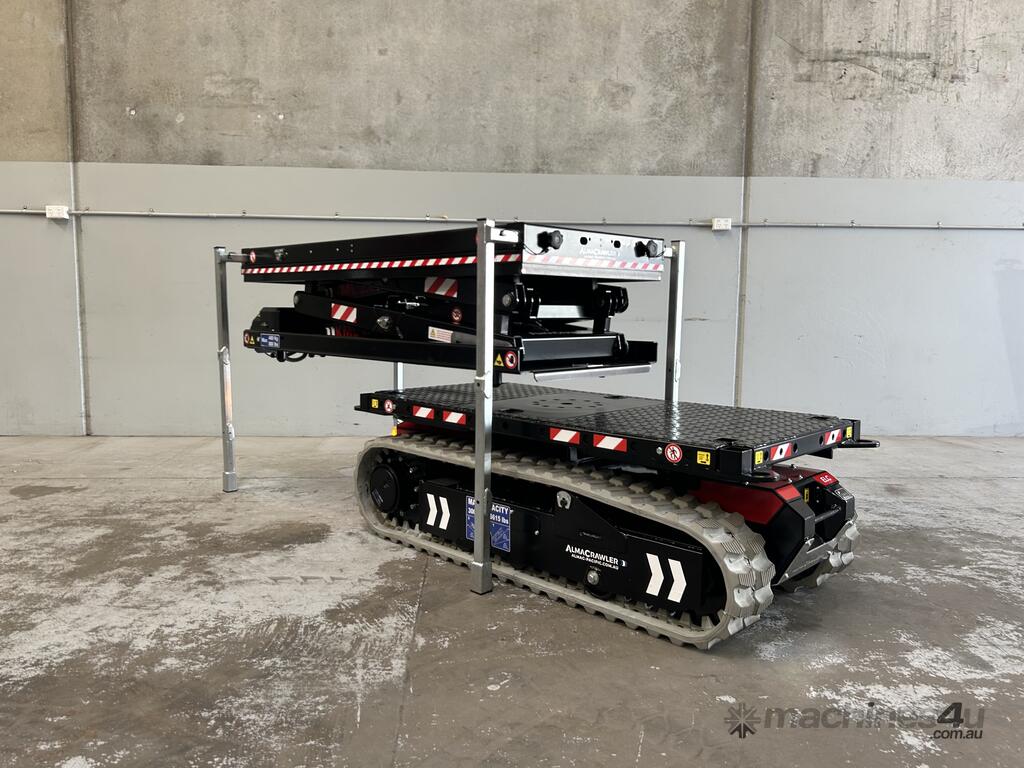

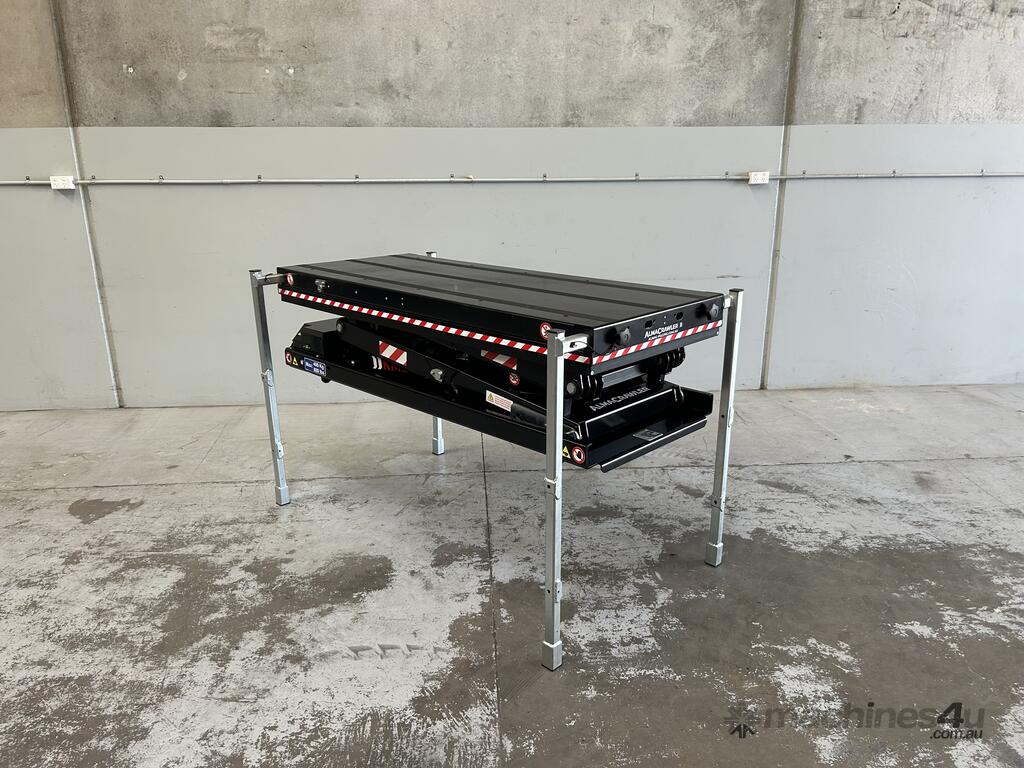

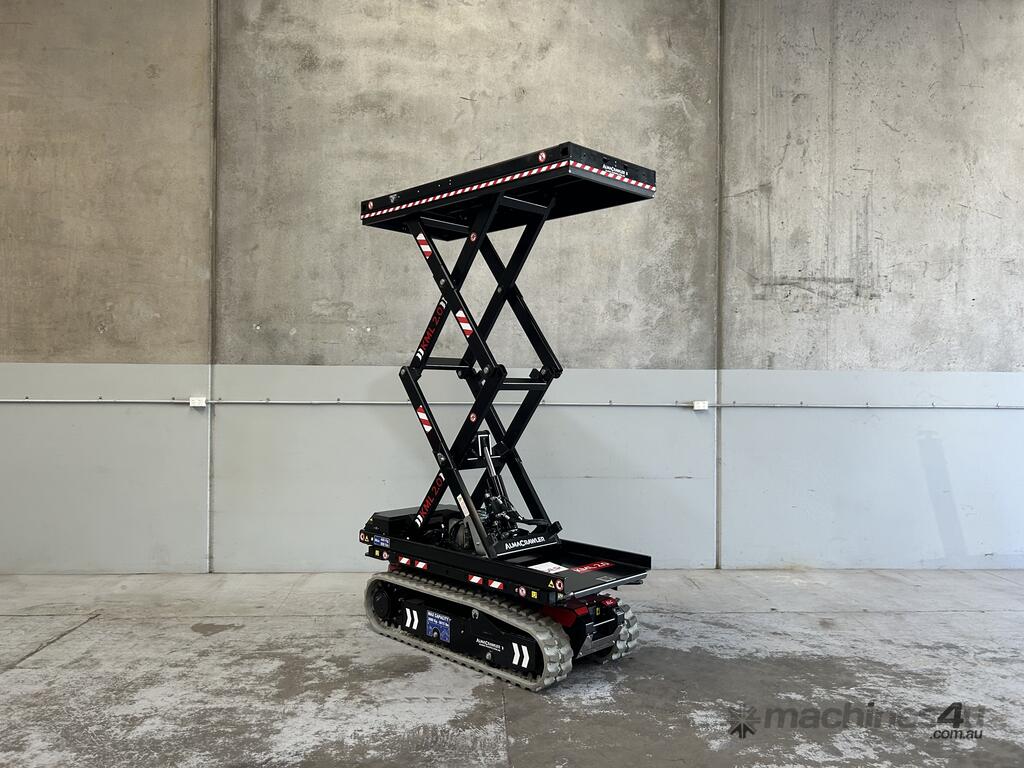

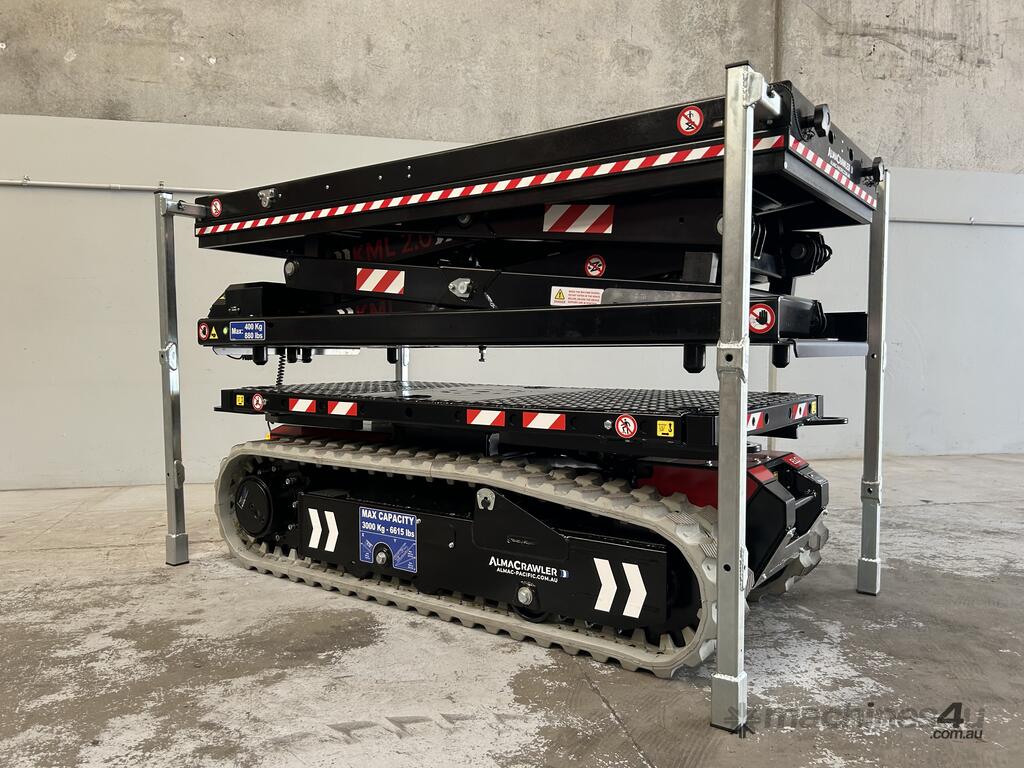

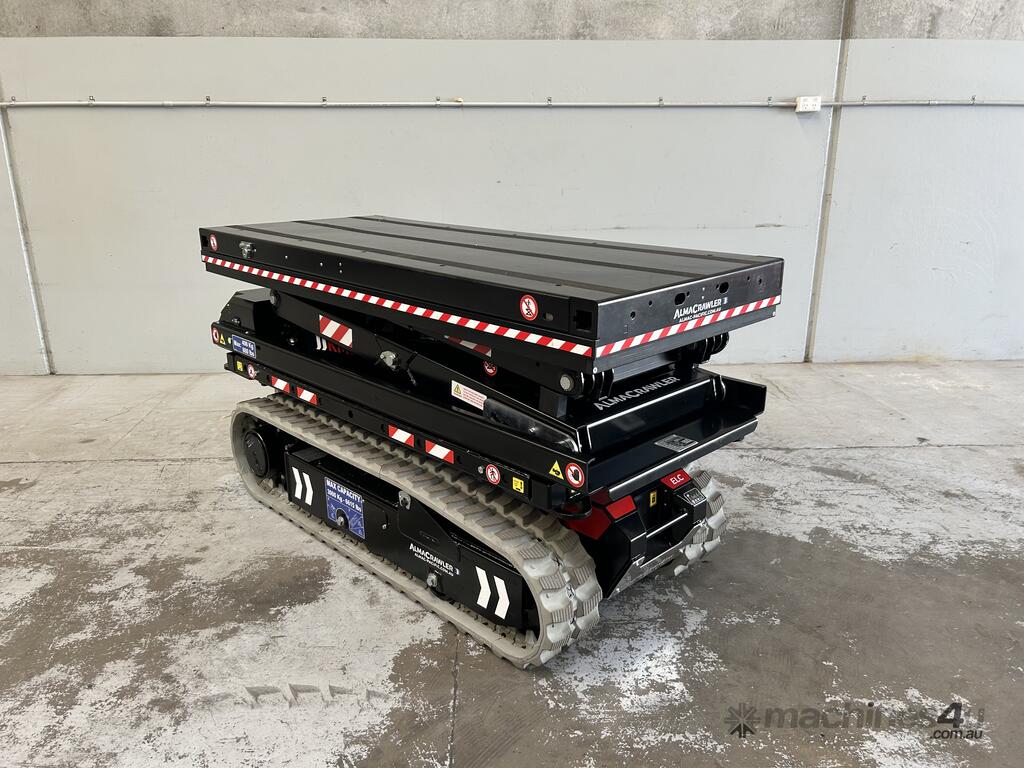

- LIFTING PLATFORM KLM 1.0
Self-loading / unloading hydraulic scissor lift table for the lifting of materials.
Max capacity 1000 Kg
Max Lifting Height:
Weight (empty) 415 Kg
Battery 12 V 100 Ah with charger on board (110V-230V)

- LIFTING PLATFORM KLM KLM 2.0
Self-loading / unloading hydraulic scissor lift table for the lifting of materials.
Max capacity 400 Kg
Max Lifting Height:
Weight (empty) 490 Kg
Battery 12 V 100 Ah with charger on board (110V-230V)

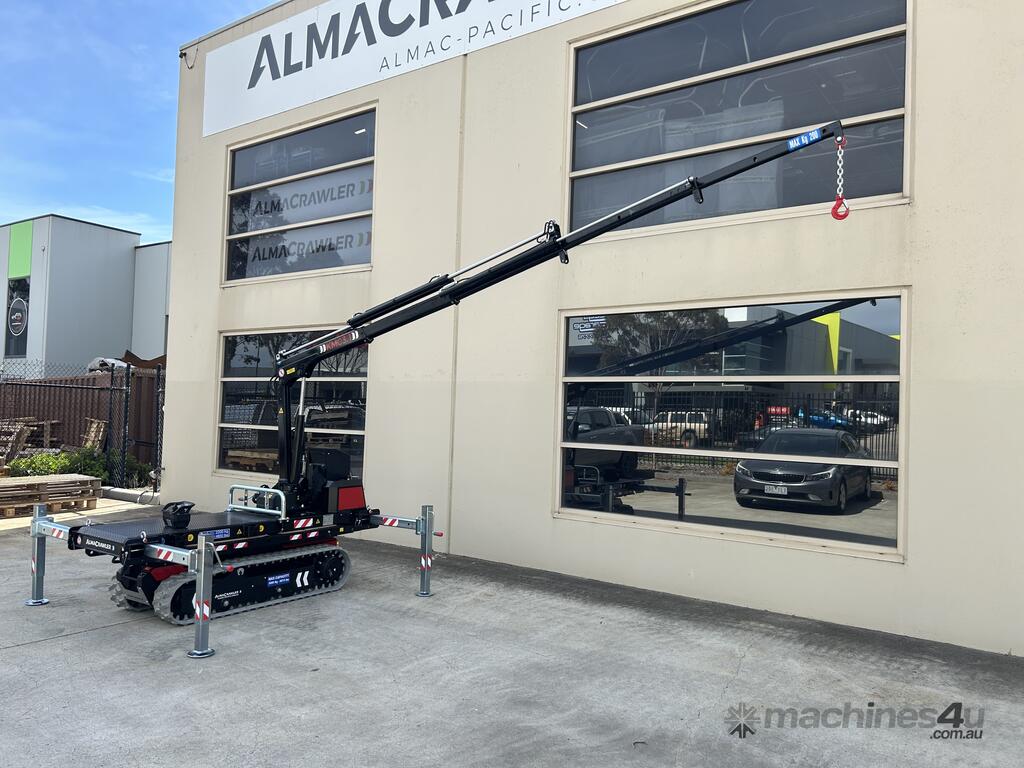

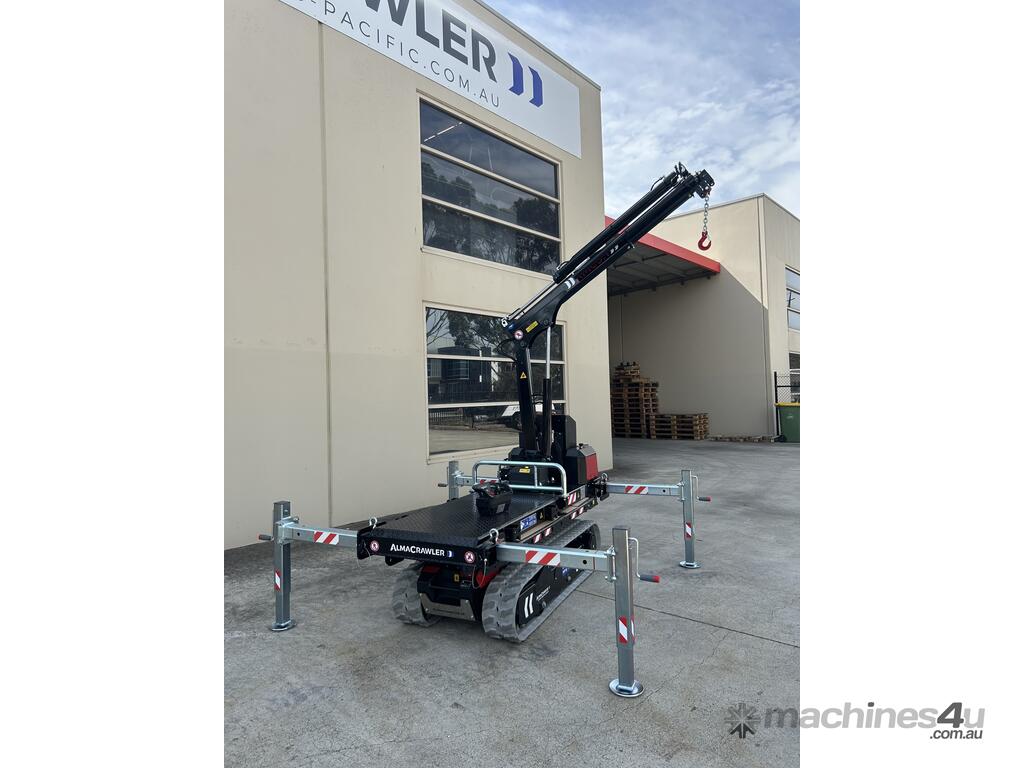

- CRANE KIT KMC 3.1
Self-loading / unloading
Max Lifting Capacity: 990kg
Max Lifting Height: 6.04m
Max Outreach: 2.96m (from front of deck)
Platform cacpacity: 2,200kg

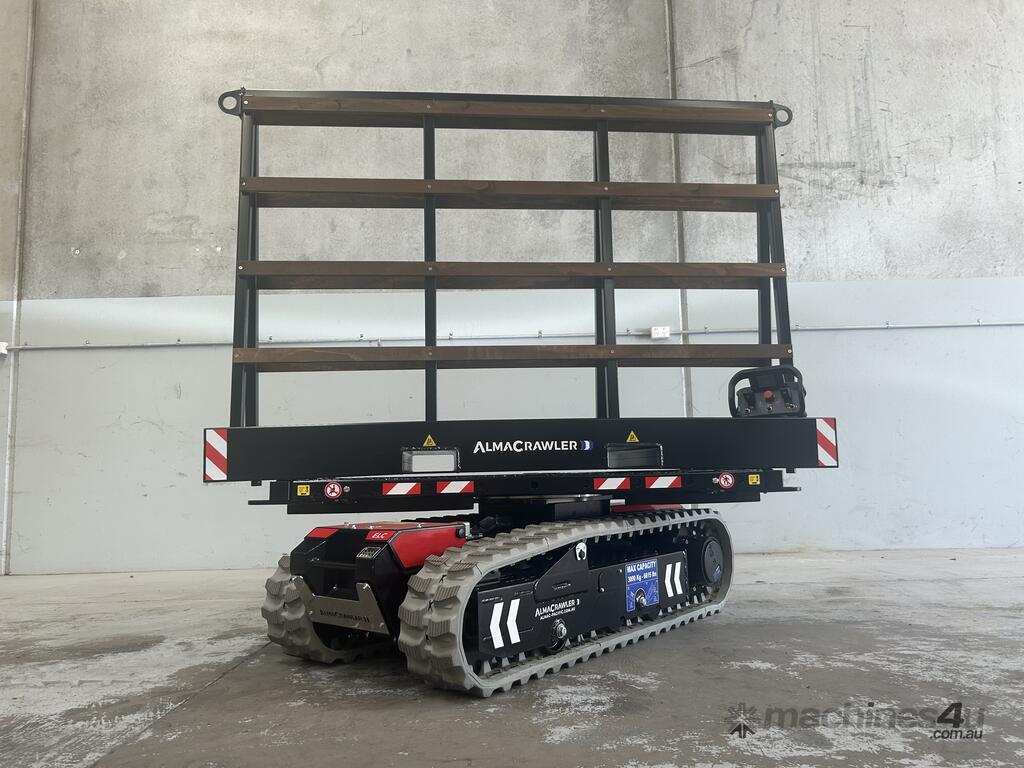

- MULTIFRAME
Double-sided a-frame rack for the safe transport and storage of windows, flat glass or insulating glass units.

- DUMPER KIT - KDM 13
Max capacity 1300 Kg
Weight (empty) 380 Kg
Struck volume 0.6 m3
Rated volume (ISO 6483) 0.65 m3
Battery 12 V 100 Ah with charger on board (110V-230V)

- DOLLY
Free wheeling support extension, helps carry extra-long loads easily.
Max capacity 1500 Kg
Weight (empty) 125 Kg

- FORESTRY KIT
Forest kit for safe transport of logs.
Max capacity 2950 Kg
Weight (empty) 50 Kg
