MULTICO CHISEL MORTISER Vertical, Compound Table, Compact, Made in UK*Sold*. Bacci Mortiser*Sold*

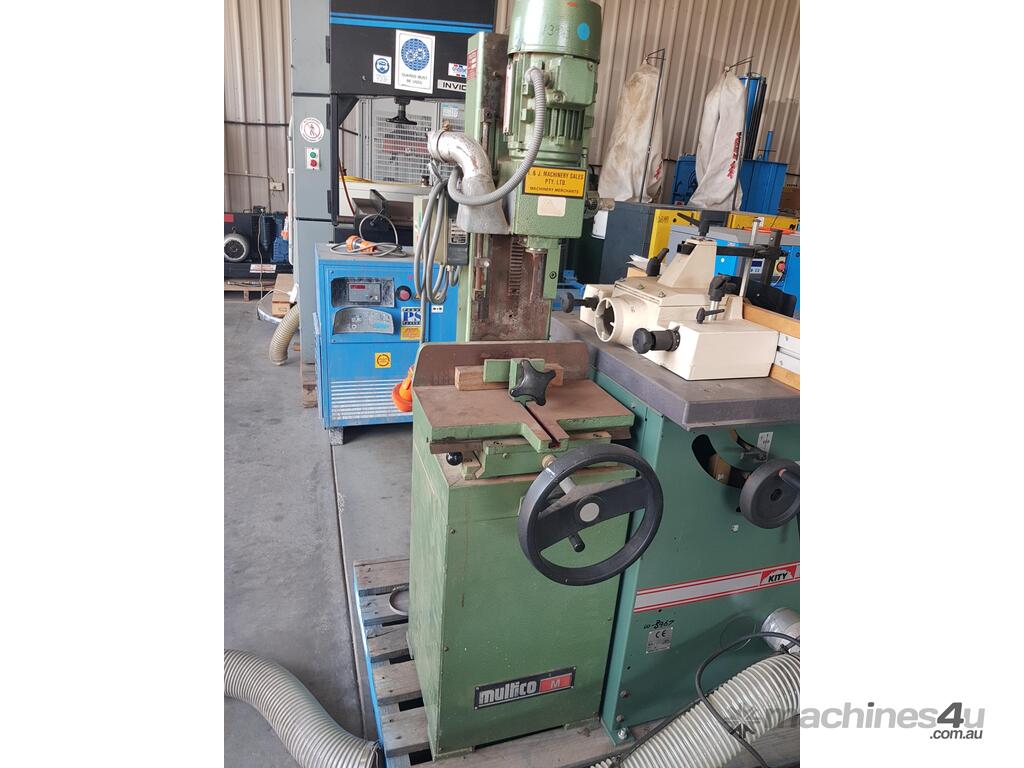

MULTICO M3 CHISEL MORTISER Vertical 415v Compound Table, Made in UK, INDUSTRIAL H'DUTY, TOP QUALITY/COMPACT
SALE TO 30/4/25 $ 2,450 + GST ($ 2,695 INCLUDING GST). VERY GOOD ORIGINAL CONDITION ** SOLD 5/5/25 **

KITY TILT Model 1629 30deg FORWARDS + 5deg BACKWARDS Model 1639 SPINDLE MOULDER 1.5kw 2HP 240v 3 x SPEEDS, ELECTRIC BRAKE, ROBUST, MADE IN FRANCE, 30mm ARBOR, INCLUDING ACCESSORIES & MANUAL, DUST EXTRACTION HOSE & FITTINGS, INDUSTRIAL QUALITY FOR THE HOME WORKSHOP OR PROFESSIONAL HOBBYIST, VIRTUALLY AS NEW
SALE TO 30/11/24 $ 2,250 + GST ($ 2,475 INCLUDING GST). DON'T PAY TOO MUCH FOR FELDER OR MINIMAX! **SOLD**




* BACCI MOD Oscillating Slot Mortiser, Semi-Auto, Twin Tables, Made in Italy, Heavy Duty, Cast Iron
JULY SALE TO 31/7/21 $ 4,500 + GST ($ 4,950 INCLUDING GST). Ex-Holmesglen TAFE College, Melbourne. Top Original Condition. Operator Manual. Ready to Work. SEE ATTACHED BROCHURE ** SOLD 2/8/21 **

* BACCI TSG-2T Automatic Round-End Tenoner, Twin Tables, Made in Italy, Heavy Duty, Cast Iron, The Industry Benchmark
JULY SALE TO 28/2/22 $ 5,450 + GST ($ 5,995 INCLUDING GST). Ex-Holmesglen TAFE College, Melbourne. Top Original Condition. Operator Manual. Ready to Work. Refer to Separate Ad. REQUEST BROCHURE ** SOLD 2/8/21 **

FEATURES BACCI MOD:
The Bacci MOD Oscillating Slot Mortiser makes slots and dowel holes for tenons; for furniture it is particularly suitable for the manufacturing chairs, tables, and solid wood components. The sturdy construction and the use of high quality materials and components make the MDO a very reliable machine. Two working tables move alternately towards the tool allowing the operator to load/unload the work piece while the other piece is being machined. This system eliminates idle times and allows the control of the machine by one operator.

The Oscillation movement and revolution of the bits are controlled by two separate motors. The speed of the oscillation movement is adjustable by the operator thus allowing the optimum cut at all times, The machine can also be used as a boring machine.

The two worktables are adjustable in height and depth independently one to the other. They are also tiltable up to 25°. The forward speed of the tables is hydraulically controlled and adjustable in order to have a constant and smooth movement. The return speed is automatically made at high speed.

• Length of mortice 0 - 120 mm + thickness
• Slot Max thickness 20 mm
• Depth of mortice 0 - 80 mm
• Vertical table adjustment 130 mm
• Drill shank diameter 16 mm
• Shaft speed 9500 rpm
• Table tilting 20 degrees + -
• Spindle motor power 2.2 kw 3 hp
• Weight 530 kg


The Bacci TSG-2T Automatic Round-End Tenoner produces all types of rounded tenons with any angles or even compound tenons for furniture and chairs. It has two tables that can be set differently allowing different joints on the each end of the work piece. The two tables move alternately towards the tool allowing the operator to load/unload the work piece while the other piece is being machined. This system eliminates idle times and allows the control of the machine by one operator.

Features:

Executes compound angle tenons
Continuous revolution movement of cutter around the piece
Standard and anti-splintering cycle
Adjustments of thickness, length and inclination of tenon can be done with the machine in operation through use of black circular controls .
Table feed with hydraulic adjustment to avoid "stick-slip"
Support square for piece rotating around a fixed point.
Possibility to cut off, adjusting thickness to "zero".
Cast iron frame to eliminate vibration

• Max. Tenon width 115+2R mm
• Max. Tenon Thickness 0-42 mm
• Max. tenon depth 10-45 mm
• Inclination of table upwards 0-15 degrees
• Lateral inclination of table 0-20 degrees
• Inclination of cutter revolution axis 0-90 degrees
• Spindle speed RPM/Min 6000
• Motor power for cutter rotation HP 4
• Motor power for cutter revolution HP 1
• Weight 1100 kg
