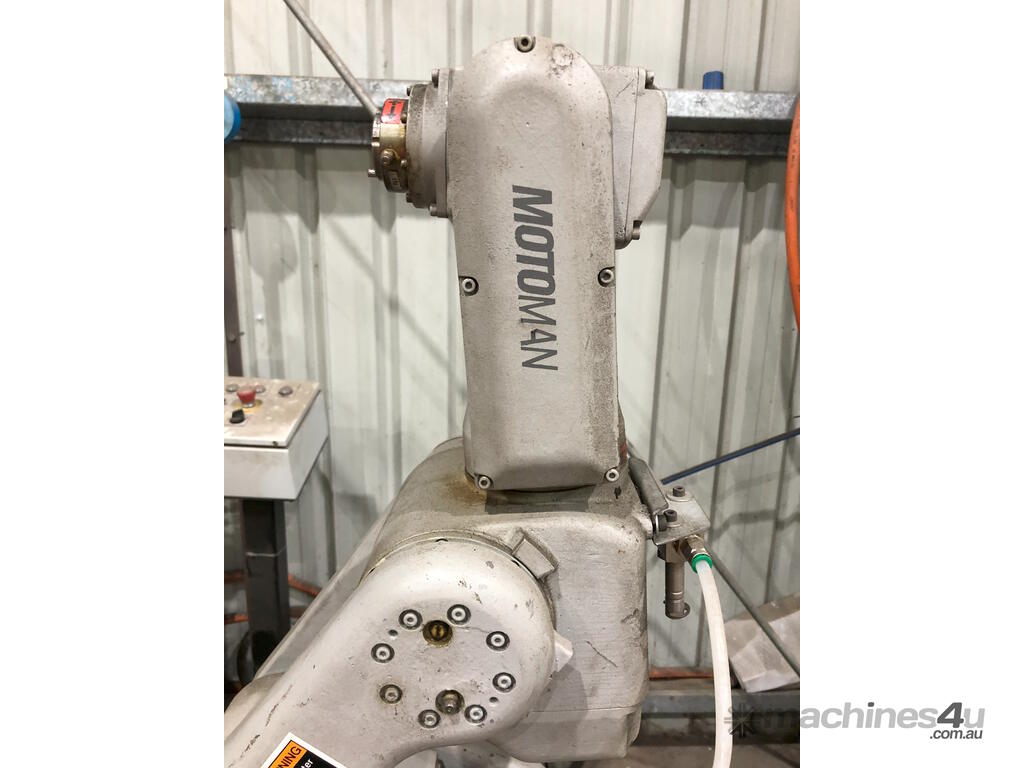

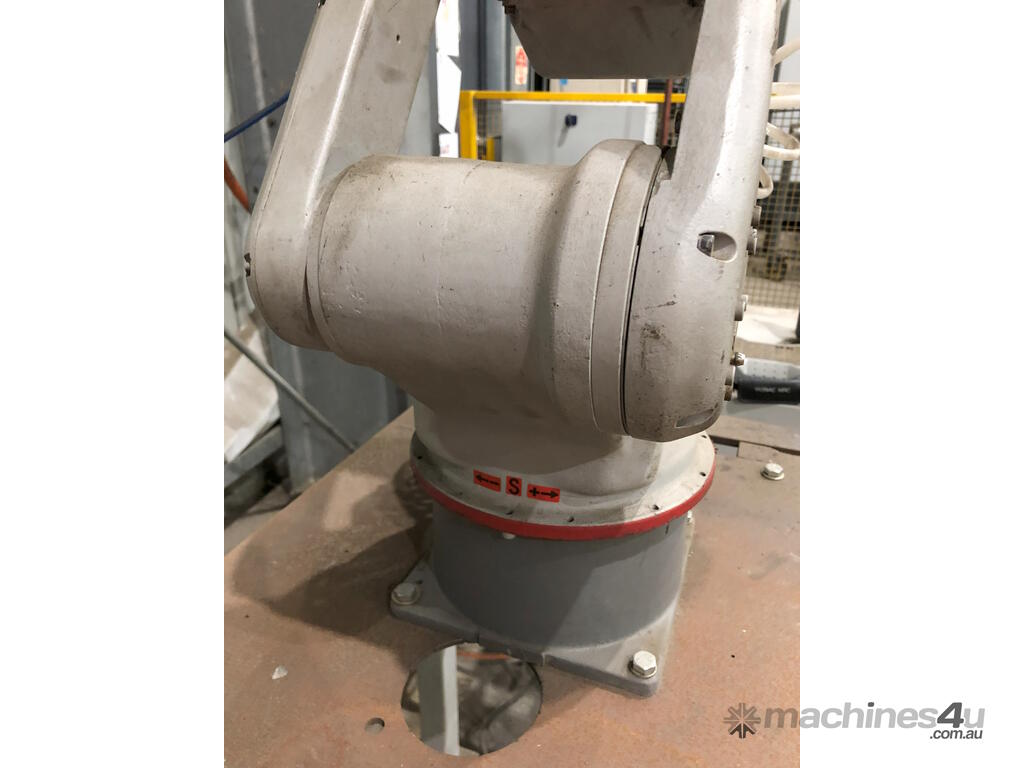

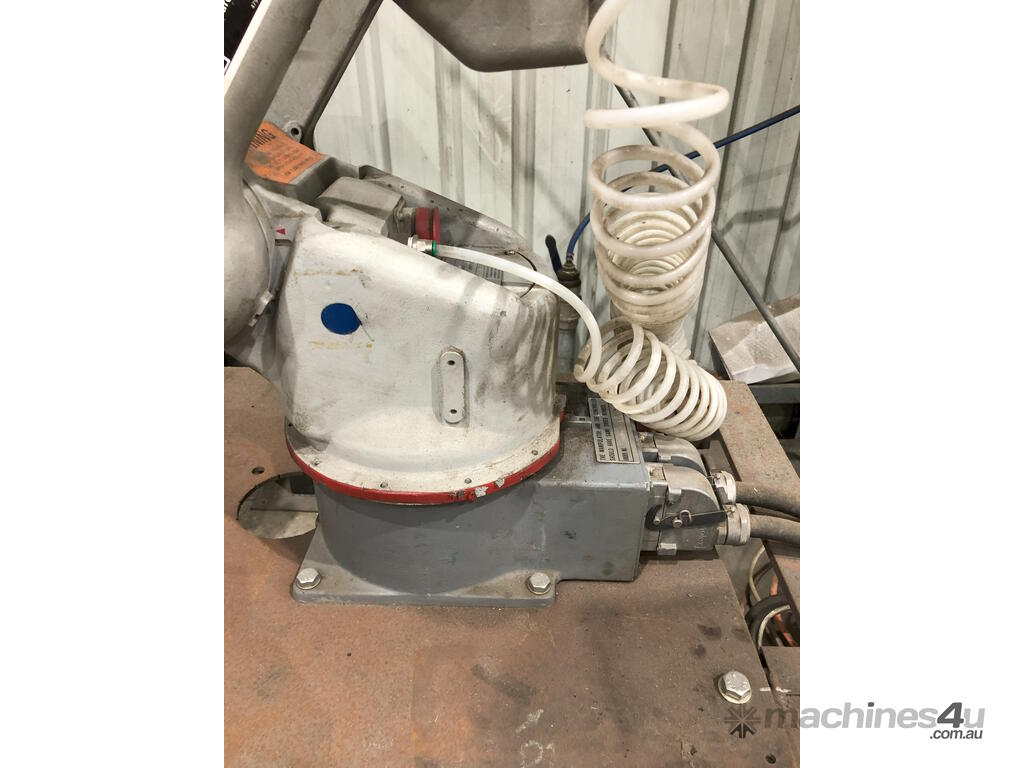

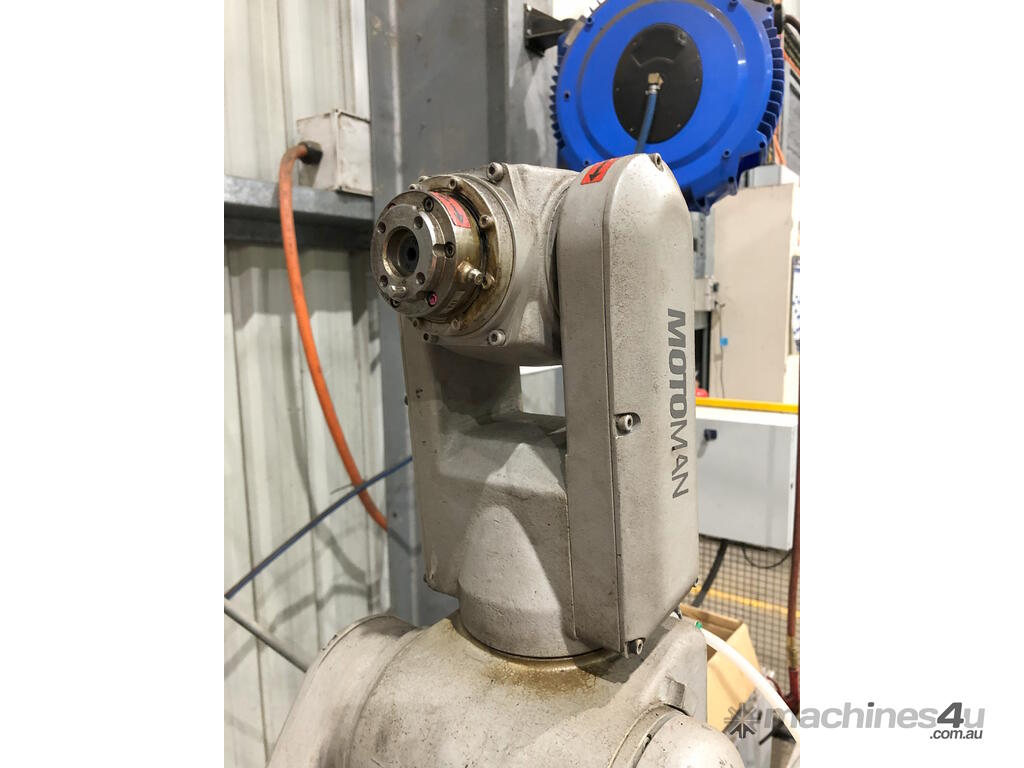

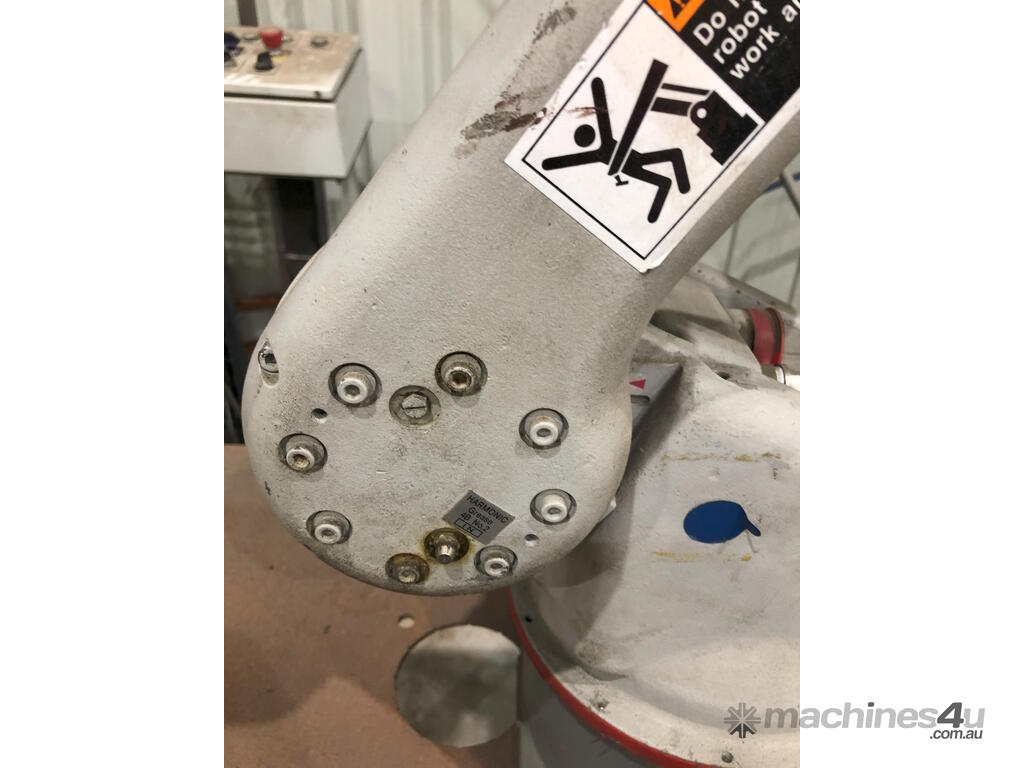

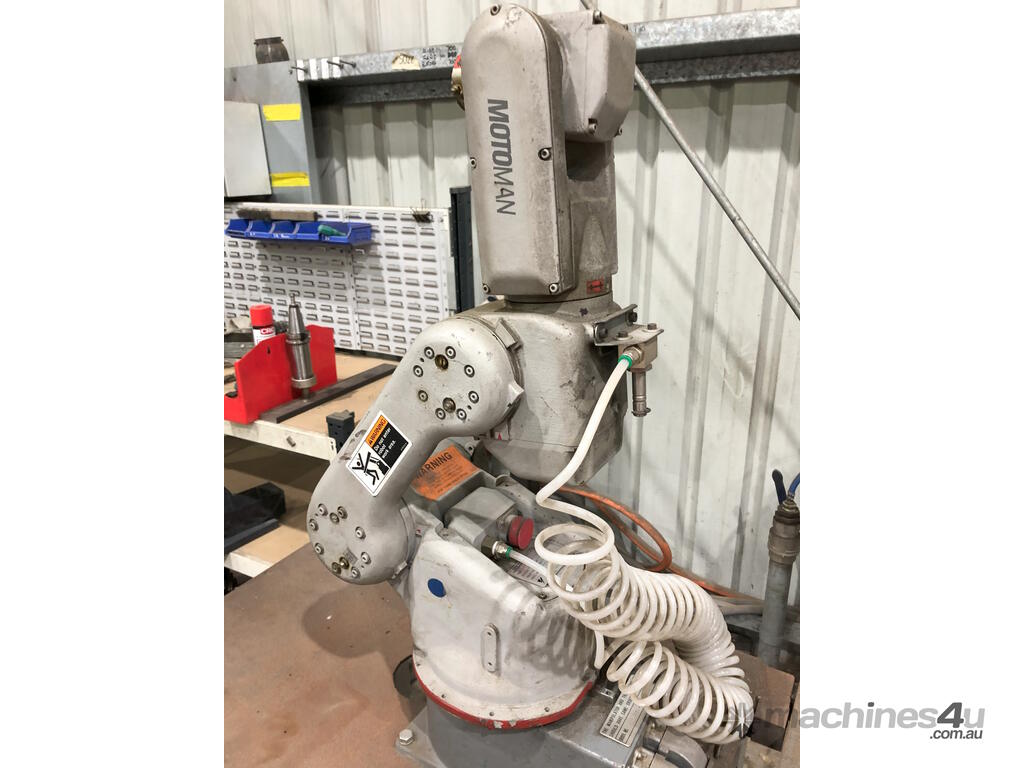

De Bruin Engineering is proud to offer the Motoman MRCII SV3 robotic arm, designed for high-speed automation and advanced control features. Whether you?re looking to improve efficiency or streamline operations, this robot arm delivers consistent, precise results.
The Motoman MRCII - SV3 unit is perfect for anyone in need of industrial automation and motion control equipment.

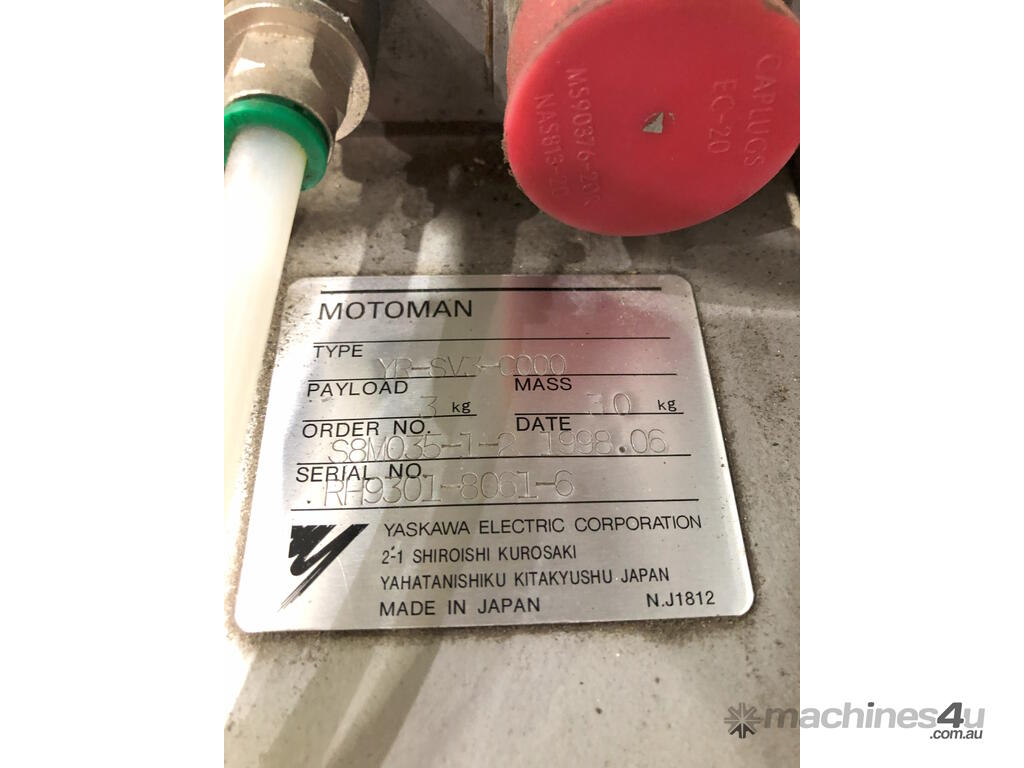

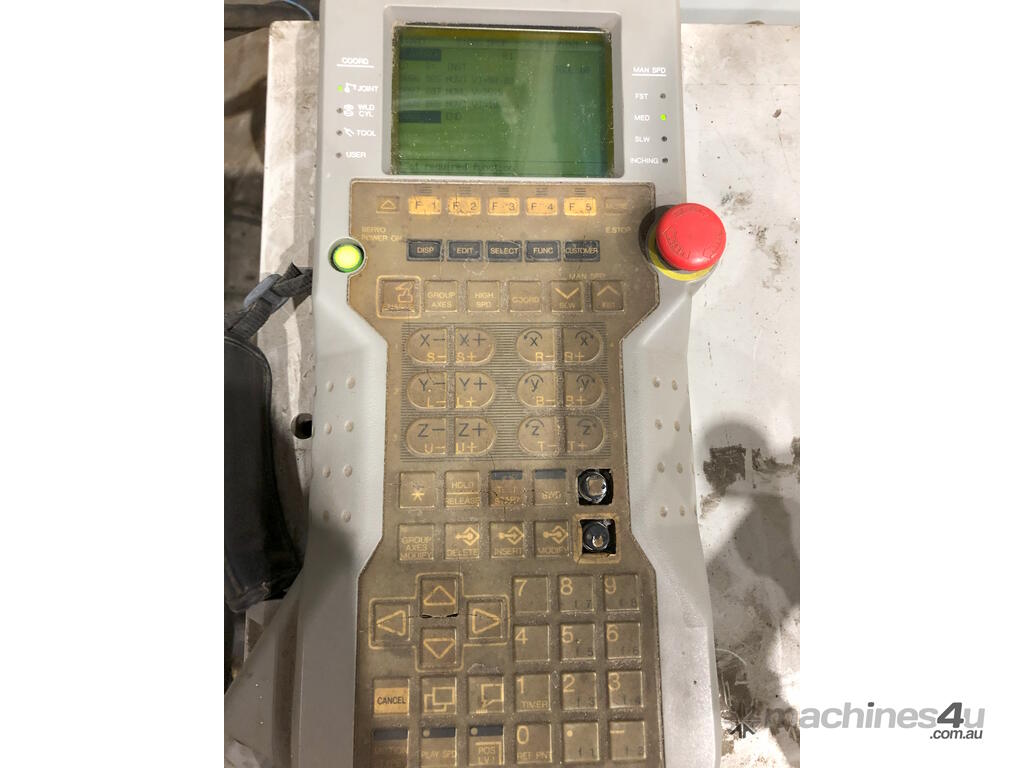

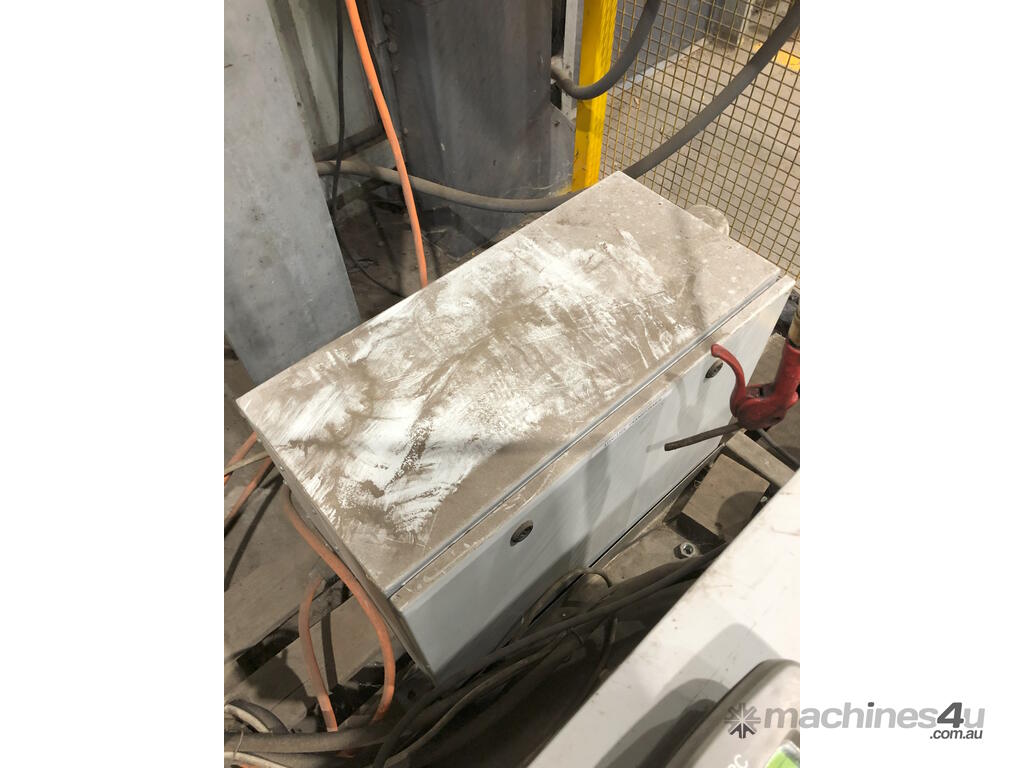

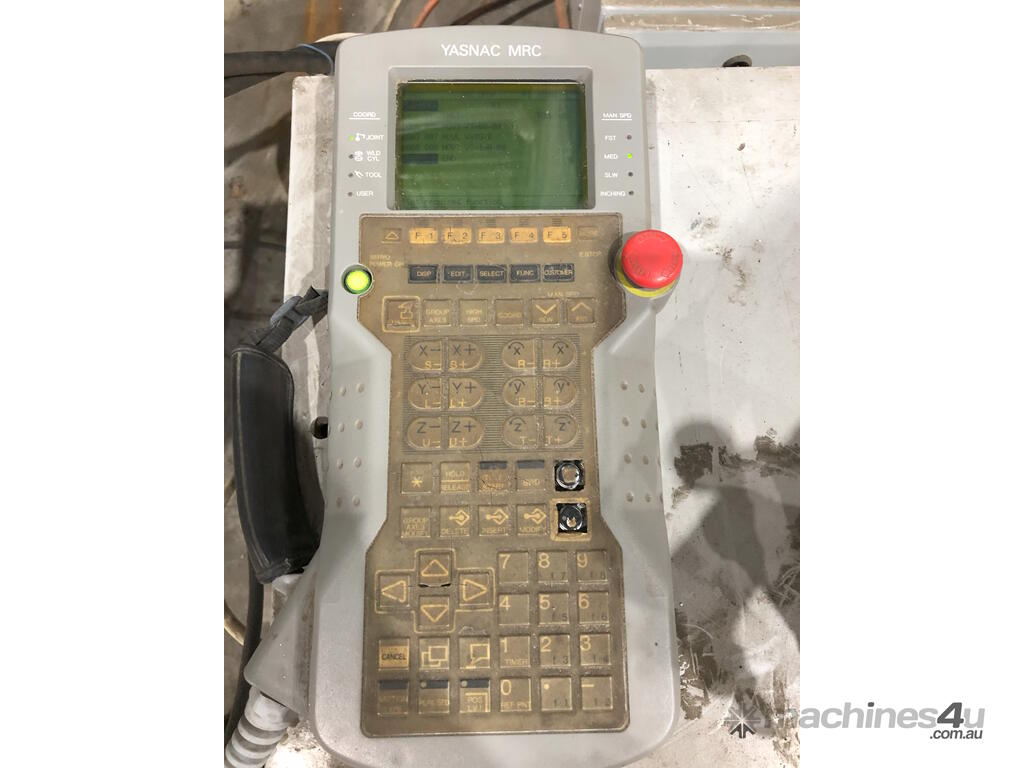

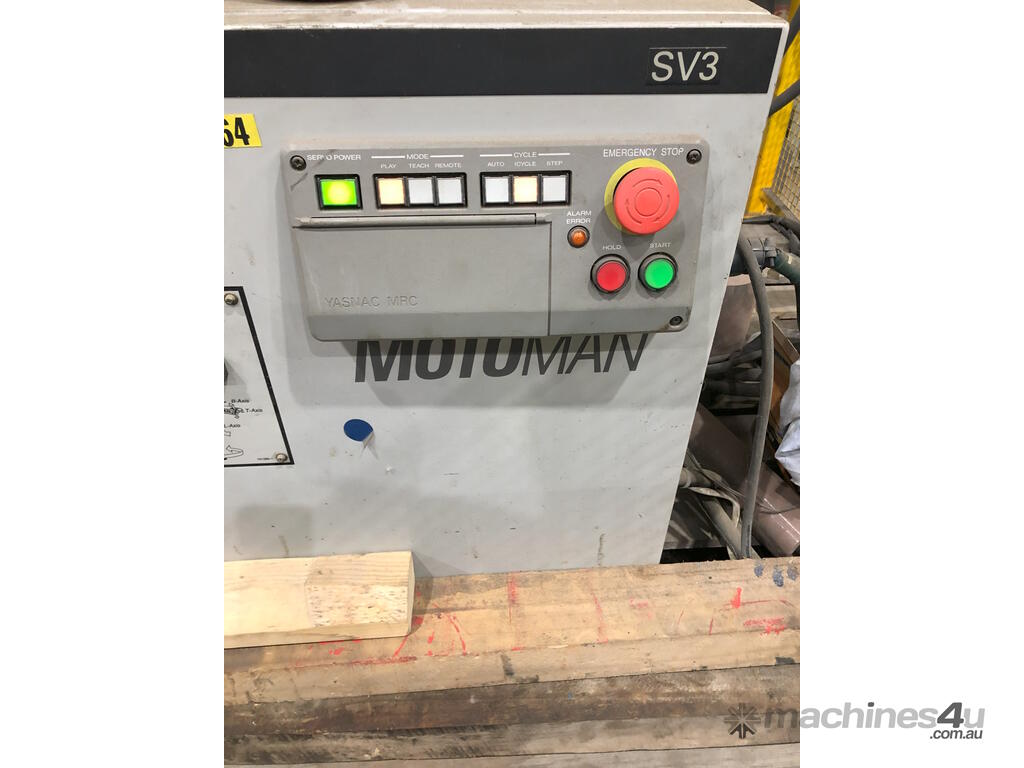

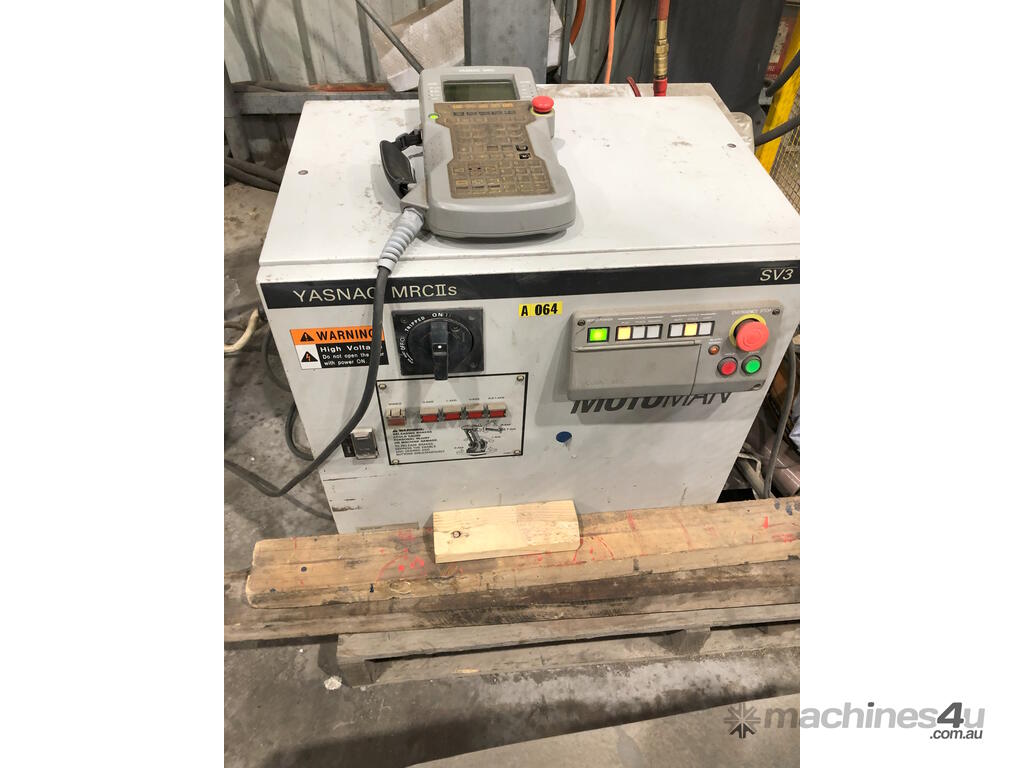

Made in Japan, this unit is of high quality and comes with a control box and power supply.
This SV3 robot is a high speed robot that requires minimal installation space, making it ideal for mounting on a table, track, or platform.
The SV3 works well for small part applications such as assembly, packaging, material handling, machine tending, and arc welding.
It is a great addition to any business or industrial setting and is sure to improve efficiency and productivity.
The brand name Motoman is synonymous with reliability and durability in the industry.
The unit is under power, fully working and is sold as is ready to be put to use right away.
Robot Information Robot Specifications
Axes:............. 6
Payload:........ 3 kg
H-Reach:....... 677 mm
Repeatability: ±0.03 mm
Robot Mass: 30 kg
Structure: ..... Articulated
Mounting: ..... Floor, Inverted, Angle
Robot Motion Speed
S-Axis.......210 °/s (3.67 rad/s)
L-Axis.......170 °/s (2.97 rad/s)
U-Axis......225 °/s (3.93 rad/s)
R-Axis......300 °/s (5.24 rad/s)
B-Axis.......300 °/s (5.24 rad/s)
T-Axis.......420 °/s (7.33 rad/s)
Robot Motion Range - Robot Controllers
S-Axis.....±170°
L-Axis.....+150° - 45°
U-Axis.....+190° - 70°
R-Axis.....±180°
B-Axis.....±135°
T-Axis.....±350°
Get in touch with our team at De Bruin Engineering to find out how the Motoman MRCII SV3 can transform your operations.
