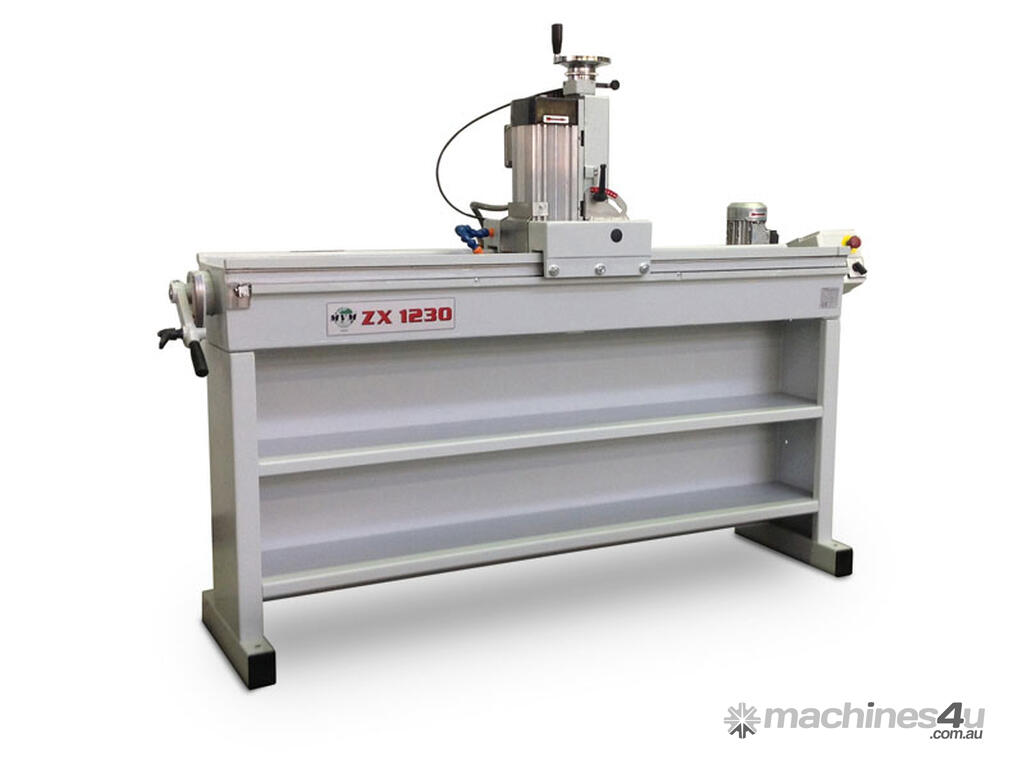

MVM ZX1230 Knife Grinder

MVM ZX Knife Grinders
Looking for a high-performance, industrial-grade sharpening solution? The MVM ZX knife grinders are engineered in Italy for serious sharpening professionals. With robust cast-iron construction, automatic grinding head downfeed, and variable carriage speed options, the ZX series is ideal for chipper knives, planer blades, and various straight-edge tools.

Industrial Knife Sharpening Machine
The MVM ZX model stands out as a powerful industrial knife sharpening machine with precision downfeed and solid cast iron build. It’s suitable for commercial workshops, tool rooms, and manufacturers who demand accuracy and consistency.

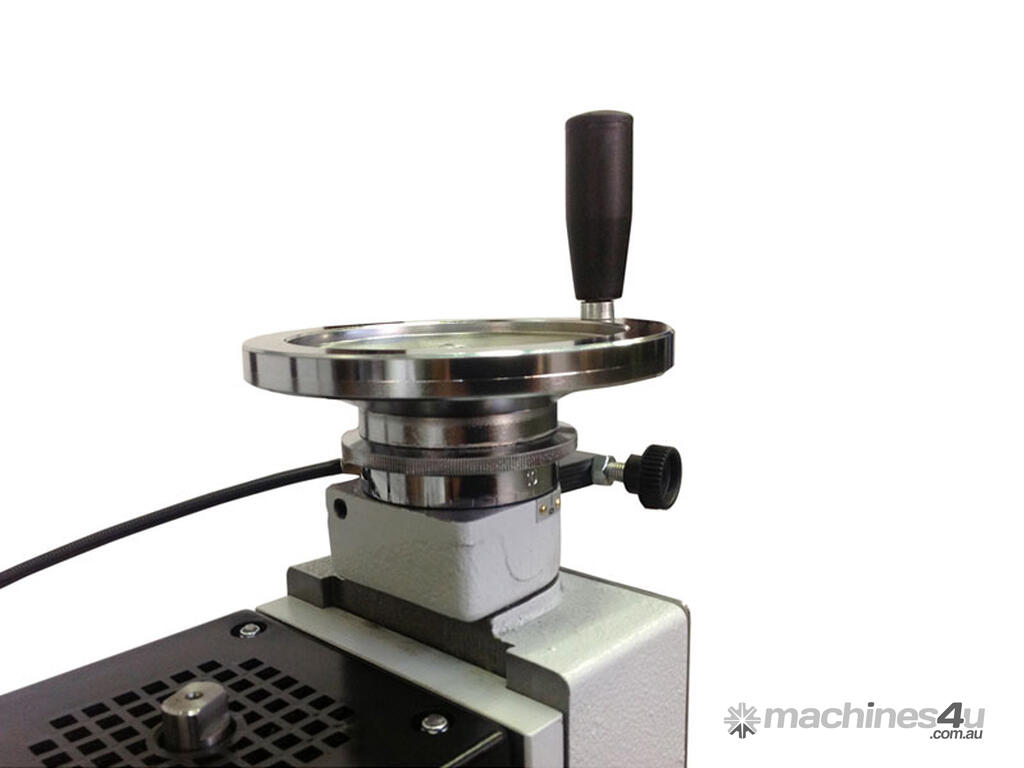

Automatic downfeed and spark-out function

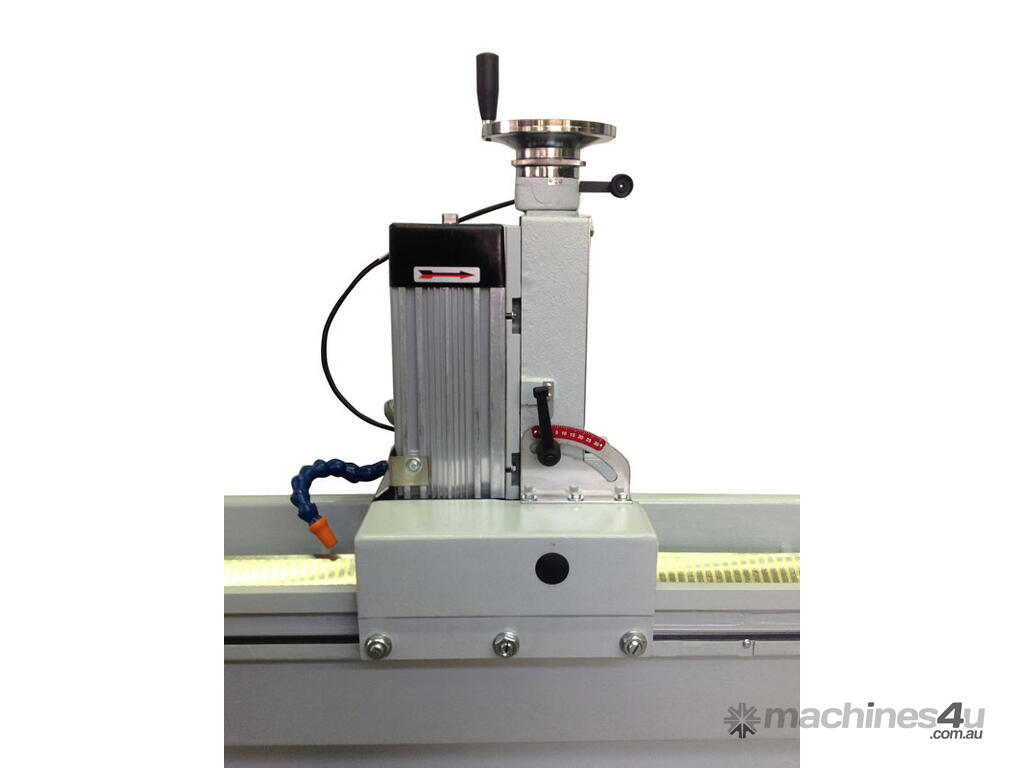

Tilting head for hollow grinding and special profiles

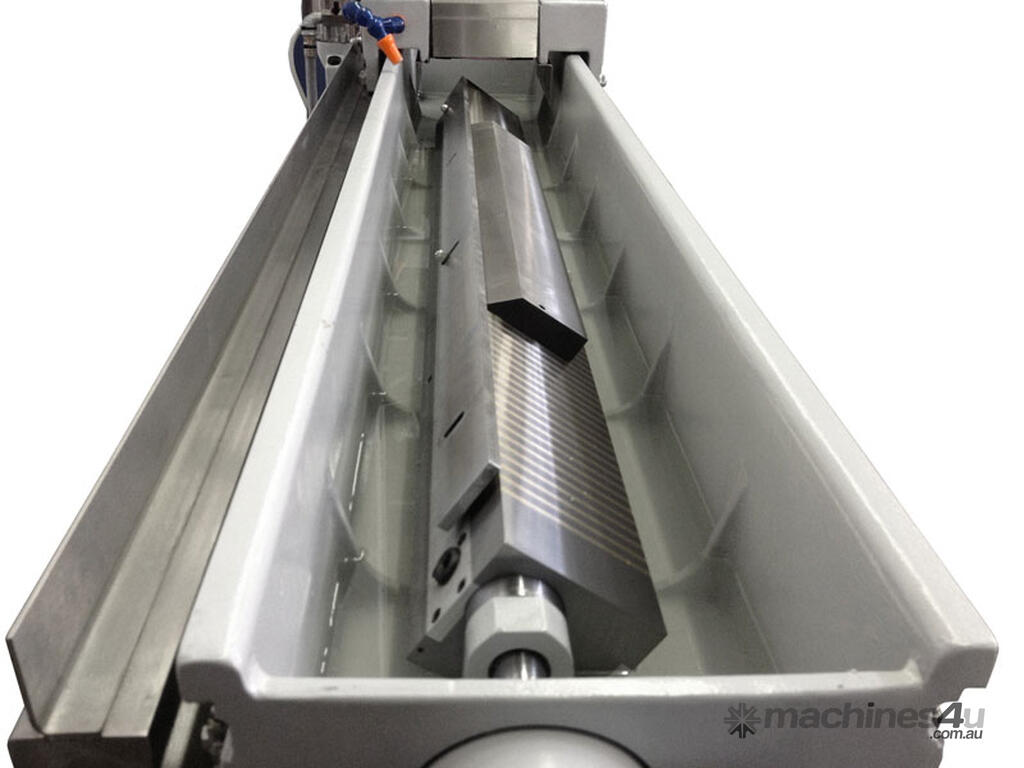

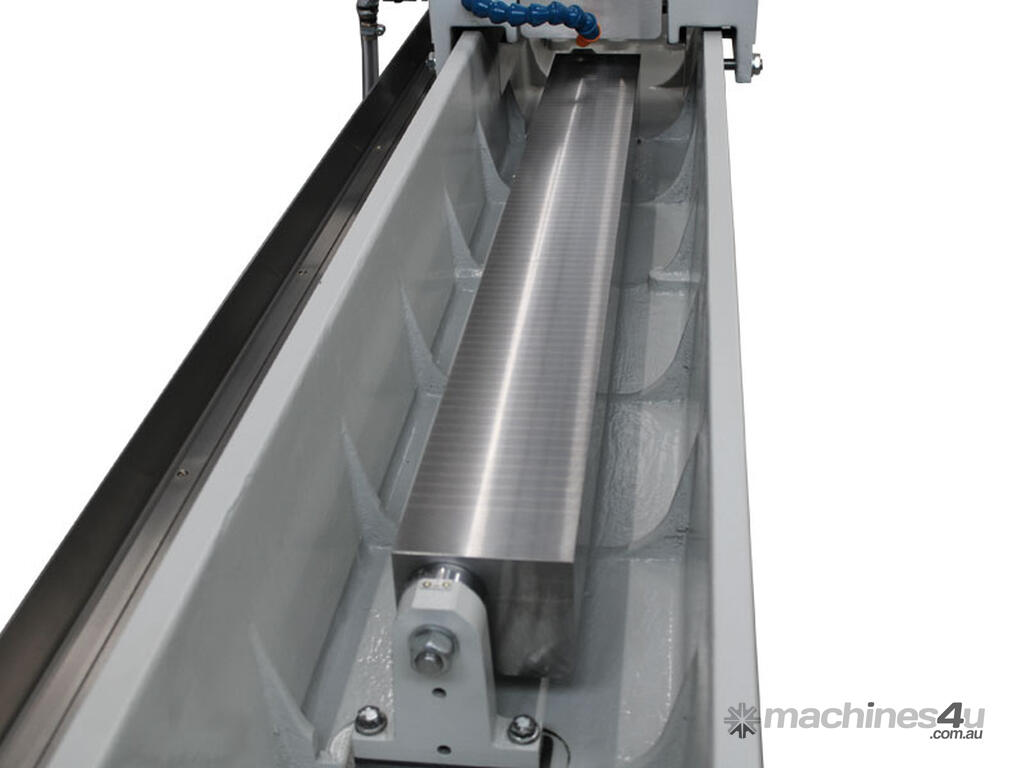

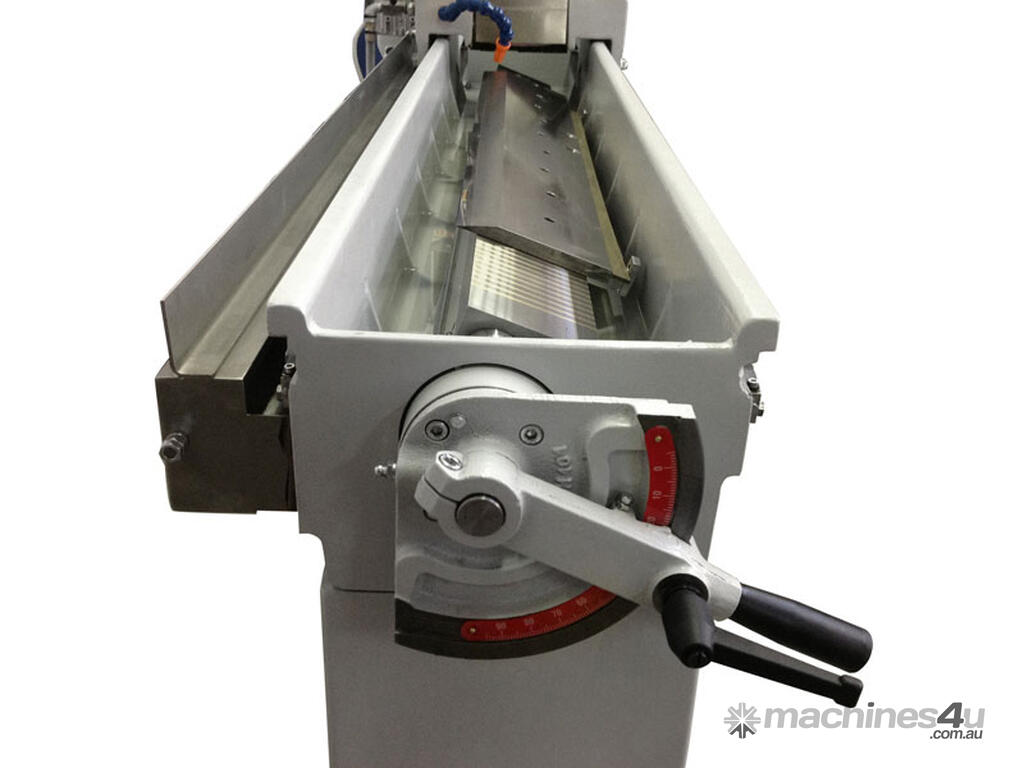

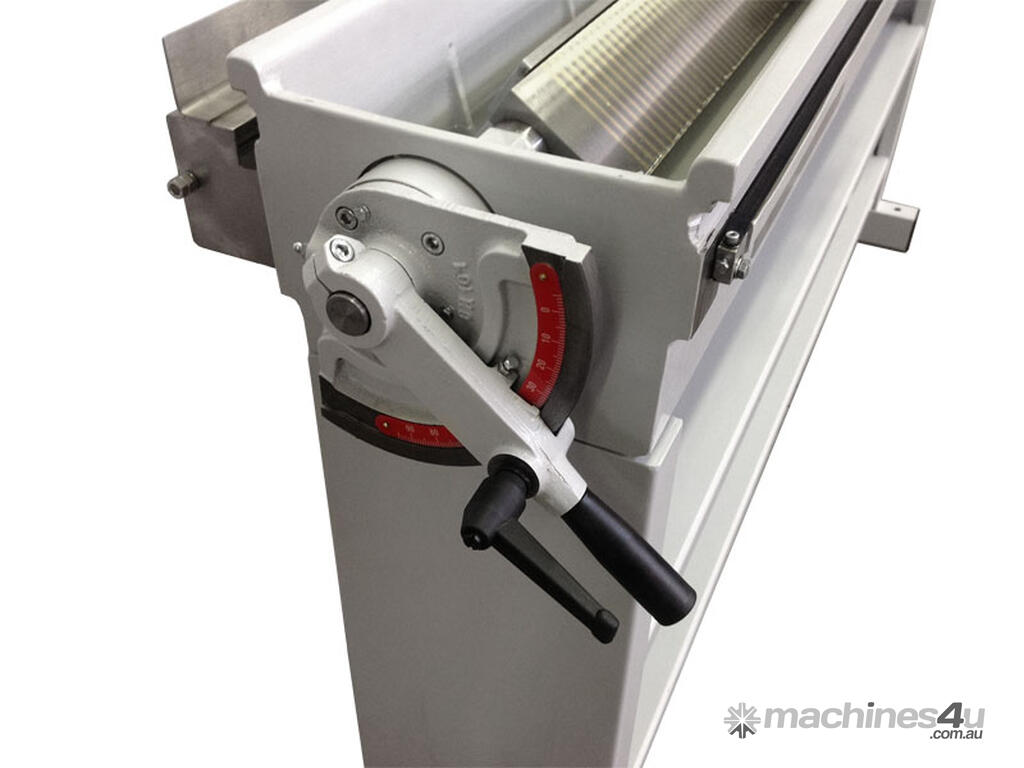

Rotating mechanical chuck (0°–90°)
Hardened steel carriage guides and chain drive
Planer & Chipper Knife Sharpening
Whether you need a planer blade sharpening machine or a chipper knife sharpening machine, the MVM ZX is a versatile solution. With optional accessories for Tersa, Controfix, Kanefusa, and other blade types, it offers flexible setup for multiple sharpening applications.

Sharpens standard and disposable planer knives
Compatible with HM inserts and various industrial blades
Optional magnetic chuck and edge reference bar available
Technical Specifications
Grinding lengths: 1,000 mm / 1,230 mm / 1,400 mm

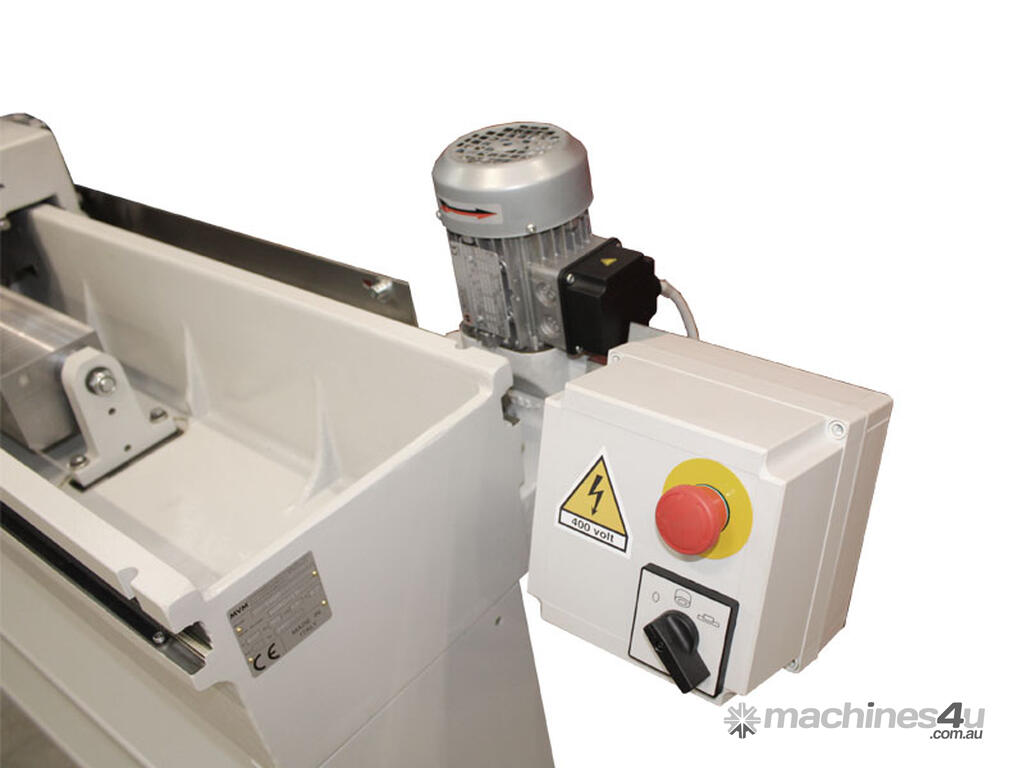

Grinding motor: 1.5 kW, 415V
Cup wheel diameter: 127 mm or 150 mm 2800 rpm
Max clearance between chuck and wheel: 30 mm
Carriage speed: 11 m/min (optional variable speed)
Made in Italy

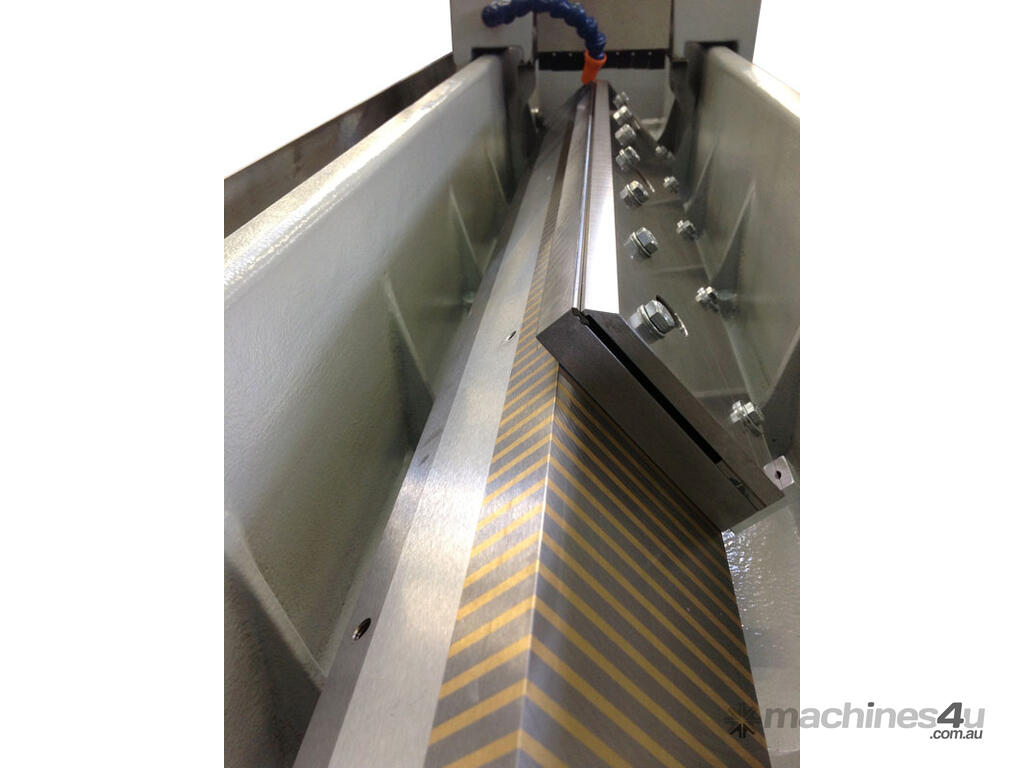

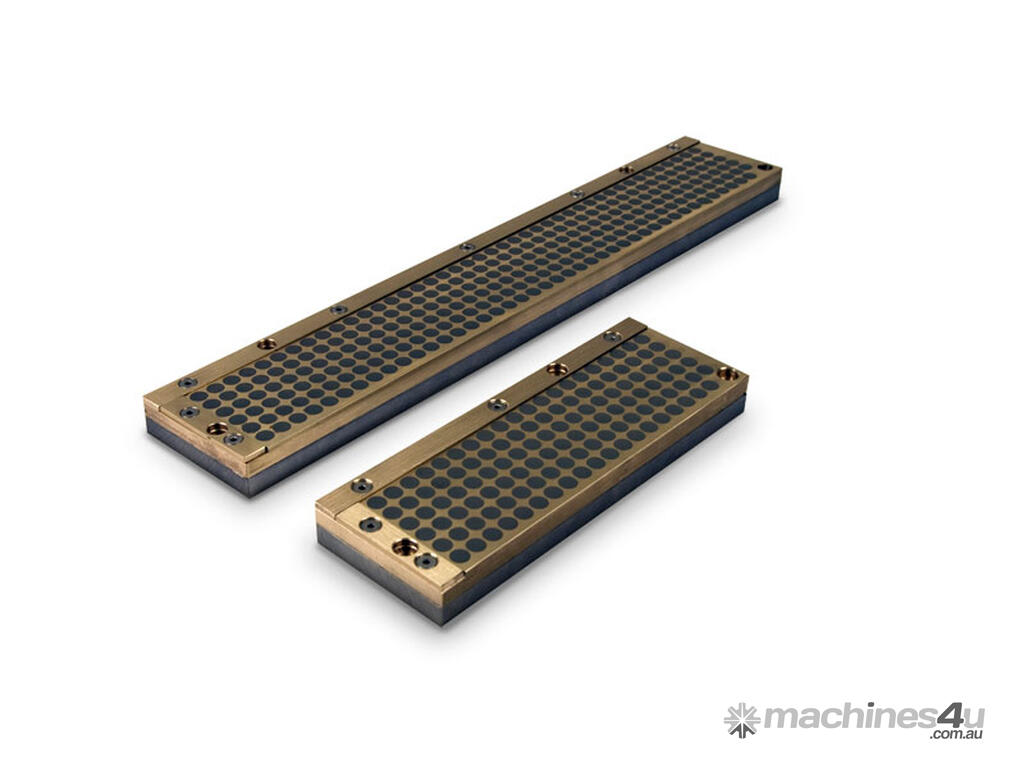

Magnetic chuck;
Variable carriage speed 1-11 m/min;

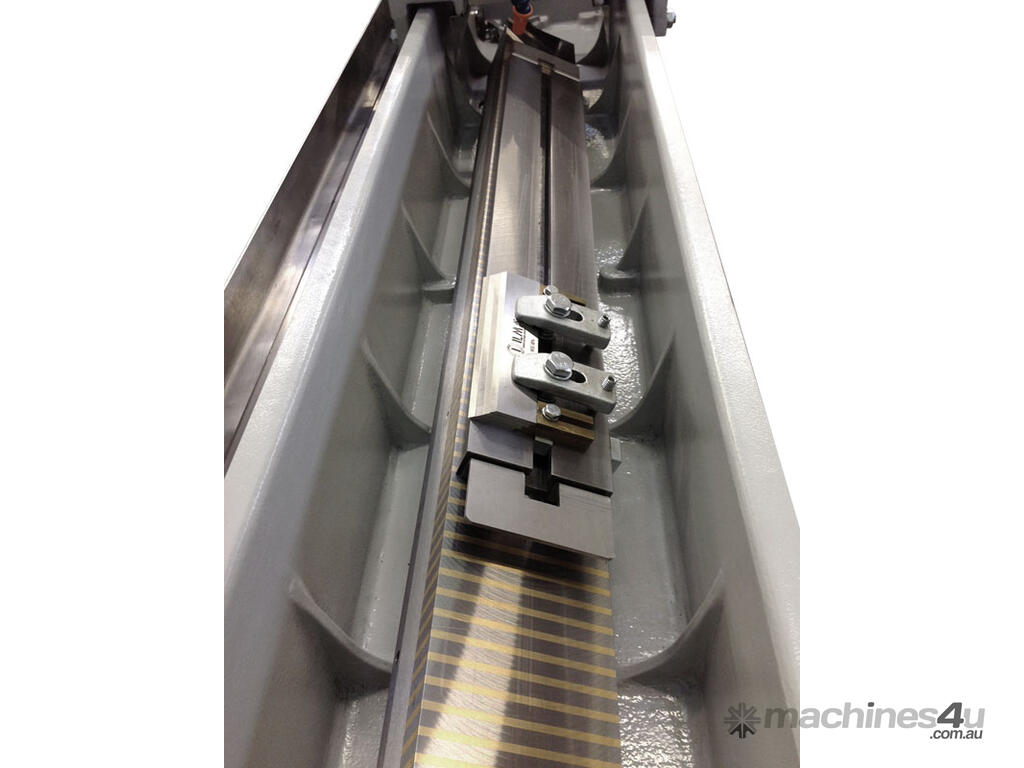

Edge reference bar;

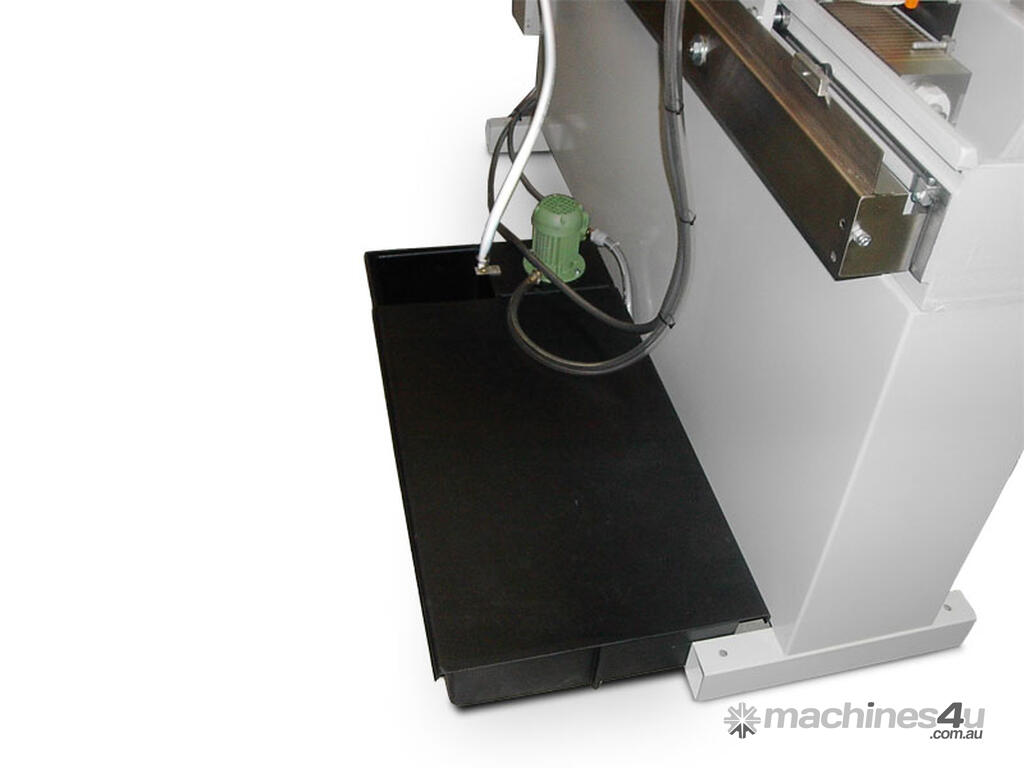

External tank with additional pump;
Grinding motor 2,2 kW (3 HP);
Switch run adjustment;
Camping device for Tersa, Centrofix, Terminus, Kanefusa, Sinus, Weinig knives;

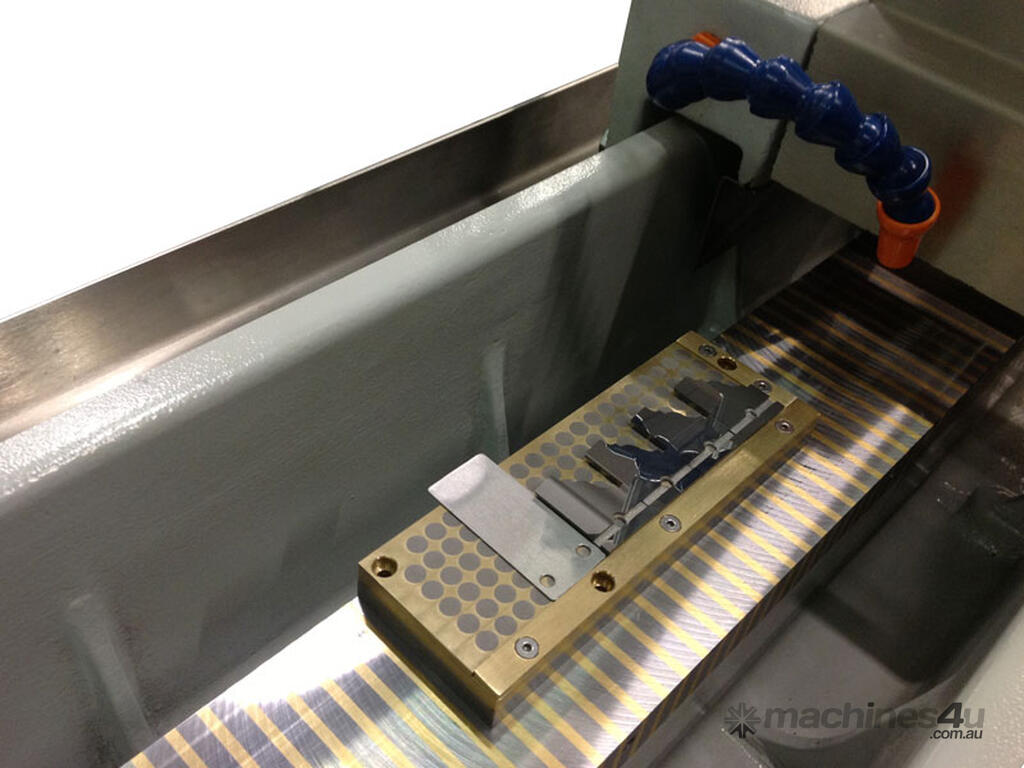

Magnetic chuck for hard metal inserts.
